Product type	Universal travel adapter
Brand	SKROSS
Model	World Adapter Pro+
Category	Electrical adapter
Country compatibility	More than 150 countries
Supported plug types	Australia/China, USA/Japan, UK, Italy/Switzerland, Europe (Schuko)
Main functions	Allows connecting devices with 2 and 3-pole plugs (class I and II) to power outlets worldwide
Selection mechanism	Unlock button and side sliders to select the desired plug
Selected plug display	Yes, by sliding the sliders until they click
Country Adapter Europe included	Yes (Pro+ version)
Voltage conversion	No (passive adapter)
Device compatibility	Hair dryer, mobile phone, shaver, laptop, camera, game console, GPS, video camera, etc.
Maintenance	Protect from moisture and liquids. Clean with a dry cloth.
Safety	Do not use if casing is damaged. Disconnect after use. Keep out of reach of children.
Warranty	2 years
General information	Registered trademark of WorldConnect AG. Subject to technical changes.
Recycling instructions	Do not dispose of with household waste, follow WEEE directive (2002/96/EC) and battery directive (2006/66/EC)

Frequently Asked Questions - World Adapter Pro+ SKROSS

How to use the World Adapter Pro+?

Set all side sliders to the initial position (back). Press the unlock button and slide the slider corresponding to the plug of your destination until it clicks. Insert your device's plug into the adapter, then plug the adapter into the wall outlet.

What types of plugs are compatible?

The adapter supports plug types: Australia/China, USA/Japan, UK, Italy/Switzerland and Europe (Schuko). It is suitable for most 2 and 3-pole plugs with class I and II grounding.

Does the adapter convert voltage?

No, the World Adapter Pro+ is a passive adapter. It does not convert voltage. Make sure your device's input voltage matches the mains voltage of the country you are in.

Can I use a hair dryer with this adapter?

Yes, the hair dryer is one of the compatible devices, provided its input voltage is compatible with that of the country. Check the voltage range of your hair dryer before use.

How do I change the plug for Italy/Switzerland?

Extract the Italy/Switzerland plug until it clicks. To switch from Italy to Switzerland (three aligned pins), firmly press the middle pin to the left until it clicks, then press on the highest point of the middle pin. The adapter is operational only when the three pins are in vertical position.

What if a plug does not click into place?

Check that the slider is fully pressed to the stop. If the problem persists, do not use the adapter and contact customer service at [e-mail].

Is the adapter compatible with 3-pole devices with grounding?

Yes, the World Adapter Pro+ is suitable for 2 and 3-pole plugs with class I and II grounding.

How to clean the adapter?

Clean the adapter with a dry cloth. Protect it from moisture and liquids. Do not use chemicals.

What is the warranty?

The adapter comes with a 2-year warranty. The full warranty terms can be found on the website www.skross.com.

Where can I get assistance if I have a problem?

If you have a problem, contact customer service by email at [e-mail].

USER MANUAL World Adapter Pro+ SKROSS

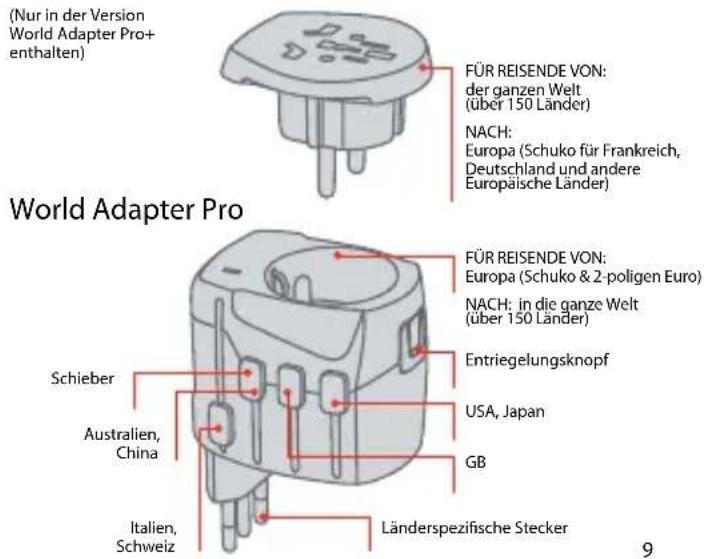

Country Adapter Europe

(Only included in the World Adapter Pro+ version)

Illustration of a small electronic component with three pins and a top cap (no text or symbols)

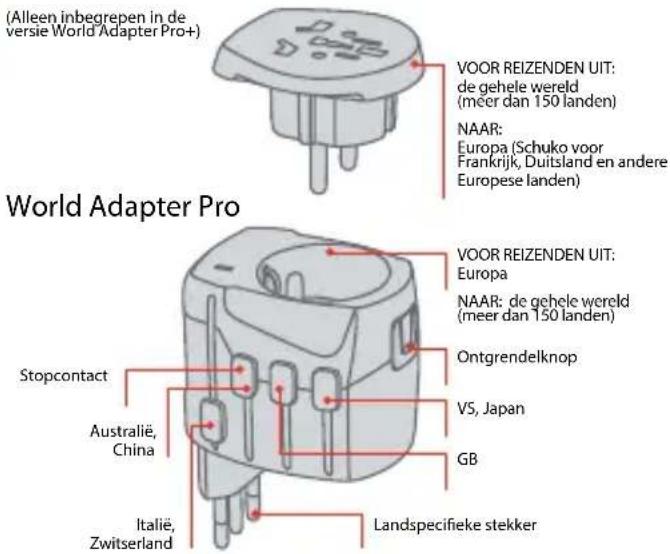

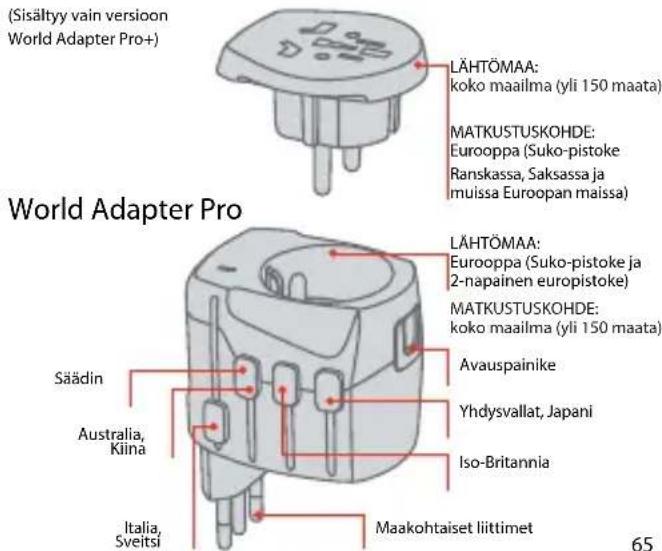

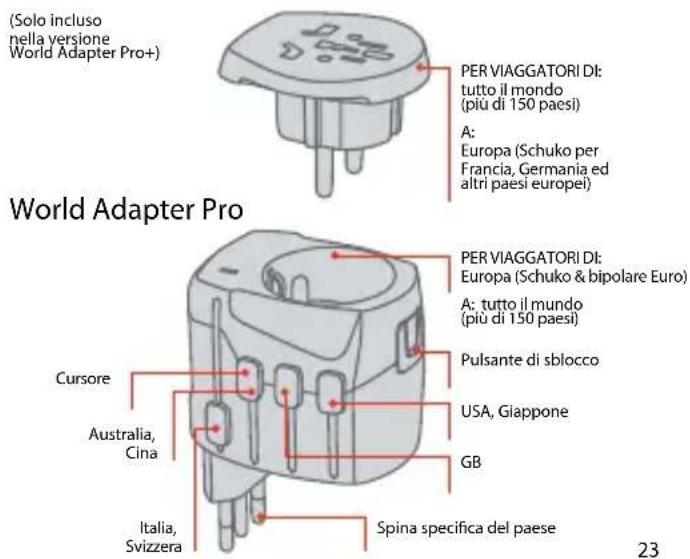

FOR TRAVELLERS FROM: all over the world (more than 150 countries) TO: Europe (Schuko for France, Germany and other European countries)

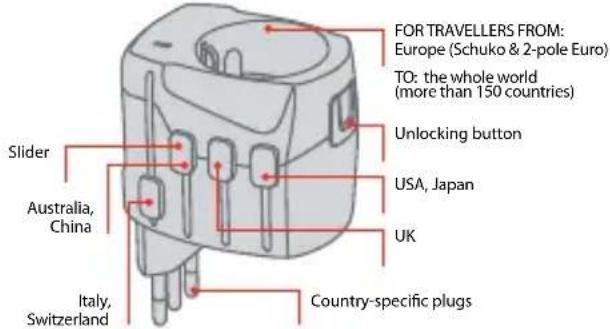

World Adapter Pro

Compatibility (on the socket side)

Australia, China

USA, Japan

UK Italy

Switzerland

Europe (Schuko) (Pro+ only)

The SKROSS World Adapter Pro/Pro+ is suitable for most 2-pole, 3-pole and earthed plugs of protection classes I and II; this is the safest way of plugging in your portable devices around the world.

It can be used with a range of devices, including: dryer, smart phone, shaver, MP3 player, laptop, camera, game console, GPS, camcorder, etc.

Row of eight electronic devices including a handheld device, smartphone, microphone, laptop, camera, remote control, and smart TV (no text or symbols visible)

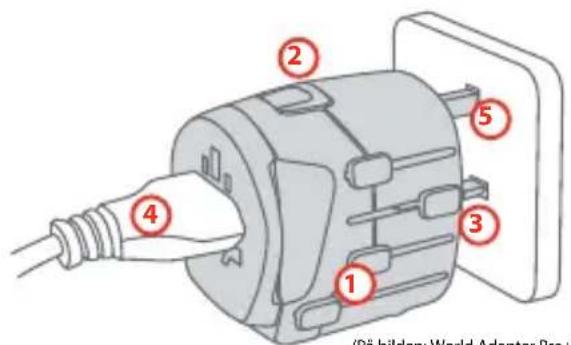

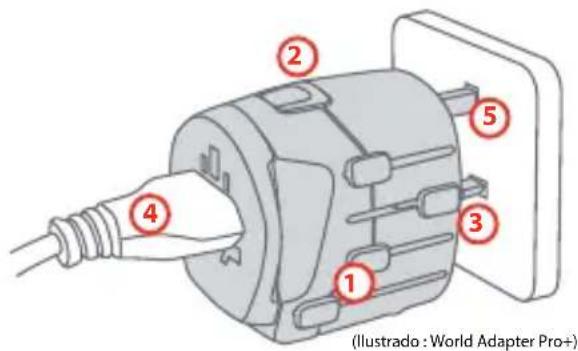

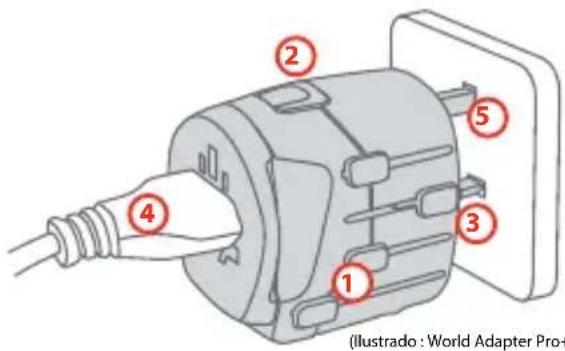

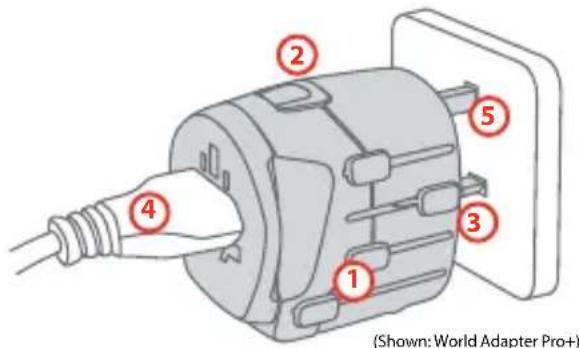

Basic Use

Before use, move all sliders on the sides completely back into their starting positions (1).

Press the unlocking button (2) and move the slider you have selected forward until it clicks into place (3).

Connect the device plug receptacle of the electrical circuit to the adapter (4).

Connect the adapter to the mains (5).

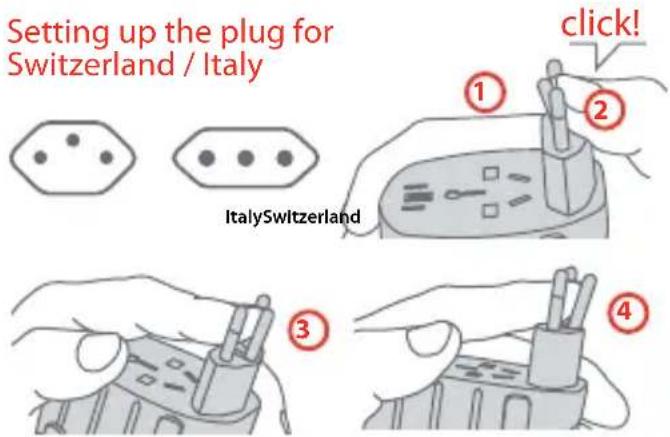

Push out the Switzerland / Italy plug until it locks into place (as described before) (1). Changing from the Italian to the Swiss plug (all three pins must be aligned in a row): Push middle pin to the left with slight force until you hear a distinct "click" (2). Then push the pin on the top to the right (3).

The adapter is not ready for use until all three pins are in the vertical position. To change to the setting for Italy, simply reverse the procedure (4).

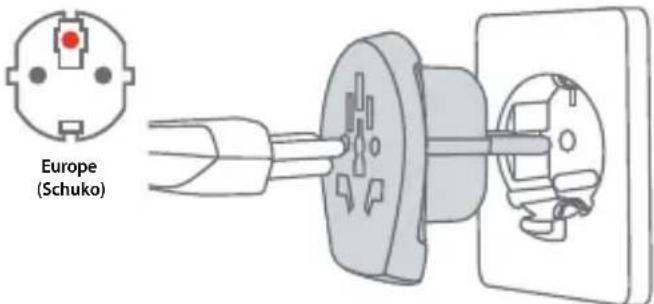

Using the Country Adapter Europe

(Only included in the World Adapter Pro+ version)

Remove the integrated Country Adapter Europe from the World Adapter Pro and connect it to the receptacle. Connect the device plug or charger to the Country Adapter Europe. You do not need the World Adapter Pro itself.

Precautionary Measures

• Do not use the adapter if the housing is damaged.
• Do not expose the adapter to any kind of liquid or moisture.
• This adapter is not converting voltage; the input voltage of the device you want to connect must match the local power network voltage.
• Keep away from children.
• Disconnect the adapter from the receptacle of the electrical circuit when you are not using it. Improper use of the adapter automatically voids the manufacturer's warranty. The manufacturer assumes no liability for damages.
  • You must keep these instructions for future use.

Customer Service

If you have any problems operating the SKROSS World Adapter Pro/Pro+, please contact us at [e-mail].

Terms of Warranty

2-years warranty. For the full text of our terms of warranty, refer to our website at: www.skross.com.

All products and software mentioned in this document are registered trademarks and the property of their respective owners. Errors reserved.

©2011 WorldConnect AG. All rights reserved. SKROSS is a registered trademark of WorldConnect AG. All trademarks and registered trademarks are the property of their respective owners. Changes of technical data reserved.

Country Adapter Europe

Country Adapter Europe

Illustration of a small electronic component with three pins and a red arrow pointing to its top surface (no text or symbols)

Illustration of a hand holding a mechanical component (no text or symbols visible)

3

Illustration of a hand holding a battery with two test tubes, no text or symbols present

Country Adapter Europe

Country Adapter Europe

Illustration of a small electronic component with three pins and a top cap (no text or symbols)

Row of eight grayscale icons representing various devices and devices (no text or symbols)

Utilización básica

Illustration of a hand holding a mechanical device with a tool (no text or symbols visible)

3

Illustration of a hand holding a device with a pen inserted, no text or symbols visible

Country Adapter Europe

Row of eight grayscale icons representing various devices and devices (no text or symbols)

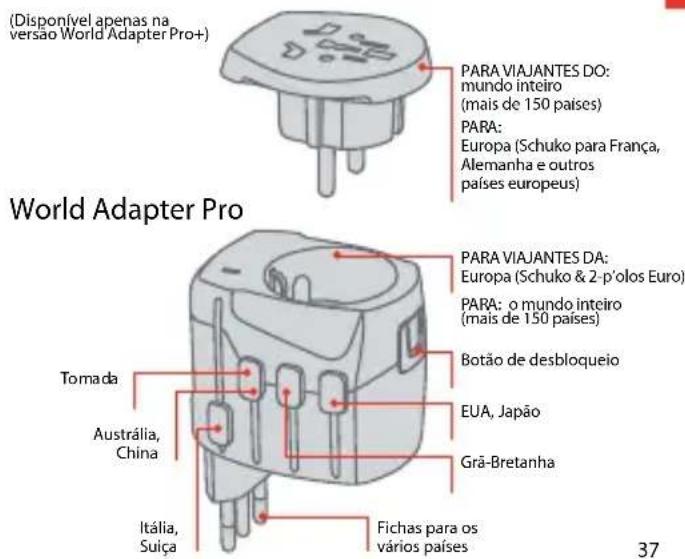

Utilização

Illustration of a hand holding a mechanical component (no text or symbols visible)

3

Illustration of a hand holding a battery pack with two pens, no text or symbols present

Country Adapter Europe

Row of eight grayscale icons representing various devices and apps (no text or symbols)

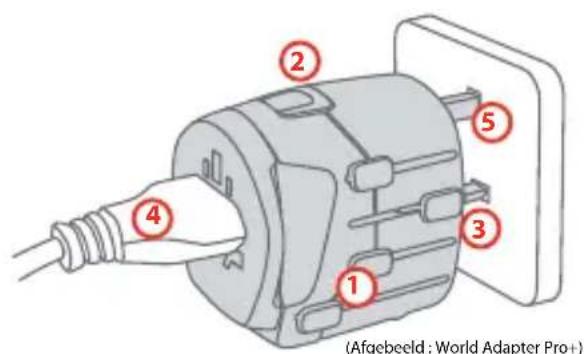

Basisgebruik

Illustration of a hand holding a mechanical component (no text or symbols visible)

3

Illustration of a hand holding a battery with two test tubes, no text or symbols present

Country Adapter Europe

Row of eight icons representing various devices and devices (no text or symbols)

Basanvändning

(På bilden: World Adapter Pro+)

Country Adapter Europe

Illustration of a small electronic component with three pins and a top cap (no text or symbols)

FOR REISENDE FRA: hele verden (over 150 land)

Row of eight grayscale icons representing various devices and devices (no text or symbols)

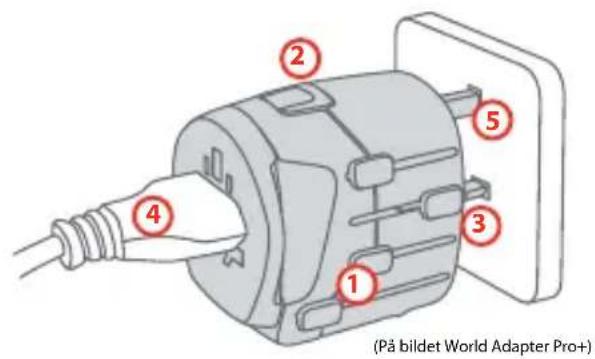

Grunnleggende bruk

Country Adapter Europe

Row of eight gray icons representing various devices and devices (no text or symbols)

Peruskäyttö

Illustration of a hand holding a small electronic device with a sensor or connector (no text or symbols visible)

3

Illustration of a hand holding a tool with two pens, no text or symbols present

q | Gambia (Republic

of the)

Georgia

Germany

Ghana

Gibraltar

Greece

Greenland

Grenada

Guadeloupe

Guam

Guatemala

Guinea

Guyana

h

Haiti

Honduras

Hong Kong

Hungary

i Iceland

Indonesia

Iraq

Ireland

Isle of Man

Italy

j

Jamaica

Japan*

Jordan

Kenya

Kiribati

Korea South

k

Kuwait

Laos

Latvia

Lebanon

Liberia

Liechtenstein

Lithuania

Luxembourg

Macau

Macedonia

Madagascar

Madeira

Malawi

Malaysia

Maldives

Mali

Malta

Martinique

Mauritius

Mexico

Micronesia

Moldova

Monaco

Mongolia

Montenegro

Montserrat

Morocco

Mozambique

Myanmar (Burma)

n | Nauru

Netherlands

Netherlands Antilles

New Caledonia

New Zealand

	Niger	Serbia
	Nigeria	Seychelles
	Norway	Sierra Leone
o	Okinawa	Singapore
	Oman	Slovakia
p	Panama	Slovenia
	Papua New Guinea	Spain
	Peru	St. Kitts-Nevis
	Philippines	St. Lucia
	Poland	St. Vincent and the Grenadines
	Portugal
	Puerto Rico	Suriname
q	Qatar	(Republic of)
r	Romania	Sweden
	Russia	Switzerland
	Rwanda	Syria
s	Samoa	t Tahiti
	Samoa (US	Taiwan
	American part)	Tajikistan
	Saudi Arabia	Tanzania
	Senegal	Thailand

	Tonga
	Trinidad & Tobago
	Tunisia
	Turkey
	Turkmenistan
U	Uganda
	Ukraine
	United Arab Emirates
	United Kingdom
	United States of America
	Uruguay
	Uzbekistan
V	Vanuatu
	Venezuela
	Vietnam
	Virgin Islands
Y	Yemen
Z	Zambia
	Zimbabwe

*Use might be restricted in this country.

Exclusion of Liability

This product has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken for safety to be assured. WorldConnect AG shall under no circumstances be liable for any loss and/or damage caused by: fire; earthquake; accidental damage; intentional misuse of the product; use of the product in improper conditions; loss and/or damage caused to the product whilst in the possession of a third party; any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual; any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment.

Furthermore, under no circumstances shall WorldConnect AG be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

The information in the operation manual can be changed without prior notice. The manufacturer offers no promise or guarantee, either implicit or explicit, as to the accuracy or completeness of the operation manual.

Deutsch

This symbol (crossed out bin wheelie symbol according to WEEE Directive 2002/96/EC and Battery Directive 2006/66/EC) indicates separate collection of waste electrical and electronic equipment as well as batteries in the EU countries. Please do not throw the equipment respectively the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal.
