USER MANUAL XGM32V4 KeepOut

• HDMI cable Note: Make sure that your packaging contains the items described above. If you find any items missing or damaged, please contact the store where you purchased the product.

SAFETY AND MAINTENANCE INSTRUCTIONS

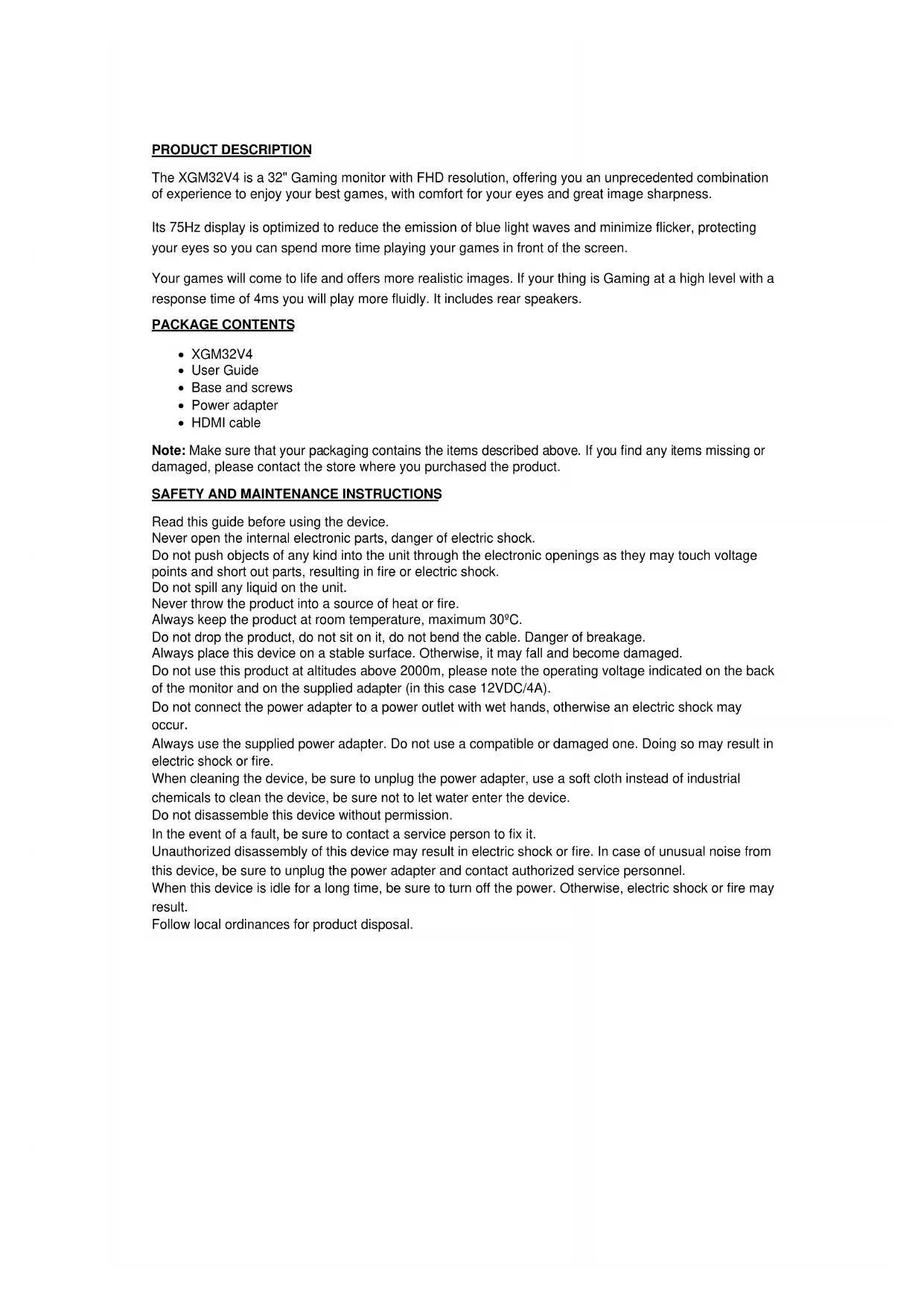

Read this guide before using the device. Never open the internal electronic parts, danger of electric shock. Do not push objects of any kind into the unit through the electronic openings as they may touch voltage points and short out parts, resulting in fire or electric shock. Do not spill any liquid on the unit. Never throw the product into a source of heat or fire. Always keep the product at room temperature, maximum 30ºC. Do not drop the product, do not sit on it, do not bend the cable. Danger of breakage. Always place this device on a stable surface. Otherwise, it may fall and become damaged. Do not use this product at altitudes above 2000m, please note the operating voltage indicated on the back of the monitor and on the supplied adapter (in this case 12VDC/4A). Do not connect the power adapter to a power outlet with wet hands, otherwise an electric shock may occur. Always use the supplied power adapter. Do not use a compatible or damaged one. Doing so may result in electric shock or fire. When cleaning the device, be sure to unplug the power adapter, use a soft cloth instead of industrial chemicals to clean the device, be sure not to let water enter the device. Do not disassemble this device without permission. In the event of a fault, be sure to contact a service person to fix it. Unauthorized disassembly of this device may result in electric shock or fire. In case of unusual noise from this device, be sure to unplug the power adapter and contact authorized service personnel. When this device is idle for a long time, be sure to turn off the power. Otherwise, electric shock or fire may result. Follow local ordinances for product disposal.INPUTS AND OUTPUTS HDMI input If your PC has HDMI video output, connect the supplied HDMI cable between the HDMI input of the monitor and the HDMI output of the PC. This input is HDMI version 1.4. VGA input If your PC has VGA video output, purchase a VGA cable and connect it between the VGA input of the monitor and the VGA output of the PC. DC input Connect the supplied power supply cable to the DC input of the Monitor and plug the adapter into a household electrical outlet. 12V/4A power supply. 3.5mm jack input This input can only be used if the monitor is connected via a VGA cable, purchase a 3.5mm Jack to 3.5mm Jack (male-male) cable and connect it between the audio output of your PC and the 3.5mm Jack input of the monitor, the PC audio will be played through the rear speakers of the monitor.

FUNCTIONS OF THE BUTTONS

Press the power button to turn the monitor on or off. Note: To access the monitor options you must have a source connected to one of the monitor inputs. Press the up button to move up through the different menus and modify the values. If you are not in the OSD menu, it allows you to change the brightness of the display. Press the down button to move down through the different menus and change values. If you are not in the OSD menu, it allows you to change the different types of screen displays. Press the Menu button to display the OSD menu on the screen. Once inside, it also has the function to accept or access the internal functions. Press the Auto button to exit the current menu or exit the OSD menu. If you are not in the OSD menu, a crosshair is displayed on the screen.OSD MENU The OSD menu of the monitor provides various settings for the monitor, such as colour, brightness and contrast, etc. IMAGE BRIGHTNESS Allows you to adjust brightness levels CONTRAST Adjusts contrast levels ECO MODE Allows you to select different presets. DCR Enables or Disables the DCR setting. COLOR COLOR TEMPERATURE Allows you to set different colour options: User, Cool, Normal, Warm, Normal, Warm. RED Make adjustments with red colours prevailing GREEN Make adjustments with green colours prevailing BLUE Make adjustments prevailing the blue colours

ASPECT RATIO Allows you to set the screen aspect ratio to 16:9 or 4:3 BLUE FILTER Allows you to enable the blue filter CONFIGURATION LANGUAGE Allows you to select the language INPUT SIGNAL Allows you to select the image source

Allows you to adjust the OSD position horizontally

Allows you to adjust the position of the OSD vertically MENU TIME Allows you to adjust the OSD time VOLUME Adjusts the volume of the speakers RESTORE VALUES Allows you to adjust the default values INFORMATION

Displays frequency and resolution

TECHNICAL SUPPORT For more information about the installation of this product, please visit our website keepoutgaming.com or send an email to [e-mail]. TECHNICAL SPECIFICATIONS Display: 32 "Grade A Matte Type: VA Resolution: FHD 1920 * 1080 Frequency: 75Hz Response time: 4ms Backlight: LED Viewing angle: H: 178 ° V: 178 ° Brightness: 400cd / m2 Contrast: 4000: 1 Format: 16: 9 Inputs: VGA, HDMI, Audio Jack 3.5mm Speakers: 2 * 3W Vesa: 100mm x 100mm 3-colour rear lightingPower Adapter Specifications Name or brand APPROX Commercial register number B-91202499 Manufacturer's address C/Tecnología, 5. Gelves. Seville. 41120 Model Identifier THX-120400KDV Description Model identifier AC/DC adapter for XGM32V4 Input voltage

Max. output power 48W Average active efficiency 88.37% Efficiency at low load (10%) 86.43% No load power consumption 0,056W
