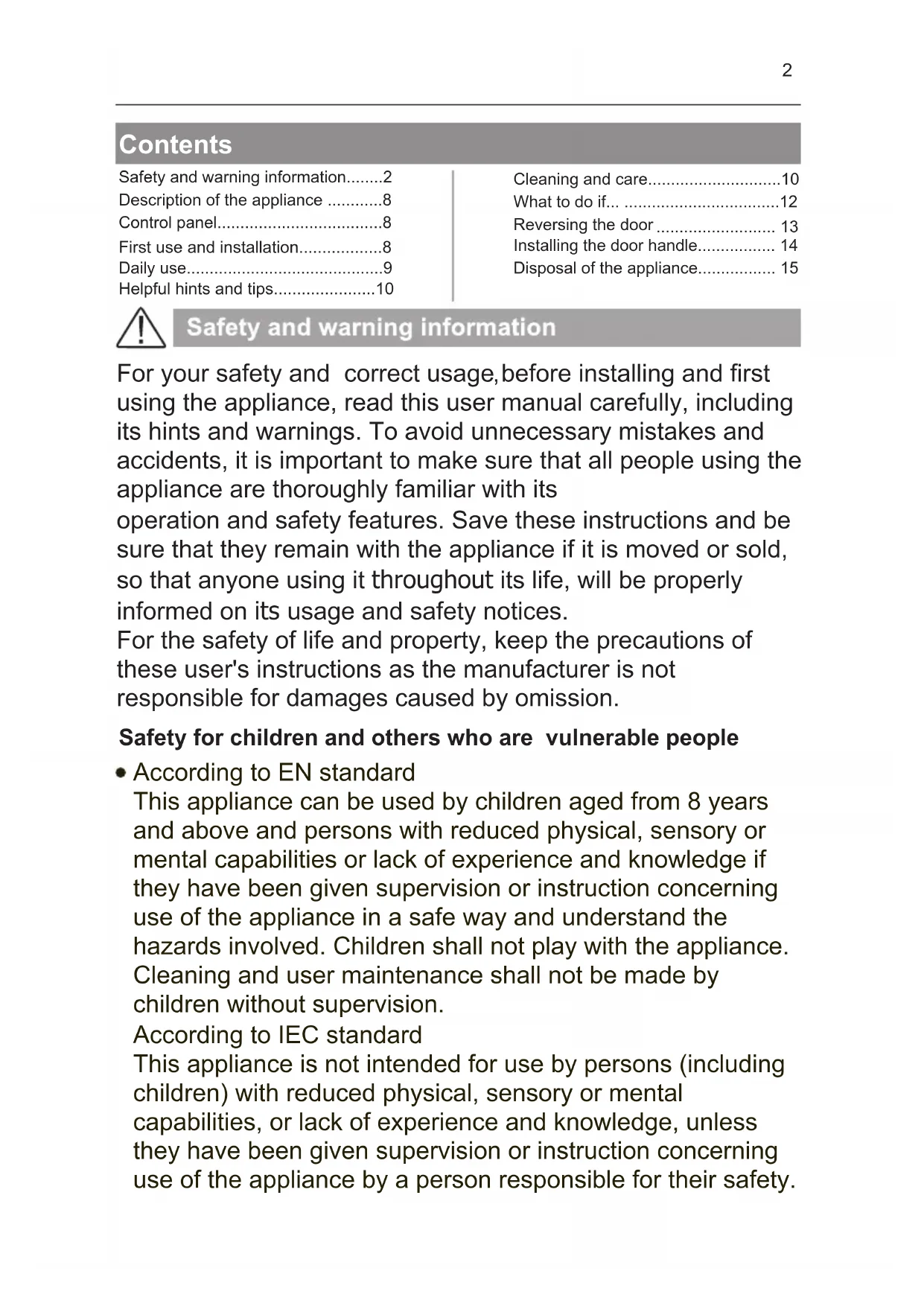

USER MANUAL GS 10010 E SIBIR

For your safety and correct usage before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not

• responsible for damages caused by omission. Safety for children and others who are vulnerable people According to EN standard According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Safety and warning information p. 2
• Description of the appliance p. 8
• Control panel p. 8
• First use and installation p. 8
• Daily use p. 9
• Helpful hints and tips p. 10
• Installing the door handle p. 14
• Cleaning and care p. 10
• What to do if p. 1

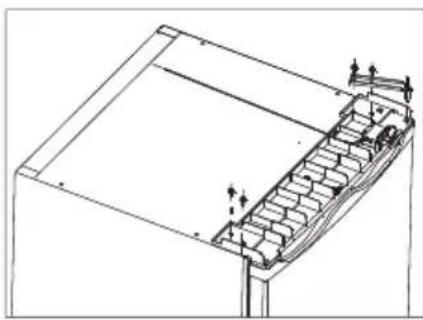

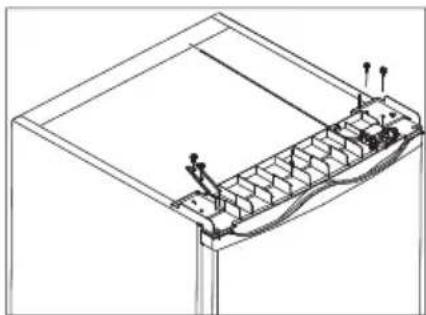

• Reversing the door Keep all packaging away from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non-retail applications. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. 3WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. If the refrigerant circuit should be damaged: -Avoid opening flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. Replacing the illuminating lamps WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. p. 13

WARNING Risk of fire / flammable materials :Daily use Do not store flammable gass or liquids in the appliance, There is a risk of an explosion. Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.). When unplugging always pull the plug from the mains socket,do not pull on the cable. Do not place hot items near the plastic components of this appliance. Electrical safety 1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged.

A crushed or damaged power plug may overheat and cause a fire.

3. Make sure that you can access the main plug of the

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire. 6.You must not operate the appliance without the interior lighting lamp cover. 7.The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire, and/or electric shock. 5Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to.Refer to relrelevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance. Frozen food can cause frost burns if consumed straight from the freezer compartment. Do not place the appliance in direct sunlight. Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or frost/freezer burns. Never use the base,drawers, doors etc. to stand on or as supports. Frozen food must not be refrozen once it has been thawed out. Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers. caution! Care and cleaning 6Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation. The appliance must not be locate close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. Service Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. 1)If the appliance is Frost Free. 2)If the appliance contains freezer compartment. Installation Important! For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.(This clause applies only to the EU region.) 7Description of the appliance

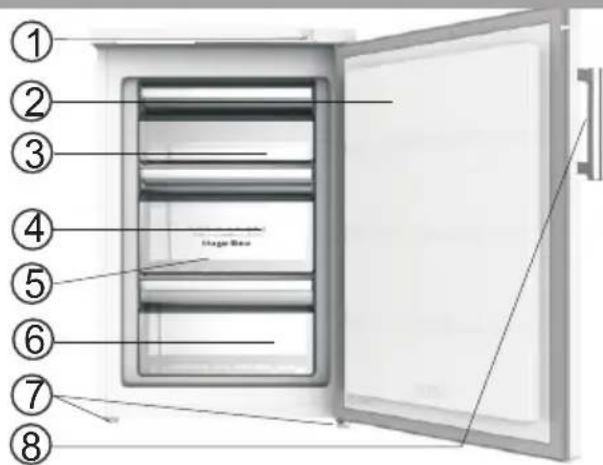

1. Temperature regulator

3. Upper drawer in freezer

4. Middle drawer in freezer

6. Lower drawer in freezer

8. Door handle(some models have)

View of the appliance Control panel Note: Due to continual modification of our products, your refrigerator may be slightly different from this instruction Manual, but its functions and usage methods remain the same. Starting up and temperature regulation Insert the plug of the connection lead into the plug socket with a protective grounding contact. The temperature selector knob is located on the top of the freezer compartment. Thermostat Control The thermostat control situated in the control panel regulates the temperature of the freezer compartment. Positon"cold"Positon"Mid"Positon"Colder" The temperature will be affected by: Room temperature; How often the door is opened; How much food is stored; Position of the appliance. First use and installation Cleaning before use Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and meutral soap in order to remove the typical smell of a brand new product, then dry thoroughly. Installation Positioning Warning! Before installing, read the instruction carefully for your safety and the correct operation of appliance. Position the appliance away from sources of heat such as stoves, radiators, direct sunlight, etc.

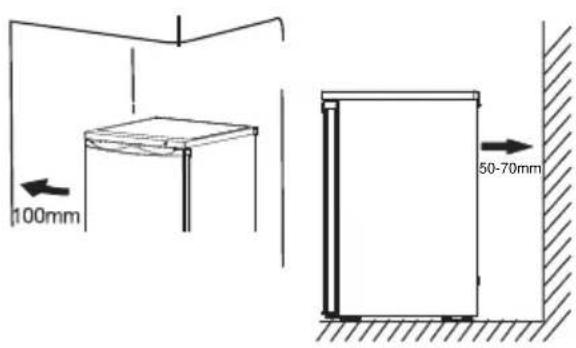

To get the best energy efficiency of this product, please place all shelves,drawers on their original position as the illustration above. appliance NOTE: For optimum food preservation, a medium setting (Mid) is generally the most suitable. hig50-70mm Daily use Accessories 1) For storing frozen food. Maximum performance and safety are guaranteed by maintaining the correct indoor temperature for the class of unit concerned, as specified on the rating plate. This appliance performs well from S N to T. The appliance may not work properly if it is left for a longer period at a temperature above or below the indicated range. Important! It is necessary to have good ventilation around the freezer to allow for the dissipation of heat.For this reason,sufficient clear space should be available around the appliance. It is advisable for there to be 50-70mm separating the back of the freezer the wall at least 100mm of space on its sides and a clear space in front to allow doors to open 160

Appliances must not be exposed to rain. Sufficient air must be allowed to circulate in the low rear section of the appliance, as poor air circulation can affect performance. Built-in appliances should be positioned away from heat sources such as heaters and direct sunlight. The appliance should be level in order to eliminate vibration. To make the appliance level, it should be upright and both adjusters should be in stable contact with the floor. You can also adjust the level by unscrewing the appropriate level adjustment in the front (use your fingers or a suitable spanner). Leveling Caution! Any electrical work required to install this appliance should be carried out by qualified or authorized personnel. Warning! This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed. Electrical connection Freezer Drawer For making ice and storing ice- cubes. Ice tray For freezing fresh food and storing frozen and deep-frozen food for long periods of time. Freezer food compartment 2) Thawing food 2) In the freezer compartment In a microwave oven

1) If the appliance contains related accessories

2) If the appliance contains a freezer compartment.

At room temperature In a conventional or convection oven Food once thawed should be re-frozen with the exception of special cases

two NOTE: This refrigerating appliance is not intended to be used as a built-in appliance.Helpful hints and tips Noises during operation Clicks - Whenever the compressor switches on of off, a click can be heard. Humming - As soon as the compressor is in operation, you can hear it humming. Bubbling - When refrigerant flows into thin tubes, you can hear bubbling or splashing noises. Splashing - Even after the compressor has been switched off, this noise can be heard for a short time. Energy saving tips Do not install the appliance near stoves, radiators or other sources of warmth. Keep the time the appliance is open to a minimum. Do not set the temperature colder than necessary. Make sure the side plates and back plate of the appliance are at some distance from the wall, and follow the instructions relevant to installation. If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as it would produce an effect on energy consumption. Hints for freezing When first staring-up or after a period out of use. Before putting the food in the compartment, let the appliance run at least 2 hours on the higher settings. Prepare food in small portions to enable it to rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required. ‘Wrap up the food in aluminum foil or polyethylene (plastic) and make sure that the packages are airtight. Do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise in the temperature of latter. Iced products, if consumed immediately after removal from the freezer compartment can possibly cause skin to become freezer burnt. It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food Make sure that commercially frozen food was stored by the retailer. Once defrosted, foods deteriorate rapidly and can not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. Note: If the appliance contains related accessories and functions. Cleaning and care Cleaning and care For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly. The appliance should be cleaned and maintained at least every two months. Warning! Danger of electrical shock! The appliance should not be connected to the main power supply during cleaning. Before cleaning, switch the appliance off and remove the plug from the main power supply, switch off, or shut off the circuit breaker of fuse. Notice! Remove the food from the appliance before cleaning. Store them in a cool place and keep well covered. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components. 10Hot vapors can lead to the damage of plastic parts. Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from an orange peel, butyric acid, or cleansers that contain acetic acid. Do not allow such substances to come into contact with appliance parts. Do not use any abrasive cleansers. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used. After cleaning, wipe with fresh water and a clean dish cloth. Accumulation of dust at the condenser increases energy consumption; clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.(Only for the outside-condenser product) Check the water drain hole on the rear wall of the refrigerator compartment. Clear a blocked drain hole with the aid of something like soft green peg, an be careful not to create any damage to the cabinet by sharp objects. After everything is dry, the appliance back into service. them into the fresh food compartment temporarily. leave the door of the refrigerator open until ice and frost dissolve thoroughly and accumulate at the bottom of the freezer chamber. Wipe out the water with soft cloth. In order to speed up the process of defrosting, you may put a bowl of warm water (about 50℃) into the freezer chamber and scrape away the ice and frost with a defrosting spatula. After doing so, be sure to set the knob of the temperature regulator to the original position. It is not advisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to avoid deformation of the inner case. It is also not advisable to scrape off ice and frost or separate foods from the containers which have been congealed together with the food with sharp tools or wooden bars, so as not to damage the inner casing or the surface of the evaporator. Defrosting Defrosting in frozen food storage compartment Defrosting in the freezer chamber is operated manually. Before defrosting, take the foot out. Tale the ice tray and drawers out or put Notice! The appliance should be defrosted at least once a month. During its usage, if the door has been used in extreme humidity, we advise the user to defrost every two weeks. Taking the appliance out of service Empty the appliance Pull out the power plug Clean thoroughly (see section: Cleaning and Care). Leave the door open to prevent odours 11Installing the door handle If there is door handle separately provided in a plastic bag with your appliance, you can install it as follows .

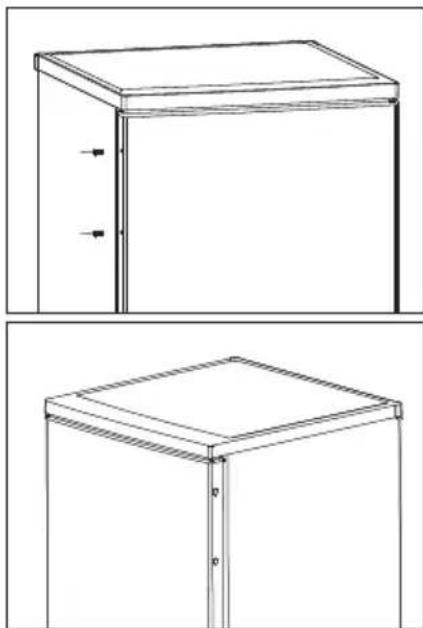

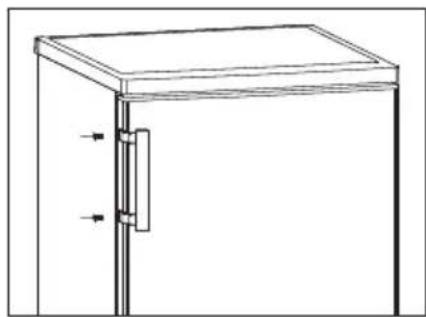

1. Remove the screw on the door.Keep or

install the screw covers on the side which have hinge.

2. Match the handle hole to the door , then

fix the screw which you removed from the door to make the handle fixed firmly on the door. 14Disposal of the appliance It is prohibited to dispose of this appliance in domestic household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a suitable waste collection container to recycle it. Before disposal of the appliance.

1. disconnect the main plug from the main socket.

2. Cut off the main cable and discard it.

Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. 15To avoid contamination of food, please respect the following instructions Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. systems. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- Clean regularly surfaces that can come in contact with food and accessible drainage Order Compartments TYPE Target storage temp.[℃] Appropriate food

Fridge +2 +8 Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, Drinks and other foods which are not suitable for freezing.

( Freezer***)*- ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 3 months – nutrition values and taste decrease with time), suitable for frozen fresh food.

***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 3 months – nutrition values and taste decrease with time). Not suitable for freeing fresh food.

**-Freezer ≤-12 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 2 months – nutrition values and taste decrease with time). Not suitable for freeing fresh food.

*-Freezer ≤-6 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food.

0-star -6 0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days) . Partially packed/wrapped up encapsulated processed foods (non-freezable foods)

Chill -2 +3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 ℃ and above 0 ℃ is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 ℃)

Fresh Food 0 +4 Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)

Wine +5 +20 red wine,white wine,sparkling wine etc. Water dispenser cleaning (special for water dispenser products): - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Note: please store different foods according to the compartments or target storage temperature of your purchased products. WARNING! Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.

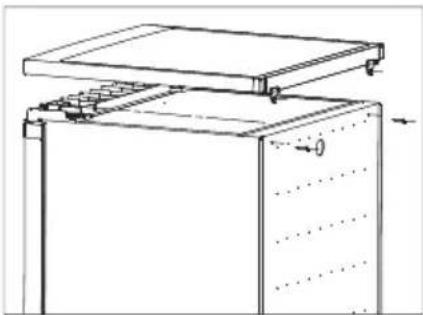

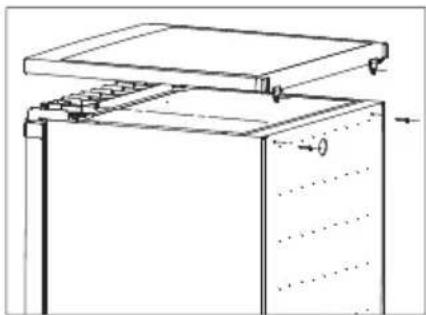

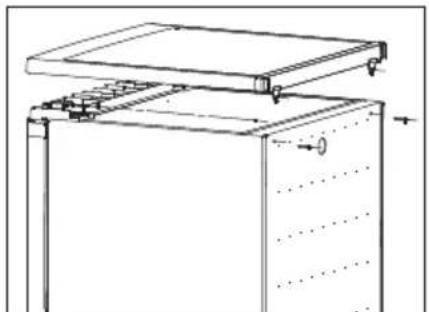

1. stand the freezer, remove the two screws

on the back of the top cover, then lift the top cover and place it on a padded surface to prevent scratching.
