Product type	Range hood
Brand	Whirlpool
Model	WVW91330KS
Power supply	120 V, 60 Hz, 15 A
Controls	Push buttons with 3 speeds (low, medium, high)
Lighting	LED lamps
Grease filter	Washable metal filter
Charcoal filter	Optional for recirculation (model W11446294)
Venting	6 in (15.2 cm) round duct to the outside or recirculation
Installation	Wall mount, with duct cover bracket
Mounting height	Min. 24 in (61 cm) above electric surface, 27 in (68.6 cm) above gas; max. suggested 36 in (91.4 cm)
Maintenance	Clean grease filters frequently
Safety	Follow safety instructions to avoid fire and electric shock
Accessories	Recirculation kit (W11446297), charcoal filter kit (W11446294), duct cover extension (EXTKIT10ES)

Frequently Asked Questions - WVW91330KS WHIRLPOOL

How to install the Whirlpool WVW91330KS range hood?

Installation must be performed by a qualified technician. Follow the instructions in the manual: prepare the location, secure the template, install the mounting screws, hang the hood, connect the vent duct and power supply.

How to clean the metal grease filter?

Remove the filter by pulling the spring handle. Clean it with hot water, dishwasher detergent, and a non-abrasive brush. Dishwasher washing is not recommended. Reinstall the filter with the handle on the left.

How to replace the LED bulbs?

LED lamps must be replaced by a qualified service technician. Contact Whirlpool customer service for assistance.

What is the recommended installation height for the hood?

The minimum distance between the bottom of the hood and the cooking surface is 24 in (61 cm) for an electric range and 27 in (68.6 cm) for a gas range. The maximum suggested height is 36 in (91.4 cm).

Can I use the hood in recirculation mode without external venting?

Yes, you need to install a recirculation kit (model W11446297) which includes a deflector and a charcoal filter. The hood can then operate in recirculation mode.

How to order replacement parts for the hood?

Call the Customer Experience Center at 1 800 253-1301 (United States) or 1 800 807-6777 (Canada), or visit www.whirlpool.com. Use factory-specified parts whenever possible.

What to do if the hood does not work correctly?

Check the power supply, that the grease filter is clean, and that the vent duct is not obstructed. If the problem persists, contact a qualified technician.

How to use the hood controls?

The buttons are: A for light on/off, B for low speed fan, C for medium speed, D for high speed. The LEDs light up when the function is active. Press again to turn off.

What accessories are available for this model?

Accessories include: recirculation kit (W11446297), charcoal filter kit (W11446294), duct cover extension (EXTKIT10ES), and makeup air kit (W10446915).

What safety precautions should I take during installation or use?

Disconnect power before servicing. Use metal ductwork. Never leave cooking unattended with oil. Ensure the hood is vented outdoors or uses an appropriate charcoal filter.

USER MANUAL WVW91330KS WHIRLPOOL

30" (76.2 CM) AND 36" (91.4 CM) WALL-MOUNT CANOPY RANGE HOOD

Installation Instructions and Use & Care Guide

For questions about features, operations/performance, parts, accessories, or service, call: 1-800-253-1301 or visit our website at www.whirlpool.com

In Canada, for assistance, installation and service, call: 1-800-807-6777 or visit our website at www.whirlpool.ca

HOTTE D'EXTRACTION À MONTAGE MURAL DE 30 PO (76,2 CM) ET 36 PO (91,4 CM)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY.

IMPORTANT: LIRE ET CONSERVER CES INSTRUCTIONS.
POUR UTILISATION RÉSIDENTIELLE UNIQUÉMENT.

LIB0167497/W11423742A

TABLE OF CONTENTS / TABLE DES MATIÈRES

RANGE HOOD SAFETY 2

INSTALLATION REQUIREMENTS. 4

Tools and Parts. 4
Location Requirements 4
Venting Requirements 5
Electrical Requirements 6

INSTALLATION INSTRUCTIONS 7

Prepare Location 7
Install Range Hood. 8
Connect Vent System 8
Make Electrical Connection 9

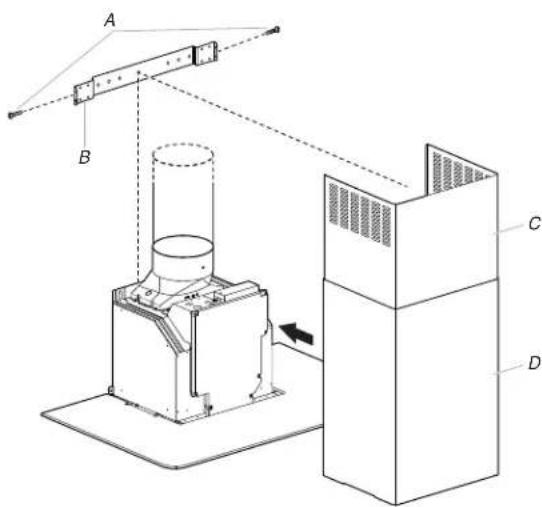

Install Vent Covers. 9
Complete Installation 10

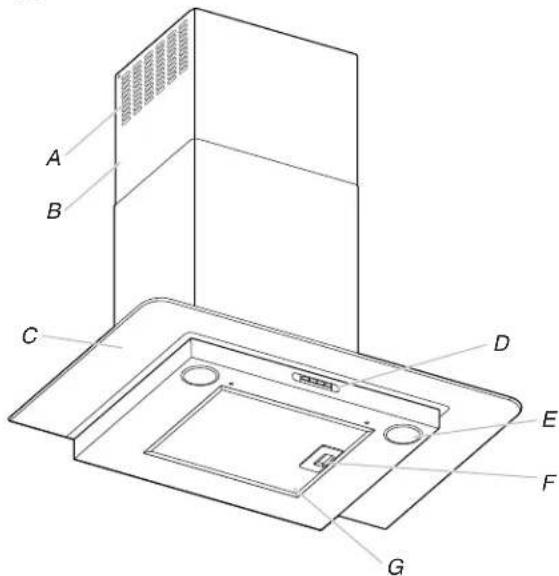

RANGE HOOD USE 10

Range Hood Controls 10

RANGE HOOD CARE 11

Cleaning 11

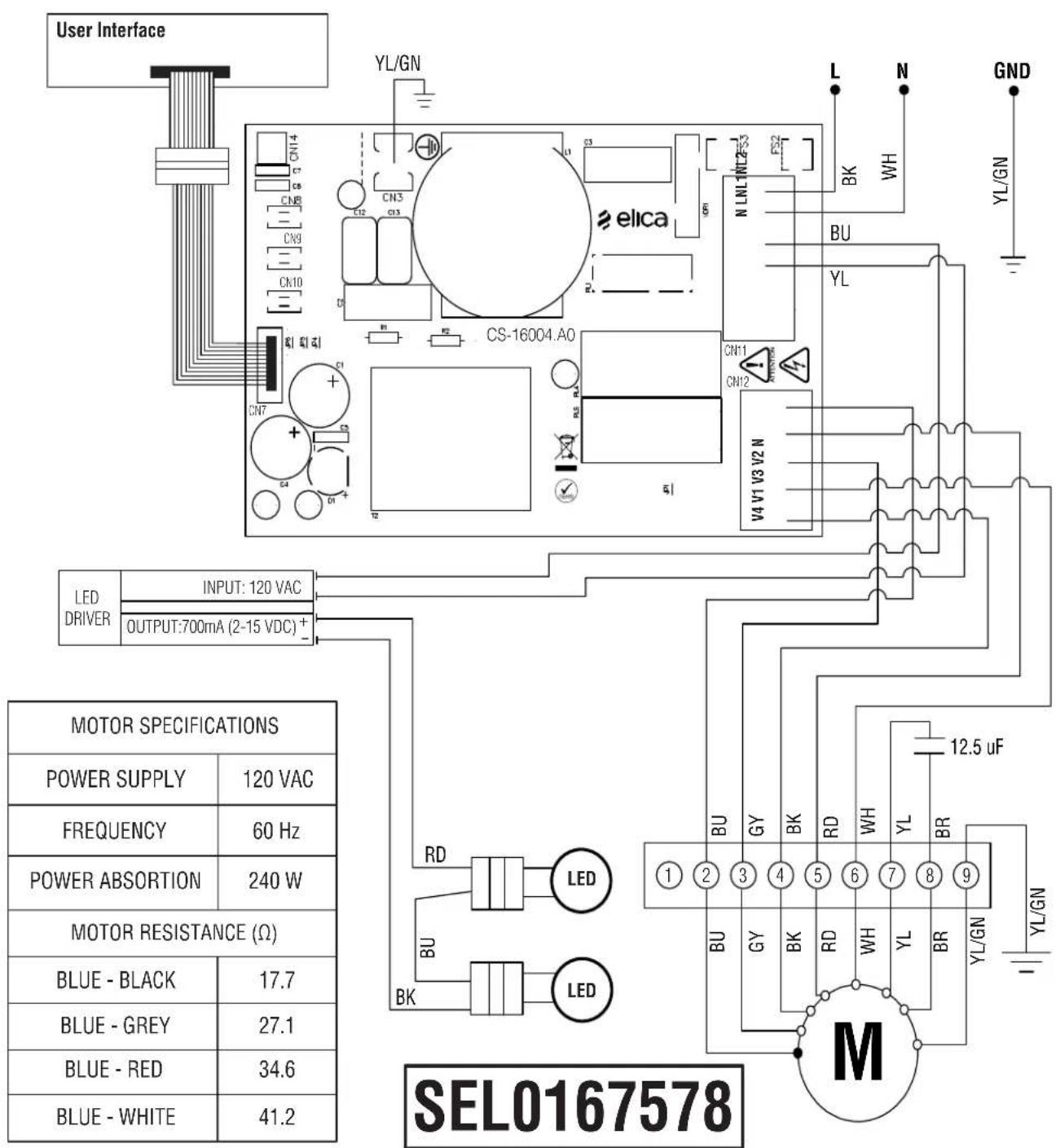

WIRING DIAGRAM 12

ASSISTANCE OR SERVICE 13

In the U.S.A. 13
In Canada. 13
Accessories 13

SECURITE DE LA HOTTE 14

EXIGENCES D'INSTALLATION 16

ASSISTANCE OU DEPANNAGE 25

Aux E.-U. 25
Au Canada. 25
Accessoires 25

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.

CAUTION: For General Ventilating Use Only. Do To Exhaust Hazardous Or Explosive Materials And Vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside -Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
  Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:

SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - You may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.

Use The fire department is being called.

• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
This appliance is not intended for use by people (including children) whose physical, sensory or mental capacities are different or impaired or who lack the necessary experience or knowledge/expertise to do so, unless such persons are supervised or are trained to operate the appliance by a person who accepts responsibility for their safety.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

Level

Drill with 114'' (3.0 cm), 3/8" (9.5 mm), and 5/16" (7.9 mm) drill bits
■Pencil
Wire stripper or utility knife
Tape measure or ruler
■Pliers
Caulking gun and weatherproof caulking compound
Vent clamps
■Jigsaw or keyhole saw
Flat-blade screwdriver
Metal snips
Phillips screwdriver

Parts needed

Home power supply cable
1/2" (1.3 cm) UL listed or CSA approved strain relief
3 UL listed wire connectors

For vented installations, you will also need:

1 wall or roof cap
Metal vent system

For non-vented (recirculating) installations, you will also need:

■Recirculation Kit - See "Assistance or Service" section to order.
6^ (15.2 cm) dia. round metal vent duct - length required is determined by ceiling height.

Parts Supplied

Remove parts from packages. Check that all parts are included.

Hood canopy assembly with blower, light bulbs, and canopy glass already installed

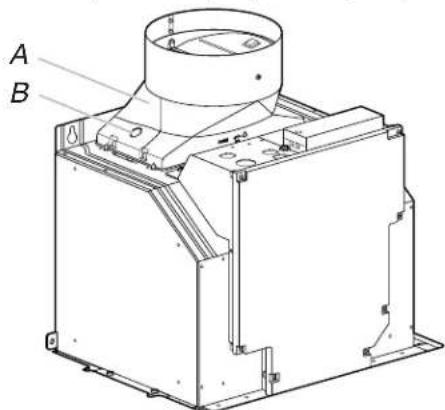

■Vent transition with back draft dampers installed
Metal grease filter

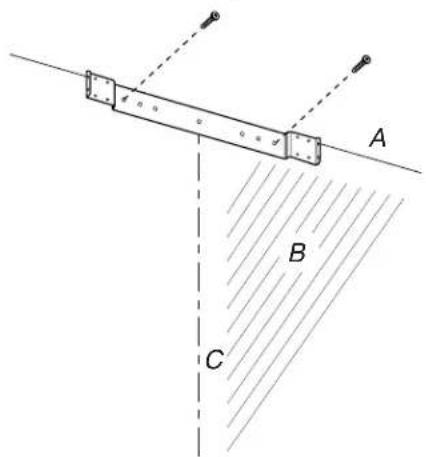

Vent cover support bracket

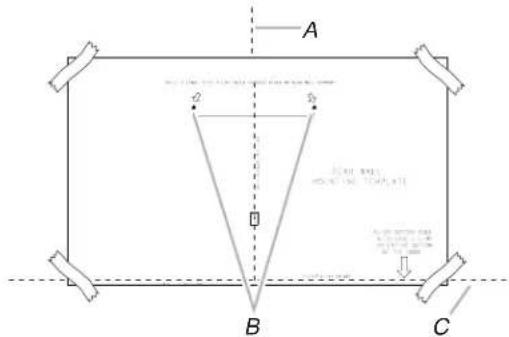

Mounting template
2-piece vent cover

Air deflector (for non-vented [recirculating] installations only)

2-3.5 x 9.5 mm T10 screws
4-4.2 x 8 mm T20° screws
- 6 - 5 x 45 mm mounting screws (for 8 x 40 mm wall anchors)
2-8x40mm wall anchors
4-10 x 60 mm wall anchors
4 - 5.4 x 75 mm screws (for 10 x 60 mm wall anchors)
T10 Torx 望 adapter
T20* Torx* adapter.

TORX and T20 are trademarks of Acument Intellectual Properties, LLC.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/ rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

Grounded electrical outlet is required. See "Electrical Requirements" section.

The canopy hood is factory set for venting through the roof or wall. For non-vented (recirculating) installation see "For non-vented (recirculating) installation only" in the "Connect Vent System" section. Recirculation Kit Part Number W10294733 is available from your dealer or an authorized parts distributor. All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

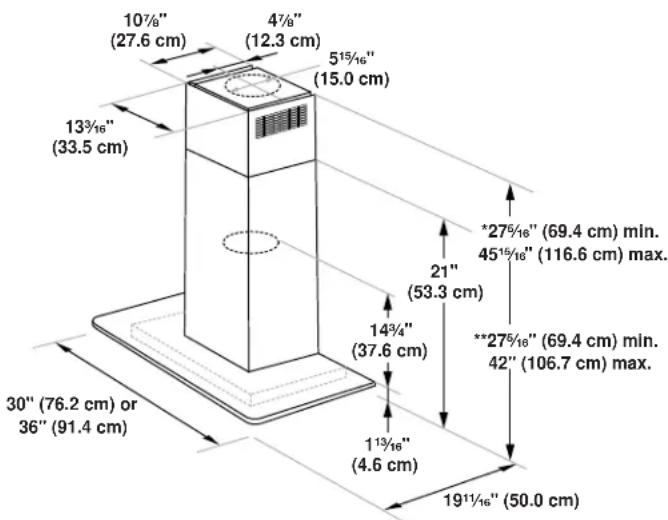

Product Dimensions

*For non-vented (recirculating) installations

**For vented installations

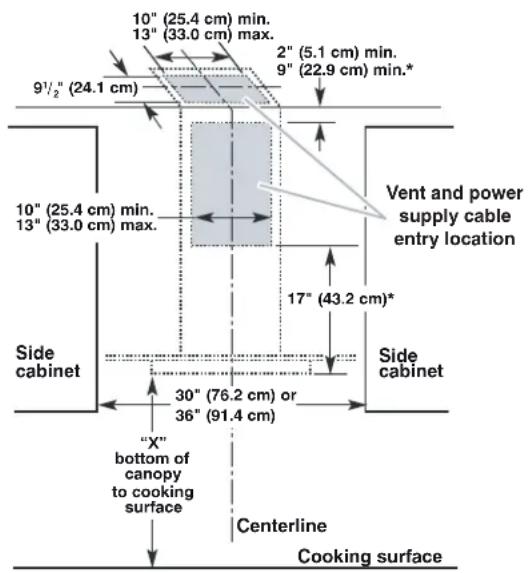

Cabinet Dimensions

*For non-vented (recirculating) installations

IMPORTANT:

Minimum distance "X": 24" (61.0 cm) from electric cooking surface.

Minimum distance "X": 30" (76.2 cm) from gas cooking surfaces.

Suggested maximum distance "X": 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the following chart.

Vented Installations
	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 1¼" (2.2 m) 8' 6" (2.6 m)
Gas cooking surface	7' 7¼" (2.3 m) 9' (2.7 m)
Non-Vented (Recirculating) Installations
	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 35/16" (2.2 m) 8' 9" 15/16" (2.7 m)
Gas cooking surface	7' 95/16" (2.4 m) 9' 3 15/16" (2.8 m)

NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "X" between the bottom of the range hood and the cooking surface. For higher ceilings, a Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See the "Assistance or Service" section to order.

Venting Requirements

(Vented models only)

■Vent system must terminate to the outdoors, except for non-vented (recirculating) installations.
■Do not terminate the vent system in an attic or other enclosed area.
■Do not use 4'' (10.2 cm) laundry-type wall cap.
Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the Most Efficient and Quiet Operation:

Use no more than three 90^ elbows.
Make sure there is a minimum of 24^ (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.
Do not install 2 elbows together.
Use clamps to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
Use caulking to seal exterior wall or roof opening around the cap.
The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold airflow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Venting Methods

This canopy hood is factory set for venting through the roof or wall.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall.

To vent through a wall, a 90^ elbow is needed.

Rear Discharge

A 90^ elbow may be installed immediately above the hood.

For Non-Vented (Recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, using a charcoal filter and the deflector. To order, see the "Assistance or Service" section.

Roof Venting Wall Venting

A. Roof cap
B. 6'' (15.2 cm) round vent

A. Wall cap
B. 6'' (15.2 cm) round vent

Non-Vented (Recirculating)

A. Deflector
B. 6'' (15.2 cm) round vent

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Calculating Vent System Length

Vent Piece 6" (15.2 cm) Round
45° elbow 2.5 ft	(0.8 m)
90° elbow 5.0 ft	(1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1-90°elbow = 5.0 ft(1.5m)
1 - wall cap = 0.0 ft (0.0m)
8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Length of system = 13.0 ft (3.9m)

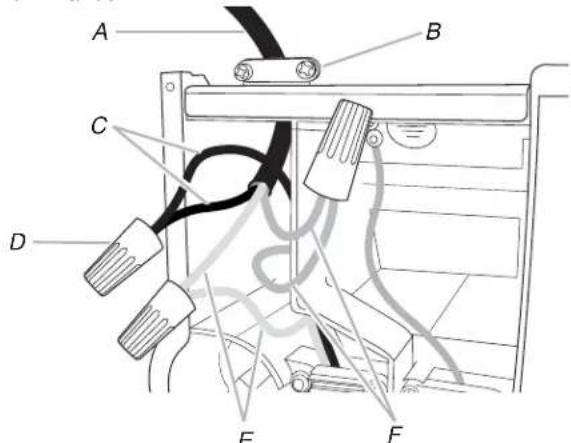

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

A 120 V, 60 Hz, AC only, 15 A fused, electrical circuit is required.
If the house has aluminum wiring, follow the procedure below:

Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the range hood.
Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

It is recommended that the vent system be installed before hood is installed.
Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.
2. Determine which venting method to use: roof, wall, or non-vented.
3. Select a flat surface for assembling the range hood. Place covering over that surface.

AWARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface.

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the wall where the canopy hood will be installed (A).
2. Select a mounting height between a minimum of 24" (61.0 cm) for an electric cooking surface, a minimum of 27" (68.6 cm) for a gas cooking surface, and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a reference line on the wall (C).
3. Tape the template in place by aligning the template centerline with the centerline marked on the wall (A) and bottom of template with hood bottom line (C).

A. Centerline
B. Fastener locations
C. Mounting height reference (hood bottom line)

1. Mark centers of the fastener locations through the template to the wall.

IMPORTANT: All canopy mounting screws must be installed into wood where possible. If there is no wood to screw into, additional wall framing supports may be required, or use the (4) 10 × 60 ~mm wall anchors and 5.4 × 75 ~mm screws. Remove the template.

1. For wood, drill 3 / 16'' (4.8 mm) pilot holes at all locations where screws are being installed into wood.

For wall anchors, drill 7/16" (10 mm) holes at all locations where wall anchors are being used.

1. For wood, install (2) 5 × 45 ~mm mounting screws on the top two fastener locations. Leave a 1/4'' (6.4 mm) gap between the wall and the back of the screw head to slide range hood into place.

For wall anchors, install the 10 × 60 ~mm wall anchors and install (2) 5.4 × 75 ~mm screws into the top wall anchors. Tighten until the wall anchors are secure. Back the screws out 1/4'' ( 6.4 ~mm ).

Vent Cover Bracket Installation

Attach vent cover bracket to wall flush to the ceiling using (2) 5 × 45 ~mm screws. Use the optional wall anchors if needed.

A. Ceiling
B.Wall
C. Centerline

Complete Preparation

1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the hood. See "Venting Requirements" section.
2. Determine the required height for the home power supply cable and drill a 114 (3.2 cm) hole at this location.
3. Run the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2'' (1.3 cm) conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box. NOTE: Do not reconnect power until installation is complete.
4. Use caulk to seal all openings.

Install Range Hood

1. Remove screws from wooden shipping supports. Properly dispose of shipping materials.

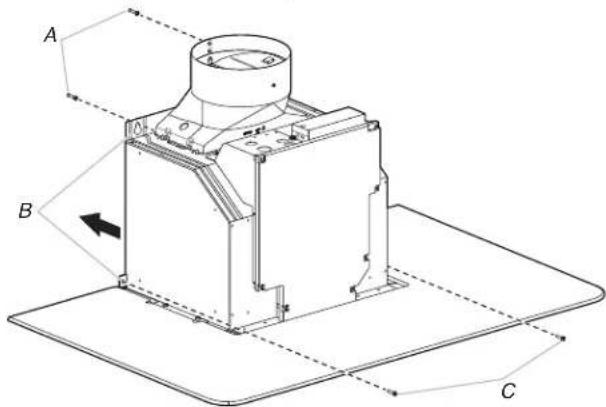

2. Using 2 or more people, hang range hood on 2 mounting screws through the mounting slots on back of hood.

A. Mounting screws
B. Mounting slots
C. Lower mounting screws

1. Remove the grease filter. See "Range Hood Care" section.
2. Level the range hood and tighten upper mounting screws.
3. Install (2) 5 × 45 ~mm #2 Phillips lower mounting screws and tighten. Use the optional wall anchors if needed.

Connect Vent System

1. Install vent transition (A) on top of hood (if removed for shipping) with (2) 3.5 × 9.5 mm T10 sheet metal screws. Use T10 Torx drive (or T10 adapter provided) to tighten.

A. Vent transition
B. 3.5 × 9.5 mm screw location

For vented installations only:

1. Fit vent system over transition piece.
2. Seal connection with clamps.
3. Check that back draft dampers work properly.

For non-vented (recirculating) installation only:

1. Assemble the air deflector with the duct cover bracket using (4) 4.2 × 8 mm T20® screws. Use a T20® Torx® drive (or T20® adapter provided) to tighten.

A. Assembly screws
B. Air deflector
C. Duct cover bracket

1. Measure from the bottom of the air deflector to the bottom of the hood outlet.

A. Air deflector
B. Vent clamp
C. X = length to cut vent duct

D. Vent duct
E. Exhaust outlet

1. Cut the duct to the measured size "X."
2. Remove the air deflector.
3. Slide the duct onto the bottom of the air deflector.
4. Place the assembled air deflector and duct over the exhaust outlet from the hood.
5. Reassemble the air deflector to the duct cover bracket with the 4 assembly screws.
6. Seal connections with vent clamps.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

1. Disconnect power.

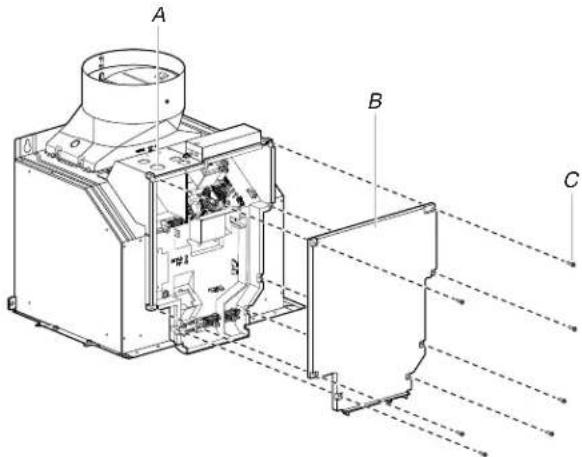

2. Remove terminal box cover (Unscrew "C").
3. Remove the knockout in the terminal box cover and install a UL listed or CSA approved 1/2'' (1.3 cm) strain relief.

A. Knockout
B. Terminal box cover
C. Screws (7)

1. Run home power supply cable through strain relief into terminal box.

A. Home power supply cable
B. UL listed or CSA approved strain relief
C. Black wires
5. Use UL listed wire connectors and connect black wires (C) together.

1. Use UL listed wire connectors and connect white wires (E) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.
Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect green (or bare) ground wire from home power supply to yellow-green ground wire (F) in terminal box using UL listed wire connectors.
2. Tighten strain relief screw.
3. Install terminal box cover.
4. Check that all light bulbs are secure in their sockets.
5. Reconnect power.

Install Vent Covers

When using both upper and lower vent covers, push lower cover down onto hood and lift upper cover to ceiling. Install with (2) 4.2 × 8 ~mm T20^ screws using a T20® Torx® drive (or T20® adapter provided) to tighten.

NOTE: For vented installations, upper vent cover may be reversed to hide slots.

A. 4.2 × 8 ~mm screws
B. Bracket

C. Upper vent cover
D. Lower vent cover

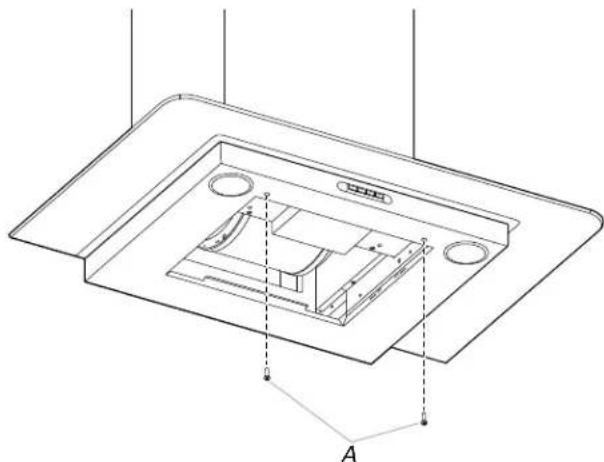

Remove filter and secure the bottom of the duct with (2) 4.2 × 8 mm T20® screws using a T20® Torx® drive (or T20® adapter provided) to tighten.

A. 4.2 × 8 ~mm T20^ screws

Complete Installation

1. For non-vented (recirculating) installations only, install charcoal filters over metal vent filter. See the "Range Hood Care" section.
2. Install metal filters. See the "Range Hood Care" section.
3. Check the operation of the range hood blower and light. See the "Range Hood Use" section.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The range hood controls are located on the front side of the canopy.

A. Louver holes (non-vented [recirculating] installations only)
B. Duct covers
C. Canopy

D. Control Panel
E. LED lamps
F Grease filter handle
G. Grease filter

Range Hood Controls

ABCD

A. Light on/off button
B. Blower on/off and minimum speed button
C. Blower medium speed button
D. Blower maximum speed button

NOTE: Control buttons will light up when range hood is On.

Operating the light

The Light On/Off button (A) controls both lights. Press once for On and again for Off.

Operating the blower

The blower buttons (B-D) control the blower speed. The speed can be changed anytime during fan operation by pressing the desired blower speed button.

Blower on/off and minimum speed button (B)

Press button (B) to turn the blower on to the minimum speed. The LED will turn ON.

Press button (B) again to turn the blower off. The LED will turn off.

NOTE: Button (B) will turn the blower off when any of the speeds are activated and LED will turn off (except light function).

Blower medium speed button (C)

Press button (C) to turn the blower on to the medium speed. The LED will turn ON.

Press button (C) again to turn the blower medium speed off. The LED will turn off.

NOTE:

If the blower is at medium speed and button (C) is pressed, the blower will turn to minimum speed.
If the blower is at maximum speed and button (C) is pressed, the blower will remain at maximum speed, but when the maximum speed is disabled, the blower will turn to minimum speed.

Blower maximum speed button (D)

Press button (D) to turn the blower on to the maximum speed. The LED will turn ON.

Press button (D) again to turn the blower maximum speed off. The LED will turn off.

NOTE: If the blower is at maximum speed and button (D) is pressed, the blower will turn to the next lower speed button with the LED on (C medium speed or B minimum speed).

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Exterior Surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

Liquid detergent soap and water, or all purpose cleanser.
Wipe with a damp soft cloth or nonabrasive sponge, and then rinse with clean water and wipe dry.

Metal Grease Filter

1. Remove the filter by pulling the spring release handle, and then pulling down the filter.

A. Spring release handle

1. Grease filters should be cleaned using warm water, dishwashing liquid, and a non-abrasive brush. Dishwasher not recommended.
2. Reinstall the filter by making sure the spring release handle is toward the left. Insert aluminum filter into upper track.
3. Push in spring release handle.
4. Push up on metal filter and release handle to latch into place.

Non-Vented (recirculating) Charcoal Filters

The charcoal filter is not washable. Replace with Charcoal Filter Kit. See the "Assistance or Service" section for information on ordering.

NOTE: When used in recirculation mode, To Reduce the Risk of Fire and Shock use only conversion kit Models:

■Recirculation Kit W11446297
Charcoal Filter Kit W11446294

Replacing an LED Lamp

The LED lights are replaceable by a service technician only. See the "Assistance or Service" section for service contact information.

WIRING DIAGRAM

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. These factory specified parts will fit right and work right because they are made with the same precision used to build every new Whirlpool® appliance.

To locate factory specified parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A.

Call the Customer eXperience Center toll-free:

1-800-253-1301 or visit our website at www.whirlpool.com

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
■Installation information.
Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and service companies. Our service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

To locate the authorized service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Customer eXperience Centre toll-free:

1-800-807-6777 or visit our website at www.whirlpool.ca

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
Use and maintenance procedures.
■Accessory and repair parts sales.
Referrals to local dealers, repair parts distributors, and service companies. Our service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

For further assistance

If you need further assistance, you can write with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B

Please include a daytime phone number in your correspondence.

Accessories

Recirculation Kit

(for non-vented installations only)

Order Part Number W11446297

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number W11446294

Chimney Extension Kit

Order Part NumberEXTKIT10ES

6" (15.2 cm) Makeup Air Kit

(consult local building codes)

Order Part Number W10446915

SECURITE DE LA HOTTE

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Customer eXperience Centre

200-6750 Century Ave.

Mississauga, Ontario L5N 0B
