Product type	Mobile convector (electric heating)
Brand	Thomson
Model	THCVT2400S
Maximum power	2400 W
Minimum power	1200 W
Power supply	220-240 V ~ 50 Hz
Protection class	I (grounding required)
Thermostat	Adjustable mechanical
Anti-freeze function	Yes (maintains at about 5°C)
Overheat protection	Yes (temperature limiter)
Tip-over switch	Yes
Indicator light	Yes (on power switches)
Control type	Two manual levels + mechanical thermostat
Assembly	Attach provided feet
Cleaning	Soft slightly damp cloth; no detergents
Safety distance	90 cm from walls, furniture, curtains
Usage	Indoors only, well-insulated room
Recycling	Complies with WEEE (Directive 2012/19/EU)
Feet included	Yes
Warranty	See conditions in the manual

Frequently Asked Questions - THCVT2400S THOMSON

How to install the radiator feet?

To install the feet, turn the radiator over, attach the feet under the base by tightening the screw inside at the center of each foot, then turn the radiator back over and place it on its feet. Make sure the feet are perfectly installed before operation.

What is the maximum power and how to adjust it?

The maximum power is 2400 W. You can choose between two levels: power 1 (1200 W) and power 2 (2400 W) using the selection button. The indicator light turns on when the radiator is operating.

How to adjust the temperature?

Turn the thermostat knob clockwise to increase the temperature and counterclockwise to decrease it. Once the desired temperature is reached, slowly turn the knob counterclockwise until the indicator goes off. The thermostat will then maintain that temperature constant.

What to do in case of overheating?

The radiator is equipped with a temperature limiter that automatically cuts off power in case of overheating. The device will restart when normal temperature is restored. Identify and eliminate the cause of overheating (for example, do not cover the device).

How to clean the appliance?

Always unplug the appliance before cleaning. Use a slightly damp cloth to clean the exterior surface, then dry with a soft dry cloth. Never use detergents, chemicals, wax, or polishing products.

Can I use this appliance in a bathroom?

No, the appliance is intended for indoor household use only. Do not use near a bathtub, shower, or swimming pool to avoid any risk of electrocution.

What does the "do not cover" symbol mean?

This symbol (a crossed-out square) indicates that it is forbidden to cover the appliance during operation. Covering it could cause overheating and a fire hazard.

How to activate the anti-freeze function?

Plug in the appliance, set the thermostat to the minimum position (MIN), and select a power level (P1 or P2). The appliance will then maintain the room at a temperature of about 5°C to prevent frost formation.

What to do if the radiator does not turn on?

Check that the appliance is properly plugged into a working mains outlet. Make sure the power buttons are on a position other than 0. If the problem persists, check that the tip-over switch has not been triggered (the appliance must be on a flat and stable surface).

How to recycle the appliance at end of life?

In accordance with WEEE Directive 2012/19/EU, this appliance must not be disposed of with unsorted municipal waste. Take it to a selective collection point (recycling center, retailer) for recycling. For more information, visit www.quefairedemesdechets.fr.

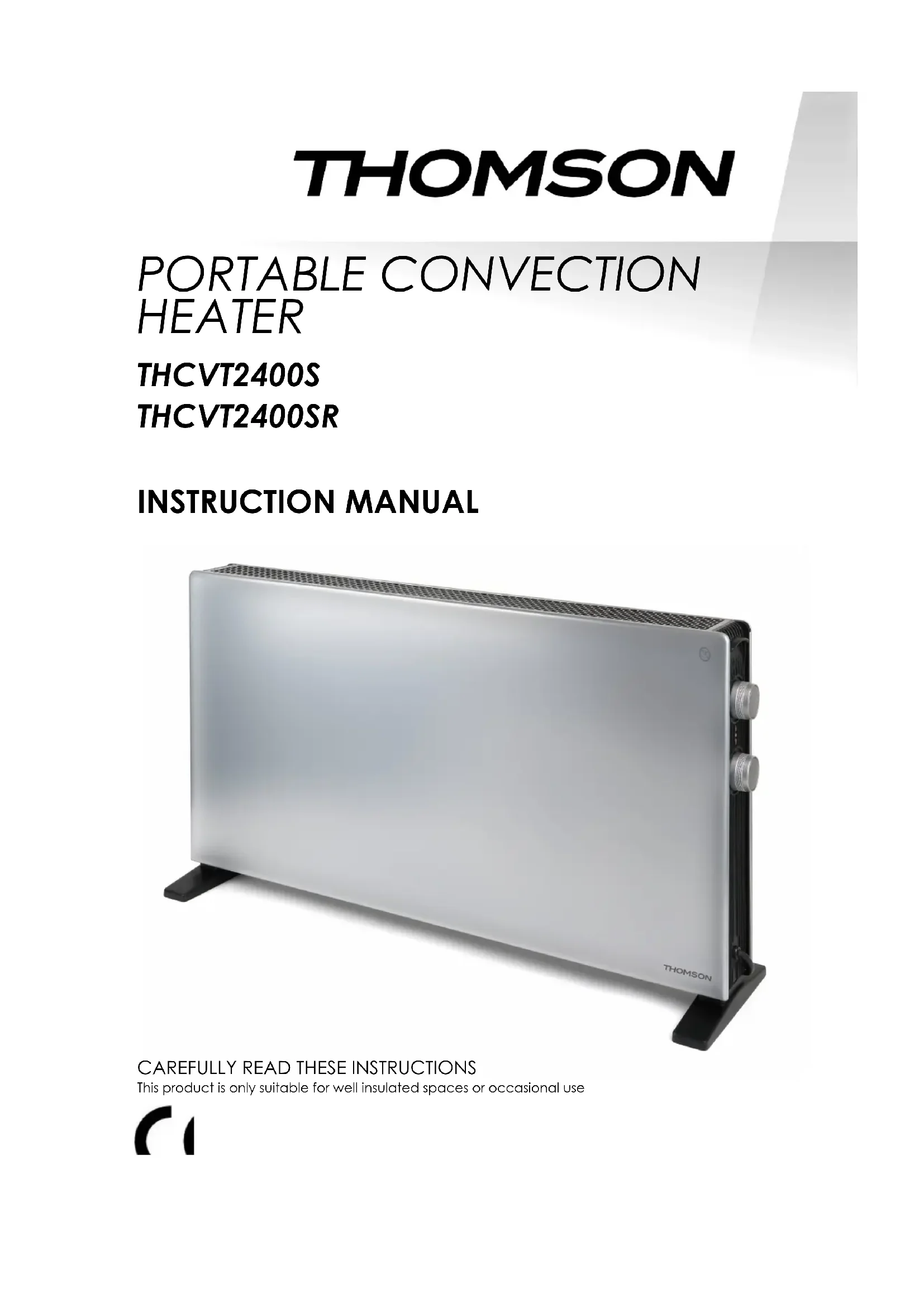

USER MANUAL THCVT2400S THOMSON

READ THESE INSTRUCTIONS CAREFULLY

Thermostat

CAREFULLY READ THESE INSTRUCTIONS

This product is only suitable for well insulated spaces or occasional use.

SAFETY RECOMMENDATIONS:

Caution! The heater should be switched on only when the feet are fully secured.

1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close by.
4. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the heater only as indicated in the instructions. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury.
5. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury. Do not use this

appliance for other purposes than intended by the manufacturer.

1. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.
2. Never try to remove the control knobs, push objects into the ventilation. The manufacturer cannot be held responsible.
3. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (O) and unplugged from the socket.
4. Great care must be taken when being used by or in the presence of children or older persons.
5. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.
6. Do not place the cable under a carpet or any heavy object, and do not cover it.
7. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces.
8. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.
9. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).
10. The appliance must not be placed just underneath an electric socket.
11. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.
12. Do not use this heating appliance close to a bath, shower or swimming pool.
13. Check that the voltage corresponds to that of the power supply (230V mains socket). To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.
14. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.
15. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.
16. WARNING: To avoid overheating, do not cover the heater.
17. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at a distance.
18. This device can be used by children with at least 8 years old and people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored (s) or given to them instructions for using the machine safely and if the risks were apprehended. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unattended.
19. Children under 3 years should be kept away unless continuously supervised.
20. Children aged from 3 to 8 years may only switch the appliance on/off provided it has been placed or installed in its intended normal operating position and they have been given supervision or instruction on safe use and understand the hazards involved. Children aged from 3 to 8 years must not plug in,

regulate, clean, or perform user maintenance on the appliance.

1. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention should be given where children and vulnerable people are present.
2. For domestic and indoor use only. This product must be installed according to national fitting standards.
3. WARNING: To avoid overheating, do not cover the heater.

This symbol means: WARNING: DO NOT COVER

1. The power socket must always be equipped with an earth connection. If your domestic electrical installation is not earthed, do not connect the appliance.
2. For detailed information on how to attach the feet to the heater, refer to the section "ASSEMBLY".
3. For detailed information on how to clean and maintain the heater, refer to the section "CLEANING AND MAINTENANCE".

EARTHING

This appliance must be earthed. This appliance is equipped with an earthed plug.

It must be plugged into a correctly installed and earthed wall socket.

In the event of a short-circuit, earthing reduces the risk of electric shock by providing a path for the current to escape through the earth cable.

Warning: Plug the appliance in correctly and do not leave it within reach of children without supervision.

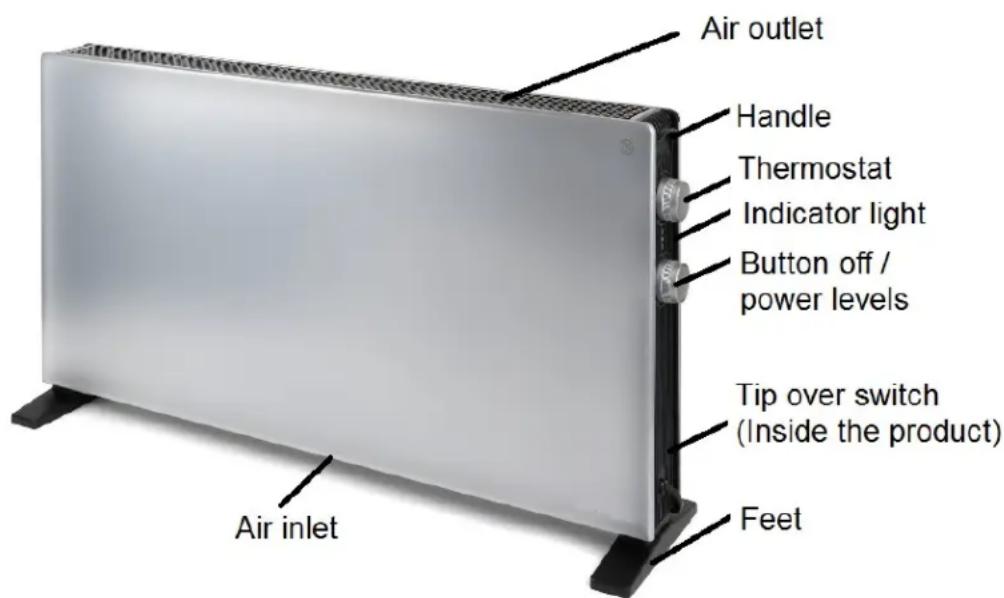

COMPOSITION:

Thermostat

OFF / Power 1 / Power 2

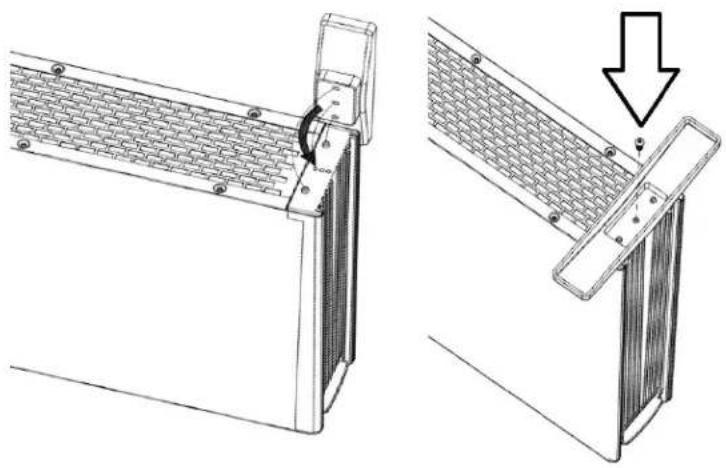

ASSEMBLY:

Unpack the heater and accessories.

A. Turn the convector upside down. B. Place the two feet and tighten the screws. C. Turn the convector to the upright position.

TECHNICAL SPECIFICATIONS

Model N°: THCVT2400S / SR
Description: Portable convection heater 2400W Power 1 1	200 W
Voltage: 220-240V~50Hz Power 2 2 400 W

CLASS 1

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

OPERATING:

PRECAUTIONS FOR USE

1. Before using this appliance, ensure that it is placed on a flat, stable surface. This appliance is equipped with an anti-tripping switch that switches the appliance off in the event that it tips over and is not placed on a stable surface.
2. Place the heater at least 90cm from the wall, furniture or curtains.
3. Check that the voltage corresponds to that of the power supply (230v mains socket)
4. Leave the heater to cool and unplug it before moving it, and use the handle to move it.

USING THE HEATER

1. The switches control the thermostat and power selection should be on the OFF position, connect the radiator to the socket.
2. Switch on the heater on one of the following positions:
3. Turn the switch to power 1: 1200 W
4. Turn the switch to power 2: 2400 W
5. The power switch will illuminate when the heater is operating.
6. The ambient temperature can be set by the thermostat. Turn the thermostat knob clockwise to increase the temperature, or counterclockwise to decrease, until the desired temperature is reached.
7. After reaching the desired temperature, to maintain it: turn the thermostat knob counterclockwise until the light turns off. The desired temperature will be kept constant by the thermostat function.
8. When not using this heater, return the 2 switches to their initial position: "0" and "MIN", and then unplug it.
9. The heating system has a protection device against overheating.
10. Do not cover or place any object on the radiator during operation.

Frost protection function

With the thermostat switch set on the ✱ position and one of the power levels selected, the appliance maintains room temperature at about 5°C, preventing freezing.

CLEANING AND MAINTENANCE

1. Always unplug the appliance and keep it away from any socket before cleaning.
2. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
3. Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater. Do not use wax or products that create a shine, as they can react to heat and cause discoloration.
4. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store it in its packaging for simple storage and later use. Clean your radiator as mentioned above.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact with liquids and corrosion caused by rust; (3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair; (4) improper maintenance, improper use

of the product or connection to an incorrect voltage;

(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and/or serial number of the product are removed.

Information requirements for electric local space heaters

Model identifier(s): THCVT2400S / SR
Item Symbol	Value Unit				Item Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.4	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	Pmin	1.2	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2.4	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output	elmax	2,327	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	1,167	kW		single stage heat output and no room temperature control	no
In standby mode	elSB	N/A	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option no
					with adaptive start control no
					with working time limitation no
					with black bulb sensor no
Contact details	Admea, 12 Rue Jules Ferry, 93110 Rosny sous Bois, France

KEEP THESE INSTRUCTIONS

Imported by ADMEA, 12 Rue Jules Ferry, 93110 Rosny sous Bois, France. THOMSON is a trademark of Technicolor SA used under license by ADMEA.
