Product type	Built-in electric oven
Brand	Electrolux
Model	KOHHH00BX3
Usable volume	58 L
Energy efficiency class	A
Energy consumption (conventional)	0.89 kWh/cycle
Energy consumption (fan forced)	0.75 kWh/cycle
Dimensions (H x W x D)	589 x 594 x 561 mm
Recess dimensions (H x W x D)	589 x 560 x 540 mm
Net weight	26.5 kg
Power supply	230 V ~ 50 Hz
Cooking functions	Hot air, Grill, Top/Bottom heat, Humid hot air, Bottom heat
Timer	Yes, mechanical
Interior light	Yes, replaceable bulb
Cleaning	Manual, removable glass panels
Safety	Child safety, safety thermostat
Included accessories	Wire grill, roasting pan
Repairability	Authorized after-sales service, spare parts available
Number of shelf levels	4
Warranty	Consult after-sales service

Frequently Asked Questions - KOHHH00BX3 ELECTROLUX

How to use the hot air mode?

Turn the cooking modes knob to the hot air symbol, then set the desired temperature with the control knob. The fan distributes heat evenly, ideal for baking on multiple levels without mixing flavors.

How to clean the oven door?

Remove the door by following the instructions: open it fully, lift the hinge latches, then remove it. Remove the inner glass panel by unlocking the fasteners. Clean the glass with soapy water and a soft cloth, do not use abrasive products or the dishwasher. Then reassemble in reverse order.

What to do if the oven does not heat up?

First check that the circuit breaker has not tripped. If the problem persists, make sure that the end of cooking time is not set by mistake. If nothing works, contact an authorized after-sales service.

How to set the end of cooking time?

Select the cooking mode and temperature, turn the timer knob fully, then turn it back to set the duration. The appliance will turn off automatically at the end of the programmed time.

Does the cooling fan stop after use?

Yes, the cooling fan stops automatically when the appliance has cooled sufficiently. It may continue to run for a few minutes after the oven is turned off.

Can I use aluminum foil at the bottom of the oven?

No, never place aluminum foil directly on the bottom of the cavity. This can damage the enamel. Use suitable dishes.

How to replace the oven bulb?

Turn off and unplug the oven. Place a cloth at the bottom of the cavity. Turn the glass diffuser to remove it, replace the bulb with a new one resistant to 300°C, then put the diffuser back.

Why is there smoke during first use?

This is normal. Heat the empty oven at maximum temperature for 1 hour to burn off manufacturing residues. Make sure the room is well ventilated.

What electrical power is needed for this oven?

The power depends on the model, but generally an oven of this size requires a 230 V supply and a suitable circuit. Check the rating plate for the exact power (recommended cable cross-section up to 3680 W).

How to save energy with this oven?

Use the Humid hot air mode to save energy. Do not preheat unnecessarily, open the door as little as possible, and turn off the oven 3 to 10 minutes before the end to use residual heat.

USER MANUAL KOHHH00BX3 ELECTROLUX

Simple line drawing of a kitchen oven (no text or symbols)

COHHH00BK COHHH00BX КОHHH00BK3 КОHHH00BX3

CA Manual d'usuari | Forn 2
EN User Manual | Oven 19
FR Notice d'utilisation | Four 36
DE Benutzerinformation | Backofen 54
IT Istruzioni per l'uso | Forno 73
PT Manual de instruções | Forno 91
ES Manual de instrucciones | Horno 109

Diagram showing a door opening with a magnified inset of a screw being inserted into a wall (no text or symbols present)

4. DESCRIPCIÓ DEL PRODUCTE

4.1 Visió general

1 2 4 6 7 8 9 10 11 12 ① ② ③ ④ ⑦

4.2 Accessoris

Technical line drawing of a kitchen grater with an arrow indicating direction (no text or symbols)

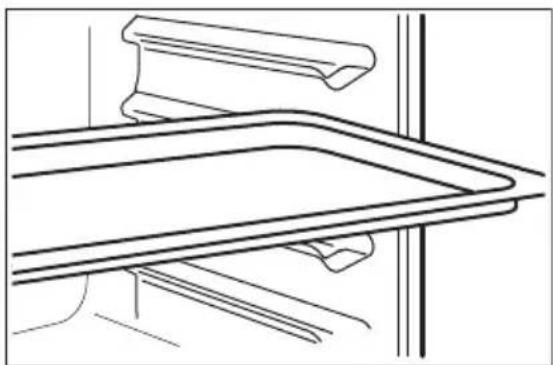

Safata fonda:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

10. CONSELLS I TRUCS

Simple line drawing of an oval-shaped object with no text or symbols

Paella per a pizza

Fosc, no reflector 28 cm de diâmetre

Simple line drawing of a circular container with a handle (no text or symbols)

Plat de cocció

Fosc, no reflector 26 cm de diâmetre

Ramequin

Simple line drawing of a bowl or container with no text, numbers, or symbols

Motlle de flam

Fosc, no reflector 28 cm de diâmetre

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

11.3 Com substituir-lo: Llum

! AVÍS!

Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 19
2. SAFETY INSTRUCTIONS.... 21
3. INSTALLATION....23
4. PRODUCT DESCRIPTION....24
5. BEFORE FIRST USE....25
6. DAILY USE....25
7. CLOCK FUNCTIONS....26
8. USING THE ACCESSORIES....27
9. ADDITIONAL FUNCTIONS....27
10. HINTS AND TIPS....27
11. CARE AND CLEANING.... 30
12. TROUBLESHOOTING.... 33
13. ENERGY EFFICIENCY....33
14. ENVIRONMENTAL CONCERNS....35

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall

be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

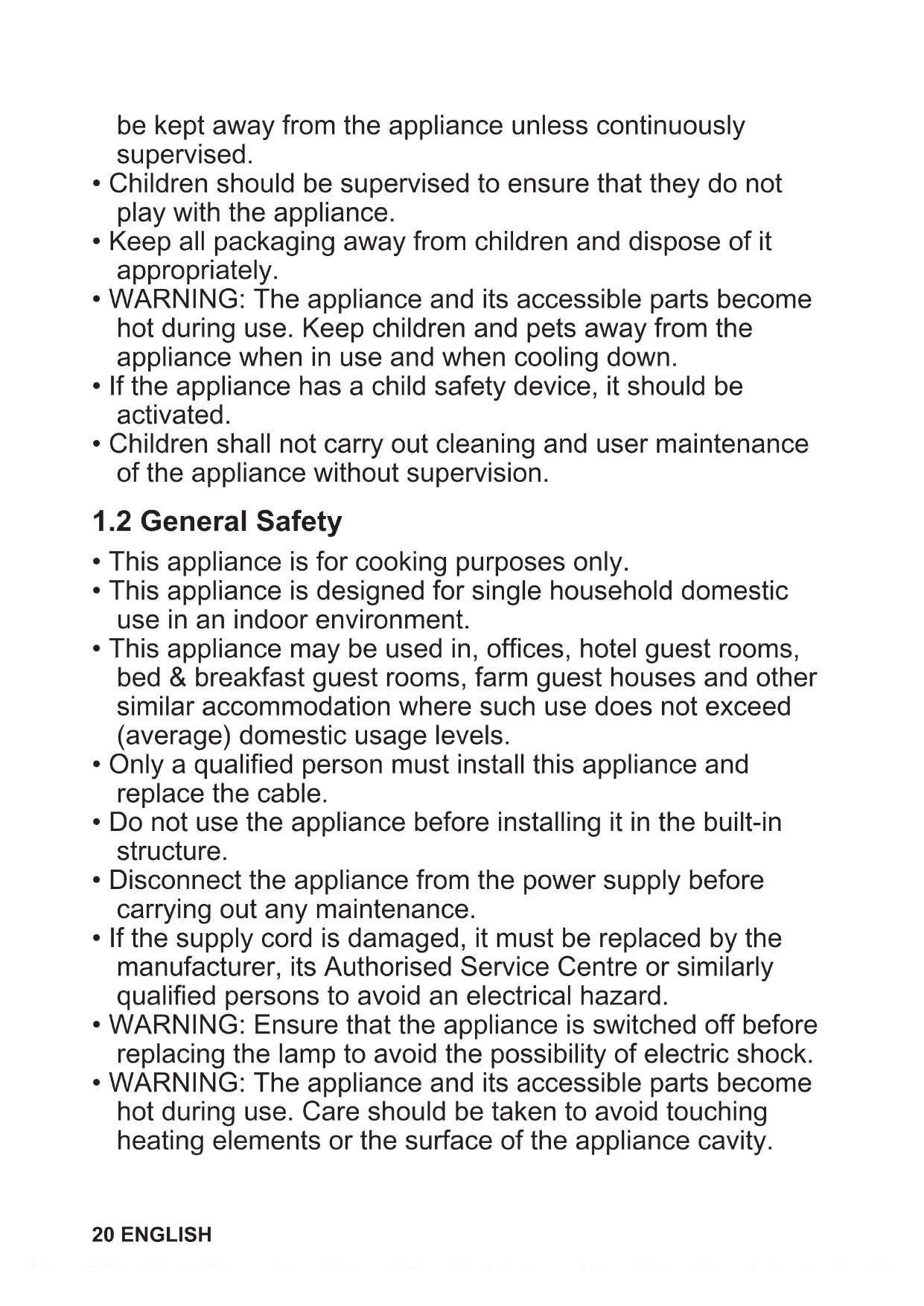

1.2 General Safety

• This appliance is for cooking purposes only.
- This appliance is designed for single household domestic use in an indoor environment.
- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
- Only a qualified person must install this appliance and replace the cable.
- Do not use the appliance before installing it in the built-in structure.
- Disconnect the appliance from the power supply before carrying out any maintenance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.

• Always use oven gloves to remove or insert accessories or ovenware.
- Do not use a steam cleaner to clean the appliance.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

Cabinet minimum height (Cabinet under the worktop minimum height)	580 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance	589 mm
Height of the back of the appliance	570 mm
Width of the front of the appliance	594 mm
Width of the back of the appliance	558 mm

Depth of the appliance 561 mm
Built in depth of the appli-ance	540 mm
Depth with open door 1007 mm
Ventilation opening mini-mum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1100 mm
Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
  • Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W) Section of the cable (mm ^4 )

maximum 1380 3x0.75

maximum 2300 3x1

maximum 3680 3x1.5

The earth cord (green / yellow cable) must be 2 cm longer than the brown phase and blue neutral cables.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

- Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
• do not put ovenware or other objects in the appliance directly on the bottom.
  – do not put aluminium foil directly on the bottom of cavity of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
  – be careful when you remove or install the accessories.
• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  • Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

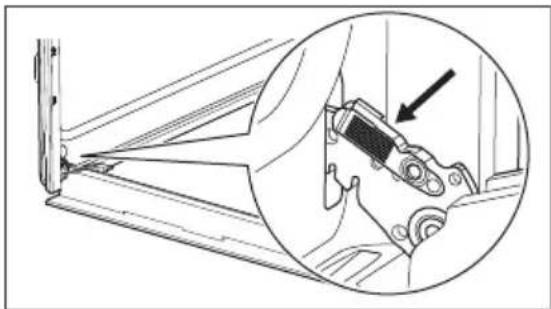

• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING!

Risk of electric shock.

- Concerning the lamp(s) inside this product and spare part lamps sold separately:

3. INSTALLATION

WARNING!

Refer to Safety chapters.

These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

• This product contains a light source of energy efficiency class G.
- Use only lamps with the same specifications.

2.6 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

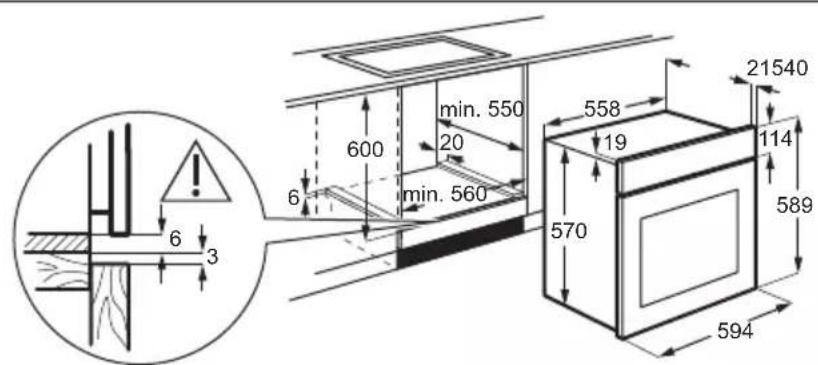

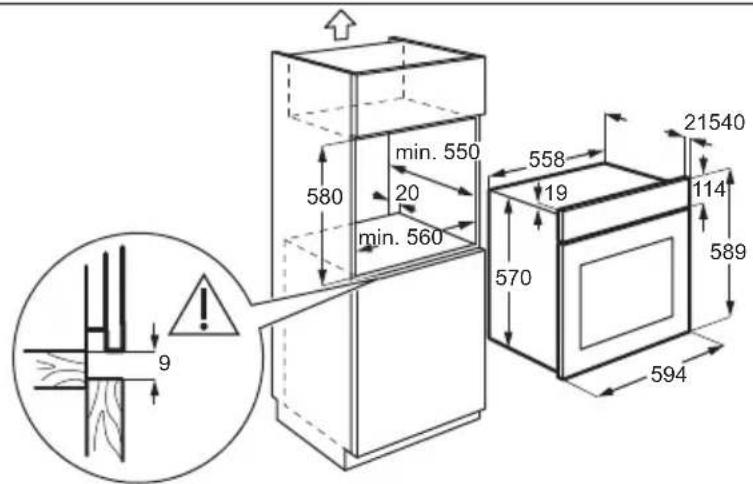

3.1 Building in

6 3 600 min. 550 20 6 min. 560 558 19 570 21540 114 589 594

(*mm)

min. 550 580 20 min. 560 558 19 570 21540 114 589 594 9

(*mm)

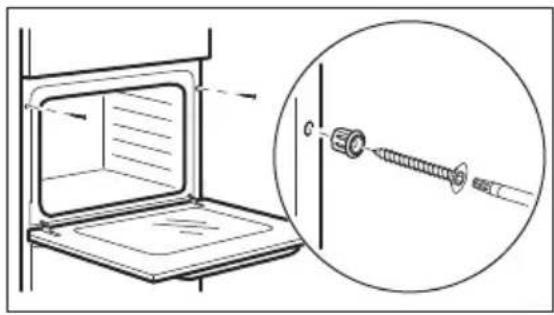

3.2 Securing the oven to the cabinet

Diagram showing a door opening with a magnified inset of a screw being inserted into a wall (no text or symbols present)

4. PRODUCT DESCRIPTION

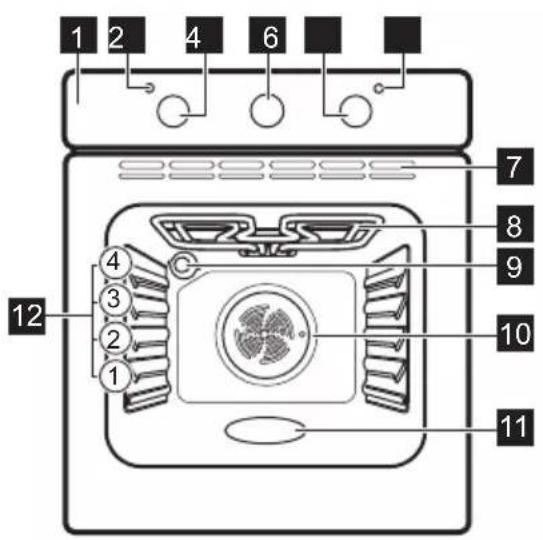

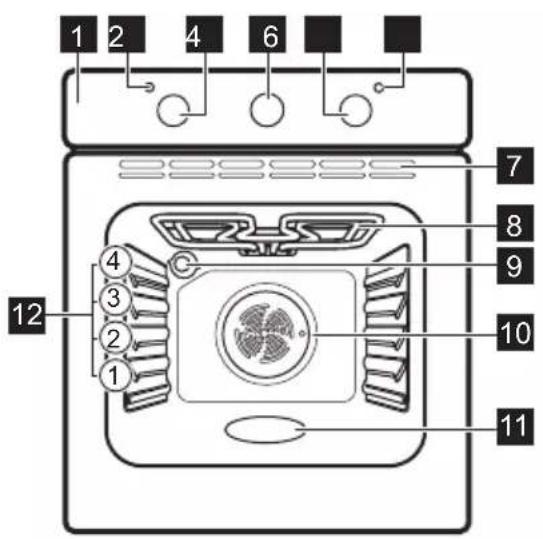

4.1 General overview

1 2 4 6 7 8 9 10 11 12 1 2 3 4 5 6

1 Control panel
2 Power lamp / symbol
3 Knob for the heating functions
4 Knob for the timer
5 Control knob (for the temperature)
6 Temperature indicator / symbol
7 Air vents for the cooling fan
8 Heating element
9 Lamp
10 Fan
11 Cavity embossment
12 Shelf positions

4.2 Accessories

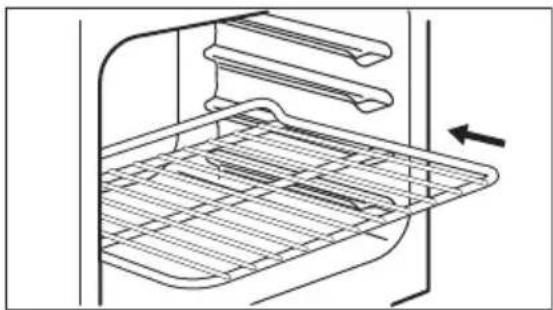

- Wire shelf

For cookware, cake tins, roasts.

- Grill- / Roasting pan

To bake and roast or as pan to collect fat.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Before first use

The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

Step 1

Step 2

Clean the oven Preheat the empty oven

1. Remove all accessories from the oven.

2. Clean the oven and the accessories only with a microfibre cloth, warm water and a mild detergent.

3. Set the maximum temperature for the function: Time: 1 h.

1. Set the maximum temperature for the function: Time: 15 min.

Turn off the oven and wait until it is cold. Place the accessories in the oven.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set: Heating function

Turn the knob for the timer to the initial position. In this position you operate the appliance manually.

Step 1 Turn the knob for the heating functions to select a heating function.

Step 2 Turn the control knob to select the temperature.

Step 3 When the cooking ends, turn the knobs to the off position to turn off the oven.

6.2 Heating functions

Heating function

Application

Off position

The appliance is off.

Fan Cooking

To roast or roast and bake food with the same cooking temperature on more than one shelf position, without flavour transference.

Grill

To grill thin pieces of food and to toast bread.

Conventional Cooking

To bake and roast food on one shelf position.

Heating function

Application

Bottom Heat

To bake cakes with crispy bottom and to preserve food.

Moist Fan Bak- ing

This function is designed to save energy during cooking. When you use this function, the temperature inside the appliance may differ from the set temperature. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.

6.3 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign

requirements (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

7. CLOCK FUNCTIONS

7.1 How to set: End of Cooking

To set the switch-off time for oven functions.

Step 1 Set the oven function and the temperature.

Step 2 Turn the knob for the timer to its full range.

Step 3 Turn the knob for the timer to set the switch-off time. When the set time ends, the signal sounds and the oven turns off.

Step 4 Turn the knob for the oven functions and the knob for the temperature to the off position.

To set a heating function without a set cooking time, turn the knob for the timer to the initial position.

8. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

8.1 Inserting accessories

Wire shelf:

Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

Line drawing of a kitchen grater with a rack and a directional arrow indicating motion (no text or symbols)

Deep pan:

Push the tray between the guide bars of the shelf support.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

9. ADDITIONAL FUNCTIONS

9.1 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan stops.

9.2 Safety thermostat

Incorrect operation of the oven or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven turns on again automatically when the temperature drops.

10. HINTS AND TIPS

Refer to Safety chapters.

10.1 Cooking recommendations

The oven has four shelf positions.

Count the shelf positions from the bottom of the oven floor.

Your oven may bake or roast differently to the oven you had before.

Baking cakes

Do not open the oven door before 3/4 of the set cooking time is up.

If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.

Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.

To prevent too much smoke in the oven during roasting, add some water into the

deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

10.2 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Simple line drawing of an oval-shaped object with no text or symbols

Pizza pan

Dark, non-reflective 28 cm diameter

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Baking dish

Dark, non-reflective 26 cm diameter

Ramekins

Ceramic 8 cm diameter, 5 cm height

Simple line drawing of a bowl or container with no text, numbers, or symbols

Flan base tin

Dark, non-reflective 28 cm diameter

10.3 Moist Fan Baking

For the best results follow suggestions listed in the table below.

(°C) (min)

Sweet rolls, 12 pieces baking tray or dripping pan 180 2 35 - 40

Rolls, 9 pieces baking tray or dripping pan 180 2 35 - 40

Pizza, frozen, 0.35 kg wire shelf 220 2 35 - 40

Swiss roll baking tray or dripping pan 170 2 30 - 40

Brownie baking tray or dripping pan 180 2 30 - 40

Soufflè, 6 pieces ceramic ramekins on wire shelf 200 3 30 - 40

Sponge flan base flan base tin on wire shelf 170 2 20 - 30

Victoria sandwich baking dish on wire shelf 170 2 35 - 45

Poached fish, 0.3 kg baking tray or dripping pan 180 3 35 - 45

		(°C) (min)
Whole fish, 0.2 kg baking tray or dripping pan 180 3 35 - 45
Fish fillet, 0.3 kg pizza pan on wire shelf 180 3 35 - 45
Poached meat, 0.25 kg	baking tray or dripping pan 200 3 40 - 50
Shashlik, 0.5 kg baking tray or dripping pan 200 3 25 - 35
Cookies, 16 pieces baking tray or dripping pan 180 2 20 - 30
Macaroons, 20 pieces baking tray or dripping pan 180 2 40 - 45
Muffins, 12 pieces baking tray or dripping pan 170 2 30 - 40
Savory pastry, 16 pieces	baking tray or dripping pan 170 2 35 - 45
Short crust biscuits, 20 pieces	baking tray or dripping pan 150 2 40 - 50
Tartlets, 8 pieces baking tray or dripping pan 170 2 20 - 30
Vegetables, poached, 0.4 kg	baking tray or dripping pan 180 3 35 - 40
Vegetarian omelette pizza pan on wire shelf 200 3 30 - 45
Mediterranean vegeta-bles, 0.7 kg	baking tray or dripping pan 180 4 35 - 40

10.4 Information for test institutes

Tests according to IEC 60350-1.

			(°C) (min)
Small cakes, 16 per tray	Conventional Cooking	Baking tray 3 170 20 - 35			-
Small cakes, 16 per tray	Fan Cooking	Baking tray 3 160 20 - 35			-
Small cakes, 16 per tray	Fan Cooking	Baking tray 1 and 3 160 20 - 35			-
Apple pie, 2 tins ∅20 cm	Conventional Cooking	Wire shelf	1 170 70 - 90		-
Apple pie, 2 tins ∅20 cm	Fan Cooking	Wire shelf	2 160 70 - 90		-
Sponge cake, cake mould ∅26 cm	Conventional Cooking	Wire shelf	2 170 35 - 45		-

Sponge cake, cake mould ∅26 cm	Fan Cooking Wire shelf 2 160 35 - 45 -
Short bread Conventional Cooking	Baking tray 3 150 20 - 35 Preheat the oven for			10 min.
Short bread Fan Cooking Baking tray 3 150 20 - 35 Preheat the oven for				10 min.
Toast Grill Wire shelf 3 max. 1 - 5 Preheat the oven for				10 min.
Beef burger, 6 pieces, 0.6 kg	Grill Wire shelf and dripping pan	3 max. 20 - 30 Put the wire shelf on		the third level and the dripping pan on the second level of the oven. Turn the food halfway through the cooking time.Preheat the oven for 10 min.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent. Clean and check the door gasket around the frame of the cavity.

Use a cleaning solution to clean metal surfaces.

Clean stains with a mild detergent.

Everyday Use

Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Moisture can condense in the appliance or on the door glass panels. To decrease the condensation, let the appliance work for 10 minutes before cooking. Do not store the food in the appliance for longer than 20 minutes. Dry the cavity only with a microfibre cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 How to remove and install: Door

The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it. Read the whole "Removing and installing door" instruction before you remove the glass panels.

CAUTION!

Do not use the oven without the glass panels.

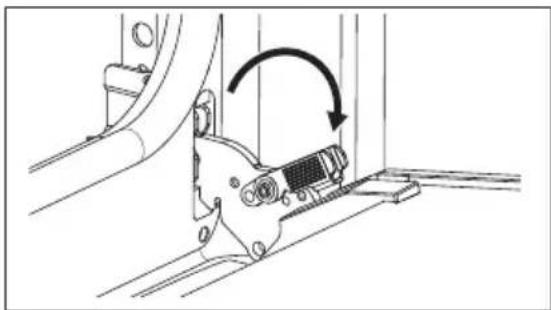

Step 1 Open the door fully and hold both hinges.

Technical diagram showing mechanical assembly with an inset close-up of a component (no text or symbols)

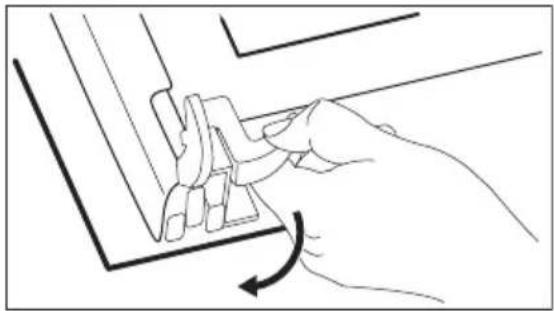

Step 2 Lift and pull the latches until they click.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

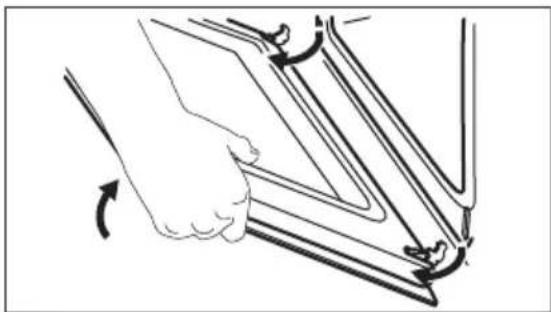

Step 3 Close the oven door halfway to the first opening position. Then lift and pull to remove the door from its seat.

Line drawing of a hand holding a folder with curved arrows indicating rotation (no text or symbols)

Step 4 Put the door on a soft cloth on a stable surface and release the locking system to remove the internal glass panel.

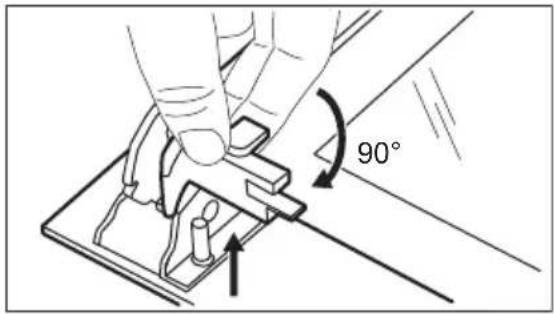

Step 5 Turn the fasteners by 90° and remove them from their seats.

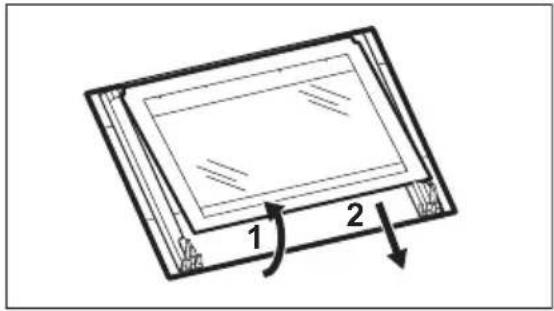

Step 6 First lift carefully and then remove the glass panel.

Step 7 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.
Step 8 After cleaning, install the glass panel and the oven door.

If the door is installed correctly, you will hear a click when closing the latches.

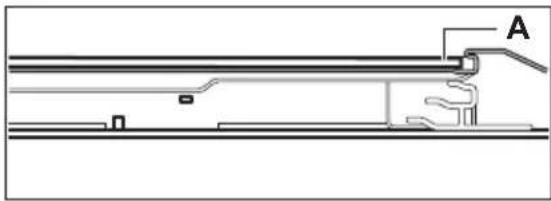

When installed correctly the door trim clicks. Make sure that you install the internal glass panel in the seats correctly.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

11.3 How to replace: Lamp

WARNING!

Risk of electric shock. The lamp can be hot.

Before you replace the lamp:

Step 1 Step 2 Step 3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Back lamp

Step 1 Turn the glass cover to remove it.

Step 2 Clean the glass cover.

Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.

Step 4 Install the glass cover.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

Problem Check if...

The oven does not heat up.	The fuse is blown.
The door gasket is damaged.	Do not use the oven.Contact an Authorised Service Centre.
End of Cooking - is not set.	Set: End of Cooking. Refer to "Clock functions".
The lamp does not work. The lamp is burnt out.

12.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.

We recommend that you write the data here:

Model (MOD.)

Product number (PNC)

Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet according to EU Ecodesign and Energy Labelling Regulations

Supplier's name Electrolux

Model identification	COHHH00BK 944068297
	COHHH00BX 944068296
	KOHHH00BK3 944068301
	KOHHH00BX3 944068300
Energy Efficiency Index 94.9
Energy efficiency class A
Energy consumption with a standard load, conventional mode 0.89 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.75 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 58 l
Type of oven Built-In Oven
Mass	COHHH00BK 26.5 kg
	COHHH00BX 27.3 kg
	KOHHH00BK3 26.5 kg
	KOHHH00BX3 26.5 kg

IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

Moist Fan Baking

Function designed to save energy during cooking.

14. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📀 with the household waste. Return the product to your local recycling facility or contact your municipal office.

Diagram showing a door opening with a magnified view of a screw inserted into a wall, no text or symbols present.

4. DESCRIPTION DE L'APPAREIL

4.1 Vue d'ensemble

1 2 4 6 7 8 9 10 11 12 1 2 3 4 5 6

4.2 Accessoires

- Grille métallique

Line drawing of a kitchen appliance with a grid tray and rack, showing an arrow indicating direction (no text or symbols)

Plat à rôtir:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

9. FONCTIONS SUPPLÉMENTAIRES

Simple line drawing of an oval-shaped object with no text or symbols

Plaque à pizza

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Plat de cuisson

Ramequins

Simple line drawing of a bowl or container with no text or symbols

Technical diagram showing a mechanical assembly with an inset close-up of a bracket component (no text or symbols present)

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a folder with arrows indicating rotation (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Diagram showing a door opening with a magnified inset of a screw being inserted into a wall (no text or symbols present)

Technical line drawing of a kitchen grater with a rack and side panel, showing no text or symbols

Auflaufpfanne:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

9. ZUSATZFUNKTIONEN

9.1 Kühlgebläse

Simple line drawing of an oval-shaped object with no text or symbols

Pizzapfanne

Simple line drawing of a circular container with a small handle at the bottom (no text or symbols)

Backform

Förmchen

Simple line drawing of a bowl or container with no text, numbers, or symbols

Tortenbodenform

Technical diagram showing mechanical assembly with an inset close-up of a component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a clipboard with arrows indicating rotation (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with an arrow indicating rotation (no text or symbols present)

Pure technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Diagram showing a door opening with a magnified inset of a screw assembly (no text or symbols)

Line drawing of a kitchen appliance with a grid tray and rack, showing an arrow indicating direction (no text or symbols)

Teglia profonda:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Teglia da pizza

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Pirofila

Simple line drawing of a circular bowl or container (no text or symbols)

Tortiera per flan

Technical diagram showing a mechanical assembly with an inset close-up of a bracket component (no text or symbols present)

Passaggio 2

Mechanical assembly diagram showing a clamping mechanism with an arrow indicating rotational motion (no text or symbols present)

Diagram showing a door opening with a magnified inset of a screw being inserted into a wall (no text or symbols present)

Line drawing of a kitchen grater with a rack and door, showing no text or symbols

Tabuleiro para grelhar:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

9. FUNÇÕES ADICIONAIS

Simple line drawing of an oval-shaped object with no text or symbols

Forma para pizza

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Assadeira

Formas individuais

Simple line drawing of a bowl or container with no text, numbers, or symbols

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Mechanical assembly diagram showing a clamping mechanism with rotational arrow (no text or symbols)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

11.3 Como substituir: Lâmpada

AVISO!

Diagram showing a door opening with a magnified inset of a screw assembly (no text or symbols)

Line drawing of a kitchen grater with a rack and side panel, showing no text or symbols

Bandeja honda:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Bandeja para pizza

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Bandeja para hornear

Ramequines

Simple line drawing of a bowl or container with no text, numbers, or symbols

Molde para base

Technical diagram showing mechanical assembly with an inset close-up of a component (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a folder with curved arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)
