TECHNISCHE DATEN

Diagram of surveying equipment setup with tripod, load, and directional arrows indicating measurement or operation

Diagram illustrating surveying setup with two tripod-mounted devices and a magnified view showing measurement setup with labeled components.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

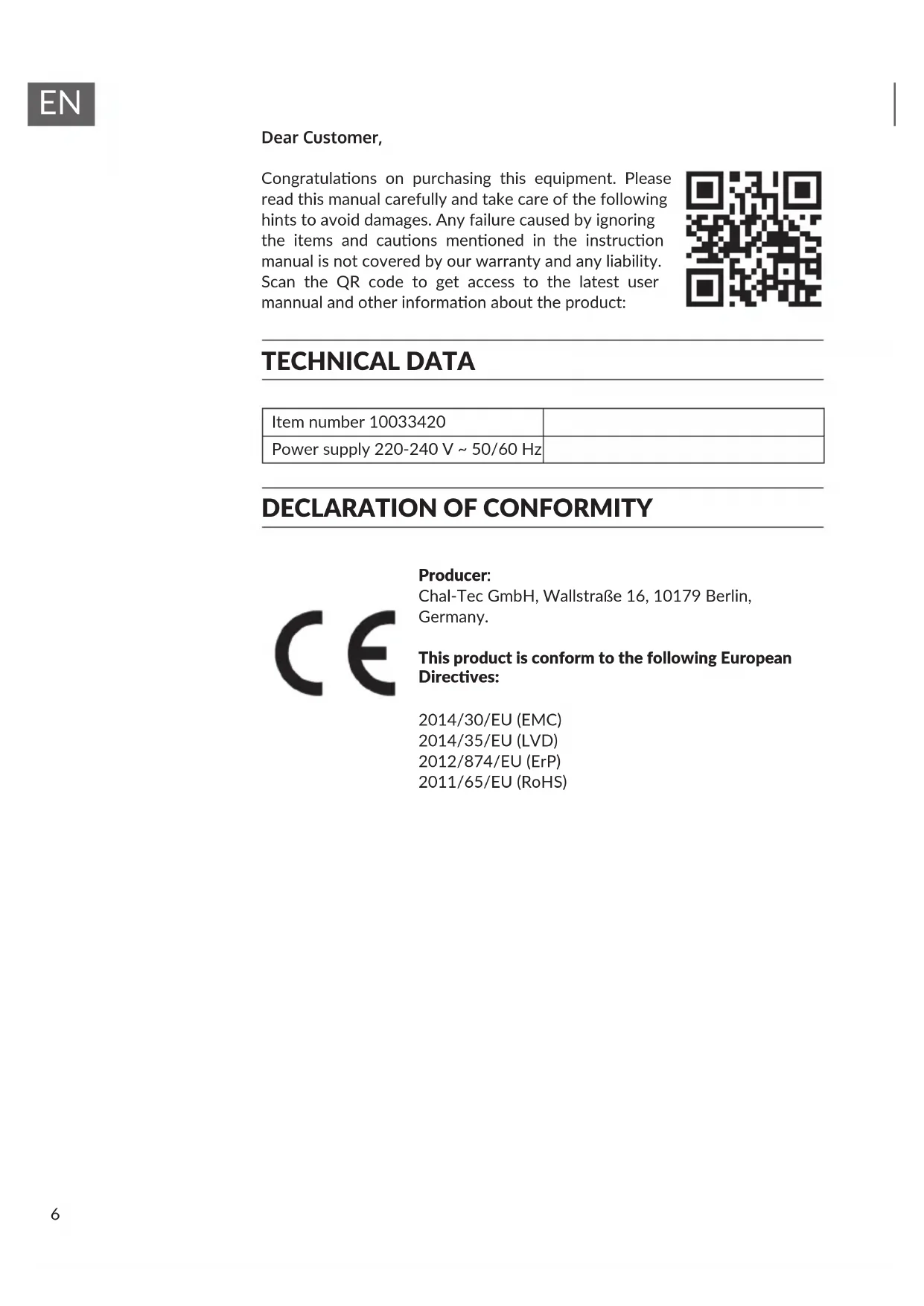

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

TECHNICAL DATA

Item number 10033420
Power supply 220-240 V ~ 50/60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2012/874/EU (ErP)

2011/65/EU (RoHS)

ASSEMBLY

Diagram of surveying equipment setup with labeled components and directional arrows indicating movement or flow

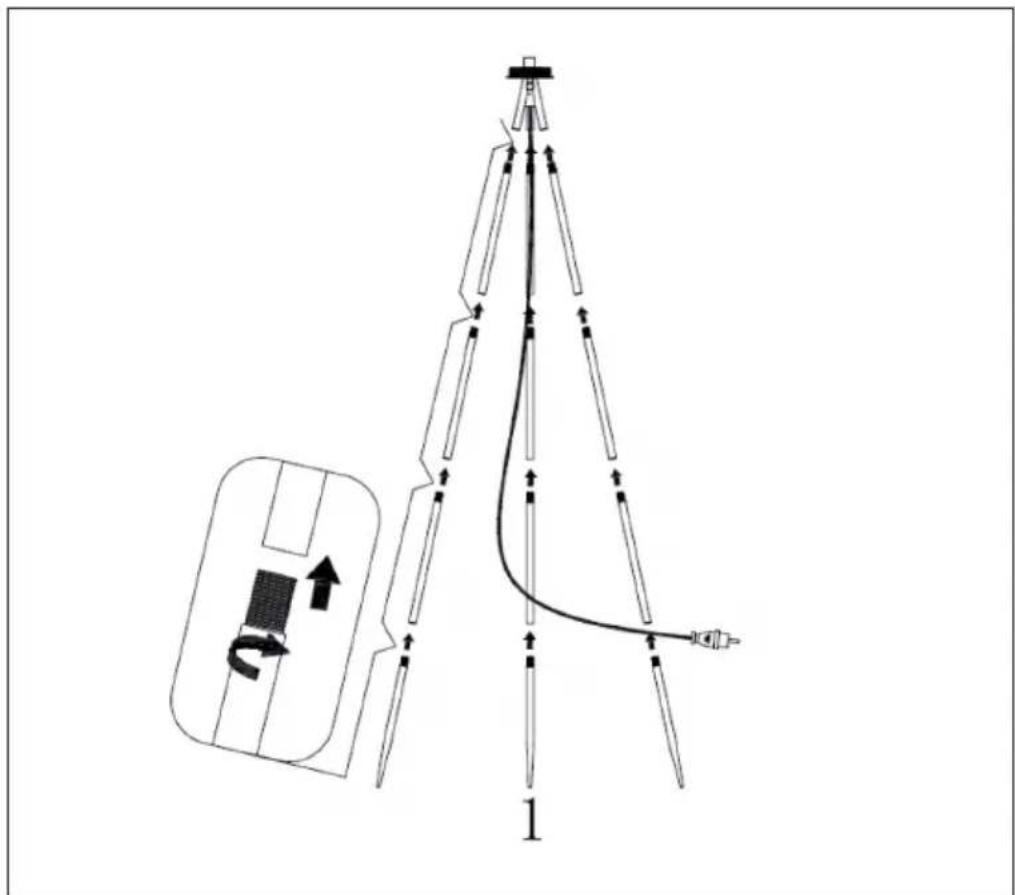

1. Connect the four segments together by turning them clockwise and attach them to the lamp base.

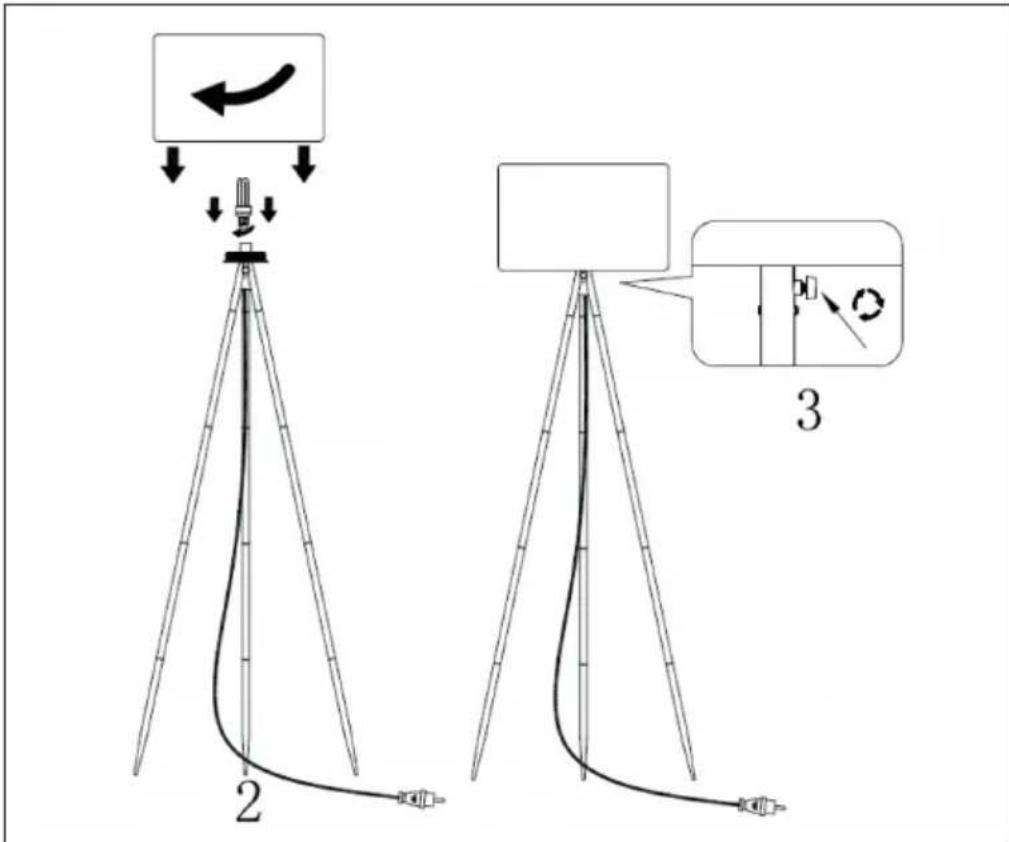

2. Insert a light bulb with E27 fitting in the lamp holder. Screw the lamp shade on the lamp.
3. Fix the lamp holder with the screw (3).
4. The lamp must be placed in a dry spot and on a stable clean surface.
5. Don't touch the lamp when it is working.
6. Don't change the light bulbs with wet hands.
7. Don't change any part of the luminaires by yourself.
8. This is not a toy, only for decoration-purposes! Keep away from children and animals!
9. This light is suitable for indoor and outdoor use. Please keep all the relevant information for future reference!

Diagram illustrating surveying setup with tripod-mounted sensors and a device, labeled with steps 2 and 3.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
