Shinestone - Lighting Blumfeldt - Free user manual and instructions

Brand	Blumfeldt
Model	Shinestone
Product type	Decorative outdoor solar lamp
Article numbers	10034839, 10034840, 10034841, 10034842
Power supply	Solar panel + rechargeable battery 18650 3.7V 1200mAh
Sensor	Automatic dusk sensor (turns on/off based on ambient brightness)
Available colors	16 fixed colors
Dynamic modes	Flash, Strobe, Fade, Smooth
Brightness adjustment	4 levels (25%, 50%, 75%, 100%) via + and - buttons
Controls	ON/OFF buttons, colors, modes, brightness; main ON/OFF switch
Usage	Outdoor only, place in full sunlight (min. 6h/day)
Protection rating	IP44 (estimated – resistant to water splashes)
Replaceable battery	Yes, standard 18650 type
Recycling	Follow WEEE and battery regulations. Do not dispose of with household waste.
Safety	Do not look directly at the light. Do not immerse. Keep away from flammable materials.

Frequently Asked Questions - Shinestone Blumfeldt

How to turn the Shinestone lamp on or off?

To turn on, press the ON button. To turn off, press the OFF button. The main switch must be in the ON position for automatic operation.

How to replace the lamp's battery?

Open the compartment, remove the old battery and insert a new 18650 battery (3.7V, 1200mAh). Observe polarity. Recycle the old battery at a collection point.

How to select a color or lighting mode?

Use the color selection buttons to choose from 16 colors. For dynamic modes, press FLASH (slow blinking), STROBE (fast), FADE (intensity variation) or SMOOTH (soft transition).

Why doesn't my lamp turn on automatically at night?

Check that the main switch is set to ON and the battery is properly inserted. Ensure the solar panel receives at least 6 hours of direct sunlight per day. Keep the lamp away from light sources such as streetlights.

Can I use the Shinestone lamp indoors?

No, this lamp is designed for outdoor use only. It requires sunlight to charge its battery and is not suitable for indoor use.

How to clean the solar lamp?

Clean the solar panel and housing with a soft, damp cloth. Do not use abrasive products. Never immerse the lamp in water.

Is the lamp waterproof?

The lamp is resistant to water splashes (estimated IP44), but should not be immersed. Avoid exposing it to direct water jets.

What is the battery life?

Battery life varies depending on sunlight and weather conditions. After a full charge (6h of direct sunlight), the lamp can operate for several hours at night. In cloudy weather, battery life is reduced.

Can I use non-rechargeable batteries?

No, use only a rechargeable battery type 18650. Non-rechargeable batteries must not be recharged and could damage the device.

How to recycle the lamp at end of life?

Do not dispose of the lamp or batteries with household waste. Take them to a specific collection point in accordance with the WEEE Directive 2012/19/EU and the Battery Directive 2006/66/EC. Contact your retailer for more information.

USER MANUAL Shinestone Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

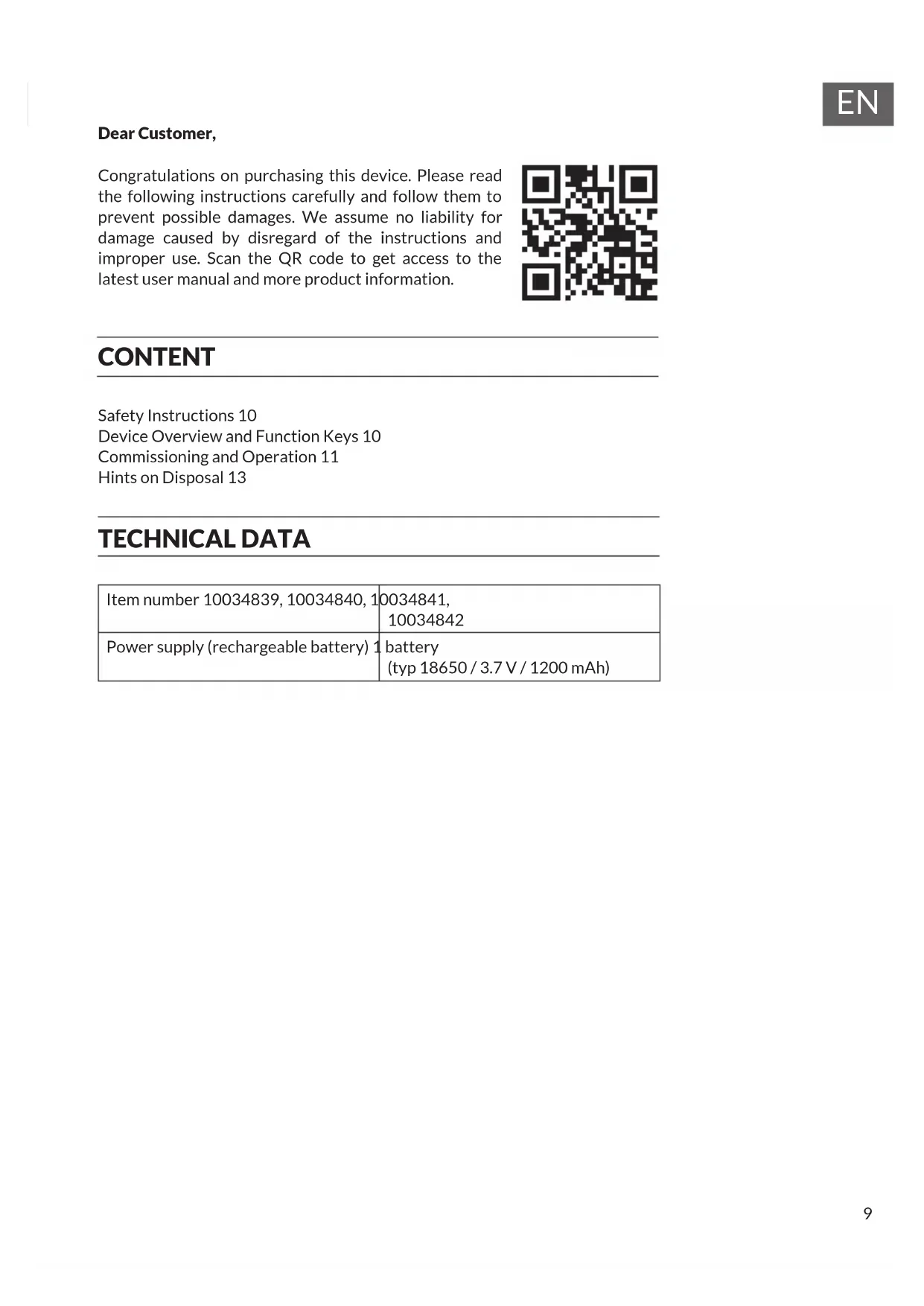

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Device Overview and Function Keys 10

Commissioning and Operation 11

Hints on Disposal 13

TECHNICAL DATA

Item number 10034839, 10034840, 10034841, 10034842

Power supply (rechargeable battery) 1 battery (typ 18650 / 3.7 V / 1200 mAh)

SAFETY INSTRUCTIONS

• Read this manual carefully and follow the instructions below before you start using the solar lamp.
• This product is intended for outdoor use and is only designed for decorative purposes.
• This product is not a toy. Therefore do not let children play with the solar lamp.
• Do not place the solar lamp close to flammable materials.
• Do not look directly at the lamp as this may damage your eyesight.
• Do not place the lamp under water
• Never use the appliance if it is damaged and dispose of it properly according to national regulations.

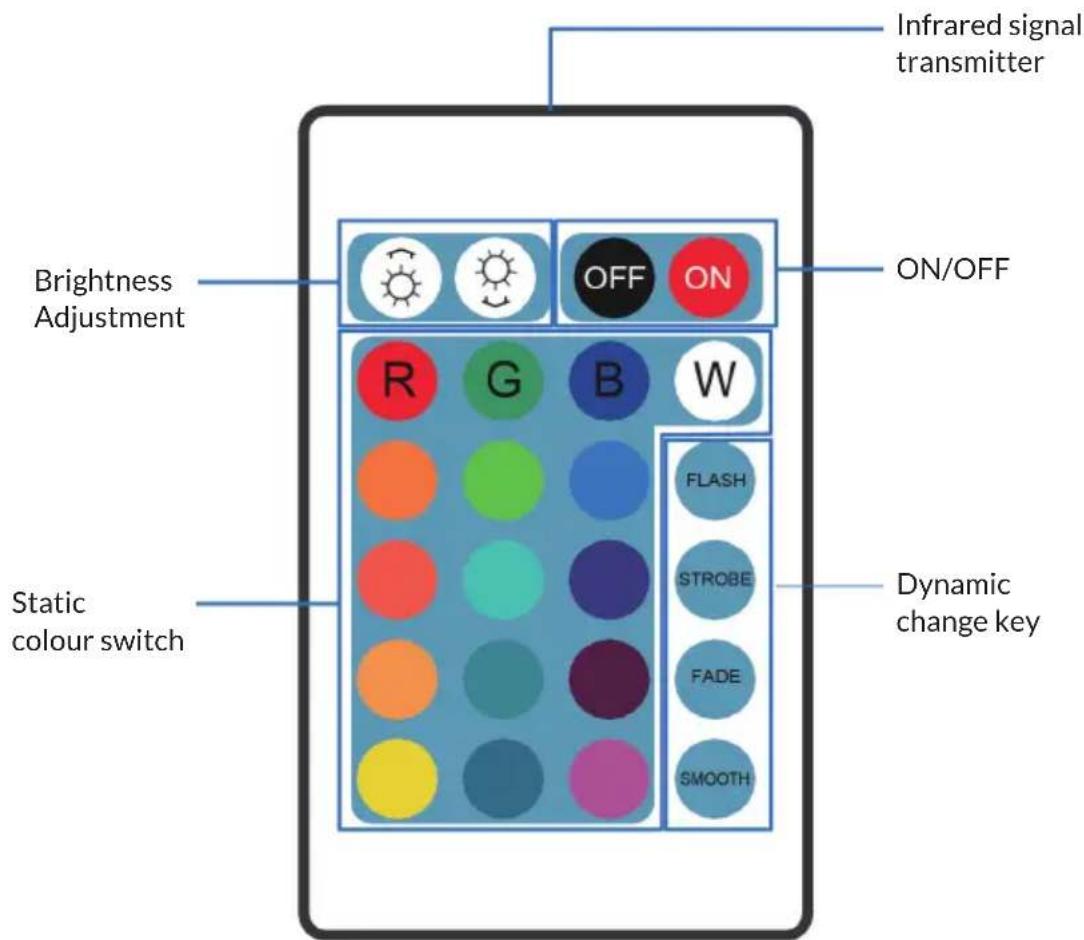

DEVICE OVERVIEW AND FUNCTION KEYS

Infrared signal transmitter Brightness Adjustment OFF ON ON/OFF R G B W FLASH STROBE FADE SMOOTH Static colour switch Dynamic change key

Button Function
ON Press the button one time to turn on the light.When you turn the light back on after turning it off, the light will have the same colour (or mode) as before turning off.
OFF Press the button one time to turn off the light.
Colour selection Press the desired colour button to select one of the 16 available light colours.
FLASH Press this button to make the light flash slowly.
STROBE Press this button to make the light flash rapidly.
FADE Press this button to dim the light.
SMOOTH Press this button to make the colours blend into each other.
Brightness increase The brightness of the light is increased by 25%.
Brightness reduction The brightness of the light is decremented by 25%.

COMMISSIONING AND OPERATION

Method of operation

The solar panel absorbs solar power during the day and transforms it into electricity, which is then stored in the rechargeable battery. When darkness falls, the lamp lights automatically using the energy stored during the day. The period of operation of the lamp depends on its geographic placement, weather conditions and the light that is available at the respective time of the year.

Choosing the ideal placement

Select an outdoor placement with full, direct sunlight where the solar panel can receive at least 6 hours of sunlight per day. A shady placement affects the charging of the battery and reduces the operating time of the lamp after sundown. Do not place the lamp close to strong source of light such as street lighting as this may cause the lamp to turn off automatically.

First use

Turn the ON/OFF switch to position "ON" (for certain models - remove the paper strip from the battery). The light is controlled automatically by a light sensor. At sundown, the solar lamp turns on using the energy stored in the battery. When you press the switch or insert back the paper strip, the solar lamp turns off in order to save energy

If the solar lamp does not light automatically at sundown, check the following:

1. Make sure that the power switch is set to position "ON".
2. Check the battery to ensure that the battery terminals have a good contact.

Battery replacement

• Batteries shall be disposed of in a safe way. Only dispose of batteries in specific collection containers (contact your retailer for more information) in order to protect the environment.
  • Non-rechargeable batteries are not to be recharged.
• The supply terminals are not to be short-circuited.
• The battery must be removed from the luminaire before it is scrapped.
• Only use batteries of the following type: 1 battery of type 18650 / 3.7 V / 1200 mAh

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

PRODUCER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
