USER MANUAL IAN 313369 Livarno Lux

text_image W/WW IC Set C5 C3 C7 C16 Auto +0 +0 Flash Jump Meteor

TÉLÉCOMMANDE DU RUBAN LED

FR

TÉLÉCOMMANDE DU RUBAN LED

Operation and safety notes

IAN 313369_1904

Livarno Lux IAN 313369 - TÉLÉCOMMANDE DU RUBAN LED - 1

FR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and safety notes Page 41

Livarno Lux IAN 313369 - FR - 1

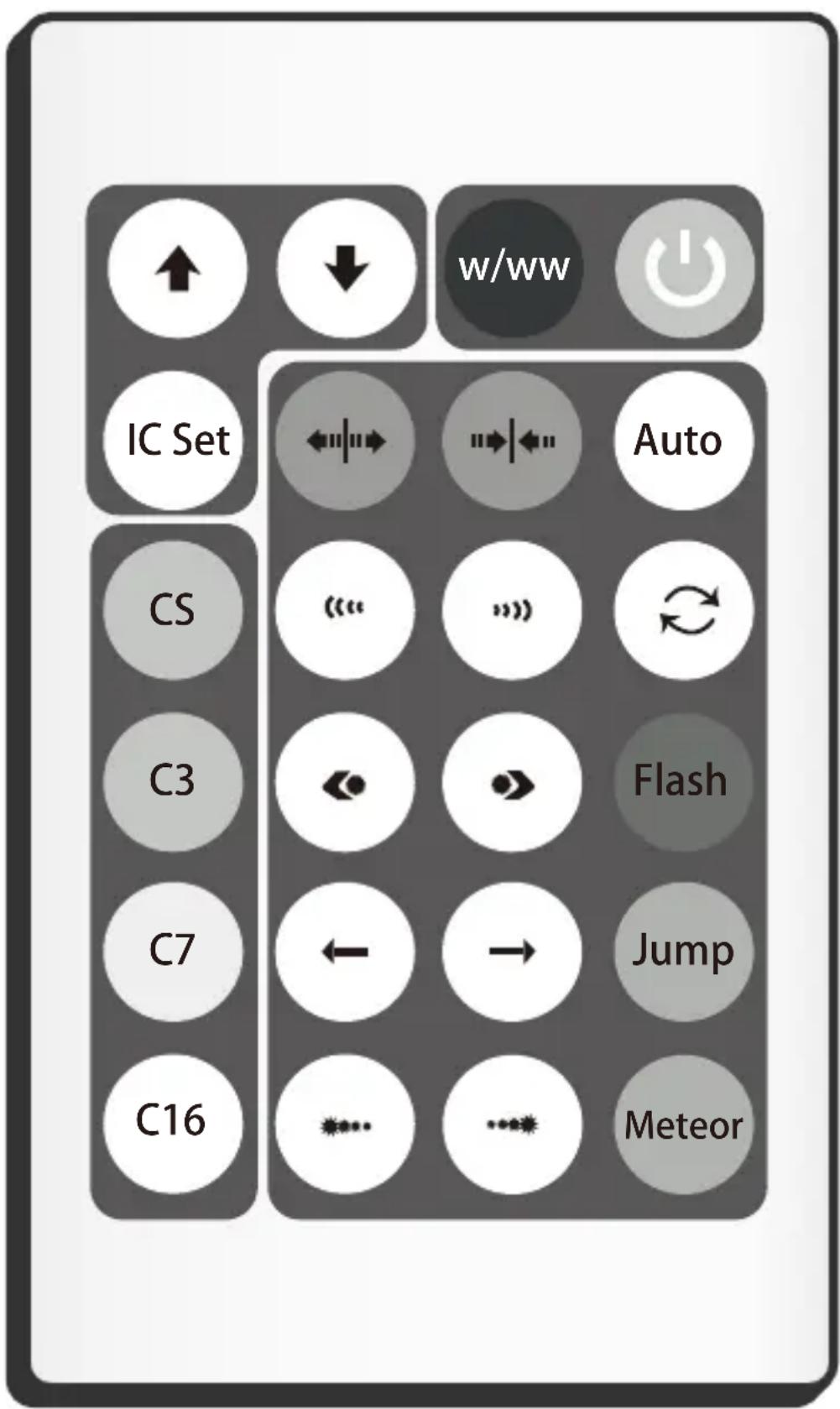

text_image w/ww IC Set CS C3 C7 C16 Auto ((<<) ((<<) ((<<) Flash Jump Meteor

LED strip light remote control

- Switching the LED strip on / off using the remote control

☐ Be sure there are no obstacles between the transmitter and receiver.
Press the button on the remote control to switch the LED strip on or off.

● Controlling lighting effects using the remote control

The remote control has 24 buttons. The functions of these buttons are:

Determining the lighting area of the LED strip:

Livarno Lux IAN 313369 - Determining the lighting area of the LED strip: - 1

After pressing this button, repeated press the 📄 or button to switch groups of three lights of the LED strip on or off, from the end.

Static color selection buttons:

White light

Livarno Lux IAN 313369 - White light - 1

After pressing this button all LEDs light up in white. Press the button again to switch between white and warm white.

Dim the lamp / set speed:

Use the two arrow keys ⬆ / ⬇ to dim the lamp in 6 increments or to set the speed.

The LED strip has a memory function.

After switching off, it will start in the last selected setting.

ModesButton 1Button 2Function
1Single color of Red
2 Single color of Green
3 Single color of Blue
4 Single color of Yellow
5 Single color of Purple
6 Single color of Cyan
7 Single color white
8 Single color warm white
9Livarno Lux IAN 313369 - Dim the lamp / set speed: - 13 colors simultaneously (RGB)
10Livarno Lux IAN 313369 - Dim the lamp / set speed: - 27 colors simultaneously
11Livarno Lux IAN 313369 - Dim the lamp / set speed: - 316 colors simultaneously
12Livarno Lux IAN 313369 - Dim the lamp / set speed: - 4Livarno Lux IAN 313369 - Dim the lamp / set speed: - 5Chaser, Single color of Red.Starting from the centre to both ends.
13Chaser, Single color of Green.Starting from the centre to both ends.
14Chaser, Single color of Blue.Starting from the centre to both ends.
15Chaser, Single color of Yellow.Starting from the centre to both ends.
16Chaser, Single color of Purple.Starting from the centre to both ends.
17Chaser, Single color of Cyan.Starting from the centre to both ends.
18Chaser light, White.Running from the centre to both ends.
19Chaser light, Warm White.Running from the centre to both ends.
20Livarno Lux IAN 313369 - Dim the lamp / set speed: - 6Livarno Lux IAN 313369 - Dim the lamp / set speed: - 7Chaser, multi-color (RGB).Starting from the centre to the ends.
21Livarno Lux IAN 313369 - Dim the lamp / set speed: - 8Livarno Lux IAN 313369 - Dim the lamp / set speed: - 9Chaser, multi-color (7 colors).Starting from the centre to the ends.
22Livarno Lux IAN 313369 - Dim the lamp / set speed: - 10Livarno Lux IAN 313369 - Dim the lamp / set speed: - 11Chaser, multi-color (16 colors).Starting from the centre to the ends.
23Livarno Lux IAN 313369 - Dim the lamp / set speed: - 12Livarno Lux IAN 313369 - Dim the lamp / set speed: - 13Chaser, Single color of Red.Starting from the ends to the centre.
24Chaser, Single color of Green.Starting from the ends to the centre.
25Chaser, Single color of Blue.Starting from the ends to the centre.
26Chaser, Single color of Yellow.Starting from the ends to the centre.
27Chaser, Single color of Purple.Starting from the ends to the centre.
28Chaser, Single color of Cyan.Starting from the ends to the centre.
29Chaser light, White.Running from the ends to the centre.
30Chaser light, Warm White.Running from the ends to the centre.
31Livarno Lux IAN 313369 - Dim the lamp / set speed: - 14Livarno Lux IAN 313369 - Dim the lamp / set speed: - 15Chaser, multi-color (RGB).Starting from the ends to the centre.
32Livarno Lux IAN 313369 - Dim the lamp / set speed: - 16Livarno Lux IAN 313369 - Dim the lamp / set speed: - 17Chaser, multi-color (7 colors).Starting from the ends to the centre.
33Livarno Lux IAN 313369 - Dim the lamp / set speed: - 18Livarno Lux IAN 313369 - Dim the lamp / set speed: - 19Chaser, multi-color (16 colors).Starting from the ends to the centre.
34Livarno Lux IAN 313369 - Dim the lamp / set speed: - 20Livarno Lux IAN 313369 - Dim the lamp / set speed: - 21Waterfall effect chaser of Single color - Red (illuminated, not illuminated). Running from the end to the start.
35Waterfall effect chaser of Single color - Green (illuminated, not illuminated). Running from the end to the start.
36Waterfall effect chaser of Single color - Blue (illuminated, not illuminated). Running from the end to the start.
37Waterfall effect chaser of Single color - Yellow (illuminated, not illuminated). Running from the end to the start.
38Waterfall effect chaser of Single color - Purple (illuminated, not illuminated). Running from the end to the start.
39Waterfall effect chaser of Single color - Cyan (illuminated, not illuminated). Running from the end to the start.
40Waterfall effect chaser of Single color - White (illuminated, not illuminated). Running from the end to the beginning.
41Waterfall effect chaser of Single color - Warm White (illuminated, not illuminated). Running from the end to the beginning.
42Livarno Lux IAN 313369 - Dim the lamp / set speed: - 22Livarno Lux IAN 313369 - Dim the lamp / set speed: - 23Waterfall effect chaser of multi-color (RGB) (illuminated, not illuminated). Running from the end to the start.
43Livarno Lux IAN 313369 - Dim the lamp / set speed: - 24Livarno Lux IAN 313369 - Dim the lamp / set speed: - 25Waterfall effect chaser of multi-color (7 colors) (illuminated, not illuminated). Running from the end to the start.
44Livarno Lux IAN 313369 - Dim the lamp / set speed: - 26Livarno Lux IAN 313369 - Dim the lamp / set speed: - 27Waterfall effect chaser of multi-color (16 colors) (illuminated, not illuminated). Running from the end to the start.
45Livarno Lux IAN 313369 - Dim the lamp / set speed: - 28Livarno Lux IAN 313369 - Dim the lamp / set speed: - 29Waterfall effect chaser of Single color - Red (illuminated, not illuminated). Running from the start to the end.
46Waterfall effect chaser of Single color - Green (illuminated, not illuminated). Running from the start to the end.
47Waterfall effect chaser of Single color - Blue (illuminated, not illuminated). Running from the start to the end.
48Waterfall effect chaser of Single color - Yellow (illuminated, not illuminated). Running from the start to the end.
49Waterfall effect chaser of Single color - Purple (illuminated, not illuminated). Running from the start to the end.
50Livarno Lux IAN 313369 - Dim the lamp / set speed: - 30Livarno Lux IAN 313369 - Dim the lamp / set speed: - 31Waterfall effect chaser of Single color - Cyan (illuminated, not illuminated). Running from the start to the end.
51Waterfall effect chaser of Single color - White (illuminated, not illuminated). Running from the beginning to the end.
52Waterfall effect chaser of Single color - Warm White(illuminated, not illuminated). Running from the beginning to the end.
53Livarno Lux IAN 313369 - Dim the lamp / set speed: - 32Livarno Lux IAN 313369 - Dim the lamp / set speed: - 33Waterfall effect chaser of multi-color (RGB) (illuminated, not illuminated). Running from the start to the end.
54Livarno Lux IAN 313369 - Dim the lamp / set speed: - 34Livarno Lux IAN 313369 - Dim the lamp / set speed: - 35Waterfall effect chaser of multi-color (7 colors) (illuminated, not illuminated). Running from the start to the end.
55Livarno Lux IAN 313369 - Dim the lamp / set speed: - 36Livarno Lux IAN 313369 - Dim the lamp / set speed: - 37Waterfall effect chaser of multi-color (16 colors) (illuminated, not illuminated). Running from the start to the end.
56Livarno Lux IAN 313369 - Dim the lamp / set speed: - 38Livarno Lux IAN 313369 - Dim the lamp / set speed: - 39Running light, alternating white light & single color - Red. Running from the end to the start.
57Running light, alternating white light & single color - Green. Running from the end to the start.
58Livarno Lux IAN 313369 - Dim the lamp / set speed: - 40Livarno Lux IAN 313369 - Dim the lamp / set speed: - 41Running light, alternating white light & single color - Blue. Running from the end to the start.
59Running light, alternating white light & single color - Yellow. Running from the end to the start.
60Running light, alternating white light & single color - Purple Running from the end to the start.
61Running light, alternating white light & single color - Cyan Running from the end to the start.
62Running light, alternating white light & single color - White Running from the end to the start.
63Running light, alternating white light & single color - Warm White. Running from the end to the start.
64Livarno Lux IAN 313369 - Dim the lamp / set speed: - 42Livarno Lux IAN 313369 - Dim the lamp / set speed: - 43Running light, alternating white light & multi-color (RGB). Running from the end to the start.
65Livarno Lux IAN 313369 - Dim the lamp / set speed: - 44Livarno Lux IAN 313369 - Dim the lamp / set speed: - 45Running light, alternating white light & multi-color (7 colors) Running from the end to the start.
66Livarno Lux IAN 313369 - Dim the lamp / set speed: - 46Livarno Lux IAN 313369 - Dim the lamp / set speed: - 47Running light, alternating white light & multi-color (16 colors) Running from the end to the start.
67Livarno Lux IAN 313369 - Dim the lamp / set speed: - 48Livarno Lux IAN 313369 - Dim the lamp / set speed: - 49Running light, alternating white light & single color - Red. Running from the start to the end.
68Running light, alternating white light & single color - Green. Running from the start to the end.
69Running light, alternating white light & single color - Blue. Running from the start to the end.
70Running light, alternating white light & single color - Yellow. Running from the start to the end.
71Running light, alternating white light & single color - Purple Running from the start to the end.
72Running light, alternating white light & single color - Cyan. Running from the start to the end.
73Running light, alternating white light & single color - White. Running from the start to the end.
74Running light, alternating white light & single color - Warm White. Running from the start to the end.
75Livarno Lux IAN 313369 - Dim the lamp / set speed: - 50Livarno Lux IAN 313369 - Dim the lamp / set speed: - 51Running light, alternating white light & multi-color (RGB). Running from the start to the end.
76Livarno Lux IAN 313369 - Dim the lamp / set speed: - 52Livarno Lux IAN 313369 - Dim the lamp / set speed: - 53Running light, alternating white light & multi-color (7 colors) Running from the start to the end.
77Livarno Lux IAN 313369 - Dim the lamp / set speed: - 54Livarno Lux IAN 313369 - Dim the lamp / set speed: - 55Running light, alternating white light & multi-color (16 colors)Running from the start to the end.
78Livarno Lux IAN 313369 - Dim the lamp / set speed: - 56Livarno Lux IAN 313369 - Dim the lamp / set speed: - 57Dynamic light setup, Single color - Red. Running from the end to the start.
79Dynamic light setup, Single color - Green. Running from the end to the start.
80Dynamic light setup, Single color - Blue. Running from the end to the start.
81Dynamic light setup, Single color - Yellow. Running from the end to the start.
82Dynamic light setup, Single color - Purple. Running from the end to the start.
83Livarno Lux IAN 313369 - Dim the lamp / set speed: - 58Livarno Lux IAN 313369 - Dim the lamp / set speed: - 59Dynamic light setup, Single color - Cyan. Running from the end to the start.
84Dynamic lamp setting, Single color - White. Running from the end to the start.
85Dynamic lamp setting, Single color - Warm White. Running from the end to the start.
86Livarno Lux IAN 313369 - Dim the lamp / set speed: - 60Livarno Lux IAN 313369 - Dim the lamp / set speed: - 61Dynamic light setup, multi-color (RGB). Running from the end to the start.
87Livarno Lux IAN 313369 - Dim the lamp / set speed: - 62Livarno Lux IAN 313369 - Dim the lamp / set speed: - 63Dynamic light setup, multi-color (7 colors)Running from the end to the start.
88Livarno Lux IAN 313369 - Dim the lamp / set speed: - 64Livarno Lux IAN 313369 - Dim the lamp / set speed: - 65Dynamic light setup, multi-color (16 colors)Running from the end to the start.
89Livarno Lux IAN 313369 - Dim the lamp / set speed: - 66Livarno Lux IAN 313369 - Dim the lamp / set speed: - 67Dynamic light setup, Single color - Red. Running from the start to the end.
90Dynamic light setup, Single color - Green. Running from the start to the end.
91Dynamic light setup, Single color - Blue. Running from the start to the end.
92Livarno Lux IAN 313369 - Dim the lamp / set speed: - 68Livarno Lux IAN 313369 - Dim the lamp / set speed: - 69Dynamic light setup, Single color - Yellow. Running from the start to the end.
93Dynamic light setup, Single color - Purple. Running from the start to the end.
94Dynamic light setup, Single color - Cyan Running from the start to the end.
95Dynamic lamp setting, Single color - White. Running from the start to the end.
96Dynamic lamp setting, Single color - Warm White. Running from the start to the end.
97Livarno Lux IAN 313369 - Dim the lamp / set speed: - 70Livarno Lux IAN 313369 - Dim the lamp / set speed: - 71Dynamic light setup, multi-color (RGB). Running from the start to the end.
98Livarno Lux IAN 313369 - Dim the lamp / set speed: - 72Livarno Lux IAN 313369 - Dim the lamp / set speed: - 73Dynamic light setup, multi-color (7 colors) Running from the start to the end.
99Livarno Lux IAN 313369 - Dim the lamp / set speed: - 74Livarno Lux IAN 313369 - Dim the lamp / set speed: - 75Dynamic light setup, multi-color (16 colors) Running from the start to the end.
100Livarno Lux IAN 313369 - Dim the lamp / set speed: - 76Livarno Lux IAN 313369 - Dim the lamp / set speed: - 77Falling star effect, Single color - Red Dynamic light setup running from the end to the start.
101Livarno Lux IAN 313369 - Dim the lamp / set speed: - 78Livarno Lux IAN 313369 - Dim the lamp / set speed: - 79Falling star effect, Single color - Green Dynamic light setup running from the end to the start.
102Falling star effect, Single color - Blue Dynamic light setup running from the end to the start.
103Falling star effect, Single color - Yellow Dynamic light setup running from the end to the start.
104Falling star effect, Single color - Purple Dynamic light setup running from the end to the start.
105Falling star effect, Single color - Cyan Dynamic light setup running from the end to the start.
106Shooting star effect, Single color - White Dynamic light setup running from the end to the start.
107Shooting star effect, Single color - Warm White Dynamic light setup running from the end to the start.
108Livarno Lux IAN 313369 - Dim the lamp / set speed: - 80Livarno Lux IAN 313369 - Dim the lamp / set speed: - 81Falling star effect, multi-color (RGB) Dynamic light setup running from the end to the start.
109Livarno Lux IAN 313369 - Dim the lamp / set speed: - 82Livarno Lux IAN 313369 - Dim the lamp / set speed: - 83Falling star effect, multi-color (7 colors) Dynamic light setup running from the end to the start.
110Livarno Lux IAN 313369 - Dim the lamp / set speed: - 84Livarno Lux IAN 313369 - Dim the lamp / set speed: - 85Falling star effect, multi-color (16 colors) Dynamic light setup running from the end to the start.
111Livarno Lux IAN 313369 - Dim the lamp / set speed: - 86Livarno Lux IAN 313369 - Dim the lamp / set speed: - 87Falling star effect, Single color - Red Dynamic light setup running from the start to the end.
112Falling star effect, Single color - Green Dynamic light setup running from the start to the end.
113Falling star effect, Single color - Blue Dynamic light setup running from the start to the end.
114Falling star effect, Single color - Yellow Dynamic light setup running from the start to the end.
115Livarno Lux IAN 313369 - Dim the lamp / set speed: - 88Livarno Lux IAN 313369 - Dim the lamp / set speed: - 89Falling star effect, Single color - Purple Dynamic light setup running from the start to the end.
116Falling star effect, Single color - Cyan Dynamic light setup running from the start to the end.
117Shooting star effect, Single color - White Dynamic light setup running from the start to the end.
118Shooting star effect, Single color - Warm White Dynamic light setup running from the start to the end.
119Livarno Lux IAN 313369 - Dim the lamp / set speed: - 90Livarno Lux IAN 313369 - Dim the lamp / set speed: - 91Falling star effect, multi-color (RGB) Dynamic light setup running from the start to the end.
120Livarno Lux IAN 313369 - Dim the lamp / set speed: - 92Livarno Lux IAN 313369 - Dim the lamp / set speed: - 93Falling star effect, multi-color (7 colors) Dynamic light setup running from the start to the end.
121Livarno Lux IAN 313369 - Dim the lamp / set speed: - 94Livarno Lux IAN 313369 - Dim the lamp / set speed: - 95Falling star effect, multi-color (16 colors) Dynamic light setup running from the start to the end.
122Livarno Lux IAN 313369 - Dim the lamp / set speed: - 96Livarno Lux IAN 313369 - Dim the lamp / set speed: - 97Water flow effect, alternating direction of Single color - Red
123Water flow effect, alternating direction of Single color - Green
124Water flow effect, alternating direction of Single color - Blue
125Water flow effect, alternating direction of Single color - Yellow
126Water flow effect, alternating direction of Single color - Purple
127Water flow effect, alternating direction of Single color - Cyan
128Water flow effect, alternating direction of Single color - White
129Water flow effect, alternating direction of Single color - Warm White
130Livarno Lux IAN 313369 - Dim the lamp / set speed: - 98Livarno Lux IAN 313369 - Dim the lamp / set speed: - 99Water flow effect, alternating direction of multi-color (RGB)
131Livarno Lux IAN 313369 - Dim the lamp / set speed: - 100Livarno Lux IAN 313369 - Dim the lamp / set speed: - 101Water flow effect, alternating direction of multi-color (7 colors)
132Livarno Lux IAN 313369 - Dim the lamp / set speed: - 102Livarno Lux IAN 313369 - Dim the lamp / set speed: - 103Water flow effect, alternating direction of multi-color (16 colors)
133Livarno Lux IAN 313369 - Dim the lamp / set speed: - 104Livarno Lux IAN 313369 - Dim the lamp / set speed: - 105Indicator light effect with increasing light intensity, Single color - Red
134Indicator light effect with increasing light intensity, Single color - Green
135Indicator light effect with increasing light intensity, Single color - Blue
136Indicator light effect with increasing light intensity, Single color - Yellow
137Indicator light effect with increasing light intensity, Single color - Purple
138Indicator light effect with increasing light intensity, Single color - Cyan
139Indicator light effect with increasing light intensity, Single color - White
140Indicator light effect with increasing light intensity, Single color - Warm White
141Livarno Lux IAN 313369 - Dim the lamp / set speed: - 106Livarno Lux IAN 313369 - Dim the lamp / set speed: - 107Indicator light effect with increasing light intensity, multi-color (RGB)
142Livarno Lux IAN 313369 - Dim the lamp / set speed: - 108Livarno Lux IAN 313369 - Dim the lamp / set speed: - 109Indicator light effect with increasing light intensity, multi-color (7 colors)
143Livarno Lux IAN 313369 - Dim the lamp / set speed: - 110Livarno Lux IAN 313369 - Dim the lamp / set speed: - 111Indicator light effect with increasing light intensity, multi-color (16 colors)
144Livarno Lux IAN 313369 - Dim the lamp / set speed: - 112Livarno Lux IAN 313369 - Dim the lamp / set speed: - 113Indicator light effect of Single color - Red, fast
145Indicator light effect of Single color - Green, fast
146Indicator light effect of Single color - Blue, fast
147Indicator light effect of Single color - Yellow, fast
148Indicator light effect of Single color - Purple, fast
149Indicator light effect of Single color - Cyan, fast
150Indicator light effect of Single color - White, fast
151Indicator light effect of Single color - Warm White, fast
152Livarno Lux IAN 313369 - Dim the lamp / set speed: - 114Livarno Lux IAN 313369 - Dim the lamp / set speed: - 115Indicator light effect of multi-color (RGB), fast
153Livarno Lux IAN 313369 - Dim the lamp / set speed: - 116Livarno Lux IAN 313369 - Dim the lamp / set speed: - 117Indicator light effect of multi-color (7 colors), fast
154Livarno Lux IAN 313369 - Dim the lamp / set speed: - 118Livarno Lux IAN 313369 - Dim the lamp / set speed: - 119Indicator light effect of multi-color (16 colors), fast
155Falling star effect of Single color - Red
156Falling star effect of Single color - Green
157Falling star effect of Single color - Blue
158Falling star effect of Single color - Yellow
159Falling star effect of Single color - Purple
160Falling star effect of Single color - Cyan
161Falling star effect, Single color - White
162Falling star effect, Single color - Warm White
163Livarno Lux IAN 313369 - Dim the lamp / set speed: - 120Livarno Lux IAN 313369 - Dim the lamp / set speed: - 121Falling star effect of multi-color (RGB)
164Livarno Lux IAN 313369 - Dim the lamp / set speed: - 122Livarno Lux IAN 313369 - Dim the lamp / set speed: - 123Falling star effect of multi-color (7 colors)
165Livarno Lux IAN 313369 - Dim the lamp / set speed: - 124Livarno Lux IAN 313369 - Dim the lamp / set speed: - 125Falling star effect of multi-color (16 colors)
166Livarno Lux IAN 313369 - Dim the lamp / set speed: - 126Automatic change: this function cycles through all programs with the full color spectrum. Unlike other programs, the colors cannot be set

BRILONER LEUCHTEN GMBH & CO. KG

Im Kissen 2

59929 Brilon

GERMANY

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Livarno Lux

Model : IAN 313369

Category : Remote control
