Desire 2228056 - Food processor RUSSELL HOBBS - Free user manual and instructions

Product type	Food processor
Brand	Russell Hobbs
Model	Desire 2228056
Functions	Chopping, slicing, coarse grating, and fine grating
Feed tube dimensions	48 x 40 mm
Usage	Household use only
Power supply	220-240 V ~ 50-60 Hz
Safety	Automatic shut-off after 2 minutes of continuous operation; do not leave unattended
Care and cleaning	Removable parts dishwasher safe; wipe motor unit with a damp cloth
Material	Durable plastic
Weight	Approximately 1.5 kg
Dimensions	Approximately 30 x 20 x 25 cm

Frequently Asked Questions - Desire 2228056 RUSSELL HOBBS

How to assemble the Russell Hobbs Desire 2228056 food processor?

First, unplug the appliance. Choose the pair of cutting discs (slicer, coarse grater or fine grater). Fit the tabs of the cutting disc into the slots of the disc holder. Slide the holder into the body, then fasten the ring nut. Finally, click the body onto the motor unit via the bayonet mount.

How to use the appliance to cut food?

Cut the food so that it fits into the feed tube (48x40 mm). Plug in the appliance and set the switch to I. Remove the pusher, pour the ingredients into the feed tube, then replace the pusher to push the food down.

What are the essential safety precautions?

Do not leave the appliance unattended while plugged in. Do not exceed 2 minutes of continuous operation to avoid overheating. Use only the pusher, never fingers or utensils. Unplug before assembly/disassembly/cleaning.

How to clean the parts of the food processor?

Unplug the appliance. Wipe the motor unit with a damp cloth. Wash the removable parts (cutting discs, holder, body, pusher) in warm soapy water or in the dishwasher. Dry thoroughly before reassembling.

What to do if the appliance makes noise?

The noise may be caused by friction of the cutting disc against the ring nut. Apply a little cooking oil to the inner surface of the ring nut before use to reduce noise.

How to store the blades safely?

After cleaning, store the cutting discs in the guides inside the pusher, with the narrow part facing down. This prevents accidental contact with the blades.

How to avoid stains on plastic parts?

Carotenoids (found in carrots, etc.) can cause stains. Apply cooking oil before washing or wash the parts in the dishwasher to reduce stains. Stains do not affect performance.

What to do in case of appliance blockage?

Turn off the appliance (O) and unplug it. Disassemble the appliance completely, clean the parts, then reassemble and restart the operation.

Can children use this food processor?

No. Children must not use or play with the appliance. Keep the appliance and its cord out of reach of children. Persons with reduced capabilities must be supervised.

What types of food can I cut with this food processor?

You can cut vegetables (carrots, cucumbers, potatoes), fruits, hard cheese, etc. Make sure the food does not exceed 48x40 mm to enter the feed tube. Do not cut overly hard foods (bones, pits).

USER MANUAL Desire 2228056 RUSSELL HOBBS

Black and white photo of a kitchen grater with a clear glass lid and perforated contents (no text or symbols visible)

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children must not use or play with the appliance.

Keep the appliance and cable out of reach of children.

⚠️ Misuse of the appliance may cause injury.

Unplug the appliance before assembly, disassembly, or cleaning.

Don't leave the appliance unattended while plugged in.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't use fingers or cutlery to push food down the tube – only the pusher.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't operate the appliance if it's damaged or malfunctions.
• Don't run the motor continuously for more than 2 minutes, it may overheat. After 2 minutes switch off for at least 2 minutes, to recover.

HOUSEHOLD USE ONLY

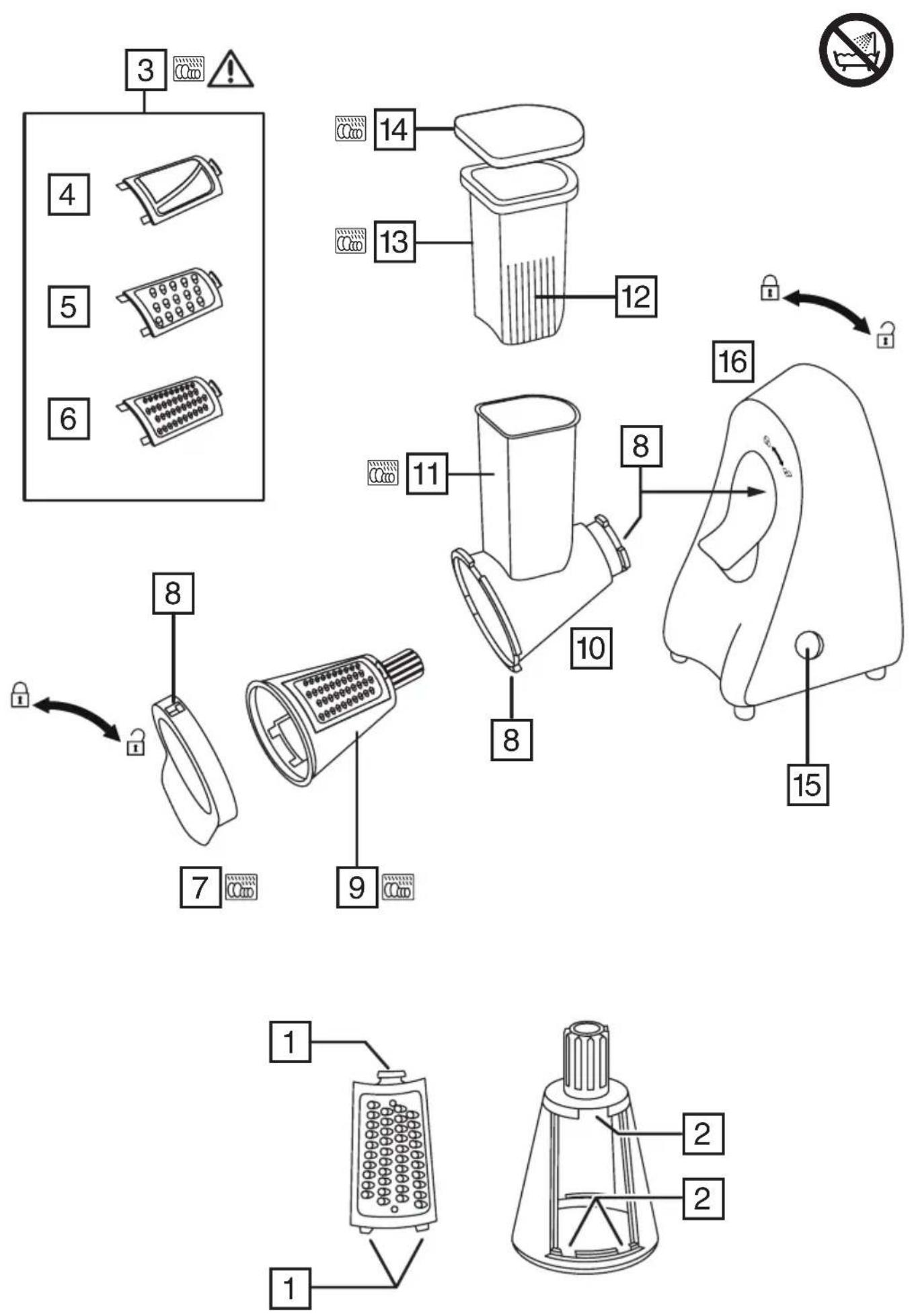

PARTS

1. Tab
2. Slots
3. Cutters
4. Slicer
5. Coarse grater
6. Fine grater
7. Ring nut
8. Bayonet fitting

9. Cutter mount

10. Body

11. Tube
12. Guides
13. Pusher
14. Cap
15. Switch
16. Motor unit
    Dishwasher safe

ASSEMBLY

1. Switch the appliance off (O) and unplug it.
2. Choose the pair of cutters you need – slicer, coarse grater, fine grater.
3. Stand the cutter mount upright on the work surface. Don't try to fit the cutters to the cutter mount while holding it in the operating position or you might cut yourself.
4. Fit the tabs on the wide end of the cutter into the slots in the wide end of the cutter mount.
5. Press the tab on the narrow end of the cutter into the space in the narrow end of the cutter mount.

6. Turn the cutter mount, then fit the second cutter.

7. Slide the cutter mount into the body.

8. Turn the ring nut 45^ clockwise.

9. Push it on to the front of the body.

10. Turn it 45° anti-clockwise, to lock it in place.

11. Turn the body till the tube is vertical.

12. Now turn it 45^ clockwise, to engage the bayonet fittings inside the motor unit.
13. Turn it 45^ anti-clockwise, to lock it in place.
14. Fit the cap to the pusher, and drop the pusher into the tube.

USING

1. Cut the food to a shape that will go down the tube (48x40mm).
2. Put the plug into the power socket.
3. Move the switch to I.
4. Remove the pusher, and drop the ingredients down the tube.
5. Replace the pusher, and use it to push the ingredients gently down the tube.

DISASSEMBLY

1. Switch the appliance off (O) and unplug it.
2. Turn the body 45^ clockwise, to disengage the bayonet fittings, and pull it off the motor unit.
3. Turn the ring nut 45^ clockwise.
4. Lift it off the body.
5. Push the rear of the cutter mount towards the body, then tip the cutter mount out.
6. Stand the cutter mount upright on the work surface.
7. Press the tab on the narrow end of the cutter towards the wide end of the cutter mount, to release it from the cutter mount, then lift the cutter out.
8. Rotate the cutter mount, then remove the second cutter.

STORAGE

You may store the cutters in the guides inside the pusher. Insert them with the narrow end down.

NOISE

If you find the appliance is noisy, the cutter may be rubbing against the ring nut. Applying a little cooking oil to the inside of the ring nut before use should fix this.

CARE AND MAINTENANCE

1. Switch the appliance off (O) and unplug it.
2. Wipe the outside of the motor unit with a clean damp cloth.
3. Wash the removable parts in warm soapy water, rinse well, drain, and air dry.
   You may wash these parts in a dishwasher.
   If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance.

STAINING

Carotenoids, which are found in many other vegetables as well as carrots, can cause severe staining. This staining may be impossible to remove. Don't worry about it, it won't affect the operation of the appliance.

1. Rubbing the stains with cooking oil immediately before washing may help.
2. Cleaning the affected parts in a dishwasher may reduce the staining.

JAMMING

1. Switch the appliance off (O) and unplug it.
2. Dismantle the appliance, clean it, assemble it, and start again.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
