Colorful 2 - Smartwatch DCU - Free user manual and instructions

Product Type	Smartwatch
Brand	DCU
Model	Colorful 2
Water Resistance	IP67 (immersion up to 1 meter, 30 minutes max, not in salt water, shower, hot bath, sauna)
Connectivity	Bluetooth 5.1
Compatibility	iOS 9.0 and above; Android 6.0 and above
Battery	Magnetic charging, 5V/1A to 5V/2.4A; charging time 2-3 hours
Main Functions	Bluetooth calls, heart rate, blood pressure, SpO2, sleep, pedometer, 8 sports modes, weather, notifications, music control, camera remote, stopwatch, alarm, reminders (drink, move), menstrual tracking, voice assistant
Care and Cleaning	Damp cloth, mild soap; avoid hot water, chemicals; dry before charging
Safety	Non-medical; consult a healthcare professional for diagnosis
Warranty	3 years manufacturing defects; 6 months battery/charger
Power	Rechargeable lithium battery

Frequently Asked Questions - Colorful 2 DCU

How to charge the Colorful 2 watch?

Use the included magnetic charging cable. Connect the metal contacts to the back of the watch, then plug the cable into a USB charger (5V/1A to 5V/2.4A). Full charge takes about 2 to 3 hours.

Is the watch waterproof?

Yes, it is certified IP67: can be immersed up to 1 meter for maximum 30 minutes. Avoid salt water, shower, hot bath, and sauna as steam can damage the watch.

How to change the watch face?

Long press on the home screen, then swipe right or left to choose from the different available layouts.

How to measure heart rate or blood pressure?

On the watch screen, touch the Heart rate or Blood pressure icon to start measurement. Results are displayed directly. Note: these data are not medical.

How to connect the watch to the phone?

Download the Da Fit app from the App Store or Google Play. Enable Bluetooth on your phone, open the app, and follow the instructions to pair the watch. Compatible with iOS 9.0+ and Android 6.0+.

Can I answer calls with the watch?

Yes, when the watch is connected to the phone via Bluetooth, you can answer calls directly from the watch. You can also dial a number or check call history.

How to clean the watch?

Use a damp cloth with a little mild soap to clean the watch, especially after activity. Avoid hot water and chemicals. Dry it well before charging.

Is the watch a medical device?

No, this product is not a medical device. The measurements (heart rate, blood pressure, SpO2) are provided for informational purposes only. Consult a healthcare professional for any diagnosis.

What to do if the watch does not charge?

Make sure the charging contacts are clean and dry. Check that the charger provides 5V (max 2.4A). If the problem persists, contact customer service at [e-mail].

How to activate movement or water reminders?

Open the Da Fit app on your phone, go to watch settings and enable Movement reminder and Water reminder options. You can also set the schedules.

USER MANUAL Colorful 2 DCU

CARGAR Y ACTIVAR EL RELOJ INTELIGENTE:

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

Centro de control

Abstract geometric design with purple and red gradient background, no text or symbols visible

Notificaciones

FUNCIONES DEL RELOJ:

Llamadas Bluetooth:

Voz IA:

PRECAUCIONES:

Thank you very much for purchasing this watch, the DCU team has been working hard to offer you a comfortable, beautiful and functional watch.

If you have any questions that this manual cannot solve, we will be happy to assist you, you can write to [e-mail] and in less than 24 hours we will answer you.

We wish you enjoy it!

If you want to know a little more, go to www.dcutec.com or visit our Instagram profile @dcutecnologic. Sometimes we do raffles.

Device maintenance

Remember the following tips to keep your Smartwatch in good condition:

• Clean the watch regularly, especially the back side, and keep it dry.
• Adjust the watch strap to ensure the air circulation.
• Skin care products should not be used on the wrist with the smartwatch.
• Please stop wearing the watch in case of skin allergy or any discomfort.

Remark: The product supports waterproof with IP67 level, it is available to wear it while wash hands, 30min swimming pool, in raining, etc.

Do not use it with saltwater or when have a hot shower/bath or sauna, the vapors will get into the host, scratch damage of peripheral components. All these are beyond the scope of the warranty.

DOWNLOAD THE SMARTWATCH APP:

Scan the QR code to download and install the APP, or search in your APP Store or Play Store the name of the APP "Da Fit".

Device requirements: iOS 9.0 and above; Android 6.0 and above, support Bluetooth 5.1

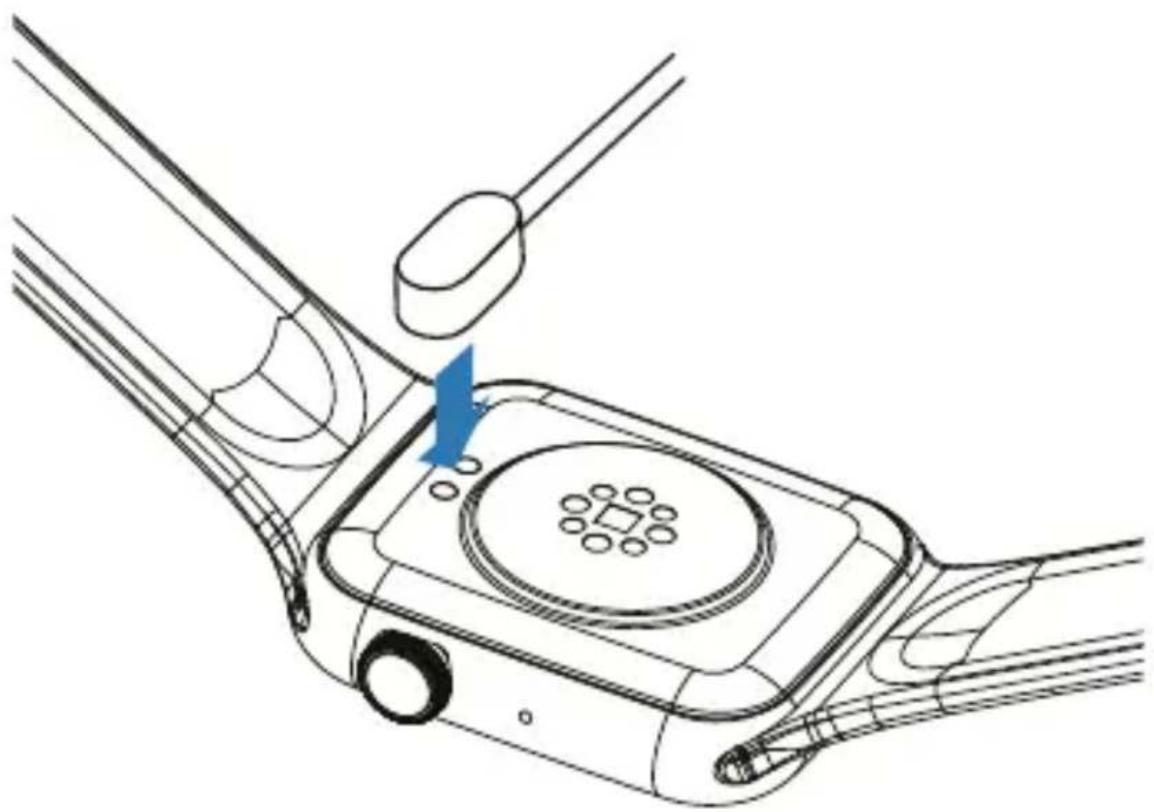

CHARGE AND ACTIVATE THE SMARTWATCH:

Before using the watch for the first time, you need to fully charge the battery, use the magnetic charging cable provided to connect the metal charging contacts on the back of the watch, connect the other end of the charging cable to an USB charger or an USB computer interface that provides a minimum of 5V/1A and a maximum of 5V/2A.

Technical line drawing of a mechanical device with a blue arrow indicating a component or feature (no text or symbols present)

The estimated time for a full charge is between 2-3 hours. To extend battery life, never let it discharge to 100% and charge it regularly, even if you are not going to use it.

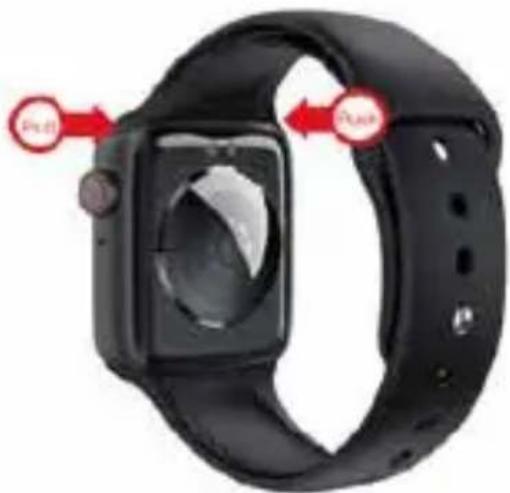

WATCH STRAP CHANGE:

Pull forward with one hand, push forward with the other hand at the same time, watch strap can be easily taken apart.

CHANGE THE WATCH FACE LAYOUT:

Touch and hold the main watch face and swipe right or left to select between different screen layouts.

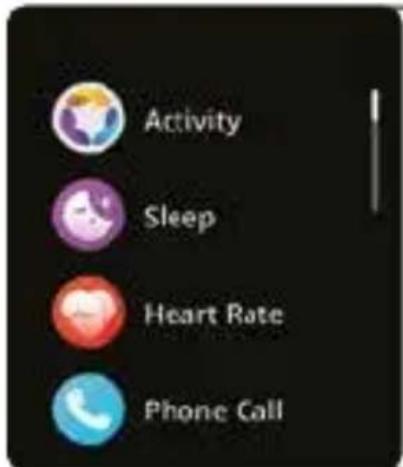

FEATURE PAGES:

Abstract geometric design with red and purple gradient background, no text or symbols visible

Feature pagesMen

Messages

SMARTWATCH FEATURES:

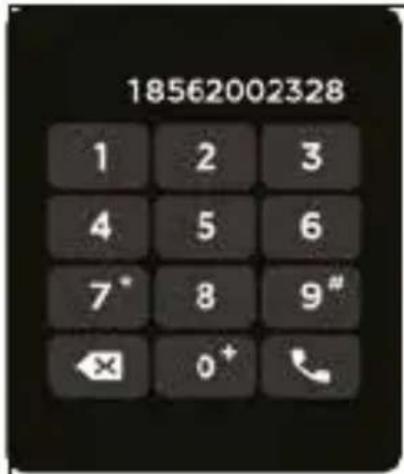

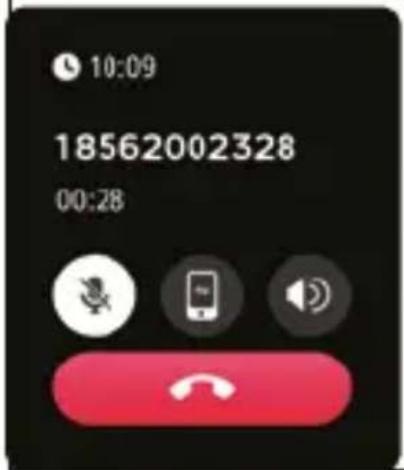

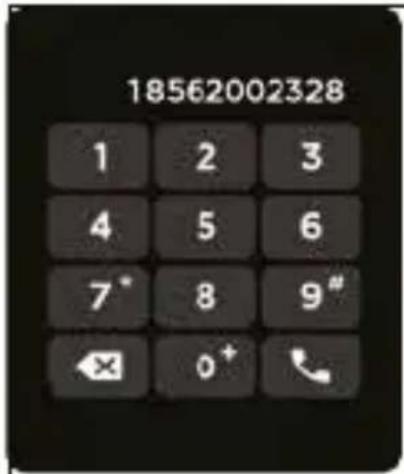

Bluetooth calls:

When the smartwatch is connected to the phone, you can use the smartwatch to dial the phone number to call, dial a favourite number, or you can answer calls directly on the smartwatch.

You can also view the call history of your smartwatch.

To use the call function, you need to make sure that the smartwatch is connected to the phone in a stable state, within 10m with no obstacles, and never disconnect the Bluetooth.

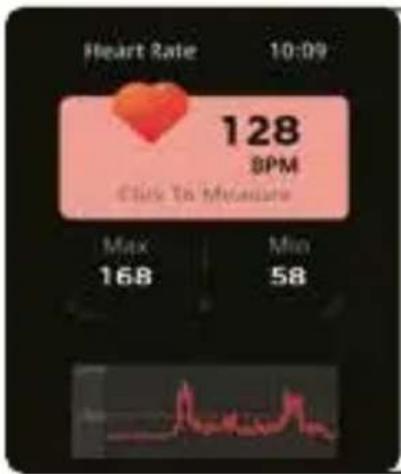

Heart rate record:

The smartwatch can record your heart rate daily.

You can also touch the heart rate interface to start measuring the current heart rate.

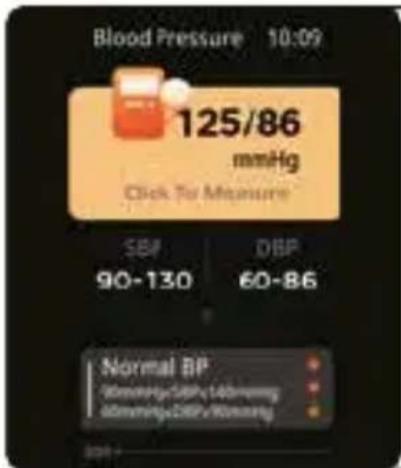

Blood pressure record:

Touch the blood pressure interface to start measuring your blood pressure.

The blood pressure interface can display the blood pressure measured data of the last times.

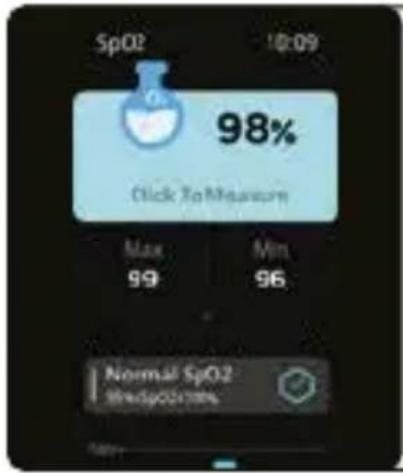

Blood oxygen:

Touch the SpO_2 interface to start measuring your SpO_2 . In the SpO_2 interface, it can display the last times SpO_2 measured data.

Daily activity information:

The smartwatch automatically records the steps taken during the day.

NOTE: Steps are measured by moving your arms Daily activity information will be reset every day at midnight

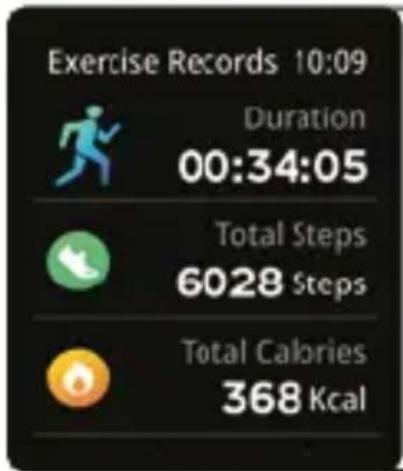

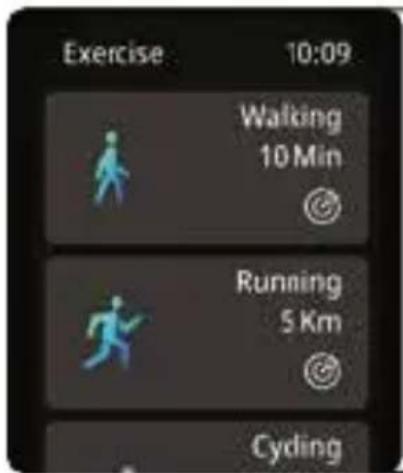

Sport modes:

Touch the training icon in the menu to start a new training recording, there are 8 sport modes to choose from: walking, running, cycling, basketball, football, badminton, skipping rope and swimming pool (not for use in salt water).

The latest training recording will be displayed on the training interface.

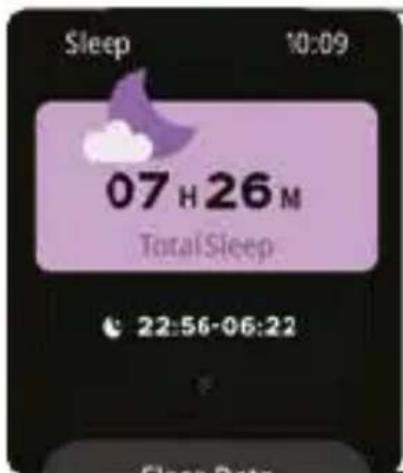

Sleep recording:

If you wear the Smartwatch while sleeping between 8pm and 8am, you can record the hours slept during the previous night and the quality of your sleep. You can see the statistics both on the screen and in the DaFit APP. NOTE: Sleep stats reset to zero at 8:00 PM.

ENG

Remote control for photos:

After connecting the smartwatch to your phone, you can remotely control the phone's camera.

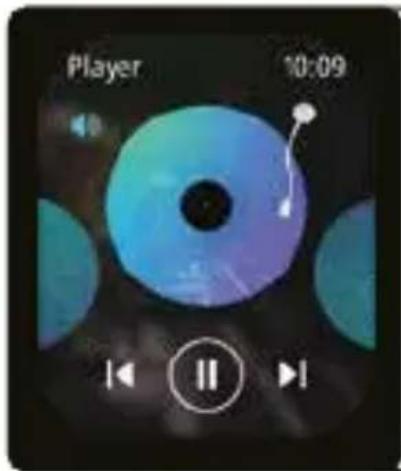

Control music player:

After connecting the smartwatch to your phone, you can remotely control the music player on your phone (play/pause/next/previous)

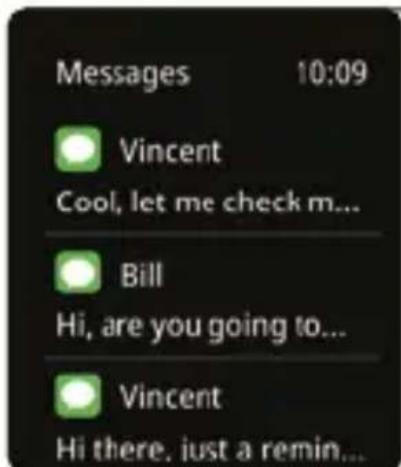

APP's notifications:

The device can sync your phone's incoming notifications like Twitter, Facebook, Whatsapp, Instagram, etc. after setting up in the DaFit APP.

The last 5 messages can be stored.

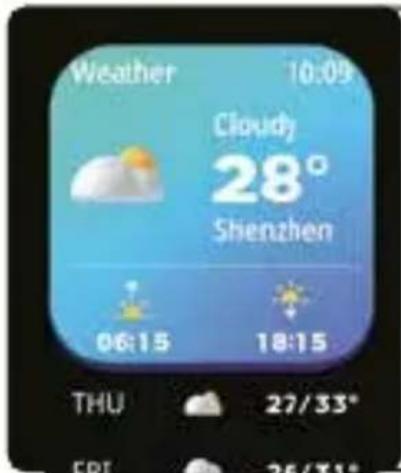

Weather information:

The weather information page displays the current weather and information for the next day. Weather information must be connected to the DaFit app before you can get the data. The weather information cannot be updated if it is disconnected from the APP for a long time.

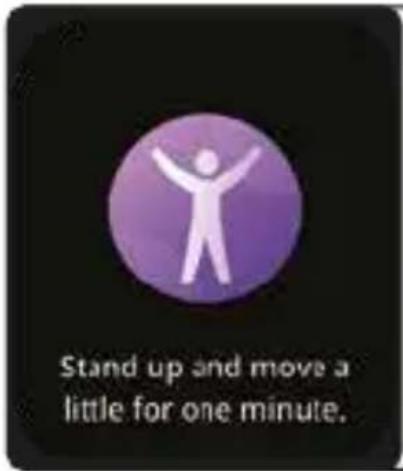

Movement reminder:

The device will vibrate to remind you to move after sitting for 1 hour.

Note: You can enable/disable the feature in the DaFit app.

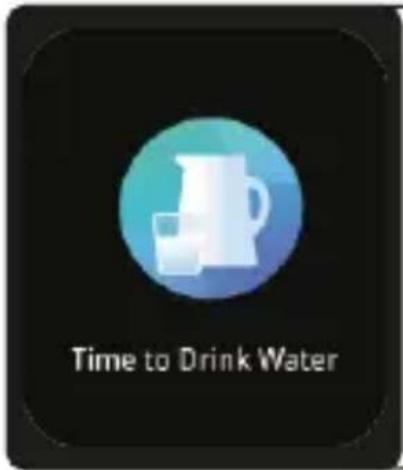

Drink reminder:

The smartwatch will remind you "Time to drink some water" at the scheduled drinking time.

Note: You can set the feature in the DaFit app

Other functions:

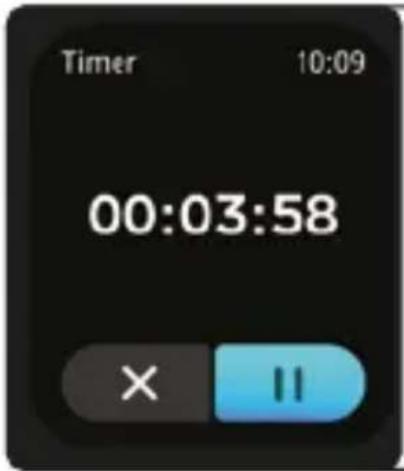

Includes stopwatch, alarm, timer, brightness adjustment, mute on/off, theatre mode, factory reset, power off, and device information.

AI Voice:

In the State of Bluetooth connection, the smartwatch can wake up the Voice assistant on the phone.

ENG

Cronómetro:

Tap the start button on stopwatch page to start timing, and tap the stop button to stop timing

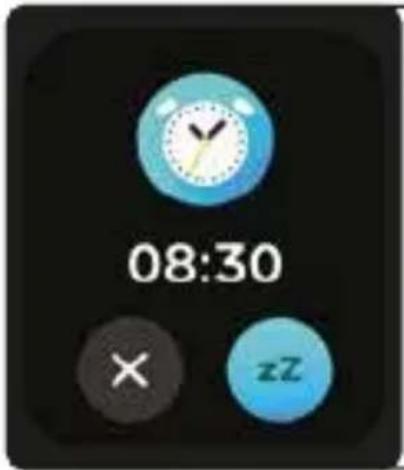

Silent alarms:

Set up the alarm on the APP, the Device will vibrate to remind on time

Period:

Menstrual period, ovulation can be set in the client period, ovulation peak reminder and prediction.

PRECAUTIONS:

1. Avoid subjecting the smartwatch to strong impacts, extreme heat and/or sun exposure.
2. Please do not disassemble, repair or modify the smartwatch by yourself.
3. This device uses 5V 1A for charging. It is strictly prohibited to use charging power supply higher than 5V, maximum allowable 5V/2.4A.
4. The operating environment of this device is 0^ 45^ . Do not bring it close to extreme sources of heat.
5. When the smartwatch is wet, dry it with a soft cloth before charging, otherwise it will corrode the charging contacts and cause charging failure.
6. Do not bring the smartwatch near chemicals such as gasoline, cleaning solvents, propanol, alcohol, insect repellent, or perfume.
7. Please do not use this device in high voltage and high magnetism environment
8. If you have sensitive skin or wear the smartwatch too tight, you may feel uncomfortable.
9. Wipe beads of sweat from your wrist from time to time, as the strap may be exposed to soap, sweat, allergens or pollutants for a long time, which can cause itchy skin.
10. If you use it frequently, it is recommended to clean the smartwatch every week. Clean with a damp cloth and remove oil or dust with a mild soap. It is not recommended to use the smartwatch with hot water. Water vapour could enter to the sphere and damage the components.

WARNING:

This product is not a medical device. The Smartwatch and their applications should not be used for the diagnosis, treatment or prevention of diseases or ailments. To change your exercise and sleep habits, be sure to consult a qualified medical professional to avoid serious damages. Our company reserves the right to modify and improve any of the functions described in this manual without prior notice. At the same time, the company reserves the right to update the contents of the product. All contents are subject to the real product.

WARRANTY:

1. The warranty covers quality problems caused by manufacturing, materials or design within the first 3 years of purchase and battery and charger problems within the first 6 months. REGISTER YOUR SMARTWATCH ON OUR WEBSITE TO ACCESS THE WARRANTY (scan the QR code below).

2. The guarantee does not cover damage caused by misuse of the product or by the following cases:

1). Disassemble or reassemble the product.
2). Damage caused by falls
3). Any man-made damage or misuse (such as: getting water into the dial, external force causing it to break, scratch damage to peripheral components, etc.)
4) Damages caused by water are outside the scope of the guarantee because we cannot verify if the tightness of the product has been tampered with or affected by small blows that have reduced its resistance.

1. When requesting the warranty, you must provide the purchase receipt with the place and date of purchase.

2. If you have problems using the product, please don't hesitate to contact our customer service:

DCU Tecnologic customer service

(scan the QR code below).

CAT

CARREGAR I ACTIVAR EL RELLOTGE:

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

CANVIAR LA CORRETJA DEL RELLOTGE:

Abstract color gradient background with no text or symbols

Notificacions

FUNCIONS DEL RELLOTGE INTEL·LIGENT:

Trucades Bluetooth:

Control remot per a fotografies:

Recordatori de moviment:

Veu IA:

FRA

CHARGER ET ACTIVER LA MONTRE:

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

CHANGEZ LE BRACELET DE LA MONTRE:

Abstract colorful geometric shape with no text or symbols

Notifications

FONCTIONS DE LA MONTRE INTELLIGENTE:

Appels Bluetooth:

Notifications des APPs:

Rappel de boire:

Voix IA:

Période:

Service client DCU Tecnologic

ENREGISTREZ VOTRE MONTRE SUR NOTRE SITE INTERNET POUR

CARREGUE E ATIVE O RELÓGIO:

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

MUDE A PULSEIRA DO RELÓGIO:

Centre de controle

Digital clock icon showing 10:09 with purple and red abstract background (no text or symbols)

Notificações

FUNÇÕES DE RELÓGIO INTELIGENTE:

Chamadas Bluetooth:

Controle remoto para fotos:

Lembrete de movimento:

Voz de IA:

Período:

Any questions about our products:

www.dcutec.com

C/ Industria, 34

Designed in BCN / Made in PRC / B55166847
