VINDRIKTNING 605.159.11 - Air purifier IKEA - Free user manual and instructions

Product Type	Air purifier with air quality sensor
Brand	IKEA
Model	VINDRIKTNING 605.159.11
Category	Air purifier
Power supply	5.0 V DC, 2.0 A via USB-C (adapter not included)
Power consumption	0.5 W
Sensor type	PM2.5 particles
Detection range	0 to 1 000 μg/m³
Air quality indicator	LED: Green (0-35, good), Orange (36-85, moderate), Red (86+, poor)
Operating temperature	0°C to 40°C
Operating humidity	0 to 95% RH (recommended 40-60%)
Usage	Indoor only
Maximum USB cable length	3.0 m
Cleaning	Wipe with a soft cloth and mild detergent; dry with a dry cloth
Safety precautions	Do not block air intakes; avoid direct sunlight and heat sources
Repairability	Do not repair yourself; opening exposes to hazardous voltages
Certifications	FCC Part 15, ISED Canada (license-exempt)
Recycling	Sort separately according to local regulations

Frequently Asked Questions - VINDRIKTNING 605.159.11 IKEA

How to start the VINDRIKTNING sensor?

Plug the USB-C adapter (not included) into the USB-C port. The startup sequence lasts about 10 seconds, during which the LEDs flash. Once the LEDs are steady, the device is ready.

What do the different LED colors mean?

Green: good air quality (PM2.5 0-35 μg/m³). Orange: moderate quality (PM2.5 36-85 μg/m³). Red: poor quality (PM2.5 86+ μg/m³). Flashes indicate startup mode.

What is the detection range of the sensor?

The sensor measures PM2.5 particles from 0 to 1 000 μg/m³.

How to clean the VINDRIKTNING?

Unplug the device. Wipe it with a soft cloth moistened with a little mild detergent, then dry with a soft, dry cloth. Never use abrasive products or chemical solvents.

Can I use any USB adapter?

The device requires a power supply of 5.0 V DC, 2.0 A via USB-C. Use an adapter that meets the specifications. The adapter is not included.

Where to place the sensor for optimal measurements?

Place it in an open area, without blocking the air intakes. Avoid direct sunlight, heat sources, humid or very dirty environments.

What to do in case of radio interference?

Reorient or move the receiving antenna, increase the distance between the device and the receiver, or plug the device into a different circuit. If the problem persists, contact a technician.

Is the VINDRIKTNING waterproof?

No, the device is not waterproof. Avoid humid environments and do not expose it to water. The recommended operating humidity is 40 to 60% RH.

Can I repair the sensor myself?

No, do not attempt to repair the product yourself. Opening or removing covers may expose you to hazardous voltages. Contact a professional.

How to recycle the VINDRIKTNING at end of life?

The crossed-out wheeled bin symbol indicates that it should be recycled. Follow local regulations for electronic waste. Contact your IKEA store for more information.

USER MANUAL VINDRIKTNING 605.159.11 IKEA

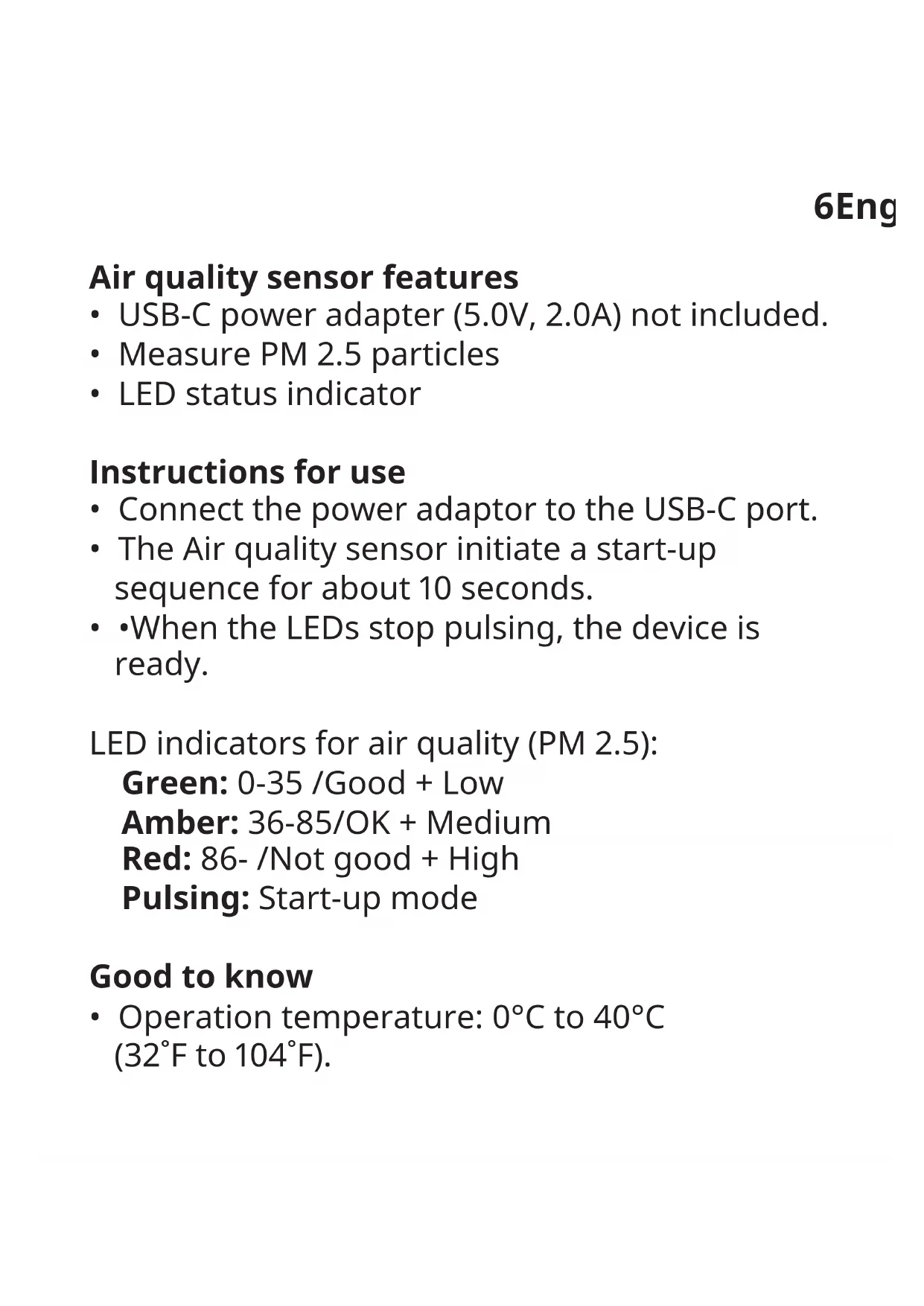

Air quality sensor features

• USB-C power adapter (5.0V, 2.0A) not included.
  Measure PM 2.5 particles
• LED status indicator

Instructions for use

• Connect the power adaptor to the USB-C port.
• The Air quality sensor initiate a start-up sequence for about 10 seconds.
• When the LEDs stop pulsing, the device is ready.

LED indicators for air quality (PM 2.5):

Green: 0-35 /Good + Low

Amber: 36-85/OK + Medium

Red: 86-/Not good + High

Pulsing: Start-up mode

Good to know

• Operation temperature: 0^ C to 40^ C (32°F to 104°F).

• Operating humidity: 0 to 95% RH (Recommended working humidity: 40 - 60% RH)

• Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

IMPORTANT!

• Do not block the air intakes.
• Do not leave the device in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the unit to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• Be sure to not exceed the maximum USB cable length recommended for the device.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent.

Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2014 VINDRIKTNING

Input: 5.0V DC, 2.0A, 0.5 W, USB-C

Particle detection range: 0 1000 g / m^3

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Ålmhult, SWEDEN

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Fabricant : IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Almhult, SUÉDE
