USER MANUAL MED570A Numatic

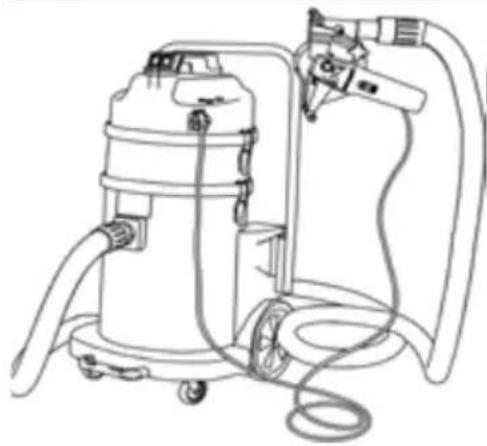

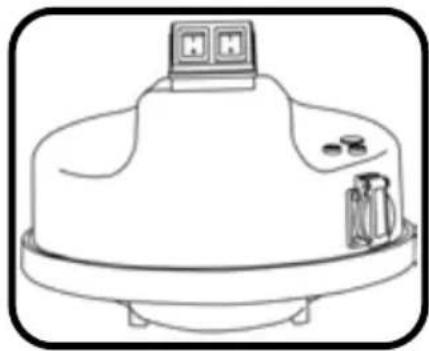

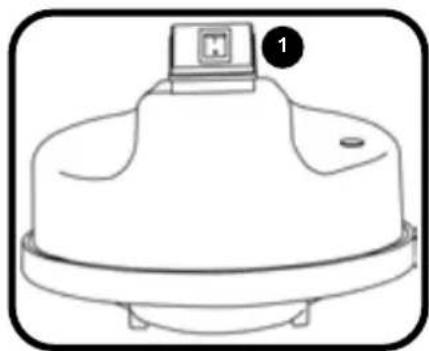

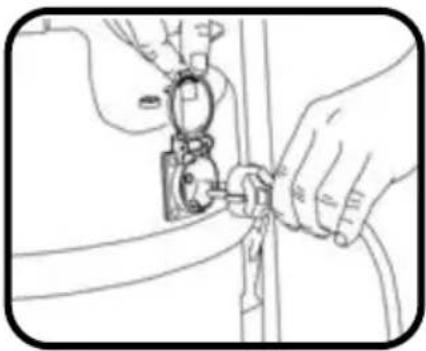

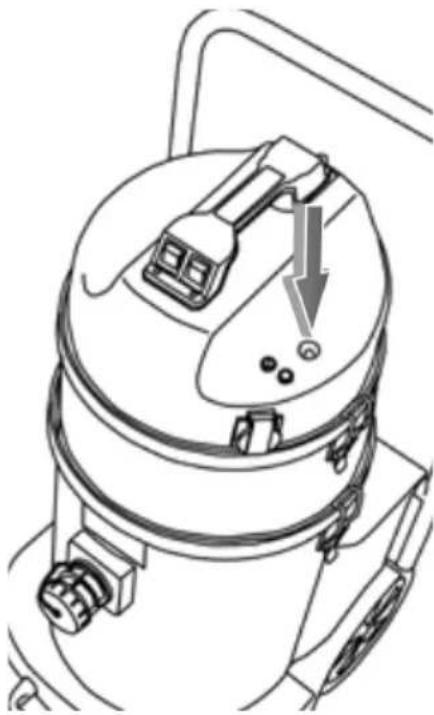

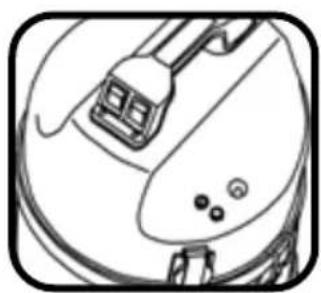

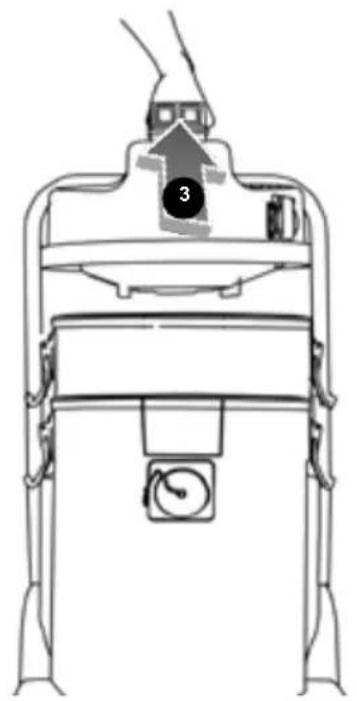

If your appliance fails to operate, ensure that the Auto/Manual switch (2) is in the o󰀨 position prior to switching the On/O󰀨 switch (1) to the On position. Auto Mode - If an external appliance fails to operate when connected to the vacuum auxiliary socket (3) please check and ensure that switch (1) & (2) are in the On position prior to operating the external appliance.

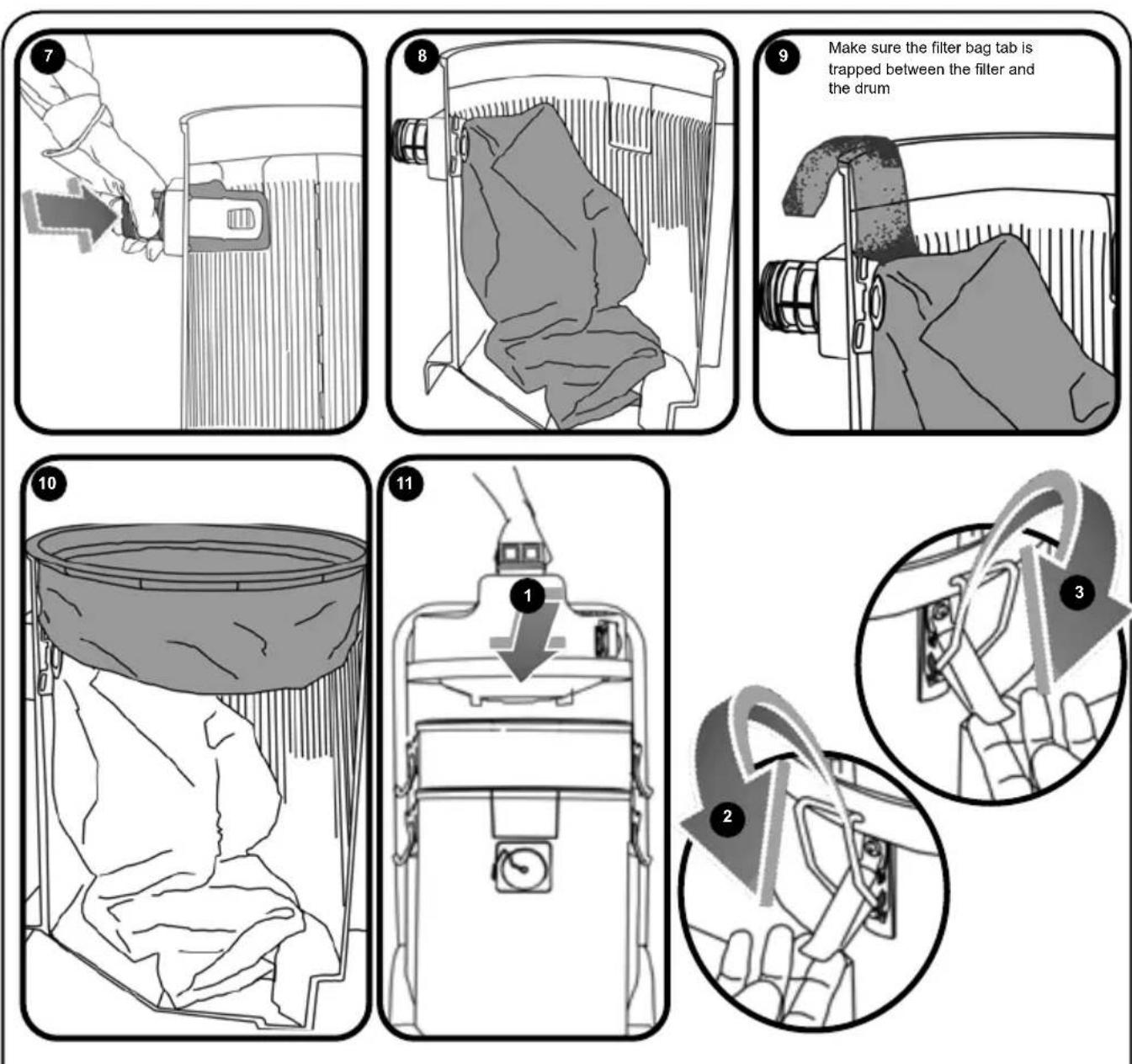

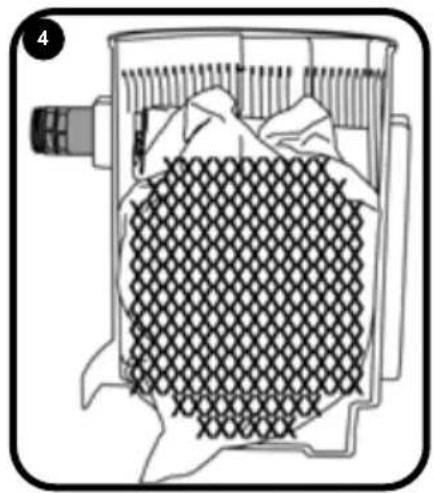

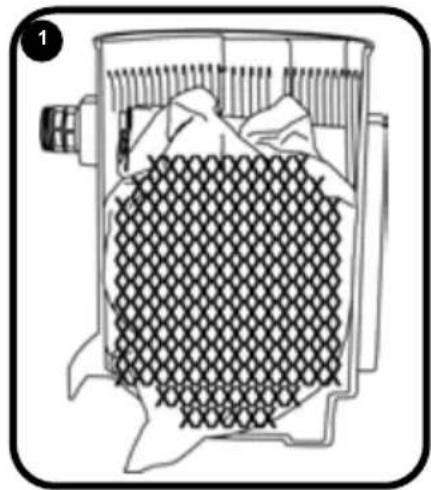

Make sure the lter bag tab is trapped between the lter and the drum Interceptor

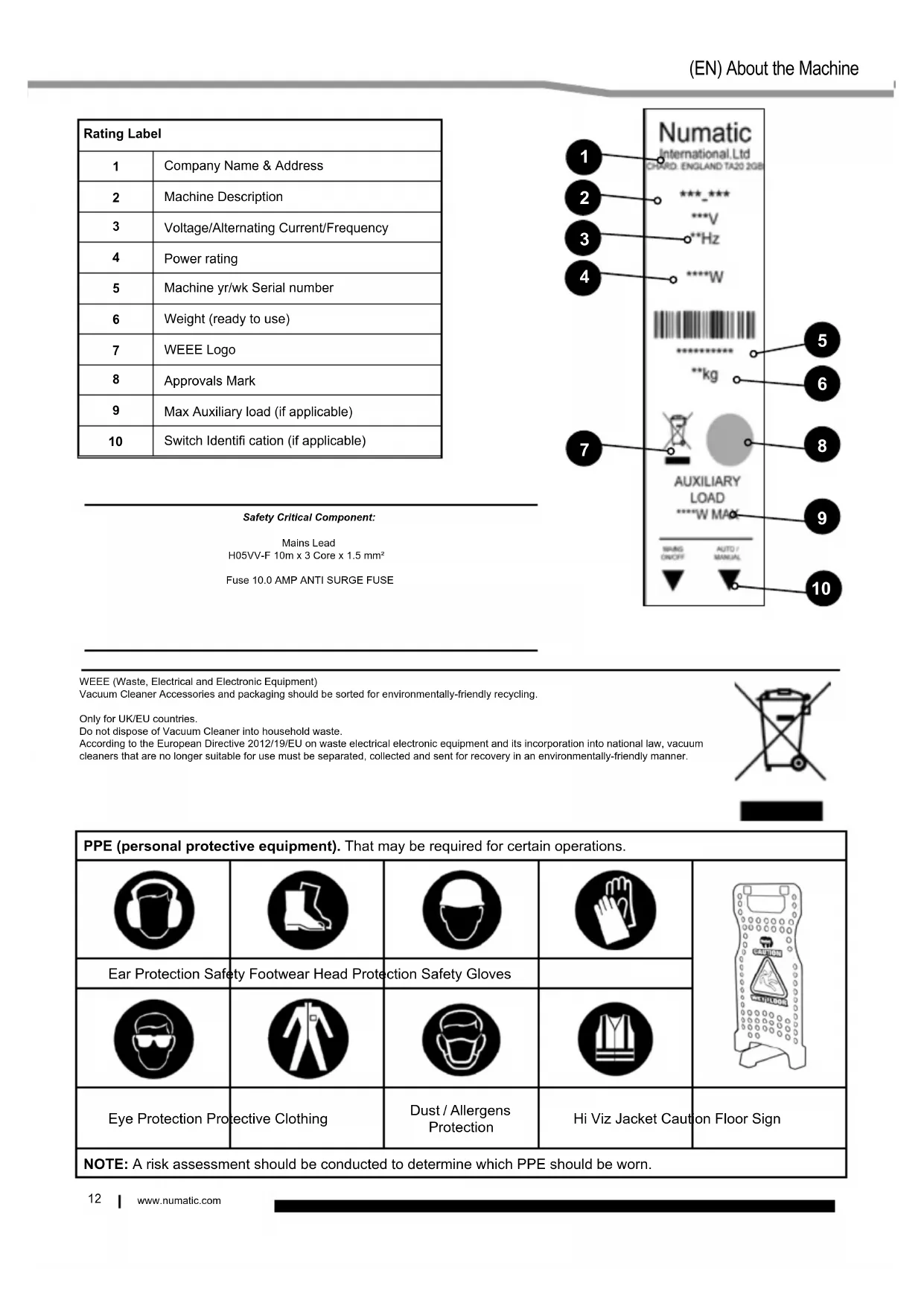

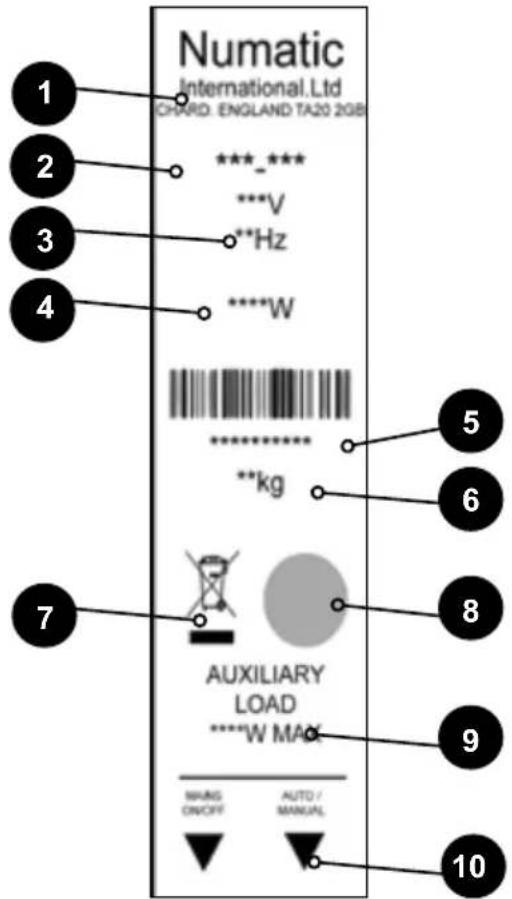

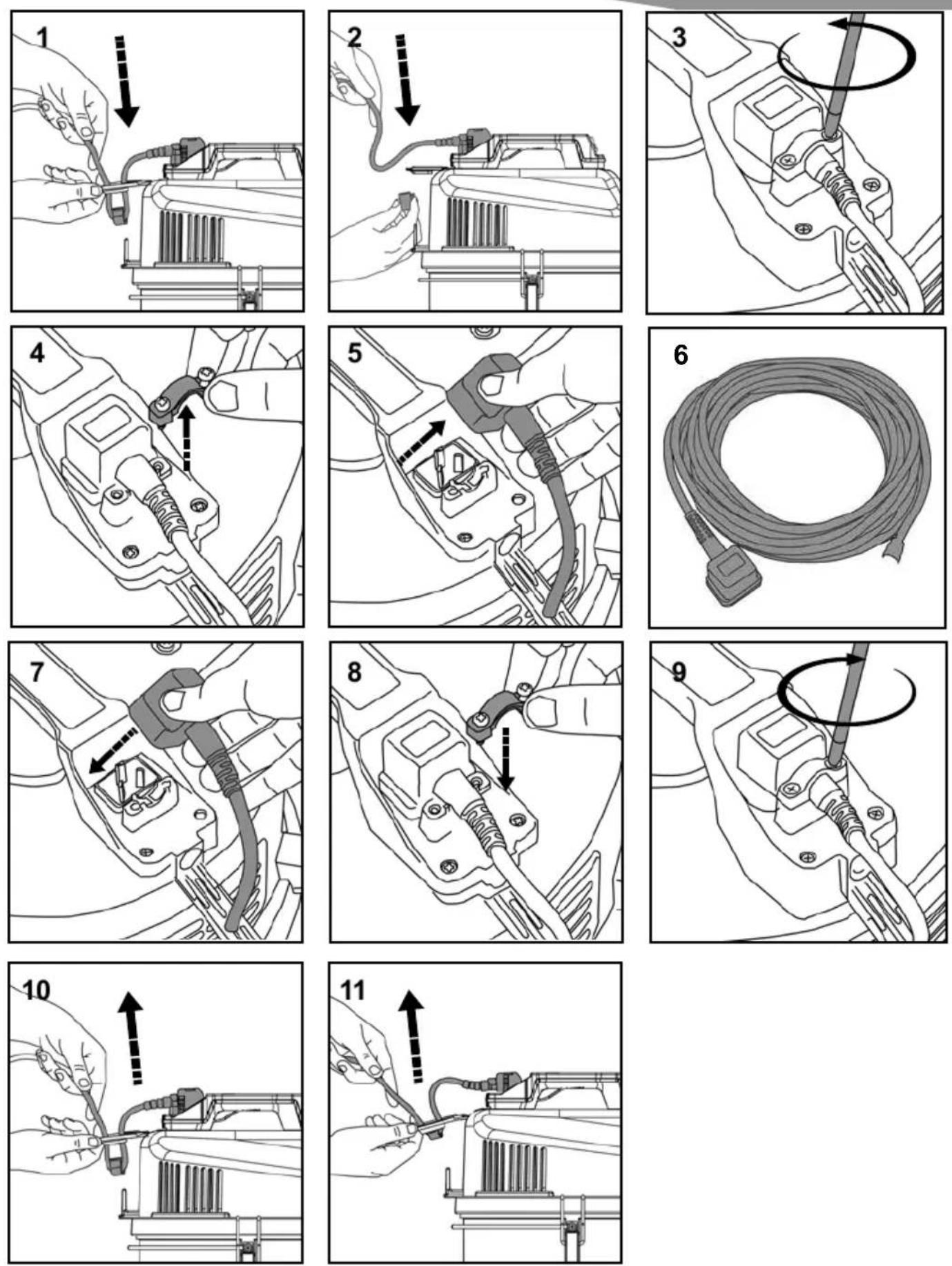

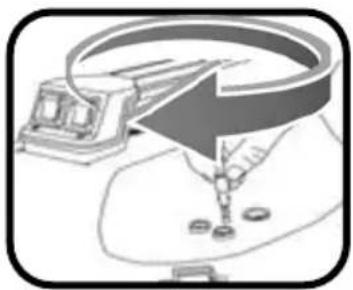

Changing / Replacing Cable, Auswechseln des Kabels, Changement/remplacement du câble, Vervangen van de kabel, Mudar/substituir cabo, Cambio/sostituzione del cavo, Cambio del cable, Zmiana / Wymiana kabla12 www.numatic.comSafety Critical Component:Mains LeadH05VV-F 10m x 3 Core x 1.5 mm² Fuse 10.0 AMP ANTI SURGE FUSEWEEE (Waste, Electrical and Electronic Equipment)Vacuum Cleaner Accessories and packaging should be sorted for environmentally-friendly recycling.Only for UK/EU countries.Do not dispose of Vacuum Cleaner into household waste. According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law, vacuum cleaners that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner. Rating Label

Company Name & Address

Voltage/Alternating Current/Frequency

Weight (ready to use)

Max Auxiliary load (if applicable)

Switch Identi cation (if applicable) (EN) About the Machine

PPE (personal protective equipment). That may be required for certain operations. Ear Protection Safety Footwear Head Protection Safety Gloves Eye Protection Protective Clothing Dust / Allergens Protection Hi Viz Jacket Caution Floor Sign NOTE: A risk assessment should be conducted to determine which PPE should be worn.13 T 01460 68600 Information for DRY use Vacuum cleaners WARNING! Read the instruction manual before using the machine. Operators shall be adequately instructed on the use of their machine. As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation. Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufac- turer can accept no responsibility in this respect. Maintenance should only be carried out by a qualied person. This machine is for DRY USE only and must not be stored outside or used in wet conditions. The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replac- ing parts or converting the machine to another function. Only use the socket outlet on the machine for purposes specied in the instructions. This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge. This appliance is intended to be cleaned and maintained by an adult. Children being supervised are not to play with the machine. This machine is not a toy. This machine is not suitable for picking up biological hazards or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks. CAUTION Ensure that the ltration system tted to the machine is suitable for the material being collected. This vacuum cleaner is intended for indoor use in the collection of dry materials. This machine should be stored indoors only. NOTES This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards. This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, rental businesses and o󰀩ces for other than normal housekeeping purposes. This vacuum cleaner is tted with a thermal protection device. If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies. If the vacuum cleaner has a blockage, switch o󰀨, remove the plug from the power socket, inspect the oor tool, tubes and hose for debris. If the oor tool, tubes and hose are clear, replace the dust bag and clean the lter. The vacuum cleaner should be inspected after use for damage. The vacuum cleaner should be stored in a dry place.

• Keep your machine clean including hoses and tubes.

• Change dust bag frequently.

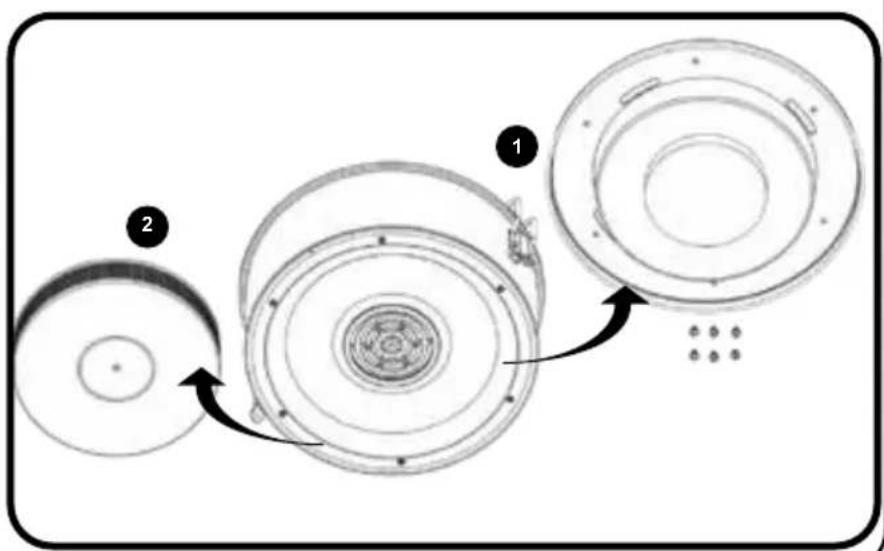

• Keep di󰀨user lter (where tted) clean.

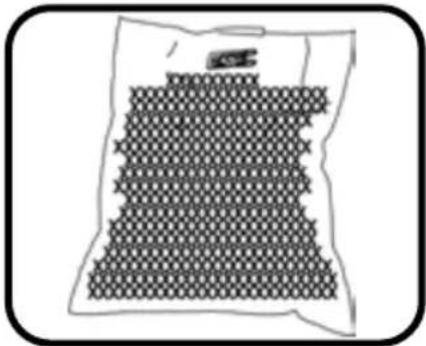

• Use lter bags, they will enhance performance and help keep machine clean.

• Keep hoses and tubes clear.

• Replace any worn or damaged parts immediately.

• Only use the brushes provided with the machine. The use of other brushes may impair safety.

• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualied person.

• Only replace the power cord with the correct Numatic approved replacement part. DO NOT

• Pull on the cable to unplug the machine from the power supply.

• Use to suck up hot ashes or lighted cigarette ends.

• Use steam cleaners or pressure washers to clean the machine or use in the rain.

• Immerse in water for cleaning.

• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.

• Do not use in wet environments or to collect wet materials.

• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top lter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty. GB14 www.numatic.com

IMPORTANT USER INFORMATION

Before use operators shall be provided with information, instruction and training for the use of the machine and the substances for which it is to be used, including the safe method of disposing of material collected. The dust container has to be emptied when necessary, but also after every time used. The manufacturer, or an instructed person, shall perform a technical inspection at least annually, consisting of, for example, inspection of lters for damage, air tight- ness of the machine and proper function of the control mechanism. For user servicing, the machine shall be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance sta󰀨 and others. Suitable precautions include decontamination before dismantling, provision for local ltered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection. This vacuum cleaner has a lamp that illuminates when air velocity drops below a < 20 m/s, which indicates that the bag must be changed. All lters including the bag must be undamaged and in correct position before this machine can be used safely. Extraction from electric power tools can be controlled by an integral automatic electronic switch-on / shut-o󰀨 - Auto Start Feature

1. This machine must only be operated by suitably trained and authorised personnel.

2. This machine or its accessories must not be modied.

3. The machine must not be stored or used in a wet environment.

4. Do not allow the dust collection bag to become so full as to reduce the e󰀨ective pick-up of the vacuum.

(Lamp will illuminate at preset air velocity levels < 20 m/s).

5. Only use the dust collection bag once.

6. This machine must only be repaired by suitably trained and authorised personnel.

7. Only use genuine Numatic International Ltd spare parts, for repairs.

8. This machine must not be installed as a xed extraction system or run unattended.

9. Do not re-use the essential lter element after removal out of the machine.

Operators should observe any safety regulations appropriate to materials being handled. This machine is for dry use only.

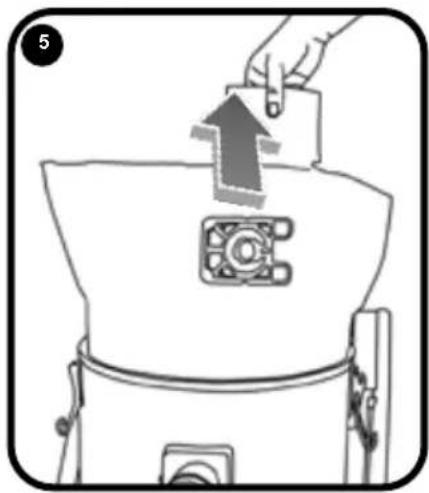

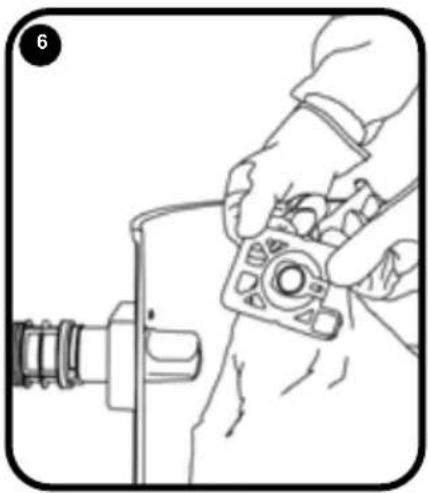

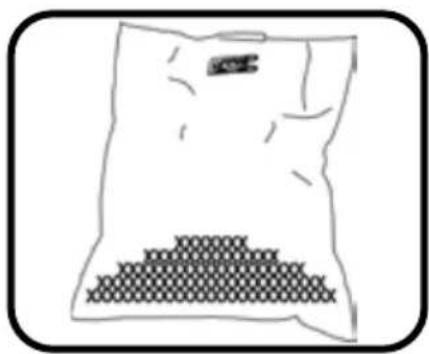

Unpack and identify each item of equipment from the delivery note. Check that the details given match the information on the “rating plate” mounted on the head assembly. Installation / Removal / Disposal of the dust bag/ cartridge lter. The dust bag/ cartridge lter holding the dust and debris must be removed and renewed by authorised personnel only, wearing appropriate personal protective equip- ment, in a specied de-contamination area. Never operate without the full ltration system in place. Remove the cloth lter in the drum. Remove the dust bag from the hose ange inside the drum and seal the dust bag hole. Place the dust bag cartridge lter inside an impervious plastic bag and seal the bag. Dispose of the plastic bag, depending on contamination, in an appropriate manner. Label Explained 1 M type Vacuum Cleaner 2 Caution, debris contained inside the vacuum cleaner could be hazardous to health 3 Caution! 4 Read instructions before use Warning This machine contains dust hazardous to health. Empting and maintenance operations, including removal of the dust bag, must only be carried out by trained person- nel, who are familiar with the machine and wearing suitable personal protective equipment. DO NOT operate without the full ltration system tted. For M class machines, outside of the machine should be decontaminated by vacuum cleaning methods and wiped clean or treated with sealant before being taken out of a hazardous area.

Vacuum Cleaner – Commercial – Dry.

Authorised Signatory: Mr. Matthew Coles Position: Head of Technology Numatic International Limited Chard, Signed: Date: 5

February 2024 Somerset, TA20 2GB, UK DEC-059 V2.2 UKCA Declaration of Conformity Manufacturer:

Vacuum Cleaner – Commercial – Dry We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.

S.I. 2008: 1597 Supply of Machinery Regulations EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021 EN60335-2-69:2012 EN62233:2008 S.I. 2016: 1091 EMC Regulations EN55014-1:2017 + A11:2020 EN55014-2:1997 + A1:2001 + A2:2008 EN61000-3-2:2014 EN61000-3-3:2013 S.I. 2012: 3032 RoHS Regulations

Numatic International Limited, Chard, Somerset, TA20 2GB, UK Position: Head of Technology Signed: Date: 5

February 2024 Authorised Signatory: Mr. Matthew Coles907880 03/24 (A09) Distributed by: This Product has been comprehensively inspected and checked during every stage of its manufacture. including an in-depth electrical safety and functionality test. Specication subject to change without prior notice www.numatic.co.uk © Numatic International Limited Numatic International BV. Vennootsweg 15, 2404 CG, Alphen aan den Rijn, NEDERLAND Tel: [phone] www.numatic.nl
