MRC452S0CMW - Rice cooker MIDEA - Free user manual and instructions

USER MANUAL MRC452S0CMW MIDEA

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETYINSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

OPERATION INSTRUCTIONS 07

CLEANING AND MAINTENANCE 10

TROUBLESHOOTING 11

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 12

DATA PROTECTION NOTICE 13

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find a damage, please contact the retailer or dealer. Please note that alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

EN

Explanation of Symbols

Danger This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR RICE COOKER.

When using any electrical appliances, basic safety precautions should be followed including the following:

• Read all instructions.
• Do not touch hot surfaces. Use the handles or knobs.
• Supervision is necessary when any electrical appliance is used by or near children.
• Disconnect from the outlet when not in use and before cleaning. Allow to cool before putting on or removing parts.
• Do not operate any electrical appliance with a damaged cord or plug, or after it has malfunctioned or has been damaged in any manner. Return appliance to the nearest authorized service center for examination, repair or adjustment.
• The use of accessories attachments not recommended by the manufacturer may can cause injuries.
• Replace the power cord with the manufacturer when it is damaged.
• Do not let the cord hang over the table or counter, or touch hot surfaces.
• Do not place on or near an electric or gas burner, or in a heated oven.
• Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.
• Always connect the plug to the appliance first, and then plug it into the wall outlet. To disconnect, set the control to "OFF" and then unplug from the wall outlet.
• Do not use the appliance for other than intended use.

• To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquid.

• Do not use outdoors.
  Household Use Only.

• Do Not Immerse In Water.
• Caution: To Reduce The Risk Of Electric Shock, Cook Only In Removable Container
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way.If the plug does not fit fully into the outlet, reverse the plug. If it still does notfit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

MRC452SOOMWProduct Model

Voltage 120V~

Frequency 60Hz

Power 700W

Capacity 4.5L

EN

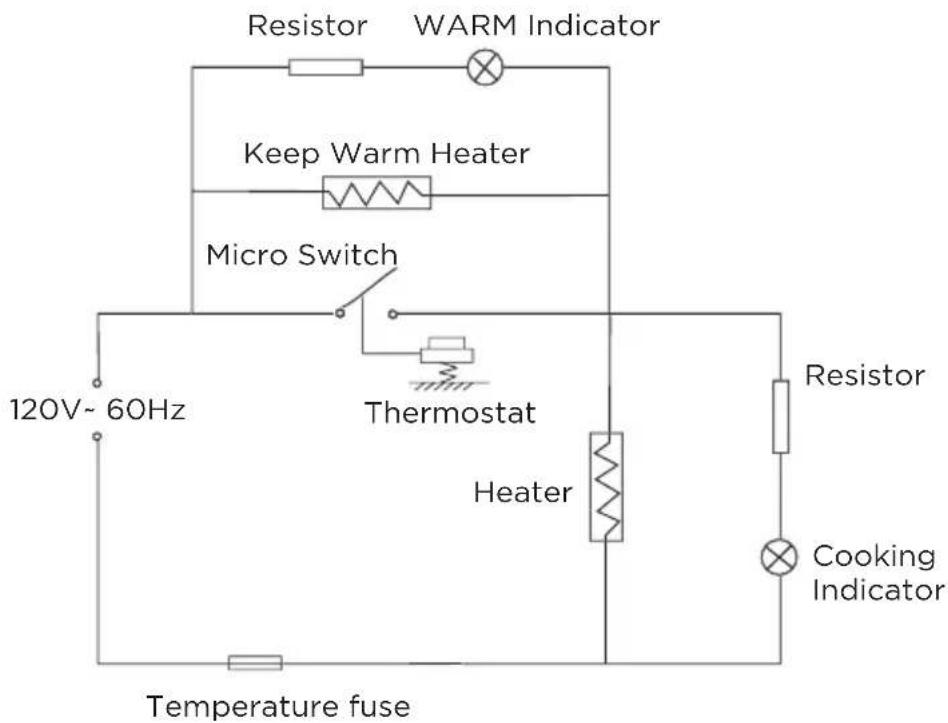

Wiring Diagram

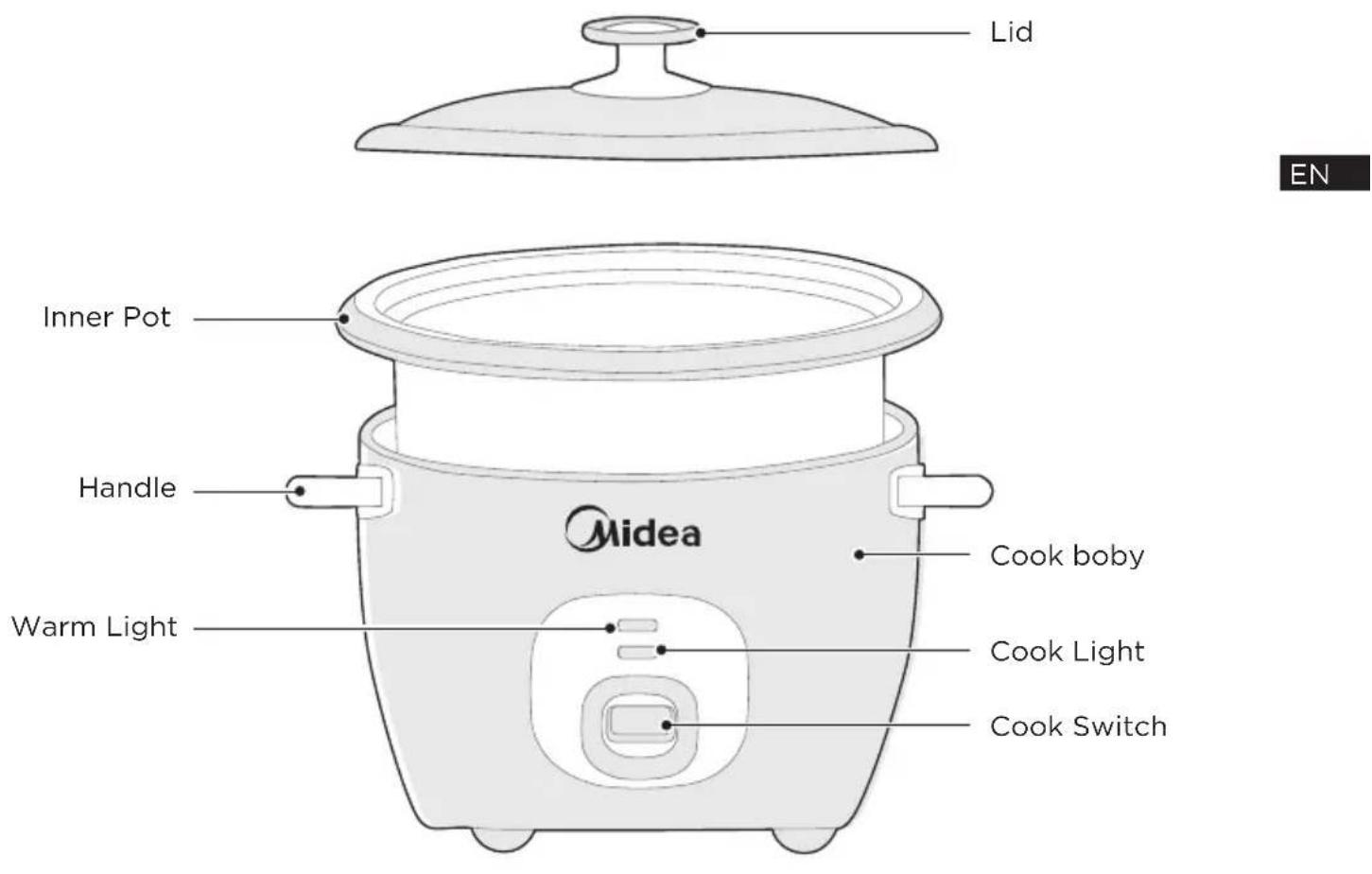

PRODUCT OVERVIEW

Part Name

Part List

Spoon Measuring Cup Steamer

NOTE

Do not plug in your cleaner until you have completely assembled it per the following instructions and are familiar with all instructions and operating procedures.

OPERATION INSTRUCTIONS

Cooking Rice

1 Measure the desired amount of rice with the measuring cup included. Rinse the rice several times until the water in the bowl shows relatively clear.

• One cup of rice capacity: 0.16L.
• DO NOT wash the rice in the cooking pot. If the pot is used to wash rice, the ceramic coating may be damaged, or the bottom may be deformed, which will result in poor conduction because it contacts with heating plate improperly.

2 Put the rice in the cooking pot and add water to the level wich corresponds to the measure of rice used.

• The line in the pot is the water line. The right line corresponds to liters of water, the left line corresponds to the cups of rice.
• The water line in the pot is the standard, it can be adjusted according to your preferences.
• Add an extra cup of water when cooking 8-10 cups of surasiatico rice to obtain the best performance.
• NEVER add water above the maximum level.

3 Dry the water from the outside pot, install the pot into the cooker, turn it slightly from left to right, ensure that the pot contacts with the heating plate properly, level the rice inside the pot.

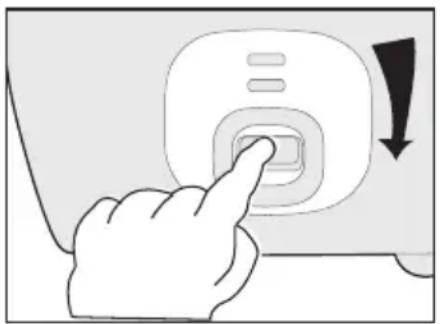

4 Press down "Cooking" switch. The rice will start cooking. The "Cook" indicator light will turn on after connecting to an electrical outlet.

You must push down the "Cook" switch to start cooking.

If the switch is not pushed, the "Warm" indicator will light up after 1-2 minutes, and the cooker will be in keep warm function.

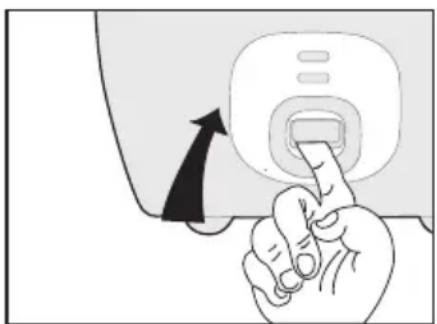

5 At the end of cooking, the "Cook" switch will pop up and a click will be heard. At the same time, the cooking light will turn off and the keep warm light will go on.

• After the cooking cycle ends, keep the lid closed for about 15 minutes. The rice can be cooked and vaporised completely, it is more flyffy and tasty.
• After the rice is steamed, be sure to open the ouer lid and to stir the rice well, the cooked rice is to be served immediately or to be kept warm automatically.

6 Food steaming. Put the amount of water into cooking pot. The amount of water varies according to the food and its quantity (never exceed the height of the steam tray).

• Install the steam tray in the pot, and place food on the tray.
• Follow the steps 4, 5 and 6 above.
• At the end of steam cooking, you must manually turn off the switch (pushing It upwards). The rice cooker will maintain the heat of the food Automatically until serving.

EN

7 Disconnect before serving.
8 Only use the spoon included. Do not use a metal spoon, to avoid scratching the ceramic coating.

Soup, Chili, Or Stew

1 Add ingredients to the inner pot.
2 Lower the inner pot into the cooker and place the lid on top.
3 Plug the power cord into an available 120V AC wall outlet.
4 Press the cook switch down. The cook indicator light will illuminate as the rice cooker begins cooking.
5 Using caution to avoid escaping steam, remove the lid and stir occasionally with a long-handled wooden spatula.
6 Once food is fully cooked, flip the cook switch up to switch the rice cooker to WARM mode manually.
7 When finished serving, turn the rice cooker off by unplugging the power cord.

Meat & Vegetable Steaming Tables

Meat Steaming Time		Safe Internal Temperature
Fish	25 Min.	60°C
Chicken	30 Min.	74°C
Pork	30 Min.	70°C
Beef 70°C	Medium = 25 Min. Medium-Well = 30 Min. Well = 33 Min.

Vegetable Steaming Time
Asparagus	9-11 Minutes
Broccoli	6-8 Minutes
Cabbage	5-7 Minutes
Carrots	11-13 Minutes
Cauliflower	7-9 Minutes
Corn on the Cob	12-16 Minutes
Green Beans	9-11 Minutes
Peas	4-6 Minutes
Spinach	2-4 Minutes
Squash	9-11 Minutes
Zucchini	9-11 Minutes
Potatoes	28-33 Minutes

• When steaming, Midea recommends using 2 cups of water with the provided rice measuring cup.

CLEANING AND MAINTENANCE

1. Wash the cooking pot and steamer in warm and soapy water using a sponger or cloth and rise with water properly, then wipe dry with cloth. Do not clean with abrasive brushes to avoid damaging the ceramic coating.
2. Rice grains or other residues may stick on the heating plate. To ensure a proper contact with the cooking pot, rub the grains or residue away from the heating plate with sandpaper (No. 320), then wipe it with cloth again.

EN

Precautions

1. The power cord must be plugged into the wall outlet with earthing.
2. Always unplug when not in use or without cooking pot.
3. Do not place on a wet surface or its operation will be affected.
4. To avoid deformation, do not operate with hard objects, or heat the pot in another oven or stove. Do not use any other container instead of pot to cook.
5. Do not cover with a cloth. This may distort and discolor the lid.
6. The steam vent is very hot during cooking. Keep your face and hands away from the lid and the steam outlet.
7. To avoid electric shock, do not immerse cord, plug or appliance in water or other liquid, and do not spill liquids on electrical parts.
8. Replace the power cord with the manufacturer when it is damaged.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

EN

	Cause SolutionProblem
Heating plate doesn't heat	·The circuit of the electric rice cooker is not connected with the power supply	Check the switch, plug, socket and power cord, ensure the plug is tightly inserted into the socket
Heating plate is hot	·The light or resistance are loose ·The light or resistance have broken down	·Connect it. ·Replace it.
Heating plate is not hot	·The wire is loose ·Heating tube is broken down	Repair by the designated repairing department
Rice is not well cooker, or the cooking time is too long	·Cookin pot is deformed ·Heating plate is deformed ·The cooker pot is slanting to one side, other side is not touching the heating plate ·Foreign matter left between cooking pot and heating plate	·Repair the cooking pot until contact with the thermostat properly ·When it is a little deformed, polish the heating plate with fine sand paper ·Turn the cooking pot round slightly until it is fixed to the heating plate properly ·Polish the foreign matter with fine sand paper
The rice is burnt	·The cooking button and lever mechanism is not flexible ·Magnetic steel temperature limiter is fault	Repair by the designated repairing department
The cooker can't automatically WARM	·The wires of the insulation board is loose or the heating element of the insulation board is damaged	Repair by the designated repairing department

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates ("Midea"), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

EN

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

1 YEAR LIMITED WARRANTY

This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning the product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover wear from normal use, and damages to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales. This warranty is void if products is used for other than single family household use or subjected to any voltage and waveform. We exclude all claims for special, incidental, and consequential damages by breach of express or implied warranty. All liability is limited to amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. Legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental consequential damages, so the foregoing limitations may not apply to you. Please note that failure to complete and submit this form does not diminish your warranty.

In the event of a warranty period claim, question, comments or if service is required for this product, please contact us at the following:

[e-mail]

1-888-365-2230
