USER MANUAL Powerline RH7666 ROWENTA

CLEANING AND MAINTENANCE

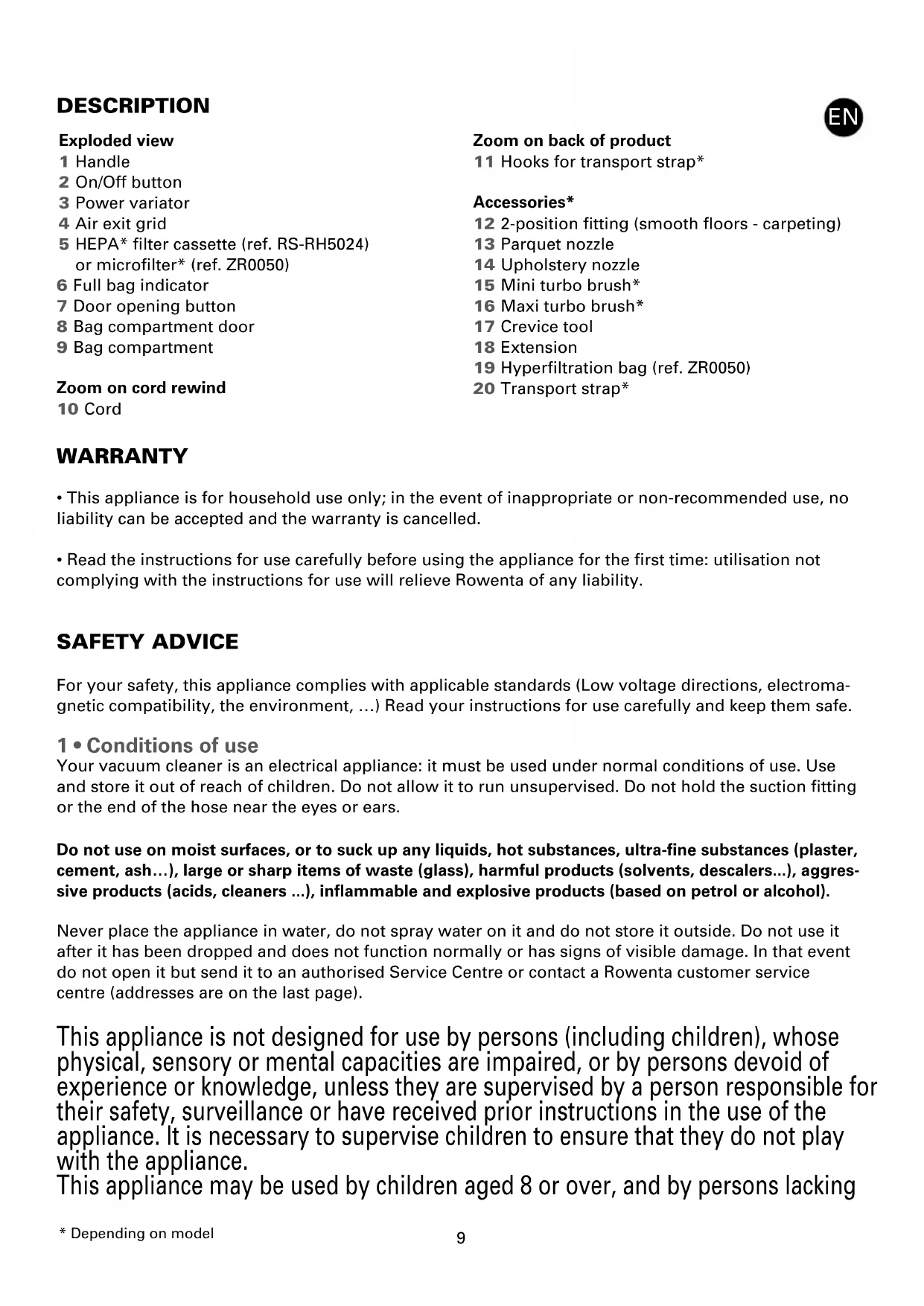

• This appliance is for household use only; in the event of inappropriate or non-recommended use, no liability can be accepted and the warranty is cancelled.

• Read the instructions for use carefully before using the appliance for the first time: utilisation not complying with the instructions for use will relieve Rowenta of any liability. SAFETY ADVICE For your safety, this appliance complies with applicable standards (Low voltage directions, electroma- gnetic compatibility, the environment, …) Read your instructions for use carefully and keep them safe. 1 • Conditions of use Your vacuum cleaner is an electrical appliance: it must be used under normal conditions of use. Use and store it out of reach of children. Do not allow it to run unsupervised. Do not hold the suction fitting or the end of the hose near the eyes or ears. Do not use on moist surfaces, or to suck up any liquids, hot substances, ultra-fine substances (plaster, cement, ash…), large or sharp items of waste (glass), harmful products (solvents, descalers...), aggres- sive products (acids, cleaners ...), inflammable and explosive products (based on petrol or alcohol). Never place the appliance in water, do not spray water on it and do not store it outside. Do not use it after it has been dropped and does not function normally or has signs of visible damage. In that event do not open it but send it to an authorised Service Centre or contact a Rowenta customer service centre (addresses are on the last page). This appliance is not designed for use by persons (including children), whose physical, sensory or mental capacities are impaired, or by persons devoid of experience or knowledge, unless they are supervised by a person responsible for their safety, surveillance or have received prior instructions in the use of the appliance. It is necessary to supervise children to ensure that they do not play with the appliance. This appliance may be used by children aged 8 or over, and by persons lacking Exploded view 1 Handle 2 On/Off button 3 Power variator 4 Air exit grid 5 HEPA* filter cassette (ref. RS-RH5024) or microfilter* (ref. ZR0050) 6 Full bag indicator 7 Door opening button 8 Bag compartment door 9 Bag compartment Zoom on cord rewind 10 Cord Zoom on back of product 11 Hooks for transport strap* Accessories* 12 2-position fitting (smooth floors - carpeting) 13 Parquet nozzle 14 Upholstery nozzle 15 Mini turbo brush* 16 Maxi turbo brush* 17 Crevice tool 18 Extension 19 Hyperfiltration bag (ref. ZR0050) 20 Transport strap*

• Depending on model EN10 appropriate knowledge and experience or whose physical, sensory or mental capacities are limited, provided that they are supervised, have received instruction in the safe use of the appliance, and are fully aware of the risks involved. Children must not be allowed to play with the appliance. Home cleaning and maintenance of the appliance must not be carried out by children unless they are aged 8 or over and are supervised. Always keep the appliance and power cord out of reach of children under 8 years. 2 • Electrical supply Ensure that the voltage at which your vacuum cleaner operates is the voltage installed on your pre- mises. Disconnect the appliance by pulling out the plug without pulling the cord: immediately after use, before any change of accessory, every cleaning, servicing or change of filter. Do not use it if the cord is damaged. The cord winding assembly and the cord of your vacuum cleaner must be replaced by an approved Service Centre because special tools are needed for carrying out any repair in order to avoid danger. 3 • Repairs Repairs must only be carried out by specialists and using original spare parts. Repairing the appliance oneself may endanger the user and cancels the warranty. Let us take part in protecting the environment! Your appliance contains numerous reusable or recyclable materials. take it to collection point or in its absence, to an approved service centre for disposal. BEFORE USE 1 • Assemble your vacuum cleaner (fig. 1) - (fig. 2) 2 • Select the right accessory* (fig. 2) - (fig. 3) - (fig. 4) - (fig. 5) VACUUMING 3 • Switch on your vacuum cleaner (fig. 6) - (fig. 7) - (fig. 8) 4 • Set the vacuum power (fig. 9) Max: Floors Min: Furniture, delicate fabrics… 5 • Switch off your vacuum cleaner (fig. 10) STORAGE (fig. 11)

CLEANING AND MAINTENANCE

The air we breathe contains particles, which may cause allergies; the larvae and waste of mites, moulds, pollen, smoke and animal residues (hair, skin, saliva, urine). The finest particles penetrate into the respirator where they may cause inflammation and completely alter the respiratory function.

• Depending on model EN11 HEPA filters (high efficiency particulate air filters, namely high efficiency filters for air-borne par- ticle filters) make it possible to hold back the finest particles. Thanks to the HEPA filter, spent air in the room is cleaner than vacuumed air. IMPORTANT Always switch off and disconnect your vacuum cleaner before servicing or cleaning. Check and clean regularly your whole vacuum cleaner and the different filters. ATTENTION Never use your vacuum cleaner without the filtration system (microfilter and filter). 1 • Change the bag (ref ZR0050) The bag fill indicator (6) tells you that the bag is full or saturated with fine dust. If the power of the vacuum is low with the power set on maximum, replace the bag. (fig. 12) - (fig. 13) - (fig. 14) - (fig. 15) - (fig. 16) 2 • Change the microfilter* (ref: ZR0050)

• Remove the microfilter*. (fig. 17) - (fig. 18) - (fig. 19)

• Dispose of the microfilter* into a waste bin replace it with a new microfilter (ref. ZR0050). Important: Change the microfilter* ZR0050 01 after every 5 changes of the bag. 3 • Change the HEPA filter cassette HEPA* (ref: RS-RH5024)

• Remove the HEPA filter cassette*. (fig. 17) - (fig. 18) - (fig. 19)

• Dispose of the cassette into a waste bin.

• Lock the new HEPA filter cassette* (ref: RS-RH5024) into its compartment Important: Replace the HEPA filter cassette RS-RH5024 every six months (depending on frequency of use). 4 • Clean the HEPA filter cassette* (ref: RS-RH5024)

• Remove the HEPA filter cassette*. (fig. 17) - (fig. 18) - (fig. 19)

• Tap the HEPA filter cassette* over a waste bin.

• Reposition the HEPA filter cassette* (ref: RS-RH5024) in its compartment and ensure its correct posi- tioning before re-closing the cover. Attention! This cleaning is restricted to the HEPA filter cassette * RS-RH5024 5 • Clean your vacuum cleaner Wipe the body of the appliance and the accessories with a soft damp cloth and then dry. (fig. 20)

ADVICE AND PRECAUTIONS

• Before every cycle of use, the cord must be fully unwound.

• Do not enter corners and do not pass over sharp shards.

• Do not move the vacuum cleaner by pulling the cord, but use the carrying handle.

• Do not lift the appliance by the cord.

• Depending on model EN12

• If you are using an extension cable, ensure that it is in perfect condition and matches the power of your vacuum cleaner.

• Do not unplug the appliance by pulling the cord.

• Stop and disconnect your vacuum cleaner after each utilisation cycle.

• Only use dry accessories and original Rowenta bags.

• Verify that all filters are in place.

• Never use without bag and filter.

• In case of difficulty in obtaining bags and filters for the vacuum cleaner, contact Rowenta Consumer Service on 0845 302 1454

IMPORTANT When your vacuum cleaner is not working as it should be and before any verification, stop it by using the stop/start pushbutton and unplug. If a problem persists, take your vacuum cleaner to the nearest approved Rowenta Service Centre. See the list of approved Rowenta Service Centres or contact Rowenta Customer Service: 0845 302 1454 Your vacuum cleaner will not start or does not suck.

• The appliance is not receiving current: Check that it is correctly connec- ted.

• An accessory or the tube is blocked: Unblock the accessory or the pipe.

• The cover is badly closed or cannot be closed: Check the position/or the presence of the bag and re-close the cover. Your vacuum cleaner has less suction power, makes a noise, and whistles.

• An accessory or the tube is partially blocked: Unblock the accessory or the tube.

• The bag is full or saturated with fine dust: Replace the bag.

• The micro filter* or the HEPA filter* is saturated: Change the micro filter or clean the HEPA filter if 6 months of use have elapsed, otherwise chan- ge it following instructions in the notice.

• The power control is in minimum position: Increase the power using the power control (except when cleaning fine fabrics).

• The suction fitting is difficult to move: Reduce the power using the power control. The bag fill indicator remains on red.
