USER MANUAL XTrem Power RO5441 ROWENTA

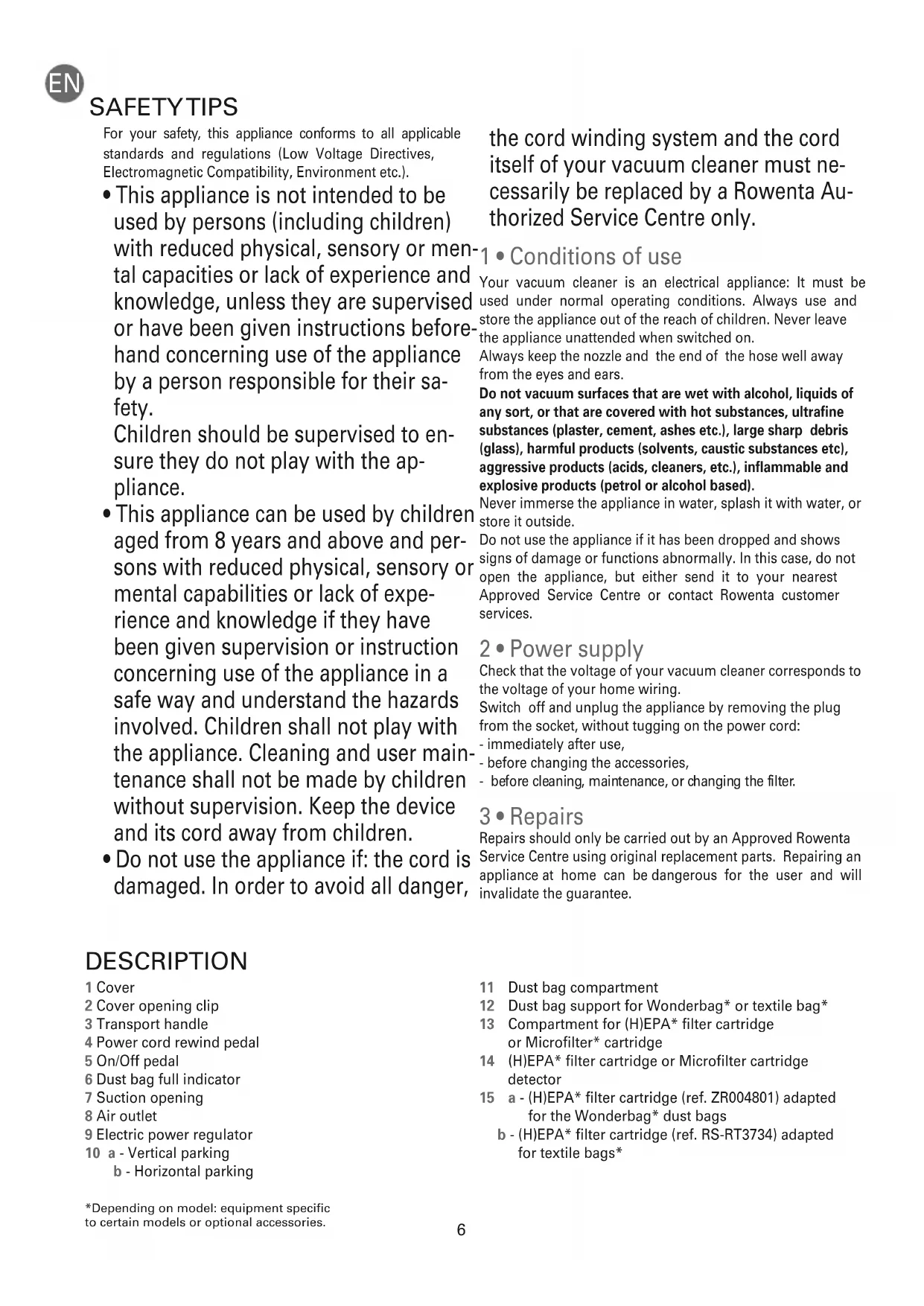

tandards and regulations (Low Voltage Directives, Electromagnetic Compatibility, Environment etc.).

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or men- tal capacities or lack of experience and knowledge, unless they are supervised or have been given instructions before- hand concerning use of the appliance by a person responsible for their sa- fety. Children should be supervised to en- sure they do not play with the ap- pliance.

• This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user main- tenance shall not be made by children without supervision. Keep the device and its cord away from children.

• Do not use the appliance if: the cord is damaged. In order to avoid all danger, the cord winding system and the cord itself of your vacuum cleaner must ne- cessarily be replaced by a Rowenta Au- thorized Service Centre only. 1 • Conditions of use Your vacuum cleaner is an electrical appliance: It must be used under normal operating conditions. Always use and store the appliance out of the reach of children. Never leave the appliance unattended when switched on. Always keep the nozzle and the end of the hose well away from the eyes and ears. Do not vacuum surfaces that are wet with alcohol, liquids of any sort, or that are covered with hot substances, ultrafine substances (plaster, cement, ashes etc.), large sharp debris (glass), harmful products (solvents, caustic substances etc), aggressive products (acids, cleaners, etc.), inflammable and explosive products (petrol or alcohol based). Never immerse the appliance in water, splash it with water, or store it outside. Do not use the appliance if it has been dropped and shows signs of damage or functions abnormally. In this case, do not open the appliance, but either send it to your nearest Approved Service Centre or contact Rowenta customer services. 2 • Power supply Check that the voltage of your vacuum cleaner corresponds to the voltage of your home wiring. Switch off and unplug the appliance by removing the plug from the socket, without tugging on the power cord: - immediately after use, - before changing the accessories, - before cleaning, maintenance, or changing the filter. 3 • Repairs Repairs should only be carried out by an Approved Rowenta Service Centre using original replacement parts. Repairing an appliance at home can be dangerous for the user and will invalidate the guarantee. DESCRIPTION 1 Cover 2 Cover opening clip 3 Transport handle 4 Power cord rewind pedal 5 On/Off pedal 6 Dust bag full indicator 7 Suction opening 8 Air outlet 9 Electric power regulator 10 a - Vertical parking b - Horizontal parking 11 Dust bag compartment 12 Dust bag support for Wonderbag* or textile bag* 13 Compartment for (H)EPA* filter cartridge or Microfilter* cartridge 14 (H)EPA* filter cartridge or Microfilter cartridge detector 15 a - (H)EPA* filter cartridge (ref. ZR004801) adapted for the Wonderbag* dust bags b - (H)EPA* filter cartridge (ref. RS-RT3734) adapted for textile bags* SAFETY TIPS

*Depending on model: equipment specific to certain models or optional accessories.7

*Depending on model: equipment specific to certain models or optional accessories. DESCRIPTION 16 Microfilter* cartridge

our vacuum cleaner is fitted either with a (H)EPA* filter cartridge or a Microfilter* cartridge 17 a - UNIVERSAL Wonderbag* dust bag

andle/tube locking system (LOCK SYSTEM) b - Tube adjustment button

0 Standard all surface floor nozzle 21A Standard parquet nozzle* 21B Nozzle with removable brush*

– use on smooth surfaces with crevices b – use on parquet 22 Turbo brush* 23 Mini turbo brush* 24 Crevice tool* 25 Upholstery nozzle* 1 • Unpacking Unpack your appliance and remove any stickers. Keep your guarantee in a safe place and read the instructions carefully before using your appliance for the first time. 2 • Hints and precautions The power cord should be unwound completely before using the appliance. Do not snag or pinch the power cord, and avoid trailing it over sharp edges. If you use an extension cord, ensure that it is in perfect condition and appropriate to the power rating of your vacuum cleaner. Never unplug your appliance by pulling on the power cord. Never use your vacuum cleaner without a dust bag and filtration system (cartridge). To avoid the above, your appliance is equipped with a security system (14) to detect the presence of filter cartridges (15a*, 15b*, 16*). Never move the vacuum cleaner by pulling the power cord, the appliance should always be moved using the transport handle. Do not use the power cord to lift the appliance. Switch off and unplug your vacuum cleaner after use. Always switch off and unplug your vacuum cleaner for maintenance or cleaning. Only use genuine Rowenta or Wonderbag dust bags and filters. Only use genuine Rowenta accessories. Check that all the filters are correctly installed. If you have any difficulty obtaining accessories and filters for this vacuum cleaner, contact Rowenta customer services. BEFORE USE 1 • Assembling the parts of the appliance Slot the hose into the suction opening (fig.1) and turn until it locks. To remove, turn in the opposite direction and pull (Fig 2)

• Slide the metal telescopic tube (19) onto the end of the handle (18a) (fig.3)

• Fit the floor nozzle (20) to the end of the metal telescopic tube (Fig.4)

• Set the metal telescopic tube to the required length using the telescopic adjustment system (fig.5) Fit the appropriate accessory to the end of the metal telescopic tube or the handle: - For rugs and carpets: use the all surface floor nozzle (20) in the brush retracted or Turbo brush* position (fibres and animal hair). - For smooth surfaces with crevices (such as tiled floors): use the all-surface nozzle (20) with the brush extended or, for better results, use the smooth surface nozzle* (21B.a*) without the removable brush. - For fragile surfaces, such as parquet, it is recommended to use the standard parquet nozzle (21A*) or the nozzle with line of bristles (21B.b*). - For corners and difficult areas: use the crevice tool (24)*. - For furniture and fragile surfaces: use the built-in brush ERGO COMFORT (EASY BRUSH) or the upholstery nozzle (25)*. VACUUMING N.B.: The nozzle for smooth surfaces with crevices 21B.a* is used to measure performance associated with the energy label. This nozzle allows you to optimise the dust-collection performance of your appliance on smooth surfaces with crevices.8 The air that we breathe contains particles that may be allergenic: the larvae and excrement of dust mites, mould spores, pollen, smoke and animal residues (hair, skin, saliva, urine). The finest particles can penetrate deeply into the respiratory system, where they can lead to inflammation and trigger general deterioration of the entire respiratory system. The (H)EPA (High) Efficiency Particulate Air Filter system effectively traps the very finest of particles. Thanks to the (H)EPA filter, the air returned to the room is healthier than the air initially sucked into the vacuum cleaner. 1 • Changing the dust bag The dust bag full indicator lets you know that the dust bag is full or saturated. If you observe a reduction in the efficiency of your appliance, set the power to maximum and hold the nozzle above the floor. If the indicator stays red, change the dust bag. a) If your vacuum cleaner is equipped with a Wonderbag* (17a) : IMPORTANT: UNIVERSAL Wonderbag* dust bags are available from your retailer or from Approved Service Centres. Remove the hose from the suction opening (Fig 2) Open the cover of your vacuum cleaner (fig.15). Remove the bag support from the bag compartment (fig.16). Remove the Wonderbag* from the bag support (fig.17). Dispose of the Wonderbag* in a dustbin (fig.18). Position a new Wonderbag* in the bag support using the ring (fig.19). Open out the bag and insert the bag support in the bag compartment (fig.20). Check that both the bag and the bag support are correctly positioned before closing the cover. b) If your vacuum is equipped with textile bag* (17b): Textile bags* (ref. RS-RT2274) are available from Approved Service Centres. Remove the hose from the suction opening (Fig 2) Open the cover of your vacuum cleaner (fig.15). Remove the bag support from the bag compartment (fig.21). Remove the textile bag* from the bag support (fig.22).

CLEANING AND MAINTENANCE

IMPORTANT: Always switch off and unplug your vacuum cleaner for maintenance. IMPORTANT: Wonderbags are intended for single use only and should never be reused. CAUTION: COMPACT Wonderbag* dust bags cannot be used in this appliance. Using them will damage the appliance and invalidate the guarantee. Accessories are available from your retailer or Approved

ervice Centres. 2 • Plugging in the power cord and switching on the appliance Completely unwind the power cord, plug in your vacuum cleaner (fig.6) and press the On/Off pedal (fig.7). Note: you can use your vacuum cleaner in a horizontal position or in a vertical position, particularly for vacuuming stairs or curtains. Adjusting suction power: with the electric power regulator (fig.8) with the mechanical power regulator on the handle: Slide open the mechanical adjuster to manually reduce suction power and avoid allowing the nozzle to remain ‘stuck’ to the surface being cleaned (fig.9) eg. net curtains, fragile

• Position (MIN) for vacuuming delicate textiles (net

• Position (Medium) for the daily cleaning of all lightly

oiled floor surfaces

• Position (MAX) for vacuuming hard floor surfaces and

eavily soiled rugs and carpets 3 • Storing and transporting the appliance After use, switch off your vacuum cleaner by pressing the On/Off pedal, and unplug (fig.10). Retract the power cord by pressing the power cord rewind pedal (fig.11). In a vertical position, place the nozzle in the parking position (fig.12). In a horizontal position, place the nozzle in the parking position (Fig.13) You can now transport and store your vacuum cleaner in the parking position (fig.14). VACUUMING

IMPORTANT: Never use the vacuum cleaner without a

ust bag and filter (cartridge)

ARNING: Always switch off and unplug your vacuum cleaner before changing the accessories. *Depending on model: equipment specific to certain models or optional accessories.9

*Depending on model: equipment specific to certain models or optional accessories.

pen the textile bag* with the zip (fig.23) then empty it into a dustbin (fig.24).

lean the bag with fresh water and leave it to dry for at least 24 hrs (Fig 25) (do not replace the bag until completely dry) Reseal the textile bag: ensure that the zip is completely closed

fig 26) before returning the bag to the appliance. Reposition the textile bag* on the bag support using the card

lap (fig.27), open out the bag and insert the bag support in the bag compartment (fig.28). Check that the bag is correctly positioned before closing the cover. 2 • Changing the microfilter* (ref RS-RT3735) Microfilters* Ref. RS-RT3735 are available from your retailer or from Approved Service Centres. Open the cover of your vacuum cleaner (fig.15). Remove the Wonderbag (fig.16), and then remove the microfilter* cartridge (fig.29) including the microfilter (16a) and the motor protection foam (16b). Separate the foam (16b) from the microfilter (16a) (fig.30). Dispose of the microfilter in a dustbin (fig 31) and replace it with a new microfilter. Wash the motor protection foam (16b) in warm soapy water, rinse it and leave it to dry for at least 12 hrs before returning it to the appliance (fig 32). When dry, reposition it above the microfilter (16a) and then replace the microfilter* cartridge (16) in its compartment (fig.33). Replace the Wonderbag (fig.20). Check that the microfilter* cartridge is correctly positioned before closing the cover. 3 • Changing the (H)EPA* filter cartridge (ref. ZR 0048 01)* (for appliances fitted with a Wonderbag*)

H)EPA* filter cartridges ref. ZR 0048 01* are available from your retailer or from Approved Service Centres. Open the cover of your vacuum cleaner (fig.15). Remove the bag support from the bag compartment (fig.16), then remove

he (H)EPA* filter cartridge (fig.34) and dispose of the cartridge in a dustbin (fig.35).

lace the new (H)EPA* filter cartridge (ref. ZR 0048 01*) in its compartment (fig.36). Return the bag support to the compartment (fig.20). Check that the (H)EPA* filter cartridge is correctly positioned before closing the cover. 4 • Cleaning the HEPA* filter cartridge (ref. RS-RT3734*) (for appliances fitted with a textile bag*) (H)EPA* filter cartridges ref. RS-RT3734* are available from your retailer or from Approved Service Centres. Open the cover of your vacuum cleaner (fig.15). Remove the bag support from the compartment (fig 21), then remove the (H)EPA* filter cartridge (fig.37). Tap the (H)EPA* filter cartridge over a dustbin (fig.38). Wash it with fresh water and leave it to dry for at least 24 hrs. (fig.39) Ensure that the (H)EPA* filter cartridge is completely dry before replacing in the appliance. Replace the (H)EPA* filter cartridge in its compartment (fig.40). Replace the bag support with the textile bag* in the bag compartment (fig 29) Check that the (H)EPA* filter cartridge is correctly positioned before closing the cover. 5 • Cleaning your vacuum cleaner Wipe the vacuum cleaner and the accessories with a soft cloth. Do not use strong, detergent or abrasive cleaning products. IMPORTANT: never operate the vacuum cleaner without a filter cartridge. To avoid the above, your appliance is equipped with a security system to detect the presence of filter cartridges (the cover cannot be closed unless you have installed a filter cartridge). IMPORTANT: Replace the microfilter every six bag changes. IMPORTANT: Replace the filtration system once a year. CAUTION! This cleaning process is solely for the (H)EPA* filter cartridge adapted for use with the textile bags. IMPORTANT: Never operate the vacuum cleaner without a filter cartridge. To avoid the above, your appliance is equipped with a security system to detect the presence of filter cartridges (the cover cannot be closed unless you have inserted a filter cartridge).

CLEANING AND MAINTENANCE

IMPORTANT: Never operate the vacuum cleaner without a bag.10

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Read the instructions carefully before using your appliance for the first time: any use that does not comply with the instructions will release Rowenta from any responsibility. GUARANTEE *Depending on model: equipment specific to certain models or optional accessories.

f the dust bag full indicator stays red

• The bag is saturated: replace the Wonderbag* (17a) or empty the textile bag* (17b).

f the cover doesn’t close (effect of the detector 14)

• Check that there is a (H)EPA* filter cartridge (15a or 15b) or a

icrofilter cartridge* (16) and/or their correct positioning. If the nozzle is difficult to move

• Reduce the power by opening the mechanical power regulator on the handle (18c) or by moving the electric power regulator (9) towards the MIN position.

• Check that the nozzle position (20) is appropriate for the floor surface: - for rugs and carpets, use the nozzle with the brush in the retracted position, - for parquet and smooth flooring, use the nozzle with the brush out. If the power cord will not rewind completely

• The power cord slowed down as it rewound: pull the cord out again and press the power cord rewind pedal again. If a problem persists, take your vacuum cleaner to your nearest Rowenta Approved Service Centre or contact Rowenta customer services.

f your vacuum cleaner won’t start

• There is no power supply. Check that the appliance is

lugged in correctly. If your vacuum cleaner won’t suck

• The hose or an accessory is blocked: unblock the accessory or hose.

• The cover isn’t closed properly: check the positioning of the bag, the bag support and the filter cartridge, and then close the cover again. If your vacuum cleaner loses power, functions noisily, whistles

• An accessory or the hose is partially blocked: unblock the accessory or hose.

• The bag is full or saturated with fine dust: replace the Wonderbag* (17a) or empty the textile bag* (17b).

• The filtration system is saturated: - (H)EPA* filter cartridge: change the (H)EPA* filter cartridge (ref. ZR004801*) and replace in its compartment or clean the (H)EPA* filter cartridge (ref. RS-RT3734*) according to instructions. - Microfilter*: remove the microfilter (16a) and replace it with a new one (Ref RS-RT3735).

• The mechanical power regulator (19c) vent is open: close the vent. REPAIRS IMPORTANT: If you observe any reduction in your

acuum’s performance, always switch it off using the On/Off pedal before checking. ENVIRONMENT In accordance with current regulations, all appliances to be scrapped must be permanently disabled: unplug the appliance and cut off the power cord before disposing of the appliance. Let’s work together to protect the environment!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.11
