USER MANUAL WMCS3019RS WHIRLPOOL

MICROWAVE OVEN Use & Care Guide For questions about features, operation/performance, parts, accessories or service, call: 1-866-698-2538 or visit our website at www.whirpool.com/owners. In Canada, call: 1-800-807-6777, or visit our website at www.whirpool.ca/owners. W11752381A

Location Requirements

Food Characteristics

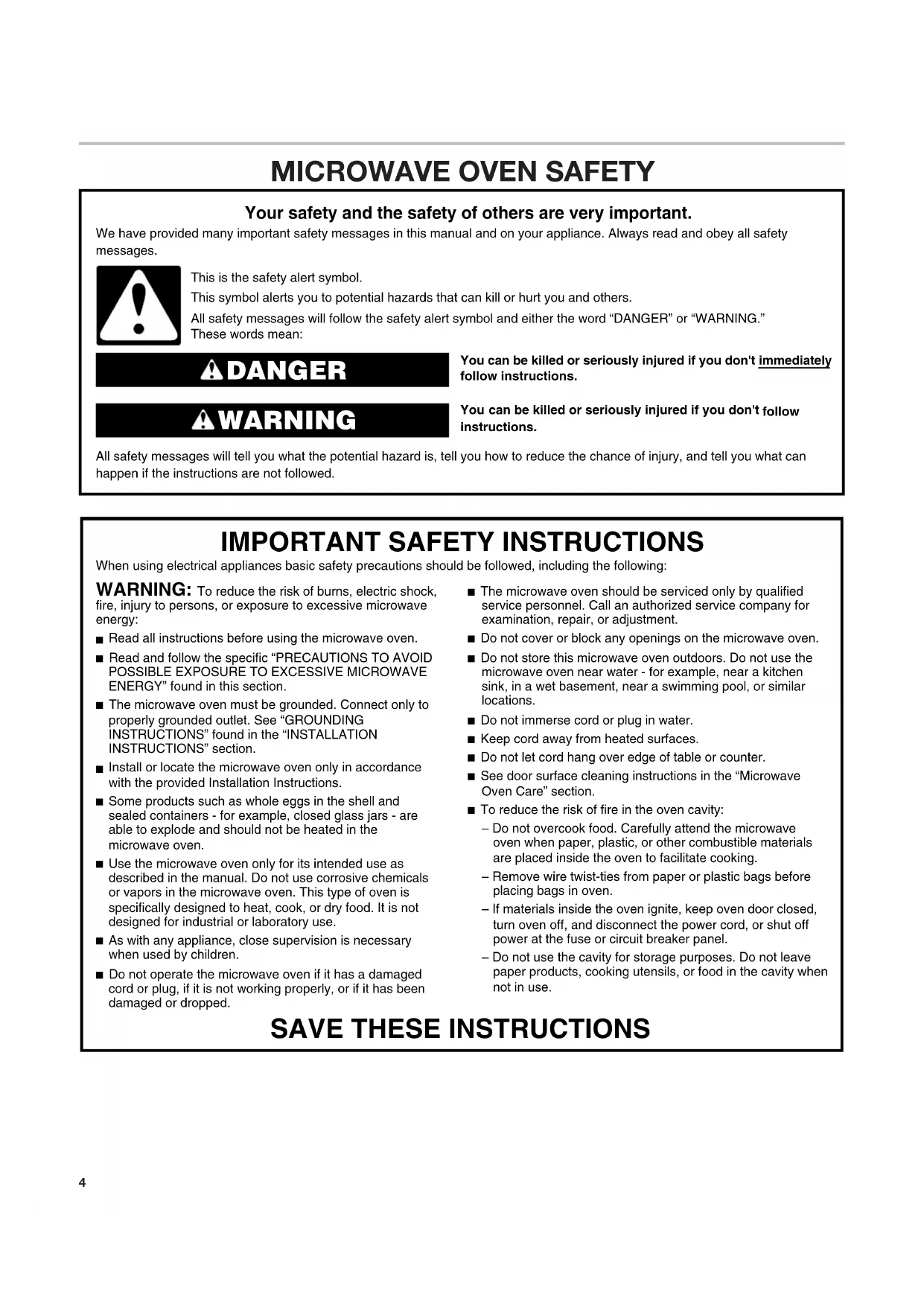

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING When using electrical appliances basic safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, electric shock,

fire, injury to persons, or exposure to excessive microwave energy: Read all instructions before using the microwave oven.■ Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section. ■ The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in the “INSTALLATION INSTRUCTIONS” section. Install or locate the microwave oven only in accordance with the provided Installation Instructions. Some products such as whole eggs in the shell and sealed containers - for example, closed glass jars - are able to explode and should not be heated in the microwave oven. Use the microwave oven only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. As with any appliance, close supervision is necessary when used by children. ■ Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. ■ The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment. ■ Do not cover or block any openings on the microwave oven. ■ Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.■ Do not immerse cord or plug in water. ■ Keep cord away from heated surfaces. ■ Do not let cord hang over edge of table or counter. ■ See door surface cleaning instructions in the “Microwave Oven Care” section.■ To reduce the risk of fire in the oven cavity:– Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. – Remove wire twist-ties from paper or plastic bags before placing bags in oven.– If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.– Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.5

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: – Do not overheat the liquid. – Stir the liquid both before and halfway through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the microwave oven for a short time before removing the container. – Use extreme care when inserting a spoon or other utensil into the container.

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. This device complies with Part 18 of the FCC Rules. This device complies with Industry Canada ICES-001.6 INSTALLATION INSTRUCTIONS Unpacking 1. Empty the microwave oven of any packing materials.2. Clean the inside with a soft, damp cloth.3. Check for damage, such as: n A door that is not lined up correctly, n Damage around the door, or n Dents on the interior or exterior of the microwave oven.If there is any damage, do not operate the microwave oven until a designated service technician has checked itandmade any needed repairs.NOTE: To avoid damage to the microwave oven, do not remove microwave inlet cover. See the “Parts and Features” section. Location Requirements IMPORTANT: The control side of the microwave oven is the heavy side. Handle the microwave oven gently. The weight of the microwave oven is over 35lbs (15.9kg). n Place the microwave oven on a cart, counter, table, or shelf that is strong enough to hold the microwave oven and the food and utensils you place inside it. n The microwave oven should be at a temperature above 50°F (10°C) for proper operation.NOTE: Some models can be built into a wall or cabinet by using one of the trim kits listed in the “Assistance or Service” section. n Do not block the exhaust vents or air intake openings. Allow a few inches of space at the back and side of the microwave oven where the exhaust vents are located. Blocking the exhaust vents could cause damage to the microwave oven as well as poor cooking results. n Make sure the microwave oven legs are in place to ensure proper airflow. If vents are blocked, a sensitive thermal device may automatically turn the microwave oven off. The microwave oven should work properly once it has cooled. Electrical Requirements Observe all governing codes and ordinances.Required: n A 120V, 60Hz, AC only, 15A or 20A electrical supply with a fuse or circuit breaker.Recommended: n A time-delay fuse or time-delay circuit breaker. n A separate circuit serving only this microwave oven.Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For all cord connected appliances:The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. WARNING Excessive Weight HazardUse two or more people to move and install microwave oven.Failure to do so can result in back or other injury.7

This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual. Turntable The turntable can rotate in either direction to help cook food more evenly. For best cooking results, do not operate the microwave oven without having the turntable in place. See the “Assistance or Service” section to reorder any of the parts. To Install:

1. Place the support on the microwave oven cavity bottom.

2. Place the turntable on the support.

Fit the raised, curved wedges in the center of the turntable bottom between the three spokes of the hub. The rollers on the support should fit inside the turntable bottom ridge. A. WindowB. Cooking guide labelC. Microwave oven lightD. DisplayE. Control panelF. Microwave inlet coverG. Removable turntable supportH. Glass turntableI. Model and serial number plateJ. Door lock systemA. TurntableB. HubC. SupportD. Shaft A B C DJ I H G F E MICROWAVE OVEN CONTROL Power

Keypad Feature Instructions Timer (Hold to Set Clock) Hold to Set the Clock To set the clock, follow the instructions below:

1. Press TIMER for 3 seconds to enter clock setting.

NOTE: The microwave oven must be in standby. It will also appear every time the product is plugged in. The screen shows“12 Hr” ( “12” flashing), press timer button or keypad to toggle between 12 or 24 hour format, press START to confirm; then the screen shows “12:00”. Timer (Hold to Set Clock) Set cooking Timer The cooking timer functions like a stop watch. To set the cooking timer, following the instructions below:

1. Press Timer button.

2. Press the keypad 0-9 button to enter desired time.

3. Press START button.

NOTE: While the Timer countdown is active in the display, touch STOP/ UNLOCK to stop the Timer. The timer does not start or stop the microwave oven. START + 30Sec Add 30Seconds The button START can be used in two ways:

1. To start the microwave by cooking for 30seconds with FULL power in

2. To increase a cooking time using increments of 30seconds.

Each press adds 30seconds. START + 30Sec Start Function Press the START button to start any cooking function. If cooking is interrupted by opening the door, touch the START button after the door is closed again to resume the cycle. STOP/UNLOCK Microwave Pause/Stop Function The STOP/UNLOCK button stops any microwave oven function except for the clock. The microwave oven will also turn off when the door is opened. When the door is opened, the element(s) will turn off, but the microwave oven light will remain on. Close the door and touch the START button to resume the preset cycle. STOP/UNLOCK 2-Step Door Opening This microwave comes with the added feature of a 2-step door opening functionality to avoid unintended access. The STOP/UNLOCK button can be used to pause/cancel the function during or after cook time. The STOP/UNLOCK button can be used for 2-step door opening:

1. Once you set the cooking time and press the START button, the Door

Lock icon will appear on the display.

2. To open the microwave:

n Press STOP/UNLOCK. n Pull the door handle. NOTE: Once you press the STOP/UNLOCK button to stop/pause any function, the Door Lock icon will disappear for 10 seconds and you will be able to pull the door handle to open the door. The Door Lock icon will reappear after 10 seconds and require you to repeat steps 1 and 2 to open the door. NOTE: When the machine is powered on after plug-in, the 2-Step Door function will not be triggered. If a cooking cycle starts after the door closes, then 2 steps are required to open the door. Once the 2 steps have been used to open the door, if the door closes and no cooking power is applied, then you can open the door by just pulling the door handle. Keypad Instructions9 Keypad Feature Instructions NOTE: This microwave comes with the added feature of a 2-step door opening functionality to avoid unintended access. When children do not have access to the appliance, there is a disable function if the 2-step functionality is not needed. Disable/Enable 2-step door function operation on the display: Steps to disable the 2-step door function operation:

1. After pressing the STOP/UNLOCK button for 3 seconds, “DI:_0” will

show on the display.

2. After pressing the “0” button, “DI:_1” will show on the display.

3. Press the START button to confirm.

NOTE: DI (Disable) NOTE: If you unplug the microwave, it will remember the last operation. You will not need to disable or enable the 2 step door function again. Steps to enable the 2-step door function operation: Steps to enable the 2-step door function operation:

1. After pressing the STOP/UNLOCK button for 3 seconds, “EA:_0” will

show on the display.

2. After pressing the “0” button, “EA:_1” will show on the display.

3. Press the START button to confirm.

NOTE: EA (Enable) IMPORTANT: Disabling this feature should only be done when the owner is certain and children are not present. 0-9 Keypad Number User can press 0-9 keypad number to select cook time, food class, food weight. In standby mode, press the keypad button 1 or 2 or 3, the microwave oven at 100% power for 1 min, 2 min, 3 min of cook time directly. No need press START button to confirm. Cook Time/Power Set Manual cooking time and power To set cooking time length and change power level:

1. Press the Cook Time/Power button.

2. Press the number buttons to set the length of cook time, for example

2:30, press number “2 3 0”.

3. Press the Cook Time/Power button again to change the power level.

4. Press number buttons to set the power levels, for example press “8 0”

to set the power level to 80%.

5. Press START button to Start.

You can skip step 3 and 4 if you want to cook at 100% power level. Keep Warm Keep Warm The function allows to keep your dishes warm. To use:

NOTE: The Keep Warm cycle last for a duration of 15minutes (default 30 minutes), the maximum time is 60 min. Each 15 min cycle, microwave will be turned on 1.5 min, then cavity lamp and fan are off, only the countdown time is shown. Steam Clean Auto cleaning cycle The cleaning cycle will help to clean the microwave oven cavity

1. Place 1 cup of water (~250mL) in the middle of the cavity.

(After finishing the water heat-up cycle (8 min), the cavity lamp and fan will be off , the countdown time is shown.) NOTE: Please follow Tips and Suggestions in Steam Clean section Steam Clean Turn on or of beep sound The function allows to turn on or off the beep sound:

1. Press STEAM CLEAN button and hold for 3 seconds to put into mute,

the Mute Off icon will be shown on display

2. Hold the button again for 3 seconds to turn on the sound.10

Keypad Feature Instructions Defrost Manual and Automatic Defrost The Defrost function helps thaw manually and frozen poultry, meat, fish automatically. To defrost, follow the instructions below:

1. Press “Defrost” button,display will show “P01” for manual. User can

press the “Defrost” button to increase food classes in cyclic manner. User can also press “Keypad Buttons” to insert the FOOD CLASS too

2. Press keypad 0-9 button to adjust desired weight. (0.2-6.6lbs/0.1lbs for

Melt Melt The Melt function is used to melt food. To use:

1. Press “Melt”, the display will show “P1”

2. Use “Melt” button or keypad 0-9 button to select a food category, see

the Melt Menu section in this guide for the food category or reference the sticker on the front plate of the microwave. Press START button to confirm.

Soften Soften The Soften function is used to soften butter. To use:

1. Press “Soften”, the display will show “0.5” as default stick.

Cook Auto cook For Cook mode, it is not necessary to set the time and power, follow the instructions below:

1. Press “Cook “ button, the “P1” will show on the display.

2. Use keypad 0-9 button or “Cook” to select a food category. See the

Cook Menu section in this guide for the food category or reference sticker on the front plate of the microwaves.

3. Press START button.

NOTE: During the cooking process, the display with show to Turn or Add Food (for some food only), press the STOP/UNLOCK button to trigger the unlock function and add or turn the food by pulling the door handle to open the door. By pressing the STOP/UNLOCK button again will stop the cooking function and microwave oven will switch to Standby mode. Reheat Automatic Reheat To reheat using preset functions, follow the instructions below:

1. Press the “Reheat” button, the “P1” will show on the display.

2. Use keypad 0-9 button or “Reheat” to select a food category. See the

REHEAT section in this guide for the food category or reference sticker on the front plate of the microwaves.

1. Press “Popcorn” button repeatedly to select the bag size (3.0 or 3.5oz).

1. Press “Potato” button repeatedly to select L (Large) or S (Small) potato

Display When power is first supplied to the microwave oven, “12 Hr” will appear in the display. User can press TIMER/Clock button or keypad 0-9 button to toggle between 12 Hr or 24 Hr within 10 seconds. Press START button to confirm. If the “12:00” appears in the display at any other time, a power failure has occurred. Reset the clock if needed. See the “Clock” section. Standby mode When no functions are being used, the microwave oven will switch to Standby mode. After function selection, press the STOP/UNLOCK key to exit the function selection. If you again press the STOP/UNLOCK key it will be a invalid, as cooking mode is not activated. When cooking mode is activated and the user presses the STOP/UNLOCK button, the STOP/UNLOCK functions will be triggered at the same time. Press the STOP/UNLOCK button again to cancel the function and return to Standby mode START The START button begins any function. If non-sensor cooking is interrupted by opening the door, pressing START button will resume the cycle. NOTE: To avoid unintentional operation of the microwave oven, a cooking function cannot be started if the microwave oven door has been closed for about 1 minute. The word “door” will appear in the display until the door is opened and closed. Express start/Add 30 seconds In standby mode, pressing START automatically starts the microwave oven at 100% power for 30 seconds and adds 30 seconds of cook time, with each additional touch of the control. Time may be added to any manual cooking cycle in 30 second increments, at the moment power level, by pressing START button during cooking. NOTE: – Quick Start 30 sec: Press “Start/+ 30 sec”, it will quick start of full power in 30 sec; press again if you need to add more time mid cycle or at the end of the cycle. – Quick Minute Cooking: You can also press keypad 1-3 button to have full power cooking of the selecting minutes. STOP/UNLOCK The STOP/UNLOCK button clears any incorrect command and cancels any program during cooking. Press the STOP/UNLOCK button to stop the cycle. It will not erase the time of day. The microwave oven will also turn off when the door is opened. Close the door and press START to resume the cycle. To Use Non-Sensor Menu (Popcorn, Potato)

1. Place food on the turntable and close the door.

2. Touch desired menu control. The first programmed amount

will appear in the display. Touch control keypad repeatedly or touch number keypads to change quantity.

3. Touch START. When the cycle ends, “End” will appear in the

display and the end-of-cycle tone will sound.

4. Touch STOP/UNLOCK to clear the display.

Clock The microwave oven must be in standby.

1. Press TIMER/Clock button for 3 seconds to enter clock

setting. It will also appear every time the product is plugged into the power source, or power is back after a power fail.

2. Press keypad 0-9 button to set the hour.

3. Press START button to confirm.

4. Press keypad 0-9 button to set the minute.

5. Press START button to confirm the setting.

Timer Kitchen Timer works like a stop watch. To Set:

1. Press Timer/Clock button

2. Press keypad 0-9 button to enter desired time.

4. When the Timer countdown is achieve in the display, tone

will sound. Press STOP/UNLOCK to stop the timer. NOTE: The Timer does not start or stop the microwave oven. The function can be set only in Standby mode. Mute On/Off This function allows the user to activate/deactivate all the sounds played by the appliances, includes button press, warnings, alarm, even end audio feedback. Press Steam Clean button and hold for 5 seconds to put into mute, hold the button again for 3 seconds to turn on the sound. Cooking End When the cooking is finished, the display will show the text “End”. A reminder acoustic beep will signal.

1. After the Cooking End, If you press the STOP/UNLOCK

button, takes out the food and closes the door again, the interface will display the clock, it will switch to 1-step door opening.

2. If you will not remove the food within 30 minutes, it will

consistently display “END” for 30 minutes, and automatically return to standby mode and unlock after 30 minutes and it will switch to 1-step door opening.12

A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls, and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar, and water molecules in the food, causing them to move, producing friction and heat which cooks the food. n To avoid damage to the microwave oven, do not lean on or allow children to swing on the microwave oven door. n To avoid damage to the microwave oven, do not operate microwave oven when it is empty. n Baby bottles and baby food jars should not be heated in microwave oven. n Clothes, flowers, fruit, herbs, wood, gourds, and paper, including brown paper bags and newspaper, should not be dried in the microwave oven. n Paraffin wax will not melt in the microwave oven because it does not absorb microwaves. n Use oven mitts or pot holders when removing containers from microwave oven. n Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly firm. Let potatoes stand for 5minutes. They will nish cooking while standing. n Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst, requiring significant cleanup of microwave oven cavity. Cover poachedeggs and allow a standing time. Food Characteristics When microwave cooking, the amount, size and shape, startingtemperature, composition and density of the food affectcookingresults. Amount of Food The more food heated at once, the longer the cook time needed.Check for doneness and add small increments oftimeifnecessary. Size and Shape Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food. Starting Temperature Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods. Composition and Density Foods high in fat and sugar will reach a higher temperature and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake. Cooking Guidelines Covering Covering food helps retain moisture, shorten cook time, and reduce spattering. Use the lid supplied with cookware. If a lid isnot available, wax paper, paper towels, or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking. Stirring and Turning Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top. Arranging If heating irregularly shaped or different-sized foods, arrange the thinner parts and smaller-sized items toward the center. If cooking several items of the same size and shape, place them ina ring pattern, leaving the center of the ring empty. Piercing Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places toallow steam to vent. Shielding Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips, and fish tails. See the “Aluminum Foil and Metal” section first. Standing Time Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food.13 Cookware and Dinnerware Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using. Material Recommendations Aluminum Foil, Metal See the “Aluminum Foil and Metal”section. Browning Dish Bottom must be at least 3/16" (5mm) above the turntable. Follow manufacturer’srecommendations. Ceramic Glass, Glass Acceptable for use China, Earthenware Follow manufacturer’s recommendations. Melamine Follow manufacturer’s recommendations. Paper: Towels, Dinnerware, Napkins Use non-recycled and those approved by the manufacturer for microwave oven use. Plastic: Wraps, Bags, Covers, Dinnerware, Containers Use those approved by the manufacturer for microwave oven use. Pottery and Clay Follow manufacturer’s recommendations. Silicone Bakeware Follow manufacturer’s recommendations. Straw, Wicker, Wooden Containers Do not use in microwave oven. Wax Paper Acceptable for use To Test Cookware or Dinnerware for Microwave Use:

1. Place cookware or dinnerware in microwave oven with 1cup

(250mL) of water beside it.

2. Cook at 100% cooking power for 1minute.

Do not use cookware or dinnerware if it becomes hot and the water stays cool. Aluminum Foil and Metal Always use oven mitts or pot holders when removing dishes from the microwave oven. Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occurand cause damage to the microwave oven. OK for Use Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines: n To avoid damage to the microwave oven, do not allow aluminum foil or metal to touch the inside cavity walls, ceiling,or oor. n Always use the turntable. n To avoid damage to the microwave oven, do not allow contact with another metal object during microwave cooking. Do Not Use Metal cookware and bakeware, gold, silver, pewter, non-approved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples, and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven. Cooking Menu The microwave oven has been programmed with common microwave foods, their quantities, cook powers, and cook times. Use the following chart as a guide for preset cooking. Item Food Category Quantity P1 Fresh Vegetables From room temperature. Place in microwave-safe container. Add 2 tablespoons water to 1-2 cups, add 4 tablespoons water to 3-4 cups. Cover the dish, leaving an air ventilation. Sir and let stand 3 min after cooking. 1-4 cups P2 Frozen Vegetables From frozen temperature. Place in microwave-safe container Add 2 tablespoons water to 1-2 cups, add 4 tablespoons water to 3-4 cups. Cover the dish, leaving an air ventilation. Sir and let stand 3 min after cooking. 1-4 cups P3 Oatmeal Place in microwave-safe container and add water depends on package directions adds water cover with plastic wrap and fold back one edge about 1/4" (6mm) to make a vent. Place container in the center of the oven. After cooking stir with spoon or whisk until uniform. 1-4cups P4 Frozen Entrée Remove entrée from package and loosen film covering on 3 sides of the container leaving one of the short sides still attached. Loosely cover with film. Allow the 10.5 and 20 oz (297 and 567 g) entrees to stand 3 minutes. Allow the 38 and 60 oz (1.1 and 1.7 kg) entrees to stand 5 minutes 10 oz, 20 oz, (283 g, 567 g) Popcorn

– Do not use regular paper bags or glassware – Pop only one package of popcorn at a time. – Follow manufacturer’s instructions when using a microwave popcorn popper. – Listen for popping to slow to one pop every 1 or 2seconds, and then stop the cycle. – Do not reppop unpopped kernels. – For best results, use fresh bags of popcorn. – Cooking results may vary by brand and fat content. NOTE: Follow the instructions provided by the microwave popcorn manufacture.14 Potato Item Food Category Quantity L-Large Potato Enter 1-4 pieces, 8-12 oz (227-340g) each. Pierce each potato several times with a fork. Place on paper towel on turable centre. Let stand 5 min after cooking. 1, 2, 3, 4 pieces / 1 piece S-Small Potato Enter 1-8 pieces, 3-5 oz (85-142g) each. Pierce each potato several times with a fork. Placed on paper towel on table centre. Leg stand 5 min after cooking. 1-8 pieces / 1 piece Dinner Plate (Reheat Menu) Times and cooking powers have been preset for reheating a number of food types. Use the following chart as a guide. Item Food Category Quantity P1 Dinner plate Place food on plate. Cover with plastic wrap and vent. Let stand 2-3minutes after reheating. Large (289-440 g), Small P2 Soup Place in microwave-safe container. Cover with plastic wrap and vent. Stir and let stand 2-3minutes after reheating. 1, 2, 3, 4 cups P3 Beverage Do not cover. 1, 2, 3, 4cups P4 Reheat Pizza Place on paper towel lined microwave- safe plate. 1-3 sliced, 4oz (113g) per slice Soften/Melt Soften function may be used to soften your food. Times and cooking powers have been preset for a number of food types. Use the following chart as a guide. Item Food Category Quantity P1 Butter Unwrap and place in microwave-safe container. 0.5-2.0 sticks/0.5 stick Melt Butter Melt function may be used to melt your food. Times and cooking powers have been preset for a number of food types. Use the following chart as a guide. Item Food Category Quantity P1 Butter Unwrap and place in microwave-safe container. 0.5-2.0 sticks/0.5 stick P2 Chocolate Chips Place in microwave-safe container 4 oz, 6 oz, 8 oz, 12 oz (113-340 g / 113 g) P3 Cream Cheese Unwrap and place in microwave-safe container 8 oz, 16 oz (227 g, 454 g) Auto Defrost – For optimal result, food should be 0oF (-18oC) or colder when defrosting. – Unwrap foods and remove lids (from fruit juice) before defrosting. – Shallow packages will defrost more quickly than deep blocks. – Separate food pieces as soon as possible during or at the end of the cycle for more even defrosting. – Foods left outside the freezer for more than 20minutes or frozen ready-made food should not be defrosted using the Defrost feature but should be defrosted manually. – Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips, and fish tails. See the “Aluminum Foil and Metal” section first. – Times and cooking powers have been preset for defrosting a number of food types. Item Food Category Weight P1 Manual Defrost ---- P2 Poultry 0.2 lbs - 6.6 lbs / 0.1 lbs P3 Meat 0.2 lbs - 6.6 lbs / 0.1 lbs P4 Fish 0.2 lbs - 6.6 lbs / 0.1 lbs Use the following chart as a guide when defrosting poultry, meat or fish

DEFROST PREPARATION CHART

POULTRY Chicken: whole and cut up Cornish hens Turkey: breast Place in a microwave safe container, chicken breast side up. Remove giblets from whole chicken. MEAT Beef: ground, steaks, roast, stew Lamb: stew and chops Pork: chops, ribs, roasts, sausage The narrow or fatty areas of irregular-shaped cuts should be shielded with foil before defrosting. Do not defrost less than 1/4 lb (113 g) or two 4 oz (113 g) patities. Place all meats in a microwave-safe container. Steam Clean This automatic cleaning cycle will help you to to clean the microwave oven cavity and to remove unpleasant odors. Before starting the cycle:

1. Put 250 mL water into a container (see our recommendations

in the below section “Tips and suggestions”).

2. Place the container directly on the middle of the cavity.

1. Press the Steam Clean button, the cleaning cycle duration

will be visible on the display.

2. Press the Start button to start the function.

When The Cycle Is Finished:

1. Press the Cancel button.

2. Remove the container.

3. Use a soft cloth or a paper towel with mild detergent to clean

the interior surfaces.15 Tips and suggestions: For a better cleaning result, it is recommended to use a container with a diameter of 17-20 cm, and a height that is lower than 6.5 cm. It is recommended to use a container of light plastic material that is suitable for the microwave. As the container will be hot after the cleaning cycle is completed, it is recommended to use a heat resistant glove when removing the container from the microwave. For a better cleaning effect and removal of unpleasant odors, add some lemon juice or vinegar to the water. Keep Warm This function allows you to keep your dishes warm.

1. Press “Keep Warm” button

2. Press +/- button to select suitable time (15, 30, 45, 60 min),

then press START button to start. Default time is 30min, max. time is 60 min. Food Weight Container Temperature Container Tuna Noodle Casserole 4 cups (880 g) 165F (73.8 C) Microwave safe dish

General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products. Soap, water, and a soft cloth or sponge are suggested unless otherwise noted.

MICROWAVE OVEN CAVITY

To avoid damage to the microwave oven cavity, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths, or some recycled paper towels. To avoid damage to stainless steel models, rub in direction ofgrain. The area where the microwave oven door and frame touch whenclosed should be kept clean. Average soil n Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. Heavy soil n Mild, nonabrasive soaps and detergents: Heat 1cup (250mL) of water for 2 to 5minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth. Odors n Lemon juice or vinegar: Heat 1cup (250mL) of water with 1tbs (15mL) of either lemon juice or vinegar for 2 to 5minutes in microwave oven. Microwave Inlet Cover To avoid arcing and microwave oven damage, the microwave inlet cover (see the “Parts and Features” section) should be keptclean. n Wipe with wet cloth.

MICROWAVE OVEN DOOR AND EXTERIOR

The area where the microwave oven door and frame touch when closed should be kept clean. n Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. n Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to towel, not directly to surface. Stainless Steel (on some models) To avoid damage to microwave oven door and exterior, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths, or some paper towels. Rub in direction of grain. n Stainless steel cleaner (not included): See “Assistance or Service” section to order. n Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth. n Vinegar for hard water spots CONTROL PANEL n Sponge or soft cloth and water: Dampen sponge with water and wipe panel. Dry with softcloth. n To avoid damage to the control panel, do not use chemical or abrasive cleansers. TURNTABLE Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place. n Mild cleanser and scouring pad n Dishwasher16 TROUBLESHOOTING First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoidaservicecall,refer to the warranty or visit www.whirlpool.com/owners. In Canada www.whirlpool.ca/owners. Contact us by mail with any questions or concerns at the address below: In the U.S.A.: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada: Whirlpool Brand Home Appliances Customer eXperience Center 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7 If you experience Recommended Solutions Nothing will operate Check the following: n Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Microwave oven will not operate Check the following: n Magnetron: Try to heat 1cup (250mL) of cold water for 2minutes at 100% cooking power. If water does not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service. n Door: Firmly close door. On some models, if a packaging spacer is attached to the inside of the door, remove it, then firmly close door. If a message about the door appears in the display, the door has been closed for 5minutes or more without the microwave oven being started. This occurs to avoid unintended starting of the microwave oven. Open and close the door, then start the cycle. n Control: Make sure control is set properly. Make sure Control Lock is OFF. Make sure Demo mode (onsome models) is OFF. Microwave oven makes humming noise n This is normal and occurs when the power supply in the magnetron cycles on. Microwave oven door looks wavy n This is normal and will not affect performance. Turntable will not operate Check the following: n Turntable: Make sure turntable is correct side up and is sitting securely on the turntable support. Seethe “Turntable” section. n Turntable support: Remove turntable. Remove and clean turntable hub, support, and rollers. Replace hub, support, and turntable. Place 1cup (250mL) of water on the turntable, then restart microwave oven. If it still is not working, call for service. See the “Warranty” section. Do not operate the microwave oven without turntable and turntable support working properly. Turntable alternates rotation directions n This is normal and depends on motor rotation at the beginning of the cycle. Display shows time countdown, but the microwave oven is not operating Check the following: n Timer: See the “Timer” section. Tones are not sounding Check the following: n Tones: See the “Tones” section. Cooking times seem too long Check the following: n Cooking power: See the “Microwave Cooking Power” section. n Amount of food: Larger amounts of food need longer cooking times. n Voltage: Have a qualified electrician check the electrical system in the home. Radio, TV, or cordless phone interference Check the following: n Proximity: Move the receiver away from the microwave oven or adjust the radio or TV antenna. If the microwave oven is plugged into the same outlet, try a different outlet for the electronic device. n Soil: Make sure the microwave oven door and sealing surfaces are clean. n Frequency: Some 2.4 GHz based cordless phones and home wireless networks may experience static ornoise while microwave oven is ON. Use a corded phone, a different frequency cordless phone, or avoid using these items during microwave oven operation.17

ASSISTANCE OR SERVICE

If you need service: Please refer to the warranty. If you need replacement parts: If you need to order replacement parts, we recommend that you use only factory specified parts. These factory specified parts will fit right and work right because they are made with the same precision used to build every new Whirlpool appliance. To locate factory specified parts in your area, call us or your nearest Whirlpool

designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll-free: 1-866-698-2538 or visit our website at www.whirlpool.com/owners. Our consultants provide assistance with: n Scheduling of service. Whirlpool

appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States. n Features and specifications on our full line of appliances. n Referrals to local Whirlpool

appliance dealers. n Installation information. n Use and maintenance procedures. n Accessory and repair parts sales. n Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). For further assistance: If you need further assistance, you can write to Whirlpool with any questions or concerns at: Whirlpool Brand Home Appliances Customer experience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Customer eXperience Center toll-free: 1-800-807-6777 or visit our website at www.whirlpool.ca/owners. Our consultants provide assistance with: n Scheduling of service. Whirlpool

appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada. n Features and specifications on our full line of appliances. n Referrals to local Whirlpool

appliance dealers. n Use and maintenance procedures. n Accessory and repair parts sales. For further assistance: If you need further assistance, you can write to Whirlpool with any questions or concerns at: Customer eXperience Center Whirlpool Canada 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Replacement Parts Glass Turntable Part Number W11755303 Turntable Support and Rollers Part Number W11755305 Turntable Hub Part Number W11755304WHIRLPOOL

MAJOR APPLIANCE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE Please have the following information available when you call the Customer eXperience Center: n Name, address, and telephone number n Model number and serial number n A clear, detailed description of the problem n Proof of purchase, including dealer or retailer name and address IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.whirlpooI.com. 2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience Center In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user,

operator or installation instructions.

2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance

with electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring,fuses, or water inlet hoses).

4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.

6. Conversion of products from natural gas or propane gas.

7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not

approved by Whirlpool.

8. Repairs to parts or systems to correct product damage or defects caused by unauthorized

service, alteration, or modification of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance

finishes, unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

10. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments

including, but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.

11. Food or medicine loss due to product failure.

12. Pickup or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized

Whirlpool servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative

panels, flooring, cabinetry, islands, countertops, drywall) that interfere with servicing, removal, or replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered, or not

easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer:

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty. LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. 03/1719
