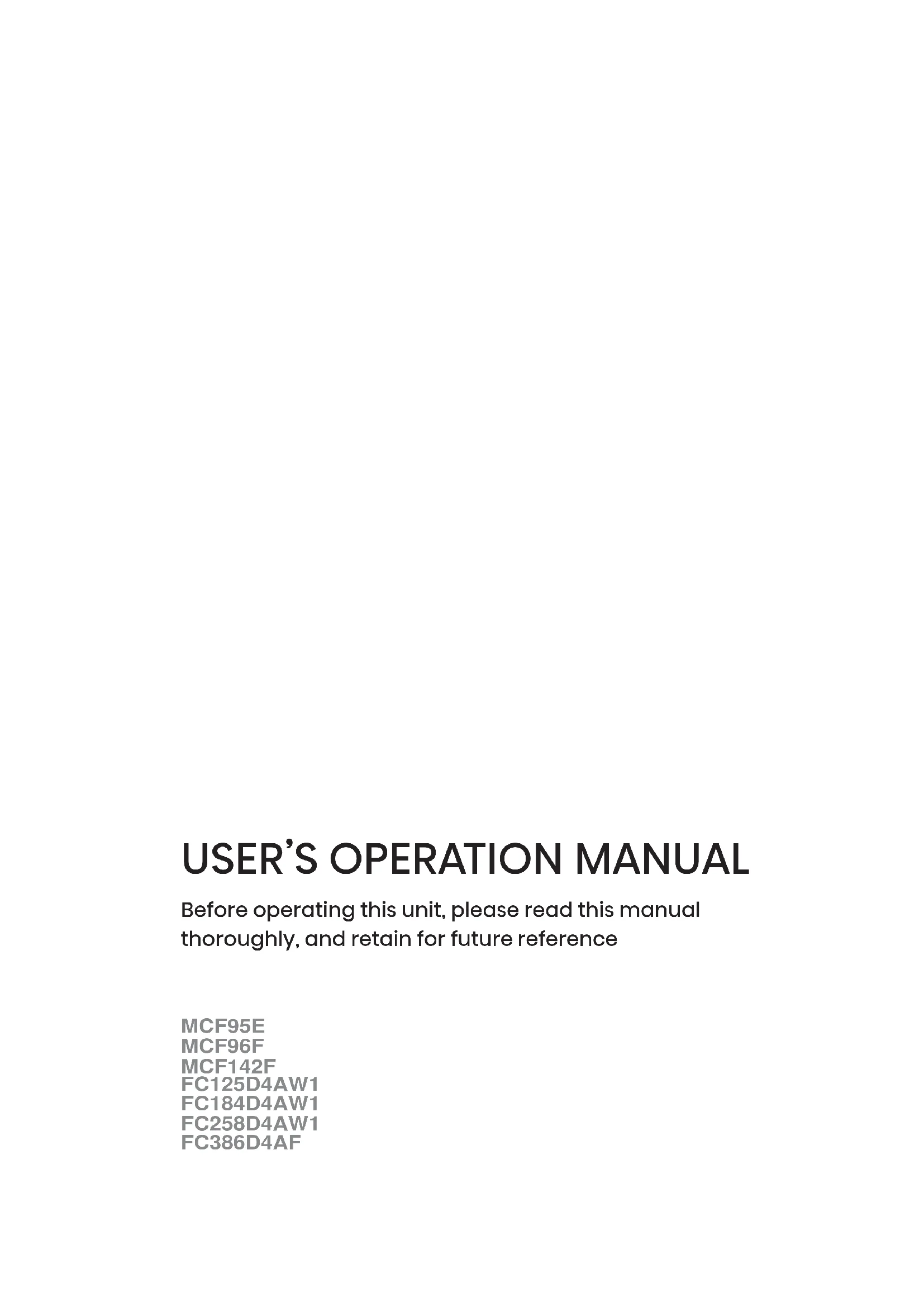

USER MANUAL FC184D4AW1 HISENSE

Before operating this unit, please read this manual thoroughly, and retain for future reference MCF95E MCF96F MCF142F14

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Safety for children and others who are vulnerable According to EN standard This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructionc oncerning use of the appliance by a person responsible for their safety. Keep all packaging away from children as there is risk of suffocation If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child General safety This appliance is intended to be used in households and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar nonretail applications WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING —If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings in the appliance enclosure or in any built-in structure clear of obstruction. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not useelectrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING — The refrigerant and insulation are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. If the refrigerant circuit is damaged: -Avoid naked flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. WARNING —Damaged supply cord must be repalced by a special cord or assembly available from the manufacture or its service agent.

Warning: risk of fire/ Warning: risk of fire

flammable materials Replacing the LED light: WARNING — must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance.

If the product has the LED light LED lightI t is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety

1. The power cord must not

2. Make sure that the power

plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.

3. Make sure that you can

access the main plug of the appliance.

4. Do not pull the main

is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the

appliance without the interior lighting lamp cover.

7. The fridge is only supplied

with power supply of single phase alternating current of 220 ~ 240 V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. Daily use Do not store flammable gas or liquids in the appliance. There is a risk of an explosion. Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.). When unplugging always pull the plug from the mains socket, do not pull on the cable. Do not place hot items near the plastic components of the fridge. Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacturer’s instructions. The manufactures storage recommendations should bestrictly adhered to. Refer to relevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause explode, damage to the Frozen food can cause frost burns if consumed straight from compartment. Do not place the appliance in direct sunlight. Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. The appliance is intended for keeping food and/or beverages in normal households as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it. Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. Never use the base, drawers, doors etc. to stand on or as supports. Frozen food must not be refrozen once it has been thawed out. Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

it to appliance . Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

or electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Adequate air circulation should be allowed around the appliance reducing the risk of overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation The appliance must not be locate close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. Service Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. This product must be serviced by an authorized Serviced Center, and only genuine spare parts must be used.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

aution! Care and cleaning

efore maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.7 Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating When refrigerating food, please be careful not to contact the surface of the inner box When frozen food, in order to prevent moisture loss, prevent the odor, should separate use non-toxic, tasteless, impermeable, Hot food should be cooled to room temperature first, then put into the freezer, otherwise storage status of other foods and increase the power consumption. directly. the different food sealed storage, and can only waterproof sealing material. it will affect the Order Compartments TYPE Target storage temp.[℃] Appropriate food

Fridge +2 +6≤ Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.

( Freezer***)*- ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.

***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.

**-Freezer ≤-12 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.

*-Freezer ≤-6 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food. appliances.(This clause applies only to the EU region.) Two-star frozen-food compartments are suitable for storing pre-frozen food, storing

making icecream and making ice cubes. One-, two- and three-star compartments are not suitable for the freezing of fresh food.8 chest freezer chest freezer short time period as possible. 220-240Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; -catering and similar non-retail applications This refrigerating appliance is not intended to be used as a built-in appliance.9 Note:

This appliance performs well within the climate class from SN to T showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period.101112 FC258D4AW1 FC184D4AW1 FC125D4AW1 MCF142F FC386D4AF MCF96F

get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above. Baskat Drain Foot Lamp Baskat Foot Drain MCF95E13 MIN MAX /Mid. /Colder /Cold. 0/Off. High temperature setting will accelerate food waste. NOTE: MIN MAX MID MIDMIDMIDMINMINMINMAXMAXMAX14 Disposal of the appliance It is prohibited to dispose of this appliance in domestic household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a suitable waste collection container to recycle it. Before disposal of appliance.

1. Disconnect the main plug from the main socket.

2. Cut off the main cable and discard it.

Correct disposal of this product This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste, Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handing of this product. For more detailed information about the recycling of this product, please contact you local council, your household waste disposal service, or the store where you purchased the product.Español FC125D4AW1 FC184D4AW1 FC258D4AW1 FC386D4AF
