WM62P - Washing machine Infiniton - Free user manual and instructions

Product type	Washing machine
Brand	Infiniton
Model	WM62P
Washing capacity	6.0 kg

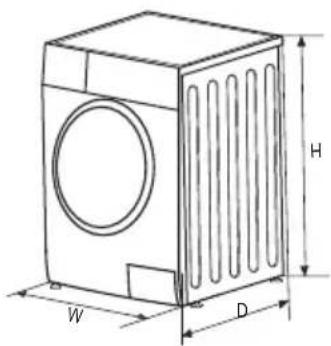

Dimensions (W x D x H)	595 x 400 x 850 mm
Net weight	52 kg
Power supply	220-240 V ~ 50 Hz
Rated power	2000 W
Maximum current	10 A
Water pressure	0.05 - 1 MPa
Energy efficiency class	E
Maximum spin speed	1000 rpm
Washing programs	Cotton, Synthetic, Delicate, Quick wash, ECO 40-60, Drum Clean, etc.
Options	Prewash, Extra rinse, No spin
Child safety	Yes (key lock)
Door lock	Yes
Cleaning and maintenance	Cleaning of inlet filter, pump filter, drum, door seal and dispenser
Included accessories	Water supply hose, transport bolts, user manual
Country of origin	Not specified (estimated: Europe)

Frequently Asked Questions - WM62P Infiniton

How to properly install the Infiniton WM62P washing machine?

Place the machine on a hard, dry and level surface. Remove the transport bolts at the back using a wrench and plug the holes with the provided caps. Connect the water supply hose to the tap and the inlet valve, then plug the power cord into a grounded outlet. Make sure the drain hose is correctly positioned. Adjust the feet to level the machine.

What programs are available on the WM62P?

Programs include: Cotton (30°C to 90°C), Synthetic, Delicate, Cold Wash, ECO 40-60, Quick Wash (15, 30 or 45 minutes), Drum Clean, Spin Only, Drain Only, Rinse & Spin, and Finish In (3H, 6H, 9H).

How to activate child safety?

Select a program then press simultaneously the Extra Rinse and No Spin buttons for 3 seconds until a beep. To deactivate, repeat the operation. Child lock blocks all buttons except the power button.

What to do if the machine does not start?

Check that the door is properly closed. Make sure the machine is plugged in and the outlet is powered. If the problem persists, unplug the appliance for a few minutes, then plug it back in. Refer to the Troubleshooting section of the manual for other possible causes.

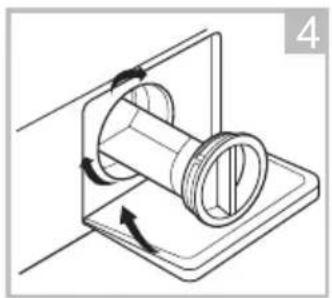

How to clean the drain pump filter?

First unplug the machine and close the tap. Open the service filter, place a container to collect water, then turn the filter counterclockwise to remove it. Remove any foreign objects, clean it under water and put it back by turning clockwise. Make sure it is tightened.

Why does the door not open after a cycle?

The door is locked for safety reasons. Wait about two minutes after the program ends. If it still does not open, check that the cycle is completely finished and there is no water in the drum. In case of a power failure, you can use the emergency drain (see manual).

Which detergent to use?

Use a detergent suitable for washing machines, non-foaming or low-foaming. Pour the detergent into the detergent drawer: compartment II for main wash, I for prewash (if selected), and the center compartment for fabric softener. Follow the dosages indicated on the packaging.

How to clean the detergent drawer?

Press the clip inside the drawer to remove it. Wash the drawer with warm water. Clean the inside of the housing with an old toothbrush. Put the drawer back by pushing it fully.

What does the error code with flashing lights mean?

Refer to the fault table in the manual. For example, if the Pause/Start light flashes, it may indicate that the door is not properly closed. If the No Spin and Extra Rinse lights flash, check the water supply. See the manual for a complete code mapping.

How long does an ECO 40-60 cycle last?

The ECO 40-60 program lasts about 3h16 for a full load (6 kg) with a spin speed of 1000 rpm. This program is designed to be energy-efficient and suitable for normally soiled laundry.

USER MANUAL WM62P Infiniton

Simple line drawing of a washing machine with no text or symbols

Diagram showing a box being inserted into a base with an inset magnified view of a mechanical component (no text or symbols)

Conecte la manguera de suministro de agua

Advertencia!

Nota!

Line drawing of a kitchen sink with faucet and chain-link rings (no text or symbols)

Advertencia!

Simple line drawing of a sweater with a tag and patterned collar (no text or symbols)

Revisa la etiqueta

Two handbags with circular designs, one wrapped in a ribbon and the other in a striped pattern (no text or symbols)

Simple line drawing of a bag with a handle and patterned interior (no text or symbols)

Line drawing of a T-shirt with patterned fabric and side connectors (no text or symbols)

Simple line drawing of a box with an arrow indicating rotation or transformation (no text or symbols)

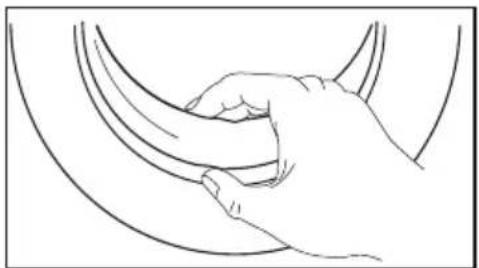

Line drawing of a hand cleaning a washing machine (no text or symbols)

Nota!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a textured handle (no text or symbols)

Hand holding a small electronic component with a magnified inset showing the internal mechanism (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Nota!

Line drawing of a mechanical component with internal channels and a central fastener (no text or symbols)

Line drawing of a mechanical device with a lever and three compartments (no text or symbols)

Line drawing of a hand inserting a small dark object into a rectangular frame (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a lever (no text or symbols)

Line drawing of a hand using a tool to lift a curved component, with arrows indicating direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Supplier's name or trade mark:

Supplier's address ( ^b ):

Model identifier: WM-62P

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	6.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_w (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.031		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.737		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	41	Remaining moisture content (°) (%)	Rated capacity	62.9
	Half	33		Half	62.9
	Quarter	20		Quarter	62.9
Spin speed (°) (rpm)	Rated capacity	1000	Spin-drying efficiency class (°)	C
	Half	1000
	Quarter	1000
Programme duration (°) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(°) for the eco 40-60 programme.

(3) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) If the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

FICHA DE PRODUCTO

Supplier's name or trade mark:

Supplier's address ( ^b ):

Model identifier: WM-PL8

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_W (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.827		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	48
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	38	Remaining moisture content (°) (%)	Rated capacity	53
	Half	33		Half	53
	Quarter	25		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(°) for the eco 40-60 programme.

(3) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) If the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Nota!

Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

■ Product Description 9

■ Installation 10

OPERATION

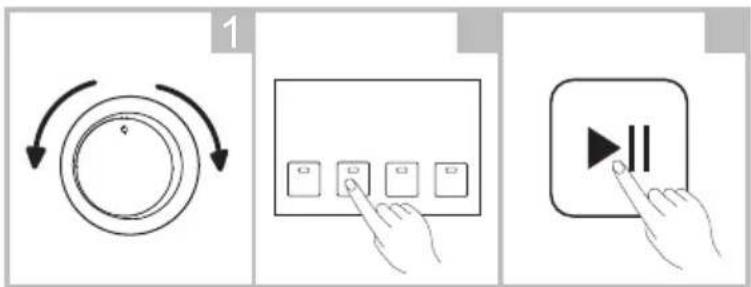

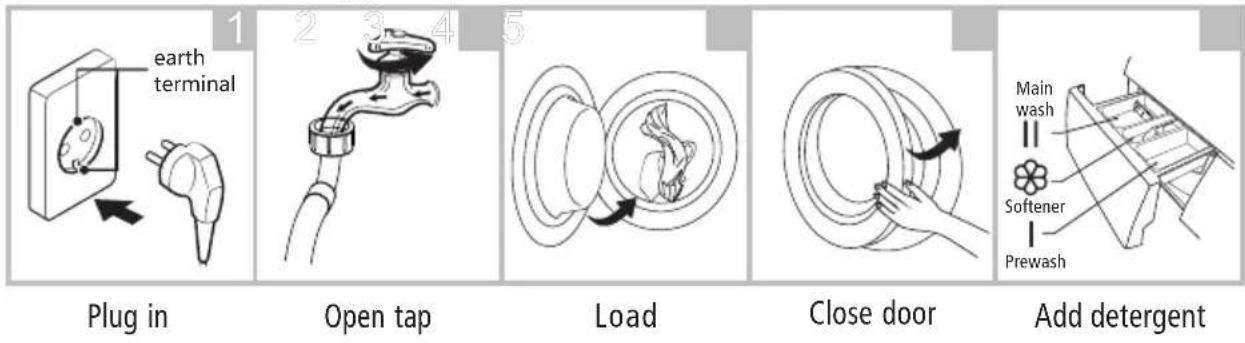

■ Quick Start 13

■ Before Each Washing 14

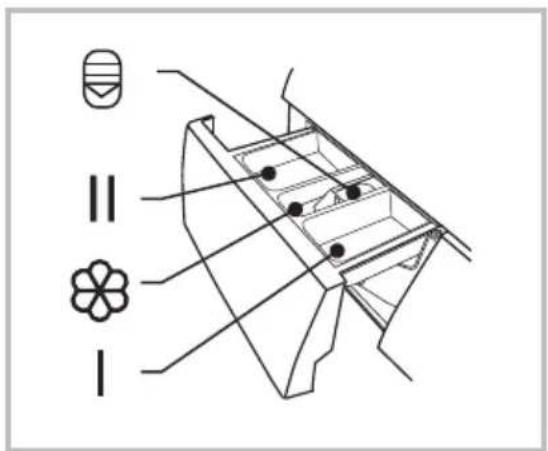

■ Detergent Dispenser 15

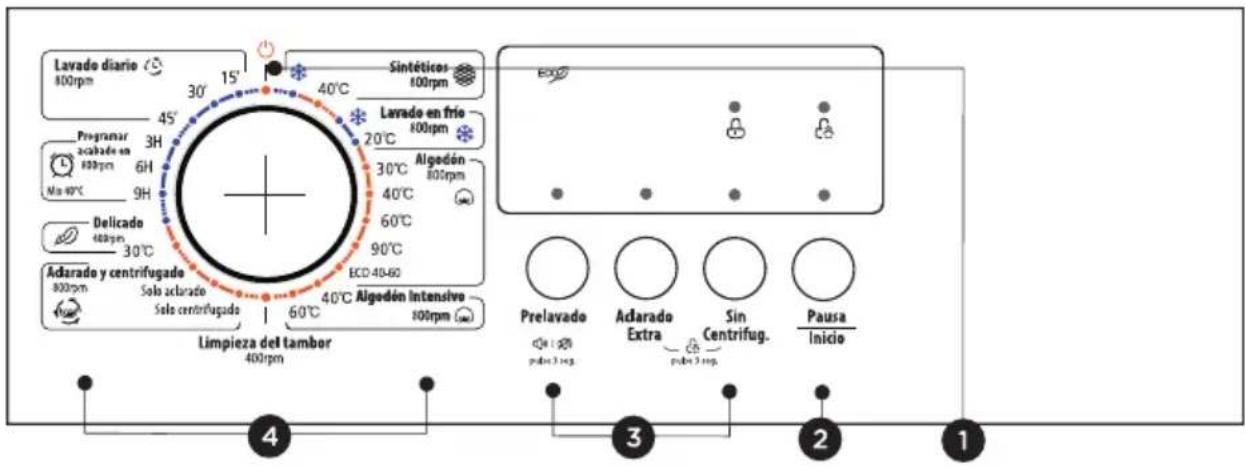

■ Control Panel 17

■ Programmes.... 18

■ Option.... 24

MAINTENANCE

■ Cleaning and Care 26

■ Trouble Shooting 29

■ Technical Specifications .... 30

■ Product Fiche 31

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

⚠ Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

• Do not operate the machine in rooms with a temperature of below 5^ . This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

⚠ Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
  •Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
  • Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:
  -Bolts shall be reinstalled to the machine by a specialized person
  -Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

• This appliance is intended to be used in household and similar applications such as:
  -Staff kitchen areas in shops, offices and other working environments;
  -Farm houses;
  -By clients in hotels, motels and other residential type environments;
  -Bed and breakfast type environments;
  -Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

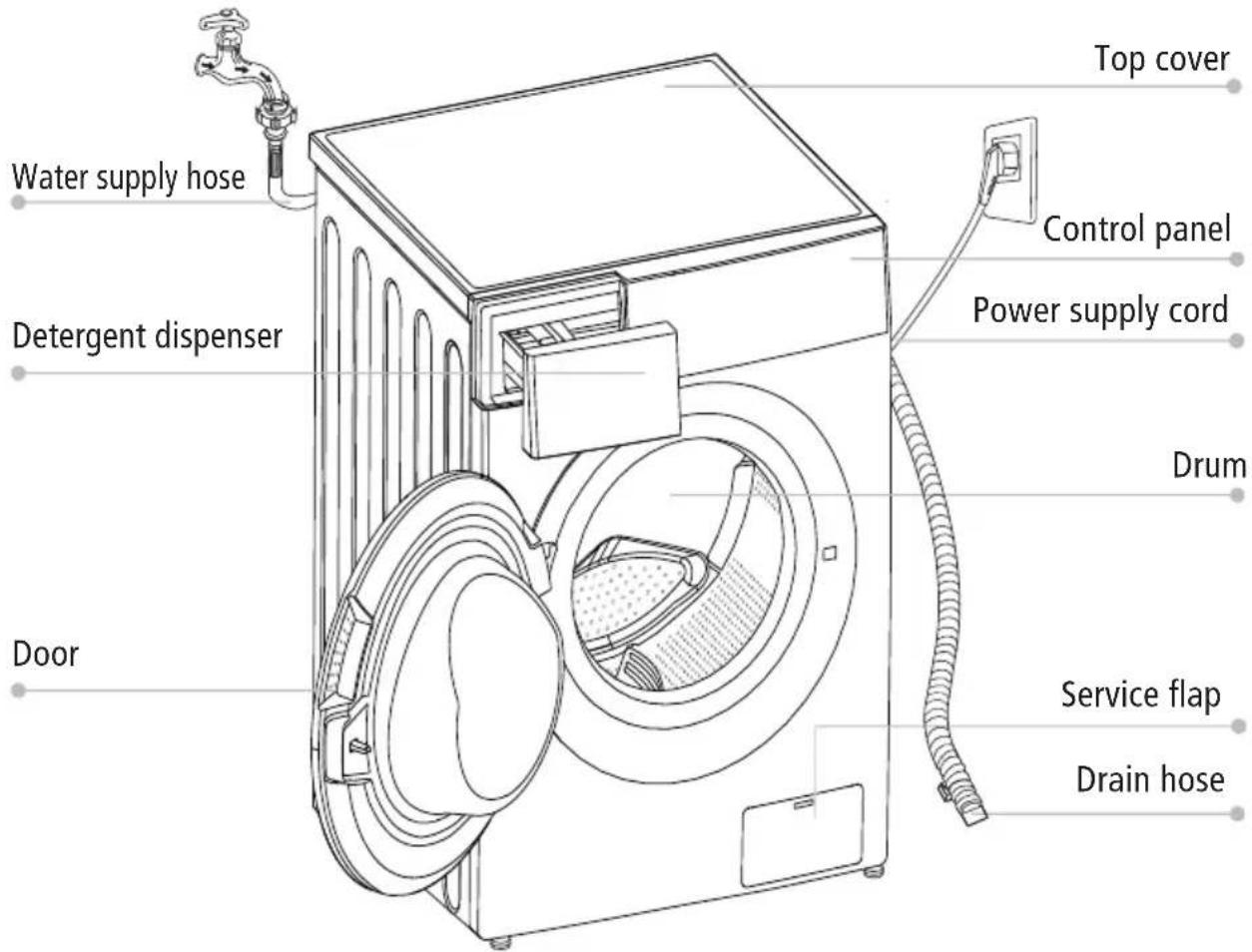

■ Product Description

Note!

- The product picture is for illustration only, please refer to real product as reference.

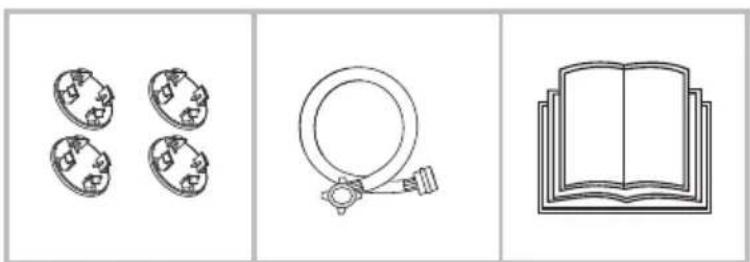

Accessories

Three-panel image showing four circular objects and a magnifying glass, alongside an open book (no text or symbols)

4 x Cover caps
1 x Supply hose cold water
1 x Owner's manual

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight

3. Sufficient ventilation
   4.Room temperature is above 0°C

4. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a box with a circular center and two X-shaped cross marks (no text or symbols)

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Diagram of a box with an arrow pointing upward, and a magnified inset showing a cityscape labeled 'a' (no text or symbols on the diagram itself)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a car wheel with a wrench and blue arrow indicating rotation (no text or symbols)

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Close-up of a white object with blue arrows indicating motion or movement, no visible text or symbols

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

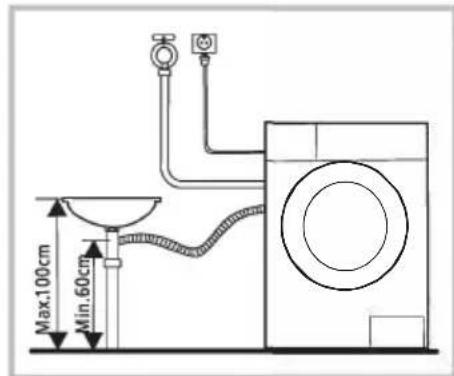

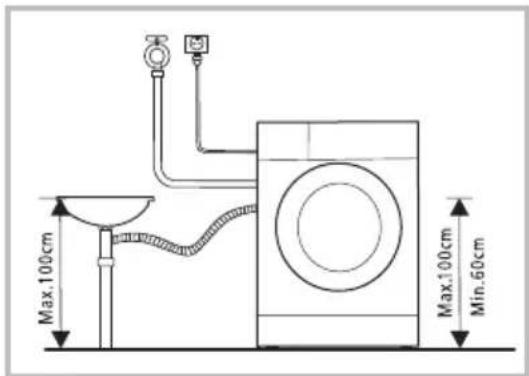

There are two ways to place the end of drain hose:

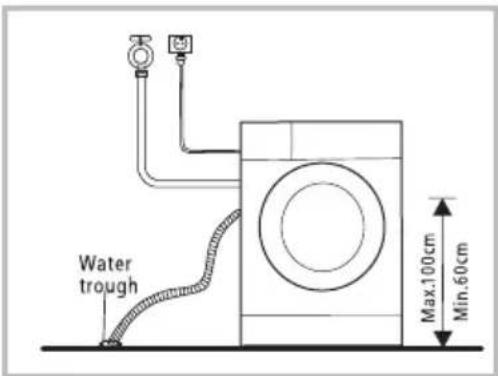

1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough.

■ Quick Start

! Caution!

• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

Select programme
Select function or remain default settings
Press
Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Check the care label

Simple line drawing of a bag being folded into a basket (no text or symbols)

Sort laundry according to color and textile type

Take all items out of the pockets

Two handbags with circular designs, one wrapped in a strap and the other in a blanket (no text or symbols)

Tie together long textile strips and belts, close zips and button

Simple line drawing of a money bag with a grid pattern and a small inset showing the text (no readable symbols or text)

Put small items into a laundry bag

Line drawing of a traditional-style jacket with three arms and textured body (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II		Programme	I	II
Cotton 30 °C	○	●	○	Delicate 30 °C		●	○
Cotton 40 °C	○	●	○	Delicate		●	○
Cotton 60 °C	○	●	○	Ends in 9H		●	○
Cotton 90 °C	○	●	○	Ends in 6H		●	○
Synthetic	○	●	○	Ends in 3H		●	○
Synthetic 40 °C	○	●	○	Quick Wash 45'		●	○
Drum Clean				Quick Wash 30'		●	○
Cold Wash	○	●	○	Quick Wash 15'		●	○
Cold Wash 20 °C	○	●	○	ECO 40-60		●	○
Spin Only				Cotton Intensive 40 °C		●	○
Drain Only				Cotton Intensive 60 °C		●	○
Rinse&Spin			○

- Means must

○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton,ECO 40-60	30/40 / 60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton,ECO40-60, Cold Wash	Cold/20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	Cold Wash,Synthetic	Cold/20/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	Cold/40	Delicate textiles, silk, viscose

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

■ Control Panel

Turn the appliance on and off.

3 Option

This allows you to select additional functions and will light when selected.

5 Display

The display shows settings, estimated remaining time, options and status messages.

2 Start/Pause

Start or pause your programme.

4 Programmes

Available according to the laundry type.

Programmes

Model:WM-62P

Programme	Load(kg)	Display Time
	6.0	6.0
Synthetic	3.0	2:20
Synthetic 40°C	3.0	2:20
Cold Wash	6.0	1:00
Cold Wash 20°C	6.0	1:01
Cotton 30°C	6.0	2:40
Cotton 40°C	6.0	2:40
Cotton 60°C	6.0	2:45
Cotton 90°C	6.0	2:50
ECO 40-60	6.0	3:16
Cotton Intensive 40°C	6.0	4:04
Cotton Intensive 60°C	6.0	4:08
Drum Clean	-	1:18
Spin Only	6.0	0:12
Drain Only	-	0:01
Rinse&Spin	6.0	0:20
Delicate 30°C	2.5	0:50
Delicate	2.5	0:48
Ends in 9H	6.0	0:59
Ends in 6H	6.0	0:59
Ends in 3H	6.0	0:59
Quick Wash 45'	2.0	0:45
Quick Wash 30'	2.0	0:30
Quick Wash 15'	2.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters may be different with the parameters in above mentioned table.

Programmes

WM-62P
Cycle	Nominal capacity in kg	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature (°C 1)	Residual moisture in % / Spin speed in rpm 2)
Cold Wash 20°C	3.0	1:01	0.207	37	20	65%/1000
Cotton 60°C	6.0	2:45	1.280	58	60	70%/800
Synthetic	3.0	2:20	0.327	55	Cold	65%/1000
Quick Wash 15'	2.0	0:15	0.035	32	Cold	75%/800
Cotton Intensive 40°C	6.0	4:12	1.085	58	40	65%/1000
ECO 40-603)	6.0	3:18	1.000	50.0	41	62% / 1000
	3.0	2:36	0.650	39.0	33	62% / 1000
	1.5	2:36	0.360	36.0	20	62% / 1000

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• The new EU energy efficiency class is E Energy test program: ECO 40-60. Speed: the highest speed; Other as the default.

Half load for 6.0Kg machine:3.0Kg.

Quarter load for 6.0Kg machine: 1.5Kg.

The old EU energy efficiency class is A+

Energy test program: Cotton Intensive 60°C/40°C. Speed: the highest speed; Other as the default.

Half load for 6.0Kg machine:3.0Kg.

Programmes

Model:WM-PL8

Programme	Load(kg)	Display Time
	8.0	8.0
Synthetic	4.0	2:20
Synthetic 40°C	4.0	2:20
Cold Wash	8.0	1:00
Cold Wash 20°C	8.0	1:01
Cotton 30°C	8.0	2:40
Cotton 40°C	8.0	2:40
Cotton 60°C	8.0	2:45
Cotton 90°C	8.0	2:50
ECO 40-60	8.0	3:29
Cotton Intensive 40°C	8.0	3:49
Cotton Intensive 60°C	8.0	3:52
Drum Clean	-	1:18
Spin Only	8.0	0:12
Drain Only	-	0:01
Rinse&Spin	8.0	0:20
Delicate 30°C	2.5	0:50
Delicate	2.5	0:48
Ends in 9H	8.0	0:59
Ends in 6H	8.0	0:59
Ends in 3H	8.0	0:59
Quick Wash 45'	2.0	0:45
Quick Wash 30'	2.0	0:30
Quick Wash 15'	2.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters may be different with the parameters in above mentioned table.

Programmes

WM-PL8
Cycle	Nominal capacity in kg	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature (°C1)	Residual moisture in % / Spin speed in rpm 2)
Cold Wash 20°C	4.0	1:01	0.218	44	20	60%/1200
Cotton 60°C	8.0	2:45	1.491	71	60	53%/1400
Synthetic	4.0	2:20	0.327	65	Cold	60%/1200
Quick Wash 15'	2.0	0:15	0.035	34	Cold	75%/800
Cotton Intensive 40°C	8.0	3:49	1.149	71	40	53% / 1400
ECO 40-603)	8.0	3:38	1.210	60.0	38	53% / 1400
	4.0	2:48	0.780	48.0	33	53% / 1400
	2.0	2:48	0.450	36.0	25	53% / 1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• The new EU energy efficiency class is E Energy test program: ECO 40-60. Speed: the highest speed; Other as the default.

Half load for 8.0Kg machine:4.0Kg.

Quarter load for 8.0Kg machine: 2.0Kg.

The old EU energy efficiency class is A+++

Energy test program: Cotton Intensive 60°C/40°C. Speed: the highest speed; Other as the default. Half load for 8.0Kg machine: 4.0Kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Synthetic	Wash synthetic articles, for example: shirts, coats, blending.While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Delicate	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.
Drum Clean	It applies 90 °C high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in,the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
Drain Only	Drain off the water.
Quick Wash15'	It is suitable for washing few and not very dirty clothes quickly.
Cotton Intensive	To increase the washing effects, washing time is increased.
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Cold Wash	Cold water to wash clothes.
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Ends in	The function can be set with this programme,the total time including washing time and delaying time is 3h,6h or 9h.

Option

Cycle	Default Temp.(°C)	Additional functions
Synthetic	Cold	Pre Wash,Extra Rinse
Synthetic 40°C	40	Pre Wash,Extra Rinse
Cold Wash	Cold	Pre Wash,Extra Rinse
Cold Wash 20°C	20	Pre Wash,Extra Rinse
Cotton 30°C	30	Pre Wash,Extra Rinse
Cotton 40°C	40	Pre Wash,Extra Rinse
Cotton 60°C	60	Pre Wash,Extra Rinse
Cotton 90°C	90	Pre Wash,Extra Rinse
ECO 40-60	60
Cotton Intensive 40°C	40
Cotton Intensive 60°C	60
Drum Clean	90
Spin Only	-
Drain Only	-
Rinse&Spin	-	Extra Rinse
Delicate 30°C	30	Extra Rinse
Delicate	Cold	Extra Rinse
Ends in 3H/6H/9H	40	Delay
Quick Wash 45'	40
Quick Wash 30'	30
Quick Wash 15'	Cold

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Pre Wash

Extra washing function before the main washing cycle starts to increase the washing performance.

Note: Detergent needs to be added to the compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

No Spin

It will not spin if you choose this function.

Child Lock

This function is meant to keep children from misusing the controls.

Press [Extra Rinse] and [No Spin] simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on.

① Caution!

• Only press and hold the two button can release "Child Lock", even power off, switch off and program end, the "Child Lock" will lock all buttons except power button and "Child Lock" button.
• Please release "Child Lock" before selecting program and starting washing.

Mute the buzzer

Choose the Programme

Press the [Prewash]button for 3sec.the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

- MuAfter ting the buzzer function, the sounds will not be activated any more.

■ Cleaning and Care

⚠ Warning!

• Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine (no text or symbols)

① Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram showing a valve mechanism with rotating arrows and a base component (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a tennis racket being inserted into a table (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with no visible text or symbols

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand inserting a small object into a container (no text or symbols)

Clean the recess with an soft brush

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a button with an arrow indicating rotation, placed on a tray (no text or symbols)

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Close the lower cover cap

① Caution!

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description					Possible cause Solution
	Pause/Start	No Spin	Extra Rinse	Prewash
	Off	Flash	Off	Off	Door is not closed properly	Close the door properly and restart.
	Off	Flash	Off	Off	Water injecting problem during wash cycle.	Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter.
	Off	Flash	Off	Off	Overtime water draining	Check the drain hose for blockage.
	Off	Flash	Off	Off	Water overflow	Restart the appliance.
					Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognised!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model	Capacity	Dimension(W*D*Hmm)		Rated PowerNet WeightW
WM-62P	6.0kg	595*400*850	52kg 2000W
WM-PL8	8.0kg	595*565*850 68kg 2000W

Supplier's name or trade mark( ^a )'( ^c ):

Supplier's address('')(''):

Model identifier ^(a) : WM-62P

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	6.0		Dimensions in cm (a), (c)	Height	85
				Width	60
				Depth	40
Energy efficiency index (b)(EEIw)	91.0		Energy efficiency class (b)	E (d)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.737		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	41	Weighted remaining moisture content (b) (%)	62.9
	Half	33
	Quarter	20
Spin speed (b) (rpm)	Rated capacity	1000	Spin-drying efficiency class (b)	C (d)
	Half	1000
	Quarter	1000
Programme duration (b) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (a)(dB(A) re 1 pW)	80		Airborne acoustical noise emission class (b) (spinning phase)	C (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

(*) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(°) for the eco 40-60 programme.
(*) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(c) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark:

Supplier's address (b):
Model identifier: WM-PL8
General product parameters:
Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEIw (°)	91.0		Energy efficiency class (a)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.827 48		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	38	Remaining moisture content (°) (%)	Rated capacity	53
	Half	33		Half	53
	Quarter	25		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3 38 :	Type	free-standing
	Half	2 48 :
	Quarter	2 : 48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emis-sion class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A
Minimum duration of the guarantee offered by the supplier (b):
This product has been designed to release silver ions during the washing cycle			NO
Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:
(*) for the eco 40-60 programme.
(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(°) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

Alternatively, if they wish, they can request technical assistance via email:

[e-mail]

[e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
- Telephone 1
- Telephone 2
- Full address
- Postal Code
- Population
- Brand
- Product model
- Serial number
- Failure presented by the product

If they wish, they can request technical assistance through the number 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

WM-62P

ean: 8445639001097

WM-PL8

ean: 8445639001110

Lavadoura

MANUAL DE

USUÁRIO

Leia este manual

Three simple line drawings: four face icons, a magnifying glass, and an open book (no text or symbols)

Simple line drawing of a washing machine with no text or symbols

Diagram showing a 3D box being inserted into a base with an inset magnified view of a mechanical component (no text or symbols)

Remove transport bolts

Warning!

Diagram of a hand using a tool to adjust or install a device into a housing (no text or symbols visible)

Toque com roscas e mangueira de entrada

Torneira especial para máquina de lavar

Note!

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Warning!

Line drawing of a sweater with a tag and tie (no text or symbols)

Verifique a etiqueta

Two handbags with circular designs, one wrapped in a blanket and the other in a patterned case (no text or symbols)

Simple line drawing of a bag with a hand holding an object inside, no text or symbols present.

Line drawing of a T-shirt with patterned fabric and side connectors (no text or symbols)

Simple line drawing of a box being folded into a bag (no text or symbols)

Programme	I	II	©	Programme	I	II	©
Cotton 30°C	○	●	○	Delicate 30 °C		●	○
Cotton 40°C	○	●	○	Delicate		●	○
Cotton 60°C	○	●	○	Ends in 9H		●	○
Cotton 90°C	○	●	○	Ends in 6H		●	○
Synthetic	○	●	○	Ends in 3H		●	○
Synthetic 40°C	○	●	○	Quick Wash 45'		●	○
Drum Clean				Quick Wash 30'		●	○
Cold Wash	○	●	○	Quick Wash 15'		●	○
Cold Wash 20°C	○	●	○	ECO 40-60		●	○
Spin Only				Cotton Intensive 40 °C		●	○
Drain Only				Cotton Intensive 60 °C		●	○
Rinse&Spin			○

devo

opcional

Note!

Line drawing of a hand cleaning a washing machine (no text or symbols)

Note!

Line drawing of a hand gripping a curved object (no text or symbols)

Limpando o filtro de entrada

Note!

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a small electronic device with a magnified inset showing the internal components (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Note!

Line drawing of a mechanical or electrical component with internal channels and a central fastener (no text or symbols)

Line drawing of a mechanical assembly with a lever and housing (no text or symbols)

Line drawing of a hand inserting a plug into a device (no text or symbols)

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Line drawing of a hand using a tool to lift a curved component (no text or symbols)

Hand holding a light bulb next to a control panel with arrows indicating rotation (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Supplier's name or trade mark:

Supplier's address ( ^b ):

Model identifier: WM-62P

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	6.0		Dimensions in cm	Height	85
				Width	60
				Depth	40
EEI_W (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.031		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.737		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	41	Remaining moisture content (°) (%)	Rated capacity	62.9
	Half	33		Half	62.9
	Quarter	20		Quarter	62.9
Spin speed (°) (rpm)	Rated capacity	1000	Spin-drying efficiency class (°)	C
	Half	1000
	Quarter	1000
Programme duration (°) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

PRODUCT FICHE

Supplier's name or trade mark:

Supplier's address ( ^b ):

Model identifier: WM-PL8

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_w (°)	91.0		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.827		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	48
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	38	Remaining moisture content (°) (%)	Rated capacity	53
	Half	33		Half	53
	Quarter	25		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	80		Airborne acoustical noise emission class (°) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1)(b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Note!

Three-panel image showing four circular objects and a magnifying glass, alongside an open book (no text or symbols)

Simple line drawing of a washing machine with no text or symbols

Diagram showing a 3D box being inserted into a base with an inset magnified view of a mechanical component (no text or symbols)

Tuyau de drainage

Attention!

Note!

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Attention!

Simple line drawing of a sweater with a tag and patterned collar (no text or symbols)

Line drawing of two fabric bags with circular designs and ribbon handles (no text or symbols)

Simple line drawing of a bag with a handle and small object inside, no text or symbols present

Line drawing of a T-shirt with patterned fabric and side ribs (no text or symbols)

Simple line drawing of a bag being folded into a basket (no text or symbols)

Technical line drawing of a vehicle interior frame with no visible text or symbols

Sortir le bac

Danger!

Line drawing of a hand cleaning a washing machine (no text or symbols)

Note!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Hand holding a small object with a magnified inset showing a mechanical component (no text or symbols visible)

Line drawing of a hand holding a magnifying glass over a mechanical component (no text or symbols)

Note!

Line drawing of a mechanical device interior with no visible text or symbols

Line drawing of a mechanical device with a lever and three parallel plates (no text or symbols)

Line drawing of a hand inserting a small object into a container (no text or symbols)

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Line drawing of a hand holding a cable with arrows indicating direction (no text or symbols)

Hand holding a rotary knob on a device panel, no text or symbols visible

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)
