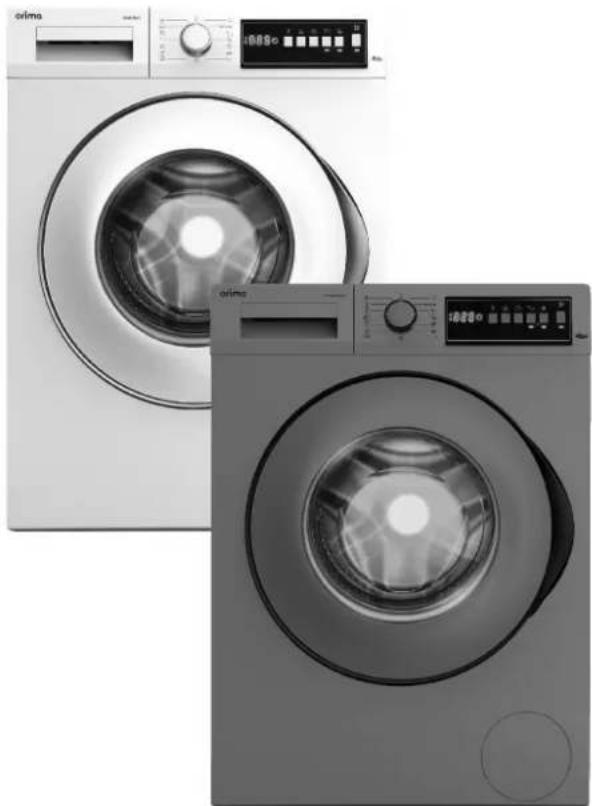

Exterior view of two white and gray washing machines (no visible text or symbols)

GRUFO MMA MARIO MIGANDA DE ALMEIDA

MÁQ. LAVAR ROUPA

Washing Machine | Lavadora | Lave-linge

ORM-128-AD-W | ORM-128-AD-X

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone] E: [e-mail]

Serviço Pós Venda:

Tel.: [phone] E: [e-mail]

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Simple line drawing of a washing machine with no text or symbols

ORM128ADX

Technical diagram of a device casing with numbered components and internal structure annotations

Technical diagram of a device casing with numbered components and internal wiring annotations

2.1 Aparência Geral

3.2 Ajustar os Pés / Ajustar as Bases de Ajuste

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with a circular vent and handle, shown without any text or symbols

Diagram showing a plug being inserted into an electrical socket, with an arrow indicating the process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe installation with a cable and a close-up of the pipe structure (no text or symbols)

Technical line drawing of a washing machine with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and housing (no text or symbols)

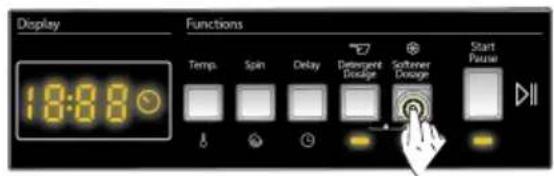

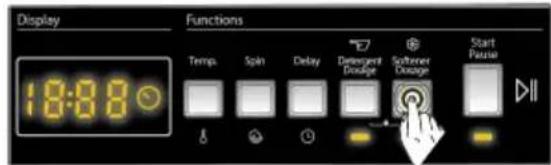

Display 18:88 Functions Temp. Spin Delay Disegnt Dosage Softener Dosage Start Passer Dil

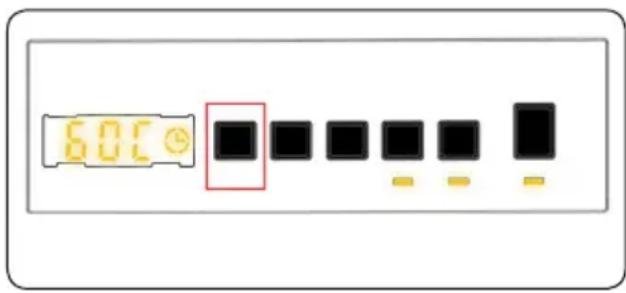

NOTA:

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

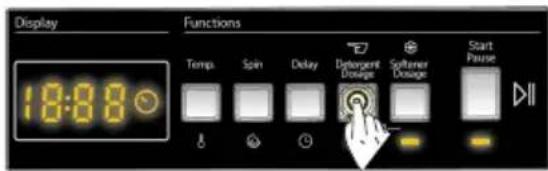

Display 18:88 Functions Temp. Spin Delay Disrupt Dosage Softener Dosage Start Pause DII

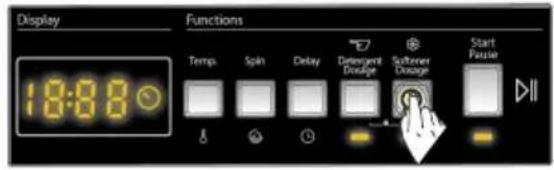

NOTA:

Simple line drawing of a short T-shirt with a small emblem on the chest (no text or symbols)

Pure mechanical diagram showing intersecting rods and a U-shaped component (no text or symbols)

Simple line drawing of a U-shaped object and a basket with a handle, no text or symbols present.

Line drawing of a T-shirt and jeans (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Illustration of a washing machine with a handle inserting into the air (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted electrical plug and a hand holding a hose, both without any text or symbols.

Technical diagram showing a valve assembly process with an arrow indicating the step and a hand holding a pipe fitting.

Six-step diagram illustrating mechanical assembly steps with labeled parts and directional arrows

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

Diagram showing hands holding a device with soccer balls, and an inset close-up of the device's interior (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal cutouts and a cylindrical housing with internal structure (no text or symbols)

1. Body

Simple line drawing of a washing machine with no text or symbols

ORM128ADX

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS .... 1

1.1 General Safety Warnings ....2
1.2 During Use 6
1.3 Packaging and Environment....7
1.4 Savings Information....7

2.TECHNICAL SPECIFICATIONS....9

2.1 Technical Specifications ....9

3.INSTALLATION....10

3.1 Removing the Transit Bolts....10
3.2 Adjusting the Feet / Adjusting Adjustable Stays....10
3.3 Electrical Connection....10

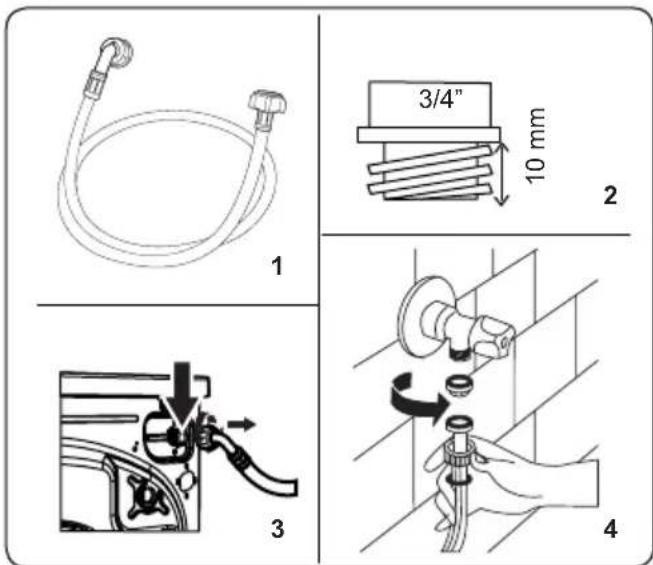

3.4 Water Inlet Hose Connection....11
3.5 Water Discharge Connection....12

4.CONTROL PANEL OVERVIEW....12

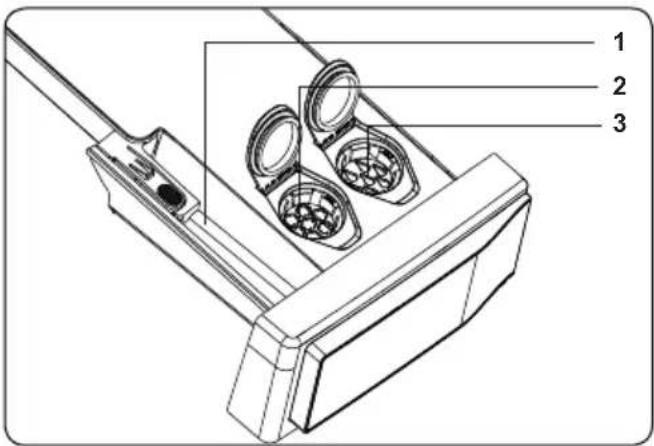

4.1 Detergent Drawer 12
4.2 Sections 13

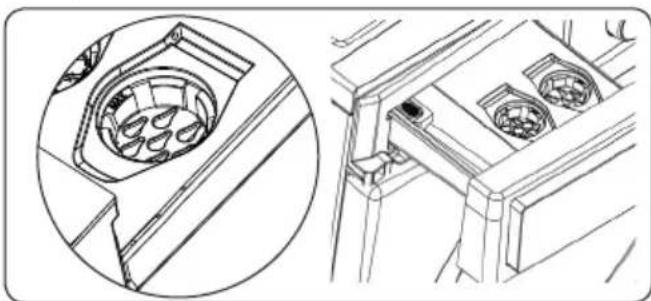

4.3 Warnings for the Automatic Detergent Dosing System 14
4.4 Program Dial....15
4.5 Electronic Display....15

5.USING YOUR WASHING MACHINE....16

5.1 Preparing Your Laundry....16

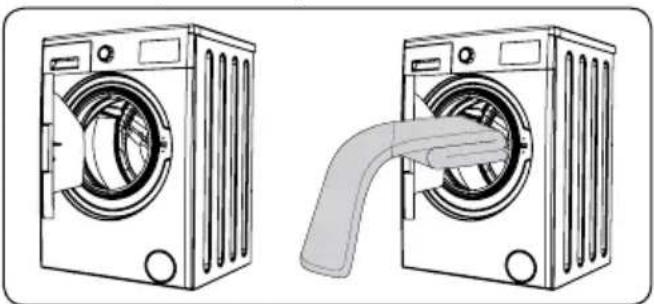

5.2 Putting Laundry in the Machine....16
5.3 Adding Detergent to the Machine....17
5.4 Operating Your Machine....17
5.5 Selecting a Programme....17
5.6 Half-Load Detection System....17
5.7 Additional Functions ......18

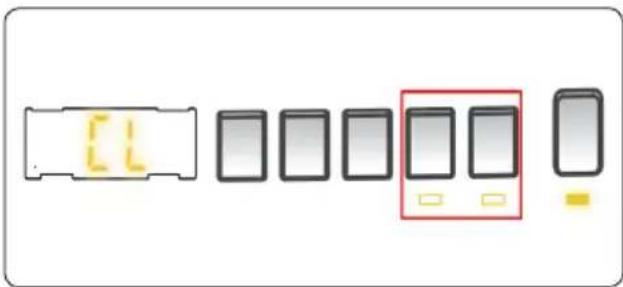

5.8 Child Lock 19
5.9 Cancelling the Programme ....19
5.10 Programme End ....20

6.PROGRAMME TABLE....21

6.1 Important Informations....24

7.CLEANING AND MAINTENANCE ....25

7.1 Warning 25

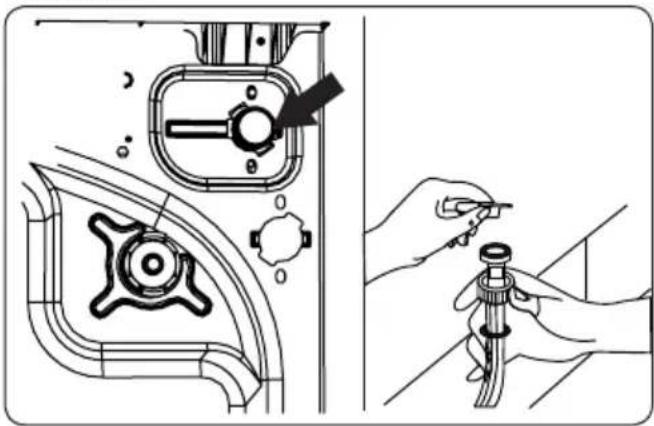

7.2 Water Inlet Filters 25
7.3 Pump Filter 26

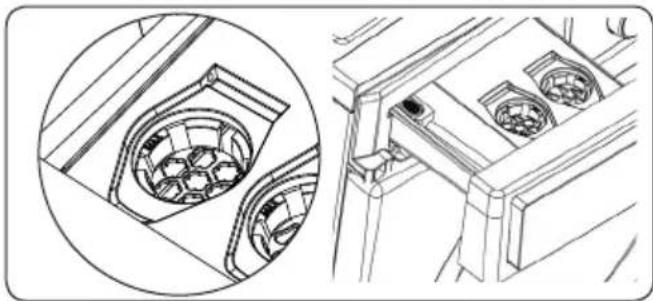

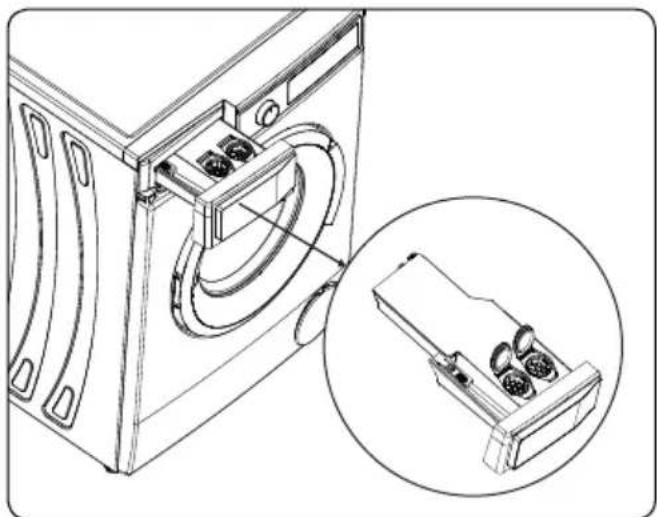

7.4 Detergent Drawer 27

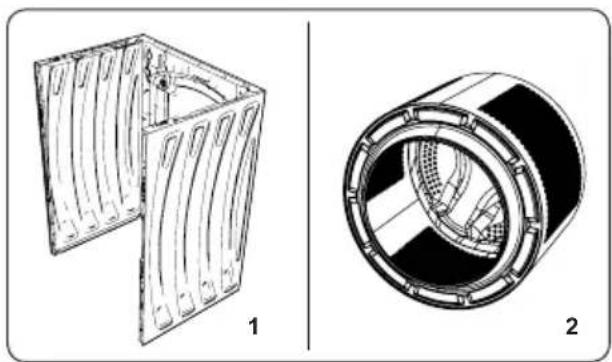

8.Body / Drum....28
9.TROUBLESHOOTING....29
10.AUTOMATIC FAULT WARNINGS AND WHAT TO DO ....30

1. SAFETY INSTRUCTIONS

Operating voltage / frequency	(220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum	1 Mpa / Minimum 0. 1Mpa
Total power (W)	2100
Maximum washing capacity (dry laundry) (kg)	8

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Call the nearest authorized service centre for a replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never use old, used or damaged water inlet hoses.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

NOTE: For a softcopy of this user

manual, please contact the following address: "[e-mail]". In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

Read this user manual carefully.

Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled.

This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 General Safety Warnings

• The necessary ambient temperature for operation of your Washing Machine is 15-25 °C.
• Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly.
• Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.
• It is recommended that for your first wash, you select the 90° Cotton programme without laundry and half fill compartment II of the detergent drawer with a suitable detergent.
• Residue may build up on detergent and softeners

exposed to air for a long period of time. Only put softener or detergent in the drawer at the beginning of each wash.

• Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine.
• Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine.
• The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine.
• Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.

⚠️Never open the detergent drawer while the machine is running.

- In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent.

- Do not exceed the maximum load for the washing programme you have chosen.

⚠️Never force the door open when your Washing Machine is running.

- Washing laundry containing flour may damage

your machine.

• Please follow the manufacturers' instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine.
• Make sure that the door of your Washing Machine is not restricted and can be opened fully.

Install your machine in a location that can be fully ventilated and preferably has constant air circulation.

Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries.

RISK OF BURNS

⚠️Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk.

RISK OF DEATH FROM ELECTRICAL CURRENT

- Do not connect your Washing Machine to the mains electricity supply using an extension lead.

- Do not insert a damaged plug into a socket.

- Never remove the plug from the socket by pulling the cord. Always hold the plug.

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not touch your Washing Machine if your hands or feet are wet.

- A damaged power cord/plug can cause fire or give you an electric shock. When damaged

it must be replaced, this should only be done by qualified personnel.

Risk of flooding

• Check the speed of water flow before placing the drain hose in a sink.
  • Take necessary measures to prevent the hose from slipping.
  • Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.

Danger of Fire

• Do not store inflammable liquids near your machine.
• The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine.
• Never use products that contain solvents in your machine.
• Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

Risk of fire and explosion

⚠️Risk of falling and injury

• Do not climb on your Washing Machine.
• Make sure hoses and cables do not cause a trip hazard.
• Do not turn your Washing Machine upside down or on its side.
• Do not lift your Washing Machine using the door or detergent drawer.

⚠️The machine must be carried by at least 2 people.

! Child safety

• Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death.
• Do not allow children to touch the glass door during operation. The surface becomes extremely hot and may cause damage to skin.

- Keep packaging material away from children.

- Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children.

1.2 During Use

• Keep pets away from your machine.
• Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
• Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

• Only use your machine for laundry that is labelled as suitable for washing by the manufacturer.
• Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to be void.
• Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.
• Please do not throw away this user manual; keep it for future reference and pass it onto the next owner.

NOTE: Specifications for the machine may vary depending on the product purchased.

1.3 Packaging and Environment

Removal of packaging materials

Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

1.4 Savings Information

Some important information to get the most efficient use out of your machine:

• Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode.
• Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. TECHNICAL SPECIFICATIONS

1 2 3 4 5 6

Technical diagram of a device casing with numbered components and labeled parts

General Appearance

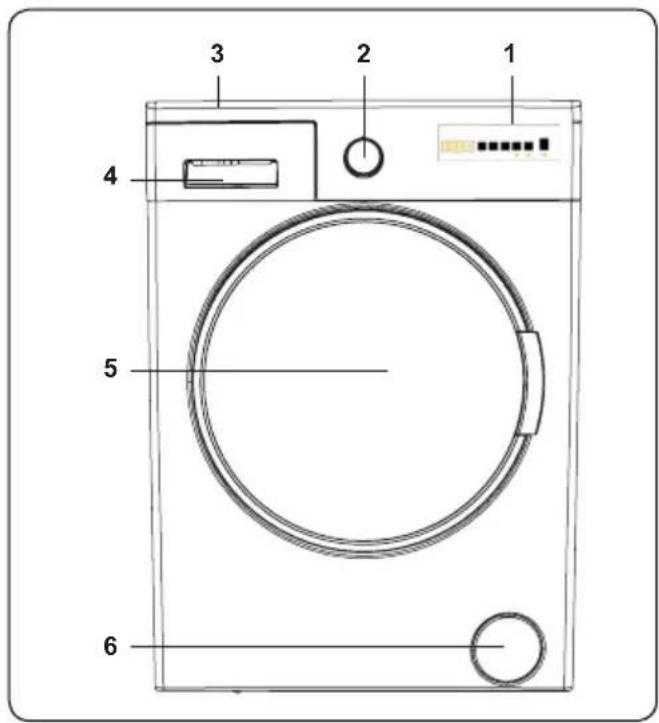

1. Electronic Display

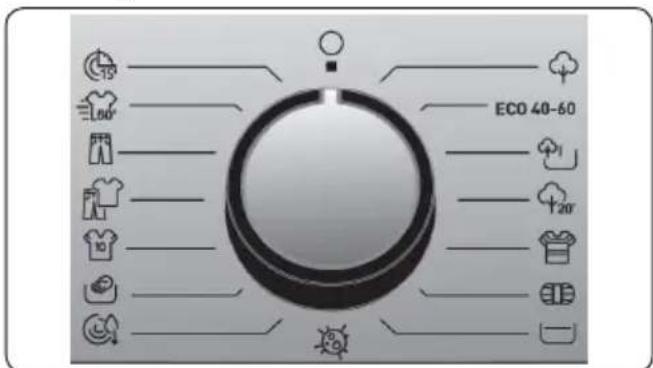

2. Programme Dial
3. Upper Tray
4. Detergent Drawer
5. Drum

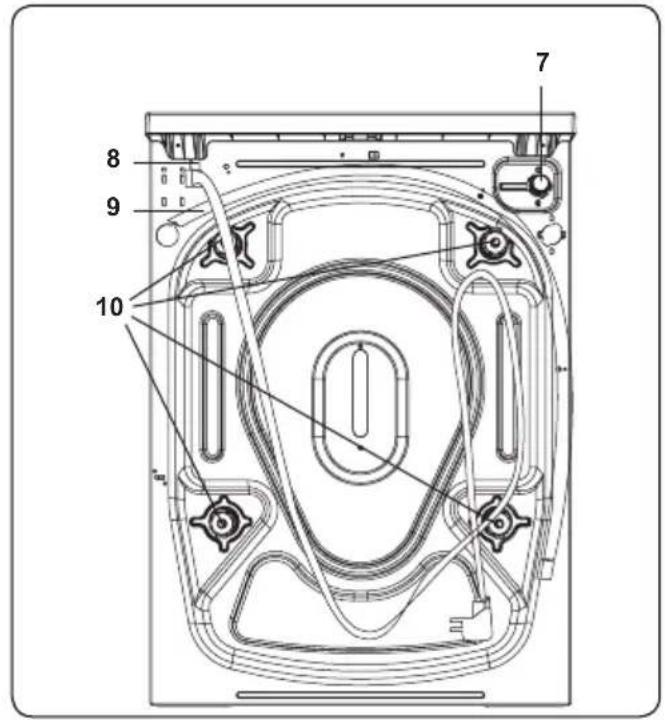

6. Pump Filter Cover
7. Water Inlet Valve
8. Power Cable
9. Discharging Hose

10. Transit Bolts

2.1 Technical Specifications

Operating voltage / frequency (V/Hz)	(220-240)V~/50Hz
Total current (A)	10
Water pressure (Mpa)	Maximum: 1MpaMinimum: 0.1 Mpa
Total power (W)	2100
Maximum dry laundry capacity (kg)	8
Spinning revolution (rev / min)	1200
Programme number	15
Dimensions (mm)
Height	845
Width	597
Depth	527

3. INSTALLATION

3.1 Removing the Transit Bolts

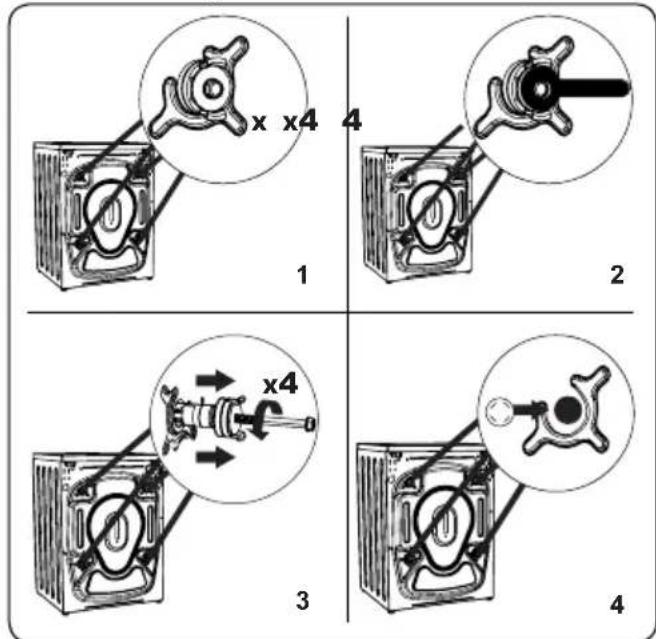

1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty.
2. Loosen the transit bolts by turning them anticlockwise with an appropriate spanner.
3. Remove the transit bolts with a straight pull.
4. Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts. The transit bolts should be stored for future use.

NOTE: Remove the transit bolts before using the machine for the first time. Faults occurring due to the machine being operated with transit bolts fitted are out of the scope of the warranty.

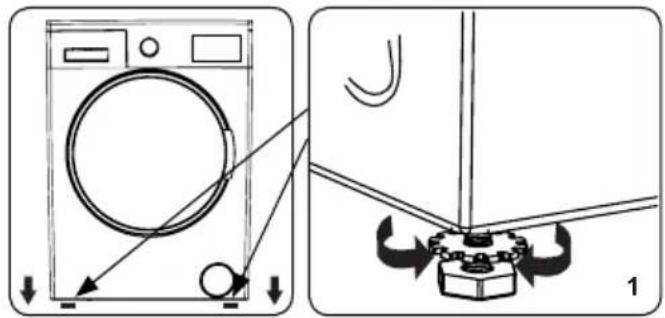

3.2 Adjusting the Feet / Adjusting Adjustable Stays

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

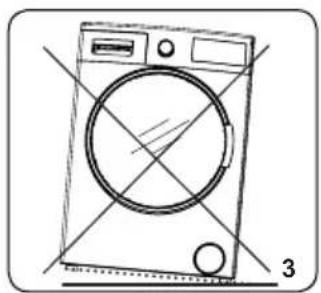

1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base.

2. To ensure silent and vibration-free operation of your machine, install it on a firm surface.

3. You can level your machine using the adjustable feet.
4. Loosen the plastic locking nut.

x4 2

Line drawing of a washing machine with no text or symbols

1. To increase the height of the machine, turn the feet clockwise. To decrease the height of the machine, turn the feet anticlockwise.
2. Once the machine is level, tighten the locking nuts by turning them clockwise.
3. Never insert cardboard, wood or other similar materials under the machine to level it.
4. When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.

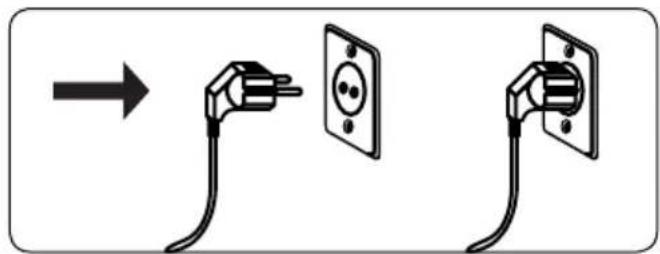

3.3 Electrical Connection

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

- Your Washing Machine requires a 220-240V, 50 mains supply.

• The mains cord of your washing machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps.
• If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.
  • We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

NOTE:

Operating your machine with low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

3.4 Water Inlet Hose Connection

1 2 3/4" 10 mm 3 4

1. Your machine may have either a single water inlet connection (cold) or double water inlet connection (hot and cold) depending on the machine specifications. The white capped hose

should be connected to cold water inlet and red capped hose to the hot water inlet (if applicable).

• To prevent water leaks at the joints, either 1 or 2 nuts (depending on your machine's specifications) are supplied in the packaging with the hose. Fit these nuts to the end(s) of the water inlet hose that connect to the water supply.
• Connect new water inlet hoses to a 34 ", threaded tap.
• Connect the white capped end of the water inlet hose to the white water inlet valve on the rear side of the machine and the red capped end of the hose to the red water inlet valve (if applicable).
• Hand tighten the connections. If in any doubt, consult a qualified plumber.
  • Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).
• Once you have made all of the connections, carefully turn the water supply on and check for leaks.
• Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.
• If your machine has a hot water inlet connection, the temperature of the hot water supply should not be higher than 70°C.

NOTE:

Your Washing Machine must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused.

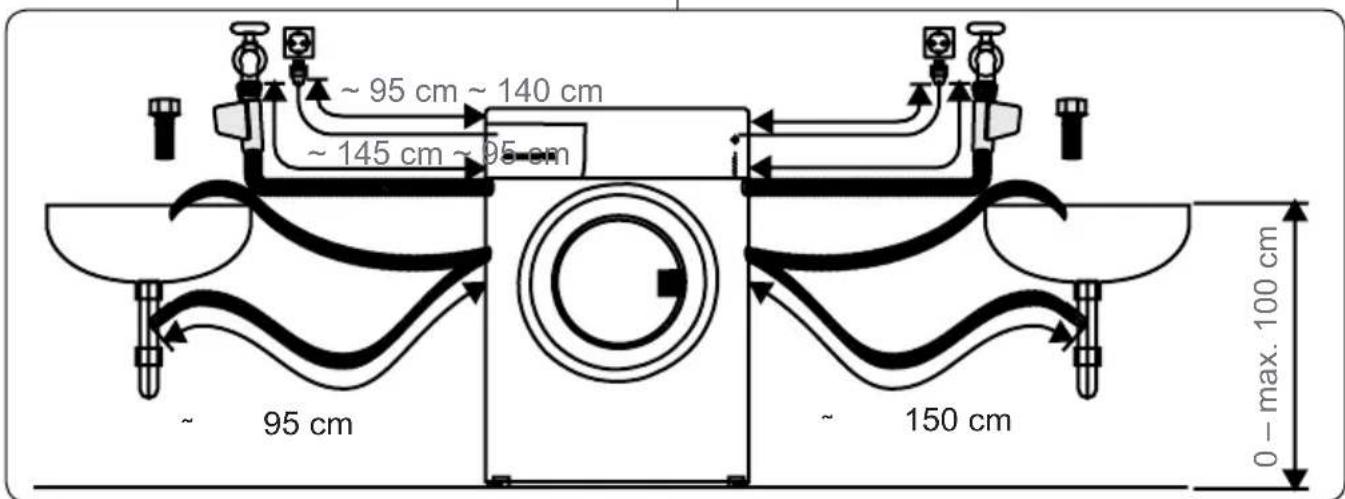

~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm ~ 95 cm ~ 150 cm 0 - max. 100 cm

3.5 Water Discharge Connection

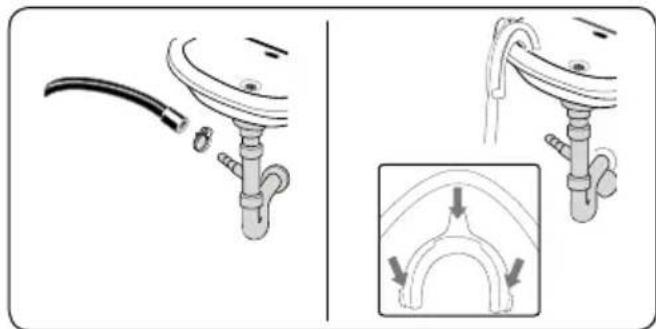

Diagram showing a cable being inserted into a pump, with an inset illustrating the internal structure (no text or symbols present)

• Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment.
• Never attempt to extend the water drain hose.
• Do not put the water drain hose from your machine into a container, bucket or bathtub.
  • Make sure that the water drain hose is not bent, buckled, crushed or extended.
• The water drain hose must be installed at a maximum height of 100 cm from the ground.

4. CONTROL PANEL OVERVIEW

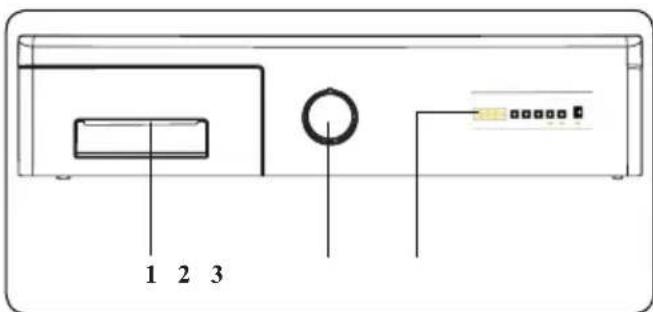

1 2 3

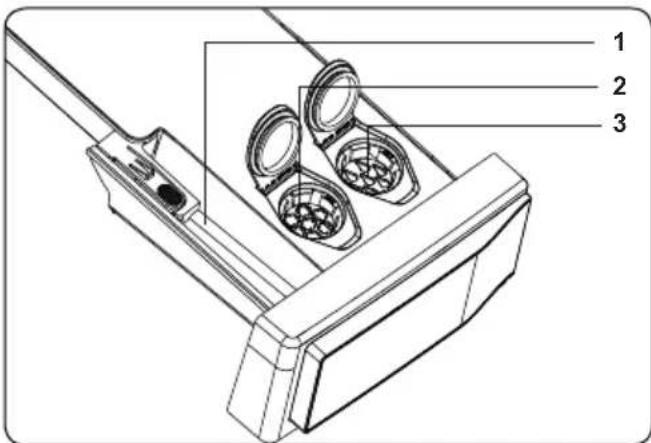

1. Detergent Drawer
2. Programme Dial
3. Electronic Display

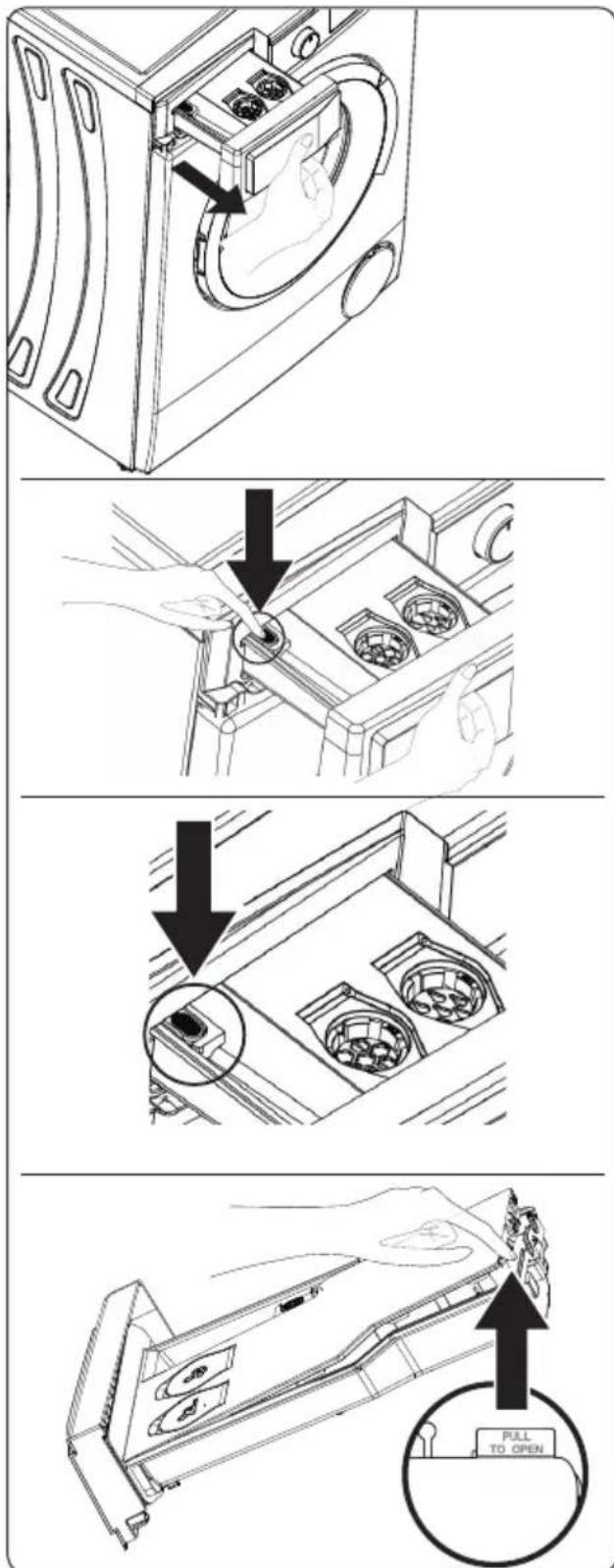

4.1 Detergent Drawer

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

1. Powder Detergent Container
2. Softener (Auto Dosing) Container
3. Liquid Detergent (Auto Dosing) Container

4.2 Sections

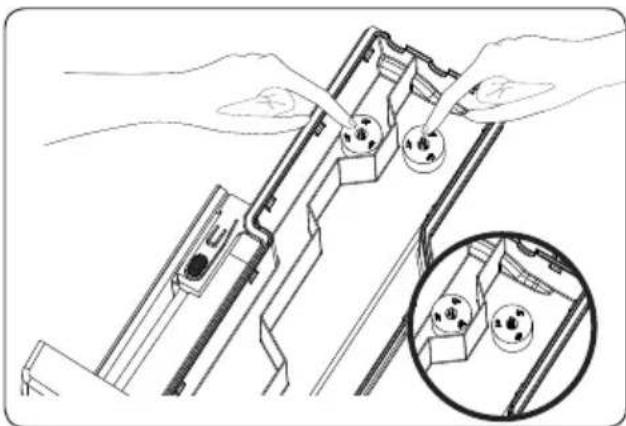

Powder detergent compartment:

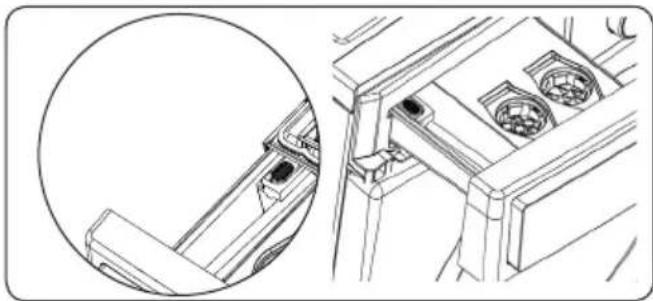

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

If you want to use powder detergent for the washing cycle, please deactivate the auto dosing function and use the powder detergent compartment.

Fabric softener, fabric starch, detergent dispenser:

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Only substances such as fabric softener can be used on this dispenser (follow the amount and type as recommended by the manufacturer). Fabric softener used for laundry can remain on this dispenser sometimes. This is because the fabric softener is not a fluid substance. It is recommended that you use liquid fabric softeners having less viscosity or use the softener after diluting.

If you do not wish to use the softener compartment:

You should deactivate the softener selection.

- When you first press the softener dosage key, Ruto will be shown on the LED display respectively, indicating that the softener function is active.

NOTE:

The softener dosage function is enabled when you switch on the machine.

- If you press the softener dosage key for the second time consecutively, the softener function will be disabled. Use of softener will be cancelled for the washing cycle.

Display 18:88 Functions Temp. Spin Delay Disengent Dosage Softener Dosage Start Pause

If you want to use the softener function,

- If you press the softener dosage key 3 times consecutively, the softener LED appears on the LED display, indicating that the softener function is enabled.

Softener level indicators:

• L3 high level
• L2 medium level
• L1 low level
• After enabling the softener function, each press on the softener dosage key will allow you to select level 3, level 2, level 1 and Ruto respectively.

Display 10:88 Functions Temp. Spin Delay Disengent Dosage Softener Dosage Start Pause DII

NOTE:

Level selection for

softener should be made before the program starts; you cannot select a softener level after the program has started.

WARNING:

When the

softener level is low, the softener LED will blink and your machine will give a warning.

Liquid detergent (auto dosing) compartment:

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

Use of liquid detergent (auto dosing) is activated on your machine by default.

Only liquid detergent can be used in this compartment.

If you want to use the powder detergent compartment:

You should deactivate the liquid detergent (auto dosing) function.

- When you first press the detergent dosage key, Auto will be shown on the LED display respectively, indicating that the liquid detergent (auto dosing) function is active.

NOTE: The auto dosing

function is enabled when you switch on the machine.

- If you press the detergent dosage key for the second time consecutively, the liquid detergent (auto dosing) function will be disabled. You can use powder detergent in the washing cycle.

Display 18:88 Functions Temp. Spin Delay Different Damping Softener Damping Start Pause OFF OFF

NOTE: When the liquid detergent

(auto dosing) function is disabled, you need to use powder detergent for washing cycles. To do this, you should put detergent in the powder detergent compartment.

If you want to use liquid detergent (auto dosing) for the washing cycle,

- If you press the detergent dosage key 3 times consecutively, L3 appears on the LED display, indicating that the liquid detergent (auto dosing) function is enabled.

Liquid Detergent level indicators

- L3 high level

• L2 medium level

- 11 low level

- After enabling the liquid detergent (auto dosing) function, each press on the detergent dosage key will allow you to select level 3, level 2, level 1 and Auto respectively.

Display 1:0:8:8 Functions Temp. Spin Delay Different Dosage Softener Dosage Start Passage Dissipation Dissipation Start Passage

NOTE: Liquid detergent (auto ng) level should be selected according to the soiling level of the laundry.

NOTE: The liquid detergent (auto ng) selection should be made before program starts; you cannot select this tion after the program has started.

WARNING: When the

detergent level is low, the LED under the detergent dosage key will blink and your machine will give a warning.

4.3 Warnings for the Automatic Detergent Dosing System

Information regarding detergent

use,

1. Do not mix detergents from different brands.
2. Do not mix detergent and softener.
3. When changing detergent, make sure you clean the reservoirs of the detergent drawer.
4. Do not use any detergent that has a layer on it or that has started to solidify.
5. Do not use bleach or products containing solvents.
6. When using concentrated detergent, dilute it with some water to prevent the drawer reservoirs from blocking.

When the product is running:

1. Do not leave the reservoir lids open to prevent the detergent inside from drying.
2. After adding the detergent or when the product is running, make sure that the drawer is properly closed. Otherwise, the product may not be able to use the

detergent properly.

WARNING: The drawer should not be open while the product is running.

Detergent drawer:

1. When you remove the drawer, make sure that it is empty. Otherwise, you may pour the detergent in it.

2. When the detergent drawer is full:

3. Do not pull the machine.

4. Do not move the machine.
5. Do not lean or tilt the machine.

WARNING: Before doing these processes, make sure you remove the detergent drawer from the machine.

WARNING: If you added detergent but the machine still does not detect it, there may be dried detergent inside the reservoir, preventing the detergent dosing mechanism from functioning properly. Clean the drawer.

4.4 Program Dial

ECO 40-60 15 60° 20°

• To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme.
  • Make sure that the programme dial is set exactly to the programme you want.

4.5 Electronic Display

1 19:00 2 3 4 6 5 7 8 9

1. Electronic Display
2. Digital Display
3. Water Temperature Adjustment Button
4. RPM Speed Adjustment Button
5. Delayed Start Additional Function
6. Additional Function Button 1
7. Additional Function Button 2
8. Start/Pause Button

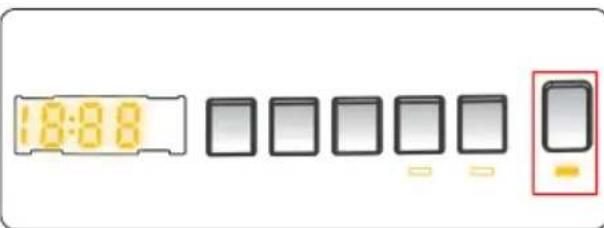

9. Start/Pause Button Lamp

The display panel shows the washing delay timer (if set), temperature selection, spin speed, any additional functions selected. The display panel shows "End" when the selected programme is complete. The display panel also indicates if a fault has occurred with your machine.

5. USING YOUR WASHING MACHINE

5.1 Preparing Your Laundry

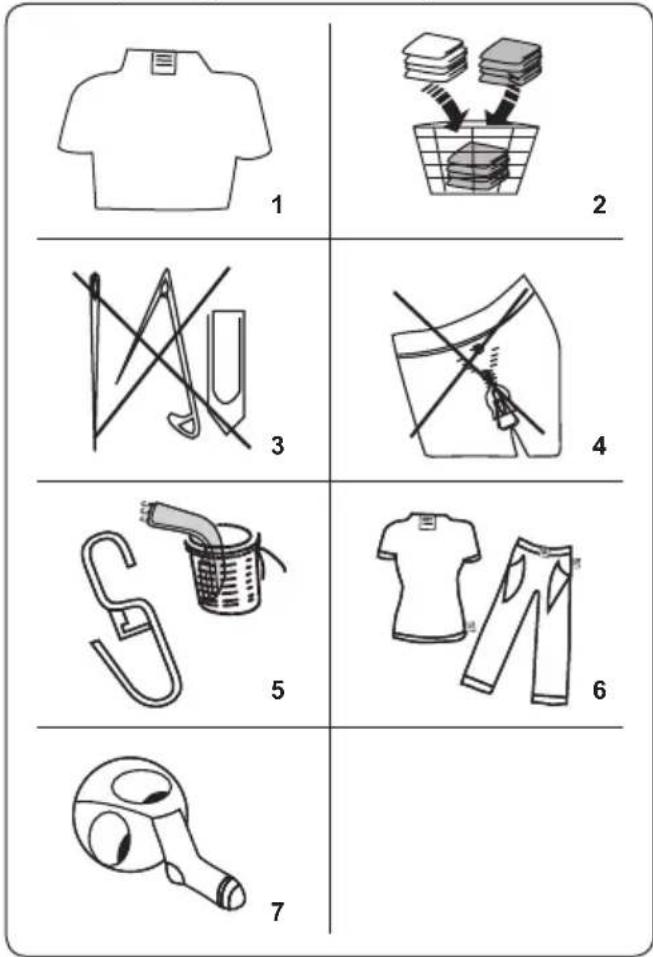

1 2 3 4 5 6 7

1. Follow the instructions given in the care labels on the clothing.
2. Separate your laundry according to type (cotton, synthetic, sensitive, wool etc.), washing temperature (cold, 30°, 40°, 60°, 90°) and the degree of dirtiness (slightly stained, stained, highly stained).
3. Never wash coloured and white laundry together.
4. Dark textiles may contain excess dye and should be washed separately several times.
5. Ensure that there are no metallic materials on your laundry or in the pockets; if so, remove them.

CAUTION: Any malfunctions which occur due to foreign materials damaging your machine are not covered by the warranty.

1. Close zips and fasten any hooks and eyes.
2. Remove the metallic or plastic hooks of

curtains or place them in a washing net or bag.

1. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts.
2. Wash socks, handkerchiefs and other small items in a washing net.

Can bebleached	Do not bleach	Normal washing
Maximum ironing temperature 150°C	Maximum ironing temperature 200°C	Do not iron
Can be dry cleaned	No dry cleaning	[STCT]Dry flat
Drip dry	Hang to dry	Do not tumble dry
Dry cleaning in gas oil, pure alcohol and R113 is allowed	Perchloroethylene R11, R13, Petroleum	Perchlorinetyhlene R11, R113, Gas oil

5.2 Putting Laundry in the Machine

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

• Open the door of your machine.
• Spread your laundry evenly in the machine.

NOTE: Take care not to exceed the maximum load of the drum as this will give poor wash results and cause creasing. Refer to the washing programme tables for information on load capacities.

The following table shows approximate

weights of typical laundry items:

LAUNDRY TYPE WEIGHT (gr)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear 100
Tablecloth 250

• Load each item of laundry separately.
• Check that no items of laundry are trapped between the rubber seal and the door.

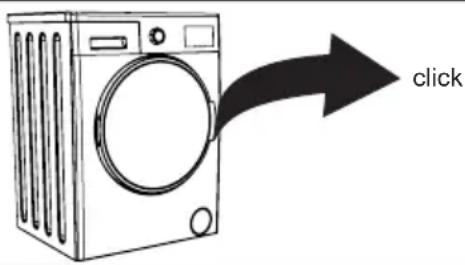

  • Gently push the door until it clicks shut.

click

• Make sure the door is fully closed, otherwise the programme will not start.

5.3 Adding Detergent to the Machine

The amount of detergent you will need to put in your machine will depend on the following criteria:

• If your clothes are only slightly soiled, do not pre-wash. Put a small amount of detergent (as specified by the manufacturer) into compartment II of the detergent drawer.
• If your clothes are excessively soiled, select a programme with pre-wash and put 14 of the detergent to be used into compartment I of the detergent drawer and the rest in compartment II.
• Use detergents produced for automatic washing machines. Follow the manufacturer's instructions on the amount of detergent to use.
• In areas of hard water, more detergent will be required.
• The amount of the detergent required will increase with higher washing loads.
• Put softener in the middle compartment

of the detergent drawer. Do not exceed the MAX level.

• Thick softeners may cause clogging of the drawer and should be diluted.
• It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the fluid detergent level plate (*) into the guides in compartment II of the detergent drawer. Use the lines on the plate as a guide to fill the drawer to the required level.

(*) Specifications may vary depending on the machine purchased.

5.4 Operating Your Machine

Illustration showing two steps of hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

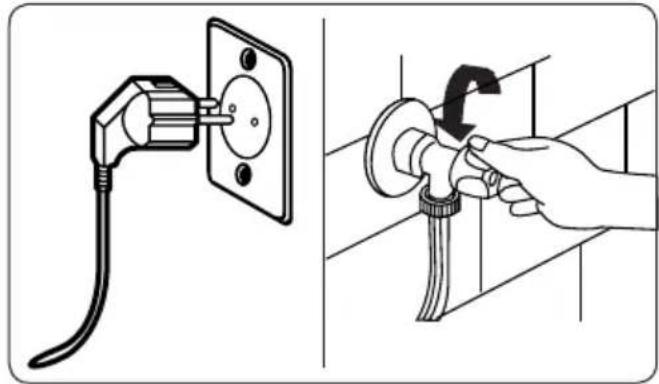

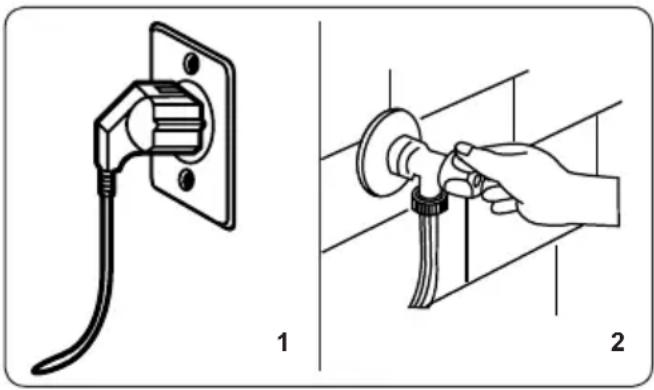

1. Plug your machine in to the mains supply.

2. Turn on the water supply.

3. Open the machine door.
   • Evenly spread your laundry in the machine.
   • Gently push the door until it clicks shut.

5.5 Selecting a Programme

Use the programme tables to select the most appropriate programme for your laundry.

5.6 Half-Load Detection System

Your machine features a half-load detection system.

If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy.

5.7 Additional Functions

1. Temperature Selection

Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature.

600

When you select a programme the maximum temperature for that programme is automatically selected. To adjust the temperature, press the water temperature adjustment button until the desired temperature is displayed on the digital display.

You can gradually decrease the washing water temperature between the maximum washing water temperature of the selected programme and cold washing (-- C) selections by pressing the temperature adjustment button.

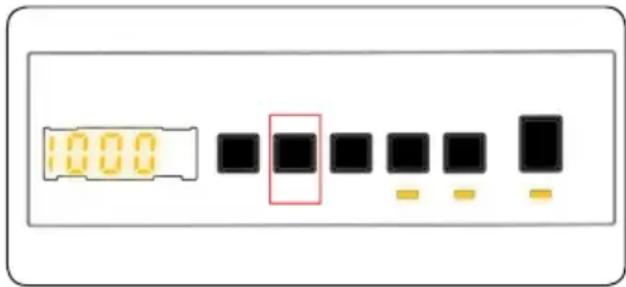

2. Spin Speed Selection

1000

When you select a programme, the maximum spin speed is automatically selected.

To adjust the spin speed between the maximum spin speed and the cancel spinning option (-- -), press the Spin speed button until the desired speed is displayed.

If you have skipped the spin speed you want to set, keep pressing the spin speed adjustment button until the desired spin speed is displayed again.

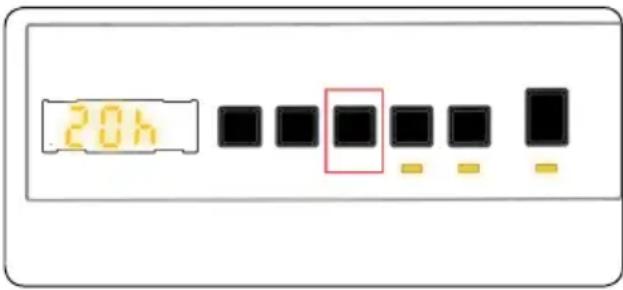

3. Delay Timer

20h

You can use this auxiliary function to delay the start time of the washing cycle for 1 to

23 hours.

To use the delay function:

• Press the delay key once.
• "01h" will be displayed. ⏱ will light up on the electronic display.
• Press the delay key until you reach the time after which you want the machine to start the washing cycle.
• If you have skipped the delay time you would like to set, you can keep pressing the delay key until you reach that time again.

• To use the time delay function, you need to press the Start/Pause key to start the machine.
  • If you want to cancel the delay:

• If you have pressed the Start/Pause key to start the machine, you just need to press the delay key once. ⏻ will go off on the electronic display.

• If you have not pressed the Start/Pause key, press the delay key continuously until ⏻ goes off on the electronic display. ⏻ will go off on the electronic display.

NOTE: In the case that you want to select the auxiliary function feature, if the auxiliary function LED is not on, this means that this feature is not being used in the washing programme you have selected.

4. Detergent Dosage Selection\*

18:38

Auxiliary function button 4 Detergent Dosage Selection

This auxiliary function allows you to enable or disable auto dosage and to adjust the amount of liquid detergent according to the soiling level of the laundry you put in your washing machine.

5. Softener Dosage Selection\*

18:88

Auxiliary function button 5 Softener Dosage Selection

This auxiliary function allows you to enable or disable auto dosage and adjust softener levels.

*For use of this auxiliary function, please see the descriptions under Section.

Start/Pause button

18:88

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will blink.

5.8 Child Lock

The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally.

To activate child lock, press and hold button 4 and 5 simultaneously for at

least 3 seconds. "CL" will flash on the electronic display for 2 seconds when the child lock is activated.

CL

If any button is pressed or selected programme is changed by the programme dial while the child lock is active, the "CL" symbol will flash on the electronic display for 2 seconds.

If the child lock function is active and a programme is running, when the programme dial is turned to the CANCEL position and another programme is selected the previously selected programme continues from where it was left.

To deactivate the child lock, press and hold button 4 and 5 simultaneously for at least 3 seconds until the "CL" symbol on the electronic display disappears.

5.9 Cancelling the Programme

To cancel a running programme at any time:

1. Turn the programme dial to the "STOP" position.
2. Your machine will stop the washing operation and the programme will be cancelled.
3. Turn the programme dial to any other programme to drain the machine.
4. Your machine will perform the necessary draining operation and cancel the programme.
5. You can now select and run a new programme.

5.10 Programme End

End

Your machine will stop by itself as soon as the programme you have selected finishes.

• “” will flash on the electronic display.
• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry.

• Switch the programme dial to STOP position.
  • Unplug your machine.
  • Turn the water tap off.

• PROGRAMME TABLE

Programme	Washing temperature (°C)	Maximum dry laundry amount (kg)	(****) Detergent compartment	(****) Programme duration (Min.)	Laundry type / Descriptions
COTTON *60-90	-80-70-40 8,0 2 215				Very dirty, cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.)
ECO 40-60 *40 -	60 8,0 2 218				Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.)
COTTON Pre-Wash	*60 - 50 - 40 - 30 - “- -C”	8,0 1&2	171		Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.)
COTTON 20 *20-	“- -C” 4,0 2 96				Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max.2,0 kg) bedcloth, etc.)
COLOURS *40 -	30 - “- -C” 3,5 2 210				Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2,0 kg) bedcloth, etc.)
WOOL *30 - “- -C”	2,5 2 44				Woollen laundries with machine wash labels.
RINSE	*“- -C”	8,0	- 30		Provides an additional rinse to any type of laundry after the washing cycle.
ALLERGY SAFE	*60 - 50 - 40 - 30 - “- -C”	4,0 2 2	12		Baby laundry
Spin/Drain	*“- -C”	8,0	-	17	You can use this program for any type of laundry if you want an additional spin step after the washing cycle./ You can use the drain program to drain the water accumulated inside the machine (adding or removing laundry). To enable the drain program, turn the program knob to the spin/ drain program. After you select “spin cancelled” using the auxiliary function key, the program will start to run.
HAND WASH	*30 - “- -C”	2,5 2 90			Laundry recommended for hand wash or sensitive laundry.
Easy Care / Outdoor	*40 - 30 - “- -C” 3,5 2	110			Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)
Mixed	*40 - 30 - “- -C” 3,5 2	108			Dirty cotton, synthetics, colour and flax textiles can be washed together.
Jeans / Dark Garments	*30 - “- -C”	4,0 2 96			Black and dark items made of cotton, mixed fibre or jeans. Wash inside out., Jeans often contains excess dye and may run during the first few washes. Wash light and dark coloured items separately
(**)FAST 60' 60°C	*60 - 50 - 40 - 30 - “- -C”	4,0 2 60			Dirty, cotton, coloured and linen textiles washed at 60°C in 60 minutes.
(***) Rapid 15 min.	*30 - “- -C”	2,0 2 15			In a short time of 15 minutes, Lightly soiled, cotton, colored and linen textiles your can wash.

NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE DUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTEDITIONAL FUNCTIONS.

(*) Washing water temperature of the programme is the factory default.
(**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.
(***) Due to the short washing time of this programme, we recommend that less detergent is used. The programme may last longer than 15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2 minute period is not included in the programme duration).
(****) If the liquid detergent (automatic dosing) feature is disabled, you must charge the detergent reservoir with detergent.
(****) The program duration differs according to the amount of laundry and the determined algorithm.

According to regulation 1015/2010 and 1061/2010, the programme 1 and the programme 2 are respectively the 'Standard 60°C cotton programme' and the 'Standard 40°C cotton programme'.

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.

• The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.
• Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
• Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.
• It's recommended to use liquid detergent for the washing programmes at low temperature. The amount of detergent to be used may vary depending on the amount of laundry and the level of dirtiness of the laundry. Please follow the detergent manufacturers' recommendations for the amount of the detergent to be used.
• The noise and remaining moisture content are influenced by the spinning speed. The higher spinning speed in the spinning phase, the higher noise and the lower remaining moisture content.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

Programme Name

Rated Capacity kg

Energy Consumption kWh/cycle

Programme Duration Hours:Minutes

Water Consumption Litres/Cycle

max. Temperature °C

Remaining Moisture Content % 1200 Rpm

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Rated Capacity

1/2 Load

1/4 Load

Cotton 90

8 2

38 03:1

13 82 81

53%

Cotton 60

8 1

1 03:35

52 48

53%

Eco 40-60

8 1

16 0,61

0,33 03:38 02:48 02:48

54 43 43 49 36

22 53%

53%

53%

Easy Care / Outdoor

3,5 0

56 01:50

50 50 42 62%

Fast 60

4 1

02 01:00

34 58 53%

Cotton 20

4 0

2 01:36

43 20 53%

6.1 Important Informations

• Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage.
  • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. If your machine do not have Drum Clean programme, use Cottons-90 programme. When required, use limescale removers manufactured specifically for washing machines only.
• Never force the door open when your Washing Machine is running. You can open the door of your machine 2 minutes after the completion of a washing operation. *
• Never force the door open when your Washing Machine is running. The door will open immediately after the washing cycle has ended. *
• The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

(*) Specifications may vary depending on the machine purchased.

7. CLEANING AND MAINTENANCE

7.1 Warning

Illustration showing a plug inserted into a wall socket and a hand using a tool to adjust the cable (no text or symbols present)

Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine.

Turn off the water supply before starting maintenance and cleaning of your machine.

⚠️CAUTION: Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents to clean your Washing Machine. They may damage the plastic surfaces and other components with the chemicals they contain.

7.2 Water Inlet Filters

Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months.

Technical diagram showing mechanical assembly steps with labeled components and a hand holding a pipe fitting tool.

• Unscrew the water inlet hose(s) from the Washing Machine.
• To remove the water inlet filter from the water inlet valve, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.
• A second water inlet filter is located in the tap end of the water inlet hose. To remove the second water inlet filter, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.
• Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly. Re-insert the filter by gently pushing it back into place.

CAUTION: The filters at the water inlet valve may become clogged due to water quality or lack of required maintenance and may break down. This may cause a water leak. Any such breakdowns are out of the scope of the warranty.

7.3 Pump Filter

1 2 3 4 5 6

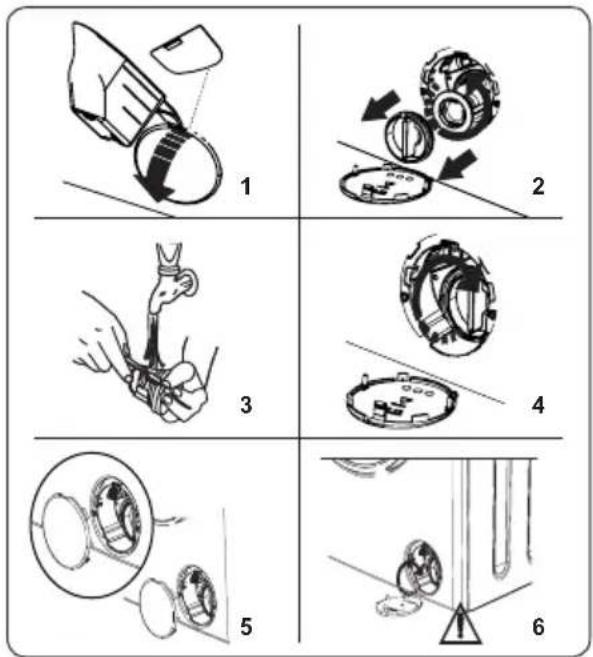

The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine.

We recommend that you clean the pump filter every 2 months.

The pump filter is located behind the cover on the front-lower right corner.

To clean the pump filter:

1. You may use the washing powder spade (*) supplied with your machine or liquid detergent level plate to open the pump cover.

2. Lodge the end of the powder spade or liquid detergent level plate in the opening of the cover and gently press backwards. The cover will open.

- Before opening the filter cover, place a container under the filter cover to collect any water left in the machine.

- Loosen the filter by turning anticlockwise and remove by pulling. Wait for the water to drain.

NOTE: Depending on the amount of water inside the machine, you may have to empty the water collection container a few times.

1. Remove any foreign materials from the filter with a soft brush.

2. After cleaning, re-fit the filter by inserting it and turning clockwise.

3. When closing the pump cover, ensure that the mountings inside the cover

meet the holes on the front panel side.

1. Close the filter cover.

WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance.

(*) Specifications may vary depending on the machine purchased.

7.4 Detergent Drawer

Your detergents may form deposition on the detergent drawer and drawer detergent slot. Remove the detergent drawer periodically to clean the formed deposition. It is recommended to be cleaned once in 2 months.

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

To remove the detergent drawer from the place:

• Pull the detergent drawer as much as possible.
• Keep on pulling the detergent drawer as much as possible by pressing the area shown in the pictures in the drawer and displace the detergent drawer.
• Remove the lid found on the liquid detergent container and softener container by lifting the part shown in the picture.
• Wash it with plenty of water and with the help of a brush.
• Collect the deposition in the detergent drawer slot without letting them fall into your machine.
  • Re-fit the detergent drawer after drying it with a towel or dry cloth.

Do not wash the detergent drawer in dishwasher.

Diagram showing hands holding a device with a magnified inset of a mechanical component (no text or symbols)

CAUTION: The part marked 'UP' should be placed in the chamber with the part facing upwards.

8. Body / Drum

Technical diagrams of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1. Body

Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth.

2. Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

9. TROUBLESHOOTING

Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should:

• Unplug your machine from the mains power supply.
  • Turn off the water supply.

FAULT POSSIBLE	CAUSE TROUBLESHOOTING
Your machine does not start.	Machine not plugged in. Plug	machine in.
	Fuses are faulty. Replace	the fuses.
	No mains power supply. Check mains power.
	Start/Pause button not pressed.	Press the Start/Pause button.
	Programme dial ‘stop’ position.	Turn the programme dial to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off. Turn	tap on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged. Clean water inlet hose filters. (*)
	Inlet filter clogged. Clean the inlet filters. (*)
	The machine door is not completely closed.	Close the machine door.
Your machine does not discharge water.	Drain hose clogged or twisted.	Check the drain hose, then either clean or untwist.
	Pump filter clogged. Clean the pump filter. (*)
	Laundry is too tightly packed together in the drum.	Spread your laundry in the machine evenly.
Your machine vibrates.	The feet have not been adjusted.	Adjust the feet. (**)
	Transit bolts fitted for transportation have not been removed.	Remove the transit bolts from the machine. (**)
	Small load in the drum.	This will not prevent operation of your machine.
	Your machine is overloaded with laundry or laundry is unevenly spread.	Do not overload the drum. Spread laundry evenly in the drum.
	Your machine rests on a hard surface.	Do not set up your Washing Machine on a hard surface.
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 litre of water and pour into the detergent drawer. Press the Start/Pause button after 5-10 mins.
	Wrong detergent used.	Only use detergents produced for automatic Washing Machines.
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Unsatisfactory washing result.	Your washing is too dirty for the programme selected.	Use the information in the programme tables to select the most appropriate programme.
	Amount of detergent used insufficient.	Use the amount of detergent as instructed on the packaging.
	There is too much laundry in your machine.	Check that the maximum capacity for the selected programme has not been exceeded.
Unsatisfactory washing result.	Hard water.	Increase the amount of detergent following the manufacturer's instructions.
	Your laundry is too tightly packed together in the drum.	Check that your laundry is spread out.
As soon as the machine is loaded with water, water discharges.	The end of water drain hose is too low for the machine.	Check that the drain hose is at a suitable height. (**) .
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	......
Laundry has detergent residue.	Non-dissolving particles of some detergents may appear on your laundry as white spots.	Perform an extra rinse, or clean your laundry with a brush after it dries.
Grey spots appear on the laundry.	There is untreated oil, cream or ointment on your laundry.	Use the amount of detergent as instructed on the packaging in the next wash.
The spin cycle does not take place or takes place later than expected.	No fault. The Unbalanced load control system has been activated.	The Unbalanced load control system will try to spread your laundry. The spinning cycle will begin once your laundry is spread. Load the drum evenly for the next wash.

(*) See the chapter regarding maintenance and cleaning of your machine.

(**) See the chapter regarding installation of your machine.

10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO

Your Washing Machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The most common failure codes are shown below.

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
E01	The door of your machine is not shut properly.	Shut the door properly until you hear a click. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service agent immediately.
E02	The water pressure or the water level inside the machine may be low.	Check the tap is fully turned on. Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically. Unplug the machine, turn off your tap and contact the nearest authorised service agent.
E03	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service agent. (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Once the water has drained, turn off your machine and unplug it. Turn off the tap and contact the nearest authorised service agent.

(*) See the chapter regarding maintenance and cleaning of your machine.

10 years The minimum period which must supply the spare parts for the household washing machine is 10 years.

www.orima.pt

00351231467427/assistencia@ori

CE

52372550

orima

Simple line drawing of a washing machine with no text or symbols

ORM128ADX

Technical diagram of a device casing with numbered components for identification

2.1 Aspecto general

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe installation and its cross-sectional view of a mechanical component (no text or symbols present)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

Display 1:8:8 Functions Temp. Spin Delay Disengent Dosage Softener Dosage Start Passive Dissuance Start

NOTA:

Simple line drawing of a short-sleeve shirt with a collar detail (no text or symbols)

Pure mechanical diagram showing intersecting lines and a U-shaped component (no text or symbols)

Simple line drawing of a paperclip and a basket with a handle (no text or symbols)

Line drawing of two clothing items: a T-shirt and a pair of jeans (no text or symbols)

Illustration of two washing machines with different fan positions, one showing a handle insertion (no text or symbols)

Illustration of two different installation methods: one using a plug, the other handling a bulb (no text or symbols present)

Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature.

600°C

Diagram showing a sequence of devices with a highlighted section, likely illustrating a device selection or status.

Illustration showing a wall-mounted electrical plug and a hand holding a hose, both without any text or symbols.

Technical illustration showing a mechanical component being inserted into a piping bag, with no visible text or symbols.

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with hands and an inset showing two circular components (no text or symbols)

! PRECAUCIÓN: La

Technical drawings of two mechanical components: a rectangular frame and a cylindrical housing (no text or symbols)

1. Cuerpo

Simple line drawing of a washing machine with no text or symbols

ORM128ADX

Technical diagram of a device casing with numbered components and internal structure annotations

Diagram showing a washing machine with labeled parts and directional arrows, including a close-up of the base component.

Line drawing of a washing machine with a circular vent and handle, marked with diagonally intersecting lines (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe installation with a cable and a close-up of the pipe bending (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

Technical line drawing of a mechanical assembly with circular inset showing internal components (no text or symbols)

Display 18:88 Functions Temp. Spin Delay Disengent Dosage Softener Dosage Start Pause II

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

Display 18:88 Functions Temp. Spin Delay Disegret Dosage Softener Dosage Start Pause II

Simple line drawing of a short-sleeve shirt with a collar detail (no text or symbols)

Pure mechanical diagram showing intersecting rods and a U-shaped component (no text or symbols)

Simple line drawing of a U-shaped pipe fitting and a basket-like container (no text or symbols)

Line drawing of a T-shirt and jeans (no text or symbols)

Illustration of two washing machines with a pipe connecting them (no text or symbols)

Illustration showing two different installation methods: one using a plug socket, the other handling a hose with a handle (no text or symbols present)

Diagram showing a sequence of devices with a highlighted red box containing three groups of devices, likely indicating a status or status.

Illustration showing a wall-mounted electrical plug and a hand holding a screwdriver (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a pipe, with an arrow indicating the insertion direction.

Technical diagram showing six steps of a mechanical assembly or disassembly process, labeled 1 to 6.

Technical diagram showing three-step installation of a washing machine with labeled parts and an 'PULL TO OPEN' button.

Diagram showing hands holding circular objects on a mechanical device, with an inset close-up of two circular objects inside a container (no text or symbols)

MISE EN GARDE : The part marked 'UP' should be placed in the chamber with the part facing upwards.

8. Corps / Tambour

Technical diagrams of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1. Corps
