Product type	Electric oven
Brand	Continental Edison
Model	CEMF35W
Capacity	35 L
Power	1500 W
Supply voltage	220-240 V ~
Frequency	50/60 Hz
Temperature range	90 °C to 230 °C
Cooking modes	Convection, grill, conventional, rotisserie
Thermostat	Adjustable (90-230 °C)
Timer	Mechanical, up to 60 minutes
Door material	Tempered glass
Door handle	Cool-touch handle (anti-burn)
Included accessories	Rack, drip tray, spit and forks, rotisserie handle, crumb tray
Safety	Hot surface indicator, do not immerse, use under supervision
Cleaning	Manual with soapy water, avoid abrasive products
Warranty	Legal warranty of conformity
Repairability	Contact after-sales service
Environmental information	Recycling per WEEE directive

Frequently Asked Questions - CEMF35W CONTINENTAL EDISON

How to use the rotisserie function?

Place the meat on the spit and secure it with the forks. Insert the spit into the drive mechanism, place the drip tray at the bottom, close the door slightly ajar. Select the rotisserie mode, set temperature and timer.

How to clean the oven after use?

Let it cool completely, unplug. Clean the accessories with soapy water. Use a damp sponge for exterior surfaces. Never immerse the oven in water and do not use abrasive products.

What is the oven capacity?

The oven has a capacity of 35 liters, ideal for poultry and roasts up to 3.5 kg.

The oven emits a smell during first use, is this normal?

Yes, it's normal. Heat the empty oven for 15 minutes at 230°C in convection mode. Ventilate the room. The smell disappears quickly.

How to set the timer?

Turn the timer knob clockwise to the desired duration (max 60 minutes). The oven turns on automatically. To stop, turn to 'Off 0'.

Can I use aluminum foil in the oven?

Yes, for oily foods, place a sheet on the drip tray and another on the food to avoid splattering. Do not cover the heating elements.

What to do if the oven is not heating?

Check that the plug is properly inserted and the outlet works. Ensure the function selector is in a position other than 'Off' and the timer is set. If nothing happens, contact customer service.

How to install the rotisserie spit?

Insert side B of the spit into the hole provided, then side A. To remove, start with side A. Use the rotisserie handle to handle the hot spit.

What temperature to cook a chicken?

For a chicken, preheat to 200°C in convection mode. Allow about 20 minutes per 500g plus an additional 20 minutes. Use the rotisserie function for even cooking.

Can the oven be used unattended?

No, never leave the appliance operating unattended, especially with children nearby. Risk of burns and fire.

USER MANUAL CEMF35W CONTINENTAL EDISON

Exterior view of a Continental Edison portable oven with open doors and control knobs (no visible text or symbols on the main body)

CEMF35W

- EN (translated from the original)

E F L G H I D C B A K J

A. BOUTON DE LA MINUTERIE G. POIGNÉE DU LÈCHEFRITES

B. VOYANT DE CHAUFFE H. PORTE EN VERRE

C. SÉLECTEUR DE FONCTION I. POIGNÉE DE PORTE

D. BOUTON DU THERMOSTAT J. BROCHE ET FOURCHES DE

Technical diagram of a microwave oven with labeled components and cross-sectional views

Technical diagram of a microwave oven with labeled parts A and B, showing internal components and exploded view.

IV. AVANT LA PREMIERE UTILISATION

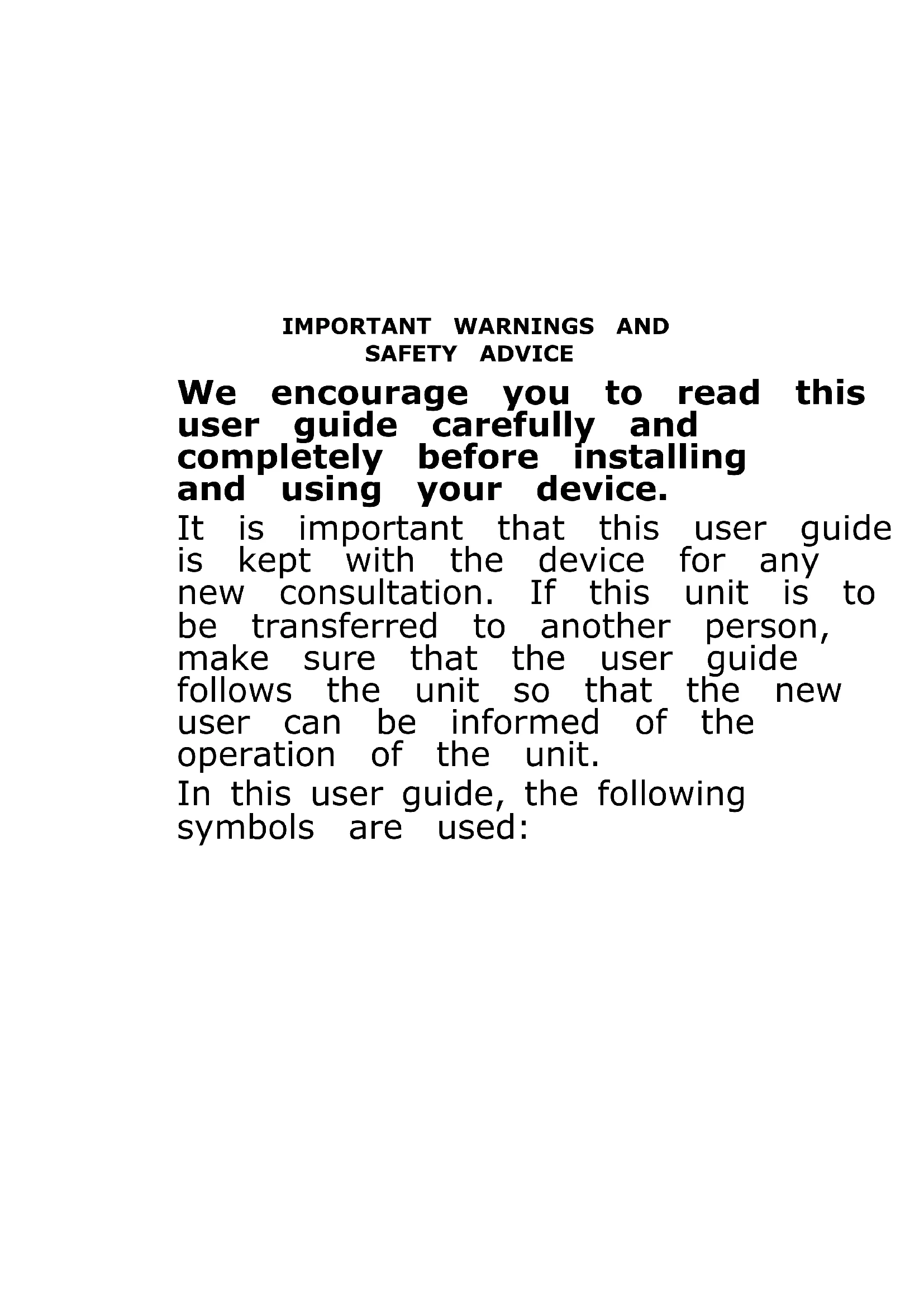

IMPORTANT WARNINGS AND

SAFETY ADVICE

We encourage you to read this user guide carefully and completely before installing and using your device.

It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit.

In this user guide, the following symbols are used:

• This appliance operates with high temperatures that can cause burns, do not touch exposed metal parts.
• Do not touch hot surfaces without gloves or protection.
• Do not leave the appliance unattended or within the reach of children. This device should be used by responsible adults.
• Do not use an extension cord to connect the unit.
• Place the unit on a stable surface

and do not let the line hang down.

- Check that the mains voltage corresponds to that indicated on the device - alternating current only.

- Never use or connect your device if:

- -The cord is defective ordamaged, -The camera fell,

-It shows visible damage or malfunctions.

- Never disassemble the device yourself.

- Do not operate the appliance near flammable materials or near an external heat source such as hotplates or a gas stove.

- This unit is intended for home and domestic use only. Any professional use, inappropriate

or not in accordance with the user manual does not engage the responsibility or warranty of the manufacturer and distributor.

- Unplug the unit when not in use or before cleaning.

- Allow the appliance to cool down before cleaning.

- Do not use the appliance outside the house.

- Never move the device during use.

- Use the device with enough space around it. Be sure to leave a free space in front and on the left or right side of the unit.

• Take care not to block the air intakes or the drain holes.

• After using the device, be sure to turn off your device properly after use.

- This appliance must be installed in accordance with the national installation rules.

- The temperature of the door, outer surface, and accessible surfaces may be high while the unit is operating.

- Keep the appliance and cord away from children under 8 years of age.

- This device can be used by children over 8 years old and by people with reduced physical, sensory or mental abilities, or people without experience or knowledge, if they have benefited through a person responsible for their safety, surveillance or prior instructions concerning the use of the device. Never let a child play with the device. Cleaning and maintenance operations should

not be performed by children unless they are older than 8 years of age and remain under supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- This unit is not designed for use with an external timer or remotecontrol system.

- When using the oven, ensure that there is at least 12 cm of empty space around the oven to allow proper air circulation.

- To unplug the unit, turn all the buttons to the off position and unplug the unit from the wall outlet. Always grasp the plug, never pull on the power cord.

- This unit is not intended to be operated by an outdoor timer or by a remote-control system.

• The accessible surface may become hot during operation.
  • This logo means that the AX part where it is positioned '-' can become very hot during the operation of the device.
• Never immerse the plug or appliance in water or any other liquid.
• Never place the appliance in corners or under easily flammable materials such as curtains, draperies, cupboards, etc.

If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified Dersons in order to avoid a

nazard.

IMPORTANT IF YOUR APPLIANCE FALLS BE EXAMINED BY A PROFESSIONAL BEFORE TURNING IT ON INTERNAL DAMAGE MAY

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user's guide.

SUMMARY

Important warnings and safety tips

1. Description of the device

II. Technical characteristics

III. Installation

IV. Before first use

V. Instructions to use

VI. Maintenance and cleaning

VII. Troubleshooting guide

VIII. Disposal

IX. Warranty

This user guide is available in the following languages:

-FR (original version)

-EN (translated from the original)

Any other translation would be a translation of the original version.

This user guide, any modifications or any new version, is available on our website.

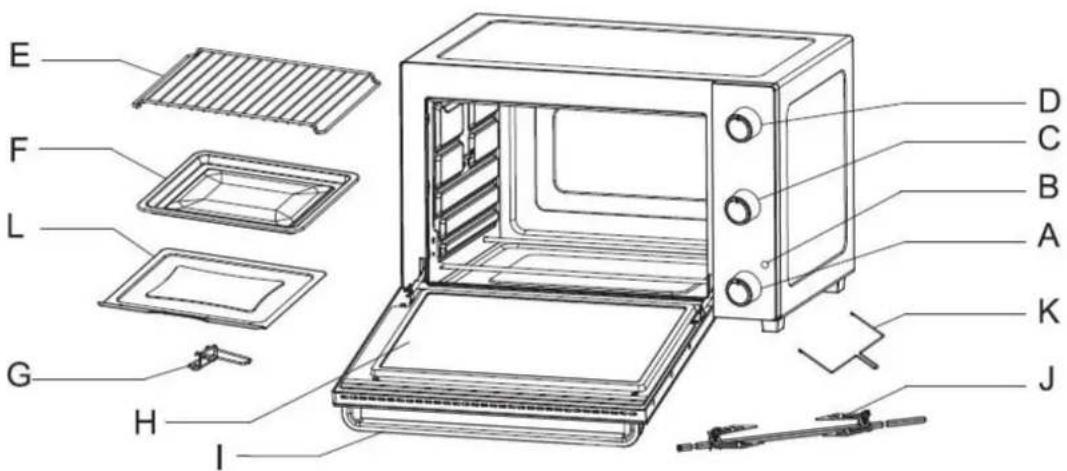

I. DESCRIPTION OF THE DEVICE

E F L G H I D C B A K J

A. BUTTON OF THETIMER G. LIGHT HANDLE

B. POWER INDICATOR H. GLASS DOOR

C. FUNCTION SELECTOR I. DOOR HANDLE

D. THERMOSTAT BUTTON J. ROTISSERIE FORK

E. GRILL RACK K.

F. COOKING PLATE L. CRUMB TRAY

ROTISSERIE HANDLE

Buttons: Thermostat button, Function selector and Timer button.

Grill: To grill, bake, for conventional cooking in baking dishes, and to load the baking tray.

Cooking plate: For browning and roasting various foods containing water or releasing water or oil during cooking.

Rotisserie Forks: Cooks chicken or roast up to 3.5 kg.

Rotisserie Handle: Pulls out the hot roasting spit out of the oven.

Door handle: Cold handle to avoid burns.

Glass door: Clear tempered glass allows you to easily monitor the cooking.

Crumb tray: Catches food scraps and oil stains and protect the bottom of the oven.

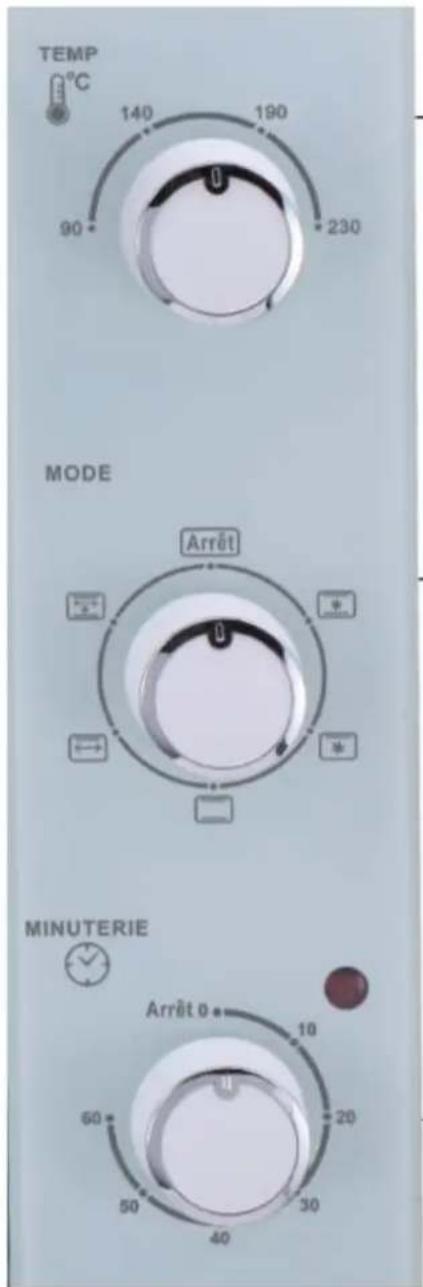

CONTROL PANEL

Thermostat button: The temperat setting range is from 90° to 21. Set the desired temperature accord to the cooking.

Function selector: Select the operating mode.

Arrêt : Stop
: Traditional cooking
: Traditional cooking with Rotating Heat function an Rotisserie

Timer button: The knob should be set to "0" when the oven is Turn the knob clockwise to the de time (60 minutes max.). The count starts automatically.

II. TECHNICAL CHARACTERISTICS

Technical description:

Mark	Continental Edison
Reference	CEMF35W (KE35RCLdd-W)
Voltage	220-240V-
Frequency	50/60HZ
Power	1500W
Capacity	35L
Temperature	90°C - 230°C

III. INSTALLATION

SETTING UP

Warning! Risk of fire!

• Never place the appliance under cupboards or beside curtains, cabinet walls or other flammable objects.
• Always ensure a minimum distance between the appliance and the suspended cabinets, ceilings, side walls or the like at least 12 cm above the appliance and 12 cm at the sides. For this reason the device can not be used as an example, in closets or similar. Otherwise there is probably insufficient ventilation for the unit, which could lead to fire or damage.
• Always place the device on a heat-resistant surface. Failure to do so increases the risk of fire or damage. The area under the bottom may fade and be damaged. In addition, if placed on a soft top surface, the unit could cause permanent damage due to pressure indentations.

Danger - Electric shock!

- Do not place the appliance immediately next to water sources, eg. sinks or basins, or in wet cellar areas. Otherwise, there is a risk of electric shock.

o Place the unit on a solid, level and heat-resistant surface (eg stainless steel worktops or natural stone worktops such as granite). Make sure there is sufficient ventilation around the unit.

o Push the device against the wall, with its back facing the wall. The spacers on the return must touch the wall. Make sure the wall is made of heat resistant material, eg. tiles, natural stone or granite.

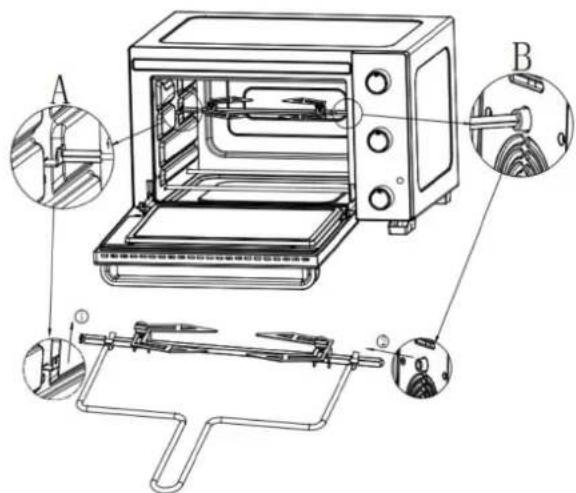

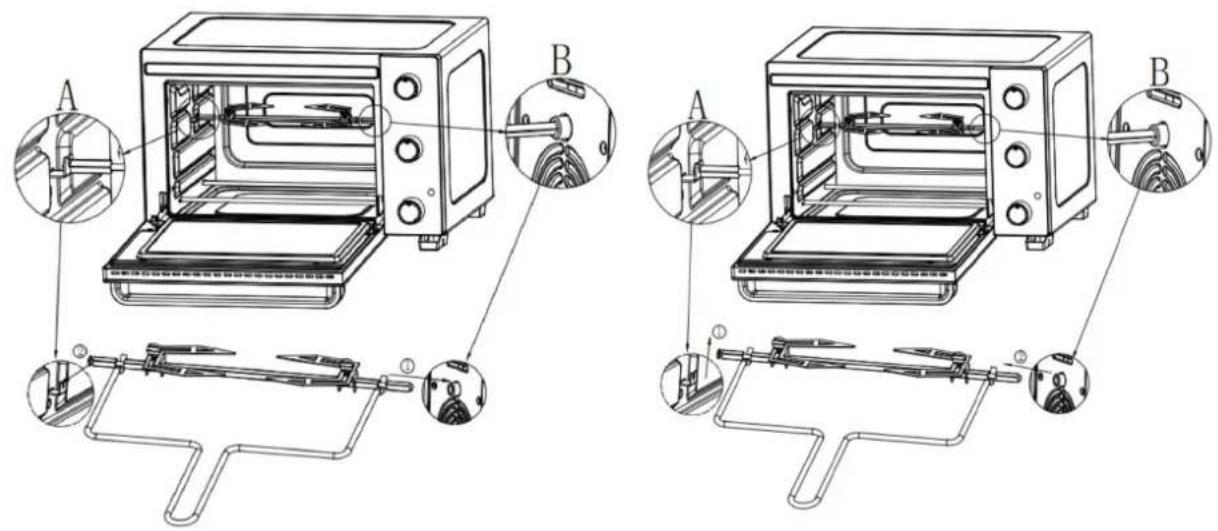

Install the rotisserie in the oven

Put the Rotisserie starting with the B side and finish with the A side. To remove the Rotisserie, first remove Side A then Side B.

Technical diagram showing two views (A and B) of a microwave oven with labeled components and internal mechanisms.

IV. EFORE FIRST USE

1. UNPACKING THE APPLIANCE AND DISPOSING OF THE EMBALLAGIC ELEMENTS

Remove all packing material around the appliance and (the protective elements inside the appliance compartments.

2. CLEANING THE DEVICE:

Clean all items in the chest freezer with water and a mild detergent solution. Rinse it thoroughly and dry it with a soft cloth.

Note: The electrical parts of the device can be cleaned only with a dry cloth.

V. INSTRUCTIONS TO USE

BEFORE FIRST USE

-Remove all packing material from the machine.

-Remove all accessories (grill, tray) from the appliance.

-Clean the oven and its accessories with a damp cloth, then dry them.

-Unwind the power cord completely, and then plug it into an electrical outlet.

-Set the function selector

-Set the thermostat knob to 230 C.

-Set the timer knob for 15 minutes to run the oven empty (without food or accessories) during this time.

CAUTION: The first time the appliance is used, it may emit a slight odor and some smoke. This phenomenon is normal and stops very quickly. Be sure to use the unit in a well-ventilated room.

USE OF YOUR DEVICE

- Tips

To cook or grill, it is best to always preheat the oven to the desired cooking temperature for perfect cooking.

-Place the grease tray under the cooking grate to prevent grease from dripping onto the oven and the bottom of the oven.

-If the food to be cooked is oily or greasy, you can use two sheets of aluminum foil. Place one on the fat tray and cover the food with the other. This prevents oil and grease splashes during cooking.

• Traditional cooking

This function automatically activates the high and low resistance.

-Insert the grill in the low position.

-Set the function selector to

-Set the cooking temperature with the thermostat knob.

-Set the cooking time with the timer button.

- Wait until the oven has reached the set temperature (the heat indicator goes out), then insert the food.

-If cooking is finished before the end of the set cooking time, manually turn the timer knob to "0".

• Broiling spit with roasting function

This method of cooking is ideal for broiling chicken, poultry, pork roasts and veal pieces. In this cooking mode, it is not necessary to preheat the oven.

- Place the piece of meat on the spit, then secure it with the forks (for best results, attach the meat with kitchen string).

- Place the grease tray at the bottom of the resistance and insert the spit into the drive mechanism inside the oven.

- Close the door leaving it ajar (half open).

- Set the function selector to

- Set the cooking temperature with the thermostat knob.

- Set the cooking time with the timer button.

• Cooking with the Rotating Heat function

This function is ideal in addition to using your oven in traditional mode or keeping warm. Indeed, the rotating heat circulates the heat in the oven and allows to quickly grasp and cook red meat, poultry, fish, while keeping them soft, mellow and juicy.

• Insert the grill in the low position.
• Set the function selector to
• Set the cooking temperature with the thermostat knob.
• Set the cooking time with the timer button.
• Wait until the oven has reached the set temperature (the heat indicator goes out), then insert the food.
• If cooking is finished before the end of the set cooking time, manually turn the timer knob to "0".

VI. MAINTENANCE AND CLEANING

• Allow the oven to cool completely before cleaning.
• Unplug the power cord from the wall outlet.
• The grill, the broiler pan and the grease tray can be cleaned with soapy water.
• Always use a damp sponge to clean exterior surfaces. Avoid using abrasive products that could damage the coating. Make sure that water or soap does not get inside the oven through the air vents on the top of the oven.
• Never immerse the oven in water or any other liquid.
• To clean the inner walls, do not use corrosive products (spray detergents) and never scratch the walls with sharp or sharp objects.
  -If the unit is not maintained in a clean condition, its surface could degrade and affect the life of the unit and lead to a dangerous situation.

The oven should be cleaned regularly and any food depot should be removed.

Remove and Clean the fat tray

- Remove the grease tray by pulling on the handle of the

grease tray.

- Wash with soapy water and let it dry.

- Never use abrasive products.

- Put the grease tray back in place.

VII. TROUBLESHOOTING GUIDE

Problem	Possible cause	Corrective action
The device does not work.	The power outlet not connected to t mains supply.	Insert the plug in power outlet.
	The power plug is defective.	Use another AC ou
	The device is defective.	Contact customer service.
The cooking time of the food seems very long	The glass door wa often opened to ch the progress of cooking.	Do not open the glas door more often than necessary.
	The wrong temperature level has been set.	Check the temperature settings.
Smoke and odors develop during use.	There is a detergent or food residue on heating elements.	Remove the food from the appliance and continue the cooking process with the glass door open until the smoke stop

For any other problem occurring on your device: contact the After-Sales Service.

VIII. DISPOSAL

This logo affixed to the product means that it is a device whose treatment as waste falls within the framework of the directive 2012/19 / EU of July 4th, 2012, relative to the waste of electrical and electronic equipment (WEEE). This means that this

above in order to be either recycled or dismantled in order to reduce any impact on the environment.

product must be supported by a selective collection system in accordance with the European directive mentioned

Hazardous substances in electrical and electronic equipment can have potentially harmful effects on the environment and human health.

Thus, at the end of the life of this appliance, it must not be disposed of with unsorted municipal waste. Recovery and collection systems are made available to you by local authorities (waste disposal centers) and distributors.

This device must not be thrown on public roads. You have the obligation to use the selective collection systems available to you.

IX. WARRANTY

Warranty does not cover product wear parts, problems or loads

1. superficial damage to the normal wear and tear of the product;

2. defects or deterioration due to product contact with liquids and corrosion caused by rust or the presence of insects;

3. any incident, misuse, misuse, alteration, disassembly or unauthorized repair;

4. any maintenance not in accordance with the instructions for the product or connection to incorrect voltage;
5. any use of accessories not supplied or not approved by the manufacturer.

The warranty will be void if the nameplate and / or serial number of the product is removed.

IMPORTÉ PAR Continental Edison

A.M.C.

120-126 Quai de Bacalan

123 quai Jules Guesde, CS11584

94400, VITRY SUR SEINE, 33000 Bordeaux

France

Continental Edison

www.continentaledison.fr CE
