Product Type	Slicing and Shredding Attachment
Brand	Hamilton Beach
Model	63247
Suitable for	Hamilton Beach Professional Stand Mixer type SM10
Main Functions	Slicing, coarse shredding, fine shredding
Package Contents	Food pusher, feed chute, housing, housing stem, slicing cone, coarse shredding cone, fine shredding cone
Material	Plastic and metal (stainless steel blades)
Color	White and black
Care and Cleaning	Cones and pusher: dishwasher safe (top rack). Housing: hand wash with warm soapy water. Mixer base: wipe with a damp cloth.
Safety	Sharp blades; always unplug before inserting/removing; use food pusher; do not let children use.
Warranty	5-year limited warranty
Replacement Parts	Available at hamiltonbeach.ca or at 1.800.267.2826 (Canada)
Repairability	Contact customer service for repair or replacement
Usage	Household use only
Maximum Operating Time	3 minutes per use

Frequently Asked Questions - 63247 HAMILTON BEACH

How to attach the attachment to the mixer?

Unplug the mixer. Lift the attachment hub cover, turn the knob counterclockwise. Insert the housing pin into the opening aligning the tab, then tighten by turning clockwise. Insert the cone by turning clockwise. Plug in and select speed 1 to 3.

Which cones are included?

Three interchangeable cones: one for slicing, one for coarse shredding, and one for fine shredding.

Can I wash the parts in the dishwasher?

Yes, cones and food pusher are dishwasher safe (top rack). The housing is hand washed with warm soapy water, and the mixer base is wiped with a damp cloth.

What speed should I use?

Set the stand mixer to speed 1 to 3. Do not exceed 3 minutes per use.

How to slice or shred properly?

Cut food to fit the feed chute. Always use the food pusher to insert, never hands. Do not overstuff to avoid uneven results.

What if food is not sliced evenly?

Avoid overfilling the feed chute or applying excessive pressure with the pusher. Food should be firm and not overripe.

How to shred soft cheese?

Cheese should be cold. For soft cheeses like mozzarella, place in the freezer for 30 minutes before shredding to make it firm enough.

Can I use the attachment with other mixers?

No, this attachment is designed exclusively for Hamilton Beach Professional type SM10 stand mixers. Do not use with other brands.

How to remove the attachment?

Unplug first. Turn the cone counterclockwise to remove. Loosen the attachment hub knob counterclockwise, then turn the housing counterclockwise to remove.

What is the maximum operating time?

The operating time must not exceed 3 minutes per use to avoid overheating.

USER MANUAL 63247 HAMILTON BEACH

For recipes, tips and product information.

1.800.267.2826

hamiltonbeach.ca

Model 63247 for use with Type SM10 Hamilton Beach Professional Stand Mixer

Slicer & Shredder Accessory

This accessory is intended for household use only. Read the Important Safeguards and user instruction sections included in the Stand Mixer Use and Care Guide prior to use of this accessory.

When using this accessory, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This accessory is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This accessory shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put motor unit, cord, or plug in water or other liquid.
6. Avoid contacting moving parts. Wait until all moving parts have stopped before you remove any part of the accessory.
7. Keep hands and utensils away from moving cones while processing food to reduce the risk of severe personal injury and/or damage to the appliance. A rubber scraper may be used, but ONLY when the accessory is not running.
8. The use of accessories not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.

9. Blades are sharp. Handle carefully when inserting, removing, and during cleaning. Store out of reach of children.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

12. Do not place appliance on or near a hot gas or electric burner, or in a heated oven.
13. Turn the appliance OFF (O), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
14. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
15. Never feed food by hand. Always use food pusher.
16. Operating time cannot exceed 3 minutes per use.
17. To reduce the risk of injury, never place cones on base without first putting cone holder properly in place.
18. Check that the appliance is OFF (Φ before plugging cord into wall outlet. To disconnect, turn the control to OFF (O; then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
19. Do not use accessory for other than intended purpose.

SAVE THESE INSTRUCTIONS

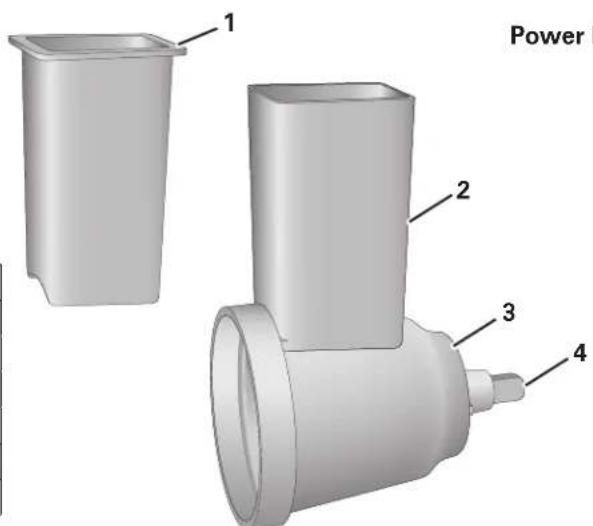

Parts and Features

To order parts:

US: 1.800.851.8900

hamiltonbeach.com

Canada: 1.800.267.2826

Mexico:8007116100

1	Food Pusher
2	Food Chute
3	Housing
4	Housing Pin
5	Slicing Cone
6	Coarse Shredder Cone
7	Fine Shredder Cone

Accessory Power Hub

Before first use: Wash all removable parts in warm, soapy water; rinse and dry. Always unplug mixer from electrical outlet before inserting or removing accessories.

Power Hub Cover

Power Hub Knob

Power Hub Opening

Tab Opening

How to Attach Slicer/Shredder Accessory

WARNING Moving Parts

Hazard. To reduce the risk of personal injury, always unplug mixer before inserting or removing accessories.

NOTE: Make sure no bowl attachment (such as flat beater, whisk or dough hook) is installed. Never operate Stand Mixer with both Power Hub Accessory and Bowl Attachment connected.

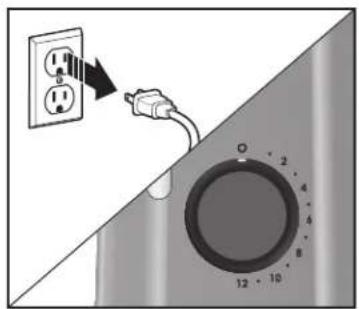

1. Before inserting Accessory, make sure Stand Mixer is unplugged and Stand Mixer Speed Control Dial is set to OFF (Q)

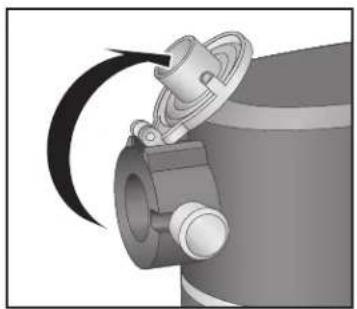

2. Lift up Power Hub Cover and let rest on Mixer Head.

3. Turn Power Hub Knob counterclockwise until the screw cannot be seen in Power Hub Opening.

How to Attach Slicer/Shredder Accessory (cont.)

CAUTION Cut Hazard. Unplug before inserting or removing parts. Keep fingers away from cone and out of feed chute. Always use food pusher.

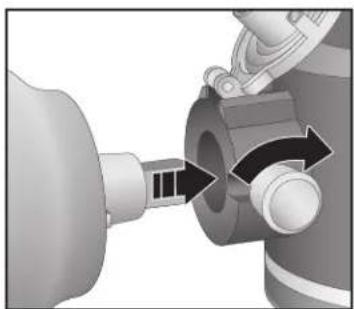

1. Insert Housing Pin straight into Power Hub Opening, aligning Tab on Housing with Tab Opening near Power Hub Knob. Turn Power Hub Knob clockwise to tighten and hold Accessory in place.

1. While holding Cone at opening end, insert Cone straight into Housing. Carefully, turn Cone clockwise to secure in place.

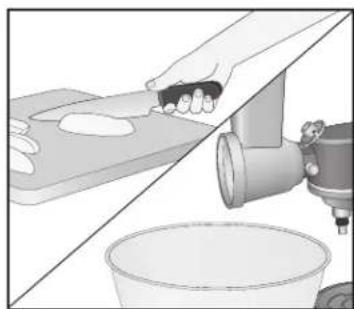

1. Plug Stand Mixer into outlet.
2. Cut food to fit into Food Chute and place a large bowl under Housing.

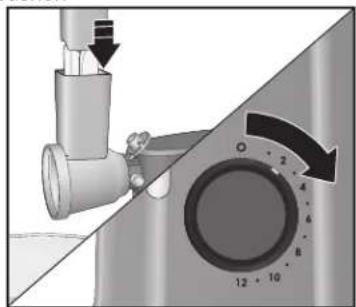

1. Add food to Food Chute and use Food Pusher to push food into Slicer/Shredder. Select speeds 1-3 on Stand Mixer.

2. When finished shredding or slicing, turn Stand Mixer Speed Control Dial to OFF (and unplug.

How to Disassemble:

1. Before removing Housing, make sure Stand Mixer is unplugged and Stand Mixer Speed Control Dial is set to OFF (O).
2. Carefully turn Cone counterclockwise to remove. While holding Housing, unscrew Power Hub Knob counterclockwise, then turn Housing counterclockwise to remove. Lower Power Hub Cover and turn Power Hub Knob clockwise to lock.

Care and Cleaning

1. Cones and Food Pusher are dishwasher-safe in top rack only.
2. Wash Housing in hot, soapy water. Rinse and dry.

Troubleshooting

Food is not sliced or shredded uniformly.
- Packing too much food in the Food Chute or pushing too hard on the Food Pusher may cause the processed food to be irregularly sliced or shredded.
Cheese is not shredding well.
- Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.

Fruits or vegetables are not shredding or slicing.
- Fruits or vegetables should be firm and not overripe. Store fruits and vegetables with high water content in the refrigerator prior to processing. Room-temperature fruits and vegetables are less firm and do not perform as well.

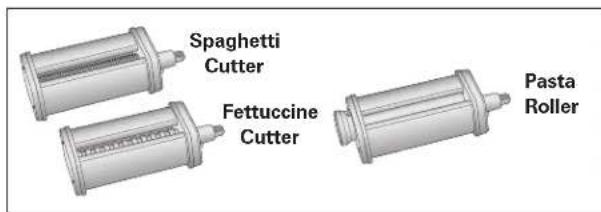

Other Hamilton Beach Professional Power Hub Accessories Available:

Model 63245: Meat and Food Grinding Model 63246: Pasta Roller and Cutter Set

5-Year Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
