USER MANUAL 62636 HAMILTON BEACH

For recipes, tips and product information.

hamiltonbeach.ca

Open to US customers only • Ce concours

Line drawing of a kitchen mixer with handle and whisk (no text or symbols)

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, or mixer body in water or other liquid.
6. Turn the appliance OFF (☐) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons and/or damage to mixer.
8. Remove beaters from mixer before washing.

9. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

10. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

11. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
12. Do not use outdoors.
13. Do not place on or near a hot gas or electric burner, or in a heated oven.
14. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF (then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
15. Do not use appliance for other than intended purpose.
16. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet.

Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not

drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

CAUTION Moving Parts Hazard.

To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

WATTAGE/PEAK POWER INFORMATION

The marked rating of the hand mixer is determined by Underwriters Laboratories as the maximum stabilized power consumption of the hand mixer at high speed under a loaded condition.

Peak power is an average of the maximum wattage a hand mixer may consume during initial operation at high speed.

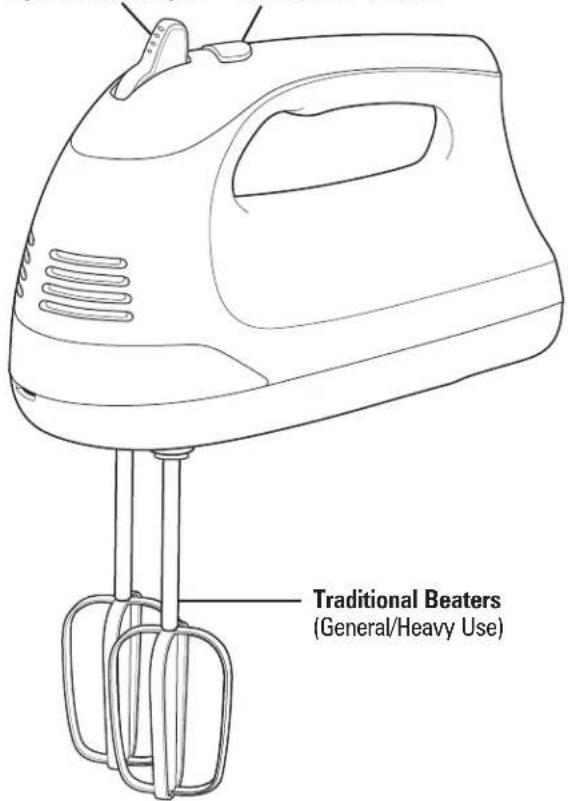

Parts and Features

To order parts, visit: hamiltonbeach.com/parts

Line drawing of a portable air conditioner unit (no text or symbols)

Snap-On Case

Speed Control/Eject

Speed Control/Eject QuickBurst™ Button

Traditional Beaters (General/Heavy Use)

Before first use: Wash Traditional Beaters, Easy Clean Beaters, Dough Hooks, Whisk and Snap-On Case in hot, soapy water. Rinse and dry.

Line drawing of a whisk with a handle, no text or symbols present

Whisk (Whipping/Aerating)

Line drawing of a two-pronged object resembling a funnel or gasket with a handle, shown in profile view (no text or symbols)

Easy Clean Beaters (Creaming butter quickly, thick batters with mix-ins)

Line drawing of two coiled electrical probes with no text or symbols

Dough Hooks (Mixing/Kneading)

How to Use

Diagram showing a wall-mounted power socket connected to a plug, with a close-up of its cable attachment (no text or symbols present)

1. Make sure Mixer is unplugged and turned to OFF (Q)

Technical line drawing of a mechanical component with a rod inserted into a housing (no text or symbols)

1. Following diagrams on bottom of Mixer, insert Beaters, Whisk, or Dough Hooks into proper openings on bottom of Mixer. Push and click into place.


Diagram showing a cable inserted into an electrical outlet with two outlets, no text or symbols present

1. Plug into outlet.

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

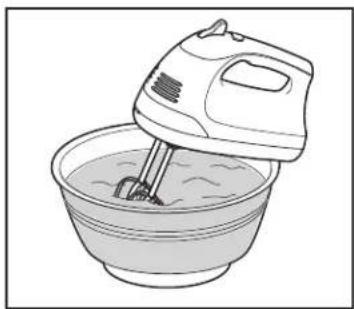

1. Add ingredients to bowl and beat according to recipe or package directions.

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

1. Move Speed Control to desired speed. Start at 1 and increase speed as needed.

Line drawing of a car's seat with a black arrow indicating direction (no text or symbols)

1. When finished, turn Speed Control to OFF (♀ and unplug Mixer.

Line drawing of a hand pressing down on a device component with a downward arrow indicating motion (no text or symbols)

1. Push Speed Control to eject attachments.

Additional Features

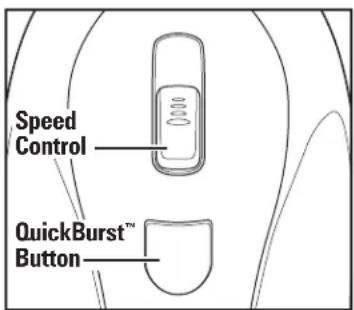

Speed Control QuickBurst™ Button

QuickBurst™

Press and hold down the QuickBurst button for additional power at any speed.

NOTE: Do not use QuickBurst for more than 2 minutes at a time or motor may overheat.

Line drawing of a hand mixer in a bowl (no text or symbols)

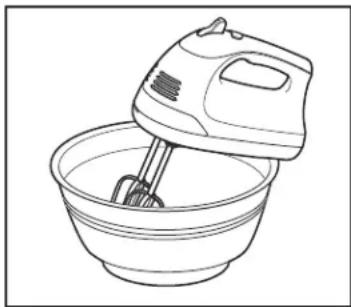

Bowl Rest™

Use the Bowl Rest while adding ingredients or checking a recipe. To use, turn Speed Control to OFF (♀), then set Mixer on the edge of the bowl.

Never use Bowl Rest when Mixer is on.

Do not use Bowl Rest on small or plastic mixing bowls.

General Mixing Guide

The following mixing guide is a suggestion for selecting mixing speeds for 6-speed mixers. Begin on speed 1 and increase to desired speed depending on the recipe consistency.

SPEED FUNCTION
0	OFF (Φand/or Eject
1	LOW speed for folding or mixing in dry ingredients, muffins, or quick breads
2 To cream butter and sugar; most cookie dough
3 MED UM speed for most packaged cake mixes
4 Frosting and mashed potatoes; kneading dough
5 Beating egg whites; kneading dough
6 HIGH speed for whipping cream

Cookie Dough Mixing Guide

• Use a large mixing bowl so that the ingredients spread out for easier mixing.
• Butter and margarine should be cold, but soft enough to hold an indent when pressed with fingers.
• Add flour 1 cup (237 ml) at a time, mixing thoroughly after each addition.

Care and Cleaning

Line drawing of a kitchen sink with faucet, showerheads, and soap bottles (no text or symbols)

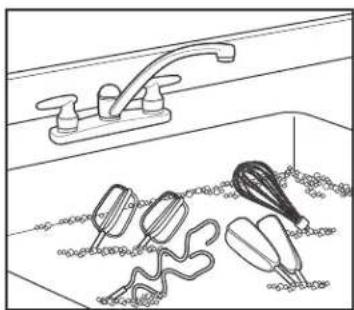

1. Wash attachments in hot, soapy water. Rinse and dry. Or, wash in dishwasher, top rack only. DO NOT use "SANI" setting when washing in dishwasher. "SANI" cycle temperatures could damage your product.

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid.

Line drawing of a hand holding a small iron or iron shaver (no text or symbols)

1. Wipe Mixer and Snap-on Case with a damp cloth or sponge and dry.

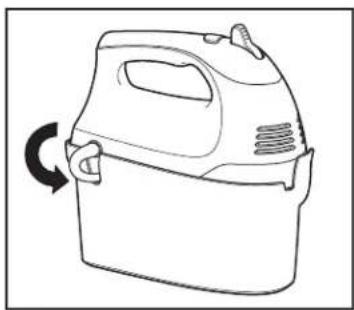

Storage

Line drawing of a portable air conditioner unit with a circular arrow indicating rotation (no text or symbols)

Store attachments and cord in Case.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Line drawing of a portable air conditioner unit (no text or symbols)

Boîtier Snap-On

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a whisk with a mesh ball (no text or symbols)

Fouet (battage/aération)

Line drawing of a pair of kitchen utensils (no text or symbols)

Line drawing of two coiled electrical probes with no text or symbols

Diagram showing a plug inserted into an electrical socket, with a magnified view of the socket's internal structure.

Technical line drawing of a mechanical component with a rod and circular features (no text or symbols)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a car's seat with an arrow indicating direction (no text or symbols)

Diagram of a cable being inserted into an electrical socket (no text or symbols)

Line drawing of a hand pressing down on a device with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

Line drawing of a hand mixer in a bowl (no text or symbols)

Bowl Rest ^MC (Support de bol)

Line drawing of a kitchen sink with faucet, showerheads, and eggplant (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a portable air conditioner unit with a circular arrow indicating rotation (no text or symbols)

Line drawing of a portable electric stove with lid and side panel (no text or symbols)

Caja a presión

Line drawing of a whisk with a handle, no text or symbols present

Batidor (batir/airear)

Line drawing of a two-pronged object resembling a spoon or tool, with no text or symbols present.

Aspas batidoras Easy Clean (batir mantequilla rápidamente, masas espesas con mezclas)

Line drawing of two coiled electrical probes with no text or symbols

Diagram showing a plug inserted into an electrical socket, with a magnified view of the socket's internal structure.

Technical line drawing of a mechanical component with a rod inserted, showing no text or symbols

Line drawing of a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram of a car's seat with a black arrow indicating direction (no text or symbols)

Diagram of a cable plugged into two 3-pin electrical socket, with a black arrow indicating the cable's direction (no text or symbols present)

1. Conecte al tomacorriente.

Line drawing of a hand pressing down on a device with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

Line drawing of a hand mixer in a bowl (no text or symbols)

Bowl Rest™

Line drawing of a kitchen sink with faucet, showerheads, and eggplant (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a portable air conditioner with a circular arrow indicating rotation (no text or symbols)
