USER MANUAL Easy Clean 67735 HAMILTON BEACH

For recipes, tips and product

information.

1.800.267.2826

hamiltonbeach.ca

Line drawing of a pair of industrial jujubes (no text or symbols)

Easy Clean Juice Extractor Centrifugeuse Easy Clean Extractor de jugo Easy Clean

English 2

Français.... 12

Español 22

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.

5. To protect against risk of electrical shock, do not immerse cord, plug, or motor base in water or other liquid.

6. Turn the appliance OFF, then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Avoid contacting moving parts. Keep fingers out of feed chute.

8. Never feed food into feed chute by hand. Always use the food pushers.

9. Always make sure the juice extractor is properly and completely assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release locking latches while juice extractor is in operation.

10. Be sure to turn switch to OFF (○) position after each use of your juice extractor. Make sure the motor stops completely before disassembling.

11. Do not put fingers or other objects into the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF (☐) unplug the cord from the outlet, and disassemble juicer to remove the remaining food.

12. Do not use the appliance if the rotating strainer basket or juicer cover is damaged or has visible cracks.

13. To reduce the risk of personal injury and/or damage to the appliance, do not use bent, dented, or otherwise damaged strainer basket.

14. Do not operate without the pulp container in place.

15. Blades are sharp; handle carefully. Do not touch the small cutting blades in the base of the stainless steel strainer basket.

16. Keep hair, clothing, and jewelry, as well as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.

17. Do not leave juice extractor unattended while it is operating.

18. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

19. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.

20. Do not use outdoors.

21. Always use the juice extractor on a dry, level surface.

22. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

23. Do not place on or near a hot gas or electric burner, or in a heated oven.

24. Check that the appliance is OFF ☐ before plugging cord into wall outlet. To disconnect, turn the control to OFF ☐; then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

25. Do not use appliance for other than intended purpose.

26. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This product is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

The electrical rating of this appliance is listed on the bottom panel of the unit.

The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/or damage the appliance. Call our toll-free customer service number to order a new basket. Replace basket when it shows signs of wear.

This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation.

WARNING Cut or Crush Hazard.

Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher.

Failure to follow this instruction can result in serious personal injury.

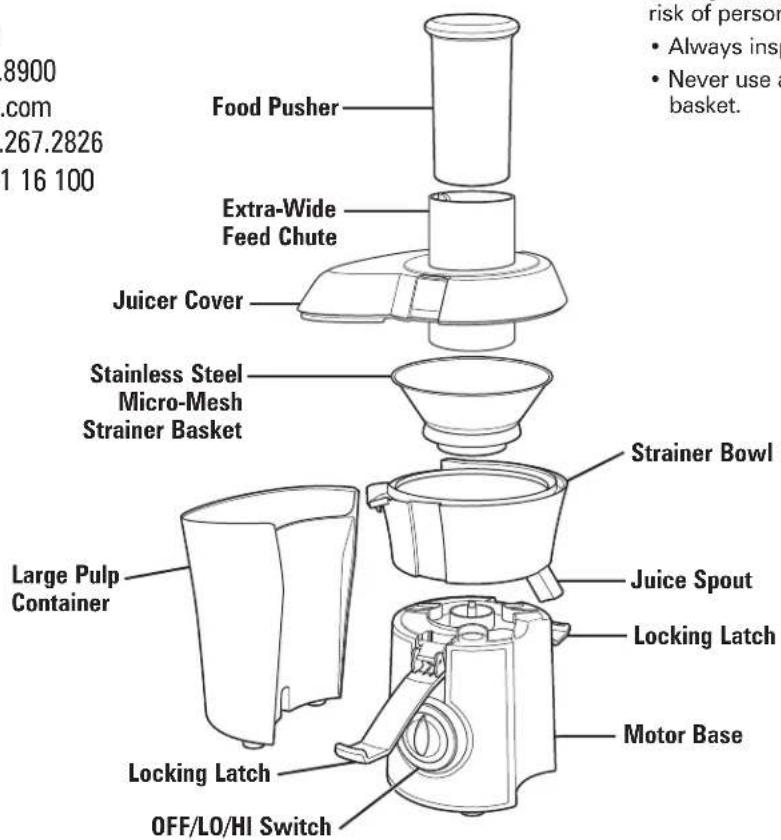

Parts and Features

To order parts:

US: 1.800.851.8900

hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

8900 .com .267.2826 1 16 100 Food Pusher Extra-Wide Feed Chute Juicer Cover Stainless Steel Micro-Mesh Strainer Basket Large Pulp Container Strainer Bowl Juice Spout Locking Latch Motor Base Locking Latch OFF/LO/HI Switch risk of person • Always insp • Never use a basket.

WARNING Laceration Hazard.

Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect micro-mesh strainer basket before each use.
- Never use a cracked, bent, or damaged micro-mesh strainer basket.

Juice Cup (with select models)

Easy Sweep™ Cleaning Tool (with select models)

How to Assemble

Before first use: After unpacking the Juice Extractor, remove cardboard from Filter Basket and wash everything except Base in warm, soapy water. Rinse and dry immediately. Never immerse the Base in water or other liquids; wipe it with a damp sponge.

Diagram showing mechanical assembly with funnel and base components (no text or symbols)

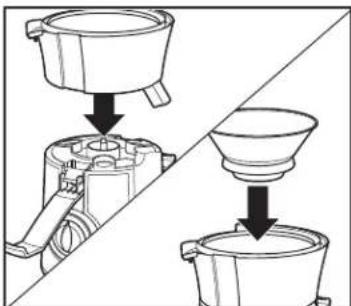

1. Place Strainer Bowl on top of the Motor Base. Then place Stainless Steel Strainer Basket inside Strainer Bowl.

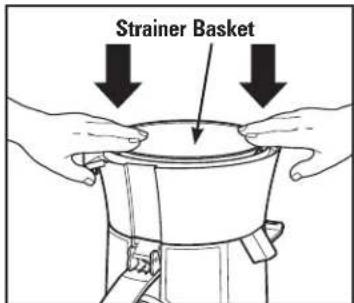

Strainer Basket

1. With hands on outer edge, press Strainer Basket down firmly to latch into position.

Diagram of a mechanical device with a cylindrical component inserted into a container, showing a downward arrow (no text or symbols present)

1. Place the Juicer Cover over Strainer Bowl, positioning Feed Chute over the Strainer Basket, and lower into position.

Line drawing of a mechanical device with rotating arms and a handle (no text or symbols)

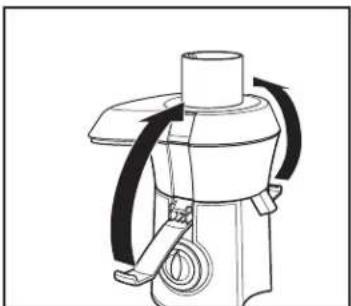

1. Raise Locking Latches up to lock into place.

Line drawing of a juicer device with handle and side panel, showing internal components and a black arrow indicating motion (no text or symbols)

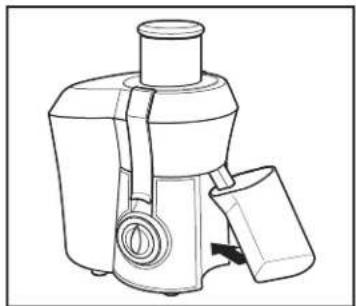

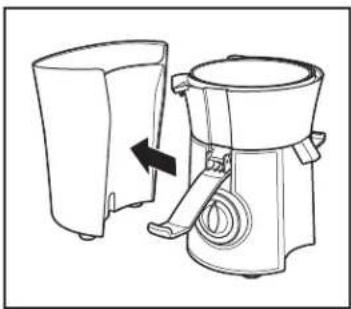

1. Place Pulp Container into position by tilting Container slightly.

Line drawing of a juice maker with handle and spout (no text or symbols)

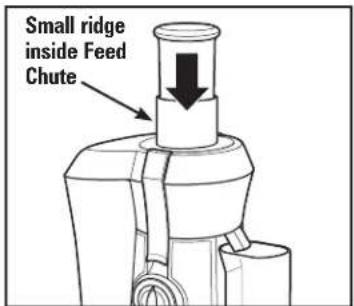

1. Place Juice Cup under Juice Spout. Slide Food Pusher down Feed Chute by aligning groove in Food Pusher with small ridge on the inside of top of feed tube.

Small ridge inside Feed Chute

HINT: To minimize cleanup, place a plastic grocery bag in Pulp Container to collect pulp. (See page 6 for more information.)

How to Use

Wash fruits and vegetables. NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into Feed Chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit to minimize impact on juice flavor.

Line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

1. Ensure that unit is correctly assembled (see page 5) and place Juice Cup under Spout.

WARNING

Laceration Hazard.

Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.

Diagram showing a plug inserted into two socket outlets with a black arrow indicating the insertion direction (no text or symbols present)

1. Make sure Switch is in OFF (♦position. Plug into outlet. Move Switch to LO or HI. NOTE: See Juicing Chart and Tips on pages 8 and 9.

Line drawing of a mechanical component with a cylindrical shaft and flange (no text or symbols)

1. With the motor running, place food down the Feed Chute. Using Food Pusher, gently guide food down Feed Chute. To extract the maximum amount of juice, always push Food Pusher down slowly. Juice will flow into Juice Cup and separated pulp will accumulate in Pulp Container. NOTE: Pulp Container can be emptied during juicing by turning Juice Extractor OFF (●) and then carefully removing Pulp Container. Replace empty Pulp Container before continuing to juice.

Line drawing of a cylindrical object with textured top and side features (no text or symbols)

1. To minimize cleanup, place a plastic grocery bag in Pulp Container to collect pulp. When juicing is completed, simply remove grocery bag containing pulp. NOTE: Do not allow Pulp Container to overfill since this may prevent correct operation or damage the unit.

How to Disassemble

Diagram showing a cable being inserted into an electrical outlet (no text or symbols present)

1. Turn Juice Extractor OFF ☐. Unplug. Allow Strainer Basket to stop turning.

Line drawing of a portable blender with handle and spout (no text or symbols)

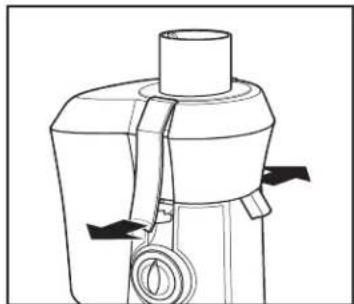

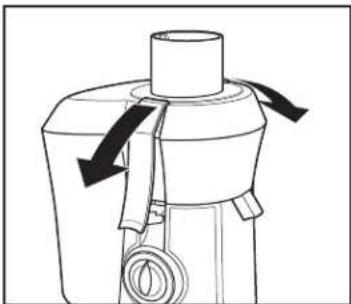

1. Release Locking Latches.

Line drawing of a blender with black arrows indicating rotation or movement (no text or symbols)

1. Move Locking Latches down.

Diagram of a mechanical device with a cylindrical component and an upward arrow indicating motion (no text or symbols)

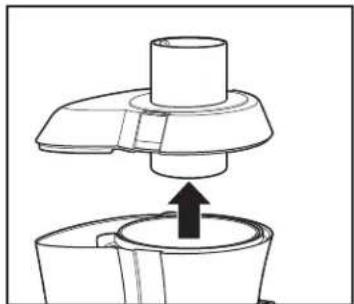

1. Lift off Cover.

Line drawing of a two-stage blender with a lid removed, showing internal components and a black arrow indicating rotation (no text or symbols)

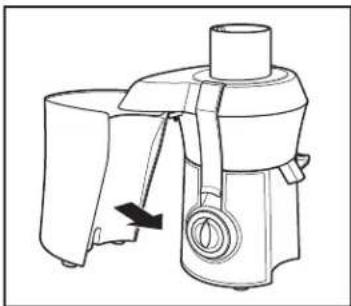

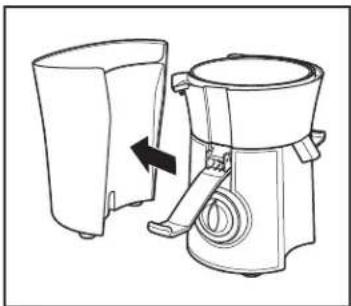

1. Remove Pulp Container by sliding away from Motor Base.

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols)

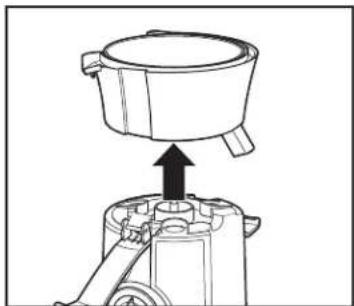

1. Lift off Strainer Bowl with Strainer Basket still in place.

Illustration of hands installing a mechanical component with a bell (no text or symbols)

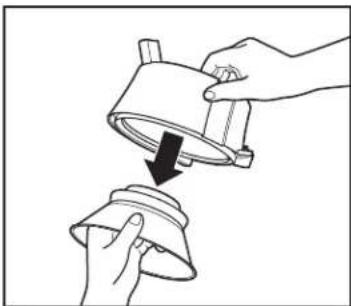

1. To remove Strainer Basket, turn Strainer Bowl upside down and carefully remove the Strainer Basket. (It is recommended to remove Strainer Basket over a sink.)

Care and Cleaning

NOTE: Fruits and vegetables may cause parts to discolor. To prevent this, wash parts immediately after each use.

Line drawing of a funnel with a tool and arrow indicating downward motion (no text or symbols)

1. Unplug.
2. Wipe Base of Juice Extractor with a soft, damp cloth and dry.

Simple line drawing of a bowl with a handle and arrow indicating direction (no text or symbols)

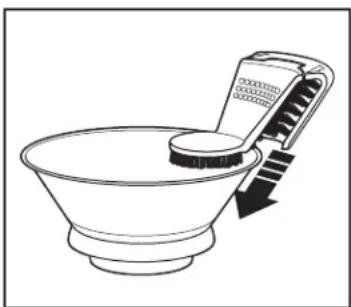

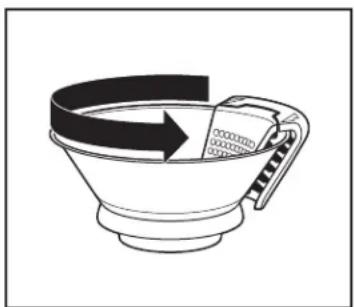

1. Easy Sweep™ Cleaning Tool (included with select models) is the most effective way to clean Strainer Basket. Using tool, hold Strainer Basket under running water and brush inside and outside of Basket.

WARNING

Electrical Shock Hazard.

Do not immerse motor base in water or any other liquid.

CAUTION

Laceration Hazard.

The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function. Do not touch blades when handling the strainer basket.

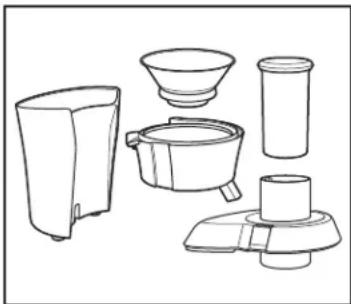

Line drawing of various kitchen appliances including a blender, funnel, and cup (no text or labels)

To assist with cleaning, soak the Strainer Basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the basket it may clog the fine pores of the filter mesh, thereby lessening the effectiveness of the Juice Extractor.

1. All removable parts are dishwasher-safe.

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. Do not place the Motor Base in the dishwasher. Some part distortion may occur if your household dishwasher's temperature is higher than normal or if the parts are placed too close to the heating element.

Juicing Chart

Fruit or Vegetables Examples Speed

Firm Fruits and Vegetables Apples, Peeled Oranges, Carrots, Beets, Cucumbers, Ginger H

Soft Fruits and Vegetables Strawberries, Pitted Peaches, Watermelons, Grapes, Tomatoes LO

Leafy Greens Spinach, Kale, Beet Greens LO

Juicing Tips, Techniques, and Recipes

Purchasing and Storing Fruits and Vegetables:

• Always wash fruits and vegetables before juicing.
• Always use fresh fruits and vegetables for juicing.
- To save money and obtain fresher produce, purchase fruits or vegetables that are in season.
- Keep your fruits and vegetables ready for juicing by washing them before storing.
- Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers, and herbs should be stored in the refrigerator until required.

Preparing Fruits and Vegetables:

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in Juice Extractor to minimize impact on juice flavor.
• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.
  HINT: Your Juice Extractor makes invigorating, frothy orange juice. Simply peel the oranges and juice. For best results, refrigerate oranges before juicing.

Using the Pulp:

• The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients necessary for the daily diet and can be used in many ways. However, like the juice, pulp should be used that day to avoid loss of vitamins.
• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.
• Pulp is great used in the garden for compost.

Soy Milk, Almond Milk, and Rice Milk:

This Juice Extractor may be used to make soy milk, almond milk, and rice milk. One cup of soybeans, almonds, or rice must be soaked in four cups of water for 24 to 48 hours in the refrigerator. Slowly pour one cup of the soaked mixture at a time into the Feed Chute. The liquid extracted from the soaked mixture is the "milk."

NOTES:

• Almonds must be soaked 24 to 48 hours before juicing.
• Soy milk should be boiled to improve the flavor.
• Vanilla, honey, and sugar may be added to enhance the flavor of each milk type.

The following drink recipes yield a single serving of 6 to 10 ounces (170–300 ml). If sugar or honey is listed, add to juice after juicing.

Eye-Opener

2 carrots

1 apple

1 tangerine, peeled

Winter Blue Zing

2 apples

1/4 cup (59 ml) blueberries

1 orange, peeled

Liquid Fire

1 medium tomato

1/2 jalapeno pepper

1 handful parsley

1/2 cucumber

Orchard Blend

2 apples

2 pears

Vineyard Pop

1 cup (237 ml) grapes

1 pear

Sour Grapes

1 lime, peeled

2 cups (473 ml) red grapes

The Health Club

1/2 of 6-ounce (170 g) bag spinach

3 carrots

Troubleshooting

Machine will not work when switched ON.

• The Locking Latches may not be correctly engaged. Check to see if the Locking Latches are properly positioned in the two grooves on either side of the Juicer Cover. Refer to page 5, Steps 3 and 4.
• This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation.

Motor appears to stall when juicing.

• The juicing action may be too vigorous. Try slower juicing action by pushing the Food Pusher down more slowly. Refer to page 6, Step 3.
• Wet pulp can build up under the Juicer Cover or Pulp Container. Turn unit OFF (O) and unplug. Empty the Pulp Container; then clean Juicer Cover and Strainer Basket.

Excess pulp building up in the Micro-Mesh Strainer Basket.

- Turn OFF (○) and unplug. Remove Strainer Basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 7 and 8.

Pulp is too wet and insufficient juice is produced.

- Try a slower juicing action.

- Turn OFF (○) and unplug. Remove Strainer Basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 7 and 8.

Juice sprays out of Spout.

- Try a slower juicing action by pushing the Food Pusher down more slowly. Refer to page 6, Step 3.

Juice drips out of Spout immediately after juicing.

- With motor ON, raise and lower Food Pusher in Feed Chute several times. The action forces remaining pulp and juice out of Strainer Bowl.

Machine vibrates excessively.

- Buildup of pulp in mesh of Strainer Basket. Turn unit OFF (○) and unplug. Clean Strainer Basket. Refer to page 8. If machine vibration continues after cleaning, this could be a sign of a damaged Strainer Basket. Call our customer service number to order a new Strainer Basket.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Simple line drawing of a cylindrical container or enclosure with a handle and base (no text or symbols)

Technical line drawing of a kitchen brush and blender with handle (no text or symbols)

Diagram showing a mechanical assembly process with downward arrows indicating flow or transformation (no text or symbols present)

Diagram of a mechanical device with a cylindrical component inserted into a container, showing a downward arrow (no text or symbols present)

Line drawing of a mechanical device with rotating arms and a handle (no text or symbols)

Line drawing of a juicer device with handle and side panel, showing internal components and a black arrow indicating motion (no text or symbols)

Line drawing of a juice maker with handle and spout (no text or symbols)

Line drawing of a cylindrical object with textured surface and two side notches (no text or symbols)

Line drawing of a mechanical component with a cylindrical top and flanged base (no text or symbols)

Diagram showing a cable inserted into an electrical socket with a black arrow indicating the cable's direction (no text or symbols present)

Line drawing of a mechanical component with a cylindrical shaft and flange (no text or symbols)

Diagram showing a cable inserted into an electrical outlet with two outlets, illustrating the process (no text or symbols present)

Line drawing of a coffee maker with handle and spout (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a two-stage blender with a lid removed, showing internal components and a black arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Illustration of hands installing a mechanical component with a bell (no text or symbols)

Line drawing of a funnel with a bag and arrow indicating direction (no text or symbols)

Simple line drawing of a cup with an arrow indicating rotation or movement (no text or symbols)

Line drawing of various kitchen appliances including a blender, funnel, and cup (no text or labels)

Diagram showing a mechanical assembly process with downward arrows indicating motion or force (no text or symbols present)

Diagram of a mechanical device with a cylindrical component inserted into a container, showing a downward arrow (no text or symbols present)

Line drawing of a mechanical device with curved arrows indicating motion or rotation (no text or symbols)

Line drawing of a juicer device with handle and belt, showing internal components and a black arrow indicating motion (no text or symbols)

Line drawing of a juice maker with handle and spout (no text or symbols)

Line drawing of a mechanical component with a cylindrical top and flanged base (no text or symbols)

Line drawing of a cylindrical object with textured top and bottom edges, resembling a trash bin or container (no text or symbols)

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Line drawing of a mechanical component with a cylindrical shaft and flange (no text or symbols)

Diagram showing a cable inserted into an electrical outlet with two outlets, illustrating the process (no text or symbols present)

Line drawing of a portable blender with handle and spout (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force (no text or symbols)

Diagram of a mechanical device with a cylindrical component and an upward arrow indicating motion (no text or symbols)

1. Quite la cubierta.

Line drawing of a two-way cleaning machine with a lid removed, showing internal components and a black arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a component with an upward arrow indicating motion (no text or symbols present)

Illustration of hands installing a mechanical component with a bell (no text or symbols)

Line drawing of a funnel with a bag and arrow indicating direction (no text or symbols)

Simple line drawing of a cup with a handle and arrow indicating rotation (no text or symbols)

Line drawing of various kitchen appliances including a blender, funnel, and cup (no text or labels)

Mixcoac, Benito Juárez
