Whole Food Juice Extractor

Exterior view of a modern electric juice maker with black and silver casing (no visible text or symbols)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electric shock, do not immerse cord, plug, or motor base in water or other liquid.
6. Turn the appliance OFF (●) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep fingers out of feed chute.
8. Never feed food into food chute by hand. Always use the food pushers.
9. Always make sure the juice extractor is properly and completely assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release safety locking arm while juice extractor is in operation.
10. Be sure to turn switch to OFF (position after each use of your juice extractor. Make sure the motor stops completely before disassembling.

11. Do not put fingers or other objects into the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF (Q) unplug the cord from the outlet, and disassemble juicer to remove the remaining food.

12. Do not use the appliance if the rotating strainer basket or juice cover is damaged or has visible cracks.

13. To reduce the risk of personal injury and/or damage to the appliance, do not use bent, dented, or otherwise damaged strainer basket.
14. Do not operate without the pulp container in place.
15. Blades are sharp; handle carefully. Do not touch the small cutting blades in the base of the stainless steel strainer basket.
16. Keep hair, clothing, and jewelry, as well as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.
17. Do not leave juice extractor unattended while it is operating.
18. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
19. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
20. Do not use outdoors.
21. Always use the juice extractor on a dry, level surface.
22. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
23. Do not place on or near a hot gas or electric burner, or in a heated oven.

24. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF (then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

25. Do not use appliance for other than intended purpose.

26. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This product is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

The electrical rating of this appliance is listed on the bottom panel of the unit.

The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/or damage the appliance. Call our toll-free customer service number to order a new basket. Replace basket when it shows signs of wear.

This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in to resume normal operation.

WARNING Laceration Hazard.

Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher.

Parts and Features

To order parts:

US: 1.800.851.8900

hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

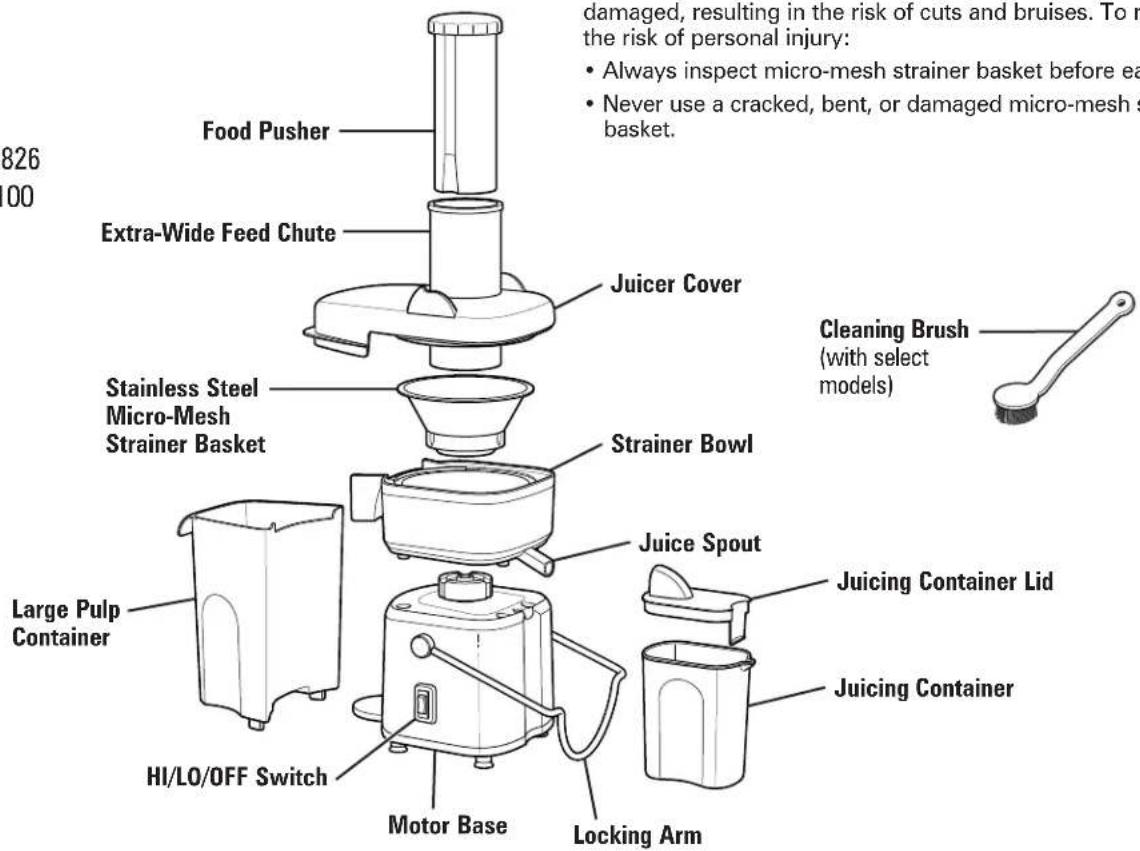

826 00 Food Pusher Extra-Wide Feed Chute Juicer Cover Stainless Steel Micro-Mesh Strainer Basket Strainer Bowl Large Pulp Container HI/LO/OFF Switch Motor Base Locking Arm Juice Spout Juicing Container Lid Juicing Container Cleaning Brush (with select models)

WARNING Laceration Hazard.

Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect micro-mesh strainer basket before each use.
- Never use a cracked, bent, or damaged micro-mesh strainer basket.

How to Assemble

Diagram showing two stages of a food processing machine, one with a funnel and the other with a bowl (no text or symbols)

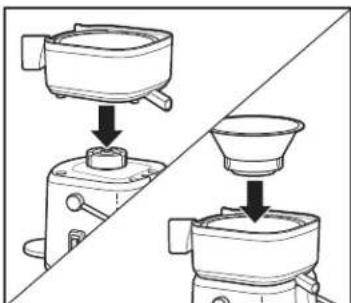

1. Place Strainer Bowl on top of the Motor Base. Then place the Stainless Steel Strainer Basket inside the Strainer Bowl.

Strainer Basket

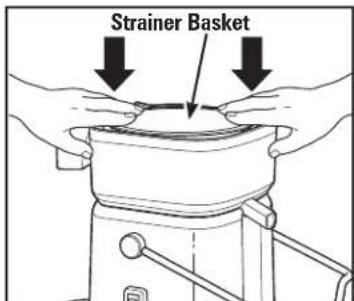

1. With hands on outer edge, press Strainer Basket down firmly to latch into position.

Before first use: After unpacking the Juice Extractor, remove cardboard from filter basket and wash everything except the base in warm, soapy water. Rinse and dry immediately. Never immerse the base in water or other liquids; wipe it with a damp sponge.

Technical line drawing of a mechanical press or stamping device with a downward arrow indicating compression (no text or symbols present)

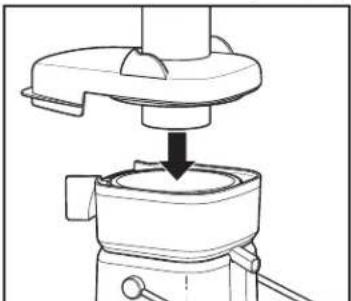

1. Place the Juicer Cover over the Strainer Bowl, positioning the Feed Chute over the Strainer Basket, and lower into position.

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

1. Raise Locking Arm up and over indentation in Juicer Cover until it clicks into place.

Line drawing of a kitchen grater with a bag removed from the side (no text or symbols)

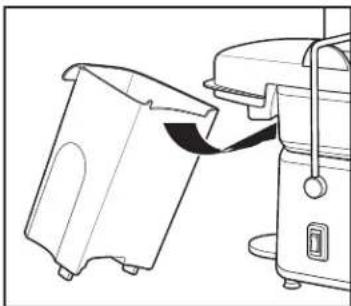

1. Place the Pulp Container into position by tilting the Container slightly.

Line drawing of a microwave oven with a side drawer, showing no text or symbols

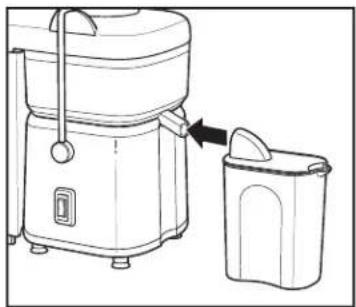

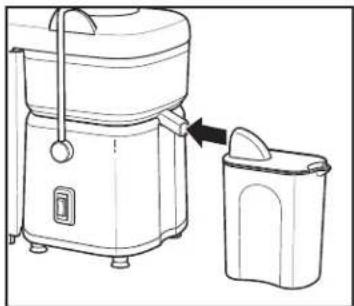

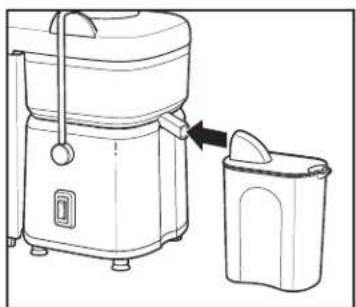

1. Place Juicing Container with Container Lid under the Juice Spout. Slide the Food Pusher down the Feed Chute by aligning the groove in the Food Pusher with the small ridge on the inside of the top of the Feed Chute.

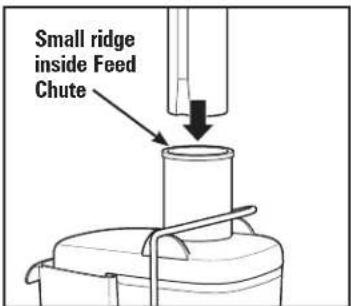

Small ridge inside Feed Chute

HINT: To minimize cleanup, place a plastic grocery bag in the Pulp Container to collect the pulp. (See page 6 for more information.)

How to Use

Wash fruits and vegetables. NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into Feed Chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled and seeded before placing in unit for best juice flavor.

Line drawing of a microwave oven and its open lid, showing internal components and a directional arrow (no text or symbols)

1. Ensure that unit is correctly assembled (see page 5) and place Container with Container Lid under spout.

WARNING

Laceration Hazard.

Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.

Diagram showing a plug inserted into an electrical outlet with two socket terminals (no text or symbols)

1. Make sure Switch is in OFF (① position. Plug into outlet, and then move Switch to LO or HI.

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

1. With the motor running, place food down the Feed Chute. Slide Food Pusher into Feed Chute by aligning groove in Food Pusher with ridge inside Feed Chute to gently guide food down Feed Chute. To extract the maximum amount of juice, always push Food Pusher down slowly. Juice will flow into Container and separated pulp will accumulate in Pulp Container.

Line drawing of a three-legged trash bin with visible wood shavings (no text or symbols)

1. To minimize cleanup, place a plastic grocery bag in Pulp Container to collect pulp. When juicing is completed, simply remove grocery bag containing pulp.
   NOTE: Do not allow Pulp Container to overfill since this may prevent correct operation or damage the unit.
   NOTE: Pulp Container can be emptied during juicing by turning Juice Extractor OFF (and then carefully removing Pulp Container. (Replace empty Pulp Container before continuing to juice.)

How to Disassemble

Diagram showing a cable inserted into an electrical outlet with two socket terminals (no text or symbols)

1. Turn Juice Extractor OFF (Φ and unplug. Allow Strainer Basket to stop turning.

Line drawing of a two-wheeled food blender with a side panel and directional arrow (no text or symbols)

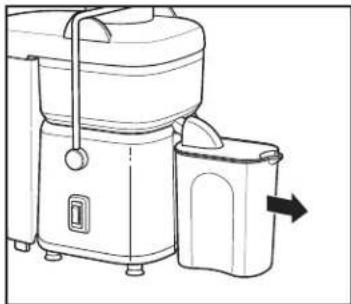

1. Remove Juicing Container with juice.

Line drawing of a kitchen appliance with a curved arrow indicating rotation (no text or symbols)

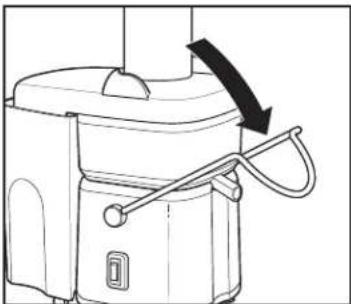

1. Release Locking Arm and gently lower to counter.

Line drawing of a kitchen appliance with an upward arrow indicating a process (no text or symbols present)

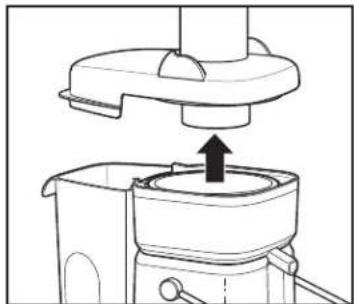

1. Lift off Juicer Cover with Food Pusher.

Line drawing of a kitchen appliance with a side panel and a side-mounted fan (no text or symbols)

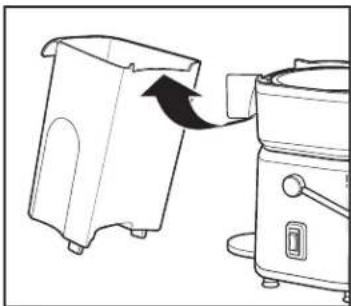

1. Remove the Pulp Container by sliding away from Motor Base.

Diagram of a kitchen appliance with a lid and handle, showing a mechanical assembly (no text or symbols)

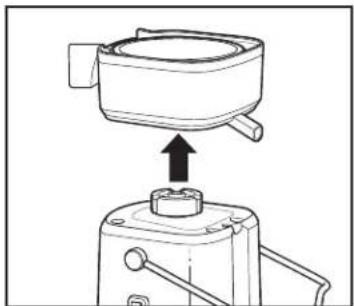

1. Lift off the Strainer Bowl with the Strainer Basket still in place.

Illustration of hands holding a cup and a bag with an arrow indicating rotation (no text or symbols)

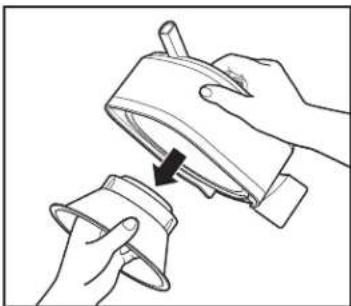

1. To remove the Strainer Basket, turn the Strainer Bowl upside down and carefully remove the Strainer Basket. (It is recommended to remove the Strainer Basket over a sink.)

Care and Cleaning

1. Unplug from outlet.

2. Discoloration of the plastic may occur with some fruits and vegetables. To help prevent this, wash all parts immediately after use.

3. All removable parts are dishwasher-safe.

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. Do not place the Motor Base in the dishwasher. Some part distortion may occur if your household dishwasher's temperature is higher than normal or if the parts are placed too close to the heating element.

Always treat the Strainer Basket with care; it can be damaged easily. To assist with cleaning, soak the Strainer Basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the basket it may clog the fine pores of the filter mesh, thereby lessening the effectiveness of the Juice Extractor.

WARNING

Electrical Shock Hazard.

Do not immerse motor base in water or any other liquid.

CAUTION

Laceration Hazard.

The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function. Do not touch blades when handling the strainer basket.

Illustration of hands washing a cup with a spoon, no text or symbols present

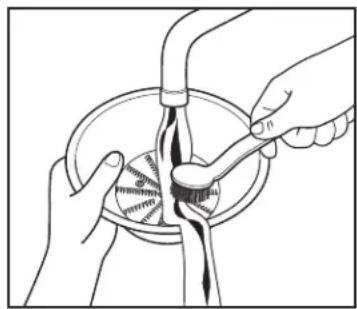

The Cleaning Brush (included with select models) is the most effective way to clean the Strainer Basket. Using the Brush, hold the Strainer Basket under running water and brush inside and outside of the Basket.

Juicing Tips, Techniques, and Recipes

Purchasing and Storing Fruits and Vegetables:

• Always wash fruits and vegetables before juicing.
• Always use fresh fruits and vegetables for juicing.
- To save money and obtain fresher produce, purchase fruits or vegetables that are in season.

• Keep your fruits and vegetables ready for juicing by washing them before storing.
• Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as berries, leafy greens, celery, cucumbers, and herbs should be stored in the refrigerator until required.

Juicing Tips, Techniques, and Recipes (cont.)

Preparing Fruits and Vegetables:

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in Juice Extractor for best juice flavor.
• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.

Using the Pulp:

• The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients necessary for the daily diet and can be used in many ways. Pulp can be frozen for later use.
• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.
• Pulp is great used in the garden for compost.

Soy Milk, Almond Milk, and Rice Milk:

This Juice Extractor may be used to make soy milk, almond milk, and rice milk. Follow these steps:

1. Soak 1 cup (237 ml) of soybeans, almonds, or rice in 4 cups (946 ml) of water for 8 to 12 hours covered in the refrigerator.
2. Drain nuts and discard water. Cover nuts, beans, or rice with 1 1/2 cups (355 ml) fresh water.
3. Slowly ladle the nuts, beans, or rice with the water into the Feed Chute.
4. Place cheesecloth in a container. Pour mixture into a tight woven cheesecloth and let stand until completely drained. Squeeze cheesecloth, if necessary. Refrigerate milk immediately.

NOTES:

• Almonds must be soaked 8 to 12 hours before juicing.
• Soy milk should be boiled to improve the flavor.
• Vanilla, honey, and sugar may be added to enhance the flavor of each milk type.

Juicing Chart

Fruit or Vegetables Examples Speed

Firm Fruits and Vegetables Apples, Peeled Oranges, Carrots, Beets, Cucumbers, Ginger Hl

Soft Fruits and Vegetables Strawberries, Pitted Peaches, Watermelons, Grapes, Tomatoes LO

Leafy Greens Spinach, Kale, Beet Greens LO

Recipes

Carrot, Ginger, and Apple Juice

6 medium carrots

1/4-inch-thick (0.6 cm) slice fresh ginger (about 1-inch [2.5-cm] diameter)

1 large Granny Smith apple

Directions:

1. Cut apple as needed to fit through the chute of the juice extractor.

2. Juice the ingredients in the order listed.

3. Stir and serve immediately.

Serves: 2

Blueberry, Raspberry, Strawberry, and Apple Juice

1 cup (237 ml) blueberries

1 cup (237 ml) raspberries

4 large strawberries, hulled

1/4 of a Granny Smith apple

Directions:

1. Juice the ingredients in the order listed.

2. Stir and serve immediately.

Serves: 1–2

Beet, Orange, Ginger, and Carrot Juice

1 large beet, trimmed

1 medium orange, peeled

3 medium carrots

1/4-inch-thick (0.6 cm) slice fresh ginger (about 1-inch [2.5-cm] diameter)

Directions:

1. Cut beet, orange, and carrots as needed to fit through the chute of the juice extractor.

2. Juice the ingredients in the order listed.

3. Stir and serve immediately.

Serves: 1–2

Go-Getter Green Juice

4 medium kale leaves

2 medium carrots, trimmed

1/2 lemon, peeled

1-inch (2.5-cm) piece fresh ginger

1 cup (237 ml) baby spinach leaves

1 medium Granny Smith apple

Directions:

1. Cut carrots, apple, and lemon as needed to fit through the chute of the juice extractor.

2. Juice the ingredients in the order listed.

3. Stir and serve immediately.

Serves: 1–2

Recipes (cont.)

Veggie Cocktail

8 medium tomatoes

1 small lemon, peeled
1 large rib celery
1 medium carrot
1 onion slice
1 teaspoon (5 ml) Worcestershire sauce
1/2 teaspoon (2.5 ml) salt, if desired

Directions:

1. Cut tomatoes, lemon, and carrot as needed to fit through the chute of the juice extractor.
2. Juice the ingredients in the order listed except Worcestershire sauce and salt.
3. Stir in Worcestershire sauce and salt. Serve immediately.

Serves: 2–3

Pomegranate Blueberry Juice

2 cups (473 ml) pomegranate seeds

1 cup (237 ml) blueberries

Directions:

1. Juice the ingredients in the order listed.
2. Stir and serve immediately.

Serves: 1–2

Test Kitchen Tip: Use just the seeds of a pomegranate for juicing since the membranes will make the juice bitter. To deseed the pomegranate, start by cutting a thin slice from the bottom to make it stable for cutting. Cut out the core at the top. Make shallow cuts to section into 6 wedges. Gently break the pomegranate apart and pry the seeds out with your fingers. Pomegranate juice can stain, so we suggest wearing gloves and something like an old T-shirt. Work over a bowl to catch the seeds and drips before placing in the juice extractor.

Kale, Cucumber, and Cilantro Green Juice

6 large leaves kale

1 large cucumber
1 rib celery with leaves
1 medium lime, peeled
2 small handfuls cilantro
1 medium Granny Smith apple

Directions:

1. Cut cucumber and apple as needed to fit through the chute of the juice extractor.
2. Juice the ingredients in the order listed.
3. Stir and serve immediately.

Serves: 1–2

Troubleshooting

Machine will not work when switched ON.

- The Locking Arm may not be correctly engaged. Check to see if the Locking Arm is properly positioned in the two grooves on either side of the Juicer Cover. Refer to page 5, Steps 3 and 4.

- This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in to resume normal operation.

Motor appears to stall when juicing.

- The juicing action may be too vigorous. Try slower juicing action by pushing the Food Pusher down more slowly. Refer to page 6, Step 3.

- Wet pulp can build up under the Juicer Cover or Pulp Container. Turn unit OFF (○) and unplug. Empty the Pulp Container; then clean Juicer Cover and Strainer Basket.

Excess pulp building up in the micro-mesh strainer basket.

- Turn OFF (○) and unplug. Remove Strainer Basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 7 and 8.

Pulp is too wet and insufficient juice is produced.

- Try a slower juicing action.

- Turn OFF (○) and unplug. Remove Strainer Basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 7 and 8.

Juice sprays out of spout.

- Try slower juicing action by pushing the Food Pusher down more slowly. Refer to page 6, Step 3.

Juice drips out of spout immediately after juicing.

- With motor ON, raise and lower Food Pusher in feed chute several times. The action forces remaining pulp and juice out of Strainer Bowl.

Machine vibrates excessively.

- Buildup of pulp in mesh of Strainer Basket. Turn unit OFF (○) and unplug. Clean Strainer Basket. Refer to page 8. If machine vibration continues after cleaning, this could be a sign of a damaged Strainer Basket. Call our customer service number to order a new Strainer Basket.

No juice coming out of the spout.

- Pulp has built up. Clean out wet pulp from Lid, Strainer Basket, and Pulp Container.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Line drawing of a hand pouring liquid into a container (no text or symbols)

Diagram showing two types of kitchen appliances: one with a funnel and another with a square top, both without any text or symbols.

Technical line drawing of a mechanical press or stamping device with a downward arrow indicating compression (no text or symbols present)

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

Line drawing of a kitchen grater with a bag removed from the side (no text or symbols)

Line drawing of a microwave oven with a smaller side dish, showing no text or symbols

Line drawing of a three-legged trash bin with visible wood shavings (no text or symbols)

Line drawing of a two-wheeled food organizer with a bag removed from its side (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two socket terminals (no text or symbols)

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Diagram showing a cable inserted into an electrical outlet with two socket terminals (no text or symbols)

Line drawing of a two-wheeled food organizer with a side panel and directional arrow (no text or symbols)

Line drawing of a kitchen appliance with a handle and arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with an upward arrow indicating motion (no text or symbols)

Line drawing of a kitchen appliance with a right-handled arrow indicating rotation (no text or symbols)

Diagram of a kitchen appliance with a lid and handle, showing a mechanical assembly (no text or symbols)

Illustration of hands holding a cup and a bag with an arrow indicating a step (no text or symbols present)

Illustration of hands washing a cup with a spoon, no text or symbols present

Diagram showing two stages of a food processing machine, one with a funnel and the other with a square bowl (no text or symbols)

Technical line drawing of a mechanical press or stamping device with a downward arrow indicating compression (no text or symbols present)

Line drawing of a mechanical device with a black arrow indicating direction (no text or symbols)

Line drawing of a kitchen mixer with a bag removed from the side panel (no text or symbols)

Line drawing of a microwave oven with a bag removed from it (no text or symbols)

Line drawing of a three-legged trash bin with visible wood grain and surface imperfections (no text or symbols)

Line drawing of a microwave oven with a bag removed from it (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two outlets, connected by a cable (no text or symbols present)

Line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Diagram showing a cable inserted into an electrical outlet with two socket terminals (no text or symbols)

Line drawing of a microwave oven and a smaller appliance with an arrow indicating direction (no text or symbols)

Line drawing of a kitchen appliance with a handle and arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with an upward arrow indicating a motion or operation (no text or symbols present)

Diagram showing a kitchen appliance being placed into a second kitchen (no text or symbols present)

Diagram of a kitchen appliance with a lid and handle, showing a mechanical assembly (no text or symbols)

Illustration of hands holding a cup and a bag with an arrow indicating rotation (no text or symbols)

Illustration of hands washing a cup with a spoon, no text or symbols present

Mixcoac, Benito Juárez
