WT 488 - Alarm clock radio TECHNOLINE - Free user manual and instructions

Product type	Clock radio
Brand	TECHNOLINE
Model	WT 488
Power supply	Mains 230 V AC via AC/DC adapter (SW0500600-A02); backup battery CR2032 (not included)
Display	LED with brightness adjustment (high, low, off)
Radio	FM with wire antenna
Number of preset stations	10
Number of alarms	2 (Alarm 1 and Alarm 2)
Alarm sound sources	Radio (rd) or Buzzer (bu)
Alarm duration	1 hour
Snooze duration	5 to 60 minutes (adjustable in 5 min increments)
Sleep timer	5, 15, 30, 45, 60, 75, 90 minutes or off
Volume range	L01 (minimum) to L15 (maximum)
12/24 h display	Selectable
Backup battery	Lithium CR2032 (battery life approximately 1 week)
Maintenance and cleaning	Unplug the device, clean with a soft cloth dampened with soapy water. Do not use harsh chemicals.
Safety	Use only non-rechargeable lithium CR2032 batteries. Observe polarity. Do not expose to moisture, extreme temperatures, or shocks.
Installation	Place the device on a stable surface, away from direct sunlight and heat sources.
Included mains adapter	SW0500600-A02
Repairability	Do not open the case. In case of problem, unplug and remove the backup battery, then plug back in after a few minutes to restore factory settings.
Country of manufacture	Not specified

Frequently Asked Questions - WT 488 TECHNOLINE

How to set the time on the WT 488 clock radio?

Press and hold the SET button until the hour digits flash. Use the ▲/▼ buttons to adjust the hours. Press SET to move to minutes, then adjust them with ▲/▼. Press SET again to choose 12h/24h format, then a final time to set the snooze duration (5 to 60 minutes). To exit, press SET or wait 10 seconds.

How to set alarm 1 or 2?

Press AL 1.2 once for alarm 1 (A1 flashes). Use ▲/▼ to set the hours, then press AL 1.2 again to set the minutes. Press again to choose the sound source: rd (radio), bu (buzzer) or OFF (disabled). For alarm 2, press AL 1.2 again after setting alarm 1 and repeat the steps. Confirm with SET or wait 10 seconds.

How to use the FM radio?

Turn on the radio by pressing RADIO/SLEEP. Use the ▲/▼ buttons to tune stations. Press and hold ▲/▼ for automatic search. To adjust the volume, press VOL (display shows 'L07'), then use ▲/▼ to adjust from L01 to L15. To turn off the radio, press Zz (Snooze/Dimmer).

How to adjust the radio volume?

Press the VOL button; the display shows 'L07' (default volume). Use the ▲/▼ buttons to adjust the volume from L01 (minimum) to L15 (maximum).

How to use the snooze function?

When the alarm sounds, press the Zz button (Snooze/Dimmer). The alarm stops and will sound again after the snooze duration you set (from 5 to 60 minutes, adjustable in settings).

How to memorize preset radio stations?

Turn on the radio and tune to the desired station. Press and hold the SET button until 'P01' flashes. Press SET to store in position 1. For other stations, repeat: tune, hold SET (P01 flashes), then press ▲ to go to P02, then SET. Up to 10 stations (P01 to P10). To listen to a preset station, press SET when the radio is on.

What to do in case of a power outage?

In case of a power outage, the LED display turns off and the radio/alarm stops working. The CR2032 backup battery (not included) saves the time and settings for about a week. If you don't have a battery, the time will be lost and you will need to set it again.

How to clean the clock radio?

Unplug the device. Use a soft cloth dampened with soapy water. Do not use harsh chemicals like thinner or benzene. Make sure no liquid enters the inside.

Which battery to use for backup and how to install it?

Use a new CR2032 lithium battery (non-rechargeable). To install, place the device on a flat surface, loosen the screw on the battery compartment, slide the cover off, insert the battery with the '+' side up, close the cover, and tighten the screw.

How to activate or deactivate an alarm?

To activate an alarm, set it as described in question 2 and choose 'rd' or 'bu' as the source. To deactivate, during source setting select 'OFF'. The alarm icon (A1 or A2) appears on the display when activated. To stop a ringing alarm, press RADIO/SLEEP or AL 1.2; it will reset for the next day.

USER MANUAL WT 488 TECHNOLINE

WT 488 LED DIGITAL FM CLOCK RADIO WITH DUAL ALARM

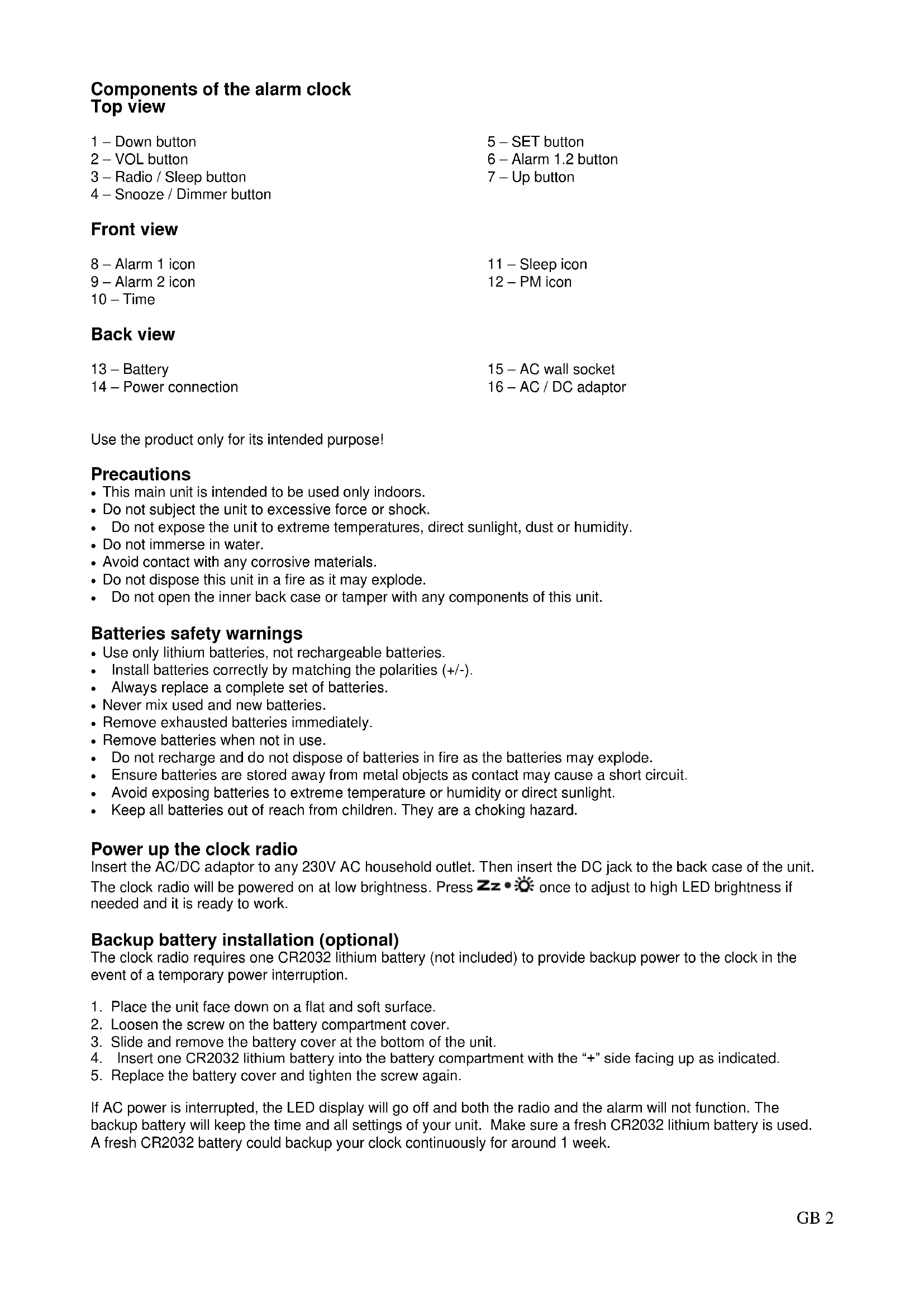

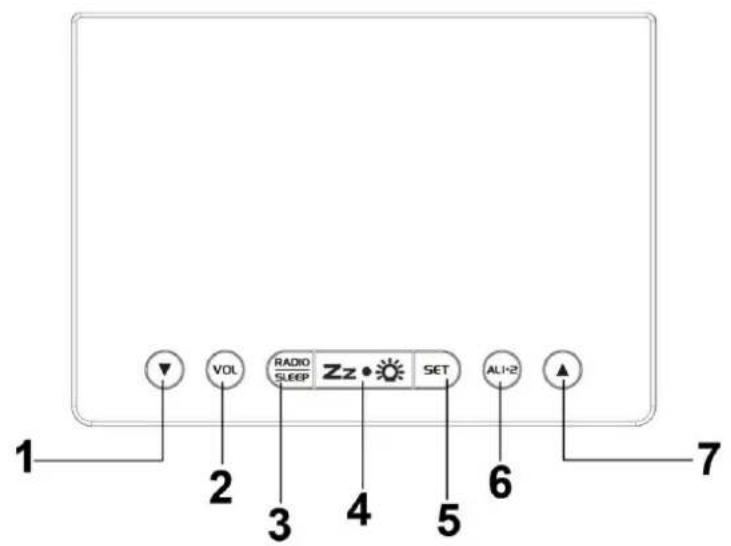

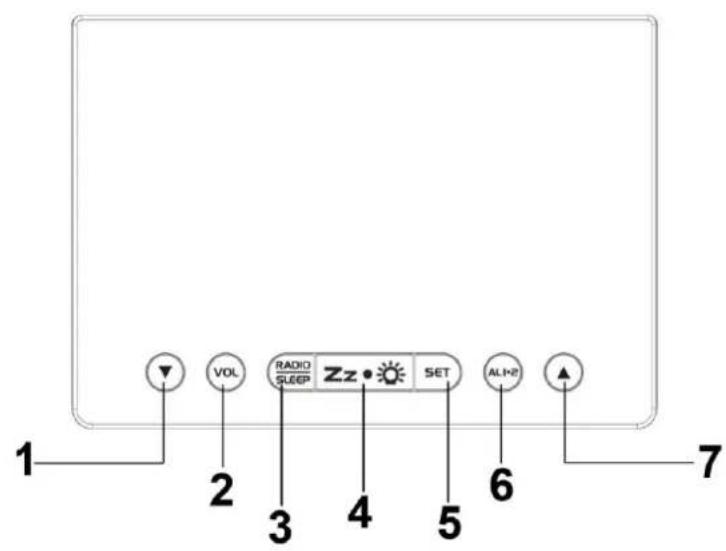

Components of the alarm clock Top view

1-Down button 5-SET button
2-VOL button 6-Alarm1.2button
3 - Radio / Sleep button 7 - Up button
4-Snoopze/Dimmer button

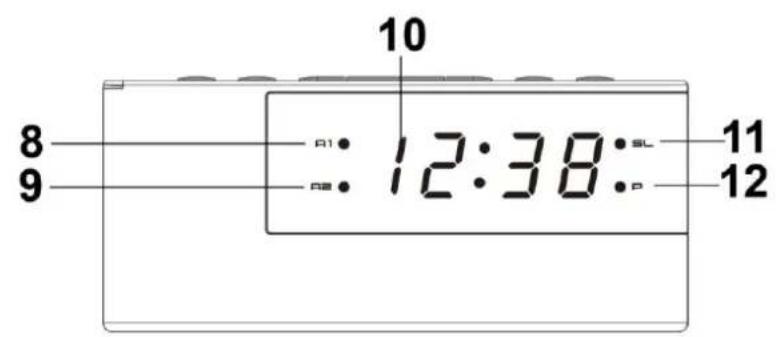

Front view

8 - Alarm 1 icon 11 - Sleep icon
9 - Alarm 2 icon 12 - PM icon

10-Time

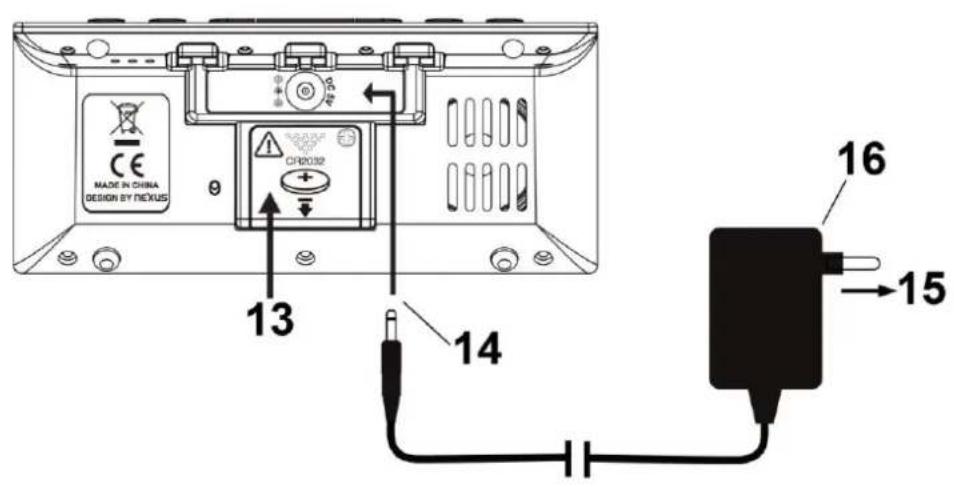

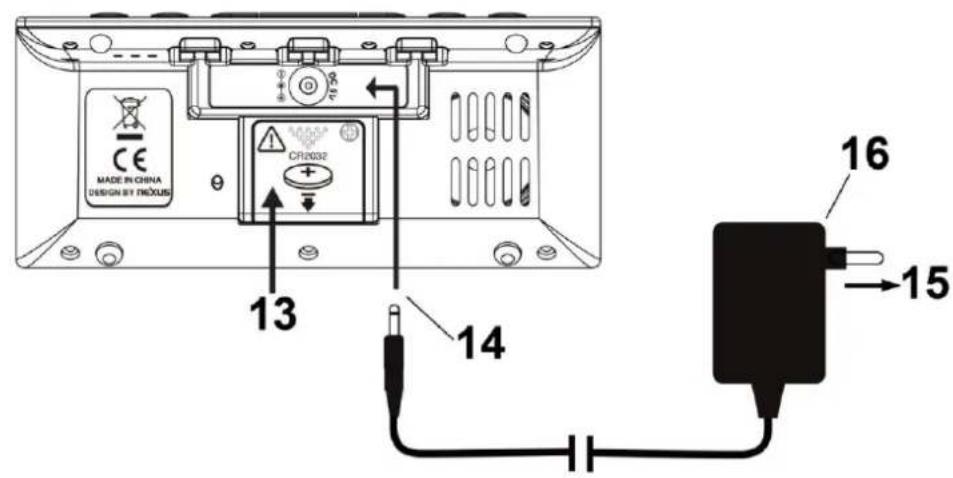

Back view

13-Battery 15-AC wall socket
14-Power connection 16-AC/DC adaptor

Use the product only for its intended purpose!

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only lithium batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
  Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Power up the clock radio

Insert the AC/DC adaptor to any 230V AC household outlet. Then insert the DC jack to the back case of the unit.

The clock radio will be powered on at low brightness. Press Zz once to adjust to high LED brightness if needed and it is ready to work.

Backup battery installation (optional)

The clock radio requires one CR2032 lithium battery (not included) to provide backup power to the clock in the event of a temporary power interruption.

1. Place the unit face down on a flat and soft surface.
2. Loosen the screw on the battery compartment cover.
3. Slide and remove the battery cover at the bottom of the unit.
4. Insert one CR2032 lithium battery into the battery compartment with the "+" side facing up as indicated.
5. Replace the battery cover and tighten the screw again.

If AC power is interrupted, the LED display will go off and both the radio and the alarm will not function. The backup battery will keep the time and all settings of your unit. Make sure a fresh CR2032 lithium battery is used.

A fresh CR2032 battery could backup your clock continuously for around 1 week.

Time, 12/24HR and snooze duration setting

1. Press and hold SET, the hour digits flash. Press / to set the hours. Press and hold / will accelerate your setting.
2. Press SET again, the minute digits flash. Press / to set the minutes. Press and hold / will accelerate your setting.
3. Press SET again, the display shows "24Hr" flash, press / to select 12Hr 24Hr. In 12Hr mode, P (PM) LED will appear on the display to indicate afternoon time. There is no AM indicator.
4. Press SET again, the display shows "05" and flashes. Press / to select your snooze time from 5 to 60 minutes.
5. Press SET again or if no key pressed for approx. 10 seconds to exit the setting mode.

Alarms setting

1. TO SET ALARM 1: Press AL 1.2 once, the A1 LED and the hour digits flash. Press / to set the hours of Alarm 1. Press and hold to accelerate your setting.
2. Press AL 1.2 once again, the minute digits flash. Press / to set the minutes of alarm 1. Press and hold / to accelerate your setting.
3. Press AL 1.2 again, the LED display shows "OFF". To select the sound sources of your alarm, press / to select:

rd = wake-to-radio

bu = wake-to-buzzer

OFF = alarm 1 is off

1. TO SET ALARM 2: Press AL 1.2 again, the A2 LED and the hour digits flash. Press / to set the Alarm 2's hours. The repeat step 2 to 4 above to set alarm 2.
2. To store your alarm settings, press SET once (or if no button is pressed in around 10 seconds), your clock radio will return to normal time display mode.

When the related alarm is active, it will be indicated by the appearance of the A1 and / or the A2 LED on the left side of the display.

Note 1. Press RADIO / SLEEP once to turn on the radio and press / to select a station first for wake-to-radio alarm.
Note 2: Alarm function only works when your clock radio is powered by AC/DC adaptor.

To stop and reset the alarm to come on the next day

When alarm 1 or 2 is sounding, the related A1 or A2 LED flashes. Press the RADIO / SLEEP or AL 1.2 once to stop the alarm and reset it to come on the following day. After that A1 and/or A2 LED remains on the display.

Snoopze

When alarm is sounding, press Zace the alarm will be silenced and repeat after the set snooze duration.

Note: if your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

HI-LO-OFF dimmer

Press to select the LED brightness (HIGH / LOW / OFF) of the LED display. This can only be done when the radio is off.

Set up the FM antenna

Extend the FM wire antenna fully and vary the direction for best FM reception. Do not strip, alter or attach to other antennas.

FM radio

1. To turn on the radio, press RADIO/SLEEP once, the display shows "ON" and then the radio frequency readings in Mhz.
2. Press / to tune the radio to a desired station. Press and hold / to scan for the next clear station.
3. To adjust the volume, press VOL once, the display shows "L07" (default volume), press / to adjust volume from L01 (minimum) to L15 (maximum).
4. Press once to turn off the radio.

Remark: keep your radio away from fluorescent lamps or other electronic devices, which may cause interference to the radio.

To use the preset memory

This clock radio features a total of 10 preset memories of FM stations. These allow you to preset your favorite stations and access them quickly.

1. Turn on the radio and select a radio station you like to memorize.
2. Press and hold the SET until "P01" flashes. Press SET once to store Memory 1.
3. Press / to select another station you like to memorize. Then press and hold SET until "P01" flashes. Press once, "P02" flashes. Press SET once to store Memory 02.
4. Repeat Step 2 to 3 to preset memories 3 through 10.
5. To access a preset station at any time, press the SET one at a time while the radio is on.
6. To edit a preset station, select another station and then repeat Step 2 to 4. This overrides the original settings.

To use the sleep timer

1. When radio is on and time is displayed, press RADIO/SLEEP twice to enter the sleep mode. The SL (SLEEP) LED and the sleep time "05" (5 minutes) come on and will flash on the display.
2. Press the RADIO/SLEEP again as needed to adjust the sleep timer from 5, 15, 30, 45, 60, 75, 90 or OFF.
3. When the display changes back to show the time, press RADIO/SLEEP twice to show the sleep time remaining.
4. The radio will play for the programmed sleep time and then shut off.
5. To turn off the radio before the sleep time has elapsed, press

Trouble shooting

If your clock radio displays irrelevant time or does not function properly, which maybe caused by electro-static discharge or other interference, unplug the DC jack to disconnect the AC power (and remove the backup battery) and leave it for few minutes before powering it up again. The clock radio will be reset to default settings and you need to set it again.

Care of your product

1. Place your clock radio on a stable surface, away from sources of direct sunlight or excessive heat or moisture.
2. Protect your furniture when placing your units on a natural wood and lacquered finish by using a cloth or protective material between it and the furniture.
3. Clean your unit with a soft cloth moistened only with mild soap and water. Stronger agents such as Benzene, thinner or similar materials can damage the surface of the unit. Make sure the unit is unplugged before cleaning.
4. If the unit is not to be used for a prolonged period, such as a month or longer, remove the backup battery to prevent possible corrosion. Should the battery compartment become corroded or dirty, clean the compartment thoroughly and replace the batteries.

Specifications

Alarm duration 1 hour

Snoopze duration 5 to 60 minutes

Sleep timer selections 5, 15, 30, 45, 60, 75, 90 minutes to OFF

Volume L01 (minimum) to L15 (maximum)

Preset Memories of radio 10

Power adapter SW0500600-A02

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
