Product Type	Cabinet Exhaust Fan
Brand	Tripp Lite
Model	SRCLOSETINTAKE (Serial Number AG-0047)
Intended Use	Indoor, controlled computer room
Power Supply	Circuit with overcurrent protection max. 20 A, compliant with NEC and CCE
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Mounting	Wall mount only, do not mount on ceiling or fire barrier wall
Air Filter	Yes, replaceable. Always use with filter installed.
Warranty	2 years limited
Maintenance	Replace filter regularly. Clean exterior. No user-serviceable parts.
Safety	Important instructions: do not obstruct, keep hair and clothing away, installation by qualified personnel.
Replacement Parts	Replaceable air filter
Repairability	Not user-repairable. Do not open the fan.
General Information	Manufactured by Tripp Lite, Chicago, IL USA. Manual available in multiple languages.

Frequently Asked Questions - SRCLOSETINTAKE Tripp Lite

How do I install the fan?

Installation must be performed by a qualified person. Use the provided mounting holes and appropriate hardware. Do not mount on ceiling or fire barrier wall. Ensure the surface can support the weight.

What is the function of the filter?

The air filter prevents dust and contaminants from entering the fan and cabinet. It should be changed regularly to maintain optimal performance.

How do I clean the fan?

Clean the exterior with a dry cloth. Do not open the fan. Replace the filter on a regular schedule. Keep openings clear.

Can I use this fan in a kitchen?

No, this fan is not intended for kitchen use. It is designed for controlled computer rooms only.

What is the warranty for this product?

Tripp Lite offers a 2-year limited warranty from the date of purchase, covering defects in materials and workmanship. It does not cover normal wear, misuse, or neglect.

Can I mount this fan on the ceiling?

No, ceiling mounting is prohibited. The fan must be mounted on a wall, using the provided mounting holes.

What should I do if the fan does not work?

Check the power supply and filter. Ensure openings are not blocked. If the problem persists, contact Tripp Lite. Do not attempt to repair yourself.

Is it possible to repair the fan myself?

No, the fan contains no user-serviceable parts. Do not open the housing. Any repair must be carried out by a qualified professional.

Where can I find replacement parts?

The only consumable is the air filter. Contact Tripp Lite or an authorized dealer for a replacement filter.

What are the important safety precautions?

Install the fan in a controlled indoor environment, away from moisture and extreme temperatures. Do not block openings. Keep hair and clothing away. Follow all local electrical codes.

USER MANUAL SRCLOSETINTAKE Tripp Lite

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Read all instructions and warnings thoroughly before attempting installation. Failure to comply may affect the warranty and cause property damage and personal injury.

Connection, Installation and LocationWarnings

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Inspect the shipping container and the unit for shipping damage. Do not use the unit if it is damaged.
• Install in a controlled indoor environment, away from moisture, temperature extremes, conductive contaminants, dust and direct sunlight. Do not expose to water or rain. FOR USE IN CONTROLLED IT ROOM APPLICATIONS ONLY.
• For best performance, keep the indoor temperature between 32^ F and 104^ F ( 0^ C and 40^ C).
• Installation is to be performed by a SKILLED PERSON, knowledgeable in installing fans.
• All Installation work and electrical wiring must be done by SKILLED PERSON(s) in accordance with all applicable codes and standards, including fire-related construction.
  Install in accordance with local and national electric codes ANSI/NFPA 70 and Canadian Electrical Code, Part I, C22.1.

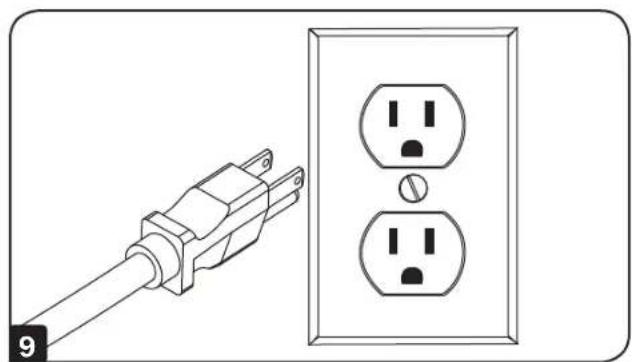

  To reduce the risk of fire, connect only to a circuit provided with 20A branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1.
• Not intended for ceiling mounting. Do not mount in a ceiling. DO NOT MOUNT IN A FIRE-RATED WALL. Not for use in kitchens. Do not operate without air filter installed. Always install the outer covers with the supplied screws.
• Do not attempt to modify or drill holes into the enclosure for mounting. Use the mounting holes provided.
• It is the installer's responsibility to choose appropriate hardware to mount the fan.
• When cutting or drilling into wall, do not damage electrical wiring and other hidden utilities.
• When using tools, use eye protection and follow all other safety precautions recommended by the tool Manufacturer and required by applicable regulations.

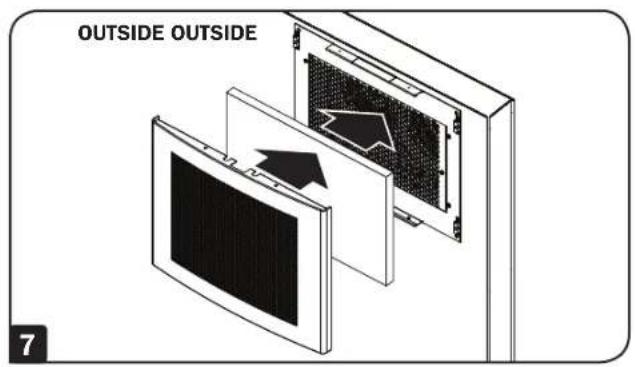

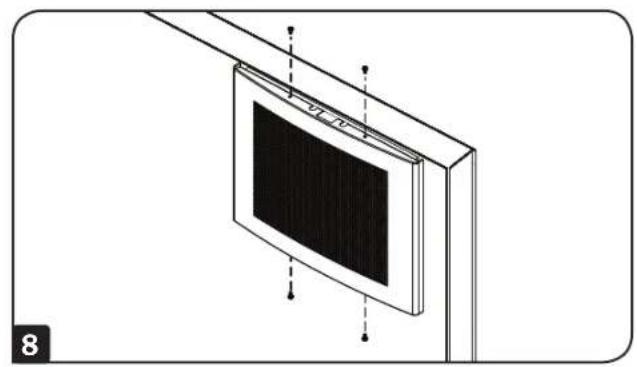

• Set up a schedule and change the fan filter regularly. Keep hair, clothing and loose objects away from the fan intakes. There is a risk of property damage and personal injury. After filter replacement, be sure to fasten the cover with the screws. The fan does not require routine maintenance. Do not open the fan for any reason. There are no user-serviceable parts inside.
• Do not obstruct the fan openings. Do not block, cover or insert objects into the openings of the fan.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Explanation of Symbols

Caution, Risk of Danger

Caution, Moving Fan Blades

Caution, Electric Shock Hazard

Mounting

Notes:

This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
- Installers are responsible for providing appropriate installation hardware for the mounting surface.
Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.

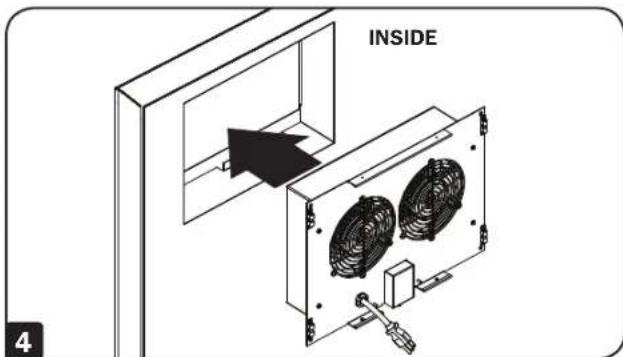

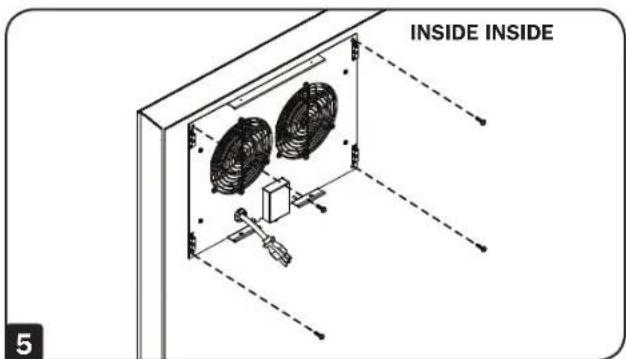

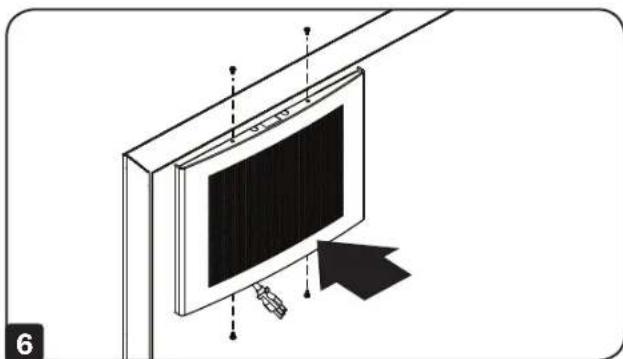

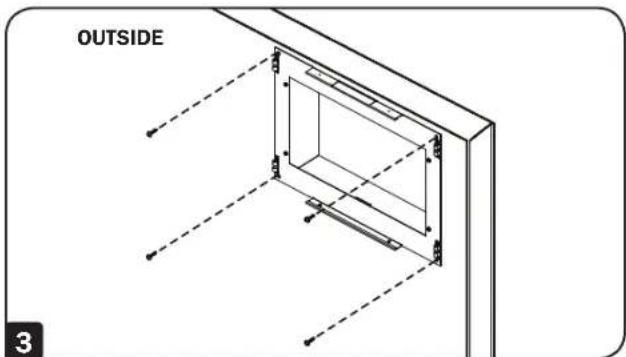

These instructions show an installation in which the fans draw in cool air from the outside. For installations in which the fans pull warm air out from the inside, install the bracket on the inside of the wall and the fan on the outside of the wall.

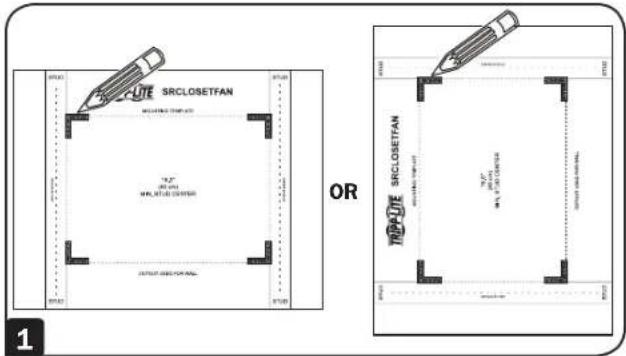

If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.

If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.

Mounting

Warranty and Product Registration

2-Year Limited Warranty

f

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTYES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGE. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support
