Operating Instructions

recorded with DVD video recorders etc.

Video & Still pictures (JPEG)

DVD-RW (DVD-VR)

recorded and finalized with DVD video recorders etc.

DVD-Audio/DVD-Video/Video CD/CD

sold on the market

Movie, Music etc.

DVD-R/DVD-RW/+R/+RW

recorded and finalized with DVD video recorders etc.

Video (played as DVD-Video)

CD-R/CD-RW

recorded and finalized with personal computers etc.

Music (WMA/MP3), Still pictures (JPEG) &

Video (MPEG4)

SD

recorded with Panasonic SD multi cameras, etc.

Still pictures (PICTURE) & Video (VIDEO)

See pages 7, 8 for details.

LECTURE MULTI FORMAT

DVD-RAM

Operations in these instructions are described mainly with the main unit, but you can do the operations on the remote control if the remote controls are the same ( Back cover)

U.S.A.: The warranty can be found on page 36.

Canada: The warranty can be found on page 38.

If you have any questions contact/

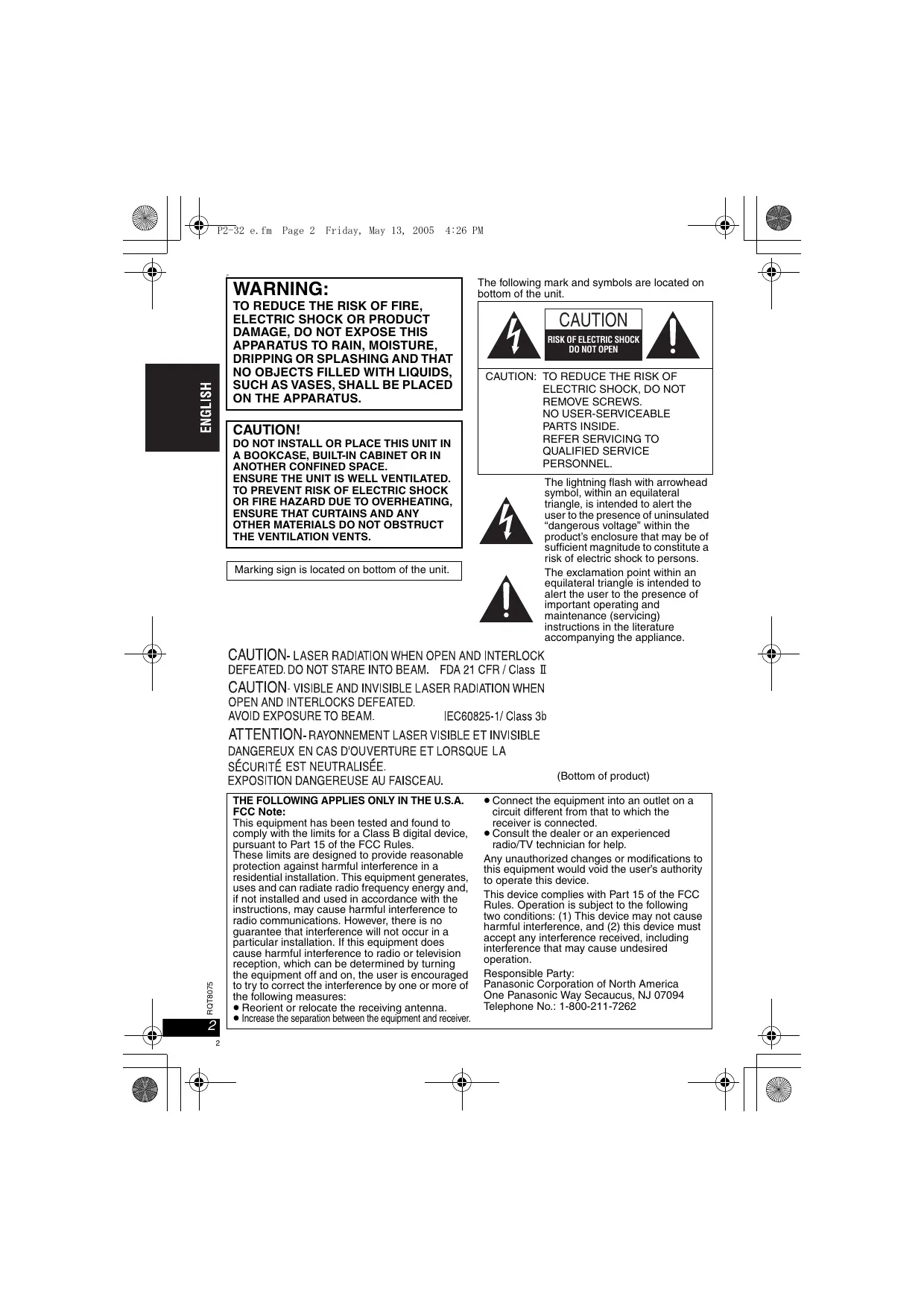

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

Marking sign is located on bottom of the unit.

The following mark and symbols are located on bottom of the unit.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION- LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. FDA 21 CFR / Class II CAUTION- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. IEC60825-1/ Class 3b

ATTENTION-RAYONNEMENT LASER VISIBLE ET INVISIBLE DANGEREUX EN CAS D'OUVERTURE ET LORSQUE LA SECURITE EST NEUTRALISEE. EXPOSITION DANGEREUSE AU FAISCEAU.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

(Bottom of product)

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094

Telephone No.: 1-800-211-7262

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

WARNING:

The driver must not operate this unit while the vehicle is moving.
Do not operate this unit where it can be viewed by the driver.
Driver operation or viewing of this unit while the vehicle is moving will cause distraction which may result in serious accident and personal injury or property damage.

CAUTION!

THIS PRODUCT UTILizes A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

AC adaptor

This AC adaptor operates on AC between 100 V and 240 V.
But

• In the U.S.A. and Canada, the AC power supply cord must be connected to a 120 V AC power supply only.
• When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration.
• When connecting to a supply of greater than AC 125 V, ensure the cord you use is suited to the voltage of the AC supply and the rated current of the AC adaptor.
• Contact an electrical parts distributor for assistance in selecting a suitable AC plug adaptor or AC cord set.

NOTICE:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

Table of contents

IMPORTANT SAFETY INSTRUCTIONS 4

Accessories 5

Preparations

1 The remote control. 5
2 Attaching the battery 5
Recharging the battery 6
4 Adjusting the LCD angle 6

Discs that can be played 7
Cards that can be played. 8

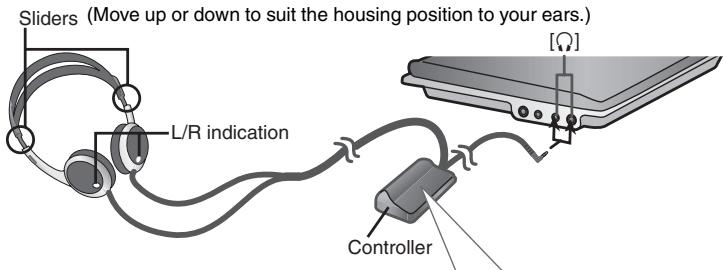

How to use the noise canceling headphones 9
Playing discs 10
Useful functions for playing discs 12

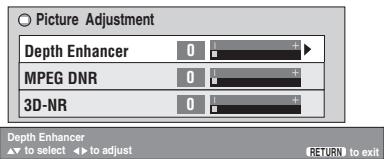

Enjoying higher quality audio and video 14
All group/Program/Random play .. 16
Playing data discs 17
Playing HighMAT™ discs. 18
Playing programs/playlists on RAM/DVD-RW (DVD-VR) discs... 18
Playing CD. 18
Tips for making WMA/MP3, JPEG and MPEG4 discs (For CD-R/CD-RW). 19
Playing SD cards 20
Useful functions for playing SD cards. 22
FM transmitter. 23
Using On-Screen Menus 24

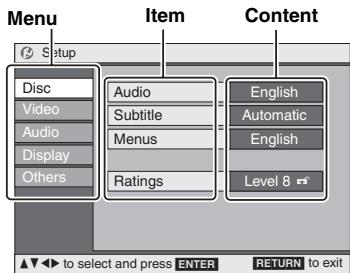

Changing the player settings 26

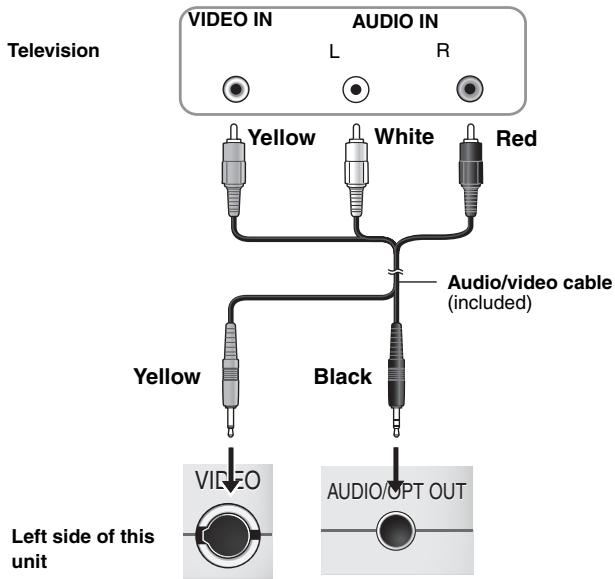

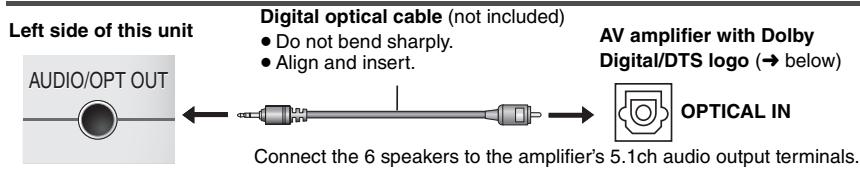

Using this unit with other equipment 28
When using in a car 29
Frequently asked questions 30
Glossary 30
Specifications 31
Troubleshooting guide. 32
Maintenance 35
Limited Warranty (ONLY FOR U.S.A.) 36
Product Service 37
Limited Warranty (ONLY FOR CANADA) 38
Main feature index . . . . Back cover

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Batteries

1. Battery pack (Lithium ion battery pack)

2. Use this unit to recharge the battery pack.

3. Do not use the battery pack with equipment other than the specified player.
4. Do not use the player outside if it is snowing or raining. (The battery pack is not waterproof.)
5. Do not get dirt, sand, liquids, or other foreign matter on the terminals.
6. Do not touch the plug terminals (+ and -) with metal objects.

7. Do not disassemble, remodel, heat or throw into fire.

8. Button-type battery (Lithium battery)

9. Insert with poles aligned.

10. Do not touch the terminals (+ and -) with metal objects.
11. Do not disassemble, remodel, heat or throw into fire.
12. Keep out of reach of children

If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the eyes.

Rinse eyes thoroughly with water, and then consult a doctor.

1. Disposing of the batteries

Check and follow your local regulations before disposal.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION:

The batteries used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble or incinerate the batteries. Do not heat the batteries above the following temperatures.

Button-type battery 100°C (212°F) Battery pack 60°C (140°F)

Do not recharge the button-type battery.

Replace only with Panasonic part number indicated below:

Button-type battery (Lithium battery)

(for remote control) CR2025

Battery pack

(Lithium ion battery pack) CGR-H703

Optional battery pack

(Lithium ion battery pack) CGR-H702

Use of other batteries may present a risk of fire or explosion.

A lithium ion/polymer battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

Accessories

Use numbers indicated in parentheses when asking for replacement parts.

(Product numbers correct as of March 2005. These may be subject to change.)

(For U.S.A.) To order accessories, refer to "Accessory Purchases" on page 37.

(For Canada) To order accessories, call the dealer from whom you have made your purchase.

1 Remote control (N2QAHC000021)
1 Button-type battery* for remote control (for replacement, see below)
1 Audio/video cable (K2KA6CB00003)
1 AC adaptor (RFEA213W)
1 AC power supply cord (K2CB2CB00018)

1 Car DC Adaptor (RFEC201M)
1 Noise canceling headphones (LOBAD0000179)
1 Battery* for noise canceling headphones
1 Rechargeable battery pack (CGR-H703)

For replacement: Available from Panasonic dealers

(CGR-H702), (CGR-H703)

• The included AC power supply cord and AC adaptor are for use with this unit only. Do not use them with other equipment.
  *Keep out of the small children.
  Accidental swallowing of batteries can result in stomach and intestinal damage.

Preparations

The remote control

Insert the button-type battery (included)

While sliding (1), pull out (2).
Lithium battery: CR2025

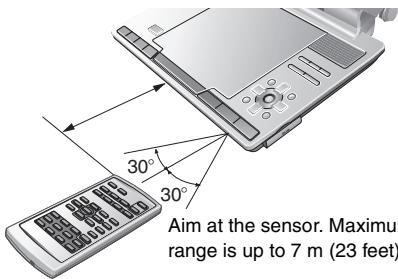

Range of use

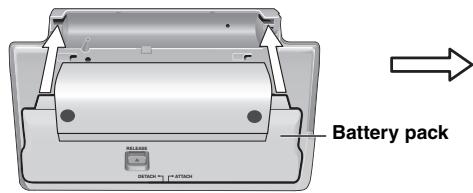

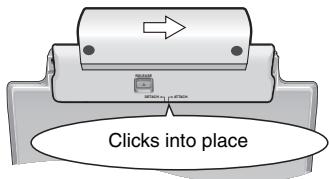

Attaching the battery (When the unit is off)

Bottom side of this unit

Check to make sure it is securely fastened.

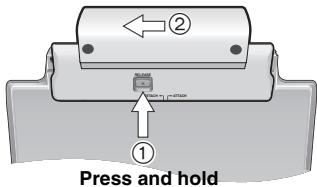

Detaching

• Turn the unit off before detaching the battery pack.

When not using for long periods of time

• Remove the battery pack ( left).
  (Even when the unit is turned off, there is a small amount of voltage running through the unit, and this may result in a malfunction.)
• Recharge the battery for re-use.

(Continued on next page)

Preparations

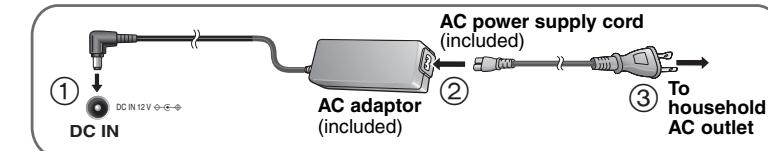

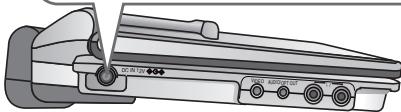

Recharging the battery (When the unit is off)

• You can also use this unit without charging while connecting the AC adaptor and the AC power supply cord.

To conserve power

This unit consumes 0.5W of power even when turned off. When the unit is not going to be used for a long time, disconnect the AC power supply cord from the household AC outlet.

CHG

CHG

Started

F

finished

[0]

goes

→

lights

[CHG]

lights

→

goes out

Recharging time : Approx. 8 hours

When finished, disconnect the AC adaptor and the AC power supply cord.

(CGR-H703, included)

Approx. 5 hours (CGR-H702, optional)

Checking the remaining battery charge

When the unit is on ( page 10) and powered by the battery pack

Press [DISPLAY] to check on the LCD (Displays for a few seconds).

screen)

Approximate play times (Hours)

Battery pack	Play (at room temperature using headphones with the FM transmitter off and key illumination on)
	LCD brightness level			LCD Off
	-5	0 (factory preset)	+5
CGR-H703 (included)	10 (12.5)	8 (10)	6 (7.5)	16 (20)
CGR-H702 (optional)	6 (7.5)	4 (5)	3 (4)	8 (10)

Recharge(Appears automatically when there is only a few minutes of charge remaining.)

• Times for when playing SD cards are in parenthesis.
  The times indicated on the left may differ depending on use.
  To change the LCD brightness ( page 13, Adjusting the picture quality on the LCD/Key illumination ON·OFF).

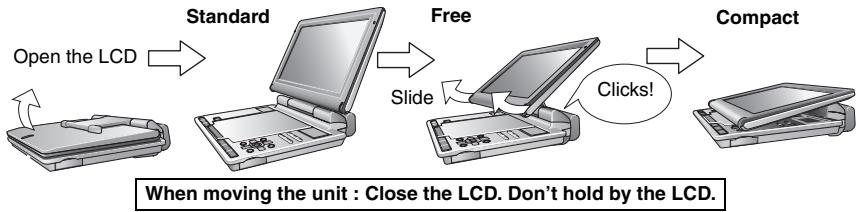

Adjusting the LCD angle

Discs that can be played

Operations in these instructions are described mainly with reference to specific formats. Icons such as RAM show the formats.

DVD RAM RAM4.7	DVD-RAM RAM JPEG MPEG4 • RAM Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard), such as DVD video recorders, DVD video cameras, personal computers, etc. • JPEG Recorded with Panasonic SD multi cameras or DVD-Video recorders using DCF (Design rule for Camera File system) Standard Version 1.0. • MPEG4 Recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system].
DVD AUDIO	• DVD-A Some multi-channel DVD-Audio will prevent down-mixing (→ page 30, Glossary) of all or part of their contents if this is the manufacturer's intention. When playing such discs, or such parts of the disc, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly (e.g. part of the audio is missing, multi-channel audio cannot be selected and audio is played in two channels). Refer to the disc's jacket for more information. • DVD-V Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select "Play as DVD-Video" (→ page 25, Other Menu).
DVD VIDEO VIDEO	DVD-Video DVD-V Example: Discs marked with labels containing the region number "1" or "ALL" 1 ALL 124
DVD DVD DVD R R W	DVD-R (DVD-Video)/DVD-RW (DVD-Video) DVD-V Discs recorded and finalized* on DVD video recorders or DVD video cameras
	DVD-RW (DVD-VR) DVD-RW (VR) Discs recorded and finalized* on DVD video recorders or DVD video cameras using Version 1.1 of the Video Recording Format (a unified video recording standard).
—	+R (Video)/+RW (Video) DVD-V Discs recorded and finalized* on DVD video recorders or DVD video cameras
COMPACT DISC DIGITAL VIDEO	Video CD VCD Including SVCD (Conforming to IEC62107)
COMPACT DISC DIGITAL AUDIO	CD CD WMA MP3 JPEG MPEG4 VCD • This unit can play CD-R/RW recorded with the above formats. Close the sessions or finalize* the disc after recording. • WMA MP3 JPEG This unit also plays HighMAT discs.

*A process that allows play on compatible equipment.
- It may not be possible to play the above discs in all cases due to the type of discs, the condition of the recording, the recording method and how the files were created [ page 19, Tips for making WMA/MP3, JPEG and MPEG4 discs (For CD-R/CD-RW)].

Discs that cannot be played

DVD-ROM, Version 1.0 of DVD-RW, CD-ROM, CDV, CD-G, SACD, DivX Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridges, 2.6-GB and 5.2-GB DVD-RAM, PAL discs* and "Chaoji VCD" available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

*You can play DVD-Audio, however still pictures may be displayed enlarged.

Note about using a DualDisc

• The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so play may not be possible.
• Do not use a DualDisc in this unit as it may not be possible to insert it correctly and it may get scratched or scraped.

Cards that can be played

SD Memory Card/miniSDTM Card*

This unit can play the following types of data recorded on an SD Memory Card.

Still pictures SD PICTURE

Recorded with Panasonic SD multi cameras or DVD-Video recorders using DCF (Design rule for Camera File system) Standard Version 1.0.

Moving pictures SDVIDEO

Recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system].

^* A miniSDTM card adaptor included with the miniSDTM card is necessary.

• MOTION JPEG and MPEG2 are not supported.
• Some files are not compatible with this unit and cannot be played back. For example:
  -Moving picture files recorded using a digital still camera with moving picture function
• It may not be possible to play the above cards in all cases due to the type of cards, the condition of the recording, the recording method.
  The recording date may differ from that of the actual date.
• Do not remove the card or turn off the unit while the card is being read from ("Reading card..." is on the display) or the unit is using the card. This can corrupt your data.
  Operation is not guaranteed with MultiMediaCard.

Suitable SD Memory Cards

• You can use SD Memory Cards with the following capacities (from 8 MB to 1 GB). 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB, 1 GB (Maximum)
• Useable memory is slightly less than the card capacity.
• Please confirm the latest information on the following website. (This site is in English only.) http://panasonic.co.jp/pavc/global/cs
• If the SD Memory Card is formatted or recorded on a PC, you may not be able to use it on this unit.
• This unit supports SD Memory Cards for Panasonic SD multi cameras and DVD video recorders, etc. formatted in FAT 12 system and FAT 16 system based on SD Memory Card Specifications.
• We recommend using a Panasonic SD card.

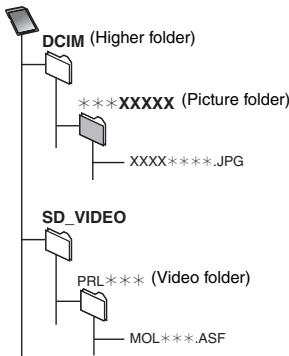

Structure of folders displayed by this unit

(Files are treated as contents and folders are treated as groups on this unit. However there are no groups with SDVIDEO.)

The following can be displayed on this unit.

***: Numbers XXX:Letters

Card

• Some folders cannot be displayed depending on the folder name.
• A folder name or file name input may not be displayed properly or played properly.

How to use the noise canceling headphones

Environmental noises in airplanes, trains, and busses, and noise caused by air-conditioners are reduced, providing a quieter listening environment. This function allows you to enjoy music without raising the volume too high, and is, therefore, kinder to your ears.

This unit mainly reduces the annoying low frequency sounds below 1500Hz . For this reason, sounds with higher frequency portions, from car horns, telephones and human voices, remain relatively intact.

Inserting the battery
R03/LR03, AAA

Press in and down on the end.

Battery duration

Approximately 25 hours (R03 manganese battery)

Approximately 50 hours

(LR03 alkaline battery)

Note

The actual life of the battery depends on operating conditions.

• If rechargeable batteries are to be used, rechargeable batteries manufactured by Panasonic are recommended.

When to change the battery

The battery should be changed when the [OPR] indicator (see below) fades or fails to light. The noise canceling function becomes less effective as the battery wears down. (If the battery is worn down, or if a battery isn't inserted at all, the unit acts like normal headphones.)

Connecting the noise canceling headphones to the unit

- Turn the main unit on and adjust its volume. ( page 10)

Turning on the noise canceling function

Switch [OPR] to "ON".

The [OPR] indicator lights.

Select the noise canceling level with [NOISE CANCEL].

Select "MAX" under normal circumstances. Select "MID" for a lower level of noise canceling.

Adjust the volume.

Adjust the volume with [VOLUME] on the controller or readjust the volume on the unit.

• Separate the controller from mobile phones as noise may occur.
• Discontinue use if you experience discomfort with the headphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

Playing discs

1 Open the lid.

OPEN
AV SELECT

2 Insert a disc and close the lid.

Load double-sided discs so the label for the side you want to play is facing up.

RAM Remove discs from their cartridges before use.

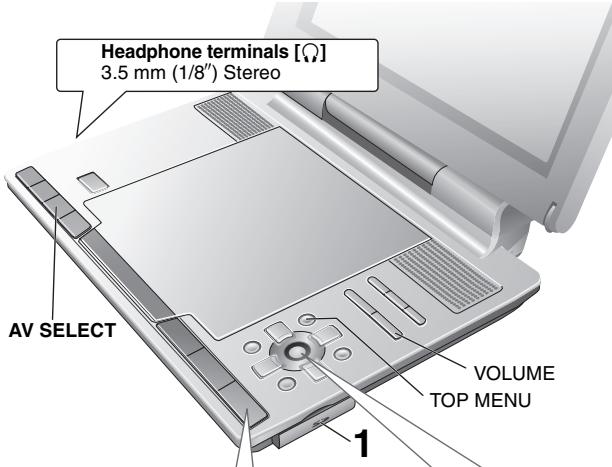

Headphone terminals [O]
3.5 mm (1/8") Stereo

3 Press and hold.

ON

The unit turns on and play begins. The button lights green. (To turn off the key illumination page 13) When "No Card", "SD" or SD Card menu is displayed, press [AV SELECT].

4 Adjust the volume.

VOL

• When using the noise canceling headphones (included) ( page 9)
• To play JPEG or MPEG4 files on DVD-RAM that contain both RAM and another format (e.g.

JPEG), select "Play as Data Disc" ( page 25, Other Menu).

• While stopped, the unit automatically turns off once 15 minutes (after approximately 5 minutes when using the battery pack) have elapsed.
• Discs continue to rotate while menus are displayed. Press [■, -OFF] when you finish to preserve the unit's motor.
  Total title number may not be displayed properly on + / +
• If you are experiencing problems, refer to troubleshooting guide (→ page 32).

Main unit operations

ON ▷	Turn unit on/play	Press and hold and the power comes on and play begins.
II	Pause	Press [▶, ON] to restart play.
— OFF □	Stop	The position is memorized when “Press PLAY to resume play” appears on the screen. • Press [▶, ON] to resume. • DVD-√ While the message is displayed, press [▶, ON] and the previous chapters are reviewed. Opening the disc lid or pressing [■, -OFF] while “Press PLAY to resume play” appears on the screen cancels the memorized position where play stopped.
	Turn unit off	Press and hold until “OFF” is displayed.
	Skip	Press [←,→]. RAM DVD-RW (VR) Can also skip to the markers.
	Search	Press and hold [←,→] (up to 5 steps).
	Slow play	Press and hold [←,→] (up to 5 steps) while paused. Press [▶, ON] to return to normal play. VCD [→] only • MPEG4: Does not work.
TOP MENU	Top menu	DVD-A DVD-V
	Program menu	RAM DVD-RW (VR) (→ page 18)
MENU	Menu	DVD-V
	Playlist	RAM DVD-RW (VR) (→ page 18)

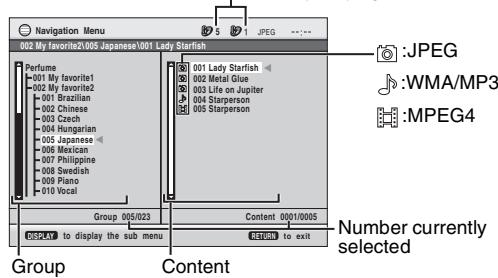

	Navigation menu	WMA MP3 JPEG MPEG4 (→ page 17)
RETURN	Return	Returns to the previous screen. VCD (with playback control) Returns to the menu.
ENTER	Menu operation	Press [▲▼→] to select an item and press [ENTER] to confirm.
	Frame-by-frame	While paused, press [←]. VCD [▶] only
	Group skip	WMA MP3 JPEG MPEG4 Press [▲▼].

Remote control operations

1	2	3	4	5	6	≥10
7	8	9	0
Enter number	RAM DVD-RW (VR) DVD-A DVD-V VCD CD e.g. To select 12: [≥10] → [1] → [2] VCD with playback control While stopped, press the numbered buttons. WMA MP3 JPEG MPEG4 e.g. To select 123: [1] → [2] → [3] → [ENTER]

Useful functions for playing discs

Repeat play

(Only when the elapsed play time can be displayed. For JPEG, you can use even if there is no elapsed time display.)

Repeating a specified section (A-B Repeat)

Except JPEG MPEG4 and RAM DVD-RW (VR) (still picture part)

1

DISPLAY

Press once during play.

2

① Press [ ] to select Other Settings.

② Press [▶] to go to the next menu and [ ] to select "Play Menu".

③ Press [▶] to go to the next menu and [ ] to select "Repeat" or "A-B Repeat".
Selecting "Repeat": Press [▶] and [▲▼] to select the content to repeat and press [ENTER]. Selecting "A-B Repeat": Press [ENTER] at the starting and ending points.

e.g. A-B Repeat

Menu

A-B Repeat**

• To cancel "Repeat": In step ④, press [▶] and [▲▼] to select "Off" and press [ENTER].
• To cancel "A-B Repeat": After step ④, press [ENTER] again.
• To exit the screen: Press [RETURN].

Changing play speed RAM DVD-RW (VR) DVD-V

1

DISPLAY

Press once during play.

2

① Press [▲▼] to select Other Settings.
② Press [ ] to go to the next menu and [ ] to select "Play Speed".
③ Press [ENTER] and [ ] to select "Normal" or "x0.6" to ^ 1.4" (in 0.1 units).
④ Press [ENTER].

• Press [▶] (PLAY) to return to normal play.
  After you change the speed

• Advanced Surround ( below) and Multi Re-master ( page 14) do not work.

• Audio output switches to 2 ch (Digital output switches to PCM).

• 96 kHz sampling frequency is converted to 48kHz

• This may not work depending on the disc's recording.

• To exit the screen: Press [RETURN].

Enjoying virtual surround (Advanced Surround)

RAM DVD-RW (VR) DVD-V VCD (2 or more channels)

1

DISPLAY

Press once.

2

① Press [▲▼] to select Other Settings.
② Press [ ] to go to the next menu and [ ] to select "Audio Menu".
③ Press [▶] to go to the next menu and [▲▼] to select “Advanced Surround”.
④ Press [ ] to go to the next menu and [ ] to select "SP 1 Natural" or "SP 2 Enhanced".
⑤ Press [ENTER].

A surround sound effect can be made using 2 speakers (on other equipment).

• When using the headphones, press to select "HP 1 Natural" or "HP 2 Enhanced".
• When using discs recorded with surround sound, sound seems to come from speakers on either side of you.
• Optimum seating position is 3 to 4 times the distance between the front left and right speakers or the width of the television if using the television's speakers.
• Do not use in combination with surround effects on this unit ( page 14, Sound quality) or on other equipment.
• To exit the screen: Press [RETURN].

MONITOR MODE

Press to select the monitor mode.

NORMAL:Normal

FULL: Stretched horizontally

ZOOM: Stretched vertically and horizontally

OFF: No picture

• If you are not using the LCD on this unit, select "OFF" to conserve power. (The [O] indicator flashes)
  The LCD turns off automatically if you close it.

Adjusting the picture quality on the LCD/Key illumination ON·OFF

1

PICTURE MODE/DNR
Press once.

2

Press [ ] to select the item, and [ ] to change the setting.

BRIGHT COLOUR

KEY ILLUMINATION:Selecting "OFF" turns off the key illumination when the unit is on.

• To exit the screen: Press [RETURN].

Changing soundtracks DVD-A DVD-V (with multiple soundtracks)

RAM DVD-RW (VR) VCD

AUDIO
(Remote control)

Press to select the soundtrack.

Menu

Audio

1

RAM DVD-RW (VR) VCD

You can use this button to select "L", "R" or "L R".

DVD-V (Karaoke discs)

Press [▲] to select "On" or "Off" for vocal:

Read the disc's instructions for details.

• To exit the screen: Press [RETURN].

Signal type/data

LPCM/PPCM/D Digital/DTS/MPEG: Signal type kHz (Sampling frequency)/bit/ch (Number of channels)

Example: 3/2.1ch

L.1: Low frequency effect (not displayed if there is no signal) 0: No surround 1: Mono surround 2: Stereo surround (left/right) 1: Center
2: Front left+Front right 3: Front left +Front right + Center

Changing subtitles

DVD-V (with subtitles) VCD (SVCD with subtitles only)

RAM DVD-RW (VR)

(On/Off only with discs that contain subtitle on/off information)

SUBTITLE
(Remote control)

DVD-V VCD

Press to select the subtitle language.

• On +R / + RW , a subtitle number may be shown for subtitles that are not displayed.

To clear/display the subtitles

Press [▶] to select "On" or "Off".

RAM DVD-RW (VR)

Press to select "On" or "Off".

• Subtitle on/off information cannot be recorded using Panasonic DVD Recorders.

- To exit the screen: Press [RETURN].

Angle select DVD-V (with multiple angles) / Still picture rotation JPEG

ANGLE
(Remote control)

Press to select the angle or rotate the still picture.

• To exit the screen: Press [RETURN].

e.g. DVD-V

Enjoying higher quality audio and video

Reproducing more natural audio (Multi Re-master)

RAM DVD-RW (VR) DVD-V (Discs recorded with 48kHz only)

DVD-A (Discs recorded with 44.1 kHz and 48 kHz only) VCD CD

This feature gives you a more natural sound by adding the higher frequency signals not recorded on the disc.

WMA MP3 (Disc recording is other than 8 kHz, 16 kHz or 32 kHz)

This feature reproduces the higher frequencies lost during recording to give you a sound closer to the original.

Press once.

① Press [▲▼] to select Other Settings.
② Press [▶] to go to the next menu and [ ] to select "Audio Menu".
③ Press [▶] to go to the next menu and [▲▼] to select "Multi Re-master".
④ Press [▶] and [▲▼] to select “1”, “2” or “3”.
⑤ Press [ENTER].

• To exit the screen: Press [RETURN].

Setting	DVD-A DVD-V CD (LPCM/PPCM) Type of music	Other discs Effect level
1	High tempo (e.g., pop and rock)	Light
2	Various tempos (e.g., jazz)	Medium
3	Low tempo (e.g., classical)	Strong
Off	Off	Off

• This feature may not work when connecting with a digital optical cable (→ page 28).
• This may not work depending on the recording conditions.

Sound quality (Only when headphones are connected)

EQ MODE

XBS NORMAL

XBS: Boosts the bass.

NORMAL: Nomal sound

Press to change.

1 DISPLAY

Press once.

① Press [▲▼] to select Other Settings.
② Press [▶] to go to the next menu and [ ] to select "Picture Menu".
③ Press [▶] to go to the next menu and [▲▼] to select "Picture Mode".
④ Press [▶] to go to the next menu and [▲▼] to select "Normal", "Cinema1", "Cinema2" or "User".

Cinema1: Mellows images and enhances detail in dark scenes.
Cinema2: Sharpens images and enhances detail in dark scenes.
User: Reduces noise in moving pictures.

(5) Press [ENTER].

Only when "User" is selected

1. Press [ ] to select "Picture Adjustment".
2. Press [ENTER] and [ ] to select "Depth Enhancer", "MPEG DNR" or "3D-NR".

-Depth Enhancer: Reduces the rough noise in the background to give a greater feeling of depth.
-MPEG DNR: Smoothes block noise and reduces the smudging that appears around contrasting sections of the picture.
-3D-NR: Reduces overall noise.

1. Press [ENTER] and [ ] to adjust (Depth Enhancer: 0 to +4, MPEG DNR: 0 to +3, 3D-NR: 0 to +4).

Even if you press [PICTURE MODE/DNR] twice, the "Picture Adjustment" screen is displayed.

• To exit the screen: Press [RETURN] several times.

• This may not work depending on the recording conditions.

All group/Program/Random play Remote control only

DVD-A DVD-V VCD CD WMA MP3 JPEG MPEG4

PLAYMODE

While stopped Press to chang

All group (DVD - A) Program play Random play Off (Normal play)

• Disable HighMAT disc play to use random and program play.

Select "Play as Data Disc" in Other Menu. ( page 25).

All group play DVD-A

PLAY

All Group Playback

Press PLAY to start

Program play (up to 32 items)

e.g. DVD-V

1

Press to select an item ( page 11).

Repeat this step to program other items.

2

PLAY

Selecting all the items (on the disc or in the title or group)

Press [ENTER] and [ ] to select "ALL", then press [ENTER] again to register.

Changing the program

Press [ ] to select an item.
-To change an item, repeat step 1.
-To clear an item, press [CANCEL] (or select "Clear" and press [ENTER]).

Clearing the whole program

Select "Clear all" and press [ENTER]. The whole program is also cleared when the unit is turned off or the disc lid is opened.

Random play

e.g. DVD-V

1 DVD-A DVD-V WMA MP3 JPEG MPEG4 only 2

Press to select a group or a title ( page 11).

7 8 9 0

2

PLAY

Playing data discs

WMA MP3 JPEG MPEG4

Select "Play as Data Disc" ( page 25, Other Menu) to play JPEG or MPEG4 files on DVD-RAM that contain both RAM and another format (e.g. JPEG) or to play HighMAT discs without using the HighMAT function.

Playing items in order (Playback menu)

While the menu is displayed

Press [▲▼] to select "All", "Audio", "Picture" or "Video" and press [ENTER].

• To display/exit the screen: Press [TOP MENU].

Playing from the selected item (Navigation menu)

Press.

Press [▲▼▲] to select the group and press [ENTER].

To play content in the group in order: Press [ENTER].
- To start play from the selected content:

Group and content number currently playing

Press [ ] to select and press [ENTER].

• To listen to WMA/MP3 contents while showing a JPEG image on the screen
  Select a JPEG first, and then select WMA/MP3. (The opposite order is not effective.)
• To exit the screen : Press [MENU].

Using the submenu

While the navigation menu ( see above) is displayed.

1 Press [DISPLAY].
2 Press [ ] to select the submenu ( see right) and press [ENTER].

Submenu

Groups and content
List	Content only
Tree	Groups only
Thumbsail	Thumbsail images JPEG
Next group	To the next group
Previous group	To the previous group
All	WMA/MP3, JPEG and MPEG4
Audio	WMA/MP3 only
Picture	JPEG only
Video	MPEG4 only
Help display	To switch between guide messages and the elapsed play time indicator
Find	To search by content or group title (→ see below)

Searching by a content or group title

Press [▶] to highlight a group title to search a group, or a content title to search its content.

1 Select "Find". (→ see above)
2 Press [ ] to select a character and press [ENTER].

Repeat to enter another character.
- Lower case is also searched.
- Press and hold [1, 2, 3] to skip between A, E, I, O and U.
- Press [ ] to erase a character.
- Erase the asterisk (*) to search for titles starting with that character.

3 Press [▶] to select "Find" and press [ENTER]. The search result screen appears.
4 Press [ ] to select the content or group and press [ENTER].

Playing HighMAT™ discs

WMA MP3 JPEG

While the menu is displayed Press [ ] to select items and press [ENTER].

Menu: Takes you to the next menu which shows playlists or another menu.

[ \text{Play start.} ]

• To return to the menu screen, press [TOP MENU] then press [RETURN] several times.
  To change the menu background, press [DISPLAY]. The background changes to the one recorded on the disc.
• To display/exit the screen, press [TOP MENU].

Selecting from the list

1. During play, press [MENU].
2. Press [▲] then [▲▼] to switch among " Playlist", "Group" and "Content" lists.
3. Press [▶] then [▲▼] to select an item and press [ENTER].
4. To exit the screen: Press [MENU].

Playing programs/playlists on RAM/DVD-RW (DVD-VR) discs

RAM DVD-RW (VR)

• Titles appear only if they have been entered.
• You cannot edit playlists and titles.

1 To play programs:
TOP MENU

To play playlists:

2

Press [▲▼] to select the program or playlist and press [ENTER].

• Only when the disc contains a playlist.

• You can also use the numbered buttons on the remote control ( page 11).

• Press [▶] to show the contents of the program (Only when playing the program).
• To exit the screen: Press [TOP MENU] or [MENU].

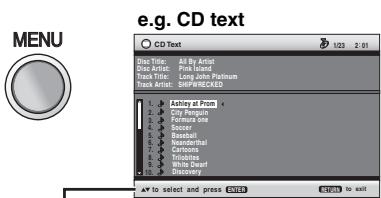

Playing CD

CD

Titles appear with CD text playback.

1

2

• To exit the screen: Press [MENU].

Press [DISPLAY] to switch between guide messages and the elapsed play time indicator.

Tips for making WMA/MP3, JPEG and MPEG4 discs (For CD-R/CD-RW)

• Discs must conform to ISO9660 level 1 or 2 (except for extended formats).
• This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.
• If groups were created away from the root like "002 group" in the illustration below, the eighth one and onwards are displayed on the same vertical line in the menu screen.
• There may be differences in the display order on the menu screen and computer screen.
• This unit cannot play files recorded using packet write.

Naming folders and files

(Files are treated as content and folders are treated as groups on this unit.)

At the time of recording, prefix folder and file names. This should be with numbers that have an equal number of digits, and should be done in the order you want to play them (this may not work at times).

WMA (Extension:“.WMA” or“.wma”)

• Compatible compression rate: between 48 kbps and 320 kbps
• You cannot play WMA files that are copy protected.
• This unit is not compatible with Multiple Bit Rate (MBR: a file that contains the same content encoded at several different bit rates).

MP3 (Extension:“.MP3” or“.mp3”)

• Compatible compression rate: between 32 kbps and 320 kbps
• Compatible sampling rate: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1, and 48kHz
• This unit is not compatible with ID3 tags.

e.g. MP3

JPEG (Extension: "JPG", "jpg", "JPEG" or "jpeg")

• JPEG files taken on a digital camera that conform to the DCF Standard Version 1.0 are displayed.
• Pictures taken using digital camera functions not supported by DCF like automatic picture rotation may not be displayed.
• Files that have been altered, edited or saved with computer picture editing software may not be displayed.
• This unit cannot display moving pictures, MOTION JPEG and other such formats, still pictures other than JPEG (e.g. TIFF) or play pictures with attached audio.

MPEG4 (Extension:“.ASF”, or“.asf”)

• You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system] recorded with the Panasonic SD multi cameras or DVD video recorders with this unit.
  The recording date may differ from that of the actual date.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

Notice:

This product has parts that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance:http://www.eiae.org.

Playing SD cards

1 Insert the card.

1 Open the cover.

2 Insert the card.

• If you are using a miniSDTM card, insert it into the miniSDTM card adaptor that comes with the card. Insert and remove this adaptor from the unit.

Close the cover.

• You can use SD Memory Cards with capacities from 8 MB to 1 GB ( page 8).

2 Press and hold.

The unit turns on and SD Card Menu is displayed. The button lights green. (To turn off the key illumination page 13) When the SD Card Menu is not displayed, press [AV SELECT].

Remove the card

① Open the cover.
② Press on the center of the card.

③ Pull it straight out.

3

Press [▶] to select "Picture" or "Video".

Press [ENTER]. Play begins.

SDVIDEO Adjust the volume.
- When "No picture content" or "No video content" is displayed, press [TOP MENU] to return to the SD card menu.

• When using the noise canceling headphones ( page 9)
• While stopped, the unit automatically turns off once 15 minutes (after approximately 5 minutes when using the battery pack) have elapsed.
• If you are experiencing problems, refer to troubleshooting guide ( page 32).

Main unit operations

ON	Turn unit on	Press and hold and the power comes on and SD card menu (→ above) is displayed.
II	Pause	Press [▶, ON] to restart play.
OFF □	Stop	The position is memorized when “Press PLAY to resume play” appears on the screen. ● Press [▶, ON] to resume. Pressing [■, -OFF] while “Press PLAY to resume play” appears on the screen, removing the card or pressing [AV SELECT] cancels the memorized position where play stopped.
	Turn unit off	Press and hold until “OFF” is displayed.
	Skip	Press [▶,▶].
	Search	SDVIDEO Press and hold [▶,▶](up to 5 steps).
TOP MENU	SD card menu	[→page 22, Playing items in order (SD card menu)]
MENU	Navigation menu	[→page 22, Playing from the selected item (Navigation menu)]
RETURN	Return	Returns to the previous screen.
ENTER	Menu operation	Press [▲▼▶] to select an item and press [ENTER] to confirm.
	Group skip	SD PICTURE Press [▲▼].

Remote control operations

↓	→	Skip	Press [↓,→].
←	→	Search	SDVIDEO Press [←,→] (up to 5 steps).
1	2	3	Enter number
4	5	6	≥10
7	8	9	0

• You cannot turn on the unit with the remote control if the unit is powered by the battery pack.

Useful functions for playing SD cards

Playing items in order (SD card menu)

1

TOP MENU

Press.

2

Press [▶] to select "Picture" or "Video" and press [ENTER].

The SD card menu disappears.

• When "No picture content" or "No video content" is displayed, press [TOP MENU] again to return to the SD card menu.

Playing from the selected item (Navigation menu)

1

MENU

Press.

2

SDVIDEO

Press [▲▼▲▶] to select the content.

To show other pages: Press [▲▼◆] to select "Prev" or "Next" and press [ENTER]. You can also press [▲◆] to show other pages.

SD PICTURE

Press [▲▼▲] to select the content and press [ENTER].

• To show other pages: Press [▲▼▲] to select "Prev" or "Next" and press [ENTER]. You can also press [▲▼,▲] to show other pages.

To select contents in the other group

① Press [▲] to select "Group" and press [ENTER].

② Press [ ] to select the group and press [ENTER].

• To show other pages: Press [▲▼▲] to select "Prev" or "Next" and press [ENTER]. You can also press [▲▶] to show other pages.

③ Press [▲▼▲▶] to select the content and press [ENTER].

• To show other pages: Press [▲▼▲] to select "Prev" or "Next" and press [ENTER]. You can also press [▲▼,▲] to show other pages.

• To exit the screen: Press [RETURN].

The following operations are possible with SD cards, too. The operations are the same as operations while playing a disc.

Repeat play ( page 12)

SD PICTURE Groups repeat only.

SDVIDEO Contents repeat only.

Selecting how to show 4:3 aspect pictures on the LCD (→ page 13)

Adjusting the picture quality on the LCD/Key illumination ON·OFF (→page 13)

Still picture rotation SDPICTURE ( page 13)

Sound quality ( page 14)

Picture Mode ( page 15)

Program/Random play ( page 16)

All group play does not work.

FM transmitter

You can enjoy listening to discs or SD through your FM radio channel (e.g. car stereo) by transmitting audio signals from this unit.

Disconnect the headphones or audio/video cable from the unit.

1 ON Play the disc or SD card.
2 Press to switch the FM transmitter on.

The button changes from green to orange.

• No sound is heard from this unit. Adjust the volume on the unit using the volume scale on the LCD as your guideline.
• When playing a music CD, adjust to a level near the center of the volume scale on the LCD as the guideline.
• When playing a DVD movie, etc., adjust to a level near the maximum as the guideline.

3 Tune the radio to the 88.3 MHz FM frequency.

When another FM broadcast is heard.

(see below, step 2-② in "When this has not been successful")

4 Adjust the volume using the radio.

To turn off the FM transmitter: Press [FM-TM].

The button changes from orange to green. (When KEY ILLUMINATION "OFF" is selected, the light goes out.) ( page 13)

When this has not been successful

1

FM TRANSMITTER

STEREO

88.3 MHz

MONO

• When the FM transmitter is on

Press twice consecutively to display the menu.

• Noise is heard from the FM radio channel between each press.

• When the FM transmitter is off

Press to display the menu.

• No sound is heard from the unit.

2

• When noise is heard

Select "MONO" using [ ] .

• When there is interference with the local FM stations

① Select "88.3 MHz" (factory preset) using [▼].

Using [▲▶], select a frequency between 88.3 MHz and 107.7 MHz which is not being used by a broadcasting station.

The frequency can be set in 0.1 MHz increments.

3 Tune the FM radio into the frequency selected in step 2.

Using On-Screen Menus

1 DISPLAY Press once.

① Press [▲▼] to select the menu.
② Press [ ] to go to the next menu and [ ] to set.

Repeat step ② if necessary.

• Press [<] to go to the previous menu.
• Items shown differ depending on the type of software.
• There are items which you can select using the numbered buttons and [ENTER] on the remote control.
• If the setting does not change, press [ENTER].
  To finish, press [RETURN].

Main menus

Program, Group, Title Chapter, Track, Playlist Content	To start from a specific item
Time	To skip incrementally or decrementally* (Time Slip for play only) 1. Press [ENTER] twice to show Time Slip indicator. 2. Press [▲▼] to select the time and press [ENTER]. ●Press and hold [▲▼] to alter faster. To start from a specific time* (Time Search) To change remaining/ elapsed time display
Video	To display pixel number
Audio	(→ page 13, Changing soundtracks)
	To display the current bitrate or sampling frequency
Still Picture	To switch still picture
Thumbnail	To show thumbnail images
Subtitle	(→ page 13, Changing subtitles)
Marker (VR)	To recall a marker recorded on DVD-Video recorders
Angle	(→ page 13, Angle select)
Rotate Picture	(→ page 13, Still picture rotation)
Slideshow	To turn on/off slideshow To change the slideshow timing (0 to 30 sec)
Other Settings	(→ See below)

• Except +R/+RW

Other Settings

Play Speed	→ page 12, Changing play speed)
Play Menu (Only when the elapsed play time can be displayed, JPEG SD PICTURE: The Repeat and Marker functions can be used.)

Repeat	(→ page 12, Repeat play)
A-B Repeat	(→ page 12, A-B Repeat)
MarkerExcept RAM DVD-RW (VR)	To mark up to 5 positions to play again[ENTER] (The unit is now ready to accept markers.)To mark a position: [ENTER] (at the desired point)To mark another position: [▲ ▲] to select “*”→ [ENTER]To recall a marker: [▲ ▲] → [ENTER]To erase a marker: [▲ ▲]→ [CANCEL] (Remote control)This feature doesn’t work during program and random play.Markers you add clear when you open the disc lid, remove the card,select another source or switch the unit to standby.

Picture Menu

Picture Mode	(→ page 15, Picture Mode)
Audio Menu
Advanced Surround	(→ page 12, Enjoying virtual surround)
Dialogue Enhancer	To make the dialogue in movies easier to hear DVD-VR (Dolby Digital, DTS, 3-channel or over, with the dialogue recorded in the center channel) On ←→ Off
Multi Re-master	(→ page 14, Reproducing more natural audio)
Display Menu
Information	On ←→ Off (JPEG SD PICTURE MPEG4 SD VIDEO: Off, Date, Details)
Subtitle Position	0 to -60 (in of 2 units)
Subtitle Brightness	Auto, 0 to -7
Just Fit Zoom	RAM DVD-RW (VR) DVD-V VCD To expand the letterbox picture to fit the screen. Press [▲▼] to select the preset aspect ratio or "Auto". Auto ←4:3 Standard ←→ European Vista ←→ 16:9 Standard ↑ Cinemascope2 ←→ Cinemascope1 ←→ American Vista MPEG4 SD VIDEO Standard ←→ Original ↑→ Full ←→
Manual Zoom	RAM DVD-RW (VR) DVD-V VCD MPEG4 SD VIDEO Press [▲▼] for fine adjustments. (Press and hold to alter faster.) -from ×1.00 to ×1.60 (in 0.01 units), -from ×1.60 to ×2.00 (in 0.02 units) MPEG4 SD VIDEO only -from ×2.00 to ×4.00 (in 0.05 units) • It may not be possible to zoom up to ×4.00 depending upon the connected television and its settings.
Bit Rate Display	RAM DVD-RW (VR) DVD-V VCD MPEG4 SD VIDEO On ←→ Off
GUI See-through	On ←→ Off
Other Menu
Setup	(→ page 26, Changing the player settings)
Play as DVD-Video or Play as DVD-Audio	Select "Play as DVD-Video" to play DVD-Video contents on DVD-Audio.
Play as DVD-VR Play as HighMAT or Play as Data Disc	Select "Play as Data Disc" to play JPEG or MPEG4 files on DVD-RAM that contain both RAM and another format (e.g. JPEG) or to play HighMAT discs without using the HighMAT function.
Checking the play status (Elapsed play time indicator)
Press [DISPLAY] twice. Condition-play, pause or slow/search Current position 2 2 1:23:54:- Current playback item Elapsed time/remaining time Press [▲▼] to change. (WMA/MP3/SVCD can only display elapsed time.)

Changing the player settings

Remote control only

• Referring to pages 26 to 27, change as required.
• Underlined items are the factory presets.

The settings remain intact even if you switch the unit to standby.

1 2

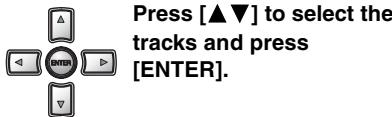

Press [▲▼▲] to select the menu, item, content and press [ENTER].

• To return to the previous screen, press [RETURN].
• To finish the SETUP menu, press [SETUP].
• While stopped, the menu is also displayed when [MENU] on the main unit is pressed; however, when a DVD-RAM or HighMAT CD is being used a playlist menu appears.

"Disc" tab

Audio	• English • French • Spanish • Original (The original language designated on the disc is selected) • Other*****
Subtitle	• Automatic [If the language selected for “Audio” is not available, subtitles appear in that language (If available on the disc).] • English • French • Spanish • Other*****
Menu	• English • French • Spanish • Other*****
Ratings Set a ratings level to limit DVD-Video play. • Follow the on-screen instructions.	Setting ratings (When level 8 is selected) • 8 No Limit • 1 to 7: Prohibits play corresponding to ratings recorded on the disc. • 0 Lock All: To prevent play of discs without ratings levels. When setting a ratings level, a password screen is shown. Follow the on-screen instructions. Do not forget your password. A message screen will be shown if a DVD-Video exceeding the ratings level is inserted in the unit. Follow the on-screen instructions.

※Input a code number referring to the table on page 27.

"Video" tab

TV Aspect Choose the setting to suit your television and preference.	·4:3 Pan&Scan: Regular aspect television (4:3) The sides of the wide screen picture are cut off so it fills the screen (unless prohibited by the disc). ·4:3 Letterbox: Regular aspect television (4:3) Widescreen picture is shown in the letterbox style. ·16:9: Widescreen television Use the television's screen modes to change the way the picture is shown.
Still Mode Specify the type of picture shown when paused.	·Automatic ·Field: The picture is not blurred, but picture quality is lower. ·Frame: Overall quality is high, but the picture may appear blurred.

"Audio" tab

PCM Digital Output*	Check the digital input limitations of the equipment you connect and select the maximum sampling frequency of PCM digital output. Off: When not connected using a digital optical cable Up to 48 kHz: When connected to equipment compatible with 44.1 or 48 kHz Up to 96 kHz: When connected to equipment compatible with 88.2 or 96 kHz Up to 192 kHz: When connected to equipment compatible with 176.4 or 192 kHz •Signals from copy-protected discs are converted to 48 or 44.1 kHz. •Some equipment cannot handle sampling frequencies of 88.2 kHz, even if it can handle 96 kHz. Read your equipment's operating instructions for details.
Dolby Digital*	Bitstream PCM	Select “Bitstream” when the equipment can decode the bitstream (digital form of multi-channel data). Otherwise, select “PCM”. (If the bitstream is output to the equipment without a decoder, high levels of noise can be output and may damage your speakers and hearing.)
DTS Digital Surround*	Bitstream PCM
Dynamic Range Compression	• Off • On: Adjusts for clarity even when the volume is low through compressing the range of the lowest sound level and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital.)
Audio during Search Choose whether to have sound during search	• On •Off

※Only when connected using a digital optical cable (→ page 28)

"Display" tab

Menu Language	• English • Français • Espanol
On-Screen Messages	• On • Off
Background during Play Select background during JPEG and MPEG4 playback.	• Black • Gray

"Others" tab

Re-initialize Setting This returns all values in the Setup menus to the default settings.

● Yes: The password screen is shown if “Ratings” (→ page 26) is set. Please enter the same password and press [ENTER]. When “ Initialized” appears on the screen, wait for about 10 seconds. Press [ENTER] and turn the unit off and on again. ● No

Language code list

Abkhazian: 6566	Chinese: 9072	Hindi: 7273	Malagasy: 7771	Samoan: 8377	Tibetan: 6679
Afar: 6565	Corsican: 6779	Hungarian: 7285	Malay: 7783	Sanskrit: 8365	Tigrinya: 8473
Afrikaans: 6570	Croatian: 7282	Icelandic: 7383	Malayalam: 7776	Scots Gaelic: 7168	Tonga: 8479
Albanian: 8381	Czech: 6783	Indonesian: 7378	Maltese: 7784		Turkish: 8482
Ameharic: 6577	Danish: 6865	Interlingua: 7365	Maori: 7773	Serbian: 8382	Turkmen: 8475
Arabic: 6582	Dutch: 7876	Irish: 7165	Marathi: 7782	Serbo-Croatian: 7168	Twi: 8487
Armenian: 7289	English: 6978	Italian: 7384	Moldavian: 7779	8372	Ukrainian: 8575
Assamese: 6583	Esperanto: 6979	Japanese: 7465	Mongolian: 7778	Shona: 8378	Urdu: 8582
Aymara: 6589	Estonian: 6984	Javanese: 7487	Nauru: 7865	Sindhi: 8368	Uzbek: 8590
Azerbaijani: 6590	Faroese: 7079	Kannada: 7578	Nepali: 7869	Singhalese: 8373	Vietnamese: 8673
Bashkir: 6665	Fiji: 7074	Kashmiri: 7583	Norwegian: 7879	Slovak: 8375
Basque: 6985	Finnish: 7073	Kazakh: 7575	Oriya: 7982	Slovenian: 8376	Volapuk: 8679
Bengali: Bangla: 6678	French: 7082	Kirghiz: 7589	Pashto, Pushto: 8083	Somali: 8379	Welsh: 6789
Bhutani: 6890	Frisian: 7089	Korean: 7579		Spanish: 6983	Wolof: 8779
Bihari: 6672	Galician: 7176	Kurdish: 7585	Persian: 7065	Sundanese:8385	Xhosa: 8872
Bihari: 6682	Georgian: 7565	Laotian: 7679	Polish: 8076	Swahili: 8387	Yiddish: 7473
Breton: 6682	German: 6869	Latin: 7665	Portuguese:8084	Swedish: 8386	Yoruba: 8979
Bulgarian: 6671	Greek: 6976	Latvian, Lettish: 7686	Punjabi: 8065	Tagalog: 8476	Zulu: 9085
Burmese: 7789	Greenlandic:7576		Quechua: 8185	Tajik: 8471
Byelorussian: 6669	Guarani: 7178	Lingala: 7678	Rhaeto-Romance: 8277	Tamil: 8465
	Gujarati: 7185	Lithuanian: 7684		Tatar: 8484
Cambodian:7577	Hausa: 7265	Macedonian: 7775	Romanian: 8279	Telugu: 8469
Catalan: 6765	Hebrew: 7387		Russian: 8285	Thai: 8472

Using this unit with other equipment

Turn off all equipment before connecting and read the appropriate operating instructions.

Enjoying with 5.1ch audio

• Change "PCM Digital Output", "Dolby Digital", and "DTS Digital Surround" (→ page 27).
  DVD-A Output will be only 2 channels.

Dolby Digital/DTS logo

Enjoying stereo audio

Television connections

Connect the video output from this unit directly to the television.

• The unit's speakers do not have magnetic shielding. Do not place the unit near televisions, personal computers or other devices easily influenced by magnetism. Do not keep this unit and magnetized cards (bank cards, commuter passes, etc.) close together.
• If you raise the volume on the television while playing this unit, the volume may abruptly become very loud when you switch to a television broadcast. Return the volume to its normal level before changing.

When using in a car

Do not leave the unit on a surface that may become hot such as a dashboard. The unit is not heat-resistant so may malfunction.

The driver must not operate this unit while the vehicle is moving.

Do not operate this unit where it can be viewed by the driver.

Driver operation or viewing of this unit while the vehicle is moving will cause distraction

which may result in serious accident and personal injury or property damage.

Use included Car DC Adaptor ( see below).

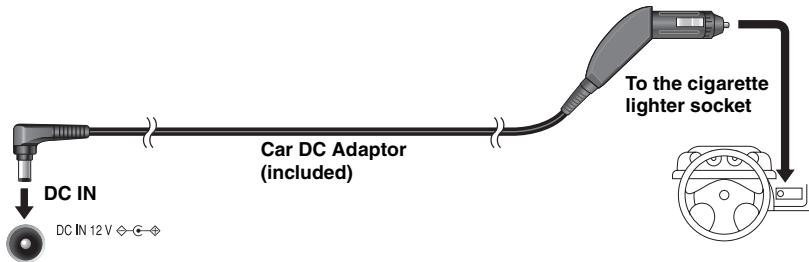

Connections

Before connection, consult your car owner's manual or your dealer.

• Connect to the cigarette lighter socket of a vehicle that has a 12V battery. It is not compatible with a vehicle that has a 24V battery.
• This is a special negative grounded Car DC Adaptor. Using this Car DC Adaptor with a plus grounded car can cause malfunction and lead to fire.

Left side of this unit

Place the unit on a stable surface.

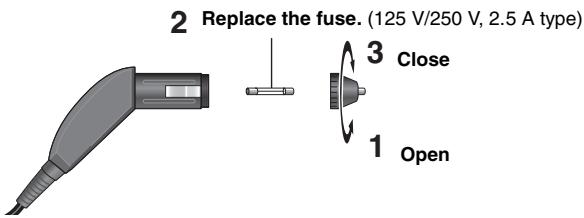

Replacing the fuse

Replace only with the specified 125 V/250 V, 2.5 A fuse. Use of any other type can cause fire.

Cautions

• To avoid draining your car battery

• Disconnect the Car DC Adaptor from the cigarette lighter after use. The Car DC Adaptor continues to consume some power even if it is not being used, and if a battery pack is attached to this unit, it will start recharging which uses more power.
  -Do not use the Car DC Adaptor for long periods when the engine is not running.
  -Do not recharge the battery pack with this Car DC Adaptor. Use the AC adaptor included with this unit.

• When starting an engine, pull Car DC Adaptor out of the cigarette lighter socket. Mishandling of the Car DC Adaptor can cause malfunction.
• No responsibility will be taken for damage that occurs due to faulty installation.
• Leave some slack in the cord.

(Left side of this unit)

You can enjoy audio through your car audio system by connecting a car stereo cassette adaptor (not included: RP-CC20) to the headphone jack on the left side of this unit.

Frequently asked questions

Reference pages are shown in parentheses.

No sound from the unit's speakers.	Turn off the FM transmitter. (The button changes from orange to green.) (23)
What kind of equipment is necessary to enjoy 5.1ch audio?	Connect to an AV amplifier (that has 5.1ch audio output terminals) displaying the Dolby Digital/DTS logo. (28)DVD-A: This unit plays DVD-Audio in 2 channels. You cannot play multi channel surround sound.
Can I play a DVD-Video bought in another country?	You can play if the region number includes “1” or “ALL” and the video standard is NTSC. Check the disc jacket.
Can I use on an airplane or in a hospital?	Electromagnetic waves that are emitted from this unit may affect equipment on an airplane or in a hospital.Please obey the rules and/or instructions indicated by the hospital or airline.
Can I use in a car?	You can use this unit by connecting with the included Car DC Adaptor for power. Damage may occur if you do not use the specified car adaptor. (29)
Can I connect with a computer?	You can enjoy use of the computer as a television monitor when connecting with the AV input terminal on a computer. However, you cannot operate this unit as peripheral equipment.

Glossary

Down-mixing

This is a process of remixing the multi-channel audio (surround sound) on some discs into two channels. When you want to listen to the audio on a DVD with a 5.1 channel digital surround track through your television speakers, the down-mixed audio will be output.

Some DVD-Audio prevent down-mixing of all or part of their contents. When playing such discs, or such parts of the disc, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly.

MPEG4

A compression system for use on mobile devices or a network, that allows highly efficient recording at a low bit rate.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

Listening caution

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.

Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don't turn up the volume so high that you can't hear what's around you.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:
- Leave it there.

Specifications

Operating temperature range:

$$ + 5 ^ {\circ} \mathrm {C} \text {t o} + 3 5 ^ {\circ} \mathrm {C} (+ 4 1 ^ {\circ} \mathrm {F} \text {t o} + 9 5 ^ {\circ} \mathrm {F}) $$

Operating humidity range:

$$ 5 \% \text{to} 85 \% \text{RH} (\text{no condensation}) $$

Discs played [8 cm (3") or 12 cm (5")):

(1) DVD (DVD-Video, DVD-Audio)
(2) DVD-RAM (DVD-VR, JPEG4,6, MPEG45,6)
(3) DVD-R (DVD-Video)
(4) DVD-RW (DVD-Video, DVD-VR)
(5) +R / R W (Video)
(6) CD, CD-R/RW [CD-DA, Video-CD, SVN*1, MP3*2, 6, WMA*3, 6, JPEG*4, 6, MPEG*5, 6, HighMat Level 2 (Audio and Image)]

Signal system: NTSC

LCD screen: 9'' α-Si, TFT wide-screen LCD

Composite-video output:

Output level: 1 Vp-p (75 Ω)

Output terminal: Mini-jack

Number of terminals: 1 system

Audio output:

Output level: 1.5 Vrms (1 kHz, 0 dB, 10 kΩ)

Output terminal: Stereo mini-jack

Number of terminals: 1 system

Audio performance:

(1) Frequency response:
DVD (linear audio): 4 Hz to 22 kHz (48 kHz sampling) 4 Hz to 44 kHz (96 kHz sampling)
DVD-Audio: 4 Hz to 88 kHz (192 kHz sampling)
CD audio: 4 Hz to 20 kHz
(2) S/N ratio: CD audio: 115 dB
(3) Dynamic range: DVD (linear audio): 98 dB CD audio: 97 dB
(4) Total harmonic distortion: CD audio: 0.008%

Digital audio output:

Optical digital output: Mini optical terminal

Number of terminals: 1 system

(also used for audio output)

FM transmitter:

Frequency Range (TX): 88.3 MHz to 107.7 MHz (Digital tuning in 0.1 MHz steps)

Output system: Stereo / Mono (selection is possible)

SD playback*7, 10, 11:

Picture playback: JPEG*8,9

Video playback: MPEG4*5.9

Pickup:

Wave length: 662 nm/785 nm (DVD/CD)

Laser power: CLASS II/CLASS I (DVD/CD)

Power supply: DC 12 V (DC IN terminal)/ DC 7.2 V (Exclusive battery terminal)

Power consumption (using included AC adaptor):

14 W (Unit only: 11 W)

Power consumption in Standby mode

(using included AC adaptor):

approx. 0.5 W

Power consumption in Recharge mode

(using included AC adaptor):

18W

AC adaptor:

Power source: AC 100 V to 240 V, 50/60 Hz

Power consumption: 28 W

DC output: 12 V, 1.5 A

Car DC Adaptor:

DC input: 12 V, 20 W

DC output: 12 V, 1.5 A

Battery pack (lithium ion)

CGR-H703:

Voltage: 7.2 V

Capacity: 8600 mAh

Dimensions (W× D× H)

(excluding protrusions and battery):

*29.9 mm (1 3/16") at lowest point

[D=201.4 mm (7 ^15 / 16'' ) including battery]

[H = 51.5 mm (2^1/32) including battery]

Mass (including battery): 1320 g (46.56 oz)

Note

• Specifications are subject to change without notice. Mass and dimensions are approximate.
• Useable capacity will be less. (SD Memory Card)

1 Conforming to IEC62107
2 MPEG-1 Layer3, MPEG-2 Layer3
3 Windows Media Audio Ver 9.0 L3, Not compatible with Multiple Bit Rate (MBR)
4 Exif Ver 2.1 JPEG Baseline files Picture resolution: between 160 × 120 and 6144 × 4096 pixels (Sub sampling is 4:2:2 or 4:2:0)
5 MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system /G.726 audio system.
6 The total combined maximum number of recognizable audio, picture and movie contents and groups: 4000 audio, picture and movie contents and 400 groups.
7 Useable memory capacities: 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB, 1 GB
*8 Conforming to SD Picture specifications Picture resolution: between 160× 120 and 6144× 4096 pixels (Sub sampling is 4:2:2, 4:2:0 or 4:4:4) Extremely long and slender pictures may not be displayed.
9 The total combined maximum number of recognizable picture and video files and folders Picture: 4000 files and 398 folders Video: 4000 files and 398 folders
10 SD card formatted with equipment conforming to SD File System specifications Ver. 1.01 such as Panasonic SD multi cameras or DVD video recorders (Conforming to FAT 12 standard and FAT 16 standard)
11 miniSD™ card is supported. (A miniSD™ adaptor is required.)

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the "Customer Services Directory" on page 37 if you reside in the U.S.A., or refer to the "Product information" on page 37 if you reside in Canada. (Reference pages are shown in parentheses.)

The following do not indicate malfunction.

Sound from the AC adaptor during recharging.
The battery pack warming up when recharging or during use.
- The surface and area around the unit becoming warm when used for long periods.

Power

No power.	·Check connections to the AC adaptor or battery pack. (5, 6) ·You cannot turn on the unit with the remote control if the unit is powered by the battery pack. ·The unit has protection circuitry that is activated if it becomes too hot or too cold. The unit will not work if this occurs. Use the unit between 5 °C (41 °F) and 35 °C (95 °F).
Unit turns off automatically.	·The unit turns off after it has been stopped for about 15 minutes (5 minutes when the unit is powered by the battery pack) to conserve power. Turn the unit on again.
Cannot charge or the [CHG] indicator fails to light.	·The battery pack can only be recharged when the unit is off. ·The charging time increases when the temperature is too hot or too cold, and charging may not be possible under some circumstances. ·Check connections to the AC adaptor or battery pack. (5, 6)
Play time dramatically reduced after recharging.	·The battery pack has reached the end of its service life (It can be recharged about 300 times).

No operation

No response when any buttons pressed.	·This unit cannot play discs or cards other than the ones listed in these operating instructions. (7, 8) ·The unit may not be operating properly due to lightning, static electricity or some other external factor. Turn the unit off and then back to ON. Alternatively, turn the unit off, disconnect the power source (AC or battery pack), and then reconnect it. ·Condensation has formed: Wait 1 to 2 hours for it to evaporate.
No response when remote control buttons pressed.	·Check that the battery is installed correctly. (5) ·The battery is depleted: Replace it with new one. (5) ·Point the remote control at the remote control sensor and operate. (5)
You have forgotten your ratings password. Reset all the settings to Factory Preset.	·While stopped, press and hold [▶] and [■] on the unit and then also press and hold [▶, ON] on the unit until "initialized" disappears from the screen. Turn the unit off and on again. All settings will return to the default values.
No picture or sound.	·Check that the disc or card has something recorded on it.
The contents of the SD card cannot be read.	·The card format is not compatible with the unit. (The contents on the card may be damaged.) Format using a Panasonic SD multi camera, DVD video recorder or similar device in FAT 12 system or FAT 16 system based on SD Memory Card specifications. (8) ·The card contains a folder structure and/or file extensions that are not compatible with this unit.

Specific operation impossible or incorrect

It takes time before play starts. MP3

The program and random play functions do not work. DvD-V

Menu doesn't appear. VCD with playback control

The on-screen menu shows "2" as a soundtrack option when [AUDIO] is pressed, but the audio does not change. DVD-A

Play restarts from the beginning of the track when soundtrack is changed. DVD-A

Subtitle position is wrong.

No subtitles.

The subtitles overlap closed captions recorded on discs.

In A-B repeat, point B is automatically set.

Play doesn't start.

• Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the correct play time will not be displayed; however, this is normal.
  These functions do not work with some DVD-Video.
• Press [■] twice and then press [▶] (PLAY).
• Even if a second soundtrack isn't recorded, two numbers will normally be shown.
  This is normal on DVD-Audio.
• Adjust the position. ("Subtitle Position" in Display Menu) (25)
• Display the subtitles. (13)
• Clear the subtitles. (13)
• The end of an item becomes point B when it is reached.
• This unit may not play WMA and MPEG4 that contains still picture data. WMA MPEG4 SDVIDEO
• If a disc contains CD-DA (CD) and other formats, proper playback may not be possible.

Picture incorrect

Picture distorted.

No picture on the LCD.

The LCD is dark.

LCD pixels turn black or radiate different colors.

Picture doesn't appear on the television (or the size of the picture seems wrong).

Menu not displayed correctly.

Auto zoom function does not work well.

• Picture quality may worsen or some frames may be skipped when viewing MPEG4, but this is normal.
• Select a monitor mode other than "OFF" (no picture). (13, Selecting how to show 4:3 aspect pictures on the LCD).
• Adjust the brightness. (13, Adjusting the picture quality on the LCD)
• The LCD is constructed with precision technology so 99.99% of the pixels are active, but of the remaining of 0.01% , there are pixels that may be black or emit light constantly. This phenomenon is not a malfunction.
• Check connections. (28)
• Check that the television is on.
• Check that the input mode on the television is correct.
• Check the settings in "Video—TV Aspect". (26)
• Turn off the zooming feature on your television if you are using Zoom. (25)
• Ensure that the unit is connected directly to the television, and is not connected through a video cassette recorder. (28)
• Restore the zoom ratio to × 1.00 . (25)
• Set "Subtitle Position" in Display Menu to "0". (25)
• Use the other preset aspect ratios or manual adjustment. (25)
• Zoom function may not work well, especially in dark scenes and may not work depending on the type of disc.

Sound incorrect

No sound from the unit's speakers.

• Turn off the FM transmitter. When [FM-TM] is on (lights orange), no sound is heard from the unit's speakers. When not using the FM transmitter, press [FM-TM] to off (lights green or when KEY ILLUMINATION "OFF" is selected, goes out). (23)
• The speaker is off if the LCD is closed or headphones are connected.
• Turn up the volume. (10, 20)
• Select "Off" in "Advanced Surround". (12)
• Move unit away from mobile phones.
• Noise may occur when playing WMA files.
• The disc may have restrictions on the method of audio output. With some multi-channel discs, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly. Refer to the disc's jacket for more information. DVD-A
• There may be some noise output when playing MPEG4 or the noise canceling function is turned on or off, but this is normal.
• If you have connected a digital amplifier which does not include decoder, be sure to select "PCM" in "Dolby Digital" or "DTS Digital Surround" in "Audio" tab. (27)
• None of the audio effects work when the unit is connected through the digital optical cable and is outputting bitstream signals. (28)
• Some audio effects do not work or have less effect with some discs.
• Advanced Surround and Multi Re-master do not work if you have changed the play speed.
• Check all connections and settings. (28)
• There may be a pause in sound.
• FM transmitter does not work when the audio/video cable or headphones are connected.

Recording

Cannot record to digital recording equipment. (Incorrect sound recorded.)

• You cannot record WMA/MP3.
• You cannot record DVDs that have protection preventing digital recording.
• You cannot record DVDs if the recording equipment cannot handle signals with a sampling frequency of 48kHz .
  Make the following settings:
• Advanced Surround:
  -PCM Digital Output:
  -Dolby Digital/DTS Digital Surround:
  Off (12)
  Up to 48 kHz (27)
  PCM (27)

Displays

"0

No On-Screen display.

"Check the disc."

ERROR 01"

ERROR 02"

ERROR 03"

“H□□”

□ stands for a number.

"Cannot display group xx, content xx"

• The operation is prohibited by the unit or disc.
• Select "On" for "On-Screen Messages" in "Display" tab. (27)
  Clean the disc. (35)
• A problem has occurred with the battery pack. Consult your dealer.
• The battery pack has been recharging for 12 hours but has failed to recharge for some reason. Recharge again.
• You are recharging in a location that is too hot or too cold. Recharge at normal temperature [+5^ to +35^ (+41^ to +95^)] .
• Trouble has occurred. The number appearing after "H" depends on the problem. Turn the unit off and on again. Alternatively, turn the unit off, disconnect the power source (AC or battery pack), reconnect the power and turn the unit on again.
• If the service numbers fail to clear, note the service numbers and consult your dealer.
• You are trying to play incompatible groups or content. (8, 19)

[O] and [CHG] indicators

The [ð] indicator flashes rapidly.	● The unit has malfunctioned. Consult your dealer.
The [ð] indicator flashes slowly.	● The unit is on and the LCD is closed or the monitor mode is set to “OFF” (no picture). Turn the unit off when you have finished.
The [CHG] indicator flashes rapidly.	● There is a problem with the battery pack. Turn the unit on and check the message on the LCD. (34)
The [CHG] indicator flashes slowly.	● Battery pack charge is low. The unit will turn off automatically after a few minutes.

Maintenance

To clean this unit, wipe with a soft, dry cloth.

• Use eyeglass cleaner to remove stubborn dirt from the LCD.
• Never use alcohol, paint thinner or benzine to clean this unit.

Maintenance of the lens

• Remove dust carefully with an air blower for camera lenses (optional).
  Recommended product:

Lens cleaner kit (SZZP1038C)

(Available from Panasonic dealers.)

• You cannot use a CD type lens cleaner.
• Be careful not to touch the lens with your fingers.

To clean discs

• Wipe with a damp cloth and then wipe dry.

Disc handling precautions

• Do not attach labels or stickers to discs (This may cause disc warping, rendering it unusable).
• Do not write on the label side with a ball-point pen or other writing instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use scratch-proof protectors or covers.

• Do not use the following discs:

• Discs with exposed adhesive from removed stickers or labels (rented discs etc).

• Discs that are badly warped or cracked.
• Irregularly shaped discs, such as heart shapes.

Card handling precautions

• Do not detach the label and do not attach other labels.

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.
MODEL NUMBER	DVD-LX95
SERIAL NUMBER

Limited Warranty (ONLY FOR U.S.A.)

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Puerto Rico, Inc.

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985

Panasonic DVD Player Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name	Parts	Labor
DVD Player	One (1) Year	Ninety (90) Days
Rechargeable Batteries (in exchange for defective item)	Ten (10) Days	Not Applicable

During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company

Customer Servicenter

Suite B

4900 George McVay Drive

McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax [phone].

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as hotel, office, restaurant, or other business), rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTYES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ASING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTYES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262),

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to: [e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pm, EST.)

Panasonic Services Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Service in Puerto Rico

Panasonic Puerto Rico, Inc.

Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone [phone], Fax [phone]

F1104

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.

1. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
2. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
3. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation:

In the U.S.A., refer to "Customer Services Directory" above.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC/TECHNICS PRODUCT—LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect, or at its option, replace the product for a period as stated below from the date of original purchase.

Technics Audio Product

Panasonic Audio & DVD Product

Accessories including rechargeable batteries

One (1) year, parts and labour

One (1) year, parts and labour

Ninety (90) days

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

For product operation and information assistance, please contact your Dealer or our Customer Care Centre at: Telephone #: [phone] Fax #: [phone] Web: www.panasonic.ca

For product repairs, please contact one of the following:

• Your Dealer who will inform you of an authorized Servicentre nearest you.

• Our Customer Care Centre at [phone] or www.panasonic.ca

• A Panasonic Factory Servicentre listed below:

Richmond.

British Columbia

Panasonic Canada Inc. 12111 Riverside Way

Richmond, BC

V6W1K8

Tel: [phone]

Fax: [phone]

Calgary, Alberta

Panasonic Canada Inc. 6835-8th St. N.E.

Calgary, AB

T2E 7H7

Tel: [phone]

Fax: [phone]

Mississauga, Ontario

Panasonic Canada Inc. 5770 Ambler Dr.

Mississauga, ON

L4W 2T3

Tel: [phone]

Fax: [phone]

Lachine, Quebec

Panasonic Canada Inc. 3075, rue Louis A. Amos

Lachine, QC

H8T 1C4

Tel: [phone]

Fax: [phone]

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS 2.0 + Digital Out” are trademarks of Digital Theater Systems, Inc.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

This product is licensed under the MPEG-4 Visual patent portfolio license for the personal and non-commercial use of a consumer for (i) encoding video in compliance with the MPEG-4 Visual Standard (“MPEG-4 Video”) and/or (ii) decoding MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 Video. No license is granted or shall be implied for any other use. Additional information including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

• SD logo is a trademark. • Portions of this product are protected under copyright law and are provided under license by ARIS/SOLANA/4C.

HighMAT™ and the HighMAT logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

Do not rest the unit on your lap for a long time while using it. The unit can become hot and cause burns.

To prevent damage

Avoid the following:

• Spraying flammable insecticides near the unit.
• Pressing the LCD.
• Touching the lens and other parts of the laser pickup.

Do not use the unit in the following places:
- Sandy places such as beaches.
- On top of cushions, sofas, or hot equipment such as amplifiers.

Do not leave in an unventilated automobile or exposed to direct sunlight and high temperatures.

MISE EN GARDE:

AFIN DE PREVENIR TOUT RISQUE D'INCENDIE OU DE CHOCSELECTRIQUES, AINSI QUE TOUT DOMMAGE A L'APPAREIL, NE PAS L'EXPOSER A LA PLUIE, A DES ECLABOSSURES OU A UNE HUMIDITE EXCESSIVE. EVITER EGALMENT DE PLACER DES CONTENANTS AVEC DU LIQUIDE, TEL UN VASE, SUR L'APPAREIL.

ATTENTION!

NE PAS INSTALLER CET APPAREIL DANS UNE BIBLIOTHÉQUE, UNE ARMOIRE OU TOUT AUTRE ESPACE CONFINÉ. S'ASSURER QUE LA VENTILATION DE L'APPAREIL EST ADEQUATE. AFIN D'ÉVITER TOUT RISQUE DE CHOC ÉLECTRIQUE OU D'INCENDIE DU À UN SURCHAUFFEMENT, S'ASSURER QUE RIDEAUX OU TOUT OBJET QUELCONIQUE NE BOUCHENT LES ÉVENTS D'AÉRATION DE L'APPAREIL.

IMPORTANT MISES EN GARDE

Lecture SD*7, 10, 11:

CLASS II/CLASS I (DVD/CD)

Alimentation: 12 V c.c. (Prise DC IN)/

14 W (appareilsubsection:11W)

Bloc-batterie (lithum-ion)

CGR-H703:

Tension: 7,2 V

Puissance: 8600 mAh

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

Certificat de garantie limitee Panasonic/Technics

Panasonic Canada Inc. Panasonic Canada Inc.

12111 Riverside Way 6835-8^th St. N. E.

Richmond, BC Calgary, AB

V6W1K8 T2E7H7

Tél.: [phone] Tél.: [phone]

Téléc.: [phone] Téléc.: [phone]

Panasonic Canada Inc. Panasonic Canada Inc. 5770 Ambler Dr. 3075, rue Louis A. Amos

Mississauga, ON

L4W 2T3

Tél.: [phone]

Téléc.: [phone]

Lachine, QC

H8T 1C4

Designed for
Windows MediaTM

Rotating still picture ( page 13)

Change I'angle ( page 13)

10 Transmitting audio signals through FM frequency ( page 23)

Adjusting the picture quality/ key illumination on -off ( page 13)

This manual was printed with soy based ink.

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus,

New Jersey 07094

http://www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.ca
