PSBT85A - Speaker Pyle - Free user manual and instructions

Product Type	Portable Karaoke Speaker with Wireless Microphone
Brand / Model	Pyle PSBT85A
Dimensions (L x W x H)	27.7 x 20.6 x 39.1 cm (10.9 x 8.1 x 15.4 inches)
Weight (approx.)	Approximately 5.5 kg
Output Power	800 W MAX
Speakers	8" Woofer + 3" Tweeter
Power Supply	AC adapter 240/120 V (9 V) or rechargeable Li-Ion battery 3.7 V 2200 mAh (x2)
Battery Life	Approximately 4-6 hours depending on usage (charge 8-10 h)
Bluetooth	Version 4.2, range up to 10 m (33 ft)
Inputs	USB, MicroSD, AUX 3.5 mm, wired microphone 6.35 mm
Wireless Microphone	UHF, included
Recording Function	Audio recording via USB/SD in WAV format
Frequency Response	55 Hz - 20 kHz
Impedance	4 Ohms
Sensitivity	92 dB (±2 dB)
Signal-to-Noise Ratio	>80 dB
Total Harmonic Distortion	<1%
Housing Material	Molded ABS
Memory Compatibility	USB / SD up to 32 GB
Box Contents	Speaker, wireless microphone, remote control, AC adapter
Care and Cleaning	Wipe with a dry cloth. Do not use liquids.
Safety Instructions	Do not expose to water or moisture. Disconnect during storms. Refer repairs to qualified personnel.
Spare Parts and Repairability	Contact Pyle support at (1) 718-535-1800 or [e-mail]

Frequently Asked Questions - PSBT85A Pyle

How to connect my smartphone via Bluetooth?

Enable Bluetooth on your smartphone and turn on the speaker. Search for the BT network name 'Pyle PSBT85A' in the list of available devices and select it. The connection is automatic without additional code.

What is the battery life?

Battery life is approximately 4 to 6 hours depending on volume and usage. Full charging takes 8 to 10 hours. Use the supplied AC adapter.

How to use the wireless microphone?

Insert batteries into the microphone (not included) and turn it on. The speaker automatically connects to the UHF microphone. Speak into the microphone and adjust the volume using the MIC VOL knob on the speaker.

How to record my voice?

Insert a USB drive or SD card into the speaker. Press the REC button to start recording via the microphone. Press again to stop. Files are saved in WAV format.

What to do if the sound is low or distorted?

Check the volume of the speaker and microphone. If the battery is low, the indicator blinks - recharge the device. Keep the microphone away from speakers to avoid feedback. Make sure the audio source is not too loud.

How to recharge the battery?

Plug the supplied 9 V AC adapter into the DC-IN port of the speaker and into a power outlet. The charging indicator shows the status. Full charging takes 8 to 10 hours.

Can I use a USB flash drive or SD card?

Yes, the speaker accepts USB drives and Micro SD cards up to 32 GB. Insert the media then press the U/SD button to switch to that mode. Playback of MP3, WMA and WAV files is supported.

How to adjust the microphone echo?

Use the ECHO knob on the speaker's control panel. Turn it clockwise to increase the echo effect, counterclockwise to reduce it.

Is the speaker suitable for outdoor use?

Yes, it is portable with a rechargeable battery. However, do not expose it to rain or moisture. Use it sheltered from the weather and store it in a dry place after use.

Where to find spare parts or support?

Contact Pyle customer service at (1) 718-535-1800 or by email at [e-mail]. Keep the manual and device serial number.

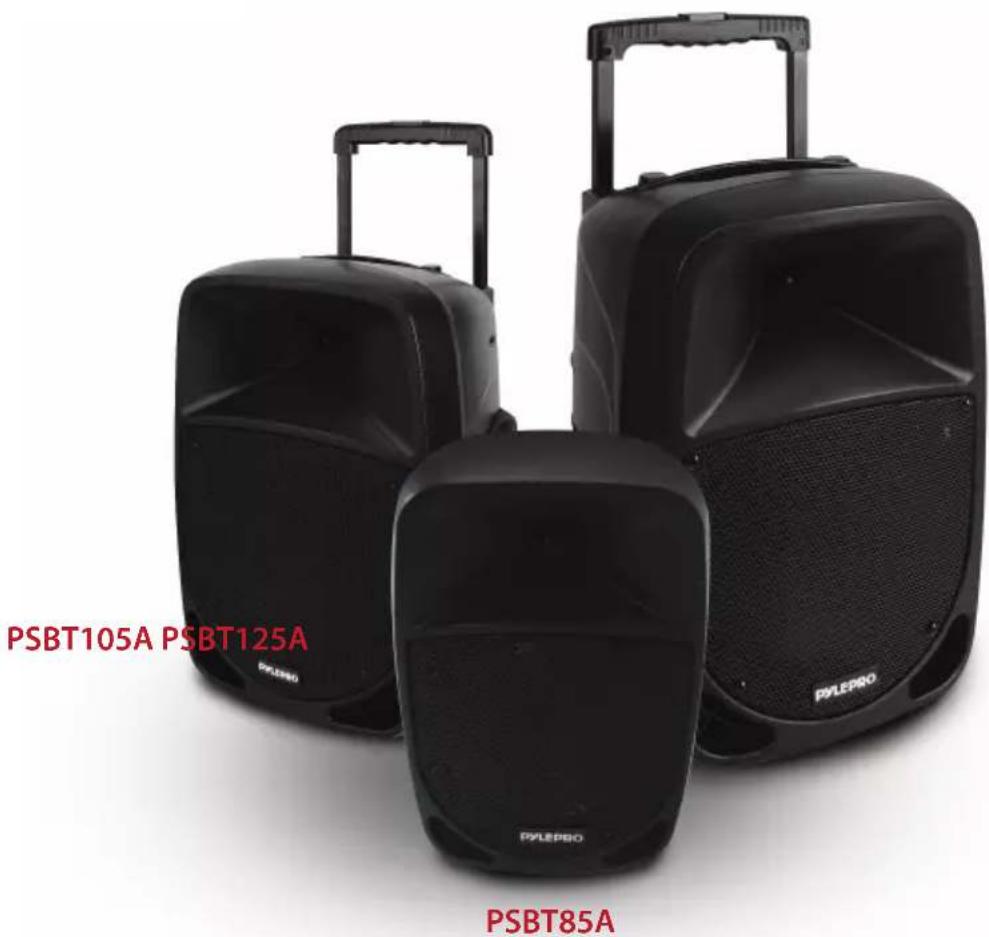

USER MANUAL PSBT85A Pyle

Wireless BT Streaming PA Speaker with Wireless Microphone

Portable Karaoke Speaker System with Built-in Rechargeable Battery, MP3/USB/SD, UHF Wireless Mic

USER MANUAL

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install following the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or ground plug: A polarized plug has two blades with one wider than the other. The wider blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at the plug, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When using a cart, exercise caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a damaged power-supply cord or plug, liquid spillage, objects falling into the apparatus, exposure to rain or moisture, abnormal operation, or if the apparatus has been dropped.

3. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

4. The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids should be placed on it.

5. Use only the battery specified by the manufacturer.

6. The power supply cord set is the main disconnect device.

WARNING

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operation and maintenance instructions in the literature accompanying this unit.

1. FOR OUTDOOR USE:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

2. UNDER WET LOCATION:

The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus.

3. SERVICE INSTRUCTIONS:

CAUTION - These servicing instructions are intended for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

TIPS-TO PROLONG THE LIFE OF RECHARGEABLE BATTERIES

1. Store the portable system with batteries in a fully charged condition. It takes 10-8 hours to reach a full charge.

2. Prefer a partial discharge over a full discharge. A partial discharge reduces stress and extends battery life.

3. Avoid frequent full discharges as they put additional strain on the battery.

4. Avoid storing the battery at full charge and in high-temperature environments.

5. Fully charge the system at least once every 6-3 months. Prolonged periods without charging may prevent the battery from charging.

6. Do not freeze the battery. Store it in a dry, cool place away from heat, as elevated temperatures reduce battery lifespan.

7. Rechargeable batteries have a limited number of charge cycles and may eventually need replacement. Battery life and the number of charge cycles vary based on usage and settings.

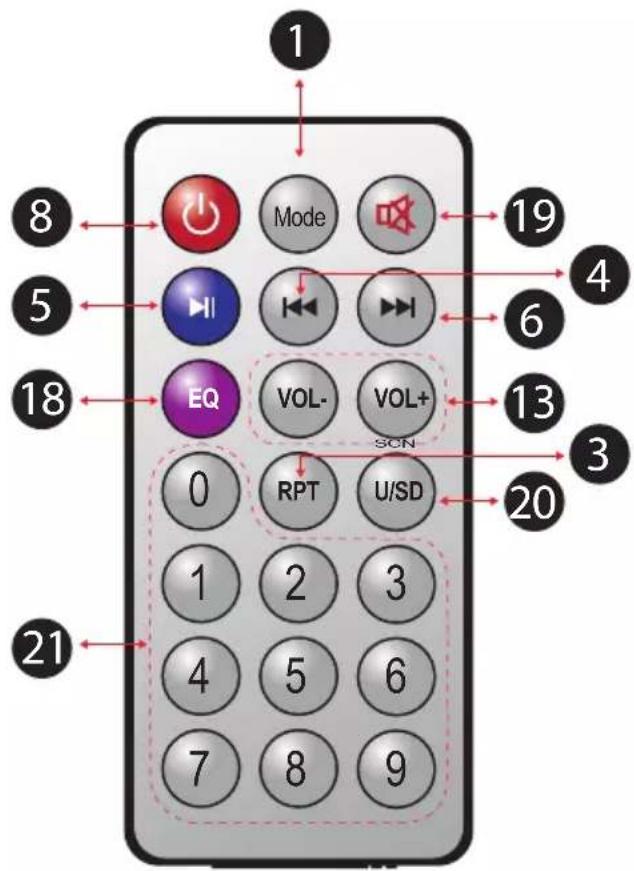

REMOTE CONTROLLER

1. Input Mode switch
2. Record
3. Cycling mode
4. Previous song
5. Pause and play
6. Next song
7. External battery input
8. Power ON/OFF
9. AUX input
10. USB/MicroSD card input
11. Mic volume control
12. Mic echo control
13. Music volume control
14. Power input
15. Mic input
16. Bass control
17. Treble control
18. Preset EQ Mode
19. Mute
20. U-Disk/SD Card Switch
21. Select song by number

1 8 5 18 21 Mode EQ VOL- VOL+ SCN 0 RPT U/SD 1 2 3 4 5 6 7 8 9 19 4 6 3 20

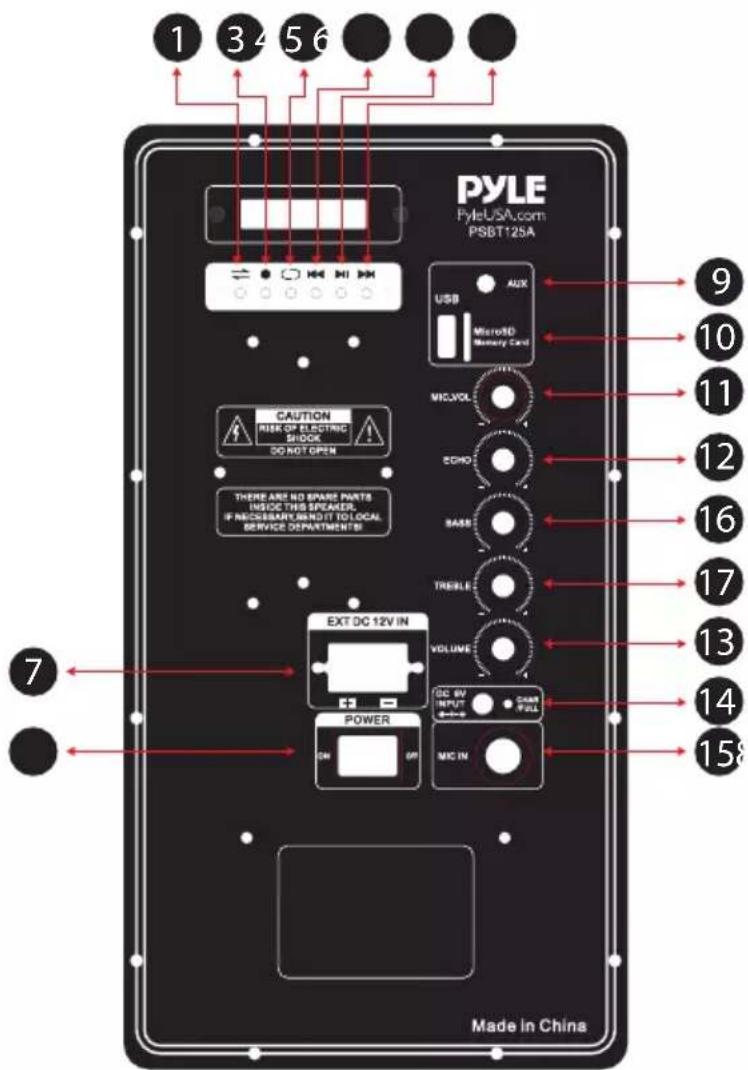

PSBT125A

1. Input Mode switch
2. Record
3. Cycling mode
4. Previous song
5. Pause and play
6. Next song
7. External battery input
8. Power ON/OFF
9. AUX input
10. USB/MicroSD card input
11. Mic volume control
12. Mic echo control
13. Music volume control
14. Power input
15. Mic input
16. Bass control
17. Treble control
18. Preset EQ Mode
19. Mute
20. U-Disk/SD Card Switch
21. Select song by number

PYLE PyleUSA.com PSBT125A USB AUX MicroSD Memory Card MICROL CAUTION RISK OF ELECTRIC STOCK DO NOT OPEN ECHO BASS TREKLE EXT DC 12V IN VOLUME DC 6V INPUT CLOCK POWER ON UP MIC IN Made in China 9 10 11 12 16 17 13 14 158

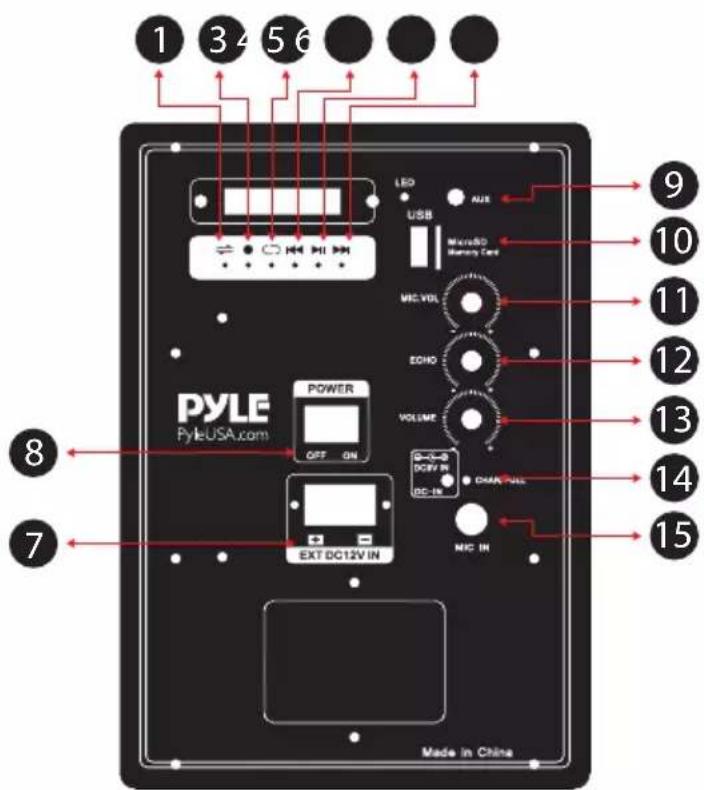

PSBT85A/PSBT105A

1. Input Mode switch
2. Record
3. Cycling mode
4. Previous song
5. Pause and play
6. Next song
7. External battery input
8. Power ON/OFF
9. AUX input
10. USB/MicroSD card input
11. Mic volume control
12. Mic echo control
13. Music volume control
14. Power input
15. Mic input
16. Bass control
17. Treble control
18. Preset EQ Mode
19. Mute
20. U-Disk/SD Card Switch
21. Select song by number

1 3 4 5 6 LED USB MicroSD Magnetic Care MIC VOL ECHO VOLUME S-DC-8 DC-V IN DC-IN CHAMP-ALL MIC IN Made in China 9 10 11 12 13 14 15 8 7

Problems	Possible Cause Solution
No sound or faint sound from speaker	1. Volume turned down. 2. Power switch is turned off.	1. Adjust volume 2. Turn power switch on
Power indicator not on	1. Power switch is turned off. 2. Rechargeable Battery is discharged. 3. Rechargeable battery is dead.	1. Turn power switch on. 2. Plug into AC outlet to recharge. 3. Replace battery and plug into AC outlet to recharge.
Distorted sound from from speaker.	1. Volume set too high. 2. Excessive wind noise breath pops. 3. Input signal too strong.	1. Reduce volume 2. Use windscreen on wireless & wired microphone 3. Adjust input signals.
Excessive feedback	1. Microphone too close or directly in front of the speaker. 2. Volume set too high. 3. Microphone too far from sound source. (requiring the volume to be turned up to compensate)	1. Move microphone away from the speaker. 2. Recharge. 3. Speak closer to the microphone or move microphone closer to sound source.
Weak, Distorted Sound Power Indicator Flickers	1. Batteries level is low	1. Plug into AC outlet to recharge.
Excessive Hum or Noise	1. Input Cable not shielded	1. Use shielded cable
Shortened Battery Life	1. Old or overused battery 2. Battery is not charged for over 4-3 months.	1. Recharged or replace battery 2. Recharged or replace battery
Battery CHARGE Indicator Not Flickering when plugged into AC Outlet	1. Rechargeable Battery is dead. 2. Battery is not charged for over 4-3 months.	1. Recharged or replace battery 2. Replace battery.

SPECS AND FEATURES

	PSBT85A PSBT105A PSBT125AModel
	Pyle PSBT85A Pyle	PSBT105A Pyle PSBT125ABT Network Name
Sound System	8'' -in. Subwoofer, 3'' -in. Tweeter	10'' -in. Subwoofer, 3'' -in. Tweeter	12'' -in. Subwoofer, 3'' -in. Tweeter
	800 Watt MAX 1000	Watt MAX 1200 Watt MAXPower Output
PA Speaker Dimensions (L x W x H)	10." x 8.1" x 15.4" inches	12.4" x 10.2" x 19.5" inches	15.0" x 12.0" x 23.0" inches

Features:

• Compact & Portable PA Speaker System
  • Powerful Loudspeaker Sound Projection
  • Karaoke Style Microphone Priority Talkover
• Bluetooth Music Streaming Ability
  • Built-in Rechargeable Battery
• Includes UHF Wireless Handheld Microphone
• Unique Audio Record Function
  • Full Range Stereo Sound Reproduction
• Impressive Bass Response
  • MP3 Digital Audio File Playback
  • USB Flash Drive Memory Reader
• Micro SD Memory Card Reader
  • 4/1" -inch Microphone Input
  • Aux (3.5mm) Audio Jack
• Rear Panel Button Control Center
• Rotary Audio Configuration Adjustment
  • LED Battery Indicator Lights
• Convenient Carry Handles for Portability
• Optional Powered Externally via 12V Power Input
  • Used for Home & Backyard Karaoke, Public Events, Crowd Control

SPECS AND FEATURES

Bluetooth Wireless Streaming:

• Hassle-Free Bluetooth Pairing Setup
• Instantly Receives Wireless Music Streaming
• Works with all of Today's Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Bluetooth Version: 4.2
• Wireless Range: Up to 33'+ ft.

Recording Function:

• Simple Button Activated Sound Recording
  • Records Audio as Streamed Through the Speaker
  • Records via USB Flash or SD Memory Card Slots
• Easy Transfer to PC & Mac
• Filetype Saved: WAV
  • *Only Records Audio via Microphone

What's in the Box:

• Portable PA Speaker
• Wireless Microphone
• Remote Control
• Power Adaptor

Technical Specs:

• Wireless Frequency Mode: UHF
• Frequency Response: 55Hz-20kHz
• Sensitivity: 92dB (+/-2dB)
- Impedance: 4 Ohm
• S/N Ratio: >80dB
• T.H.D.: <1%
• Digital Audio File Playback Support: MP3, WMA, WAV
• USB / SD Memory Support: Up to 32GB
- Construction Material: Engineered ABS Molded Speaker Cabinet
- Battery Powered Remote Control, Requires (1) x 'CR-2025', Included
• PA Speaker Rechargeable Battery: 3.7V Li-iOn,2200mAh (x2)
- Optional External Power Supply: 12V
• Power Supply: 240/120V (9V Power Adapter)

PYLE

PyleUSA.com

Questions? Comments?

We are here to help!

(1) 718-535-1800

[e-mail]

PYLE

PyleUSA.com

PSBT105A PSBT125A PSBT85A

PSBT85A · PSBT105A · PSBT125A
