Moody ST - Lighting Blumfeldt - Free user manual and instructions

Product type	Indoor/outdoor floor lamp
Brand	Blumfeldt
Model	Moody ST
Item numbers	10033418, 10033419
Power supply	220-240 V ~ 50/60 Hz
Compatible bulb type	E27 (not included)
Number of pole segments	4
Use	Indoor and outdoor (except bad weather)
Pole material	Metal
Lampshade material	Not specified (likely textile or glass)
Approximate height	160 cm
Base diameter	35 cm
Approximate weight	3 kg
Assembly	Thread the cable, connect the segments by twisting, attach to the base, insert the bulb, screw on the lampshade
Maintenance	Clean with a soft, dry cloth
Safety instructions	Do not touch when lit, do not change bulb with wet hands, keep out of reach of children
Repairability	Not user repairable - contact a professional
Spare parts	Not available - replace the entire unit
Compliance	EU directives: EMC, LVD, ErP, RoHS
Recycling	Do not dispose of with household waste - follow local regulations (WEEE)

Frequently Asked Questions - Moody ST Blumfeldt

How to assemble the Moody ST floor lamp?

Thread the cable through the four segments, then connect them by turning clockwise. Attach the assembly to the lamp base, insert an E27 bulb, and screw on the lampshade.

What type of bulb should I use?

The floor lamp accepts an E27 bulb (not included). Maximum wattage not specified; use a 10-15 W equivalent LED bulb.

Can I use this floor lamp outdoors?

Yes, the Moody ST is suitable for outdoor use, but it must be placed in a dry location sheltered from direct weather (rain, snow).

How to clean the floor lamp?

Clean with a soft, dry cloth. Do not use abrasive products or liquids. Unplug before cleaning.

Is the floor lamp dimmable?

The manual does not mention a dimming function. The possibility of adjusting brightness depends on the bulb used (dimmable bulb and compatible dimmer).

Can I replace the floor lamp parts myself?

No, the manufacturer advises against user replacement of any parts. In case of defect, contact a professional.

What safety precautions should I follow?

Do not touch the bulb or lampshade when the lamp is on (risk of burns). Do not change the bulb with wet hands. Keep out of reach of children and pets.

What is the height of the floor lamp?

The approximate height is 160 cm (assembled). The manual does not provide exact dimensions, this value is an estimate.

Can I use a smart bulb?

Yes, if the E27 bulb is compatible with your smart home system. Ensure the bulb does not exceed the maximum wattage (not specified, but standard 60 W max).

How to recycle the floor lamp at end of life?

Do not dispose of with household waste. Take to a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

USER MANUAL Moody ST Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

TECHNISCHE DATEN

Artikelnummer 10033418, 10033419

Stromversorgung 220-240 V \~ 50/60 Hz

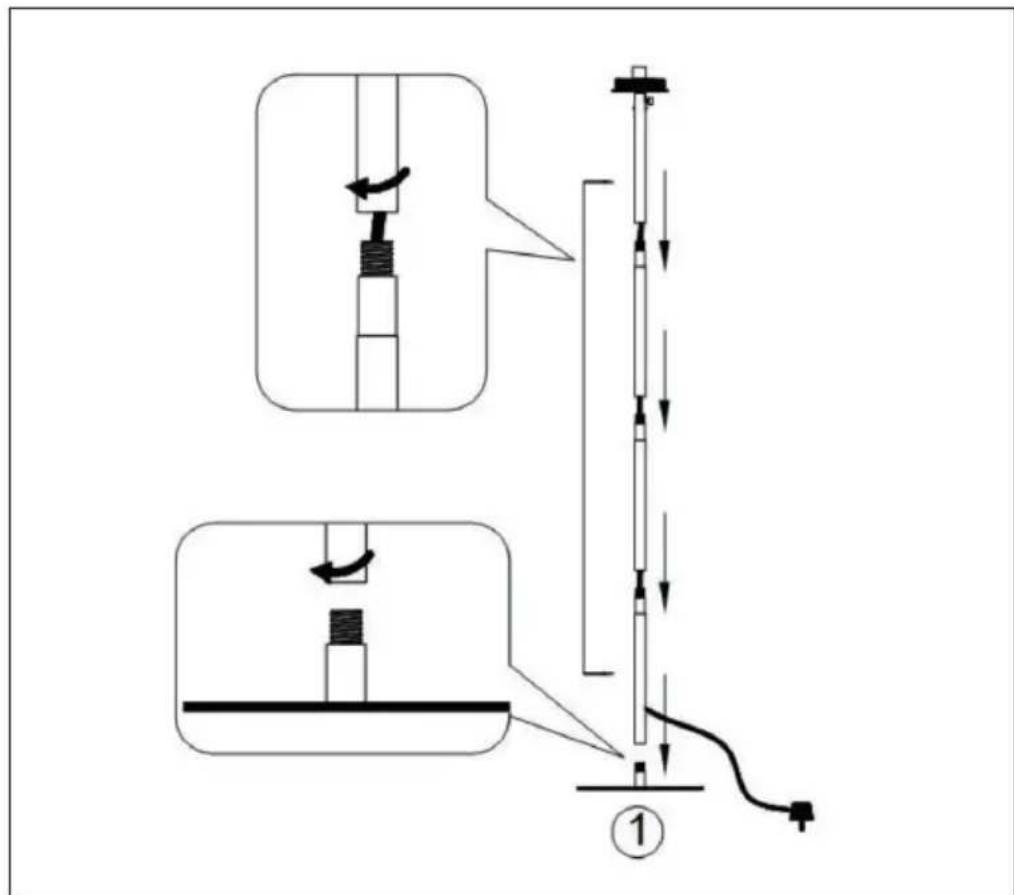

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a lighting or ventilation setup with labeled components and directional arrows, including steps ② and ③.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

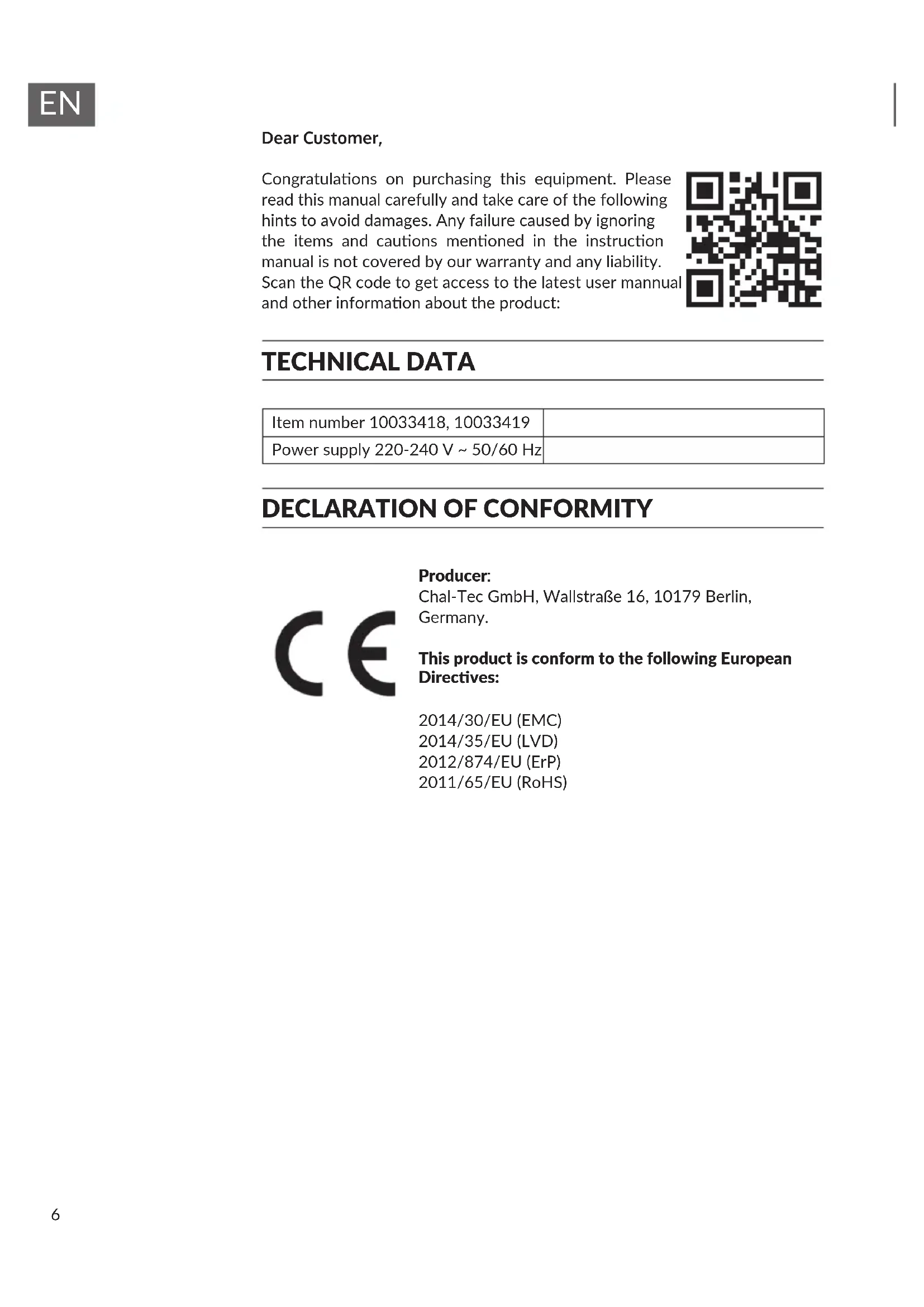

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

TECHNICAL DATA

Item number 10033418, 10033419
Power supply 220-240 V ~ 50/60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2012/874/EU (ErP)

2011/65/EU (RoHS)

ASSEMBLY

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

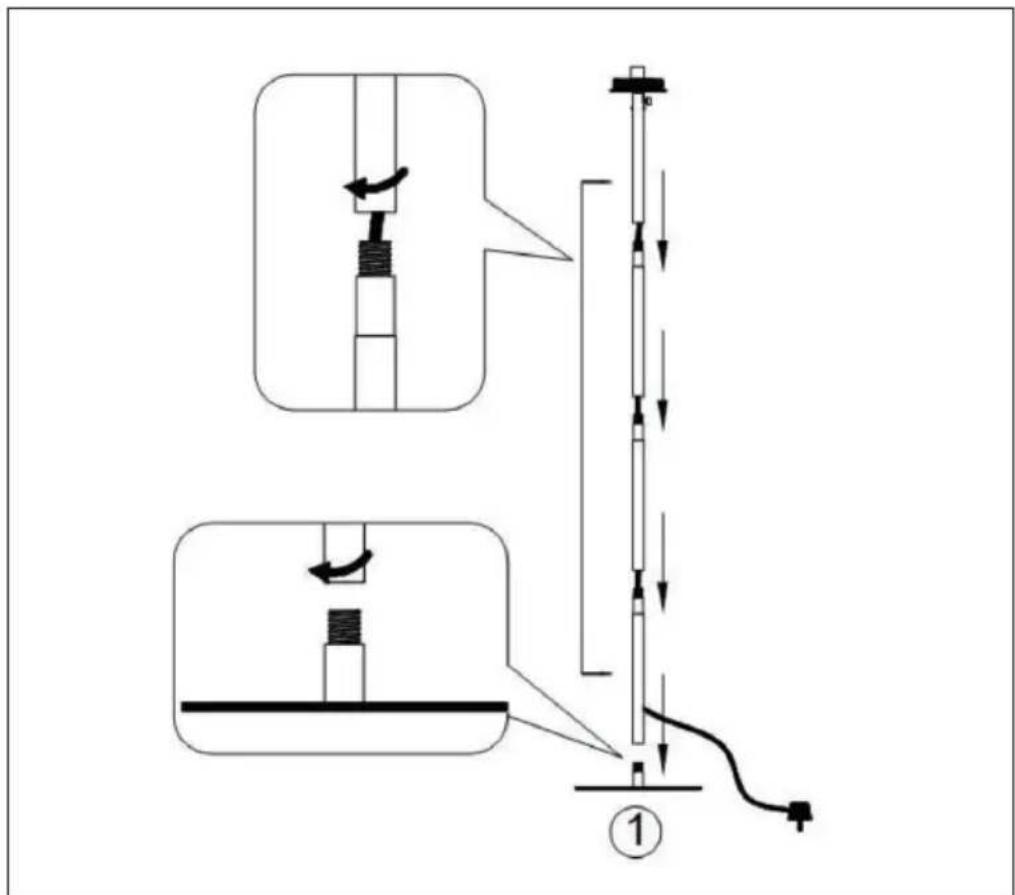

1. Put the wire through the four segments. Connect the four segments together by turning them clockwise and attach them to the lamp base.

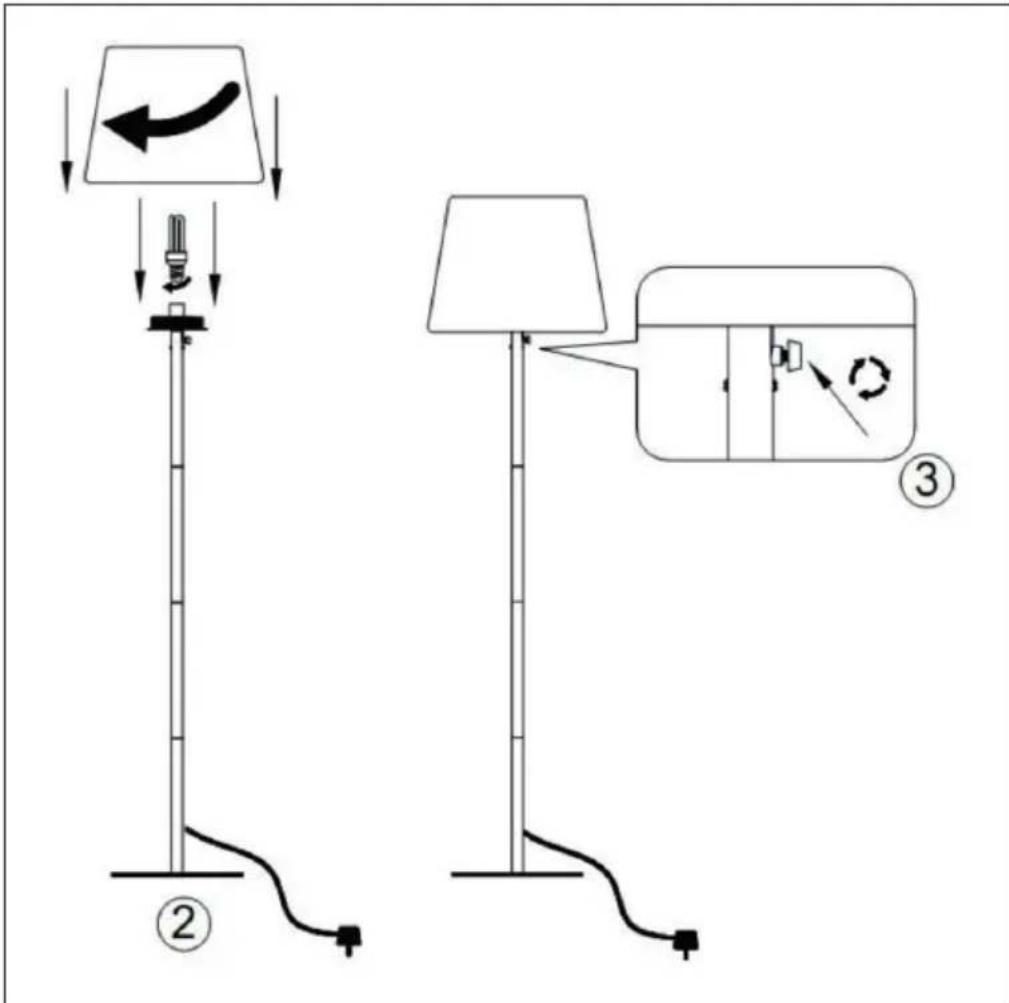

2. Insert a light bulb with E27 fitting in the lamp holder. Screw the lamp shade on the lamp.
3. Fix the lamp holder with the screw (3).
4. The lamp must be placed in a dry spot and on a stable clean surface.
5. Don't touch the lamp when it is working.
6. Don't change the light bulbs with wet hands.
7. Don't change any part of the luminaires by yourself.
8. This is not a toy, only for decoration-purposes! Keep away from children and animals!
9. This light is suitable for indoor and outdoor use. Please keep all the relevant information for future reference!

Diagram illustrating a lighting or ventilation system with labeled components and directional arrows, including steps ② and ③.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

DATOS TÉCNICOS

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a lighting fixture setup with labeled components and directional arrows, including a component being removed.

RETIRADA DEL APARATO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

FICHE TECHNIQUE

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a lighting or ventilation setup with labeled components and directional arrows, including steps ② and ③.

CONSEILS POUR LE RECYCLAGE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

DATI TECNICI

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a lighting fixture setup with labeled components and directional arrows, including steps ② and ③.

SMALTIMENTO

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)
