DLARS1100 - Projector JVC - Free user manual and instructions

Product Type	D-ILA 4K Projector (4096 x 2160 pixels)
Brand	JVC
Model	DLA-RS1100K / DLA-RS1100E
Display Technology	3 x 0.69" D-ILA 4K
Light Source	Ultra High Pressure Mercury Lamp 265 W (PK-L2618U)
Lamp Life	Approx. 4,500 hours (Low mode)
Native Resolution	4096 x 2160 pixels
Brightness	1900 lm
Screen Size	60" to 280" (16:9)
Lens	2.0x motorized zoom, motorized focus, motorized shift
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	420 W (Normal standby: 1.5 W, Eco standby: 0.3 W)
Dimensions (W x H x D)	500 x 234 x 495 mm (without feet)
Weight	19.2 kg
HDMI Inputs	2 x HDMI 19-pin (HDCP 2.3)
Trigger Output	1 x DC 12 V, 100 mA (3.5 mm)
Control	RS-232C (D-sub 9), LAN (RJ-45), Service (USB type A)
HDR Functions	HDR10+, HDR10, HLG, Frame Adapt HDR
3D Compatibility	Frame Packing, Side-by-Side, Top-and-Bottom
Operating Temperature	5°C to 35°C, humidity 20-80%
Maximum Altitude	1,524 m (5,000 ft)
Noise Level	≤ 60 dB(A) (at operator position)
Lamp Replacement	Model PK-L2618U, optional accessory
Air Filter	Periodic cleaning, replace if necessary
Installation	Ceiling or table, max tilt ±5°

Frequently Asked Questions - DLARS1100 JVC

How to replace the lamp of the JVC DLA-RS1100 projector?

To replace the lamp, use model PK-L2618U. Turn off the projector, unplug it, remove the lamp cover (left side), unlock the module, replace it, then reset the counter in the menu Function > Lamp Counter Reset.

How to clean the projector's air filter?

Remove the filter cover at the back of the projector. Clean the filter with a vacuum cleaner or with warm water (let it dry completely). Put it back. Perform this operation approximately every 100 hours of use.

Can I project 3D content with this projector?

Yes, the DLA-RS1100 supports 3D formats Frame Packing, Side-by-Side and Top-and-Bottom. You must use optional 3D glasses (PK-AG3) and the 3D emitter (PK-EM2) connected to the 3D SYNCHRO terminal.

How to adjust focus, zoom and lens shift?

Press the LENS CONTROL button on the remote control, then use the directional keys to adjust focus, zoom and shift in sequence. The adjustment is motorized.

What types of HDMI signals are supported?

The projector accepts resolutions up to 4K (3840x2160 and 4096x2160) at 60 Hz. It also supports HDR10+, HDR10, HLG and common PC signals (VGA to WQHD). Use certified Ultra High Speed HDMI cables.

How to enable automatic HDR mode (Frame Adapt HDR)?

In the Image Quality > Modes menu, select Frame Adapt HDR 1, 2 or 3. This mode analyzes each frame and adjusts tone mapping for optimal HDR rendering, regardless of brightness level.

Can the projector be ceiling mounted?

Yes, but use a qualified installer. Use a suitable mount that supports the weight (19.2 kg). The mounting screws must be M5 (20-25 mm) with a tightening torque of 1.5 to 2.0 N·m. JVC declines all responsibility in case of non-compliant installation.

What to do if the WARNING indicator blinks?

Refer to the indicator table in the manual. For example, WARNING and LIGHT blinking 2 times indicates a fan problem. Check the air intakes and temperature. If the problem persists, contact an authorized repair center.

What is the recommended projection distance?

For a 16:9 100-inch screen, the distance is approximately 3.01 m (wide angle) to 6.14 m (telephoto). Consult the distance table in the manual for specific screen sizes.

How to save my picture settings?

In the Image Quality > Modes menu, select User 1 to User 3 for SDR, or User 4 to User 6 for HDR. Make your adjustments (gamma, color, etc.) then confirm. You can also export the settings via a USB key on the SERVICE port.

USER MANUAL DLARS1100 JVC

• https://manual3.jvckenwood.com/projector/mobile/global/

1440 Corporate Drive, Irving, TX 75038

KENWOOD Corporation:

REEMPLACEMENT DU FUSIBLE:

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

FRANÇAIS

CLASS 1 LASER PRODUCT

PRODUIT LASER DE CLASSE 1

PRODUCTO LÁSER DE CLASE 1

LASERPRODUKT DER KLASSE 1

PRODOTTO LASER DI CLASSE 1

JIa3EPHOE H3dJIeNHE KJIACCA 1

KLASSE 1 LASERPRODUCT

LASER CAUTION LABEL

ÉTIQUETTE DE MISE EN GARDE POUR LE LASER

ETIQUETA DE PRECAUCION DEL LASER

LASERWARNSCHILD

ETICHTTA DI ATTENZIONE LASER

3TNKETHACPNEUYPENHEHEMOTHCNTELBOJIA3EPA

LASER WAARSCHUWINGSETIKET

IEC60825-1:2014

CLASS 1 LASER PRODUCT

LASER PRODUCT KLASSE 1

PRODUIT LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

PRODOTTO LASER DI CLASSE 1

LASERPRODUKT DER KLASSE 1

JI3EPHAR ANIAPATyPA KNACCA1

IEC60825-1:2014

CLASS 1 LASER PRODUCT

LASER PRODUCT KLASSE 1

PRODUIT LASER DE CLASSE 1

EN50689:2021

CONSUMER LASER PRODUCT

LASERPRODUCT VOOR CONSUMENTEN

PRODUIT LASER GRAND PUBLIC

PRODUCTO LASER DE CLASE 1

PRODOTTO LASER DI CLASSE 1

LASERPRODUKT DER KLASSE 1

JIA3EPHAR ANIAPATYPAKIACCA 1

PRODUCTO LASER PARA CONSUMO

PRODOTTO LASER DI CONSUMO

CONSUMER-LASERPRODUKT

This product complies with EN60825-1:2014+A11:2021.

This product complies with EN50689:2021

This product is designed to project images on a wall or screen.

Do not look into the lens while in use.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser radiation exposure.

Location information of the labels

Light source specifications

105W Laser diodes x 1, Wavelength 455nm, Maximum output is 105W

Beam divergence angle from lens of this unit

Angle de divergence du faisceau de l'objet de cette unité Ángulo de divergencia del haz desde la lente de esta unidad Strahldivergenzwinkel der Linse ceses Geräts

Angolo di divergenza del fascio dall'obiettivo di questa unità YroI paCXoHdEHHa lyu a ObBeHTNBA daHHoro ycTpoiCTBa Straaldivergentiehoek ten opzichte van de lens van dit toestel

DLA-NZ9 series

$$ \alpha = 3 9 ^ {0 ^ {(1)}} - 7 1 ^ {0 ^ {(2)}} $$

DLA-NZ8 series, DLA-N7 series

$$ \alpha = 3 3. 5 ^ {\circ (1)} - 6 2. 7 ^ {\circ (2)} $$

1:Tele/Télé/Tele/Tele/Teleobiettivo/Tepe/Tele
2:Wide/Large/Amplio/Weit/Grandangolo/Lshipokn/Breed

Laser emission port

WARNING: LASER ENERGY - EXPOSURE NEAR APERTURE MAY CAUSE BURNS

AVERTISSEMENT: ÉNERGIE LASER - L'EXPOSITION À PROXIMATE DE L'OUVERTURE PEUT ENTRainer DES BRULURES

ADVERTENCIA: ENERGIA LÁSER - LA EXPOSICION CERCA DE LA APERTURA PUEDE CAUSAR QUEMADURAS

WARNING: LASERENERGIE - EINE EXPOSITION NAHE DER AUSTRITTSÖFFNUNG KANN VERBRENNUGEN VERURSACHEN

AVVERTENZA: ENERGIA LASER - L'ESPOZIONE VICINO ALL'APERTURA PUO CAUSARE USTIONI

OCTOPOHHO! JIA3EPHAR 3HEPnR - H3JyEHNBEBJIIN DnAΦPARMbIMoKET Bbl3BATb OHoI

WAARSCHUWING: LASERENERGIE - BLOOTSTELLING NABIJ DIAFRAGMA KAN BRANDWONDEN VEROORZAKEN

Location information of the labels

D'ÉLECTROCUTION, N'EXPOSEZ PAS CET

APPAREIL A LA PLUIE OU A L'HUMIDITE.

AVERTISSEMENT:

CET APPAREIL DOIT ETRE MISA LA TERRE.

ATTENTION:

PORTABLE CART WARNING (symbol provided by RETAC)

S3126A

REEMPLACEMENT DU FUSIBLE:

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

FRANÇAIS

As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

Specifications RS-232C 105

Connexion TCP/IP 105

Software License Agreement 122

Important Notice concerning the Software 124

Index 125

NZ9 NZ8 NZ7 RS4100 RS3100 RS2100

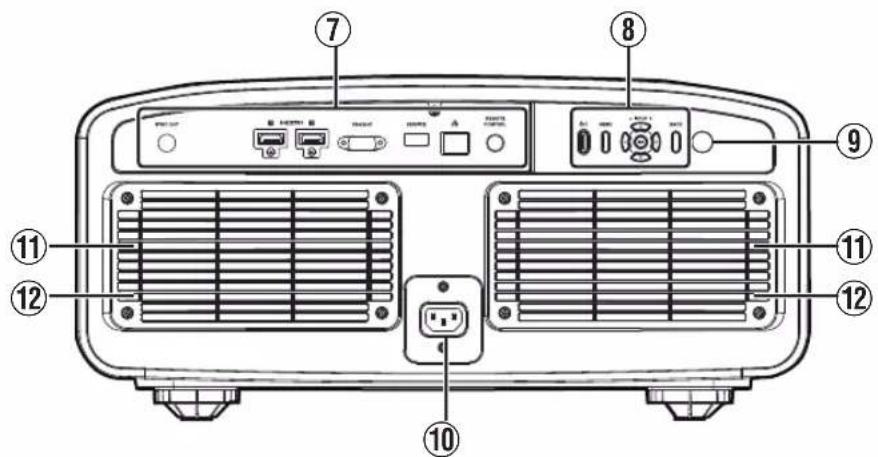

⑦ Bornes d'entrée

④ Borne [RS-232C] (D-sub male à 9 broches)

[4] [GAMMA SETTINGS]

Frame Adapt HDR (Dynamic Tone Mapping)

Clear Motion Drive (C.M.D.)

"Haut" / "Bas" / "Gauche" / "Droite"

https://www.jvc.com/global/projector/screen

REMARQUE

NZ9 NZ8 NZ7 RS4100 RS3100

RS2100

Temps Lampe NP5 RS1100

Specifications RS-232C

NZ9 NZ8 NZ7 RS4100 RS3100 RS2100

Software License Agreement

The software embedded in the Product (hereinafter the "Licensed Software") provided by JVCKENWOOD Corporation (hereinafter the "Licensor") is copyrighted to or licensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software"P. 124" to be provided separately.

Article 1 General Provision

The Licensee shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User (the country where the User bought the Product (hereinafter the "Country").

Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the Product.
2. The User shall not duplicate, copy, modify, add, translate or otherwise alter, or lease the Licensed Software and any related documents, whether in whole or in part.
3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.
4. The User shall use the Licensed Software according to the directions described in the operation manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software.

Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.
2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code analysis works in connection with the Licensed Software.

Article 4 Right pertaining to the Licensed Software

1. Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensee or the original holder of the right who granted to the Licensee the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents.
2. The User shall, whenever the User uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights.

Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.
2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with certain objective of the Licensed Software.

Article 6 Liability to Third Party

If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at the User's own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause.

Article 7 Confidentiality

The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor.

Article 8 Termination

In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event:

(1) when the User violated any provision of this Agreement; or
(2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution.

Article 9 Destruction of the Licensed Software

If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination.

Article 10 Export Restriction

1. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries.
2. The User shall agree that the software will be subject to any and all applicable international and domestic laws including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities.
3. If the User is an agency of the United States of America (the "Government"), the User acknowledge Licensor's representation that the Licensed Software is a "Commercial Item" as defined in Federal Acquisition Regulation (FAR) part 2.101(g) consisting unpublished "Commercial Computer Software" as those items are used at FAR part 12.212 and is only licensed the User with the same use right Licensor grants all commercial end users pursuant to the terms of this Agreement.

Article 11 Miscellaneous

1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force.
2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.
3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance.

Important Notice concerning the Software

Software License Attached to the Product :

The Software embedded in the Product is composed of several independent software components, and in each of such individual components (hereinafter the "Licensed Software"), a copyright of either JVCKENWOOD Corporation (hereinafter "JKC") or a third party subsists.

The Product uses the software component designated in the End-User License Agreement that was executed between JKC and a third party (hereinafter "EULA").

The Licensed Software covers those corresponding to free software, and, as a condition of distribution of the software component in executable format which is based on the license granted under the GNU General Public License or Lesser General Public License (hereinafter "GPL/LGPL"), it requires an availability of the source code for the relevant component.

Please refer to the following URL concerning the distribution of the source code;

https://www3.jvckenwood.com/english/download/gpl/index.html

Please note that we are unable to answer any inquiry relating to the contents, etc. of the source code. In addition, the Licensed Software includes the software developed or created independently by JKC and there exists an ownership of JKC in such software and any accompanying documents, which is protected by the Copyright Law, any international treaties and other applicable laws. As to matters concerning the handling by JKC of the software components, please refer to the "Software License Agreement" attached hereto. Please note that any software component licensed under "EULA" which is not subject to "GPL/LGPL," and those developed or created independently by JKC shall not be subject to the requirement for provision of the source code. The software component distributed under "GPL/LGPL" shall be licensed to users without charge, and, therefore, no warranty is given for such software component, either express or implied, within the scope of the applicable laws and regulations. Unless otherwise permitted by applicable laws and regulations or agreed in written form, none of the owners of the copyright or persons entitled to alter or redistribute the software component under the said license shall have any liability for any type of damage or loss resulting from the use of or inability to use such software component. For further details of the conditions of use of such software component or matters required to be complied with, please refer to the relevant "GPL/LGPL".

Users are urged to read the details for the relevant license carefully before using the software component covered by "GPL/LGPL" and embedded in the Product. Since the terms and conditions of individual licenses are provided by parties other than JKC, the original English version will be displayed by the Product menu screen.

① Turn on the power of the projector.
② Press the [MENU] button.
③ Select [Fonction] [Licence].

Index

A Accessoires 20

Accessoires en option. 20

Adresse IP 88

Adresse MAC 88

Affichage 86

Borne RS-232C. 24, 32, 105

C Centrage écran 79

Clear Motion Drive. 61

Clear Motion Drive 61, 74

Client DHCP 88

Code Telecommande 89

Colorimétrie 92

Distance de projection. 111

DSC 77

MPC/e-shift NZ9 NZ8 NZ7 RS4100 RS3100 RS2100

74

Theater Optimizer 72

Traitement HDR 71

Trapèze 86

Trigger 87
