USER MANUAL MVHS312BT PIONEER

• In the following instructions, a USB memory or USB audio player are referred to as “USB device”. Table of Contents

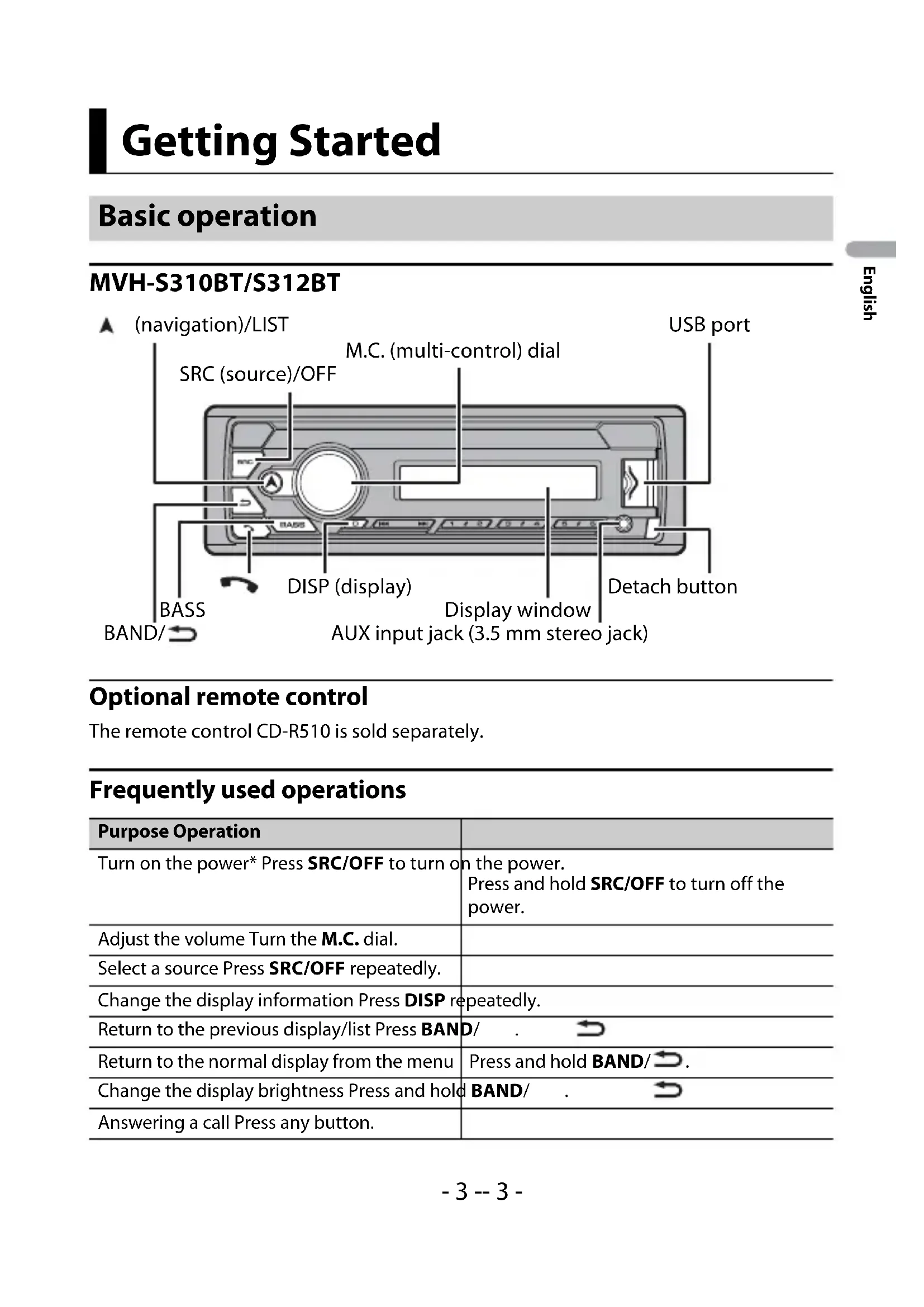

Optional remote control The remote control CD-R510 is sold separately. Frequently used operations Getting Started Basic operation Purpose OperationTurn on the power* Press SRC/OFF to turn on the power.Press and hold SRC/OFF to turn off the power.Adjust the volume Turn the M.C. dial.Select a source Press SRC/OFF repeatedly.Change the display information Press DISP repeatedly.Return to the previous display/list Press BAND/. Return to the normal display from the menu Press and hold BAND/. Change the display brightness Press and hold BAND/.Answering a call Press any button. Detach button Display window BAND/ DISP (display) (navigation)/LIST USB port AUX input jack (3.5 mm stereo jack) M.C. (multi-control) dial SRC (source)/OFF BASS- 4 - English

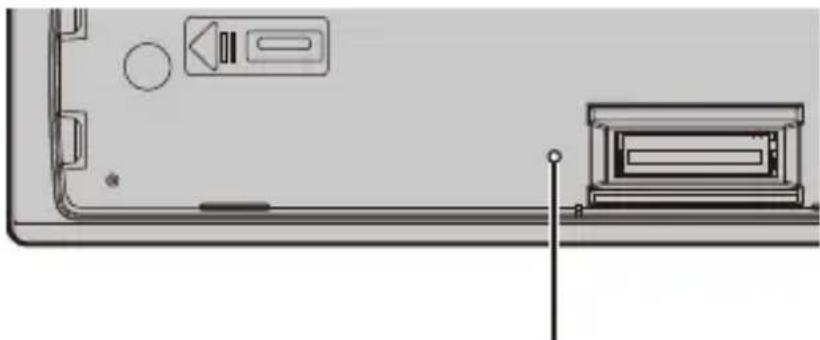

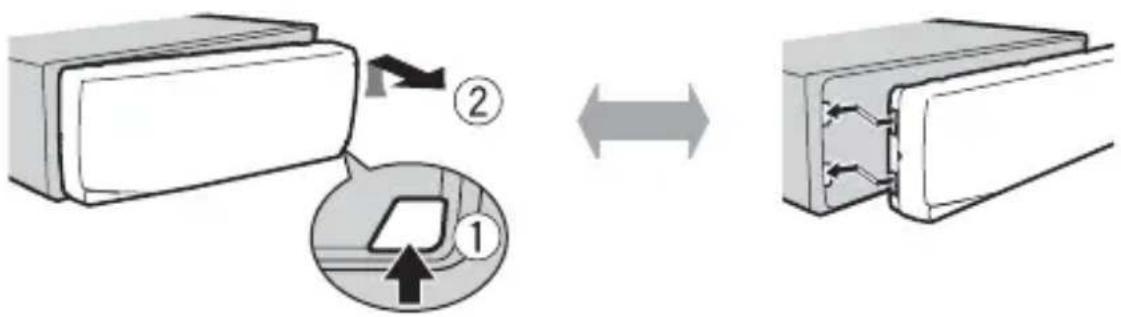

• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.• Always store the detached front panel in a protective case or bag. Ending a call Press . Boost the bass level Press BASS.

• You can select the bass level ([HI] or [LOW]) in [D.BASS] (page 24). Indication Description Appears when a lower tier of the menu or folder exists. BASS Appears when the BASS function is activated. Appears when random/shuffle play is set (except when BT AUDIO is selected as the source). Appears when repeat play is set (except when BT AUDIO is selected as the source). Appears when a Bluetooth connection is made (page 10). APP Appears when a Pioneer Smart Sync connection is made (page 17). Detaching the front panel Purpose Operation Detach Attach- 5 -- 5 - English The microprocessor must be reset in the following situations: – Before using this unit for the first time after installation – If the unit fails to operate properly – When strange or incorrect messages appear on the display 1 Remove the front panel (page 4). 2 Press the RESET button with a pointed instrument longer than 8 mm. When you turn the ignition switch to ON after installation, the setup menu appears in the display. 1 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. 2 [USB CONN. SET] appears when all the settings have been made. Press the M.C. dial to clear the message. Resetting the microprocessor Setup menu Menu Item DescriptionLANGUAGE Select the language to display the text information from a compressed audio file.[ENG](English), [ESP](Spanish), [FRA] (Canadian French)CLOCK SET Set the clock. 1 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 2 Turn the M.C. dial to adjust the minute, then press to confirm. RESET button- 6 - English

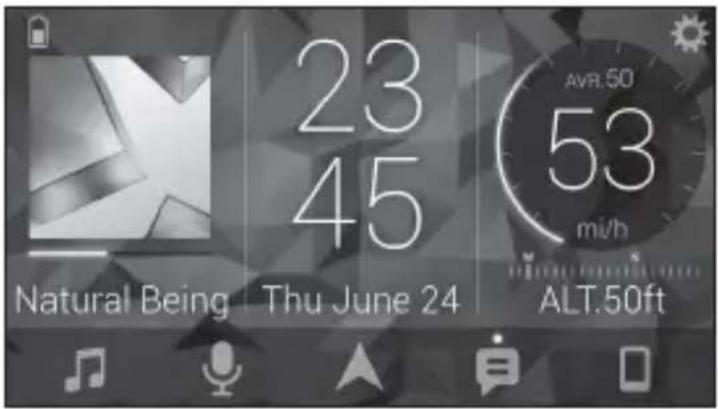

• A message that prompts you to install the Pioneer Smart Sync application will appear on your iPhone/Android device by connecting your device to the unit via USB. 3 [QUIT :YES] appears. To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm. 4 Press the M.C. dial to confirm the settings. NOTE These settings can be made at any time from the SYSTEM settings (page 25). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. 1 Press and hold SRC/OFF until the unit turns off. 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. Canceling the demonstration display (DEMO OFF) INITIAL settings Menu Item Description SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.

[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output. [REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or

[REAR/REAR].- 7 -- 7 -

English The tuner frequencies on this unit are allocated for use in North America. Use in other areas may result in poor reception. 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM]. 3 Press a number button (1/ to 6/). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 22). The six strongest stations are stored on the number buttons (1/ to 6/). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually

After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . SYSTEM UPDATE Select [SYSTEM INFO] to confirm the latest system information on the unit.Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.[SYSTEM INFO], [S/W UPDATE]SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be restarted automatically.[YES], [NO] Radio Receiving preset stations Best stations memory (BSM) Menu Item Description- 8 - English NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 22). To store stations manually

While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. (iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 26).) Disconnect headphones from the device before connecting it to the unit. USB devices (including Android™)/iPhone 1 Open the USB port cover. 2 Plug in the USB device/iPhone using an appropriate cable. NOTE To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 27). CAUTION Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous. Before removing the device, stop playback. AOA connections A device running Android OS 4.1 or later installed and also supports AOA (Android Open Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the device. NOTE If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 26) and [USB MTP] needs to be set to [OFF] (page 26) in the SYSTEM settings. MTP connection A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or USB/iPhone®/AUX Playing back- 9 -- 9 - English the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats and FLAC file formats, and cannot be used with the MIXTRAX function. NOTE If you use an MTP connection, [USB MTP] needs to be set to [ON] in the SYSTEM settings (page 26). AUX

Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX IN] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX IN] cannot be selected as a source (page 26). You can make various adjustments in the FUNCTION settings (page 22) (except for AUX IN/USB source). Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself. *1 Compressed audio files only Operations Purpose Operation Select a folder*1 Press 1/ or 2/. Select a track/song (chapter) Press or . Fast forward or reverse*2 Press and hold or . Search for a file from a list (USB only) 1 Press and hold to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts. View a list of the files in the selected folder/ category*1 Press the M.C. dial when a folder/category is selected. Play a song in the selected folder/ category*1 Press and hold the M.C. dial when a folder/ category is selected. Repeat play Press 6/. Random/shuffle play Press 5/. Pause/resume playback Press 4/PAUSE. Return to root folder (USB only)*1 Press and hold 1/.- 10 - English *2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct. The MIXTRAX function creates a non-stop mix of your music library. For details on MIXTRAX settings, see page 28. NOTES

• iPhone needs to be connected with Pioneer Smart Sync via USB for using this function (page 17).
• Depending on the file/song, sound effects may not be available. 1 Press 3/MIX to turn MIXTRAX on/off. Important If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly. TIP The next connection to the unit is performed automatically if the Bluetooth device has been connected previously in the following steps. 1 Turn on the Bluetooth function of the device. If you make a Bluetooth connection from the device, proceed to step 4. 2 Press to display the [ADD DEVICE] setting. The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.

• If the desired device is not in the list, select [RE-SEARCH].

• If there is no device available, [NOT FOUND] appears in the display.

• If there is already a connected device, the phone menu appears by pressing . 3 Turn the M.C. dial to select a device from the device list, then press to confirm. Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name. If you make a Bluetooth connection from the unit, proceed to step 5. 4 Select the unit name shown in the device display. About MIXTRAX (USB/iPhone only) Bluetooth Bluetooth connection- 11 -- 11 - English 5 Make sure the same 6-digit number appears on this unit and the device, then select [YES] if the 6-digit numbers displayed on this unit and the device are the same. First, make a Bluetooth connection with the Bluetooth telephone (page 10). Up to two Bluetooth telephones can be connected simultaneously. Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle’s battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation. To make a phone call

Press to display the phone menu. When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again. 2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4. 3 Turn the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to confirm. 4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts. To answer an incoming call

Press any button when a call is received. TIP When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call. Basic operations Bluetooth telephone Purpose Operation End a call Press . Reject an incoming call Press and hold when a call is received. Switch between the current caller and a caller on hold Press the M.C. dial.- 12 - English To preset phone numbers

Select a phone number from a phone book or call history. 2 Press and hold one of the number buttons (1/ to 6/). The contact is stored in the selected preset number. To make a call using a preset number, press one of the number buttons (1/ to 6/), then press the M.C. dial, while the phone menu is displayed. Voice recognition This function is only available when an iPhone/Android device equipped with voice recognition is connected to the unit via Bluetooth. 1 Press and hold and then talk into the microphone to input voice commands. To exit the voice recognition mode, press BAND/. NOTE For details on the voice recognition features, refer to the manual supplied with your device. TIP When a Pioneer Smart Sync connection is made (page 17), you can also use the voice recognition function from Pioneer Smart Sync installed on your iPhone/Android device by pressing and holding . For details on the voice recognition features, see the application’s help section. Phone menu

Press to display the phone menu. Cancel a caller on hold Press and hold . Adjust the volume of the caller’s voice (When private mode is on, this function is not available.) Turn the M.C. dial during the call. Turn the private mode on or off Press BAND/ during the call. Menu Item Description RECENTS Display the missed call history. [MISSED] [DIALED] Display the dialed call history. [RECEIVED] Display the received call history. PHONE BOOK Display the contacts in your phone. Purpose Operation- 13 -- 13 - English

• If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call. Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:– A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player. – AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.• The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality. 1 Make a Bluetooth connection with the Bluetooth audio player. 2 Press SRC/OFF to select [BT AUDIO] as the source. 3 Press BAND/ to start playback. NOTE You must reconnect the Bluetooth connection when the source is switched or the unit is turned off. PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/ to 6/). A.ANSR* Select [ON] to answer an incoming call automatically. [ON], [OFF] PB INVT Invert the order of names in the phone book (name view). DEVICELIST Display the list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. When no device is selected in the device list, this function is not available. DEL DEVICE Delete the device information. [DELETE YES], [DELETE NO] ADD DEVICE Register a new device. DEV. INFO Switch the device information on the display between the device name and Bluetooth device address. Bluetooth audio Menu Item Description- 14 - English TIP When more than two and up to five devices are registered to the unit via Bluetooth, you can switch the Bluetooth device by playing back songs on the device. By doing so, playing back a song from the Bluetooth device of each passenger is easily available. However, depending on the usage conditions, multiple connections may not be available and the audio files/songs may not be able to be played back properly. Basic operations You can make various adjustments in the FUNCTION settings (page 22).
• Depending on the connected device, these operations may not be available. (Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 26).) Pandora music is a music service not affiliated with Pioneer. More information is available at http://www.pandora.com. The Pandora mobile application is available for iPhone and Android phones. Please visit www.pandora.com/everywhere/mobile for the latest compatibility information. Update the firmware of the Pandora application to the latest version before use. 1 Connect this unit with the mobile device.

• iPhone via USB (page 8)

• iPhone/Android device via Bluetooth (page 10) Purpose OperationFast forward or reverse Press and hold or .Select a track Press or .Repeat play* Press 6/.Random play* Press 5/. Pause/resume playback Press 4/PAUSE. Search for a file from a list 1 Press and hold to display a list. 2 Turn the M.C. dial to select the desired folder name, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts. Pandora® Listening to Pandora- 15 -- 15 - English 2 Press SRC/OFF to select [PANDORA]. 3 Press and hold 1/ to display [APP CONTROL]. 4 Turn the M.C. dial to select one of the below.

• Select [WIRED] for the USB connection.

• Select [BLUETOOTH] for the Bluetooth connection. 5 Press SRC/OFF to select [PANDORA]. 6 Launch the Pandora application on the mobile device and start playback. NOTE When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device. Basic operations You can make various adjustments in the FUNCTION settings (page 22). Purpose Operation Skip a track Press . Switch between Shuffle and the station Press and hold , then turn the M.C. dial to select the Shuffle or the desired station. Change the sort order Press and hold , then select one of the following. [ABC]: Sort the items in the list alphabetically. [DATE]: Sort the items in the list in order of the dates on which the items were created. Play When Shuffle or the station is selected, press the M.C. dial. Delete a station 1 When the station is selected, press and hold the M.C. dial. [DELETE YES] appears. 2 Press the M.C. dial. To cancel, press BAND/ in step 1. Pause/resume playback Press 4/PAUSE. Thumbs Up Press 1/. Thumbs Down Press 2/. Create a new station based on the track currently being played Press and hold 5/. Create a new station based on the artist currently being played Press and hold 6/.- 16 - English NOTE Some functions of Pandora may not be operated from the unit. (Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 26).) Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com. The Spotify application is available for compatible smartphones, please visit https:// support.spotify.com/ for the latest compatibility information. To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes® App Store® or Google Play™. Choose a free account or a paid Premium account, either in the app or at spotify.com. A Premium account gives you more features, like offline listening. Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https:// www.spotify.com/us/select-your-country/. Update the firmware of the Spotify application to the latest version before use. 1 Connect this unit with the mobile device.

• iPhone via USB (page 8)

• iPhone/Android device via Bluetooth (page 10) 2 Press SRC/OFF to select [SPOTIFY]. 3 Press and hold 1/ to display [APP CONTROL]. 4 Turn the M.C. dial to select one of the below.

• Select [WIRED] for the USB connection.

• Select [BLUETOOTH] for the Bluetooth connection. 5 Press SRC/OFF to select [SPOTIFY]. 6 Launch the Spotify application on the mobile device and start playback. Store the track information currently being played in your Pandora account. 1 Press and hold 3/MIX. [BOOKMARK] appears. 2 Press the M.C. dial. Spotify® Listening to Spotify Purpose Operation- 17 -- 17 - English NOTE When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device. Basic operations You can make various adjustments in the FUNCTION settings (page 22). NOTE The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play. NOTE Some functions of Spotify may not be operated from the unit. Pioneer Smart Sync is the application that intelligently brings your maps, messages, and music together in the vehicle. You can operate the unit from Pioneer Smart Sync installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit. Purpose Operation Skip a track Press or . Search for a track from a list 1 Press and hold to display the list. 2 Turn the M.C. dial to select the desired category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts. Pause/resume playback Press 4/PAUSE. Thumbs Up (Only for radio) Press 1/. Thumbs Down (Only for radio) Press 2/. Random play (Only for track/album/artist/ playlist) Press 5/. Repeat play (Only for track/album/artist/ playlist) Press 6/. Start a radio channel based on the song currently being played. 1 Press and hold 5/ to start a radio. 2 Press the M.C. dial.

• This function may not be available depending on the selected song. Using Pioneer Smart Sync/APP- 18 - English For details on what operations are available on the application, see the application’s help section. NOTE The APP source is not available when a Pioneer Smart Sync connection is not made or [USB MTP] is set to [ON] in the SYSTEM settings (page 26). WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application. For iPhone users This function is compatible with iOS 10.3 or later. You can download Pioneer Smart Sync on iTunes App Store. For Android device users This function is compatible with devices that have Android OS 5.0 or later installed. You can download Pioneer Smart Sync on Google Play. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. What kind of function does the application have? Promoting the use of the unit The interface of the unit can be evolved by using your iPhone/Android device.- 19 -- 19 - English Image (example): Examples: – Selecting a source of the unit – Listening to the music on your iPhone/Android device – Controlling the sound field intuitively – Controlling your connected Bluetooth device Extending the functions of the unit by using the application The following functions, which are unavailable on the unit alone, are available by making a Pioneer Smart Sync connection. NOTES

• Some functions may be restricted depending on the connection conditions with the application.

• The 31 Band EQ setting is converted into 13 bands when a music source from this product is engaged. TIP It is recommended to enter the search term "Pioneer Smart Sync" in the search field to search for the application. Menu Item (example) Description Using a navigation application You can specify and start the navigation application installed on your device. Message reading You can read messages received from the apps installed on your device. 31 Band EQ setting You can select an equalizer band from the 31-band graphic equalizer (13-band for not using the Pioneer Smart Sync connection). Super "Todoroki" Sound You can boost the bass level more dynamically than when not using the Pioneer Smart Sync connection. Easy Sound Fit You can perform the time alignment setting easily by selecting your vehicle type.- 20 - English 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [APP CONTROL], then press to confirm. 4 Turn the M.C. dial to select one of the below.

• Select [WIRED] for the USB connection.

• Select [BLUETOOTH] for the Bluetooth connection. 5 Turn the M.C. dial to select [AUTO APP CONN], then press to confirm. 6 Turn the M.C. dial to select [ON], then press to confirm. 7 Connect this unit with the mobile device.

• iPhone/Android device via USB (page 8)

• iPhone/Android device via Bluetooth (page 10) Pioneer Smart Sync on the device starts automatically. NOTE Regardless of whether the [AUTO APP CONN] setting is set to [ON] or [OFF], you can also perform the following to start Pioneer Smart Sync.

• For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial.

• For iPhone, launch Pioneer Smart Sync on the mobile device. NOTES

• When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

• If Pioneer Smart Sync has not been installed on your iPhone/Android device yet, a message that prompts you to install the application will appear on your iPhone/Android device (except for the Android device connected via Bluetooth). Select [OFF] in [AUTO APP CONN] to clear the message (page 26). 1 Press SRC/OFF to select [APP]. Making a connection with Pioneer Smart Sync Listening to music on your device- 21 -- 21 - English You can also make various adjustments in the AUDIO settings (page 23). You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

[FRONT], [REAR], [SUBWOOFER]

NOTE [SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 23). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [AUDIO], then press to confirm. 3 Turn the M.C. dial to select [CROSSOVER], then press to confirm. 4 Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm. 5 Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm. 6 Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm. [25HZ] to [250HZ] 7 Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4. [–6] to [–24] (if you choose [FRONT] or [REAR]) [–6] to [–36] (if you choose [SUBWOOFER]) You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm. Audio Adjustments Adjusting the cut-off frequency value and the slope value Settings- 22 - English

• MIXTRAX settings (page 28) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. FUNCTION settings Menu Item Description BSM Store the six strongest stations on the number buttons (1/ to 6/ ) automatically. LOCAL

Restrict the tuning station according to the signal strength. SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station from the preset channels. SAVE Store the information about the song currently being played to your music list on Spotify. UNSAVE Remove the song information stored in [SAVE]. SEL DEVICE Connect a Bluetooth device in the list. BOOKMARK Store the track information currently being played in your Pandora account. NEW STATION [FROM TRACK], [FROM ARTIST] Create a new station based on the track or artist currently being played. iPhone- 23 -- 23 - English NOTE [CHK APP SETTG.] may be displayed when the setting is performed from Pioneer Smart Sync. PLAY Start playback. STOP Stop playback. AUDIO settings Menu Item Description EQ SETTING [SUPER BASS], [POWERFUL], [DYNAMIC], [NATURAL], [VOCAL], [VIVID], [SET BY APP]*,

[CUSTOM1], [CUSTOM2], [FLAT]

• [SET BY APP] is displayed when the preset equalizer curve that is not available in the unit has been set from Pioneer Smart Sync. Select an equalizer band and level for further customizing. Equalizer band: [50HZ] to [12.5kHZ] Equalizer level: [–6] to [+6] Select or customize the equalizer curve.

• When you select a setting other than [CUSTOM1], [CUSTOM2] and [SET BY APP], you can also customize the equalizer curve by pressing and holding the M.C. dial, then store the customized equalizer curve in [CUSTOM1]. FADER*1 Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. SUBWOOFER [ON], [OFF] Set to [ON] when using a subwoofer speaker. SUBWOOFER*2 [NOR], [REV] Select the subwoofer phase. Menu Item Description- 24 - English SPEAKER LEVEL Types of speaker: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER] Output level: [–24] to [10] Select a speaker unit (filter) and adjust the output level.

• Each value you have adjusted changes when you change the [POSITION] setting (page 24). CROSSOVER Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit. For details on the [CROSSOVER] setting, see page 21. POSITION [OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL] Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats. TIME ALGNMNT

[INITIAL], [OFF], [CUSTOM]

Select a type of speaker and adjust the speaker distance for further customizing in [CUSTOM]. Types of speaker: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER] Speaker distance (inch): [140] to [0] Select or customize the time alignment settings to reflect the distance between the listener’s position and each speaker.

• Select [INITIAL] to initialize the setting value.

• Select [OFF] to reset all setting values to 0.

• The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is selected in [POSITION] (page 24).

• The [CUSTOM] setting is not available when [OFF] is selected in [SUBWOOFER] (page 23). SAVE SETTINGS [YES], [NO] Save to later recall the following sound settings at their current values: [CROSSOVER], [SPEAKER

• The settings that can be saved differ when a Pioneer Smart Sync connection is made. LOAD SETTINGS Load the sound settings, when you have already performed [SAVE SETTINGS]. D.BASS [OFF], [LOW], [HI] Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system. Menu Item Description- 25 -- 25 - English *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 6). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 6). You can also access to these menus when the unit is turned off. LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SLA [+4] to [–4] Adjust the volume level for each source except FM. Each of the below combinations are set to the same setting automatically.

• When making a USB connection, set USB, iPhone, PANDORA, APP, and SPOTIFY.

• When making a Bluetooth connection, set BT AUDIO, iPhone, PANDORA, APP, and SPOTIFY. S.RTRV [1] (effective for low compression rates), [2] (effective for high compression rates), [OFF] Enhance compressed audio and restore rich sound. SYSTEM settings Menu Item Description LANGUAGE [ENG](English), [ESP](Spanish), [FRA] (Canadian French) Select the language to display the text information from a compressed audio file. CLOCK SET [12H], [24H] Set the clock (page 5).

• This setting is not available when a Pioneer Smart Sync connection is made. BEEP TONE [ON], [OFF] A beep can be heard when any button is pushed. Select [OFF] to disable this function. Menu Item Description- 26 - English INFO DISPLAY

• When [SOURCE/SPEANA] or [CLOCK/SPEANA] is selected, display the antenna instead of the speana on the radio source. AUX [ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit. BT AUDIO [ON], [OFF] Set the Bluetooth signal on/off. PANDORA [ON], [OFF] Set to [ON] when using the Pandora function. SPOTIFY [ON], [OFF] Set to [ON] when using the Spotify function.

[YES], [NO] Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit. [CLEARED] appears when data is successfully deleted. APP CONTROL [WIRED], [BLUETOOTH] Select the appropriate connection method according to your device. See page 27 for details on the connections for each device. USB MTP [ON], [OFF] Set to [ON] when using the MTP connection. The following sources are not available when the setting is set to [ON].

• APP, PANDORA, SPOTIFY, iPhone, and USB (AOA)

[ON], [OFF] Select [ON] to automatically launch Pioneer Smart Sync when the iPhone/Android device is connected to the unit. Menu Item Description- 27 -- 27 - English Information on the connections for each device The available sources differ depending on the setting value. Please set [APP CONTROL] according to the table for the source you want to use. For details on Pioneer Smart Sync connection, see page 17. When Pioneer Smart Sync connection is NOT performed When Pioneer Smart Sync connection is performed USB AUTO [ON], [OFF] Select [ON] to automatically switch to USB source when a USB device/iPhone is connected to the unit. Select [OFF] when a USB device/iPhone is being connected to the unit just for charging. Setting Value Device Available source(s) [WIRED] iPhone iPhone, PANDORA, SPOTIFY Android USB (AOA) [BLUETOOTH] iPhone iPhone, PANDORA, SPOTIFY Android PANDORA, SPOTIFY Setting Value Device Available source(s) [WIRED] iPhone APP, PANDORA, SPOTIFY Android APP [BLUETOOTH] iPhone APP, PANDORA, SPOTIFY Android APP, PANDORA, SPOTIFY ILLUMINATION settings Menu Item Description DIM SETTING [SYNC CLOCK], [MANUAL] Select the way to change the display brightness. BRIGHTNESS [1] to [10] Change the display brightness. The available setting ranges differ depending on [DIM SETTING]. Menu Item Description- 28 - English MIXTRAX settings Menu Item Description SHORT PLAYBCK [1.0 MIN], [1.5 MIN], [2.0 MIN],

[2.5 MIN], [3.0 MIN], [OFF]

Select the length of the playback time. MIX PATTERN [SOUND LEVEL] Change the MIXTRAX special effects according to the audio level. The mix pattern changes according to the sound level. [LOW PASS] The mix pattern changes according to the bass level. [RANDOM] The mix pattern changes randomly according to the sound level mode and low pass mode. DISPLAY FX [ON], [OFF] Set the MIXTRAX special effects on/off.

• No operations have been made for about 30 seconds. –Perform an operation. The repeat play range changes unexpectedly.

• Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. –Select the repeat play range again. A subfolder is not played back.

• Subfolders cannot be played when [FLD] (folder repeat) is selected. –Select another repeat play range. The sound is intermittent.

• You are using a device, such as a cellular phone, that may cause audible interference. –Move electrical devices that may be causing the interference away from the unit. The sound from the Bluetooth audio source is not played back.

• There is a call in progress on a Bluetooth-connected cellular phone. –The sound will be played back when the call is terminated.

• A Bluetooth-connected cellular phone is currently being operated. –Stop using the cellular phone.

• The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone. –Make a Bluetooth connection between the unit and the cellular phone again. Common AMP ERROR

• This unit fails to operate or the speaker connection is incorrect.

• The protective circuit is activated. –Check the speaker connection. –Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance. NO XXXX (NO TITLE, for example)

• There is no embedded text information. – Switch the display or play another track/file. USB device/iPhone FORMAT READ

• Sometimes there is a delay between the start of playback and when you start to hear any sound. –Wait until the message disappears and you hear sound. NO AUDIO

• There are no songs. –Transfer the audio files to the USB device and connect.

• The connected USB device has security enabled. –Follow the USB device instructions to disable the security. Additional Information Troubleshooting Error messages- 30 - English SKIPPED

• The connected USB device contains DRM protected files. –The protected files are skipped. PROTECT

• All the files on the connected USB device are embedded with DRM. –Replace the USB device.

• The connected USB device is not supported by this unit. –Disconnect your device and replace it with a compatible USB device. HUB ERROR

• The USB device connected via a USB hub is not supported by this unit. – Connect the USB device directly to this unit using a USB cable. CHECK USB

• The USB connector or USB cable has short-circuited. –Check that the USB connector or USB cable is not caught in something or damaged.

• The connected USB device consumes more than maximum allowable current. – Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. ERROR-19

• Communication failed. –Perform one of the following operations, then return to the USB source.

• Disconnect the USB device.

• Change to a different source.

• iPhone failure. –Disconnect the cable from the iPhone. Once the iPhone’s main menu is displayed, reconnect the iPhone and reset it. ERROR-23

• USB device was not formatted properly. –Format the USB device with FAT12, FAT16 or FAT32. ERROR-16

• The iPhone firmware version is old. –Update the iPhone version.

• iPhone failure. –Disconnect the cable from the iPhone. Once the iPhone’s main menu is displayed, reconnect the iPhone and reset it. STOP

• There are no songs in the current list. –Select a list that contains songs. NO BT DEVICE GO TO BT MENU TO REGISTER

• No Bluetooth device found. –Connect the unit and iPhone via Bluetooth (page 10).

• Bluetooth connection with iPhone failed. –Press BAND/ to make a connection again.

• Bluetooth connection lost. –Press BAND/ to make a connection again. Bluetooth device ERROR-10

• The power failed for the Bluetooth module of the unit. –Turn the ignition switch OFF and back to ACC or ON.- 31 - English Pandora ERROR-19

• Communication failed. –Disconnect the cable from the device. Once the device’s main menu is displayed, reconnect the device and reset it. NOT FOUND

• The Pandora application has not started running yet. –Start up the Pandora application. RATING ERROR

• The thumb rating operation was disabled. –Run the same command for another track. CAN'T SKIP

• The skip operation was disabled. –Run the same command for another track. THUMB ERROR

• Unable to save thumb rating. –Try again later. BOOKMARK ERR

• Unable to save BookMark. –Try again later. INOPERABLE

• The operation to save BookMark or add station was disabled. –Run the same command for another track.

• Unable to add station. –Try again later. SKIP LIMIT

• Due to music licensing restrictions, Pandora limits the total number of skips per hour. –Wait until Pandora allows you to skip again. UPDATE APP

• This version of the Pandora application is not supported. –Connect a device that has a compatible version of the Pandora application installed.

• Your Pandora account is not logged in. –Disconnect the cable from the device, and log in to your Pandora account. Then reconnect the device. ERROR

• Device error message displayed in the Pandora application. –Check the connected device.

• Pandora system is undergoing maintenance. –Try again later. NO STATIONS

• No station found. –Create a station in the Pandora application on your connected device. NO BT DEVICE GO TO BT MENU TO REGISTER

• No Bluetooth device found. –Connect the unit and the device via Bluetooth (page 10).

• Bluetooth connection failed. –Press BAND/ to make a connection again. CHECK APP PRESS BAND KEY TO RETRY

• Connection to the Pandora application failed. –Press BAND/ to make a connection again.- 32 - English

• Bluetooth connection lost. –Press BAND/ to make a connection again. STATION LIMIT

• A new station cannot be added. –Delete an old station to open a spot for a new one. CANNOT DELETE

• The station could not be deleted. –Run the same command for another station. BAD NETWORK

• The connected device is out of area. –Connect the device to a network. UNAVAILAVLE

• The connected device is out of area. –Connect the device to a network.

• The operation was disabled. –Run the same command for another station. CHECK APP

• An unknown error (including communication error) has occurred. –Follow the instructions that appear on the screen. APP CONNECT APP

• Pioneer Smart Sync connection is not made. – Make a connection with Pioneer Smart Sync (page 17). Spotify NOT FOUND

• The Spotify application has not started running yet. –Start up the Spotify application. NO BT DEVICE GO TO BT MENU TO REGISTER

• No Bluetooth device found. –Connect the unit and the device via Bluetooth (page 10).

• Bluetooth connection failed. –Press BAND/ to make a connection again. CHECK APP PRESS BAND KEY TO RETRY

• Connection to the Spotify application failed. –Press BAND/ to make a connection again.

• Bluetooth connection lost. –Press BAND/ to make a connection again. CHECK APP

• An unknown error (including communication error) has occurred. –Follow the instructions that appear on the screen. USB storage device

• Connections via USB hubs are not supported.

• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• Depending on the USB storage device, the following problems may occur. –Operations may vary. –The storage device may not be recognized. Handling guidelines- 33 - English – Files may not be played back properly. – The device may cause audible interference when you are listening to the radio. iPhone

• Do not leave the iPhone in places with high temperatures.

• Firmly secure the iPhone when driving. Do not let the iPhone fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• Incompatible text saved on the iPhone will not be displayed by the unit.

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• The unit may not work properly depending on the application used to encode WMA files.

• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies. CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave a USB device in any place that is subject to high temperatures. WMA files MP3 files WAV files

• WAV file formats cannot be connected via MTP. AAC files Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatibleFile extension .mp3Bit rate 8 kbps to 320 kbps (CBR), VBRSampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)M3u playlist Not compatibleMP3i (MP3 interactive), mp3 PRONot compatibleFile extension .wavQuantization bits 8 and 16 (LPCM)Sampling frequency 16 kHz to 48 kHz (LPCM)Compatible format AAC encoded by iTunesFile extension .m4aSampling frequency 11.025 kHz to 48 kHzStereo Bit Rate 16 kbps to 320 kbps, VBR Apple Lossless Not compatibleAAC file bought from the iTunes Store (.m4p file extension)Not compatible- 34 - English FLAC files
• FLAC file formats cannot be connected via MTP.• FLAC files may not be playable, depending on the encoder. USB device

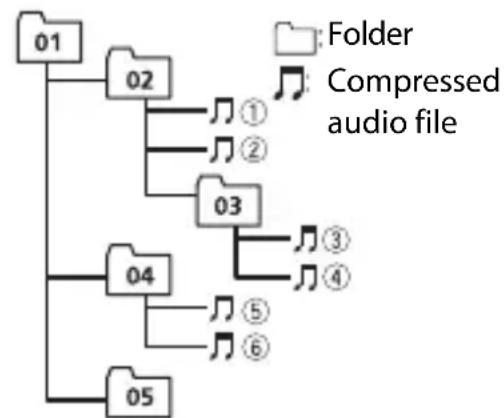

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.This unit supports only the following iPhone models. Older versions may not be supported.Made for–iPhone X–iPhone 8–iPhone 8 Plus–iPhone 7–iPhone 7 Plus–iPhone SE–iPhone 6s–iPhone 6s Plus–iPhone 6–iPhone 6 Plus–iPhone 5s–iPhone 5c–iPhone 5• Operations may vary depending on the generation and/or software version of the iPhone.• Users of iPhone with the Lightning® Connector should use the Lightning to USB Cable (supplied with iPhone).• Refer to the iPhone manuals for information about the file/format compatibility.• Audiobook, Podcast: Compatible CAUTION Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used.The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.Note that the hidden files in a USB device cannot be played back. Example of a hierarchy BluetoothThe Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, File extension .flac, .flaSampling frequency 8/11.025/12/16/22.05/24/32/44.1/48/96 kHzQuantization bit rate 8/16/24 bitChannel mode 1/2 chPlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 1 500Playable files Up to 15 000Playback of copyright-protected filesNot compatiblePartitioned USB deviceOnly the first partition can be played. iPhone compatibility Sequence of audio files Copyright and trademark FolderCompressed audio file to : Playback sequence01 to 05: Folder number- 35 - English Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners. iTunes Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. WMA Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: –Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. –Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. –Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
