| Product Type | External Blu-ray reader/writer |
| Brand | Pioneer |
| Model | BDRX12UBK |
| Interface | USB 3.1 Gen1, USB 3.0, USB 2.0 |
| Supported disc formats | BD-ROM, BD-R, BD-RE, DVD-ROM, DVD±R, DVD±RW, DVD-RAM, CD-ROM, CD-R, CD-RW, M-DISC |
| Maximum write speeds | BD-R SL 16x, BD-R DL 14x, DVD±R SL 16x, DVD±R DL 8x, CD-R 40x |
| Maximum read speeds | BD-ROM SL 12x, DVD-ROM SL 16x, CD-ROM 40x |
| Buffer memory | 4 MB |
| Power supply | AC adapter, 120 V AC input, 60 Hz |
| Power consumption | 30 W (nominal), 0.3 W (standby) |
| Weight (drive only) | 1.1 kg |
| Operating temperature | +5 °C to +35 °C |
| Operating humidity | 20% to 80% (no condensation) |
| Special features | Quiet Drive, PureRead (via Pioneer utility), emergency eject |
| Region code | Default 1, can be changed up to 4 times |
| Included accessories | AC adapter, USB A to B cable, insulators (horizontal and vertical), power cord, warranty card |
| Safety | Class 1 laser product, grounding required, do not open |
| Maintenance and cleaning | Wipe with a dry cloth, do not use liquids or aerosols |
| Repairability | No user-serviceable parts, refer to qualified personnel |
| Supported operating systems | Windows 7/8/8.1/10, Mac OS X 10.11/10.12/10.13/10.14/10.15 |
Frequently Asked Questions - BDRX12UBK PIONEER
User questions about BDRX12UBK PIONEER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your External hard drive in PDF format for free! Find your manual BDRX12UBK - PIONEER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDRX12UBK by PIONEER.
USER MANUAL BDRX12UBK PIONEER
Thank you for buying this Pioneer product. Before using the drive, read all warnings, cautions, notices and other important safety information contained in these Operating Instructions. Please read the entire manual before using this drive as it contains important information, such as regulatory data, software license agreement(s), product registration details, service instructions and guidelines.
WARNING
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.
D3-4-2-1-3 B En
WARNING
To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
WARNING
This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.
D3-4-2-1-6 A1 En
Precautions Regarding Use
- Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the result of the use or breakdown of this product. It is strongly recommended to regularly back up all critical data.
- Care must be taken not to infringe copyright restrictions under the laws of each country. If this device is used to record copyrighted materials, approval must be obtained from the respective copyright holders. The recording of copyrighted materials without the express approval of the respective copyright holders may result in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of this device in the unauthorized copying of copyrighted materials.
- All names of corporations, products, and systems listed herein, even when the (^*) or (假) symbols are omitted, are considered the registered trademarks of the respective owners.
DANGER - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.
IMPORTANT
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
D3-4-2-1-1_A1_En
CAUTION
This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit.
CLASS 1 LASER PRODUCT
Location: Top of built-in drive and rear of outer mounting case
Location: Top of built-in drive
D3-4-2-1-8*CEn
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. D6-8-2-1 En
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM. RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
D36-AP9-1_A1_En
Operating Environment
Operating environment temperature and humidity: +5^ to +35^(+41^ to +95^) less than 80% RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
D3-4-2-1-7c*A1_EN
Machine Noise Information Regulation 3.
GPSGV: The highest sound-pressure level is 70 dB(A) or less in accordance EN ISO 7779.
Information to User
Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. D8-10-2_A1_E
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2 A1 En
CAUTION
This product satisfies FCC regulations when shielded cables (with Ferrite-cores attached) and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables (with Ferrite-cores attached) and connectors for connections.
D8-10-3b_A1_En
FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Product
BD/CD/CD WRITER
Model
NBDP#12UBK
Responsible Party Name: PIONEER ELECTRONICS (USA) INC.
Address: 2050 W. 190th Street, Suite 100, Torrance, CA 90504
Phone:
1-800-421-1404
URL:
https://www.pioneerelectronics.com/PUSA/
D8-10-4* C1_En
This product was classified under the Safety of laser products, IEC 60825-1:2014
is a trademark of Blu-ray Disc Association.
is a trademark of DVD Format/Logo Licensing Corporation.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
D3-7-13-69_En
Safety instructions
To ensure your personal safety and to maximize the full operating potential of your unit, read and follow these safety instructions.
Read & Retain Instructions - Read all operating and user information provided with this drive.
Cleaning - Use a damp cloth to clean the exterior housing. Avoid using any fluids including liquid, aerosol or alcohol-based cleaning products.
Water or Moisture - Avoid operating or locating this drive near water or other sources of fluid.
Accessories - Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged.
Operation - Avoid moving, lifting or reorienting this drive while a disc is rotating inside.
Environment - Avoid installing this drive in a location with exposure to large quantities of dust, high temperatures, high humidity, or subject to excessive vibrations or shocks.
Power Sources - Operate this drive only from the attached power sources.
Power-Cord Protection - When unplugging the unit, pull on the plug - not on the cord. Do not handle the cord or plug with wet hands; doing so could cause an electric short or shock. Do not allow anything to pinch or rest on the power cord and do not place in a walkway.
Overloading - Do not overload wall outlets and extension cords. Doing so may result in fire or electric shock.
Object & Liquid Entry - Never push inappropriate objects into the device. Avoid spilling any liquids into or on the outside of the drive.
Condensation - Moisture can form in the operating section of the product if the drive is taken from cool surroundings to a room with a warmer temperature. Let the drive stand for one to two hours in the new location before turning it ON.
Servicing - Opening or removing the cover exposes you to possible electrical shock or other danger. Contact a Pioneer authorized service representative for repairing this drive (refer to the enclosed Service & Support Card).
Damage Requiring Service - Unplug the unit and refer servicing to qualified service personnel in the following situations:
- When the power cord, plug, or chassis is damaged.
If liquid has been spilled. - If the product has been exposed to rain or water.
- If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and can require extensive work by a qualified technician to restore the unit to its normal operation.
- When the product exhibits a distinct change in performance – this indicates a need for service.
About DualDisc Playback - DualDisc is a two-sided disc with one side containing DVD video/audio/etc. content and the opposite side containing non-DVD content such as digital audio material. The non-DVD audio side is not compliant with the CD Audio Specification; therefore, may not play. The DVD side of DualDisc media plays in this unit. For more details about the DualDisc specification, please refer to the disc manufacturer or your retailer.
- Avoid touching or scratching the signal surface (shiny side) of the disc.
- Hold the disc by the edges or by the center hole and one edge.
- Do not affix paper or labels to the disc.
- Discard warped or cracked discs as they may cause damage to the drive.
- Avoid specially shaped discs such as hearts or polygons.
- Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
- Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.
Always be sure to store your discs in proper disc storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the signal surface) before use.
Note
Some discs may not be playable due to different recording formats or the physical condition of the disc at the time of recording or playback.
If there are irregularities with the AC adapter or power plug, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
- When mounting the AC adapter on a wall outlet, make sure there is no space between the AC adapter and the wall outlet. Faulty contact or a coin, paper clip or other metal object getting stuck in the space could cause a short circuit, leading to fire or electric shock.
The supplied AC adapter and power cord are designed specifically for this unit. Do not use them for another device. A fire or electric shock may occur.
Operating environment
The operating environment below is only for reference. It does not guarantee the operation.
During DVD/CD disc writing and reading
- Supported OS: Windows 7, Windows 8, Windows 8.1, Windows 10, Mac OS X 10.11, macOS Sierra 10.12, macOS High Sierra 10.13, macOS Mojave 10.14, Catalina 10.15^*1 standard loaded model
- CPU: Pentium III 800 MHz or above (Pentium 4, 2.2 GHz or above* 2)
- Memory: 128 MB or above (256 MB or above* 2)
- Hard disk free space: 2 GB or above (7 GB or above*2)
Sound card: 16 bit or above - Graphic: 1024 × 768,32 bit or above display
Devices: Arrange for a separate video input device (video cassette recorder and camcorder, etc.) and capture card.
During Blu-ray disc writing and reading
- Supported OS: Windows 7, Windows 8, Windows 8.1, Windows 10, Mac OS X 10.11, macOS Sierra 10.12, macOS High Sierra 10.13, macOS Mojave 10.14, Catalina 10.15^*1 standard loaded model
CPU: Core Duo T2700/Core 2Duo E6300 or above - Memory: 1 GB or above
- Hard disk free space: During recording 25 GB (50 GB or above* ^2 ),during playback 120 MB
- Graphic: During digital output of BD-Video videos, an HDCP-compatible graphic function and monitor are required.
*1: For the latest OS support information, see the product website.
*2: Recommended operating environment
The required environment varies depending on your OS and applications.
For answers to your queries on the OS and applications, contact the consultation desk of each software manufacturer.
Blu-ray Disc, BDXL, the Blu-ray Disc and BDXL logos are trademarks of the Blu-ray Disc Association. Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.
Mac, Mac logo, Mac OS, OS X and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.
Other company and product names used herein might be the trademarks or registered trademarks of their respective companies.
Features
| WRITE SPEED (MAXIMUM)* READ | D SPEED (MAXIMUM)* | |
| BD-ROM (SL/DL) - 12X/8X | ||
| BD-R (SL/DL) 16X/14X 12X/8X | ||
| BD-RE (SL/DL) 2X 10X/6X | ||
| BD-R (TL/QL) 8X/6X 6X | ||
| BD-RE (TL) 2X 4X | ||
| BD-R LTH 8X 8X | ||
| M-DISC (BD) SL 4X 12X | ||
| M-DISC (BD) DL 8X 8X | ||
| M-DISC (BD) TL 6X 6X | ||
| DVD-ROM (SL/DL) - 16X/12X | ||
| DVD±R (SL) 16X 16X | ||
| DVD±R (DL) 8X 12X | ||
| DVD-RW | 6X 12X | |
| DVD+RW | 8X 12X | |
| DVD-RAM | 5X 5X | |
| M-DISC (DVD) | 4X 16X | |
| CD-ROM | - 40X | |
| CD-R | 40X 40X | |
| CD-RW | 24X 24X |
- When using a USB 2.0 port, BD writing/reading speed doesn't achieve 6X or above.
Buffer Memory Size Interface
4 MBytes USB 3.1 Gen1/3.0/2.0
Disc Format
BD-ROM(SL/DL)
BD-R(SL/DL/TL/QL)
BD-RE(SL/DL/TL)
M-DISC BD-R (SL/DL/TL)
DVD-ROM (SL/DL)
DVD-Video (SL/DL)
DVD-R (SL/DL)
DVD-RW
DVD+R (SL/DL)
DVD+RW
DVD-RAM (Non-cartridge), ver2.0&2.1&2.2
M-DISC (DVD)
CD-ROM Mode 1&2
- CD-ROM XA Mode 2 (form 1, form 2)
KODAK Photo CD (Single and Multi-session)
CD-Extra (CD PLUS)
CD text
CD-R
CD-RW (HS/US/US+)
CD-DA
Video CD
RAM2 media is supported only reading.
Note
A specific application software is necessary to write the formats listed above.
Supported media required for specific BD, DVD and CD writing speeds.
Average writing speed may decrease when multiple discs are written during the same session.
- The Pioneer's Drive Utility is needed to configure the Quiet Drive and PureRead features. https://pioneer.jp/support/download/index-e.html
Interface

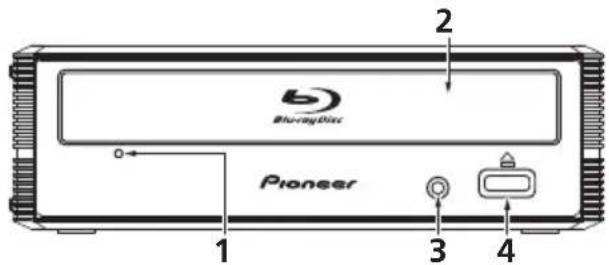

Front view

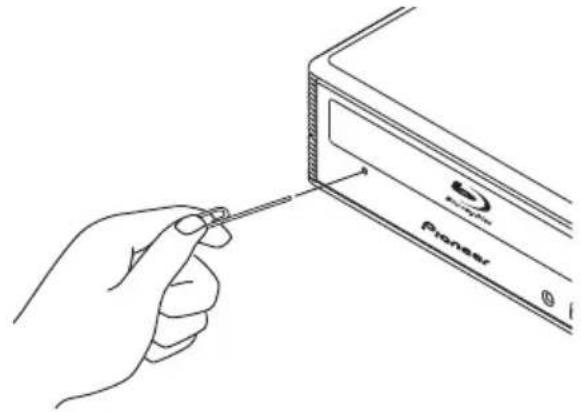

1 Forced Ejection Hole
Insert a stiff rod into the hole and push to eject the tray when the tray doesn't open by pressing the Eject button. During normal operation, the eject button should be used to unload the tray. Make sure the power to the drive is turned off and wait more than one minute till the disc rotation is stopped when accessing the eject hole.
2 Disc Tray
Open the tray by pressing the eject button, then place only a BD, DVD or CD disc into the tray with the label facing up.
Press the eject button to load the tray with the disc.
Do not attempt to pull out the disc tray forcibly.
3 Indicator
Operation status is indicated as follows.
When power off Off
When power on On
When reading Flashing
When writing Flashing
When tray opening/closing On
4EjectButton（
Opens and closes the disc tray.
- When connected to a Mac computer, this button cannot be used if a disc is inserted.
Precautions on playing 8 cm (3.15") Discs
- 8 cm disc adapters cannot be used with this unit.
- When this unit is installed flat, 8 cm discs may be used by placing them in the 8 cm disc depression in the center of the disc tray.
- When this unit is installed vertically, 8cm discs cannot be used.

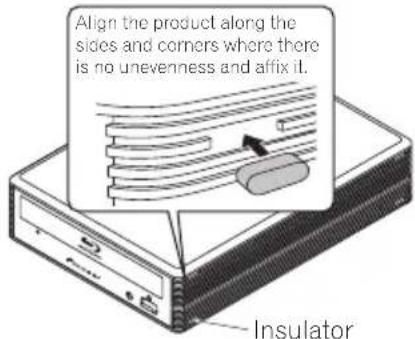

Affixing the insulators (recommended affixing example)
[When placed horizontally]
[When placed vertically]
Caution
- When using this product, be sure to use the supplied insulator. If the product is not affixed, there is a risk of faulty operation or noise due to vibrations.
- When installing the insulator, make sure that it does not run over the protruding part.
- Before installation, wipe off any oil or dirt on the casing.

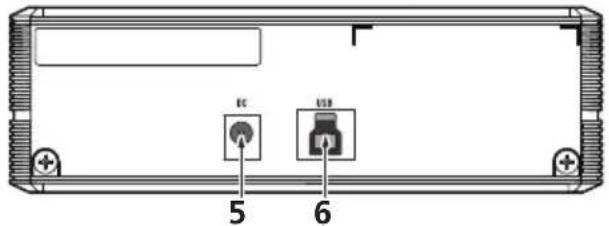

Rear view

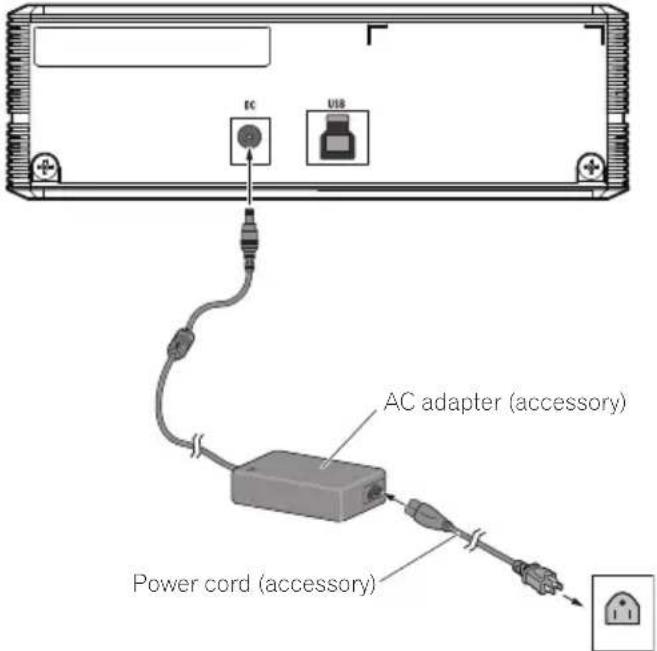

5 DC power connector
Connect the AC adapter supplied with the unit.
6 USB connector (Type-B)
Warning
Do not place the unit within the reach of small children.
In the event that a small part is swallowed, seek medical attention immediately.
* Blu-ray, Blu-ray Disc, Blu-ray 3D, and Blu-ray 3D logo are trademarks of Blu-ray Disc Association.
Connection
Connecting the power cord
Caution
- Connect the power cord before connecting the unit to a computer.
-
About Region codes
-
The region code for this drive is set to "1" by default. The region code can only be changed four (4) times, including the initial setting. Please be aware that the fourth change becomes PERMANENT. Therefore, avoid changing the region code unless absolutely necessary.
- Region codes are part of the DVD Standard. However, region codes on DVD discs are optional. DVD discs with no specified region code can be played on all compliant players and/or application.

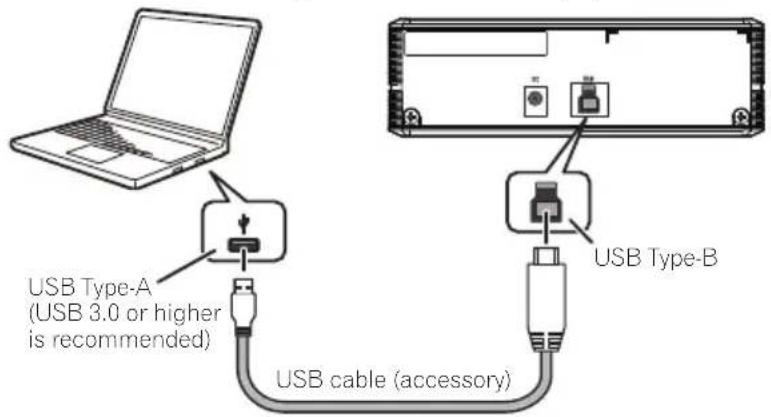

Connecting the USB cable
This is a hot-plug unit. Connect the unit to the supplied USB cable.
1 Confirm that your computer (PC) has available USB port.
2 With your Windows or Mac operating system running, use the supplied USB cable to connect this unit to the PC.
Caution
- Do not disconnect the USB cable during data transfers.
- Do not disconnect the USB cable during the PC start nor any operation with the unit.
Note
- It is recommended to connect to USB 3.0 port or above, since when a USB 3.0 cable is connected to a USB 2.0 port, the connection will be limited to USB 2.0 performance standards.
- This unit can operate with USB 1.1 but will not provide optimum performance.
- Connecting this unit through a USB HUB or using unspecified cables may not guarantee proper operation.
- The unit will not run on power supplied from the USB connector (bus power). Be sure to use the unit with the AC adapter supplied with the unit connected.
Forced ejection method in case of emergency
In a case such as the following, a disc can be removed using the forced ejection hole.
- If the unit fails and the disc cannot be ejected with the eject button or software
1 Check that it has powered off and the disc has stopped rotating after waiting at least one minute.
2 Straighten out a paper clip and insert it straight into the forced ejection hole and push hard.
3 The disc tray comes out about 5 to 10mm Pull the tray all the way out and remove the disc.
Caution
- Do not force eject a disc while it is rotating. An injury or disc damage may occur.
- Do not place any object within 12cm of the front of the unit as it may obstruct the disc ejection operation.
Specifications
Orientation . This device supports both vertical installation and horizontal.
Disc Size 4.72 inch (12 cm) / 3.15 inch (8 cm) *
- 3.15 inch (8 cm) discs cannot be used with upright position.
(Drive does not support non-standard shapes such as business cards, diamond, etc.)
(Drive does not support 8 cm adapter.)
Data Transfer Rate * Media that is dirty or damaged can affect the transfer rate.
Data Read (sustained) BD . Max. 54.0 MBytes/sec.
DVD .Max.21.6 MBytes/sec
CD Max. 6.0 MBytes/sec.
Data Write (sustained) BD .Max. 72.0 MBytes/sec. (16X BD-R)
DVD. .Max. 21.6 MBytes/sec. (16X DVD-R)
CD Max. 6.0 MBytes/sec. (40X CD-R)
Access Time/Seek Time (Random Averages)
Access Time BD-ROM 180 ms
DVD-ROM 170 ms
CD-ROM 160 ms
Seek Time BD-ROM 160 ms
DVD-ROM 150 ms
CD-ROM 140 ms
AC Input Power AC 120 V, 60 Hz
Power consumption (Rating) 30 W
No load power consumption. 0.3 W
Physical Information
Dimensions (excluding foot pad) 6.30 inch (W) x 8.66 inch (D) x 1.97 inch (H)
Weight (Drive only) .2.4 Ibs/1.1 kg (Typ.)
Operation Temperature. +41^ to +95^ (+5^ to +35^)
Operation Humidity. 20% to 80% (no condensation)
[AC Adapter]
Dimensions (Body only) 3.54 inch (W) x 1.49 inch (D) x 1.06 inch (H)
89.8 mm (W) × 37.8 mm (D) × 27.0 mm (H)
Weight .0.33 Ibs/0.15 kg (Typ.)
Accessories
Instruction manual (This document)
USB Type-A to USB Type-B (1 m) 1
Insulators for horizontal placement. 4
Insulators for vertical placement 8
AC adapter (OWR8003-) (1.2m) 1
Power cord (0.5 m) 1
Warranty Card 1
Pioneer Drive Utility and USB High Speed Driver
To download the Pioneer Drive Utility and USB High Speed Driver, visit:
https://pioneer.jp/device e/product-e/ibs/device e/dev00001r e.html
- The Pioneer Drive Utility is needed to configure the Quiet Drive and PureRead features.
- When the USB High Speed Driver is not installed, it may not be up to 16x writing speed on BD-R.
Note
Specifications and designs are subject to possible modifications without notice, due to improvements.
© 2019 PIONEER CORPORATION.
All rights reserved.
Dimensions (talon non compris) 160 mm (L) x 220 mm (P) x 50 mm (H)
Dimensions (corps uniquely) 89,8 mm (L) x 37,8 mm (P) x 27,0 mm (H)
Poids. 0,15 kg (Typ.)
Accessoires
© 2019 PIONEER CORPORATION.
© 2019 PIONEER CORPORATION.
AFTER SALES SERVICE FOR PIONEER PRODUCTS
Please contact the dealer or distributor where you purchased this product for its after-sale service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiary (regional service headquarters) listed below.
PIONEER ELECTRONICS (USA) INC.
P.O.BOX 1720, Long Beach, California 90801 U.S.A.
PIONEER CORPORATION
© 2019 PIONEER CORPORATION.
All rights reserved.
© 2019 PIONEER CORPORATION.
28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan
PIONEER ELECTRONICS (USA) INC.
P.O.BOX 1720, Long Beach, California 90801 U.S.A.
For BDR-X12UBK support, go to:
https://www.pioneerelectronics.com/PUSA/
Printed in China/Imprimé en Chine/LImpreso en China
