Product Type	Tower Fan
Brand	SilverCrest
Model	STV 45 D3
Dimensions (W x H x D)	Approx. 24 x 76 x 24 cm
Weight	Approx. 2.4 kg
Power Supply	220-240 V~, 50 Hz
Power Consumption	50 W
Maximum Airflow	4.44 m³/min
Protection Class	II
Fan Speeds	3 speeds (low, medium, high)
Timer	0 to 120 minutes (rotary dial)
Oscillation	Yes, activation via OSC button
Stop Function	Dedicated OFF button
Stand Material	Plastic, in two parts
Intended Use	Indoor household use only
Maintenance and Cleaning	Vacuum for dust, non-abrasive damp cloth
Safety	Do not immerse, do not use near water, unplug before cleaning
Warranty	3 years (conditions according to manual)
Customer Service (France)	Phone: [phone], Email: [e-mail]
Spare Parts	Essential parts available during warranty period

Frequently Asked Questions - STV 45 D3 SILVERCREST

How to assemble the fan stand?

Assemble the front and back halves of the stand. Guide the power cord into the stand, then place the tower fan on the stand, engaging the locking tabs. You should hear a click.

How to adjust the fan speed?

Press button 1 (low speed), button 2 (medium) or button 3 (high) until it locks. To stop, press the OFF button.

How to use the timer?

Turn the rotary dial to a position between 0 and 120 minutes to turn on and set the duration. Turn to OFF to turn off the timer. Exact minute setting is not possible.

How to activate oscillation?

Press the OSC button to set it to the low position and activate oscillation. Press again to deactivate, the button returns to the high position.

How to clean the fan?

Always unplug the appliance before cleaning. Use a vacuum for dust, then a slightly damp cloth (no aggressive liquids). Never immerse the fan in water.

What are the important safety instructions?

Do not use the fan near water. Do not insert fingers or objects into the grille. Keep hair and clothing away. Do not use with an external timer. Unplug during storms.

What to do if the fan does not turn on?

Check that the mains socket is working and the cord is not damaged. Ensure the rotary dial is set to ON. If the problem persists, contact customer service.

Can the fan be used outdoors?

No, this fan is designed only for indoor domestic use. Do not expose it to rain or moisture.

How to store the fan off-season?

Clean it, then store it in a dry, dust-free place.

What is the warranty period and how to claim it?

The warranty is 3 years from the date of purchase. Keep the receipt. In case of defect, contact customer service at 0800 919270 (France) or by email at [e-mail].

USER MANUAL STV 45 D3 SILVERCREST

Building Handling by 100% local Marge

HU

TORONYVENTILLATOR

Operating instructions and safety instructions

M

TORENVENTILATOR

Hovilleides en viuheiliearmiante

ПОЧИД

©

SLOUPOVY VENTILATOR

Návo

图5

VENTILADOR DE TORRE

Last Information Update

1. Safety instructions .... 19

2. Copyright 23

3. Before you start.... 24

7.1 Unpacking 24

7.2 Mounting 24

1. Getting started 25

8.1 Switching the fan on and off 25

8.2 Adjusting the fan speed.... 25

8.3 Setting the TIMER....25

8.4 Oscillation....26

1. Maintenance/cleaning 26

2. Storage when not in use.... 26

3. Environmental regulations and disposal information.... 27

4. Conformity notes 28

5. Warranty and service information....29

Congratulations!

By purchasing the SilverCrest STV 50 G1 tower fan, hereinafter referred to as the fan, you have opted for a quality product.

Before first using it, familiarise yourself with the way the fan works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the fan as described in the operating instructions and for the applications given.

Keep these operating instructions in a safe place. If you pass the fan on to someone else, make sure to give them all the relevant documents with them.

1. Intended use

This fan has been designed for providing a cool air circulation. This fan may not be used outdoors or in tropical climates. This fan has not been designed for corporate or commercial use. Use the fan in domestic environments for private applications only. Any other use does not correspond to the intended use. This fan fulfills all relevant norms and standards concerning CE conformity. Any modifications to the fan other than recommended changes by the manufacturer may result in these norms no longer being met. The manufacturer accepts no liability for any damage or malfunctions resulting from this. Only use accessories recommended by the manufacturer.

Observe the regulations and laws in the country of use.

2. Package contents

• SilverCrest STV 50 G1 tower fan
- 2-piece stand
• These operating instructions

3. Overview

These operating instructions have a fold-out cover. On the inside of the cover is a diagram of the fan with the components numbered. The meanings of the numbers are as follows:

1 Tower fan
2 Rotary switch (switch on/off / set the timer)
3 OSC button (oscillation movement)
4 Button 3 - high fan speed
5 Button 2 - medium fan speed
6 Button 1 - low fan speed
7 OFF button - switch off
8 Stand (consisting of pieces number 9 and 10)
9 Front half of stand
10 Back half of stand

11 Power cable recess
12 Plastic noses
13 Power cable
14 Locking catches

4. Technical specifications

Input voltage	220 V - 240 V~ (AC), 50 Hz
Power consumption 50 W
Protection class II
Dimensions (W x H x D) approx. 24 x 76 x 24 cm
Weight approx. 2.4 kg

Technical specifications and design are subject to change without notice.

4.1 Information requirements

Information to identify the model(s) to which the information relates to: SilverCrest STV 50 G1, IAN 384790_2107
Name	Symbol	Value
Maximum fan flow rate F 4.44 m			^3 /min
Fan power input P 45.50 W
Service value SV	0.10 (m		^3 /min) / W
Standby power consumption	P_SB	--	W
Power consumption when switched off	P_OFF	0	W
Fan sound power level	L_WA	60.18	dB(A)
Maximum air velocity	c	2.35	m/s
Seasonal power consumption	Q	14.56 kWh/a
Measurement standard for service value	IEC 60879:1986 (corr.1992)
Contact address for further information	TARGA GmbH, Coesterweg 45, 59494 Soest, GERMANY

5. Safety instructions

Before you use this fan for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the fan or give them away, pass on the operating instructions at the same time.

DANGER! This signal word indicates a danger with a high risk, which will lead to death or major injuries if not avoided.

WARNING! This signal word indicates a danger with a moderate risk, which can lead to death or major injuries if not avoided.

CAUTION! This signal word indicates important instructions to protect against damage to property.

This symbol denotes further information on the topic.

AC voltage

Protection Class II

DANGER! Personal safety

This fan may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or those with no knowledge or experience providing they are supervised or they have been given instructions on the proper use of the fan and they understand the associated risks. Do not allow children to play with the fan. The product must not be cleaned or maintained by unsupervised children. Keep the packaging materials out of the reach of children. There is a risk of suffocation.

DANGER! Risk of electric shock!

- Protect the product against moisture and humidity and drips or sprays of water. Never immerse in water or other liquids!

- If liquid does penetrate into the device, disconnect the power plug immediately. Get the product checked by an expert before using it again.

- Never operate the product with wet or damp hands.

- Do not touch the product if it is in water or another liquid, instead, pull the plug from the mains socket.

- Do not use the product if the power plug or the power cable is damaged, if it does not work properly, if it has fallen into water, been dropped, or if it showing any other signs of damage. In this case, please consult an expert to repair the product.

- Only connect the power cable to a properly installed, easily accessible mains socket whose mains voltage corresponds to that in the "Technical specifications" chapter. The mains socket must also be easily accessible after connecting.

- Make sure that the power cable cannot be damaged by sharp edges or hot spots.

- When using the product, make sure that the power cable is not jammed or squashed in any way.

- Even when switched off, the product is not entirely disconnected from the mains power. Pull the power plug to disconnect it completely. Always pull on the power plug, not the cable.

- Unplug the power plug from the mains socket

○ if a problem occurs,
○ if you are not using the product,
o for installation,
o before cleaning the product and
○ if there is a thunderstorm.

- Never try to repair the product yourself. In the event of a problem, switch off the product, unplug the power plug and contact our customer service.

- If the power cable of this product is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person, in order to avoid any possible danger.

WARNING! Risk of injury!

• Do not insert any finger or any objects into the product while it is switched on.
• Do not use the product near explosive or flammable materials.
• Keep your hair, clothing and other objects away of the protective grille when switched on.
• Do not move the product while it is in use.

CAUTION! Damage to equipment!

• This product is not intended for operation with an external clock timer or separate remote control system.
• Never put the product on a hot surface (e.g. a hob) or near heat sources or open fires.
• Only use original accessories.
• Do not hang or wall-mount this product.
• Only operate the product on an even and stable surface.
• Never use the product near inflammable materials such as curtains. Maintain a clearance of at least 50 cm around the product to flammable and combustible materials.

Do not expose the fan to any direct heat sources (e.g. heaters), direct sunlight or artificial light. The device must not be exposed to spray or dripping water or abrasive liquids. Do not use the product near water. It is especially important that the product is never immersed (do not place any containers containing liquids such as drinks, vases, etc. on the product). Make sure that the product is not subject to excessive shocks or vibrations. Do not introduce any foreign bodies into the device.

6. Copyright

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

7. Before you start

7.1 Unpacking

• Remove the product from the packaging.
• Remove all package material.
• Check the packaging for any missing contents. Please contact Customer Service immediately if any items are missing.

7.2 Mounting

• Figure A: Join the front (9) and back (10) half parts of the stand (8).

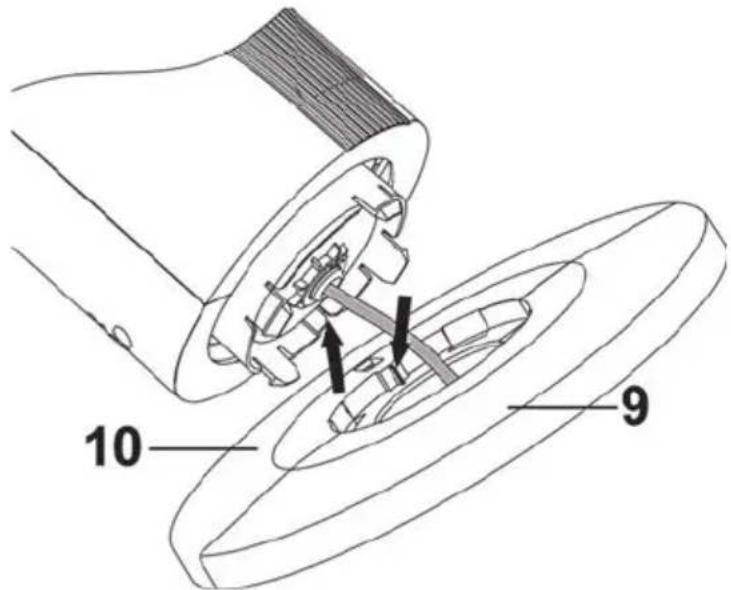

- Figure B: First guide the power cable (13) through the stand (8). Then place the tower fan (1) so on the stand (8) that the 4 locking catches (14) fit into the corresponding slots on the stand (8). Furthermore, the plastic nose (see the arrow) of the rear half (10) of the stand has to fit into the slot (see the arrow) on the tower fan (1). Next apply some pressure onto the tower fan (1) so can hear the locking catches (14) click in place.

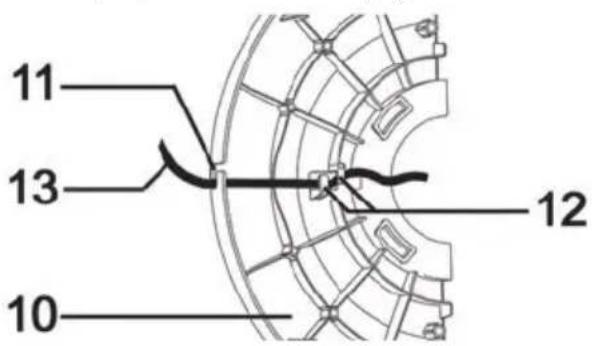

• Always lay the power cord (13) under the stand (8), as shown in the following diagram:

8. Getting started

8.1 Switching the fan on and off

Proceed as follows to getting started using the fan:

- Select a location according to the safety instructions.

- Operate the fan on a flat, stable surface.

- Insert the mains plug into a properly installed mains socket.

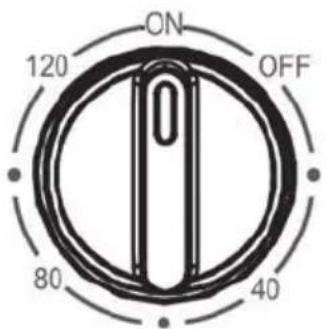

- To switch the device on, turn the rotary switch (2) to ON.

- To switch the device off, turn the rotary switch (2) to OFF.

8.2 Adjusting the fan speed

• Low fan speed: Press button 1 (6) until it locks.
• Medium fan speed: Press button 2 (5) until it locks.
• High fan speed: Press button 3 (4) until it locks.
• To stop the air circulation, press the OFF button (7).

8.3 Setting the TIMER

You can use the TIMER to program a runtime between 0 and 120 minutes.

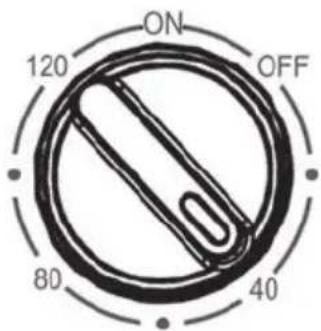

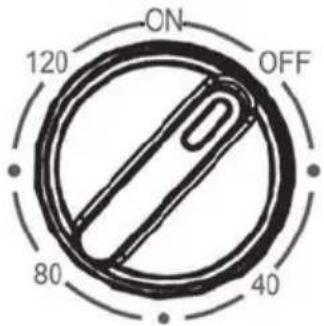

• To switch the TIMER on, turn the rotary switch (2) to a position between 0 and 120 minutes. The device switches on.
• Please note that an exact setting to the minutes it is not possible.
• To switch the TIMER off, turn the rotary switch (2) to OFF.

8.4 Oscillation

You can have the fan make horizontal movements (oscillations):

• Press the OSC button (3) to the lower position to switch oscillation on.
• Press the OSC button (3) again to switch oscillation off. The OSC button (3) toggles back to the upper position.

9. Maintenance/cleaning

DANGER! Risk of electric shock!

• Unplug the fan from the mains before cleaning it.
• Never immerse the fan in water for cleaning.
• Do not put water or detergent directly into the fan.

Repairs are required if the fan has been damaged in any way, for example if the device housing is damaged, when liquids or objects have penetrated into the fan or when the product has been exposed to rain or moisture. Servicing is also necessary when the product does not perform normally or if it has been dropped. If smoke, unusual noises or smells are noticed, disconnect the fan from the mains immediately. If this occurs, the fan should no longer be used until it has been inspected by authorised service personnel. All servicing work must be carried out by qualified specialist personnel. Never open the housing of the fan.

• You can remove major dust portions with a vacuum cleaner.
  • Only use a clean, slightly dampened cloth to clean the fan. Never use any aggressive liquids.
  • For stubborn dirt, add a little detergent to the damp cloth.
  • If necessary, you can also clean the protective grille with a soft brush.

10. Storage when not in use

If you do not use the tower fan (1) device for an extended period, clean it and store it in a dry and dust-free place.

11. Environmental regulations and disposal information

	Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid damage to the environment and risks to your personal health by disposing of the device properly. For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device.
	Respect the environment. Old batteries must not be disposed of with domestic waste. They must be handed in at a collection point for waste batteries. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.
	Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
ES/PT
	Only relevant for France:The product is recyclable, but is subject to more restrictive manufacturer responsibility terms and must be collected separately.
	Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials.
a
Symbol	Material	Contained in the following packaging elements for this product
	Polyethylene terephthalate	-
	High density polyethylene	-
	Polyvinyl chloride -
	Low density polyethylene	-

SilverCrest STV 50 G1

	Polypropylene	-
	Polystyrene	-
	Other plastics -
	Corrugated cardboard Sales packaging
	Other cardboard -
	Paper Silk paper inside the sales packaging
	Paper/cardboard/plastic	-
	Paper/cardboard/plastic/aluminium	-

12. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.

The complete EU Declaration of Conformity is available for download from this link:

https://www.targa.gmbh/downloads/conformity/384790_2107.pdf

13. Warranty and service information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 384790_2107

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY

Table des matières

Cher client, chère cliente,

Cher client, chère cliente,

https://www.targa.gmbh/downloads/conformity/384790_2107.pdf

https://www.targa.gmbh/downloads/conformity/384790_2107.pdf

https://www.targa.gmbh/downloads/conformity/384790_2107.pdf

https://www.targa.gmbh/downloads/conformity/384790_2107.pdf

https://www.targa.gmbh/downloads/conformity/384790_2107.pdf
