USER MANUAL HS 18 LTX BL 75 METABO

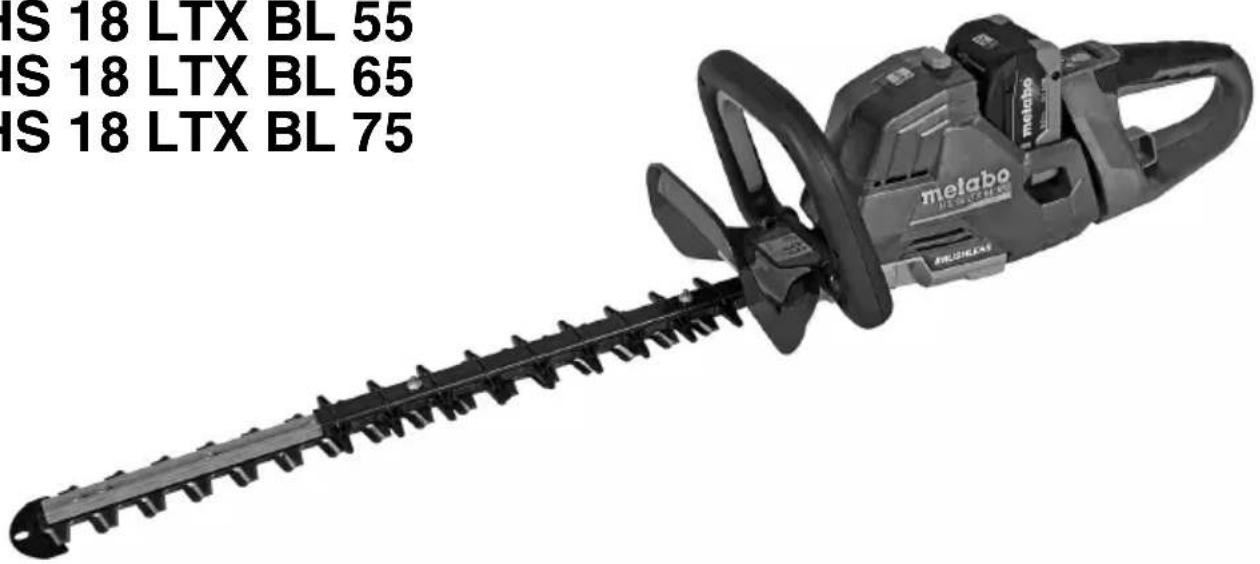

HS 18 LTX BL 55 HS 18 LTX BL 65 HS 18 LTX BL 75


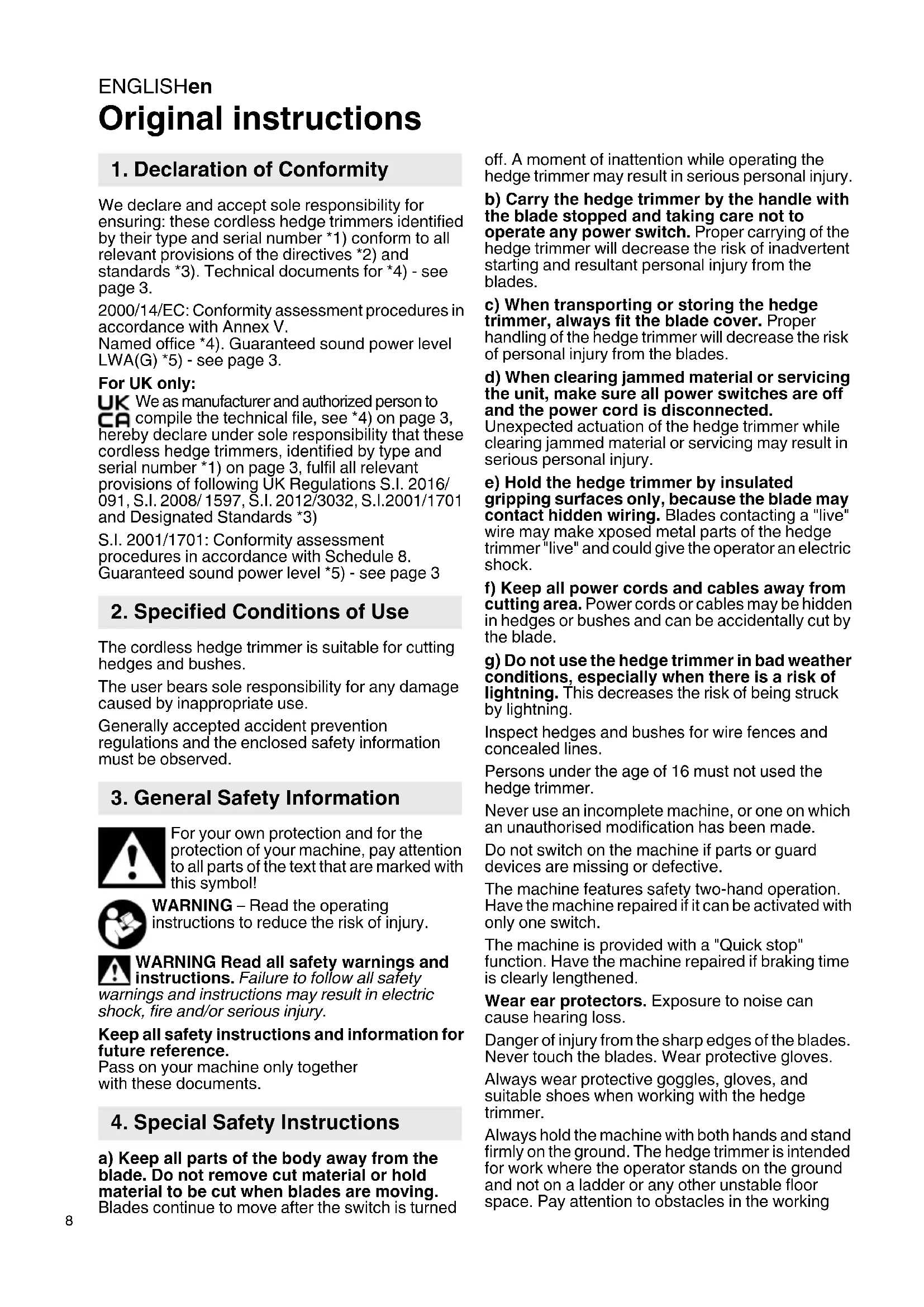

Original instructions
1. Declaration of Conformity
We declare and accept sole responsibility for ensuring: these cordless hedge trimmers identified by their type and serial number *1) conform to all relevant provisions of the directives *2) and standards *3). Technical documents for *4) - see page 3.
2000/14/EC: Conformity assessment procedures in accordance with Annex V. Named office *4). Guaranteed sound power level LWA(G) *5) - see page 3.
For UK only:
UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these cordless hedge trimmers, identified by type and serial number *1) on page 3, fulfil all relevant provisions of following UK Regulations S.I. 2016/091, S.I. 2008/1597, S.I. 2012/3032, S.I.2001/1701 and Designated Standards *3)
S.I. 2001/1701: Conformity assessment procedures in accordance with Schedule 8. Guaranteed sound power level *5) - see page 3
2. Specified Conditions of Use
The cordless hedge trimmer is suitable for cutting hedges and bushes.
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
3. General Safety Information
For your own protection and for the protection of your machine, pay attention to all parts of the text that are marked with this symbol!
WARNING – Read the operating instructions to reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference.
Pass on your machine only together with these documents.
4. Special Safety Instructions
a) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned
off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
c) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
d) When clearing jammed material or servicing the unit, make sure all power switches are off and the power cord is disconnected.
Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
e) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make xposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.
f) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
g) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
Inspect hedges and bushes for wire fences and concealed lines.
Persons under the age of 16 must not used the hedge trimmer.
Never use an incomplete machine, or one on which an unauthorised modification has been made.
Do not switch on the machine if parts or guard devices are missing or defective.
The machine features safety two-hand operation. Have the machine repaired if it can be activated with only one switch.
The machine is provided with a "Quick stop" function. Have the machine repaired if braking time is clearly lengthened.
Wear ear protectors. Exposure to noise can cause hearing loss.
Danger of injury from the sharp edges of the blades. Never touch the blades. Wear protective gloves.
Always wear protective goggles, gloves, and suitable shoes when working with the hedge trimmer.
Always hold the machine with both hands and stand firmly on the ground. The hedge trimmer is intended for work where the operator stands on the ground and not on a ladder or any other unstable floor space. Pay attention to obstacles in the working
area - danger of tripping. Keep the cutting blade well away from the body.
Examine the area to be cut and remove wire or other foreign bodies.
If the cutting blades come to a standstill due to a particularly hard branch or foreign body (wire in a hedge) and the stoppage cannot be corrected by pulling the machine back, the motor must first be switched off and the battery pack removed from the machine before the cause of the blockage can be removed manually from the cutting blade.
For other activities (e.g. removing twigs or cuttings), deposit the machine outside the working area.
Lay the machine down such that persons are not at risk.
Remove the battery pack from the machine when not in use.
For storage and transportation, always slide the enclosure onto the cutting blades. (It has been slid on correctly if the Metabo lettering faces upwards).
Only carry the machine by the bow-type handle.
Safety instructions for battery packs:
Protect battery packs from water and moisture!
Do not expose battery packs to fire!
Do not use faulty or deformed battery packs!
Do not open battery packs!
Do not touch or short circuit battery pack contacts!
A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!
If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out
and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!
Remove the battery pack from the machine before making any adjustments, changing machines, maintaining or cleaning.
Make sure that the machine is switched off before fitting the battery pack.
Hold the machine when removing and inserting the battery pack so that the on/off switch cannot be unintentionally pressed.
If the machine is defective, remove the battery pack from the machine.
Transport of li-ion battery packs:
The shipping of li-ion battery packs is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo.
Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).
WARNING - General hazards
Read the operating instructions.
Protect the device from water and moisture. Do not expose to rain. Never use in rain or on wet hedges.
Wear safety goggles.
Wear ear protectors. High noise levels over a prolonged period of time may affect your hearing.
Keep hands away from the blade.
5. Overview
See page 2.
1 Protective sheath for blade
2 Impact protection with twig feed
3 Cutting blades
4 Blade protection
5 Hand protection
6 Frame switch (safety two-hand operation)
7 Bow-type handle
8 Battery pack release button
9 Capacity and signal indicator
10 Capacity indicator button
11 Battery pack
12 Control panel
13 LED fault display
14 Status LED battery pack
15 Status LED activation button
16 Activation button
17 Handle
18 Switch (safety two-hand operation)
19 Release for rotating handle
20 Rotating handle
21 Suspension recess for storing the machine
6. Initial Operation
6.1 Battery pack
Charge the battery pack before use.
Recharge the battery pack if performance diminishes.
Instructions on charging the battery pack can be found in the operating instructions of the Metabo charger.
Battery packs have a capacity and signal display (9) (depends on design variant):
- Press the button (10), the LEDs indicate the charge level.
- The battery pack is almost empty and must be recharged if one LED is flashing.
ENGLISHen
6.2 Removing and inserting the battery pack
Hold the machine when removing and inserting the battery pack so that the on/off switch cannot be unintentionally pressed.
Removing:
Press the battery pack release (8) button and remove the battery pack (11).
Inserting:
Slide in the battery pack (11) until it engages.
Check quick stop:
Switch machine on briefly and then off again.
Have the machine repaired if braking time is clearly lengthened.
Do not reach in the battery pack recess when inserting the battery pack.
7. Use
7.1 Switch-on lock, switching on and off (safety two-hand operation):
To switch on the machine, the activation button (16) in the control panel (12) must be operated. This will put the machine in operating condition for 120s. LED (15) lights up green.
- Switching on: Press the switch (18), press the frame switch (6).
- Switching off: Release the switch (6) or (18). The operating condition extends automatically if (6) and (18) are pressed.
Thanks to the Quick stop, the cutting blades come to a standstill within 0.2 seconds.
Have the machine repaired if braking time is clearly lengthened.
7.2 Using the rotating handle for ergonomic working
- Pull release (19) in direction of arrow (see fig. P 2)
- Put the rotating handle into the desired position and wait until it engages automatically.
Check if the handle has engaged safely.
- For safety reasons, the release (19) cannot be operated while the button (18) is activated. Should this be possible due to a defect in the machine, have the machine repaired.
- Do not reach into the rotation area while adjusting the angle of the rear handle.
7.3 Status LED battery pack (14)
The machine has a battery control display (14). Below a residual charge of approx. 20%, the LED starts flashing orange. Remedy: Charge battery pack or replace soon.
8. Cleaning
The cutting blade needs to be cleaned after each use.
Before cleaning:
Switch off the machine. Remove battery pack (11) from the machine.
Wear protective gloves.
Remove contamination, leaf debris etc. (e.g. with a brush or cloth)
After cleaning: Treat cutting blades with Metabo machine care oil 6.30474 or Pump Spray 6.30475 (biologically degradable).
9. Troubleshooting
LED fault display (13)
if the machine cannot be switched on, the LED fault display (13) shows possible fault causes.
-
Fault display (13) lights up permanently red:
-
Blade is blocked: Remove battery pack, remove blockage.
- Battery pack defective: Replace battery pack.
-
Machine defective: Have machine repaired.
-
Fault display (13) flashes red
-
Battery pack empty: Charge or replace battery pack.
- Battery pack or machine too hot: Remove battery pack, let machine and battery pack cool down.
10. Maintenance
It is advisable to have blunt cutting blades sharpened in a specialist workshop. Check cutting blades regularly for damage and have them repaired in a specialist workshop immediately if necessary.
11. Accessories
Use only original Metabo or CAS (Cordless Alliance System) battery packs and accessories.
A Chargers: ASC 55, ASC 145, etc.
Order no.: 627044000ASC 55
Order no.: 627378000ASC 145
etc.
B Battery packs:
Order no.: 625367000 4.0 Ah (LiHD)
Order no.: 625368000 5.5 Ah (LiHD)
Order no.: 625369000 8.0 Ah (LiHD)
Order no.: 625026000 2,0 Ah (Li-Power)
Order no.: 625027000 4,0 Ah (Li-Power)
Order no.: 625028000 5,2 Ah (Li-Power)
etc.
C Hedge trimmer care oil (biologically degradable), can (1 litre)
Order no.: 630475000
D Hedge trimmer care oil (biologically degradable), Pump Spray can (0.3 litre) Order no.: 630474000
For a complete range of accessories, see www.metabo.com or the catalogue.
12. Repairs
Repairs to electrical machines must ONLY be carried out by qualified electricians!
Contact your local Metabo representative if you have Metabo machines requiring repairs. For addresses see www.metabo.com.
You can download a list of spare parts from www.metabo.com.
13. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
Battery packs must not be disposed of with regular waste! Please return faulty or used battery packs to your Metabo dealer!
Do not throw battery packs into water.
Only for EU countries: never dispose of machines in your household waste!
According to European Directive 2012/19/EU
on Waste from Electric and Electronic Equipment and implementation in national law, used machines must be collected separately and recycled in an environmentally-friendly manner.
Discharge the battery pack in the machine before disposal. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).
14. Technical Specifications
Explanatory notes on the specifications on page 3.
Subject to change in accordance with technical progress.
U = Voltage of battery pack
ø max. = maximum cutting thickness
L=Useful blade length
n_0 =number of cuts at idling speed
m = Weight with smallest battery pack
Measured values determined in conformity with EN 62841.
Permitted ambient temperature during operation:
-20 °C to 50 °C (limited performance with
temperatures below 0 °C). Permitted ambient
temperature for storage: 0 °C to 30 °C
= direct current
The technical specifications quoted are subject to tolerances (in compliance with relevant valid standards).
Emission values
These values make it possible to assess the emissions from the machine and to compare different machines. The actual load may be higher or lower depending on operating conditions, the condition of the machine or the accessories used. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates.
Vibration total value (vector sum of three directions) determined in accordance with EN 62841:
a_h =Vibration emission value (idle speed) K_h = Uncertainty (vibration)
Typical A-effective perceived sound levels:
L_pA =sound-pressure level
L_WA = Acoustic power level
K_pA , K_WA= Uncertainty
L_WA(G) = guaranteed acoustic power level as per 2000/14/EC
During operation the noise level can exceed 80 dB(A).
Wear ear protectors!
