Product Type	Vinyl Record Turntable
Brand	Crosley
Model	C6B
Weight	13.23 lb (about 6.0 kg)
Power Supply	12 V DC, 0.5 A power adapter (2 W consumption)
Speeds	33 1/3 and 45 RPM
Effective Tonearm Length	222 mm
Overhang	19.05 mm (0.75 in)
Signal-to-Noise Ratio	72 dB
Frequency Response	20 Hz - 20 kHz
Channel Separation	>18 dB
Output Voltage	2.5 mV
Recommended Tracking Force	3.5 ± 0.5 g
Stylus	Crosley NP-5
Connectivity	RCA outputs (Phono/Line), Bluetooth, ground terminal
Key Features	Auto-stop, speed selector, antiskating, Phono/Line switch
Box Contents	Turntable, dust cover, slip mat, platter, counterweight, alignment protractor, power adapter, 45 RPM adapter, RCA cable
Maintenance	Clean the stylus with a soft brush (back to front), clean records with a suitable brush, clean the casing with a slightly damp microfiber cloth (no chemicals)
Safety	Do not use near water, do not repair yourself, unplug during a thunderstorm, follow polarized plug instructions
Replacement Parts	Cartridge, NP-5 stylus, drive belt (available from manufacturer)

Frequently Asked Questions - C6B Crosley

How do I balance the tonearm to adjust the stylus force?

Remove the stylus guard and lift the tonearm. Turn the counterweight forward until the tonearm is balanced horizontally. Return the tonearm to its rest. Without turning the counterweight, rotate the dial scale until '0' aligns with the line on the tonearm. Then, turn the counterweight (with the scale) counterclockwise to reach the recommended tracking force (3.5 g).

What type of stylus should I use for replacement?

The replacement stylus is the Crosley NP-5. To remove, gently pull the front edge downward, then forward. To install, align the back with the cartridge, insert at a downward angle, and lift the front until it clicks into place.

How do I connect the turntable to external speakers?

Use the RCA outputs (red for right, white for left). Depending on the Phono/Line switch position: in LINE position, connect directly to a line input on an amplifier or active speakers; in PHONO position, connect to a phono input with a preamp. Never connect the RCA output directly to passive speakers.

What should I do if the turntable does not turn on?

Check that the power adapter is properly connected to the turntable and to a working power outlet. Ensure the power switch is in the ON position. If the problem persists, contact customer service.

How do I adjust the playback speed?

Use the speed selector on the turntable to choose between 33 1/3 RPM (for LPs) and 45 RPM (for singles). Ensure the record is properly placed.

How do I clean the turntable stylus?

Use a special soft brush for stylus cleaning. Gently brush from back to front only, never back and forth. Avoid touching the stylus tip with your fingers.

How do I pair the turntable with a Bluetooth speaker?

Turn on the turntable: it automatically searches for a nearby Bluetooth device. Make sure the speaker is in pairing mode (within 30 feet). Once paired, the Bluetooth indicator turns solid blue. The search lasts 2 minutes; if no pairing occurs, turn off and on again to restart.

How do I remove and install the needle (stylus)?

To remove: gently pull the front edge of the needle downward, then forward. To install: position the needle with the tip downward, align the back with the cartridge, insert the front at a downward angle, and lift the front until it clicks into place. Replace the stylus guard when not in use.

How do I adjust the antiskating function?

The antiskating function compensates for the force that pulls the tonearm toward the center of the record. Set the antiskating control knob to the same value indicated by the dial scale of the tracking force (typically between 3 and 4 for a 3.5 g force).

What should I do if the turntable stops playing before the end of the record?

Check the auto-stop switch. If it is in the ON position, the platter stops automatically at the end of the record. If the stop occurs prematurely, flip the switch to OFF to disable this function and allow full playback.

USER MANUAL C6B Crosley

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. - 6 p.m., EST, Monday - Friday

1-888-CROSLEY

www.crosleyradio.com

Important Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
• Turntable Lid
• Turntable Slip Mat
• Turntable Platter
• Tonearm Counterweight
• Cartridge Alignment Protractor
  Power Adaptor
  45 RPM adapter
  RCA cable

Please contact Crosby customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Crosley C6B

Power AC-DC power adaptor, DC output 12V 0.5A

Power Consumption 2W

Turntable Speed 33 1 / 3 45 RPM

Speed Variance +1.5%

Wow and Flutter <0.15%

Signal to Noise 72dB

Effective Tonearm Length 8.74" (222mm)

Overhang 0.75"

Weight 13.23 lbs

Needle: Crosby NP-5

Frequency Response 20Hz - 20kHz

Channel Balance <2.5 dB

Channel Separation >18 dB

Output Voltage 2.5 mV

Recommended Load Resistance 47k Ω

Amplifier connection MM - input

Recommended Tracking Pressure 3.5 ± 0.5g

Weight 0.18oz

Note:

• Design and specifications are subject to change without notice.

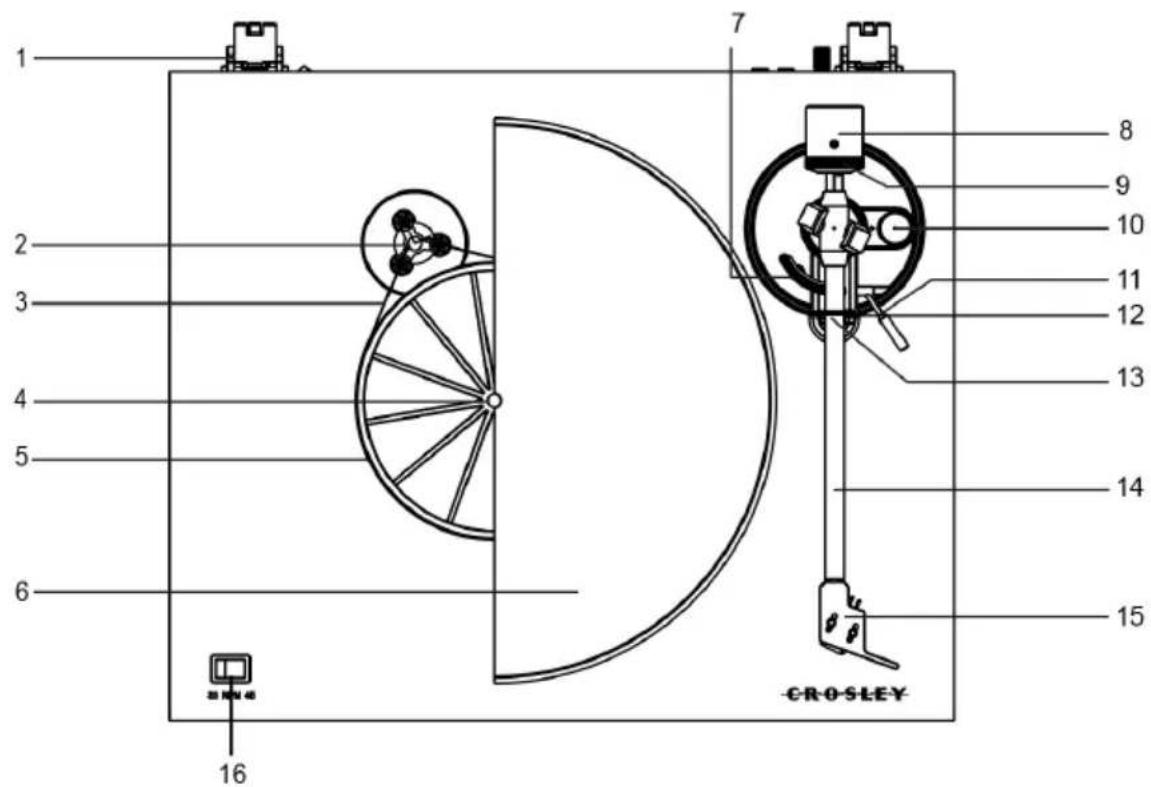

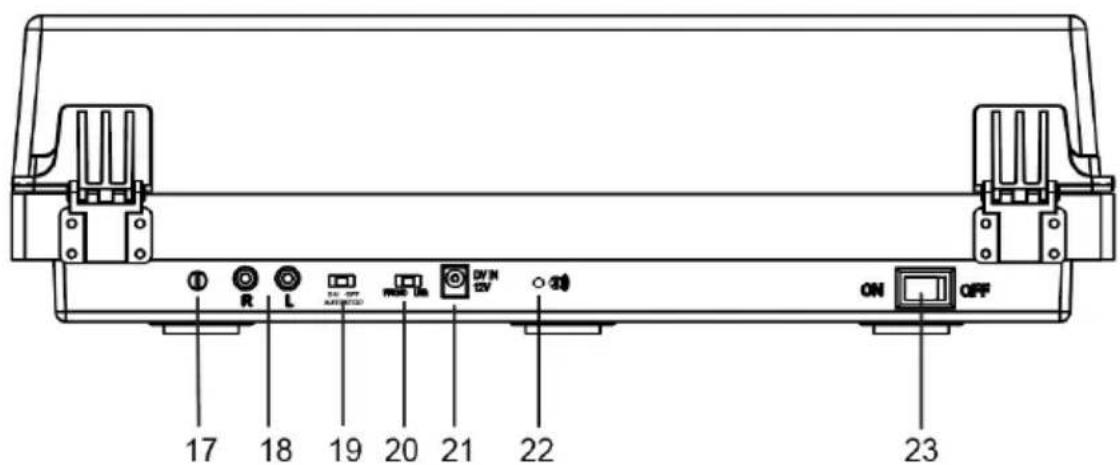

Product Description

1. Hinge
2. Drive Pulley
3. Drive Belt
4. Turntable Spindle
5. Turntable Hub
6. Turntable Platter
7. Tonearm Lift
8. Tonearm Counterweight
9. Downforce Scale Dial
10. Anti-Skate Adjustment Dial

11. Cue Lever

12. Hold Down Clip

13. Tonearm Rest
14. Tonearm
15. Headshell
16. Speed Selector
17. Ground Connector
18. RCA Jacks
19. Auto-stop Switch
20. Phone/Line Switch
21. Power Jack
22. Bluetooth Indicator
23. Power Switch

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Install the turntable lid to the hinges.
3. Remove the tie-wrap that is holding the tonearm.
4. Install the turntable platter and drive belt accordingly
5. Place the slip mat on top of the turntable platter.
6. Slide Tonearm Counterweight onto tonearm and twist it lightly onto the rear shaft of the tonearm.
7. Adjust the counterweight to set proper stylus pressure.
8. Connect DC adaptor to the Power Jack of the unit.

Note: Do not plug the DC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.

Tonearm Counterweight Adjustment for Stylus Pressure

1. Remove the stylus protector from the cartridge and avoid touching the stylus tip during the adjustment.
2. Lift up the Tonearm from its rest and gently hold it. The tone arm is unbalanced at this point.
3. Carefully rotate the Counterweight towards the front of the turntable until the tonearm is horizontally balanced and hovers freely just above the platter without the stylus touching the platter surface.
4. Return the tonearm to the Tonearm Rest.
5. While holding the counterweight steady without any rotation, rotate carefully only the Downforce Scale Dial until the "0" on the scale lines up with the centerline marked along the top of the tonearm.
6. Rotate the counterweight including the downforce scale dial counter-clockwise (as seen from the front of the turntable) to adjust the pressure to the stylus manufacturer recommendations.

Note:

Each mark on the scale represents 0.05g (gram).
- The recommended pressure for the factory-installed cartridge is 3.5q .
- One full turn of the counterweight will provide a pressure 2.0g . In order to reach a stylus pressure that is greater than 2.0g keep rotating the counterweight forward.

Turntable Platter and Belt Setup

1. Put the drive belt around the Turntable Hub, and then use the provided drive belt assembly tool to help pull the belt to fit around the slot of motor pulley.
2. Place the turntable platter through the turntable spindle.

Stereo System Connection

RCA Jacks

• The RCA Jacks of this unit are shared as both the Phono output jacks and the Line output jacks. They are determined by the Phono/Line Switch.
• When used as a line output, the jacks output analog line-level signals and could be connected directly with a pair of active speakers or the appropriate input of your stereo system. When used as a Phono output, they should be connected to the phono pre-amp or the phono input of the stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note:

• If the Phono/Line switch is set at LINE position but RCA jacks connected to the stereo system's phono input, the sound might be distorted due to input overload and could damage your stereo system.
• If the Phono/Line switch is set at PHONO position but RCA jack connected to the stereo system's line input, the volume will be very low due to lacking signal pre-amplification.
• RCA Jack is not designed to be connected directly to the passive/unpowered speakers and if it does, the volume will be very low.

Turntable Operation

1. Press the Power Switch to turn on the power. The turntable will automatically start searching for an external Bluetooth speaker.

Note: Please ensure there is no Bluetooth speaker within 30 feet working under pairing mode to prevent accidental Bluetooth connection establishment.

a. Once the Bluetooth speaker is successfully paired, the Bluetooth indicator will be solid blue.

Note: If no Bluetooth speaker is paired with the turntable within 2 minutes, the turntable will de-active the Bluetooth searching function. When you decide to connect the turntable to Bluetooth speaker later on after the 2-minute period, you will need to turn OFF the turntable and start over from Step 1 above.

1. Set the Speed Switch accordingly.
2. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
3. Remove the stylus protector from the stylus assembly.

Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.

1. Release the tonearm Hold Down Clip.
   Note: when the turntable is not in use, remember to lock back hold down clip.
2. Use the Cue Lever to lift up the tonearm.

3. Gently move the tonearm over the record where play is desired to begin. Set the Cue Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.

4. When the record is finished playing, use the Cue Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.

5. Lock the Hold Down Clip to secure the tonearm.

Anti-skate Adjustment

• A small outward "anti-skating" force can be applied to the tone arm to compensate for the "skating" force that pulls the arm toward the center of the record.
• For best performance during normal turntable usage, it is recommended to set the anti-skate control knob to the same value as indicated by the downforce scale dial.

Platter Auto-stop

If the Auto-stop Switch is set to ON position, the platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue.

Cartridge Replacement

1. Before replacement, put the stylus protector back on the stylus to prevent damage to the stylus during the replacement process.
2. Carefully remove the wire leads from the original cartridge.
3. Loosen the two screws on the headshell that are securing the cartridge and then remove the original cartridge.
4. Mount the new cartridge to the headshell and tighten it lightly. Do not completely tighten the screws at this moment.
5. Connect the wire leads to the new cartridge's terminals .The wire lead color codes are as below:

White Left channel positive (L + )

Black Left channel negative (L-)

Red Right channel positive (R+)

Black Right channel negative (R-)

1. Adjust the cartridge's position to make sure it is precisely aligned on the headshell so that the stylus will be tracking the grooves in parallel perfectly. To achieve this, place the included paper cartridge alignment protractor over the turntable spindle, carefully lift the tone arm and place the tip of the stylus on the points marked 130mm and 250mm respectively. Fine tune the cartridge's position on the headshell until the cartridge is perfectly in parallel with the reference lines at both points.
2. Tighten the screws completely once the perfect alignment is achieved.

Azimuth Adjustment

The needle must be perpendicular to the record groove in order to track the groove wall modulations correctly. In rare cases, if the factory installation is not perfect, you can make below adjustment:

1. Use an Allen Wrench to loosen the screw located at the bearing end of the tonearm just enough to loosen the arm tube. Note: Do not remove the screw completely.

2. Gently rotate the tonearm until the needle is perpendicular to the record surface.

Note: Make sure the needle tip is not touching the record when adjustment is being made or it will cause damage to the needle and cantilever suspension.

1. Tighten the screw when adjustment is finished.

Needle Replacement

Removing Needle

1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.

Installing Needle

1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place.

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth. Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.

Power is on, but the platter does not turn

• Turntable's drive belt is not installed or has slipped off.

Turntable is spinning, but there is no sound, or sound not loud enough.

Stylus protector is still on.
- Tone arm is lift up by the lever.

Record sounds too fast or too slow.

• Wrong speed selected for the record.

Strong hum on phono input

• The cable is not grounded correctly.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20~cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosby Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://crosleybrands.com/euDoC

CROSLEY

C6B
