Product Type	Window Fan
Brand	Vornado
Model	TRANSOM
Intended Use	Indoor and outdoor air circulation, horizontal installation in window
Compatible Window Dimensions	Width: 65 to 100 cm; minimum opening height: 20 cm
Power Cord	Length: 2.4 m (8 ft)
Power Supply	120 V, 60 Hz, digital Class B
Main Functions	Direct / Exhaust (airflow reversal), 4 speeds (Low, Medium, High, Turbo), Auto mode with thermostat (adjustable 60-90 °F / 15-32 °C)
Controls	Touch 4-speed + remote control with CR2032 battery
Display	Digital with auto-dimming (turns off after a few seconds)
Additional Features	Soft-Fit foam block system for fit, weather-resistant housing, low profile, cord management clip
Care and Cleaning	Unplug before cleaning; use a vacuum with brush and a soft cloth; do not use chemicals
Protection Fuse	2.5A, 125V fuse located in the plug. User-replaceable as per instructions
Safety	Polarized plug; do not use with dimmer; keep button batteries away from children (ingestion hazard)
Replacement Parts Available	Replacement foam blocks, fuse, CR2032 battery
Warranty	5-year limited warranty (per Vornado); contact customer service
Customer Service	Phone: [phone]; Email: [e-mail]; Website: vornado.com

Frequently Asked Questions - TRANSOM Vornado

What is the minimum window opening height to install the TRANSOM?

The window opening must be at least 20 cm high. The width must be between 65 and 100 cm.

How do I clean the Vornado TRANSOM fan?

Unplug the unit before cleaning. Use a vacuum with a brush to remove dust, then wipe with a soft cloth. Do not use chemicals, gasoline, or solvents.

The remote control is not working, what should I do?

First check the battery: replace it with a CR2032 3V battery. Make sure no obstacles block the signal between the remote and the receiver on the unit.

How do I replace the fuse in the plug?

Unplug the unit. Use a small flat-head screwdriver to open the fuse cover on the plug. Carefully remove the old fuse and insert a new 2.5A 125V fuse. Close the cover.

What is AUTO mode and how do I use it?

AUTO mode automatically adjusts airflow based on ambient temperature. Press the AUTO MODE button to activate. Set the desired temperature between 60 and 90 °F (15-32 °C) with the + and - buttons. The display flashes then returns to actual temperature.

Can I reverse the airflow direction?

Yes, press the DIRECT/EXHAUST button to switch from intake mode to exhaust mode. Pressing again reverses the direction.

The fan is on but not moving air, why?

Check if AUTO mode is activated and if the set temperature is too high. Set a lower temperature or turn off AUTO mode. Also ensure no obstacles block the air intakes or outlets.

What type of battery does the remote use and how do I replace it?

The remote uses a CR2032 3V button battery. Open the compartment on the back with a #1 Phillips screwdriver, insert the new battery with the + side up, then close.

The fan is making an abnormal noise, what should I do?

Unplug the unit and check that no foreign objects obstruct the grille or blade. Clean regularly. If the noise persists, contact Vornado customer service.

What is the warranty coverage for the TRANSOM?

Vornado offers a 5-year limited warranty against defects in materials and workmanship. For any claims, contact customer service at 800-234-0604 or via [e-mail].

USER MANUAL TRANSOM Vornado

We expect this product to be perfect.

If it is not, we will make it right.

vornado.com

800-234-0604

[e-mail]

CONTENTS

Important Safety Instructions....4 Troubleshooting....15

Features 8 Warranty 16

Getting Started....9

Controls....10

How To Use 11

Remote Control....12

Cleaning....14

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inscrt are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vomado.com/circulators-manuals to view, download and print the most current version of those instructions.

INTENDED USE: This product is intended to circulate indoor and outdoor air only in a window installation in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons

Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

WARNING: Chemical burn hazard. Keep batteries away from children.

WARNING: KEEP NEW AND USED BATTERIES AWAY

FROM CHILDREN. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. In the US call the National Poison Control Center at 1-800-222-1222 or 202-625-3333. In Canada call 416 813 5900.

INSTALLATION WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

This product is intended for window installation only. Only use with product controls facing indoors (not exposed to elements). Do not use this product in a manner other than indicated by the manufacturer in the window installation instructions below. Pull back and secure all curtains and diapers and place this product away from tabloclarks, blankets, and other fabrics, since they may be drawn into the fire, damage the motor and/or cause a fire. No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, firepases, stoves or other high temperature heat sources. Do not use this product on an uneven or unstable surface.

The power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product:

in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arranges cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or cleaned in doors. Place appliance near an easily accessible outlet on the product can be unplugged quickly during an emergency.

SAFE USE WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a cimmer control switch. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not operate unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer's service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumer [e-mail] (email) for further instructions about replacement and repair.

Risk of fire. Your appliance may be equipped with a detachable power supply or a cord/plug with a safety device such as a fuse. Use only the power cord and plug provided. Before plugging power cord into electrical outlet, be sure that

all electrical information on the rating label, including voltage, is compatible with your outlet's power supply. Never use the cord as a handle or otherwise yank, strain or stretch the power cord.

While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.

A loose fit between wall outlet (receptors) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.

This appliance has a polarized plug (one blade is wider than the other.) To reduce the risk of electrical shock, the plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonies or other chemicals for cleaning. Refer to the CLEANING instructions provided. Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a

Vornado Authorized Service Center.

- This product employs overload protection (fuse). A blow fuse indicates an overload or short circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

1. Using the product controls, turn off the appliance.

2. Grasp the plug (not the cord) and disconnect from the outlet.

3. 2013年1月1日，中国银行股份有限公司上海分行（以下简称“中国银行”）向中国银行上海分行（以下简称“中国银行”）申请的综合授信额度为人民币4,000万元。

4. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.

5. Once the replacement is received, use a small flat-head screwdriver to slide open the fuse cover (located on the plug) (Fig. A).

6. Remove fuse by using the screwdriver to gently lift each end of the fuse (Fig. B).

7. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time. Do not push on the center of the fuse—it is fragile and may break

8. Slide the fuse cover closed using the screwdriver. When closed, the cover should fit completely in the plug. No part of the cover should stick out (Fig. C).

9. Plug your appliance into the outlet and turn the power on.

10. If the replacement fuse blows, a short-circuit may be

present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCD) that should not be removed. Discard product if the attachment plug is damaged.

FCC Compliance Statement

NOTE: This equipment has been tested and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antennas.

- Increase the separation between the product and the receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected.

- Contact Vomado Consumer Service or dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Supplier's FCC Declaration of Conformity

Responsible Party: Vornado Air LLC

Mailing Address: 415 E. 13th St., Andover, KS 67002

Contact: www.vomado.com

WARNING: Batteries may pose a choking hazard. Do not let children handle batteries.

BATTERY DISPOSAL: Please dispose of batteries according to the local laws and regulations of your region, and while keeping them away from children. Some batteries may be recycled and accepted for their use in battery systems. DO NOT DISPOSE OF

for disposal, your local recycling center. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK. New and used batteries may cause injury. Keep new and used cells (or batteries) away from children.

SAVE THESE INSTRUCTIONS

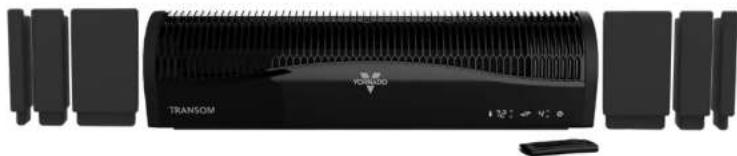

FEATURES

Exterior view of a black Transom device with visible ports and ventilation grille (no text or symbols on main body)

INTEGRATED CARRY HANDLE

Easy to carry, easy to install

ELECTRONIC REVERSIBLE FAN/EXHAUST

One button, quick transition from fan to exhaust.

SOFT-FIT MODULAR FOAM BLOCK SYSTEM

Easy installation creating bamber outside noises & temperatures.

WEATHER RESISTANT ENCLOSURE

LOW PROFILE SILHOUETTE

Allows for greater visibility through window.

AUTO MODE WITH THERMOSTAT

Automatically adjusts airflow as needed based on temperature.

A setting for every comfort level.

EXTRA LONG 8' POWER CORD

Ampie cord length

AUTO-DIMMING DISPLAY

All non-essential lights are turned off, cutting out light pollution PUS saving an energy.

REMOTE CONTROL

Convenience at your finger tips.

ACCESSORIES

To order replacement from blocks, please contact Vornado consumer service at [e-mail] or 800-234 0604

GETTING STARTED

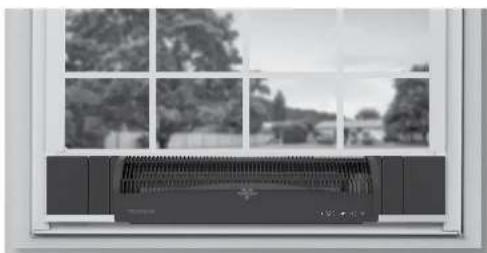

WINDOW INSTALLATION

NOTE: the TRANSOM has been designed for use with single-hung and double-hung windows. It will accommodate windows 26 to 40 inches wide and require a window opening of at least 8 inches tall.

FOR HORIZONTAL INSTALLATION ONLY. DO NOT ATTEMPT VERTICAL WINDOW INSTALLATION.

DURING PRODUCT AND FOAM BLOCK INSTALLATION, KEEP ONE HAND ON PRODUCT AT ALL TIMES.

1. We recommend keeping the window screen in place.

2. Center the TRANSOM in the window, ensuring that the foam on the bottom of the product is snugly secured in the bottom of the window casing.

3. Close the window to secure the product in place.

4. Tuck the optional Soft-Fit foam blocks on either side of the product, tucking them securely into the window casing.

5. Optional: Route the power cord as needed, using the clips provided to secure cord in place.

Exterior view of a window with outdoor trees and distant buildings (no visible text or symbols)

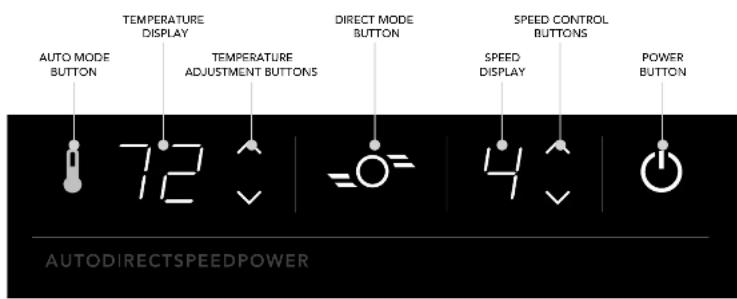

HOW TO USECONTROLS

1. Touch to power unit ON or OFF
2. Select desired speed setting by pressing Air. There are four (4) speeds, 1- LOW, 2- MEDIUM, 3- HIGH & 4- TURBO. Speed is indicated by number show on display.
3. Touch=05 change from direct airflow to exhaust. Touch the button again to change from exhaust to direct airflow.

DIRECT MODE

EXHAUST MODE

Note: When first plugged in and turned on, the unit will move to DIRECT MODE. After that, the unit will remember user settings when powered ON/OFF.

1. The product includes an integrated thermostat and the indoor room temperature will be illuminated on the display only when the thermostat is activated (in AUTO MODE). Touch to activate AUTO MODE.

2. Touch for button to set your ideal temperature, between 60 - 90°F, holding either button for 3 seconds will allow for quick temperature adjustment.

3. While in this adjustment mode, the temperature display will momentarily flash and then return to display the current indoor room temperature.
4. Touch the 🔊 to deactivate AUTO MODE. The icon will turn white to indicate AUTO MODE is deactivated.

Note: Temperature display is Fahrenheit only.

Note: Your TRANSOM is equipped with auto-climming controls. All non-essential lights will turn off after a few seconds of inactivity. Only the power button will remain illuminated. The first touch to the control panel or remote will wake up the unit, allow for setting adjustment and will go dark again after a few seconds of inactivity.

REMOTE CONTROL

REMOTE FUNCTIONS

1. Press 0p power unit ON or OFF.

2. Select desired speed setting by pressing Air button.

3. Press = Q change from direct airflow to exhaust. Press the button again to change from exhaust to direct airflow.

4. Press to activate AUTO MODE. The icon will turn green to indicate AUTO MODE is activated.

5. Press for button to set your ideal temperature, holding either button for 3 seconds will allow for quick temperature adjustment up or down by 5 degrees per second.

6. While in this adjustment mode, the temperature display will momentarily flash and then return to display the current indoor room temperature.
7. A single press of the button, when AUTO MODE is activated, will change display from room temp back to SET TLMP flashing if adjustments are needed.
8. Press the button twice to deactivate AUTO MODE. The icon will turn white to indicate AUTO MODE is deactivated

Note: The remote requires a line-of-sight path to allow for the signal to be received by the product. Position the product so the receiver lens (located near near the control panel) is visible from the remote control.

Close-up of a black remote control with a circular dial and 'VORNADO' text label (no other readable text or symbols)

REMOTE CONTROL

BATTERY REPLACEMENT Screwdriver required.

Your circulator remote includes (1) coin style 3V CR2029 battery. Battery comes pre-installed. Remove battery pull tab before first use. The pre-installed battery has a 1 year life expectancy (dependent on usage) after the tab has been pulled from the remote.

1. For battery replacement, the remote requires one coin style 3V CR2032 battery. Always use the correct size and grade of battery for this product.
2. To replace battery, open battery door on the back side of the remote control (you will need to loosen the small screw on door using a 41 Phillips screwdriver). If necessary, clean the battery contacts and also those of the device prior to battery installation. Remove any plastic protection from the battery and place it in the remote with the + side facing out. Ensure the battery is inhaled correctly with regard to polarity. Replace the battery door and screw.
   Note: Remove battery from the remote control when not in use for an extended period of time and always remove dead battery immediately and replace with fresh. Do not store dead battery in remote.

WARNING: This product contains a button battery. If swallowed, it could cause severe injury or death in just 2 hours. Seek medical attention immediately.

CLEANING

Because your product moves a substantial amount of air, it will need regular cleaning. If service is required, return your unit to Vornado (see WARRANTY for instructions).

⚠ WARNING: To reduce the risk of electrical shock and injury to persons, unplug the unit before cleaning.

REGULAR CLEANING

1. Unplug unit before cleaning.

2. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the unit.

3. Wipe down the entire unit with a soft cloth

Note: Do not use gasoline, thinners, solvents or other chemicals for cleaning. The motor is permanently lubricated and requires no ciling.

TROUBLESHOOTING

Unit fails to power on.	Unit is not plugged in. Plug Power Cord into electrical outlet.Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.Fuse needs to be replaced. See IMPORTANT INSTRUCTIONS for how to replace the fuse or contact Consumer Service.
Unit is not producing sufficient amount of air.	Ensure unit is set to highest setting for maximum air circulation.Allow the unit to fully circulate the air throughout the room, this may take several minutes.Ensure all air inlets and outlet grille are unobstructed.
Remote Control is not working.	The battery is dead. Replace with new 3 volt CR2032 battery. Refer to REMOTE CONTROL - Battery Replacement for instructions.The remote requires a line of sight path to allow for the signal to be received by the unit. Position the unit so the receiver lens located just above the product control is visible from the remote control.
Air is not moving in the desired direction.	Switch the direction of the airflow from DIRECT to EXHAUST for EXHAUST to DIRECT). If problem persists, turn unit OFF and ON and adjust settings as needed.
Unit is on but there is no air moving.	Preset temperature in AUTO might be set too high. Lower the set temperature or turn AUTO off.

English

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here To Help

800.234.0604

vornado.com

[e-mail]

Vorrado Ar H.C. ("Vorrado" contains to the original manuscript or purchase of Vorornado) Whole Room Circulator ("Product") is free from defects in material or workmanship for a period of five years from the date of purchases. It may such defect be exercised with it in the war only period. Vorornado, its dissection, will repair or replace the Product at no cost.

For warranty or report procedure, Call 1-302-034-0614 or email the following website to obtain a Return Authorization ("RAT") form. Please have on this notice your Product's model number and social number, as well as your name, address, city, state, or trade and price number when contacting Vornado for warranty service. To file a contactless warranty claim, visit vornado.com/contact.us.

After receiving the IA-Form, give your Product to Vomodo Ar LLC Attn: Warranty & Licair 415 East 13th St. Andrew, KS 67002. For your customer, please have your model number and serial number when contacting Vomodo with service inquiries. To assume proper handling packages must be clearly marked with the 30 number. Packages not clearly marked with the RA number may be returned at the beginning date. Please also 1-2 weeks for each and return of your product after the Product is received.

Repair a real amount by the warranty and obtain the warranty placed will require that use of cover the cost of materials, labor, vending and shipping.

This warranty does not apply to defects resulting from abuse of the Product modification situation, mislanding, improper maintenance, commercial use or repair or service of the Product by anyone either from Wormada damages which occur in equipment to be authorized to acts of Use, improper product use, which includes using an external device that

also contains a portion of the issuance to manufacture of electricity, using a Warrant product to a country not intended for use oil and of water. Any unboiled product modifications repair by any user and repair orders, or use of more appropriate deliveries, such as hormomaterial and any use of resources will be covered by support services. The company is not necessarily a member of the country's purchase or sale of the country's minimum REPAIR OR REPLACEMENT AS PROVIDED. PRIOR THE WARRANTY OF THE EXCLUSIVE REMOY OF THE CONSUMER VARIATION SHALL NOT BE USED IN ANY URBANIC ORDER OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBINATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBIFICATION OF ANY UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBENVIRONMENTAL AND OTHER UNBHATENTURS

All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection and operation contained in these instructions for use correspond to the latest available information at time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements

Jiangwei, engineered and applied materials

© 2022 Vorrada An LLC Endover, KS 2/002. Specific risks subject to charge without notice. Vorrada is a risk marker owned by Vorrada (or LLC).

16 English

Director pos.al: 715 E. 13th St., Anover, KS 67002 Contacto: www.vorrado.com

Exterior view of a black Tornado transducer device with ventilation slots and control buttons (no readable text or symbols beyond branding)

MANIJA DE TRANSPORTE INTEGRADA

Black and white photo of a front-mounted air conditioner unit with multiple side-view windows showing outdoor scenes (no text or symbols visible)

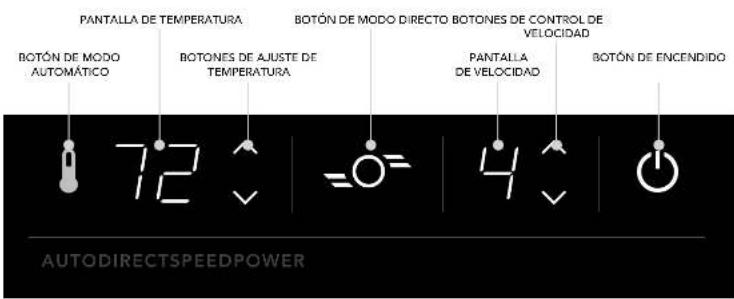

CONTROLES

Close-up of a gray remote control with a black circular button and 'VORNADO' text at the bottom (no other readable symbols or text)

CONTROL REMOTO

Bargasse to use a more defective gamma-son area of production, medical treatment, administration indicators, motor intensity in classification, and commercial use of a therapeutic

Penske, Jardley, and John M. S.A.

Exterior view of a black Siemens transmission device with ventilation grilles and buttons (no readable text or symbols)

POIGNÉE DE TRANSPORT INTÉGRÉE

Fucile a transporter, lecile a installer.

VENTILATEUR D'EXTRACTION ÉLECTRONIQUE

REVERSIBLE

MAIN SUR LE PRODUIT EN TOUT TEMPS.

ralidement as places

Exterior view of a wall-mounted air conditioner unit with outdoor trees and distant buildings (no text or symbols visible)

Fuerpán 39

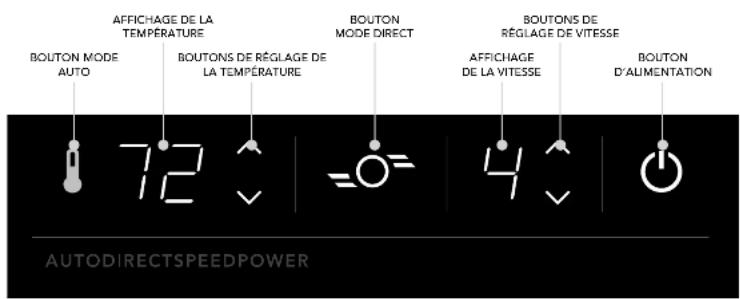

COMMANDES

40 Frattanin

UTILISATION

FONCTIONS A DISTANCE

Close-up of a black remote control with a circular dial and 'VORNADO' text label (no other readable symbols or text)

TÉLÉCOMMANDE

CAUSE POSSIBLE ET SOLUTIONPROBLÈME

415 East 13th Street, Andover, Kansas 67002

800.234.0604 | vornado.com

CL3-0770 R-, V04
