RHC2241INE - Basket ROSIERES - Free user manual and instructions

Product type	Cooker hood
Brand	Rosieres
Model	RHC2241INE
Usage	Extracting (external evacuation) or recirculating (internal recycling)
Mounting	Wall-mounted
Minimum distance	50 cm (electric hob), 65 cm (gas or mixed hob)
Control panel	Extraction speed and lighting controls
Extraction speeds	3 speeds (minimum, medium, maximum)
Lighting	LED 3 W max, E14 socket
Grease filter	Washable metal or disposable paper
Carbon filter	For recirculation version, replace every 4 months maximum
Filter maintenance	Monthly cleaning of the grease filter; replace carbon filter if necessary
Exterior cleaning	Damp cloth with mild liquid detergent; avoid abrasive products and alcohol
Power supply	220-240 V ~ 50 Hz
Cable type	With plug or direct connection with circuit breaker
Safety	Disconnect before maintenance; do not use without grid; do not flambé under the hood
Material	Stainless steel
Repairability	Spare parts available; technical support

Frequently Asked Questions - RHC2241INE ROSIERES

How to clean the grease filter?

The metal filter should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher at low temperature and short cycle. The paper filter should be changed once a month or if it is discolored.

How often to change the carbon filter?

The carbon filter must be replaced every 4 months at most. It cannot be cleaned or regenerated.

What type of bulb to use for lighting?

Use only LED bulbs of 3W max, E14 socket. Consult the manual for the exact model.

What is the minimum distance between the hood and the hob?

The minimum distance is 50 cm for an electric hob and 65 cm for a gas or mixed hob. Follow the hob manufacturer's instructions if they specify a larger distance.

Can I use the hood without a carbon filter?

Yes, if the hood is installed in extraction version with external evacuation, the carbon filter is not necessary. In recirculation version, it is essential to reduce odors.

What to do if the hood no longer works?

First check that the plug is properly inserted into the socket. If the problem persists, cut off the power and contact technical support.

Where is the serial number?

The serial number (16 characters starting with the number 3) is on the rating plate inside the hood and on the warranty certificate.

How to install the hood in recirculation version?

Install a carbon filter (optional accessory) and ensure that the air is recycled inside the room. Follow the provided installation instructions.

Can I wash the metal filter in the dishwasher?

Yes, but use a short cycle at low temperature. Dishwashing may discolor the filter without affecting its performance.

What to do in case of lighting malfunction?

First check that the lamps are correctly inserted. If the lighting still does not work, replace the bulbs with LED 3W-E14. If the problem persists, contact support.

USER MANUAL RHC2241INE ROSIERES

Warning symbol image showing a warning triangle above two hands, indicating hazard or caution.

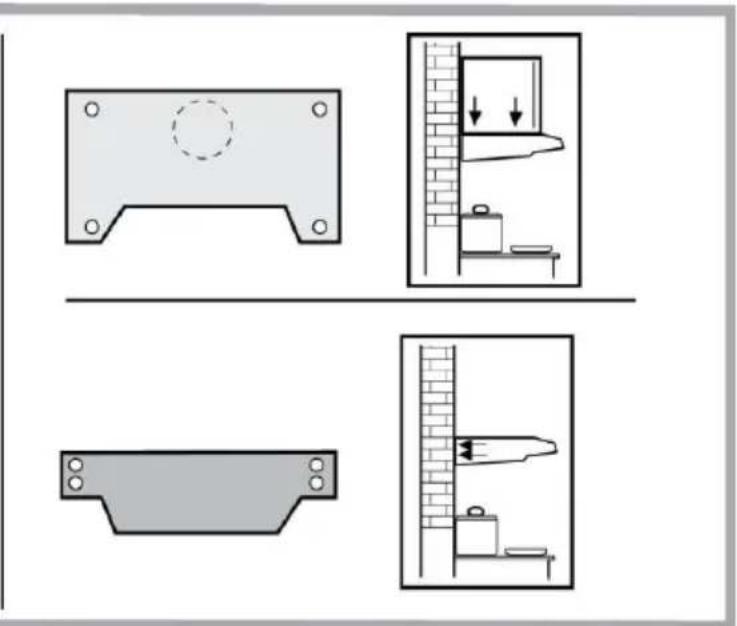

Diagram of a mechanical or architectural structure with directional arrows and a house icon, no readable text or symbols present.

Diagram showing two mechanical components with directional arrows indicating motion, no text or symbols present

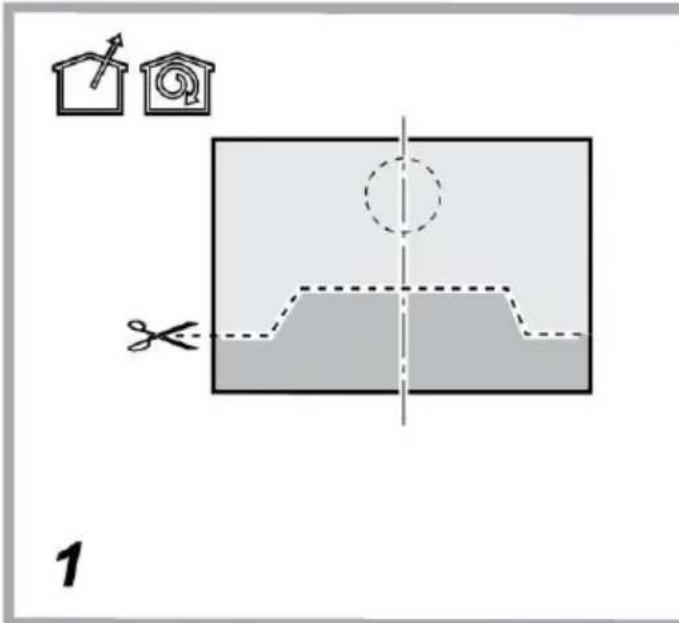

Diagram illustrating a sewing or sewing process with labeled components and a cutting tool, marked as item 1.

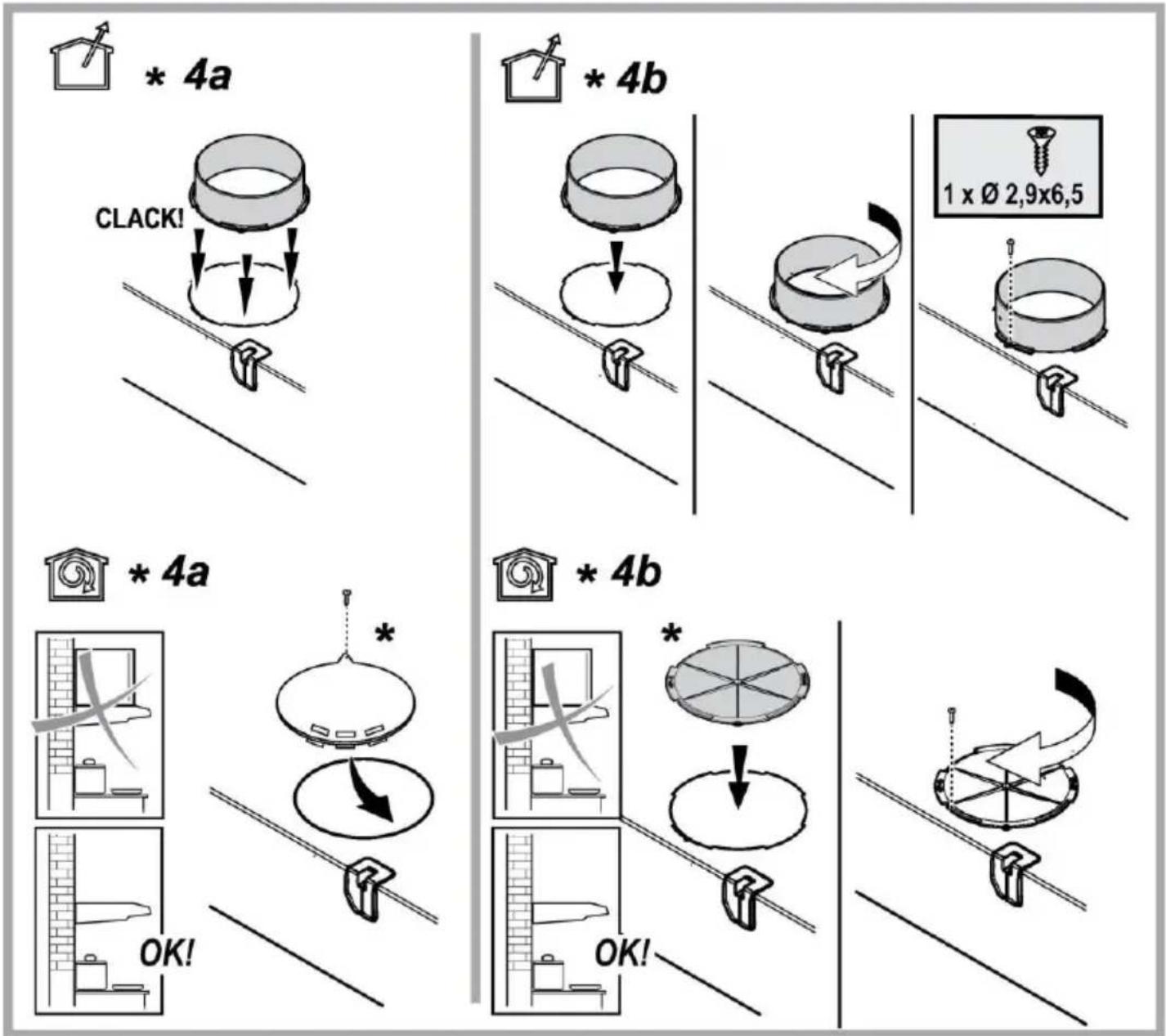

Four-panel diagram showing mechanical components with arrows indicating movement or force, no text or symbols present.

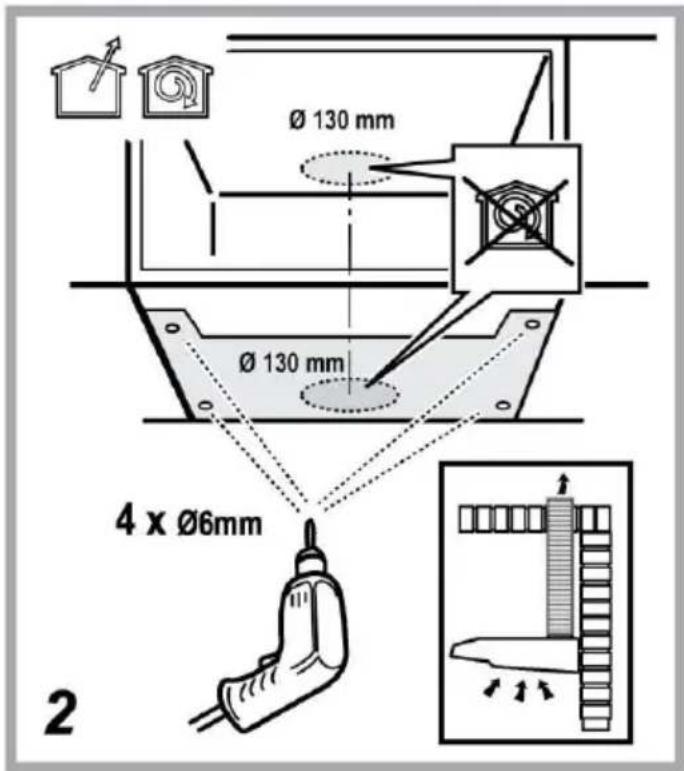

Ø 130 mm Ø 130 mm 4 x Ø6mm 2

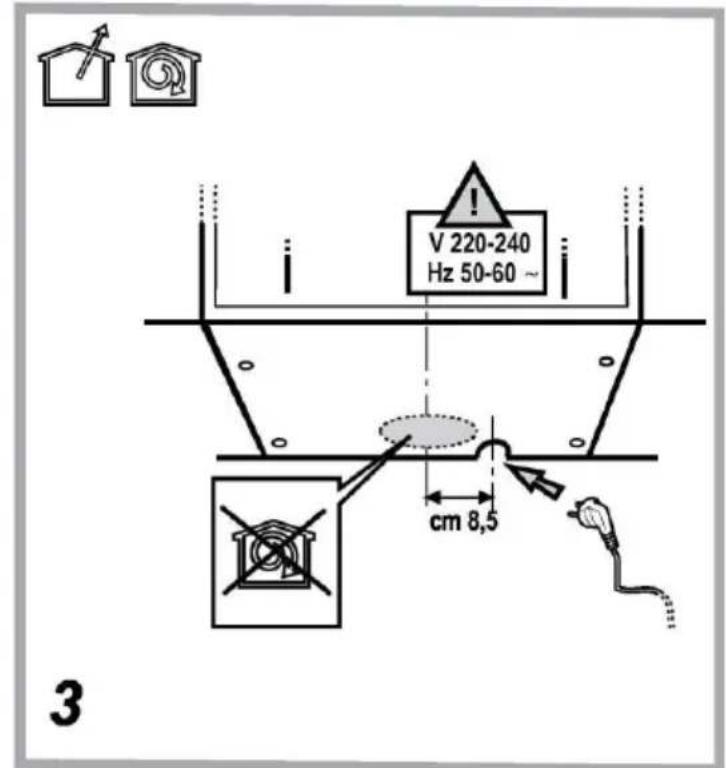

V 220-240 Hz 50-60 ~ cm 8,5 3

5.1 5.3 5.2 5.2 5.1 5.3 5 5

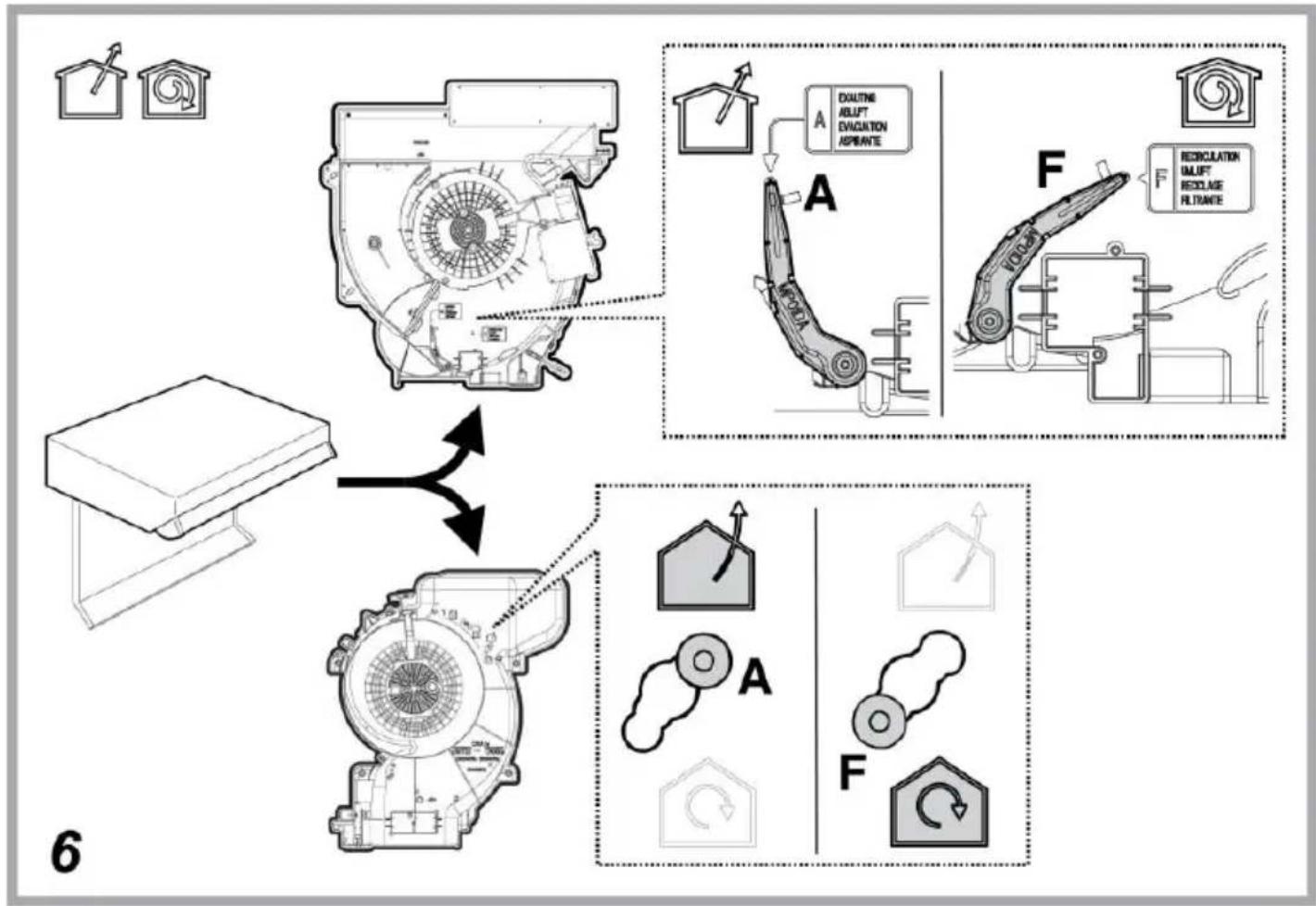


Technical diagram illustrating a mechanical assembly with labeled components and motion indicators

X Ø 4,2x35 4

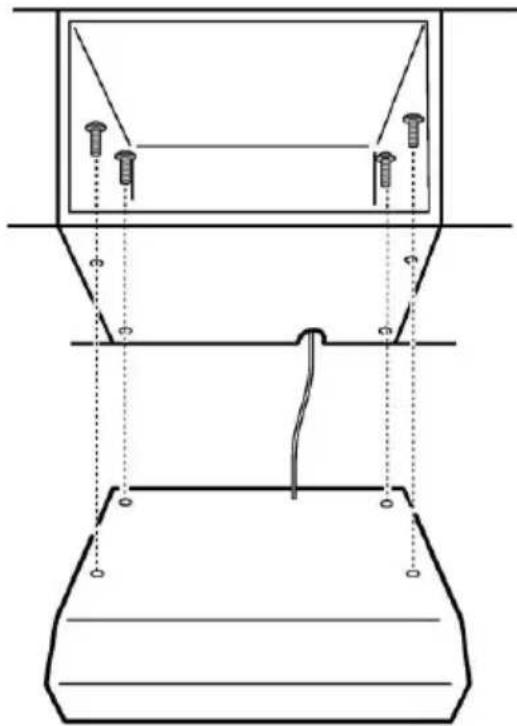

Technical line drawing of a mechanical assembly with bolts and a central component (no text or symbols)

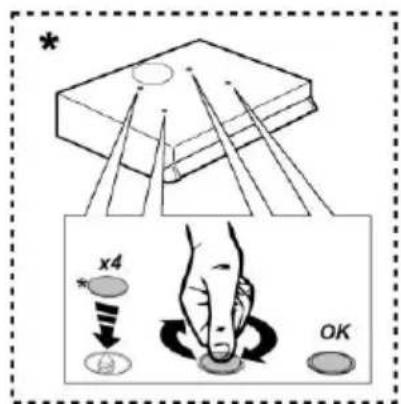

Diagram illustrating a hand pressing down on a device with x4 and OK buttons, showing directional arrows and a warning symbol.

8

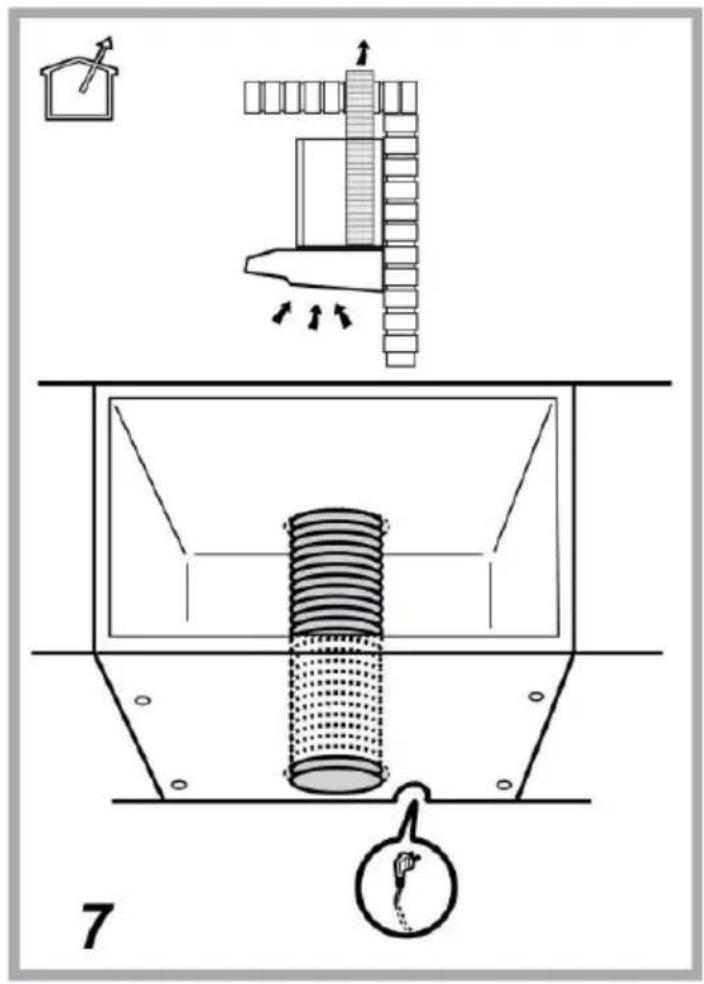

Simple line drawing of a chimney with an arrow pointing to a chimney, next to a shelf and a small container (no text or symbols)

2 x Ø 8mm

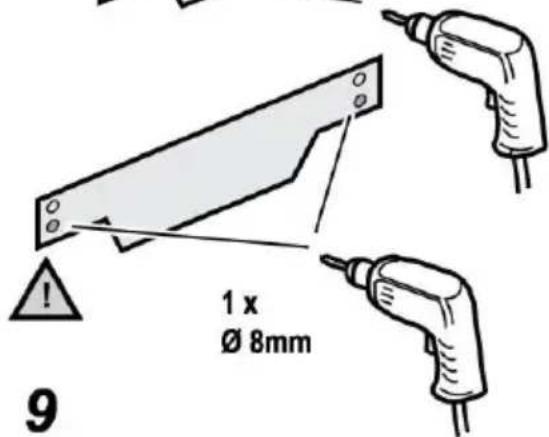

1 x Ø 8mm 9

10

3 x Ø 8 2 x Ø 5x45

3 x Ø 8 1 cm

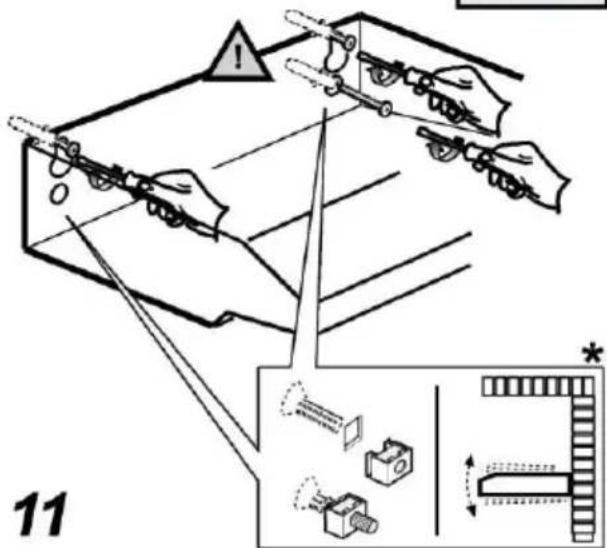

11

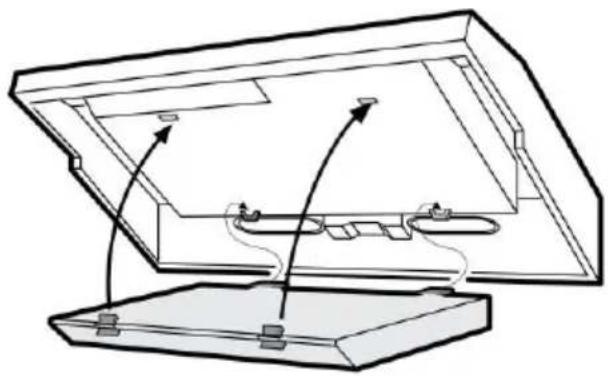

Technical line drawing of a multi-compartment container with internal compartments and mounting brackets (no text or symbols)

a*

Diagram of an open computer monitor with cable routing and directional arrows indicating internal components (no text or symbols)

b*

Simple 3D illustration of a circular mechanical part with four cross-sectional lines (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

c^*

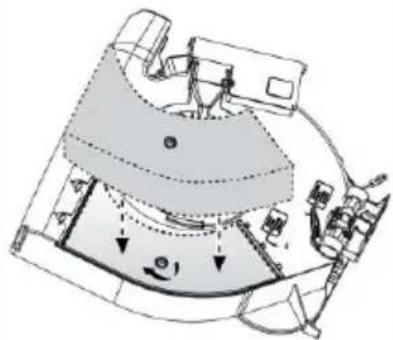

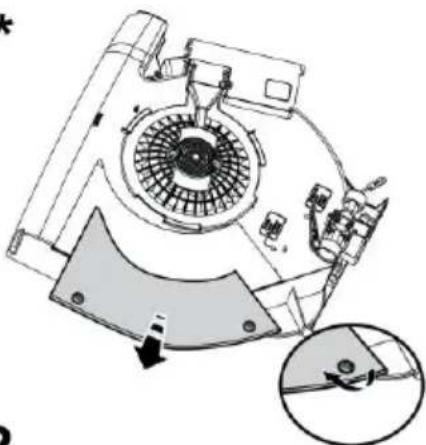

Technical line drawing of a mechanical device with a circular component and a magnified inset showing a close-up view (no text or symbols)

Diagram of a mechanical device with curved surfaces and directional arrows, no visible text or symbols

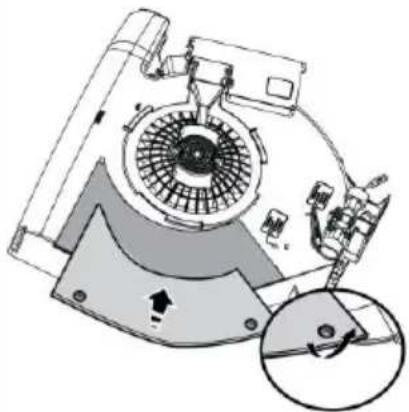

Technical diagram of a mechanical device with internal components and a magnified inset showing a circular component (no text or symbols)

12

b a * 13

c a b * 14

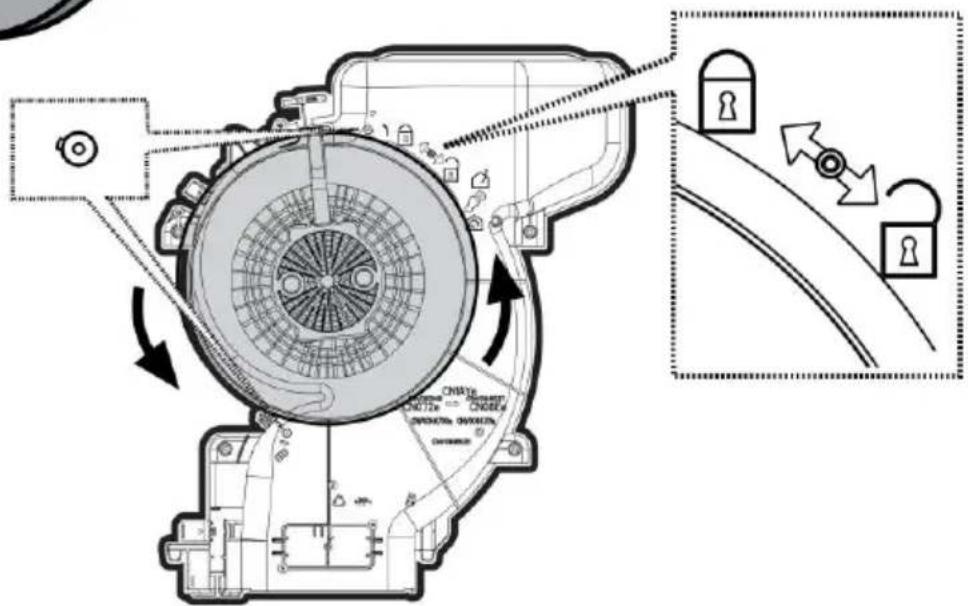

Technical diagram showing two views of a circular component with internal structure, including a close-up and directional arrows indicating assembly or transformation.

Diagram illustrating a clamping technique with labeled components and tool path

SERVICE ASSISTANCE CLIENTS

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

Note: The parts marked with the symbol “(*)” are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions

provided regarding the cleaning of the hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically

indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

⚠ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

⚠ WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

⚠️ Installation

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

- This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE). - By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

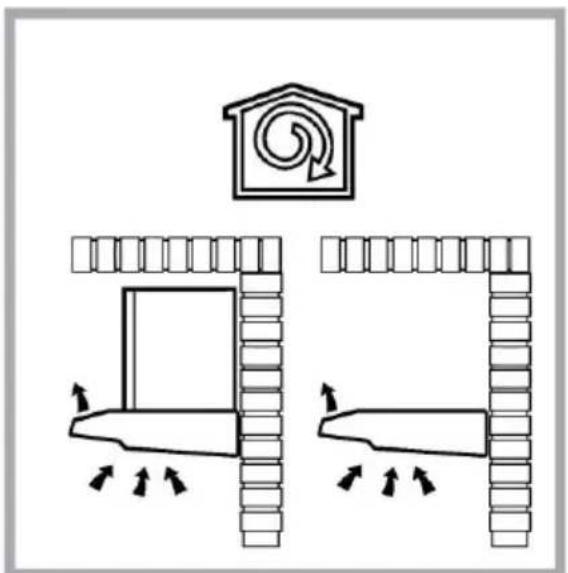

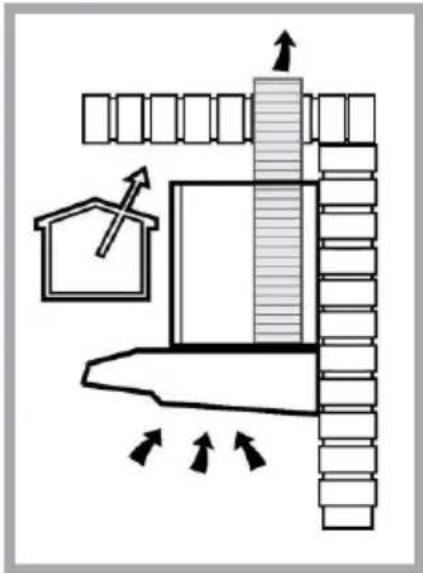

The hood is designed to be used either for exhausting

or filter version

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Maintenance

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR

INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

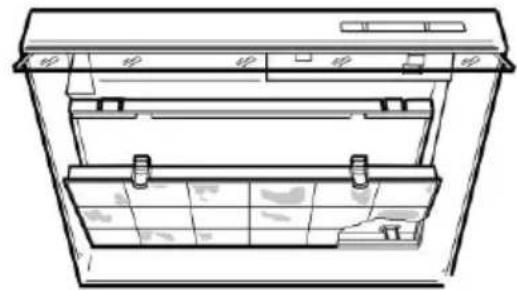

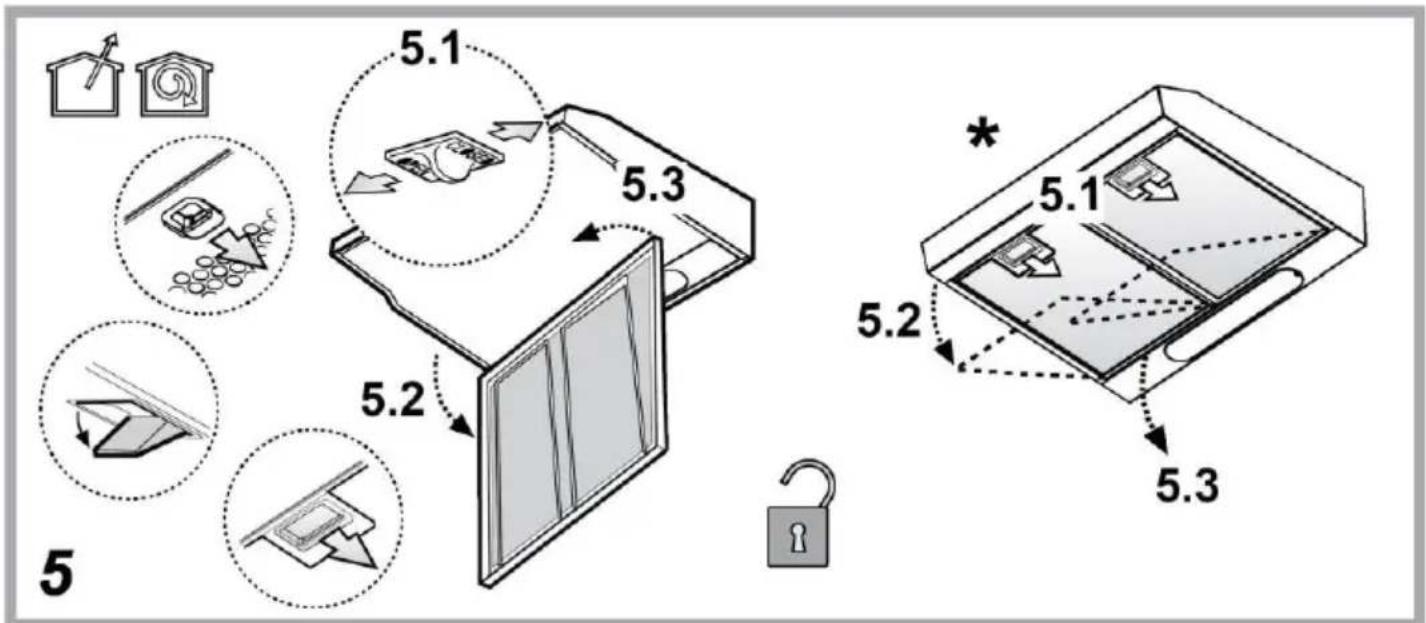

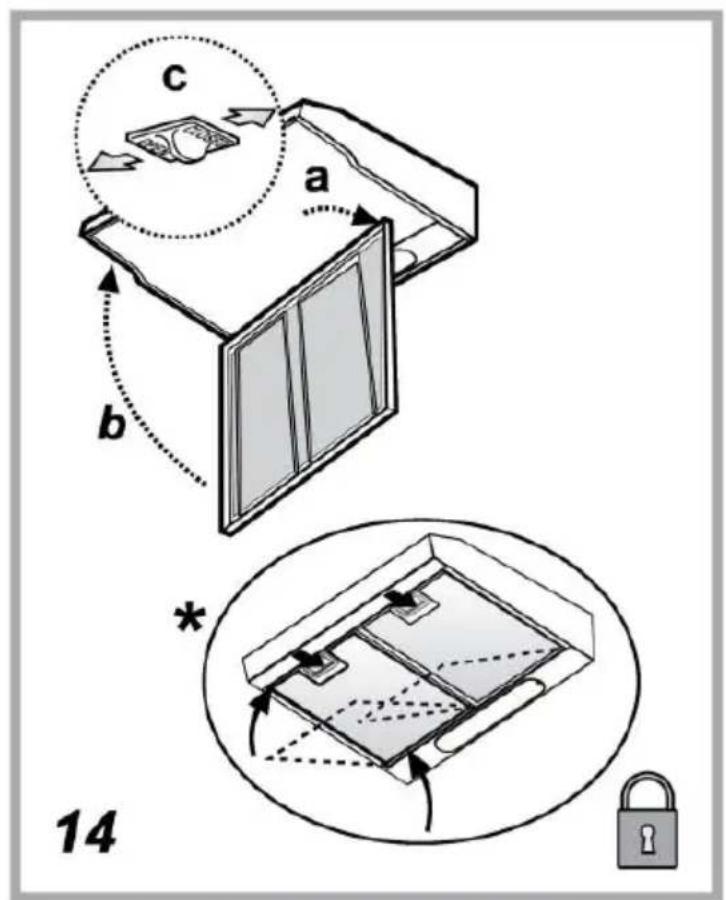

Grease filter Fig. 5-13-14

Traps cooking grease particles.

If situated inside the support grill, it may be one of the following types:

Paper filter must be replaced once a month or if colouring appears on upper side, in such cases the colouring is evident through the grill openings.

Metallic filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

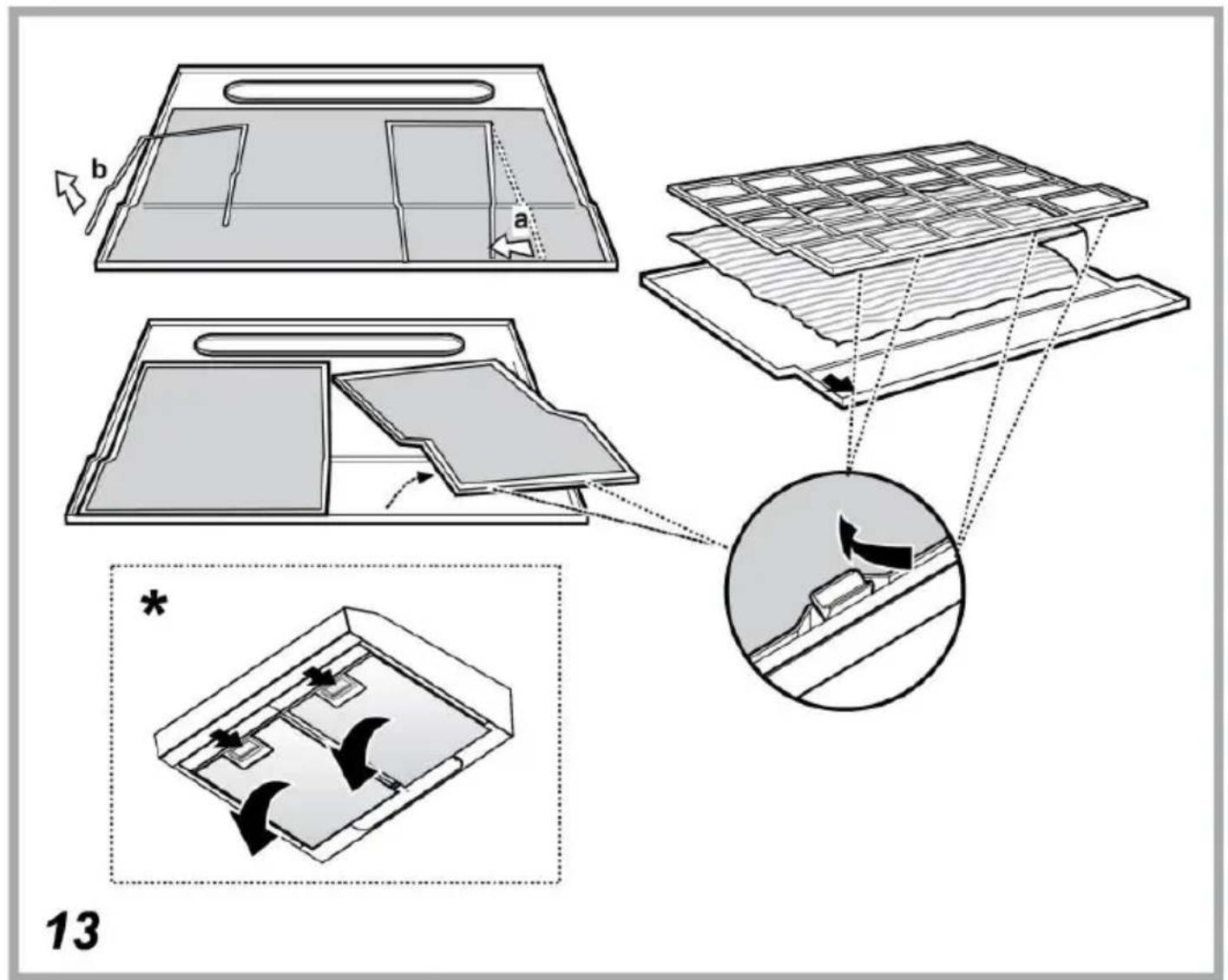

Charcoal filter (filter version only) Fig. 13

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Replacing lamps Fig.12a

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

On some models ONLY:

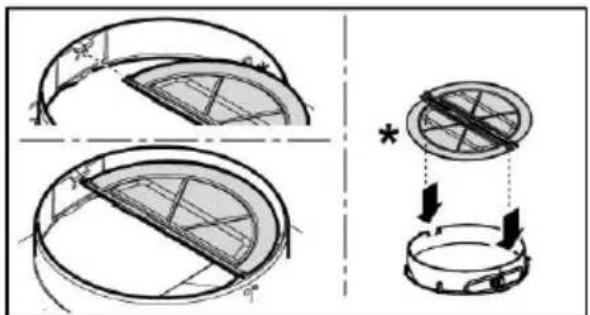

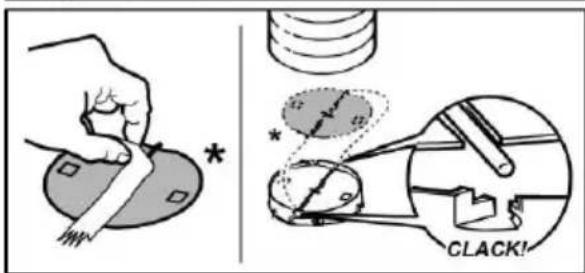

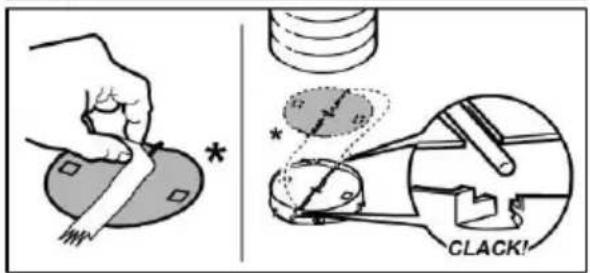

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.

Technical diagram illustrating a mechanical assembly with cross-sectional views and a close-up of a circular component with internal structure.

Diagram illustrating a clamping technique with labeled components and tool path, including a hand holding a circular object and a magnified view of the clack.

CUSTOMER ASSISTANCE SERVICE

Before calling the Technical Service Department In case of failed operation of the product, we suggest you to check the correct insertion of the plug into the socket. If the cause of the malfunction cannot be identified, turn off the power, do not tamper with it and call the Technical Service Department.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

Technical diagram illustrating a mechanical process with labeled steps and annotations, including cutting, disassembly, and clamping operations.
