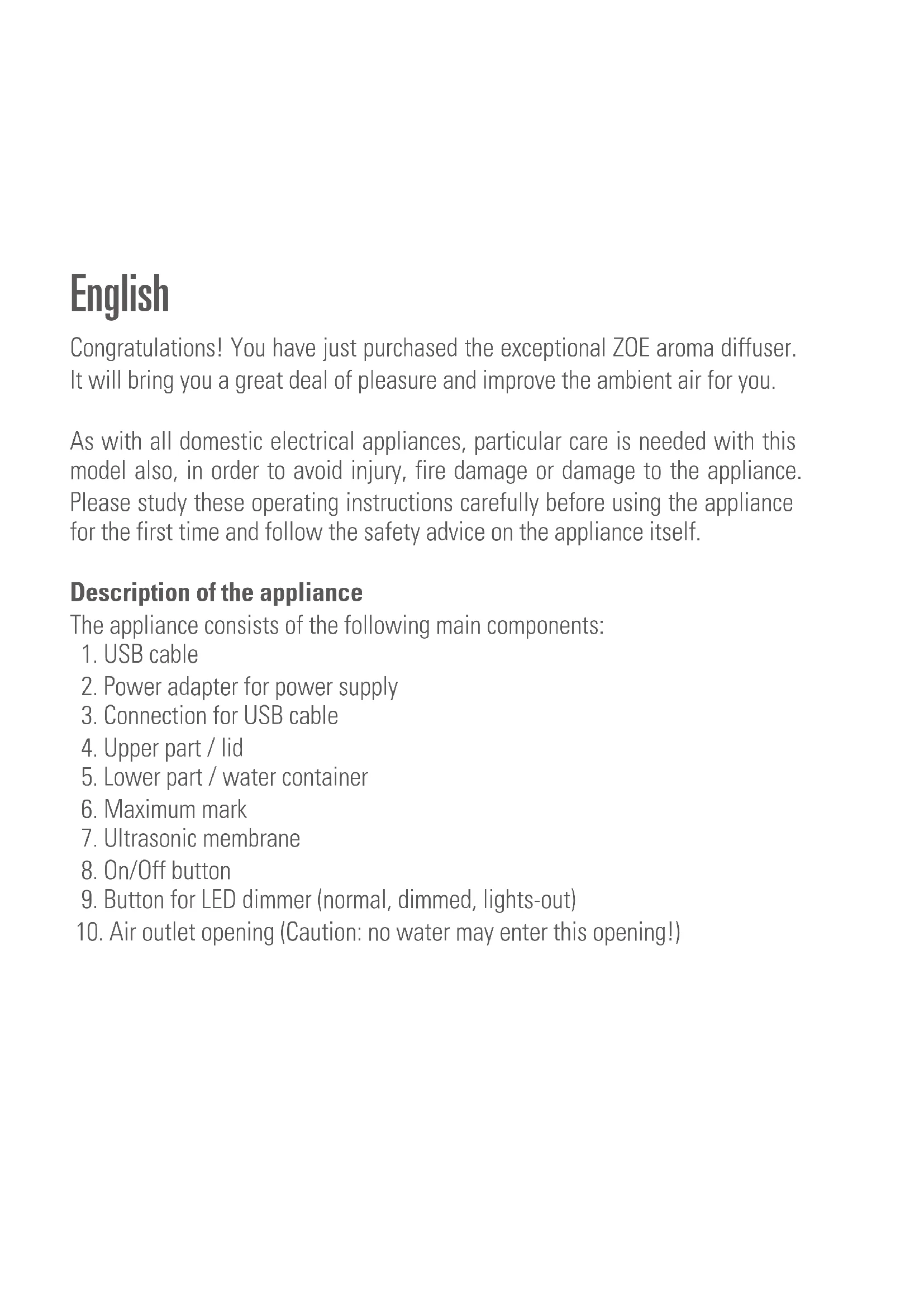

USER MANUAL Zoe STADLER FORM

2. Power adapter for power supply

3. Connection for USB cable

5. Lower part / water container

9. Button for LED dimmer (normal, dimmed, lights-out)

10. Air outlet opening (Caution: no water may enter this opening!)Important safety instructions

Please read through the operating instructions carefully before you use the ap- pliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.

• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the ap- pliance can lead to danger to life and health.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of ex- perience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user main- tenance shall not be made by children without supervision.

• Only connect the cable to alternating current. Observe the voltage informa- tion given on the appliance.

• Do not use damaged extension cords.

• Do not run the power cord over sharp edges and make sure that it does not get trapped.

• Do not pull the plug from the socket with wet hands or by holding on to the power cord.

• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3 m). Place the appliance such that a person in the bath tub cannot touch the appliance.• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.

• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.

• The appliance is not splash-proof.

• For indoor use only.

• Do not store the appliance outdoors.

• Store the appliance in a dry place inaccessible to children (pack the appliance).

• If the power cord is damaged, it must be replaced by the manufacturer or a repair shop authorized by the manufacturer or by similarly qualified persons in order to avoid a hazard.

• Prior to any maintenance, cleaning and after each use, switch off the appli- ance and unplug the mains cable from the socket.

• Repairs to electrical appliances must only be carried out by a qualified elec- trical technician.

• Only use the adapter provided by the manufacturer.

• Do not permit the area around the diffuser to become damp or wet. If damp- ness occurs, turn the output of the diffuser down. If the diffuser output cannot be turned down, use the diffuser intermittently. Do not allow absorbent ma- terials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

• Unplug the appliance during filling and cleaning.

• Never leave water in the water tank when the appliance is not in use.• Clean the water tank every 3 days

• Empty and clean the diffuser before storage. Clean the diffuser before next use.

• Warning: Micro-organisms that may be present in the water or in the environ- ment where the appliance is used or stored, can grow in the water tank and be blown in the air causing very serious health risks. Setting up / operation

1. Place Zoe in the desired position on a flat surface. Connect the USB cable (1)

to the power adapter (2) and to the appliance (3) and insert the adapter into a suitable socket. Alternatively, you can also connect the USB cable to another power source such as a PC or an external battery (battery pack/power bank) with 2 A.

2. Remove the lid (4) to fill with water and fragrance.

3. Fill the water container (5) up to the maximum mark (MAX) (6) with water. No

water may enter the air outlet opening (10). This will damage the appliance and will void any claim to the warranty. Important: please do not carry Zoe around whilst it is filled with water. The water could run into the electronics.

4. Add 2–3 drops of your favourite liquid fragrance directly into the water. It is

not necessary to mix them as the ultrasonic membrane (7) does this for you.If the fragrance is not intensely enough, you can increase the number of drops.

5. Close the lid (4) again.

6. Then switch Zoe on by pressing the on/off button (8). The LED in the centre

of the top part will then start to glow. If this does not happen, check whether there is sufficient water in the device or if the adapter is connected to the electricity supply.7. If you would like to top the water up, switch the device off and pull the net- work plug out. Remove the lid and fill the water up to the maximum mark.

8. If you are disturbed by the brightness of the illuminated mist (in the bedroom,

for example), you can reduce the brightness of the LEDs by pressing the dim- mer button (9). You can choose between three different modes:

• Normal mode (switched on as standard)

• Dimmed mode (press once)

• Light-off mode (press twice) You can return to normal mode by re-pressing the dimmer button (9). Note: If you would like to change the fragrance, empty Zoe completely and clean the water container with a damp cloth. Fill Zoe once again and pour the drops into the device following the instructions. Cleaning Before maintenance and after every use, switch the device off and pull the network adapter out of the socket. Careful: Never immerse the device in water (danger of short circuit).

• To clean the outside, rub with a damp cloth and then dry thoroughly.

• If there are marks caused by water and/or fragrances on the top of the lid (4), clean it with a damp cloth and a squirt of washing-up liquid. Then dry the lid thoroughly before using the appliance again.

• Internal cleaning: You can clean the ultrasonic membrane with a convention- al household descaler. If there are lime deposits, we recommend that youuse Stadler Form Cleaner & Descaler (www.stadlerform.com/accessories). Alternatively, you can use a household descaling agent or vinegar. Please do not try to scratch off deposits from the membrane with a hard object. For stubborn deposits, we recommend that you descale the device several times in a row. After the descaling rinse the base and then dry thoroughly.

• No water may enter the air outlet opening (10). This will damage the appli- ance and will void any claim to the warranty. Repairs

• Repairs to electrical appliances must only be carried out by a qualified elec- trical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.

• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).

• Do not push any object into the appliance.

• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the pur- pose.
