Product Type	Range Hood
Brand	Candy
Model	CFT623XALG
Power Supply	110-240 V AC, 50/60 Hz
Lighting	LED, 2 x 2 W (type DBS-2/65-H-120/33)
Number of Speeds	3 (low, medium, high)
Control	Push buttons (Stop, Low, Medium, High, Light)
Grease Filter	Aluminum, dishwasher safe
Charcoal Filter	Optional, replaceable every 3 to 6 months
Exhaust Duct Diameter	120 mm
Minimum Distance Above Gas Cooktop	65 cm
Minimum Distance Above Electric Cooktop	65 cm
Exhaust Mode	Extraction (external duct) or recirculation (internal)
Backdraft Damper	Included
Materials	Stainless steel
Repairability	LED bulb replaceable by a qualified professional
Cleaning	Unplug before cleaning; clean filters and surfaces regularly
Environmental Protection	Do not dispose of with household waste; recycle per Directive 2012/19/EU
Safety	Disconnect power before maintenance; do not use without filters; do not flambé under the hood

Frequently Asked Questions - CFT623XALG CANDY

How to install the Candy CFT623XALG range hood?

Installation must be carried out by a qualified professional. Drill 4 holes in the wall according to the indicated distances (see fig. 2 of the manual), insert the plugs and screw the hood. Ensure the distance between the hood and the cooktop is at least 65 cm for gas and 65 cm for electric. Connect the exhaust duct with a diameter of 120 mm for extraction mode.

What distance should be between the hood and the cooktop?

The minimum recommended distance is 65 cm above a gas cooktop and also 65 cm for an electric cooktop. For optimal operation, this distance should be between 65 and 75 cm.

How to clean the grease filters of the hood?

The aluminum grease filters are dishwasher safe or can be washed by hand with hot water and detergent. Make sure they are thoroughly dry before reinstalling them. It is recommended to clean them every 1 to 2 months depending on usage.

When should the charcoal filter be replaced?

The charcoal filter must be replaced every 3 to 6 months depending on cooking frequency. It cannot be washed and must be changed once saturated to maintain good suction efficiency.

How to change the LED bulb of the Candy CFT623XALG hood?

First unplug the hood. Loosen the screws of the light panel, remove the light fixture, disconnect the terminal block, and replace the bulb with one of type DBS-2/65-H-120/33 (LED, 2 W). It is advisable to call a qualified professional for this operation.

What to do if the hood is not extracting properly?

First check that the grease filters are not clogged; clean them if necessary. Ensure the distance between the hood and the cooktop is correct (65-75 cm). Check that the exhaust duct is not obstructed and that the backdraft damper is working. If the problem persists, contact after-sales service.

How to switch the hood to recirculation mode (internal)?

Turn the adjustment device to the internal position (fig. 4B of the manual) and install the outlet cover. You must also install the charcoal filter (sold separately) to capture odors. The air will then be recirculated into the room.

Can the hood be used with a gas cooktop?

Yes, but the minimum distance between the hood and the cooking surface must be at least 65 cm. Never leave open flames under the hood and do not flambé food. Ensure the room is well ventilated if other gas appliances are running simultaneously.

What to do if the motor does not run despite power?

Check that the hood is powered and the circuit breaker has not tripped. Test the different speeds with the buttons. If the light turns on but the motor does not, the issue may be with the speed switch or the motor itself. In this case, contact a qualified electrician or after-sales service.

How to clean the exterior of the Candy CFT623XALG hood?

Use a soft cloth dampened with soapy water or a non-abrasive cleaner. Avoid steam-based products or rough sponges that could scratch the stainless steel surface. Always unplug the hood before cleaning.

USER MANUAL CFT623XALG CANDY

1. __ Safety instructions
   2....Installation
   3....Start using your cooker hood
2. Troubleshooting
3. Maintenance and cleaning
   6............Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
  Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
• Never leave naked flames under the cooker hood.

If the cooker hood is damaged, do not attempt to use.
- Do not flambe under the cooker hood.
CAUTION: Accessible parts may become hot when used with cooking appliances.
The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65~cm
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
  Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
  Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Always to do:

Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
Cooker hood is for domestic use only.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
- There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Regulations concerning the discharge of air have to be fulfilled.
Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
- Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
- Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
-WARNING: Danger of fire: do not store items on the cooking surfaces.
- A steam cleaner is not to be used.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 120mm )

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See Pic 1

PIC1

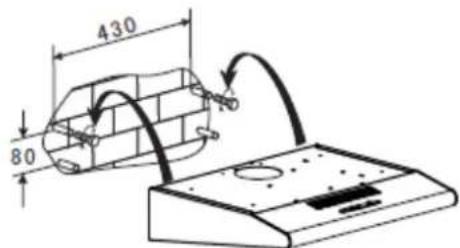

1. To install onto the wall, drill 4 holes of 8 mm on a suitable place according with the centre distance of hole in the back of the cooker hood.See Pic 2
2. Insert the nut into the holes.
3. Insert the screws into the nuts and tight.
4. Put up the cooker hood onto the fixed screws.
5. Then use the attached accessories enclosed to turn the screws into the two holes of inside the hood, and then fix the screws to tighten the hood onto the wall.
6. Put the outlet onto the cooker hood.

60cm

Pic 2

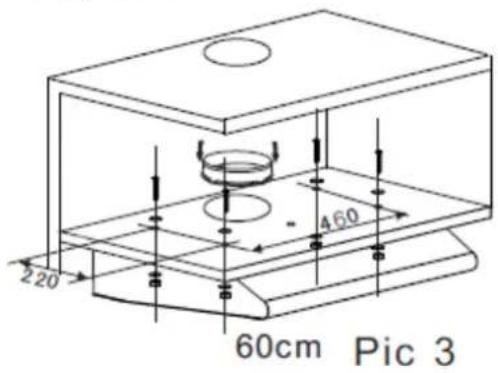

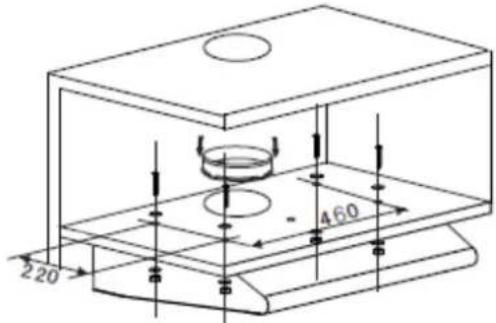

Method B See Pic 3:

1. Drill 4 holes of 6 mm at the bottom of the hanging cupboard.
2. Put the outlet on the air outlet of cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the cooker hood with enclosed 4 screws.
3. Install the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

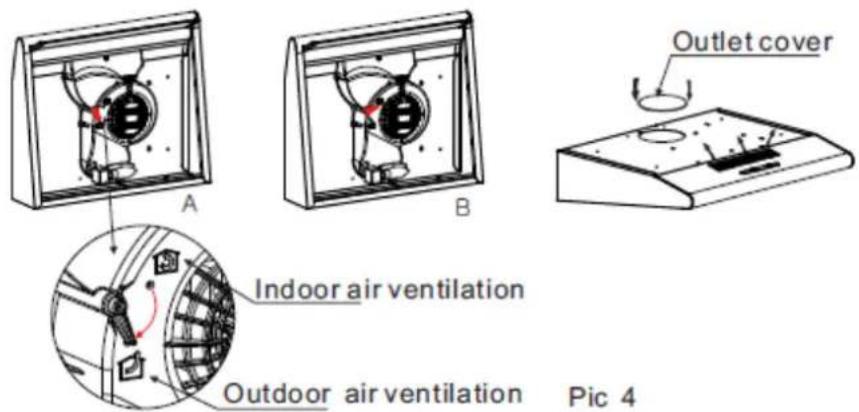

Air ventilation setting

Outdoor air ventilation: Turn the adjuster to outdoor position(pic.4A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

Indoor air ventilation: Turn the adjuster to indoor position (pic.4B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

This appliance is supplied with a 2 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutra

WARNING:

For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Push button

a. Press the button "Stop", the motor is stopped then.
b. Press the button "Low", the motor is running at low speed.
c. Press the button "Mid", the motor is running at medium speed.
d. Press the button "High", the motor is running at high speed.
e. Press the button "Lamp", both lights start shining. Press the button again; the lights are switched off then.

Pic 5

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Mains power cable is loose or disconnected	Refit mains power cable to power outlet. Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken or faulty bulbs	Replace blubs as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it horizontal.

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures guarantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a mild detergent and then brush it gently with a soft brush. Please do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

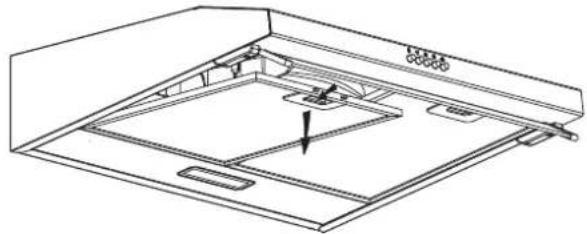

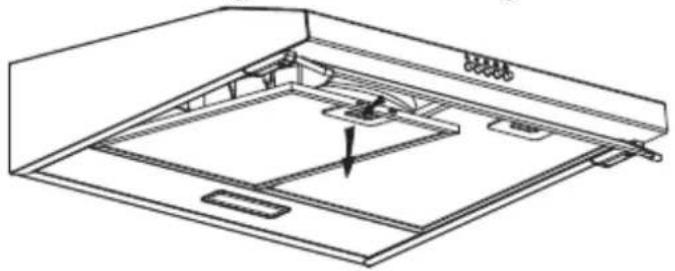

• Removing the filters as the instruction in picture.
• Please do not use abrasive detergent for it will damage the hood.

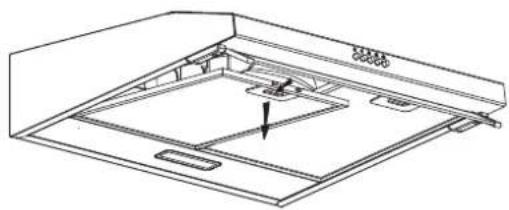

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps:
• Angle the filter into the slots at the back of the hood.
• Push the button on the handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

CARBON FILTER

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

In order to install the activated carbon filter, the aluminium filter should be detached first.

1. Put the carbon filter on the back side of the aluminium filter.
2. Insert the steel wire into the frame of the aluminium filter, one on each side. You need to bend it to insert into the other end of the frame.
3. Make sure the steel wire fix the carbon filter onto the aluminium filter.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note:

• Before changing the lights, make sure that the appliance is turned off and unplugged.
• Protect against danger when changing lights, such as wearing gloves.

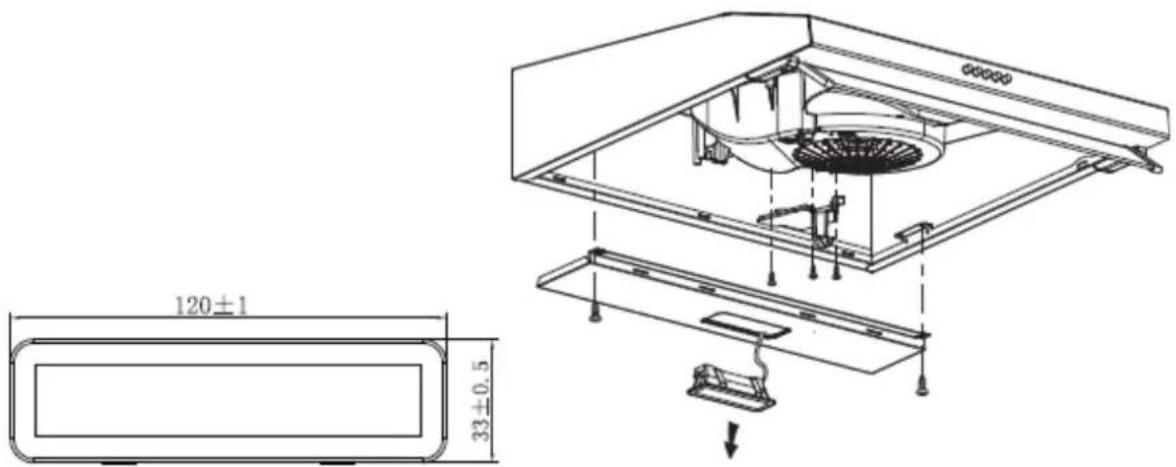

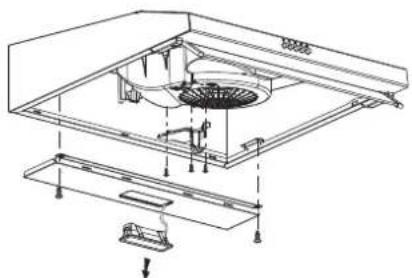

Changing the light

• Loosen the 2pcs ST48mm self-tapping screw from the lighting panel, take out the lighting fixture.
  Disassembly the 3pcs ST312mm screws on the terminal box cover and take down the wire cover.
• Pull out the terminal from the PCB terminal block, disconnect the wire connector and replace the lamp.
• ILCOS D code for this lamp is: DBS-2/65-H-120/33
  -LED modules -rectangle lamp
• Max wattage: 1 × 2 W
  Voltage range: AC 110-240V
  -Dimensions:

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.

Kuhinski aspirator Upstvo

Sadržaj

BEZBEDNOSNA UPUTSTVA

Ovo uputstvo objasnja kako se aspirator montira i koristi i molimo vas da ga pažljivo pročitate pre nego što počnete da ga koristite Čak i ako ste vec upoznati s ovim proizvodom. Ovo uputstvo treba Čuvati na sigurnom mestu da bi se kasnije moglo koristiti.

POVRŠINA KONTROLNE TABLE

Unutrasnja kontrolna tabla se moze ociistiti toplom sapunicom. Pre ciicenja krpa treba da bude cista i dobro iscedena. Koristite suvu meku krpu kako bistePokupili preostalu vlagu nakon ciicenja.

Vazno

Koristite neutralne deterdžente i izbegavajte upotrebu jakih hemikalija za cisćenje, jakih deterdženata za domacinstvo ili abrazivnih sredstava, jer to utić na izgled urežaja i moze ukloniti natpise na kontrolnoj tabli i zbog toga garancija proizvodača neće važiti.

MREŽASTI FILTERIZA MASNOĆU

12 + 1 = 10 + 1

J 1

y 1
Jc s
1
J
J
J

. 1111111111111111111111111111111111111111111111111111111111

：山

Jy j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
j 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10
J 10

：山

$$ N = \text {a r} 2 1 $$

y

：

120 = 12 × 50

1 1

a

4.1.11

aillll jcll j 1d aal lla 1n no jali gllbl aai .

ale 1

aill 1000 1000 1000

111 gaii jy gill

aaii gai iiaai aiee gai gai jaiil (xia li gai) aaiia aai y all pial y gall ay

150 = a + b

a aalaaal aaalaaal no bala i y jgab gaoa aall p aagaae aee

a

i 1

ailll g aill l jlll clllall g aill l ayglal lglll gliaiio plilai i ylaiaiaiaiaiaia

gaaee

aaii i 1000000000000000000000000000000000000000000000000000000000

i 68.6 6 6

6

J 1

Jiloo jie jie gai jia jia 1

e 1

aaii jia laai aayr jao sli jaaal gao Jaleill iic. jieall

1

jiaol jie gaii aaiy iueoaiy jiai bci 0e Jaleill ic

eill jao Jlls j! sel bll 1 jell Jg

4k - 3 = 2k + 3

:

0ST4*8 2

3T312 3

J 1

DBS-2/65-H-120/33: 111 (ILCOSD)

jhuw

22 : > 0 ②

240-110 22 jzj:

S OBC = S COD + S BOC - S BOC

aaii aai

120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120

S OBC = S COD + S_ BOC

(1)

eJg j 2

glal 2jolglblaw jaiy (4)

saiil jg clog

y. piaiiall jn jalll kai n y .alil 1jld g d jol l aill jalll kai y
aill lalll lgl .r 10g eil iic al jialll clll lsl o jalll n jalll
. gill sle! jn jss

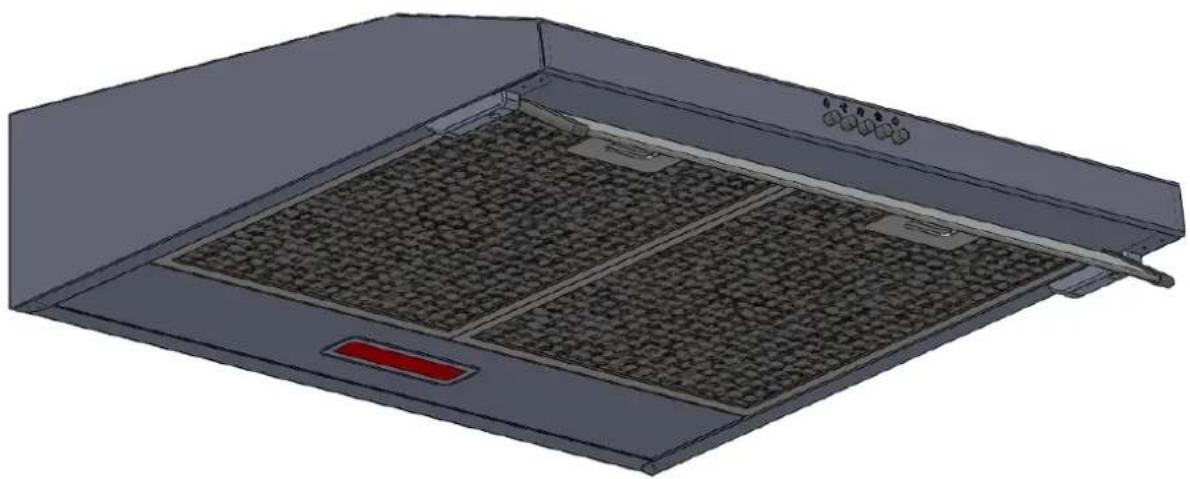

Exaustor

1. Yka3aHn3a 6e3oNaCHOCT
2. MoHTaX
3. IbpoHauJIHo 3nOJ3BaHe Ha BaIaIaIaIpaTOp
4. TroubleshootingОтсгЯBaHe Ha Heu3npaBHOCTn
5. O6cIyKBaHe nNouchTbaHe
6. 3aunTa Ha OKoJHaTa cpeDa

YKA3AHNЯ 3A БE3ОПАCHOCT

B TOBa pBKOBOdCTBO ca 68cHHeN npaBnHnT MOHTaK n ynoTppe6a Ha Ba7n acnnapot. MoI, npoYeTe ro BnMaTeJHo npeIyNoTppe6a, dOpN da cTe 3aNo3HaTu C n3deJIneTo. TOBa pBKOBOdCTBO Tp8Ba Da ce cbxpaHraBa Ha 6e3ONaCHO MAnTo 3a cnPaVBKa B 6bJeSe.

Hnkora:

He onntBaTe Da n3noJ3Bate acnnpaTopa 6e3 qnItpTe 3a Ma3HHH INAOKo qnITpTe ca npekomephHO HACHTEH C Ma3HHN!
He MoHTnpaTe HaI neUka C rPnHa BUCOKO HNBO.
He octabrnte TuraHn 6e3 HabJHOdeHne NO Bpeme Ha ynoTpe6a, TbN KATO npeKoMEpHo HarpeTnte Ma3HHN INM MacNO MORaT Da CE Bb3IJaMeHrt.
Hnkora He octabraIte OTKpTNn PnAmbucn noaacnpaTopa.

Ako acnnpaTopbTe noBpeDeH, He ONNTBaIte DaTo N3NoJ3BaTe.
He fIam6npaIte noI acnpaTopa. BHMaHHe:IOCTbHNHTe Yactn e BbMOxHO
Da ce HaropeuT npn n3noN3BaHe c rotBapcN ypeN.
He hapyuwaBaTe n3nckBaHeto 3a MHNMaIHO pa3CTOJHne MeXdy ONOpHaTaNOBbpxHOCT 3a rOTBapCKNte CbIOBe Ha KOTIOHNTe N HAI-HNCkata Yact Ha acnpaTopa. (Korato acnpaTOpt Ce HAMIPA HAD rA3OB ypeD, pa3CTOJHNETo Tp6Ba Da e HAI-MAnKO 65 CM)
Bb3d yxbT He Tp6Ba Da ce N3BexJa B n3BOD, N3NOJ3BaH 3a N3BexJaHe Ha napn OT ypeiN, 3a KOnTO Ce N3NOJ3BaT Ra3 IIN dpyrI rOpNBa.

Bunhar:

BaxHo! BuHaHn n3KnIOuBaIte eJIeKTPnueCKOTO 3axpaHbAHe OT MpeXkata IIO BpeMe Ha MOHTaN O6CJvXBAHe KATO CMHa Ha JaMNa.
- AcnnpaTopbT Tp6Ba Da ce MOHTnpa CbflacHO yKa3aHnraTa 3a MOHTax N BCNUKn I3MepBaHn Ta p6Ba da ce Cna3BaT.
BCNUKMOHTaXHNe DeHOCTN Tp6Ba Da ce N3BbPWBAT OT KOMNETeHTHO JNue INJKNBAJIINΦUUNPAH EJEKTPOTEXHUK.
MOnr, n3XbBpJnTe ONaKOBbHnTe MaTePnAn BHNMaTeJIHo. Te ca OnaCHn 3aJeua.
- 06pbuainTe BnMaHne Ha octpntepb6oBe BBB bTpeHocCTTa HaacnnpaTopa,OCo6eNo Bpeme HaMOHTaK INOuNCTBaHe.
YBepTe ce, Ye Tpb6nte HMaT OyBaHnI, No-oCTpN ot 90 rpaDyca, TbKATO TOBA IOHIXaBa epeKTNBHOCTTa Ha acnnpaTopa.
- IpeDynpexJeHne: aKo He MOHTnpaTe BnHTOBeTe Hnn QnkCpaTO npncnoc6JIeHne CbIaCHO Te3nyka3aHna, TOBa MoKe Da IOBeDe DO ONaCHOCTN, CBbp3aHn C eJekTpueCTBOTO.

Bunhar:

BnHa nocTabaTe kanaHn Ha TeHJKePnte N TuraHnte, KOraTO rOtBNTe Bbpxy ra3Oba neka.
BpeKIM Ha n3BnUHaHe Bb3DyXbT B NOMeueHneTo ce n3BExka OTAcnipaTopa.MoJ, norpnxTe ce 3a B3emaHTo Ha noDxOJaMepKn 3a BeHTnlaqna. AcnpaTopb T npemaxBa Mnpu3MtTe OT NOMEueHneTo, HO He n napata.
- AcnupaTopbTe camo 3a DomaSHA ynoTpe6a.

Ako 3axpaHbauT ka6e nOBpeH, ToI Tpr6Ba Da ce 3aMeHN OT Ipon3BOIDHTJI, HerOB cepBn3EH npedCTaBNTeIN NII Nua C NOdoHa KBaIIΦkaCnC orIeN 36rBaHe Ha onaCHOCT.
To3n ypeM MoKe Da ce n3noJ3Ba OT Deua, HABbpHnn 8 roDHH, KaKTO n OT Nnca C HamaIeHN FIn3NueCKn, CETNBn INn YmCTBeHn CNOcO6HOCTn, INn TAKnBa 6e3 HuxKnr OINr I No3HaHnR, Ako e OcnrypeHo TReXHOTo Ha6JIIODeHne INn INhCTpykTnpaHe OTHOCyNoTpe6bata Ha ypeDa NO 6e3OnaceH NaHn I Te pa3bnpat CBbp3aHnTe C TOBA ONaCHOCTn. Deuata He TpBb Da nIrpAart C ypeDa. POnucTBaHeto N ObClyKBaHeto OT NOTpe6nteJr He CNeEBA Da CE IN3BbpWBat OT De4a 6e3 Hnd3Op.

• PpeDynpexdHne: npEi Da OcbIeCTBBAte DoCTbI DO KJIeMITE, BCNUK3aXpaHbAun BepnT Tp6Ba Da 6bDat N3KnUoyehN.

BnuHa:

BHMaHHe:UpeBtIIOCTbHNHTeMy YactnE Bb3MOxHOH Da Ce HaropeuTNo Bpeme Ha pa6oTa. BHmAbaTe Da He DOKOCBaTe HArpeBaTeHNHTe eIemEnTu. Deuata Ha Bb3pact NOD 8 rOINH CNEDa Da ce Ibpxat HacTpapa, OCBeH aKO He ca NOD NOCTOARHHo HA6NHOeHne.
- IomeeHHeTo Tp6Ba Da nMa NOxOJaBa BeHTnAuzn, KOraTo acnnpaTOpbT Ce 3n0n3Ba eHOBpeMeHHo C ypeDn, KOnTO n3raprTa3 nn Dpyr ropnBa.
CbIeCTByBa pNCK OT noXap, aKO NOYnCTBaHTo He ce n3BbpWBA CbrrnaCHO VKa3aHnraTa.
Pa3nopeIbTe OTHOCHO 3BExJaHeTo Ha Bb3dYxa CneEdBa da ce cna3BaT.
-Почистваiteурадасп nepnoDnHNO, KaTO cIeДВaTe ПОСоЧЕнЯ MeToD B pa3den OБСЛУЖBAHE.
OTcbo6paKeHna 3a cnryphocT, MOJIa, nIIOJ3BaIte cAmO fHKCuPaUu INIIMMOHTaxHH BnHTOBe C pa3Mep CbIJaCHO npenOpbkNTe B TOBA pBKOBOdCTBO 3a yNtpe6a.
- OTHOCHO NOIPO6HCTNTE 3a HauHa N YecOTaTa Ha NOUcTBAHe, MOJI, BnKTe pa3dena 3a o6cnyXBaHe n NOUcTBAHe B pBKOBOdCTBOTO 3a yNoTpe6a.
-Поунстваноиоблuyхвано OTnotpe6nteЯ He cneBa da ceИЗБьрWBaT OT Deca 6e3 HаДзOp.
Korato acnnpaTopbT pa60tn eHOBpeMeHHO C ypeN, 3axpaHbaHc eHeprna, pa3nUHa OT eKeKtpnueCTBO, OTPuCaTeJIHOTo HAnraHe B NOMEseHneTO He Tp8Ba da HaXbpy4 Pa (4 x10-5 6apa).
PPEUYPEXKDEHNE:OnacHocT O nokap-He cxbxpaHraBaiTe npedMeTu Ha rotBapcknte NOBbpXHOCTN.
He Tp6Ba Da ce n3noJ3Ba npOuNCaKa.
HUKOHa He onntBaIte da 3aracnte noXap c BODa, a n3KIOUcTe ypeDa n CJeT TOBa NOKPnTE PnAmbKa, HAp. C KaNaK INN IpOTuBOOnoXapHo Oeao.

MOHTAK (ИЗБЕДАНЕ HABьH)

Ako imate n3BOD hABbH, BaIHT acnnpaTop MOxe da ce CBpXe cbrJacHO n3o6paXeHneTo NO-dOyC NOMOuTa Ha N3BExJaUa Tpb6a (emaIInpaHa, aIyMHNHeBa, TbBkAba Tpb6a IIN OT He3aIaNIM MaTePuaN C BbTpeWeH dNaMeTbp OTO 120MM)

MeToB Bx. 13o6paJxHne 3:

1. PpO6nTe 4 OTbopa c 6 MM Ha DbHOTo Ha BnCraunr uKaΦ.

2. Пoctabete eHONOCUHnKaIaHa H3BOda 3a Bb3dYx Ha acnnpaTopa, cTeTToBa MOHTnpaIte acnnpaTopa Ha IbHOTo Ha UkaΦa, 3aTeHHeTe acnnpaTopa C npINOxKeHnte 4 BnHTa.

3. MoNTnpaIte perynnpaHnaHeI Ha DbHOTo Ha acnPapota, 3a Da 3aBnHInTe npa3HHaTa MeJdy TbP6a Ha acnPapota N ukaΦa.

60cm
1306paXeHne 3

Hactpoika Ha Bb3dUshaTBeHTnlaucia

BbHsHa Bb3dUsha BeHTnlaun: 3aBbPTepepyNaTopa Ha no3uua "Habh"(I3o6paKeHne 4A),MOHTnpaTe n3BOda,BKJIoute acnnpaTopa,Toraba Bb3dyXbT Ce BEHTnnapa OT n3BOda 3a HABbH.

BbtpeHa Bb3dUsha BeHTnlaucn: 3aBbptTepeRyIaTopa Ha N03uca "BbTp" (N3o6paXeHne 4B), MOHTnpaIte Kanaka Ha N3BOda, BKJIouTe acnnpaTopa, TOraBa Bb3dYbT ce BeHTnIIPA oT N3BOda 3a HABbTpE.

BbtpeHa Bb3dUshaBentlaucnA
N3o6paXeHne 4

BbHnHa Bb3DyuHa BeHTnlaucnA

EneKtpnuecka HcTaJaCna

LJnata Hnctanaun Tp6Ba Da Ce n3BbpN OKmTeHTHO nIe nn KBaJIuΦnUpaH eNeKTPOTEXnK. Ipei Da cBbPKeTe MpeXOBOT 3aXpaHBAHe, yBepeTe ce, Ye MPexOBOTO HaPpeXeHne CbOTBeTCTBa Ha HAnpeXeHneTo Ha Ta6enata C ETnKETn.

DnpeKTha Bpb3ka

UpeBt Tp8Ba Da 6bDe CbBp3aH DnpeKTHO KbM eNEKtpuYeCKaTa MpeXa, KaTO ce
N3NOJ3Ba MHORONIOUcEH PpeKbCBaC MInHMaJIeH OTBOp 3 mm MeJy KOHTaKTITE.
INCTaIATOpBT Tp8Ba Da ce yBepn, Ye npabUNHaT a EneKtpuYeCKa Bpb3Ka e
HaNPaBeHa N Ye Ta CbOTBeTCTBa Ha CXeMaTa Ha CBbp3BaHe.
Ka6enbT He Tp8Ba Da 6bDe OrBHaT nII KOMnPeciPaH.
PeOBHO npOBepraBaiTe uencena n 3axpaHbaun Ka6en 3a NobpeDi. Ako
3axpaHbaunr Ka6en e NobpeDn, ToI Tp8Ba Da 6bDe 3aMeHen Cbc CneUanen
Ka6en nIi c6op, KoITo Ce npedlara OT npOn3BOIDnteY IINI HEROBn cepBN3eH areHT.

To3n ypeI e cHa6dE n C 2-KeJIeH rnaBeH Ka6eI, OcBteH KaKTo cJeDbA:
