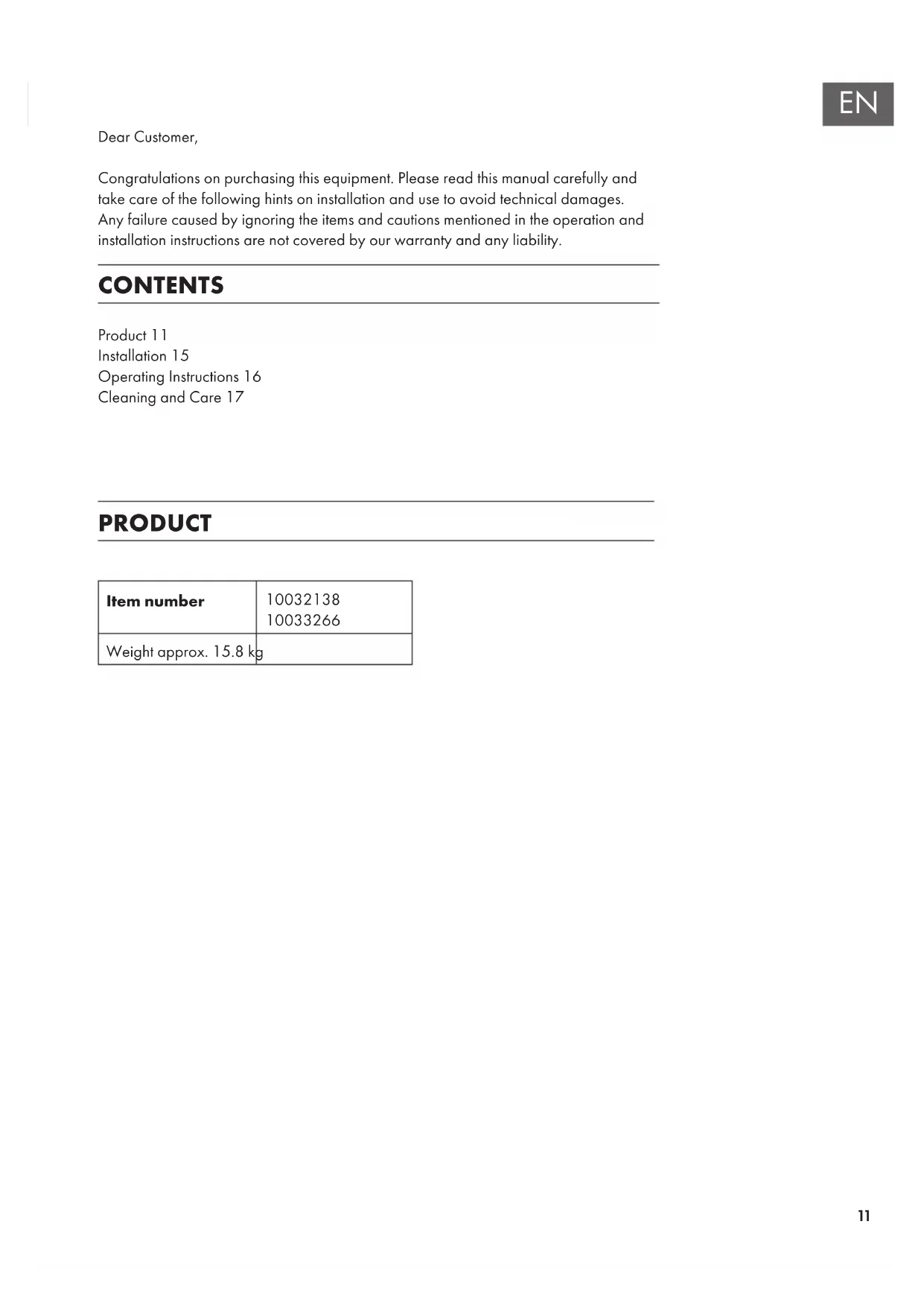

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

CONTENTS

Product 11

Installation 15

Operating Instructions 16

Cleaning and Care 17

PRODUCT

Item number	10032138 10033266
Weight approx. 15.8 kg

TECHNICAL SPECIFICATIONS

Item number	10032138, 10033266
Product size (mm)	540 x 180 x500t
Size of the burner opening (mm)	280 x 60 x 70
Net weight (kg)	12.5
Intended fuel	95% C2H5OH
Maximum burner volume (L)	0.6
Total fuel capacity of the device (L)	0.6
Fuel consumption (kg / h)	0.4
Heat output (kW)	3.14
Recommended minimum room volume	105 m3
1. The device is for decorative and domestic use only. 2. Read the manual before installation and setup 3. This unit complies with EN16647. 4. Only use fuel with an alcohol concentration of at least 95%. 5. Use only in a well-ventilated room not smaller than 105 m3. 6. Never pour fuel into a hot or burning device. 7. Do not overfill. Wipe up any spilled fuel before igniting the fuel. 8. Only use the unit in a draft-free environment. 9. Do not ignite the fuel while the appliance is hot. 10. Do not move the unit during operation. 11. Never leave small children or pets unattended near a burning appliance.
Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Special Precautions

Never put fuel straight into the fire.	Never put fuel on hot surfaces.	Do not place any objects on the fireplace.
Avoid drafts. Do not blow into the fire. Do not touch the fire.
Do not place the device near flammable objects.	Have a suitable fire extinguisher ready.	Follow the instructions for the fuel exactly.
Have a fire blanket ready. Do not inhale fumes. Ventilate sufficiently.	Open fire and smoking is prohibited near the unit.

WARNING

Risk of suffocation! The fire uses oxygen from the air in the room in which it is operated. The room in which this fire replace is installed must be well ventilated and supplied with sufficient fresh air. Never install or operate the fire replace in an unventilated basement or in a hermetically sealed room.

• Never leave a burning or hot fire replace unattended.
• The unit must be at least 1 m away from combustible materials.
• Keep children and pets away from the unit. Children are not allowed to operate the device.
• Do not use the device in cavities where oxygen tanks or flammable vapors are present.
• Do not use the device if people in the home or in the room suffer from breathing difficulties.
• Do not use the device in confined spaces as the flames consume oxygen.
• Never open a fuel bottle near an open flame, otherwise the fuel could ignite.
• Never move the fi replace while it is burning or while it is still hot.
• After you fill your fi replace, replace the bottle cap and remove the fuel from the fi replace environment before lighting the fi replace.
• The glass becomes hot when lit and will remain hot for some time after the flame goes out. Do not touch glass surfaces. Keep children, pets, clothing, fabrics and furniture away from the unit due to the high surface temperatures.
• Use only an extended stick lighter to ignite. Keep face, body, and objects away from the fire replace, extend the hand holding the stick lighter away from you, and light the fire.
• Do not obstruct or prevent fl ames.
• Do not use the appliance for cooking.
• Allow the fi replace to cool for at least 15-20 minutes before touching, moving or refueling it.
• Take the same precautions for the fire replace as for an open fire (hearth, grill and other open fire products).

In an emergency, dial 112. Extinguish the fire with a carbon dioxide fire extinguisher and then close the fire chamber to completely choke the fire. Place the extinguisher at a maximum distance of 30~cm from the device.

• This manual is part of the device. This device is for decorative and domestic use only.
• Please make sure that the wall, table or floor on which you place this device can support its weight.
  The ventilation slots must not be covered or obstructed.
• Do not place any flammable objects on the device.
• Pay attention to which wall type the device can be attached to.
• Obtain a suitable fire extinguisher and a fire blanket and make sure that the appropriate fire extinguisher is within 1 meter of the equipment.
• Do not operate the device in a drafty environment
• Observe local laws.
• Use only in a well-ventilated area.
• Do not light the device while it is still hot.
  The construction of the device must not be changed.
• Use only replacement parts approved by the manufacturer.
• The operation of several units is only permitted if the power is less than or equal to 4.5kW / h and if additional ventilation of the room is taken into account.
• Remove any fuel which may have overfl owed before lighting the device.
• Check the fuel chamber for overfling after flling. If the chamber has overflowed, remove the excess fuel.
• The device is not suitable for continuous operation.
• Only use the fuel specified by the manufacturer.
• Store the fuel in a fireproof location.

CAUTION

Risk of burns! The fi replace and the surfaces become very hot during use. Do not touch it. Keep children and pets away from the fi replace.

INSTALLATION

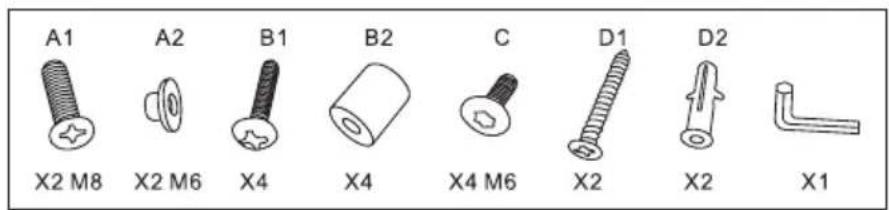

Pack list

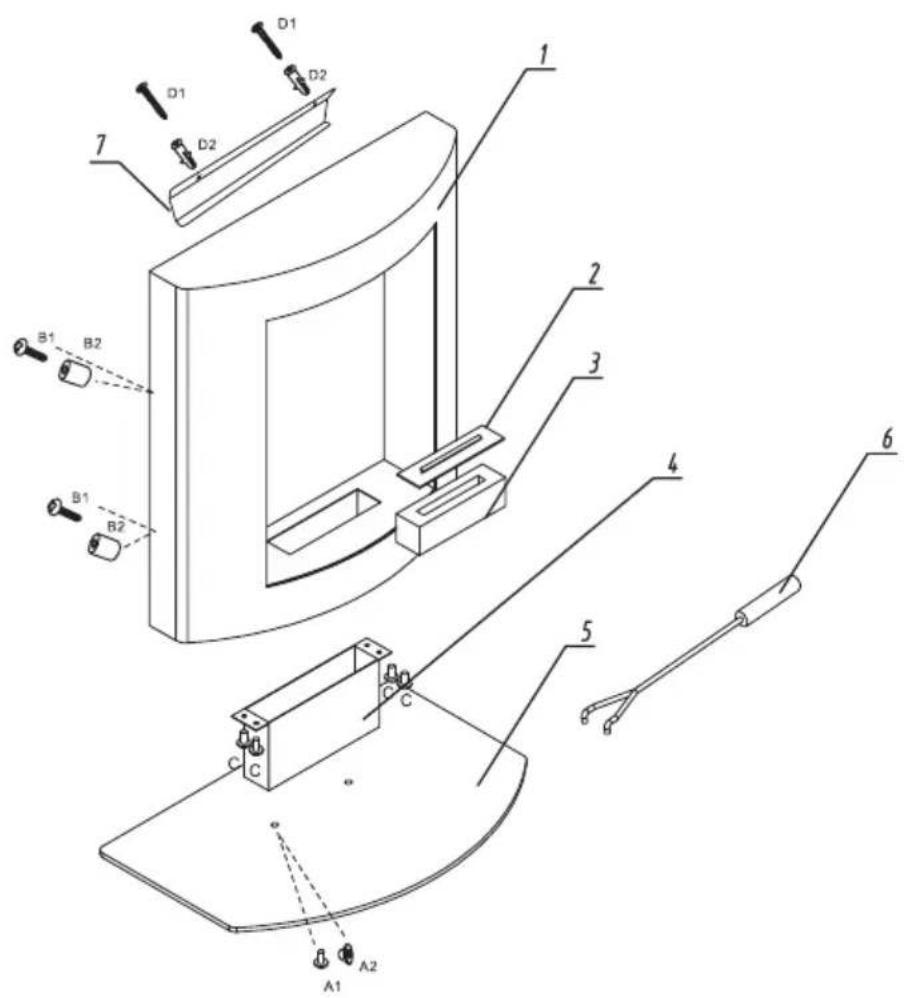

Assembly

• This fireplace is fueled by alcohol which is low-flash-point and volatile, you should let the expert installation person to have a check for the environment, then give a considerable install solution.
  Install basing on this instruction.
• Within 50-60cm around the fireplace should be anti-inflammatory or anti-hyperthermia material.
• Make sure the on-table fireplace/freestanding fireplace located on a flat table / floor and it will not be touched when walking around. Please protect the kids to touch it.
• Pay attention that the burner should lay against strong-wind for any dangerous.

OPERATING INSTRUCTIONS

• Alcohol used in the fireplace should be stored in a shady and safety place.
• Use 95% biomass energy alcohol, or the alcohol from fireplace companies.
• 95% biomass energy alcohol ethanol refined from plants.

Note: Some cheap alcohol can fired but have some harmful additives like methanal in it work against to our health.

• Be aware of the children, make them away from the alcohol fireplace.
• Do not put this product on the entrance or exit.

Ignition

• Pour alcohols into the burner, leave 1-2 cm under the burner-opening.
  If alcoholspilled,please clear and dry it before igniting.
• Do not add alcohols when it's burning. Fuels only can be added without naked fire. Wait 10-20 minutes to let it calm down before put in fuel.
• Dip some alcohol by the provided stick then fire the stick and put it into the burner.
• Maybe there are some slight bombs voice in first time, keep people 20 - 30cm away from the fireplace when igniting.

Quenching fire

• Fire will extinguish when alcohol burned out (about 2.5 hours)
• If you want to quench the fire during the burning, please use the provided stick to close the burner.

CLEANING AND CARE

The fi replace must be cleaned with a soft cloth and warm water.

Do not use detergents or else with abrasive materials, this will scratch the surface of the fi replace.

The surfaces can after some time of use become brownish - this happens due to heating of the steel, and is not a defect of the item.

Container for bio-ethanol should be cleaned regularly - use a brush and rm water with added detergent.

Caution: Danger of Burns

Product has high temperature under or just fi nishing working.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
