Product Type	Electric Smoker
Brand	Klarstein
Model	Flintstone Steel
Article Number	10033372, 10034702
Power Supply	230 V ~ 50 Hz
Power	1600 W
Intended Use	Outdoor use only
Main Material	Steel
Heating Element	1600 W Heating Element
Controls	Adjustment knob, on/off switch with indicator light
Air Vent	Adjustable position
Included Accessories	Racks, wood chip box, drip tray, hooks
Capacity	Multiple racks and hooks for hanging food
Cleaning	Disassemble and wash with soapy water or bicarbonate
Safety	Do not use indoors, risk of carbon monoxide, hot surfaces, keep 1 meter clearance
Extension Cord Allowed	With ground plug and sufficient power, 'W' marking for outdoor use
Manufacturer	Chal-Tec GmbH, Berlin, Germany
Importer (UK)	Chal-Tec UK limited
Warranty	Statutory warranty of conformity

Frequently Asked Questions - Flintstone Steel Klarstein

How do I use the Flintstone Steel electric smoker?

Place the food on the racks with space between them. Install the drip tray and the wood chip bowl filled with wood chips. Close the door, adjust the vent, plug in and turn on the appliance. The smoker will start smoking within 10 to 20 minutes. Turn off and let cool after use.

What types of wood chips should I use?

Use aromatic white wood chips like mesquite, apple, blueberry, pecan, or hickory. Fine chips work better than large pieces. Only use a handful to avoid an overly strong taste.

Should I add water to the drip tray?

No, this smoker is not a water smoker. The drip tray is used to collect fat and broth. If you want to steam, you can add a little water, but it is not necessary.

How do I clean the smoker?

Disassemble all removable parts (racks, wood chip bowl, drip tray, hooks). Wash them with mild soapy water or bicarbonate of soda with a sponge. The electric housing can be wiped with a damp cloth. Do not immerse the housing.

What are the important safety precautions?

Never use the appliance indoors due to the risk of carbon monoxide. Use it only outdoors, in a well-ventilated area away from flammable materials. Do not touch hot surfaces. Keep a fire extinguisher nearby.

Why is my smoker taking a long time to heat up?

Smoking times can vary depending on outside temperature, wind, and food quantity. In cold or windy weather, smoking will take longer. Preheat for 20 to 30 minutes before adding food.

Can I use an extension cord?

Yes, if it has a ground plug and sufficient power (at least equal to the appliance). For outdoor use, the extension cord must bear the marking 'W' or 'suitable for use with outdoor equipment'.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service department, or a qualified person to avoid danger. Do not use the appliance with a damaged cord.

How do I know if the smoker is on?

The on/off switch lights up green when the appliance is operating, indicating it is heating.

Can I smoke large quantities of food at once?

It is not recommended to overload the appliance. Leave space between food items on the racks to ensure good heat circulation and even smoking. Large quantities may increase smoking time.

USER MANUAL Flintstone Steel Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety instructions 10

Product Description 11

Assembly 12

General Hints on Operation 12

Operation 12

Helpful Hints 13

Care and Cleaning 14

Hints on Disposal 14

TECHNICAL DATA

Item number 10033372, 10034702
Power supply 230 V ~ 50 Hz
Power consumption 1600 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

• For outdoor use only - Do not use indoors.
• Read all instructions before using this product.
• Do not plug in the unit until it is fully assembled and ready for use.
• Do not expose this unit to water or rain at any time.
• Keep a fire extinguisher available at all times when using this product.
• Fuels, such as charcoal briquettes or heat pellets, are not to be used in this product.
• This product is hot when in use. To avoid burns, do not let bare skin touch the hot surfaces.
• Never move this unit when in use. Allow the unit to cool before moving or storing it. Always use the topcarry handle to move this product.
• This unit has hot parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Be careful when removing food from inside the unit. All surfaces are hot and MAY cause burns. Useprotective gloves or long sturdy cooking tools.
• Do not cover cooking racks with metal foil. This will trap heat and damage the unit.
• The drip tray is to be used ONLY on the bottom rack of the unit.
• The wood chip bowl is HOT when in use. Care must be taken when adding wood chips.
• Dispose of cold ashes by placing them in aluminum foil, soaking them with water, and discarding in a non-combustible container.
• Do not store this unit with hot ashes inside. Store only after all surfaces are cooled to near ambienttemperatures.
• This product is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.
  Children must be supervised to ensure that they do not play with this product.
  Always unplug the unit when not in use.
• Do not operate the unit with a damaged power cord or plug, or after the unit has been dropped or damaged in any manner. Return the unit to an authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use this unit in the immediate surroundings of an outdoor shower or swimming pool. Never locate the unit where it may fall into any water container.
• To disconnect the unit, turn controls to off, then remove the power plug from the outlet.
• Connect to properly grounded outlets only.
• Never leave the unit switched in the "on" position with unsupervised children in the vicinity.

Always allow at least 1 meter clearance around the unit.
- Never use aerosols or similar products around the unit.
- Never use the smoker to dry clothes or any other materials.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- Longer extension cords are available and may be used if care is exercised in their use. If an extension cord is used, it must:
a) be a grounding type 3-wire cord,
b) be marked with a rating at least as great as the electrical rating of the unit,
- c) be an "outdoor" extension cord & marked with the suffix "W" and the statement "suitable for use with outdoor appliances"
- Use this product only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

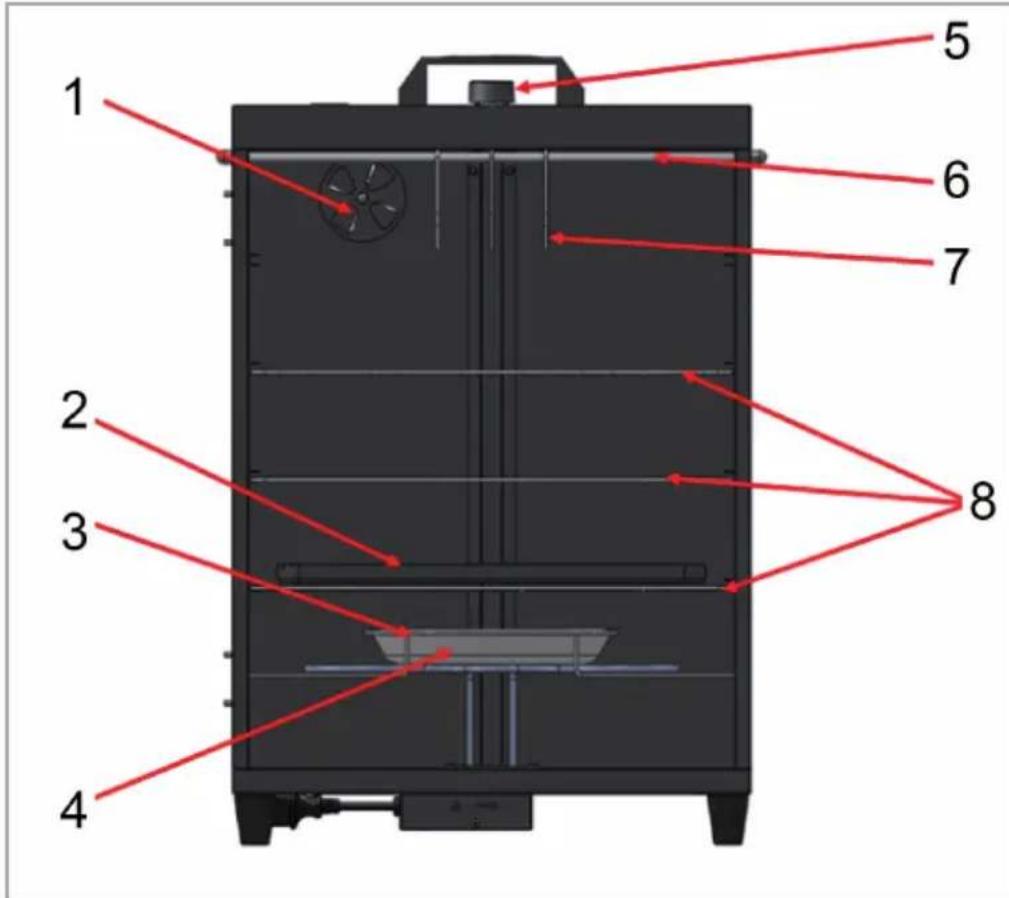

PRODUCT DESCRIPTION

1 Exhaust vent
2 Drip tray
3 Chip pan bracket
4 Chip pan
5 Control knob
6 Hanging bar
7 Hook
8 Rack

ASSEMBLY

This product is provided completely assembled. Place the chip pan, drip tray, and racks into the smoker as shown before using.

• Place the smoker on a stable, heat resistant surface outdoors, protected from rain but with good air circulation
• This is an OUTDOOR use slow smoker - Allow sufficient time for smoking
• Preheat the smoker for 20-30 minutes before loading food.
• Do not overload the unit with food. Large amounts of food may trap heat extending the smoking time or causing uneven smoking.
• Leave space between the food on the racks and the smoker sides to ensure proper heat circulation.
• Close air damper on top rear side of unit to retain moisture and heat. If smoking foods such as fish or jerky, open the damper to release the moisture.
• Extreme cold temperatures will extend smoking times.

OPERATION

WARNING

Carbon monoxide hazard! Burning wood gives off carbon monoxide gas, which can cause sickness & death do not this unit inside homes, vehicles, garages, or any enclosed areas. Use only in outdoor areas that are well ventilated.

How to Use the Electric Smoker

1 Place the food material on the racks ensuring there is space between the pieces for good heat circulation.
2 Place the drip tray on the bottom rack.
3 Place wood chips in the Chip Bowl and place the chip bowl in the tripod bracket.
4 Close the front door, ensuring that the magnetic catches are holding the door closed.

5 Adjust the exhaust vent to the desired position.
6 Plug in the power cord and turn the on/off switch to the "on" position. The switch will turn green showing that the smoker is now heating.
7 Depending on the amount and type of wood chips used, the smoker will start smoking within from 10 - 20 minutes.
8 When you are finished smoking, turn the unit off and allow it to cool down before storing it in a covered area.

Smoking Time

The smoking time is difficult to specify by the manufacturer. The unit is designed for outdoor use and outside temperature and wind conditions can greatly affect the time required to smoke a product. Low temperature and strong wind will increase the time required.

Also, the house current, whether or not an extension cord is being used, and the amount of product being smoked will have an effect on the length of time required to smoke the products.

HELPFUL HINTS

Drip tray

This electric smoker is not a water smoker - you do not need to add water unless you want to steam your food. The drip tray catches the grease and drippings from the food you are smoking.

Chip bowl

This unit uses an 1600W heater for quicker heat-up and more consistent smoking. The chip bowl should always be placed in the tripod bracket, not directly on the heating element, to ensure the unit is operating as designed.

Wood chips

The smoke from the wood chips adds flavor to the food. Any kind of aromatic hardwood, such as mesquite, apple, cheery, pecan, or hickory can be used. Wood chips work much better than the larger chunks. Use only a handful of chips – too much smoke leaves a strong aftertaste.

Grease Absorbent

The drip tray will NOT catch all the grease and food drippings – that not caught by the drip tray will be collected on the bottom plate. For ease of clean-up, a thin layer of grease absorbent should be placed in the bottom of the smoker. Use granular oil absorbent material (like that used to soak up oil on a garage floor). Do NOT use a scented kitty litter or any other chemically treated material. The grease absorbent material should be replaced after using the smoker 5 or 6 times.

CARE AND CLEANING

Always disconnect the unit before cleaning.
- Clean the unit using a small amount of water and mild soap or baking soda with a sponge or scrub brush.
- The electrical box and on/off switch are watertight, so a small amount of water sprayed or wiped on these surfaces will not be detrimental to the unit.
- The racks, chip bowl, drip tray, and hanging hooks can be removed and washed in a sink.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
