USER MANUAL RO16106DWHC7GIS CANDY

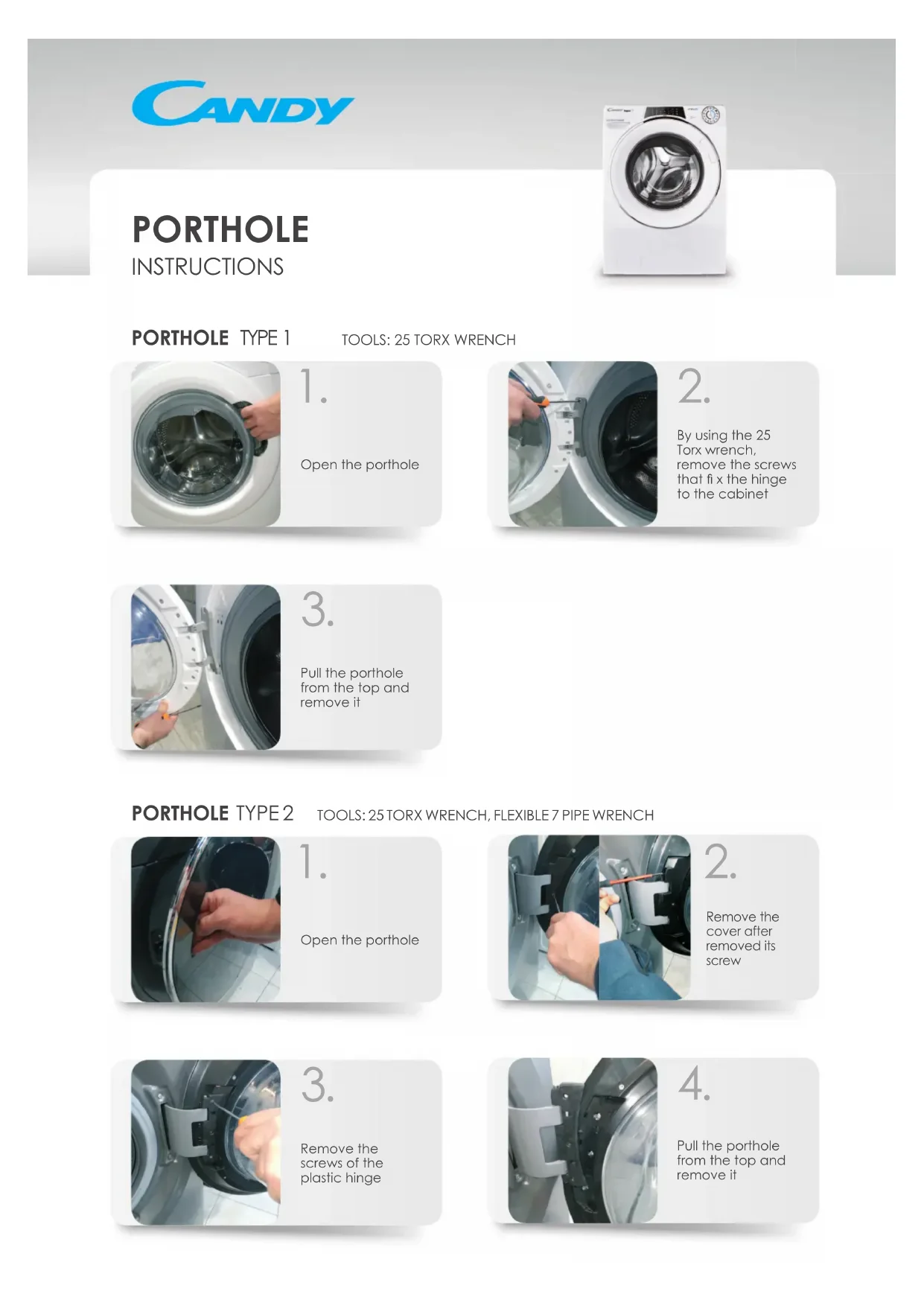

PORTHOLE TYPE 2 TOOLS: 25 TORX WRENCH, FLEXIBLE 7 PIPE WRENCH PORTHOLE INSTRUCTIONS1. Open the portholeRemove the cover after removed its screw Remove the screws of the plastic hinge Pull the porthole from the top and remove it

Open the portholePull the porthole from the top and remove it By using the 25 pipe wrench, remove the screws that fi x the hinge to the cabinet

Remove all the screws of the portholeReplace the hinge, taking care not to lose the bushes Separate the frame from the counter frame

Remove the door clip Once the strap is removed, detach the fl ap from the gasket, to allow access to the inside of the product Remove the external screws from the hinge Remove the screws inside the cabinet with the 7 pipe wrench.Remove the hinge HINGE TYPE 2 TOOLS: 25 TORX WRENCH, FLEXIBLE 7 PIPE WRENCH

HINGE TYPE 1 TOOLS: 25 TORX WRENCH

HINGE INSTRUCTIONS1. Open the portholeUse the fl at screwdriver for leverage, and remove the external clamp Once the clamp is removed, detach the fl ap from the gasket, to allow access to the inside of the product By using Torx wrench, remove the fi xing screws of the door lock

Open the portholeOnce the clamp is removed, detach the fl ap from the gasket, to allow access to the inside of the product Use the fl at screwdriver for leverage, and remove the external clamp

By using Torx wrench, remove the fi xing screws of the door lock, and press its buckle.Disconnect the wiring, in case of “faston”, pay attention to do not invert the wiring Remove the door lock

Disassemble the work top and trims Disassemble the dispenser and bezel Remove the door lock

Remove the water protection Replace the door lock by paying attention to mechanical linkage of emergency opening and electrical connections DOOR LOCK TYPE 2 TOOLS: CROSS-HEADED SCREWDRIVER, TONG, FLAT SCREWDRIVER DOOR LOCK TYPE 1 TOOLS: CROSS-HEADED SCREWDRIVER, TONG, FLAT SCREWDRIVER DOOR LOCK INSTRUCTIONSOpen the portholeUse the fl at screwdriver for leverage, and remove the external clamp Once the clamp is removed, detach the fl ap from the gasket, to allow access to the inside of the product Remove the gasketPlace the new gasket, paying attention to the positioning notches Insert wiring clamp on the tube side Tighten the clamp fl ush on the tube by using the tooling

Fit the gasket on the cabinet.Fix the external clamp and tighten it (if needed with tong)By using fl at screwdriver, remove the clamp on the tube

INSTRUCTIONSOpen the detergent drawer By using two hands, pull it out fi rmly

Unhook the mask from the detergent drawer, being careful not to break the hooks
