Product Type	LG Over-the-Range Microwave Hood
Model	LMV2257BM
Brand	LG
External Dimensions (W x H x D)	75.9 x 43.5 x 40.2 cm
Cavity Volume	62.3 liters
Net Weight	27.8 kg
Power Supply	120 V ~ 60 Hz, 13 A
Microwave Power	1000 W (IEC 60705)
Ventilation Speeds	4 speeds (low, medium, high, turbo)
Control Type	Touch (touch control)
Cooktop Light	LED with 3 levels (high, low, off)
Slide-Out Hood	Yes, extension for better vapor collection
Grease Filter	Aluminum, washable (remove and soak in hot soapy water)
Charcoal Filter	Replace every 6 to 12 months (not washable)
Timer	Yes, up to 99 min 99 sec
Child Lock	Yes, control panel safety
Microwave Power Levels	10 levels (100% to 10%) + 0
Auto Cook Functions	Sensor (popcorn, reheat, cook), defrost, soften, melt, kids meals
Turntable	Yes, glass, on/off possible
Metal Rack	Yes, for multi-level cooking
Care and Cleaning	Regular filter cleaning; interior and exterior with soft cloth and mild detergent
Spare Parts and Repairability	Filters, bulbs (30 W), parts available through LG (1-800-243-0000)
Warranty	1 year parts and labor; magnetron 5 years; inverter magnetron 10 years (Canada)

Frequently Asked Questions - LMV2257BM LG

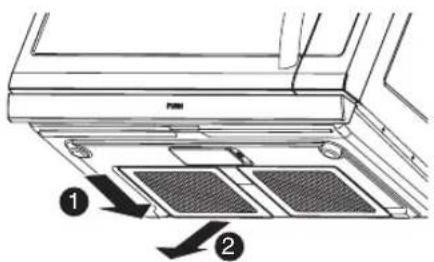

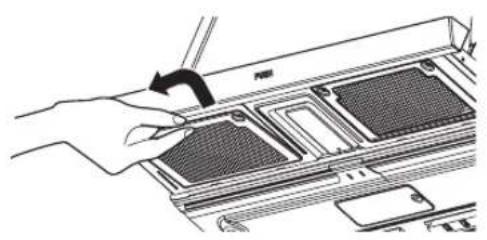

How to clean the grease filters of the hood?

Remove the filters from the frame, soak them in hot water with mild detergent, rinse and dry. Do not use ammonia or dishwasher. Reinstall after drying.

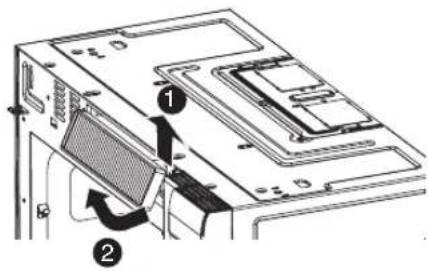

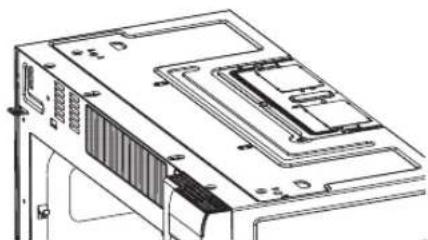

How often to replace the charcoal filter?

Every 6 to 12 months, or more often if needed. The charcoal filter is not washable. Order a new filter via LG at 1-800-243-0000.

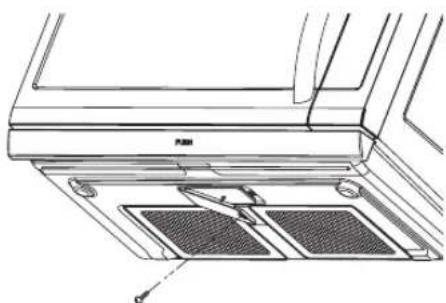

How to change the hood light bulb?

Unplug the appliance, remove the LED lamp cover, replace the LED circuit. For the microwave bulb, remove the vent grille and replace with a 30 W bulb. It is recommended to call a technician.

The ventilation is not working properly, what to do?

Check that the grease filters are clean and properly installed. Make sure the slide-out hood is fully extended. If noise is abnormal, check the exhaust duct installation (alignment and connections).

How to use the slide-out hood?

Press the base of the oven to extend the hood (PUSH symbol). To retract, push it back until it locks. Do not place objects on it or pull on it.

What are the available ventilation speeds?

4 speeds: low, medium, high, turbo. Press the 4-speed ventilation key to cycle.

How to activate child lock?

Press and hold STOP/CLEAR for about 4 seconds until "LOCKED" appears. To unlock, press and hold STOP/CLEAR again for 4 seconds.

Can I operate the hood without filters in place?

No, never operate the hood without the grease filters installed. This could damage the appliance and reduce ventilation efficiency.

How to set the hood timer?

Press TIMER, enter the time (up to 99 minutes 99 seconds) using the numeric keys, then press START/ENTER. The oven will beep 7 times at the end.

What is the minimum installation height above the cooktop?

Install the microwave hood at least 30.5 cm (12 inches) above the cooking surface. Follow the provided installation instructions.

USER MANUAL LMV2257BM LG

Important Safety Instructions 3

Precautions to Avoid Possible

Exposure to excessive Microwave

Energy 4

UNDERSTANDING YOUR MICROWAVE OVEN ....5-7

Location of Model Number 5

Oven Specifications 5

Electrical Rating 5

Electrical Requirements 5

Grounding Instructions 5

Microwave Oven Features. 6

Control Panel Features 7

Using Glass Touch Controller 7

Learn About Your Microwave Oven 9

Clock 9

Vent ON/OFF 9

Child Lock 9

Audible Signals 10

Interrupting Cooking 10

Slide out Ventilation. 10

Glass touch Controller. 10

Vent 4 Speed. 10

Light Hi/Low/Off 10

Energy Saving. 10

Add 30 Sec. 10

Kids Meal 11

Custom Cook. 11

Custom Set 12

+/- 12

Cooking at High Power Levels 12

Microwave Power Levels 12

Multi Stage Cooking 12

Cooking Guide for Lower Power Levels 13

Turntable On/Off 14

Sensor Operating Instructions 14

Sensor Cooking Guide 14

Sensor Popcorn 14

Sensor Reheat 15

Sensor Cook 15

Cooking Guide for Sensor Reheat. 15

Cooking Guide for Sensor Popcorn. 16

Cooking Guide for Sensor Cook. 16

Timer. 17

Soften 17

Melt 17

Soften Table 18

Melt Table 18

Defrost 19

Quick Defrost 19

Time Defrost 20

Defrost Tips 20

Metal Rack 20

Slide-Out Hood 20

COOKING 21-25

Getting the Best Cooking Results 21

Fish and Shellfish 21

Fish and Shellfish Cooking Table 21

Appetizers/Saues/Soups 22

Meat 22

Meat Cooking Table 23

Chicken 24

Chicken Cooking Table 24

Pasta and Rice 25

Pasta Cooking Table 25

Rice Cooking Table 25

CARING FOR YOUR MICROWAVE OVEN 26-27

Care and Cleaning 26

Metal Rack 26

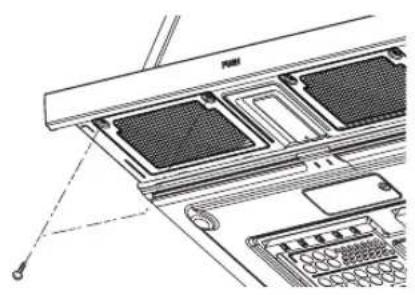

Cleaning the Grease Filters 26

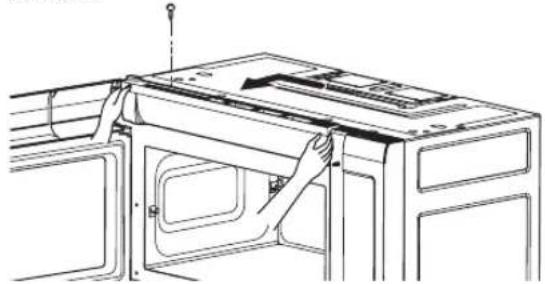

Charcoal Filter Replacement 27

Cooktop/Night Light Replacement 27

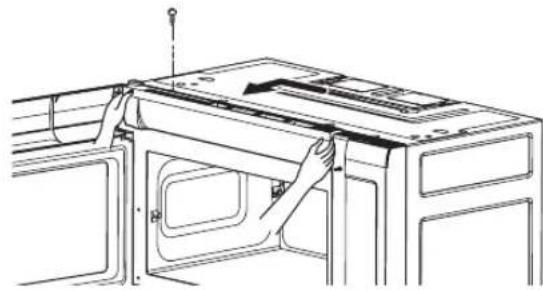

Oven and Warming Lamp Light Replacement 27

COOKING UTENSILS 28

Microwave Utensil Guide 28

TROUBLESHOOTING 29-30

Before Calling for Service 29

Questions and Answers 30

LIMITED WARRANTY 31

IMPORTANT SAFETY INSTRUCTIONS

The safety instructions below will tell you how to use your oven and avoid harm to yourself or damage to your oven.

WARNING

• To reduce the risk of burns,
  electric shock, fire, injury to persons, or exposure to excessive microwave energy:
• Read all the instructions before using your oven.
• Do not allow children to use this oven without close supervision.
• RECAUTIONS THE specific AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY found on page 4.
• Do not use corrosive chemicals or vapors, such as sulfide and chloride, in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
• Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
• Clean the ventilating hood frequently. Do not allow grease to accumulate on the hood or the filters.
• Use care when cleaning the vent hood filters. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filters.
• Do not tamper with the built-in safety switches on the oven door. The oven has several built-in safety switches to make sure the power is off when the door is open.
• When food flames under the hood, turn the fan on.
• Suitable for use above both gas and electric cooking equipment 36 inches wide or less.

• Do not use this oven for commercial purposes. It is made for household use only.

• When cleaning the door and the surfaces that touch the door, use only mild, non-abrasive soaps or detergents and a sponge or soft cloth.

• If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it again.

• To avoid a fire hazard:

• Do not severely overcook food. Severely overcooked foods can start a fire in the oven. Watch the oven carefully, especially if you have paper, plastic, or other combustibles in the oven.

• Do not store combustible items (bread, cookies, etc.) in the oven, because if lightning strikes the power lines it may cause the oven to turn on.
• Do not use wire twist-ties in the oven. Be sure to inspect purchased items for wire twist-ties and remove them before placing the item in the oven.

If a fire should start:

• Keep oven door closed
• Turn the oven off

• Disconnect the power cord or shut off power at the fuse or circuit breaker panel

• To avoid electric shock:

• This appliance must be grounded. Connect only to a properly grounded outlet. See the electrical GROUNDING INSTRUCTIONS on page 5.

• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
• Do not immerse the electrical cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.

Take care when The Door is opened.

There is a possibility of being injured.

• When range or cooktop, located below the microwave, is in operation, PLEASE USE CAUTION IN OPERATING THE MICROWAVE AS ITS COMPONENTS SUCH AS DOOR HANDLE MAY BE OVERHEATED CAUSING BURNS AND/ OR INJURY.

SAFETY

• To avoid improperly cooking some foods.

• Do not heat any types of baby bottles or baby food. Uneven heating may occur and possibly cause personal injury.

• Do not heat small-necked containers, such as syrup bottles.
• Do not deep-fat fry in your microwave oven.
• Do not attempt home canning in your microwave oven.

• Do not heat the following items in the microwave oven: whole eggs in the shell, water with oil or fat, sealed containers, or closed glass jars. These items may explode.

• Do not cover or block any openings in the oven.

• Use your oven only for its intended use as described in the manual.
• Do not run the oven empty.
• Secure the cord in the cabinet above the oven.

• Preserve the oven floor:

• Do not heat the oven floor excessively.

• Do not allow the gray film on special microwave-cooking packages to touch the oven floor. Put the package on a microwavable dish.

• Do not cook anything directly on the oven floor or turntable. Use a microwavable dish.

• Keep a browning dish at least 3/16 inch above floor. Carefully read and follow the instructions for the browning dish. If you use a browning dish incorrectly, you could damage the oven floor.

• Install or locate this appliance only in accordance with the provided installation instructions.
• This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.
• Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.

THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons;

• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand in the microwave oven for a short time before removing the container.
• Use extreme care when inserting a spoon or other utensil into the container.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY...

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Please read this owner's manual. It will tell you how to use all the fine features of this microwave oven.

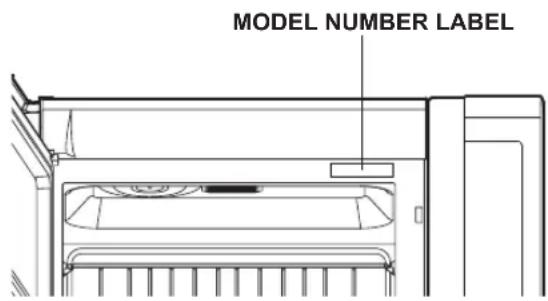

LOCATION OF MODEL NUMBER

To request service information or replacement parts, the service center will require the complete model number of your microwave oven. The number is on the oven front as shown in the illustration below.

OVEN SPECIFICATIONS

Output Power 1,000W (IEC 60705 Standard)

Outer Dimensions 297/8" X 17 13/18" X 15 13/16"

Cavity Volume 2.2 Cu.ft

Net Weight 61.2 lbs.

ELECTRICAL RATING

• Electrical Rating of the Oven:120V AC 60Hz

• 13 Amps / 1500 Watts ( MWO + Cooktop Lamp

• Ventilation Fan)

ELECTRICAL REQUIREMENTS

The oven is designed to operate on a Standard 120V/60Hz household outlet. Be sure the circuit is at least 15A or 20A and the microwave oven is the only appliance on the circuit. It is not designed for 50Hz or any circuit other than a 120V/60Hz circuit.

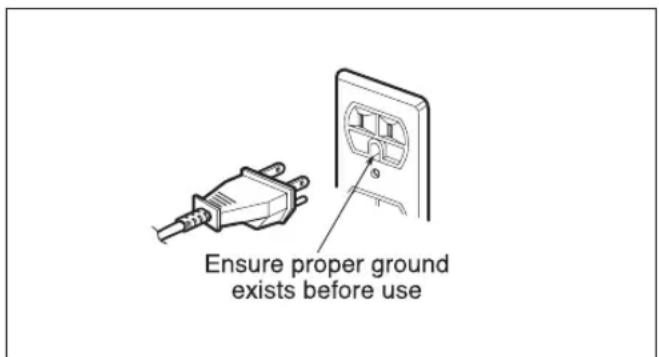

GROUNDING INSTRUCTIONS

This appliance must be grounded. If an electrical short circuit occurs, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The appliance is equipped with a cord having a grounded wire with a grounded plug. Put the plug into an outlet that is properly installed and grounded.

WARNING -If you use the grounding plug improperly, you risk electric shock.

Ask a qualified electrician if you do not understand the grounding instructions or if you wonder whether the appliance is properly grounded.

Because this appliance fits under the cabinet, it has a short power-supply cord. See the separate Installation Instructions for directions on placing the cord properly. Keep the electrical power cord dry and do not pinch or crush it in any way.

If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

For a permanently connected appliance:

This appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance.

Do not operate the oven when empty or without the glass tray. It is best to leave a glass of water in the oven when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.

Your microwave oven is designed to make your cooking experience as enjoyable and productive as possible. To get you up and running quickly, the following is a list of the oven's basic features:

1. Metal Shielded Window. The shield prevents microwaves from escaping. It is designed as a screen to allow you to view food as it cooks.
2. Model and Serial Number Plate & Cooking Guide Label
3. Charcoal Filter (behind Vent Grille)
4. Vent Grille
5. Glass Tray. The glass tray moves food as it cooks for more even cooking. It must be in the oven during operation for best cooking results.
6. Cooktop/Countertop Light

7. Control Panel. Touch the pads on this panel to perform all functions.

8. Metal Rack. Use for extra space when cooking in more than one container at the same time. Remove cooking rack when you are not using it.

9. Grease Filter
10. Slide-Out Hood.

Push the Slide-out hood to move the slide-out hood to the Front or Rear.

This will allow you to remove the steam and other vapors more effectively from surface cooking.

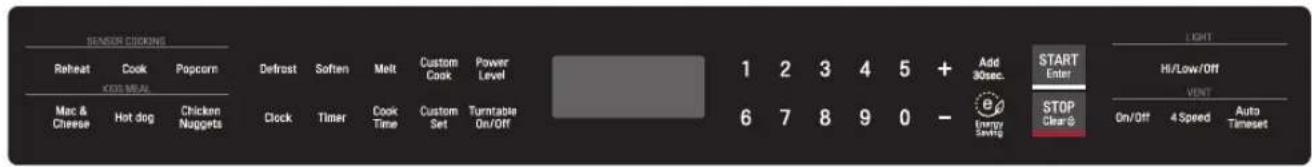

Your microwave oven control panel lets you select the desired cooking function quickly and easily. All you have to do is touch the necessary Command pad. The following is a list of all the Command and Number pads located on the control panel. For more information on these features, see the OPERATION section.

1. Touch the middle of letter or number to activate.
2. If you touch the button with a fingernail or fingertip, the controller may not sense it is being touched.
3. If the controller or your hands are wet it may not sense your touch.
4. Remove gloves prior to touching the controller.

NOTE: Styling and features vary by model.

1. Display. The Display includes a clock and indicators to tell you time of day, cooking time settings and cooking functions selected.
2. Reheat. Reheat has preset Power Levels for 6 categories including a casserole, dinner plate, and soup/sauce. The oven's sensor will tell the oven how long to cook depending on the amount of humidity it detects from the food.
3. Cook. Cook has preset Power Levels for 13 categories including frozen lasagna, casseroles, and rice. The oven's sensor will tell the oven how long to cook depending on the amount of humidity it detects from the food.
4. Popcorn. Touch this button when popping popcorn in your microwave oven. The oven's sensor will tell the oven how long to cook depending on the amount of humidity it detects from the popcorn.
5. Defrost. Touch this button to defrost frozen food.
6. Soften. Touch this button to soften butter, ice cream, cream cheese, frozen juice.
7. Melt. Touch this button to melt butter or margarine, chocolate, cheese, and marshmallows.
8. Custom Cook. Touch this button to make oven remember Cook time and Power level.
9. Power Level. Touch this button to select a cooking power level.
10. Kids Meal. Select type of dish to reheat Mac & Cheese, Hot dog or Chicken nuggets.
11. Clock. Touch this button to enter the time of day.

12. Timer. Touch this button to start the kitchen timer.

13. Cook Time. Touch this button to set a cooking time.

14. Custom Set. Touch this pad to change the oven's default setting for sound, clock, display speed, and defrost weight.
15. Turntable On/Off. Touch this button to turn on/off the turntable. This option is not available in sensor cook, defrost, soften and melt modes.
16. Number. Touch number buttons to enter cooking time, power level, quantities or weights.
17. +, -. Touch this button to add or subtract ten seconds of cooking time each time you touch it.
18. Add 30Sec. Touch this button to add 30 seconds of cooking time each time you touch it.
19. START/Enter. Touch this button to start a function. If you open the door after the oven begins to cook, touch START/Enter again.
20. Light High/Low/Off. Touch this button to turn the cooktop/ countertop light on high/low or off.
21. Energy Saving. Touch this button to save energy.
22. STOP/Clear. Touch this button to stop the oven or clear all entries.
23. Vent On/Off. Touch button to turn the vent on slow or off.
24. Vent 4 Speed. Touch button to change vent speed.
25. Vent Auto Timeset. Touch this button to set ventilation time. (1, 3, 5, 10, and 30 minutes.)

This section discusses the concepts behind microwave cooking and introduces you to the basics you need to know to operate your microwave oven. Please read this information before using your oven.

CAUTION

To avoid risk of personal injury or property damage, do not run the oven empty.

To avoid risk of personal injury or property damage, do not use stoneware, large sheets of aluminum foil, metal utensils, or metal trimmed utensils in the oven. Keep aluminum foil at least 1 inch from the oven wall metal rack and other pieces of foil.

CLOCK

When the oven is first plugged into a power outlet, the "Please Set Time of Day" prompt will flash several time. If a time of day is not set, :, will Show on Disply until you touch "CLOCK".

Example: To set the clock for 8:00 am

CLOCK

1. Touch CLOCK.

800

1. Enter the time by using the number keys.

START

1. Touch START/ENTER

1

1. Press 1 for AM, 2 for PM.

START

1. Touch START/ENTER.

VENT ON/OFF

The fan moves steam and other vapors from the cooking surface.

On/Off

1. Touch Vent On/Off.

Touch once. "FAN SLOW"

will scroll in the display.

Fan will work on slow speed.

On/Off

1. Touch Vent On/Off.

Fan will turn off. "FAN OFF" will scroll in display.

NOTE: Turn the microwave's vent fan on whenever you use the oven range cooktop below it. The fan captures smoke, steam, and odors and also prevents the heat from the cooktop from damaging microwave components.

If the microwave is cooking, the vent fan turns on automatically if the sensors detect too much heat from the cooktop. This is normal, and is designed to prevent microwave component damage.

CHILD LOCK

Use this safety feature to lock the control panel when you are cleaning the oven, or so that children cannot use the oven unsupervised.

Example: To set the child lock.

STOP

Clear

1. Touch and hold STOP/Clear

until you hear 2 beeps and

"LOCKED" appears

(approximately 4 seconds).

Example: To cancel the child lock.

STOP

Clear

1. Touch and hold STOP/Clear

until "LOCKED" disappears

(approximately 4 seconds).

Audible signals are available to guide you when setting and using your oven:

• A beep will sound each time you touch a button.
• 4 beeps signals the end of a cooking cycle.

INTERRUPTING COOKING

You can stop the oven during a cycle by opening the door. The oven stops heating and the fan stops, but the light stays on.

To restart cooking, close the door and touch START/Enter.

If you do not want to continue cooking, open the door and touch STOP/Clear.

SLIDE OUT VENTILATION

Push bottom of unit to extend hood and back side down, Extended hood is more powerful to gather smoke and steam from cooktop.

• Touch the middle of letter or number to activate.
• If you touch the button with a fingernail or fingertip, the controller may not sense it is being touched.
• If the controller or your hands are wet it may not sense your touch.
• Remove gloves prior to touching the controller.
• Use the child lock feature when cleaning the controller to avoid unintended activation.

VENT 4 SPEED

4 Speed

When the fan is on, touch this button to toggle the fan speed. Fan speed will change in sequence from slow, low, high, turbo and back to slow.

LIGHT HI/LOW/OFF

The button on the right of the control panel controls the cooktop light.

Example: To set the Lamp for ON

Hi/Low/Off

1. Touch Light Hi/Low/Off.

To turn on, touch once. "Light" will flash in display, then stay on.

Hi/Low/Off

1. Touch Light Hi/Low/Off.

To turn off, touch button again. "Light" will disappear from the display.

ENERGY SAVING

The Energy Saving feature saves energy by turning off the display by pressing the Energy Saving button. The display will automatically turn off after 5 minutes of idleness.

Energy Saving

1. Touch Energy Saving to turn the display off.

Energy Saving

1. Touch Energy Saving to turn the display on.

ADD 30 SEC

A time-saving button, this simplified control lets you quickly set and start microwave cooking without the need to touch START/Enter.

Example: To set ADD 30 SEC for 2 minutes.

Add 30sec.

Touch Add 30 Sec. 4 times. The oven begins cooking and the display shows time counting down.

NOTE: If you continue to touch Add 30 Sec., it will add 30 seconds up to 99 min 59 seconds.

Using KIDS MEAL lets you heat common microwave-prepared foods without needing to program times and cook power. MAC & CHEESE, HOT DOG, CHICKEN NUGGETS.

Example: To heat 4 ea Hot Dogs.

HOTDOG

1. Touch HOT DOG.

2

1. Touch 2.

START Enter

1. Touch START/ENTER.

NOTE: When the cook time is over, you will hear four beeps and "COOK END" will disply.

KIDS MEAL TABLE

Category	Touch Pad number
	1	2
MAC & CHEESE	6 oz.	12 oz.
HOT DOG	2 ea	4 ea
CHICKEN NUGGETS	4 oz.	8 oz.

CUSTOM COOK

CUSTOM COOK lets you to recall one cooking instruction previously placed in memory and begin cooking quickly.

Example: To memorize for 2 minutes.

Custom Cook

1. Touch Custom Cook.

200

1. Enter the cook time.

START Enter

1. Touch START/Enter.

Example: To recall the memory.

Custom Cook

1. Touch Custom Cook.

START Enter

1. Touch START/Enter. When the cook time is over, you will hear four beeps and END will display.

You can change the default values for beep sound, clock, display speed, and defrost weight.

See following chart for more information.

No.	Function No. Result
1	Sound ON/ 1 Sound ON OFF control 2 Sound OFF
2	Clock ON/ 1 Clock OFF control	ON 2	Clock OFF
3	Scroll speed control	1 Slow speed 2 Normal speed 3 Fast speed
4	Defrost weight mode selected	1 Lbs. 2 Kg.

Example: To change defrost weight mode (from Lbs. to Kg).
CUSTOM SET	1. Touch CUSTOM SET.
4	2. Touch 4.
2	3. Touch 2.

+/-

By using the MORE or LESS keys, TIMED COOK program can be adjusted to cook food for a longer or shorter time. Pressing ^+ will add 10 seconds to the cooking time each time you press it. Pressing - will subtract 10 seconds of cooking time each time you press it.

COOKING AT HIGH POWER LEVELS

Example: To cook food for 8 minutes 30 seconds at 100% power.
8 3 0	1. Enter the cook time.
START Enter	2. Touch START/ENTER.
When the cook time is over, four beeps will sound and COOK END will display.

This feature lets you program a specific cook time and power. For best results, there are 10 power level settings in addition to HIGH (100%) power.

Refer to the "Cooking Guide for Lower Power Levels" on page 13 for more information.

NOTE: If you do not select a power level, the oven will automatically cook at HIGH (100%) power.

Example: To cook food for 7 minutes 30 seconds at 70% power.
7 3 0 POWER LEVEL 7 START Enter	1. Enter the cook time. 2. Touch POWER LEVEL. 3. Enter the power level. 4. Touch START/ENTER. When the cook time is over, four beeps will sound and COOK END will display. See cooking guide for Lower Power Levels, page 13.

MULTI STAGE COOKING

For best results, some recipes call for different cook powers during different stages of a cook cycle. You can program your oven to switch from one power to another for up to 2 stages. 3 stages can be programmed the first stage is the defrost cycle.

Example: To cook food for 3 minutes at 100% power and then 70% power for 7 minutes 30 seconds.
3 0 0	1. Enter the first cook time.
COOK TIME	2. Touch COOK TIME.
7 3 0	3. Enter the second cook time.
POWER LEVEL	4. Touch POWER LEVEL.
7	5. Enter the power level.
START Enter	6. Touch START/ENTER.
When the cook time is over, four beeps will sound and COOK END will display.

The 10 power levels in addition to HIGH allow you to choose the best power level for the food you are cooking. Below are listed all the power levels, examples of foods best cooked at each level, and the amount of microwave power you are using.

POWER LEVEL	MICROWAVE OUTPUT	USE
10 High 100%		·Boil water ·Cook ground beef ·Make candy ·Cook fresh fruits and vegetables ·Cook fish and poultry ·Preheat browning dish ·Reheat beverages ·Cook bacon slices
9	90%	·Reheat meat slices quickly ·Saute onions, celery, and green pepper
8	80%	·All reheating ·Cook scrambled eggs
7	70%	·Cook breads and cereal product ·Cook cheese dishes, veal ·Cook cakes, muffins, brownies, cupcakes
6	60%	·Cook pasta
5	50%	·Cook meats, whole poultry ·Cook custard ·Cook whole chicken, turkey, spare ribs, rib roast, sirloin roast
4	40%	·Cook less tender cuts of meat ·Reheat frozen convenience foods
3	30%	·Thaw meat, poultry, and seafood ·Cook small quantities of food ·Finish cooking casseroles, stews, and some sauces
2	20%	·Soften butter and cream cheese ·Heat small amounts of food
1	10%	·Soften ice cream ·Raise yeast dough
0	0	·Standing time

For best cooking results, leave the turntable on.

It can be turned off for large dishes. Touch TURNTABLE ON/OFF pad to turn the turntable on or off.

NOTES:

1. This option is not available in sensor cook, defrost, kids meal, soft and melt modes.
2. Sometimes the turntable can become hot to touch. Be careful touching the turntable during and after cooking.
3. Do not run the oven empty.

SENSOR OPERATING INSTRUCTIONS

Used to cook foods without selecting cooking times and power levels. The display will indicate the sensor category during the initial sensing period. The oven automatically determines the required cooking time for each food item.

When the internal sensor detects a certain amount of humidity coming from the food, it will tell the oven how much longer to heat. The display will show the remaining heating time. For best results for cooking by Sensor, follow these recommendations:

1. Food cooked with the sensor system should be at normal storage temperature.
2. The glass tray and the outside of the container should be dry to assure best cooking results.
3. Foods should always be covered loosely with microwavable plastic wrap, waxed paper, or a lid.
4. Do not open the door or touch STOP/CLEAR during the sensing time. When sensing time is over, the oven beeps twice and the remaining cooking time will appear in the display window. At this time you can open the door to stir, turn, or rearrange the food.

SENSOR COOKING GUIDE

Appropriate containers and coverings help assure good Sensor cooking results.

1. Always use microwavable containers and cover them with lids or vented plastic wrap.
2. Never use tight-sealing plastic covers. They can prevent steam from escaping and cause food to overcook.
3. Match the amount to the size of the container. Fill containers at least half full for best results.

4. Be sure the outside of the cooking container and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor.

5. If the food is not as hot as you would like after using the sensor cook or reheat function, use Cook Time to continue heating. Do not repeat the sensor options in succession on the same food.

SENSOR POPCORN

SENSOR POPCORN lets you pop 2.0,3.0 and 3.5 ounce bags of commercially packaged microwave popcorn. Pop only one package at a time. If you are using a microwave popcorn popper, follow manufacturer's instructions.

Example: To pop popcorn.

POPCORN

1. Touch POPCORN.

When the cook time is over, four beeps will sound and COOK END will display.

Recommended amounts: 2.0-3.5 oz.

CAUTION

DO NOT leave microwave oven unattended while popping corn.

When popping commercially packaged popcorn, remove the rack from the oven. Do not place the bag of microwave popcorn on the rack or under the rack.

Reheat lets you heat foods without needing to program times and Power Levels.

Reheat has preset Power Levels for 6 categories.

See the details in the cooking guide table.

Example: To reheat a Casserole.

Reheat 1. Touch Reheat.

3 2. Touch 3 to choose casserole and cooking will start 3 4 second later.

See Cooking Guide for Sensor Reheat table below for info. When the cook time is over, you will hear four beeps and "COOK END" will display.

SENSOR COOK

Using Cook lets you heat common microwave prepared foods without needing to program times and Cook Powers. Sensor Cook has preset Power Levels for 13 food categories. See the details in the cooking guide table.

Example: To cook Rice.

Cook 1. Touch Cook.

6 2. Touch 6 to choose rice and cooking will start 3-4 second later.

See Cooking Guide for Sensor Cook on page 16. When the cook time is over, you will hear four beeps and "COOK END" will display.

COOKING GUIDE FOR SENSOR REHEAT

CODE (Press times)	CATEGORY	RECOMMENDED AMOUNTS	DIRECTIONS
1	DINNER PLATE	1 ~ 2 servings	Place food on a plate. Cover with vented plastic wrap. Let stand 3 minutes after heating.
2	SOUP/SAUCE	1 ~ 4 cups	Place in shallow microwavable casserole. Cover with vented plastic wrap. Let stand 3 minutes after heating.
3	CASSEROLE	1 ~ 4 cups	Place in a microwaveable bowl or casserole. Cover with vented plastic wrap. Let stand 3 minutes.
4	PIZZA	1 ~ 3 slices	This is a reheat function for leftover pizza. Place on paper towel on a microwave safe plate.
5	BAKED GOODS	1 ~ 4 ea.	Place on a paper towel. Do not cover.
6	TEA	1 ~ 2 cups (240ml per cup)	Use a mug or microwave-safe cup with no cover. Stir after reheating.

COOKING GUIDE FOR SENSOR POPCORN

CATEGORY	RECOMMENDED AMOUNTS	DIRECTIONS
POPCORN	2.0 - 3.5 oz.	Sensor Popcorn lets you pop commercially packaged microwave popcorn. Pop only one package at a time. For best results, use a fresh bag of popcorn. Place a bag of prepackaged microwave popcorn on the center of the glass tray.

COOKING GUIDE FOR SENSOR COOK

CODE(Press times)	CATEGORY	RECOMMENDED AMOUNTS	DIRECTIONS
1	FRESHVEGETABLE(Hard)	1 ~ 4cups	Place in a microwaveable bowl or casserole. Add water according to the quantity* 1-2 cups: add 2 tbsp water.* 3-4 cups: add 4 tbsp water.Cover with vented plastic wrap.Let stand 3 minutes after cooking.Hard vegetables : Carrot, Beet etc.Soft vegetables : Cauliflower, Broccoli, Spinach etc.
2	FRESHVEGETABLE(Soft)	1 ~ 4cups
3	FROZENVEGETABLE	1 ~ 4cups	Place in a microwaveable bowl or casserole.* 1-2 cups: add 2 tbsp water.* 3-4 cups: add 4 tbsp water.Cover with vented plastic wrap. Let stand 3 minutes.
4	CANNEDVEGETABLE	1 ~ 4cups	Transfer vegetables from the can to a microwaveable bowl or casserole.Cover with vented plastic wrap. Stir thoroughly after cooking.
5	BAKEDPOTATO	1 ~ 4 ea(approx.8 - 10oz. each)	Pierce skin with a fork and place on paper towel. Do not cover. Let stand 5 minutes after cooking.
6 RICE		1/2 ~ 2cups	Add twice as much water as you have rice (add 2 cups water to 1 cup rice). Place in a microwaveable bowl large enough to prevent the water from boiling over.Cover with vented plastic wrap. Let stand 5 minutes after cooking.
7	FROZENLASAGNA	10 ~ 21 oz.	Remove from outer display package. Slit cover. If not in microwave-safe container, place on a microwaveable plate and cover with vented plastic wrap.
8	FISH FILLET	4 ~ 16 oz.	Place fish fillets in a single layer and cover with vented plastic wrap.
9 SHRIMP		4 ~ 16 oz.	Place shrimp in a single layer and cover with vented plastic wrap.
10	CHICKEN PIECES	16 ~ 32 oz.	Place chicken pieces with skin side up and cover with vented plastic wrap.
11	GROUNDMEAT	4 ~ 16 oz.	Cover with plastic wrap. Stir thoroughly after cooking.
12 CASSEROLE		1 ~ 4 cups	Place in a microwaveable bowl or casserole. Cover with vented plastic wrap.Let stand 3 minutes after cooking.
13	BOILINGWATER	1 ~ 2 cups(240ml per cup)	Use a wide-mouth mug. Do not cover.(Be careful! The beverage will be very hot! Sometimes liquids heated in cylindrical containers will splash out unexpectedly when the cup is moved.)

You can use your microwave oven as a timer. Use the Timer for timing up to 99 minutes, 99 seconds.

Example: To count 3 minutes.

Timer

300

START Enter

1. Touch Timer.
2. Enter the time by using the number key pad.
3. Touch START/ENTER. When the time is over, you will hear seven beeps and END will display.

NOTE: To turn off the Timer while it is still running, touch the Timer button.

SOFTEN

The oven uses low power to soften foods (butter, ice cream, cream cheese, and frozen juice.) See the following table.

MELT

The oven uses low power to melt foods (butter or margarine, chocolate, marshmallows, or processed cheese food.) See the following table.

Example: To melt 8 oz. chocolate.

MELT

1. Touch MELT.

2

1. Choose food category. Touch 2 for chocolate.

2

1. Choose food amount. Touch 2 for 8 oz.

START Enter

1. Touch START/ENTER.

MELT TABLE

Category Amo	Touch Pad Number
Butter / Margarine 1	1,2,3 sticks
Chocolate 2 4,8 oz.
Cheese 3 8,16 oz.
Marshmallows	4 5,10 oz.

Example: To soften quart of ice cream.

SOFTEN

2

1. Touch SOFTEN.

2. Choose food category. Touch 2 for ice cream.

2

1. Choose food amount. Touch 2 for quart.

START Enter

1. Touch START/ENTER.

SOFTEN TABLE

Category	Touch Pad Number	Amount
Butter 1 1,2,3 sticks
Ice cream 2		Pint, Quart, Half gallon
Cream cheese 3 3, 8 oz.
Frozen juice 4 6,12,16 oz.

	NOITCERID YROGETAC	AMOUNT
Butter	Unwrap and place in a microwave safe dish on the rack over the glass tray. Butter will be at room temperature and ready for use in recipe.	1, 2, or 3 sticks (4 oz. / 1 stick)
Ice Cream	Place in a microwave safe dish on the rack over the glass tray. Ice cream will be soft enough to make scooping easier.	Pint, Quart, Half gallon
Cream Cheese	Unwrap and place in a microwave safe dish on the rack over the glass tray. Cream cheese will be at room temperature and ready for use in recipe.	3 or 8 oz.
Frozen Juice	Remove top. Place in oven. Frozen juice will be soft enough to mix easily with water.	6, 12, or 16 oz.

MELT TABLE

	NOITCERID YROGETAC AMOUNT
Butter or Margarine	Unwrap and place in a microwave safe dish on the rack over the glass tray. No need to cover butter. Stir at the end of cooking to complete melting.	1, 2, or 3 sticks (4 oz. / 1 stick)
Chocolate	Chocolate chips or squares of baking chocolate may be used. Unwrap squares and place in a microwave safe dish on the rack over the glass tray. Stir at the end of cycle to complete melting.	4 or 8 oz.
Cheese	Use processed cheese food only. Cut into cubes. Place in a single layer in a microwave safe dish on the rack over the glass tray. Stir at the end of cooking to complete melting.	8 or 16 oz.
Marshmallows	Large or miniature marshmallows may be used. Place in a microwave safe dish on the rack over the glass tray. Stir at the end of cycle to complete melting.	5 or 10 oz.

Four defrost choices are preset in the oven. The defrost feature provides you with the best defrosting method for frozen foods, because the oven automatically sets the defrosting times for each food item according to the weight you enter. For added convenience, the DEFROST includes a built-in tone mechanism that reminds you to check, turn over, separate, or rearrange the food during the defrost cycle. Four different defrosting options are provided.

1. MEAT
2. POULTRY
3. FISH
4. BREAD

After touching DEFROST once, select the food category. Available weight ranges for Meat, Poultry, and Fish are 0.1 to 6.0 lbs. The available weight range for Bread is 0.1 to 1.0 lb.

Example : To defrost 1.2 lbs of meat

Defrost

1. Touch Defrost once to choosethe Meat category.

1

1. Touch 1 to choose meat.

12

1. Enter the weight.

START

Enter

1. Touch START/Enter.

NOTE: After you touch START/ENTER, the display counts down the defrost time. The oven will beep once during the Defrost cycle. At this time, open the door and turn, separate, or rearrange the food as needed. Remove any portions that have thawed, then return frozen portions to the oven and touch START/ENTER to resume the defrost cycle. The oven will not stop during the BEEP unless the door is opened.

For best results:

• Remove fish, shellfish, meat, and poultry from its original closed paper or plastic package (wrapper). Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook.
• Form the meat into the shape of a doughnut before freezing. When defrosting, scrape off thawed meat when the beep sounds and continue defrosting.
• Place foods in a shallow glass baking dish or a on a microwave roasting rack to catch drippings.
• Foods should still be somewhat icy in the center when removed from the oven.

DEFROST TABLE

Category Food
MEAT 0.1 to 6.0 lbs	BEEF Ground beef, Round steak, Cubes for stew, Tenderloin steak, Pot roast, Rib roast, Rump roast, Chuck roast, Hamburger patty. LAMB Chops (1-inch thick), Rolled roast PORK Chops (1/2-inch thick), Hot dogs, Spareribs Country-style ribs. Rolled roast, Sausage.
POULTRY 0.1 to 6.0 lbs	POULTRY Whole (under 4 lbs), Cut up, Breasts (boneless) CORNISH HENS Whole TURKEY Breast (under 6 lbs)
FISH 0.1 to 6.0 lbs	FISH Fillets, Whole Steaks SHELLFISH Crab meat, Lobster tails, Shrimp, Scallops
BREAD 0.1 to 1.0 lb	MUFFINS ROLL CAKE

QUICK DEFROST

This is a quick defrost feature that allows you to choose a preset 1.0 lbs. defrost cycle.

Example: To defrost for 1.0 lbs.
Defrost	1. Touch Defrost twice.
START Enter	2. Touch START/Enter.
	3. Halfway through the cycle, the oven will beep. Open the door, turn the meat over, Close the door, and touch START/Enter to resume defrosting until the cycle ends.

When the defrost time is over, four beeps will sound and "COOK END" will display.

This feature allows you to choose the time you want to defrost.

Example: To defrost for 2 minutes.

DEFROST

1. Touch DEFROST 3 times.

200

1. Enter the defrosting time you want.

START

Enter

1. Touch START/ENTER.

(Defrost starts)

When the defrost time is over, four beeps will sound and COOK END will display.

DEFROST TIPS

- When using

entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).
- Before starting, make sure you have removed any of the metal twist-ties which often come with frozen food bags, and replace them with strings or elastic bands.
- Open containers such as cartons before they are placed in the oven.
- Always slit or pierce plastic pouches or packaging.
If food is foil wrapped, remove foil and place food in a suitable container.
- Slit the skins, if any, of frozen food such as sausage.
- Bend plastic pouches of food to ensure even defrosting.
- Always underestimate defrosting time. If defrosted food is still icy in the center, return it to the microwave oven for more defrosting.
The length of defrosting time varies according to how solidly the food is frozen.
- The shape of the package affects how quickly food will defrost. Shallow packages will defrost more quickly than a deep block.
- As food begins to defrost, separate the pieces. Separated pieces defrost more easily.
- Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips, fish tails, or areas that start to get warm. Make sure the foil does not touch the sides, top, or bottom of the oven. The foil can damage the oven lining.
- For better results, let food stand after defrosting. (For more information on standing time, see the "Microwave Cooking Tips" section.)

• Turn food over during defrosting or standing time. Break apart and remove food as rquired.

METAL RACK

CAUTION

To avoid risk of property damage:

Do not use rack to pop popcorn.

Rack must be on the four plastic supports when used.

Use the rack only when cooking food on rack position.

Do not cook with rack on floor of the oven.

The metal rack gives you extra space when cooking in more than one container at the same time.

To use rack:

1. Place rack securely in the four plastic supports.
2. Rack MUST NOT touch metal walls or back of microwave oven.
3. Place equal amounts of food both ABOVE AND BELOW rack.
4. Amount of food must be approximately the same to balance out cooking energy.

SLIDE-OUT HOOD

CAUTION

• Do not place any objects on the slide-out hood as they could fall and be damaged.
• Do not pull on slide-out hood or damage may occur.
• Do not spill food or liquid on slide-out hood. Spillage of liquid or food may result in electric shock or oven malfunction.
  Make sure the slide-out hood has been moved back to rear before your microwave oven or range cooking start.
• Strictly install the microwave oven according to Installation Manual. Install at least 12 inches (30.5cm) above a cooktop.
• Don't leave the cooktop without cookware when cooking, The high temperature of the flame may cause the slide hood melted.
• Close slide hood after finish cooking on cooktop.

SLIDE-OUT VENT HOOD

• Press the slide-out vent hood (marked with "PUSH") to extend it forward. To close it, push the vent hood back until it clicks into place.
• Extension of the slide-out vent hood allows more effective capture of smoke and vapor from range-top cooking.

COOKING

GETTING THE BEST COOKING RESULTS

To get the best results from your microwave oven, read and follow the guidelines below.

• Storage Temperature: Foods taken from the freezer or refrigerator take longer to cook than the same foods at room temperature.
  The time for recipes in this book is based on the normal storage temperature of the food.
• Size: Small pieces of food cook faster than large ones, pieces similar in size and shape cook more evenly. For even cooking, reduce the power when cooking large pieces of food.
• Natural Moisture: Very moist foods cook more evenly because microwave energy is attracted to water molecules.
• Stir foods such as casseroles and vegetables from the outside to the center to distribute the heat evenly and speed cooking. Constant stirring is not necessary.
• Turn over foods like pork chops, baking potatoes, roasts, or whole cauliflower halfway through the cooking time to expose all sides equally to microwave energy.
• Place delicate areas of foods, such as asparagus tips, toward the center of the dish.
• Arrange unevenly shaped foods, such as chicken pieces or salmon steaks, with the thicker, meatier parts toward the outside of the dish.

• Shield, with small pieces of aluminum foil, parts of food that may cook quickly, such as wing tips and leg ends of poultry.

• Let It Stand: After you remove the food from the microwave, cover food with foil or casserole lid and let it stand to finish cooking in the center and avoid overcooking the outer edges. The length of standing time depends on the density and surface area of the food.

• Wrapping in waxed paper or paper towel: Sandwiches and many other foods containing prebaked bread should be wrapped prior to microwaving to prevent drying out.

FISH AND SHELLFISH

Cooking Fish and Shellfish: General Directions

• Prepare the fish for cooking.
• Completely defrost the fish or shellfish.
• Arrange unevenly shaped pieces with thicker parts toward the outside of the dish. Arrange shellfish in a single layer for even cooking.
• The type of cover you use depends on how you cook. Poached fish needs a microwavable lid or vented plastic wrap.
• Baked fish, coated fish, or fish in sauce needs to be covered lightly with waxed paper to keep the coating crisp and sauce from getting watery.
• Always set the shortest cooking time. Fish is done when it turns opaque and the thickest part begins to flake. Shellfish is done when the shell turns from pink to red and the flesh is opaque and firm.
• The Fish and Shellfish Cooking Table below provides specific directions with Power Level and Cooking Time settings for most types of fish and shellfish.

FISH AND SHELLFISH COOKING TABLE

FISH POWER	R LEVEL COOKING	TIME DIRECTIONS
Fish fillets HI 3		1/2-41/2 minutes
Fish steaks HI 4		1/2-51/2 minutes
Whole fish 7	4	1/2-6 minutes
Scallops HI 3		1/2-5 minutes
Shrimp, shelled	HI 3	1/2-5 minutes

COOKING

APPETIZERS/SAUCES/SOUPS

Cooking Appetizers: Tips and Techniques

Recommended

• Crisp crackers, such as melba toast, shredded wheat, and crisp rye crackers are best for microwave use. Wait until party time to add the spreads. Place a paper towel under the crackers while they cook in the microwave oven to absorb extra moisture.
• Arrange individual appetizers in a circle for even cooking.
• Stir dips to distribute heat and shorten cooking time.

Cooking Sauces: Tips and Techniques

• Use a microwavable casserole or glass measuring cup that is at least 2 or 3 times the volume of the sauce.
• Sauces made with cornstarch thicken more rapidly than those made with flour.
  Cook sauces made with cornstarch or flour uncovered so you may stir them 2 or 3 times during cooking for a smooth consistency.
• To adapt a conventional sauce or gravy recipe, reduce the amount of liquid slightly.

Cooking Soups: Tips and Techniques

Cook soups in a microwavable dish which holds double the volume of the recipe ingredients to prevent boil-over, especially if you use cream or milk in the soup.
- Generally, cover microwaved soups with VENTED plastic wrap or a microwavable lid.
- Cover foods to retain moisture. Uncover foods to retain crispness.
- Avoid overcooking by using the minimum suggested time. Add more time, if necessary, only after checking the food.
- Stirring occasionally will help blend flavors, distribute heat evenly, and may even shorten the cooking time.
- When converting a conventional soup recipe to cook in the microwave, reduce the liquid, salt, and strong seasonings.

Not Recommended

• Appetizers with a crisp coating or puff pastry are best done in a conventional oven with dry heat.
• Breaded products can be warmed in the microwave oven but will not come out crisp.

MEAT

Cooking Meat: General Directions

• Prepare the meat for cooking.

• Defrost completely.

• Trim off excess fat to avoid spattering.
• Place the meat, fat side down, on a microwavable rack in a microwavable dish.
• Use oven cooking bag for less tender cuts of meat.
• Arrange the meat so that thicker portions are toward the outside of the dish.
• Cover the meat with waxed paper to prevent spattering.

Tend the meat as it cooks.

• Drain juices as they accumulate to reduce spattering and keep from overcooking the bottom of the meat.
• Shield thin or bony portions with strips of foil to prevent overcooking.

NOTE: Keep the foil at least 1 inch from the oven walls, and do not cover more than one-third of the meat with foil at any one time.

• Let the meat stand covered with foil 10-15 minutes after you remove it from the oven. The internal temperature of the meat may rise from 5 - 10^ F during standing time.

The Meat Cooking Table on the next page provides detailed directions, Power Level, and Cooking Time settings for most cuts of meat.

COOKING

MEAT COOKING TABLE

MEAT	POWER LEVEL	COOKING TIME	DIRECTIONS
BEEF Hamburgers, Fresh or defrosted (4 oz. each)1 patty2 patties4 patties	HI	1-1½ minutes1½-2 minutes2½-3½ minutes	Form patties with depression in center of each. Place on microwavable roasting rack. Brush with browning agent, if desired. Cover with waxed paper. Turn over halfway through cooking. Let stand covered 1 minute.
Sirloin tip roast (3-4 lbs.)	5	8-10 minutes per poundRARE (135°F)11-13 minutes per poundMEDIUM (155°F)	Place roast fat side down on microwavable roasting rack. Add desired seasonings and cover with waxed paper. Turn meat over halfway through cooking and shield if necessary. Remove roast from microwave oven when desired temperature is reached. Let stand covered with foil 15 minutes. (Temperature may rise about 10°F).
LAMB Lamb roast, rolled boneless (3-4 lbs.)	5	11-12 minutes per poundRARE (135°F)12-13 minutes per poundMEDIUM (145°F)13-14 minutes per poundWELL (155°F)	Place roast fat side down on microwavable roasting rack. Brush lamb with marinade or desired seasonings such as rosemary, thyme or marjoram. Cover with waxed paper. Turn roast over after 15 minutes, and again after 30 minutes. Shield if necessary. Remove roast from microwave when desired temperature is reached. Let stand covered with foil 15 minutes. (Temperature may rise about 10°F).
PORK Bacon slices2 slices4 slices6 slices10 slices	HI	1½-2 minutes2-3 minutes4-5 minutes7-8 minutes	Place bacon slices on microwavable roasting rack. Cover with paper towels. After cooking, let stand 1 minute.
Chops (5-7 oz. each)2 chops4 chops	3	18-20 minutes per pound15-17 minutes per pound	Place chops in microwavable baking dish.Add desired seasonings and cover with vented plastic wrap. Cook until no longer pink or until internal temperature reaches 170°F. Turn chops over halfway through cooking. Let stand covered 5 minutes. (Temperature may rise about 10°F).
Loin Roast, rolled, boneless (3½- 4½lbs.)	3	25-27 minutes per pound(165°F)	Place roast in cooking bag in microwavable dish.Add seasonings and browning agent if desired. Close bag loosely with microwavable closure or string. After cooking, let stand in bag 15 minutes. (Temperature may rise about 10°F.) Internal temperature of pork should reach 170°F before serving.
Sausage links, Fresh or Frozen, defrosted (1-2 oz. each)2 links4 links6 links10 links	HI	45-60 seconds1-1½ minutes1½-2 minutes1¾-2 minutes	Pierce links and place on microwavable roasting rack. Cover with waxed paper or paper towel. Turn over halfway through cooking. After cooking, let stand covered 1 minute.

COOKING

CHICKEN

Cooking Poultry: General Directions

• Prepare the poultry for cooking.
• Defrost completely.
• Arrange poultry pieces with thicker pieces at the outside edge of the baking dish. When cooking legs, arrange them like the spokes of a wheel.
• Cover the baking dish with waxed paper to reduce spattering.

• Use a browning agent or cook with a sauce to give a browned appearance.

• Watch the poultry as it cooks.

• Drain and discard juices as they accumulate.
• Shield thin or bony pieces with small strips of aluminum foil to prevent overcooking. Keep foil at least 1 inch from the oven walls and other pieces of foil.
• Poultry is done when it is no longer pink and the juices run clear. When done, the temperature in the thigh meat should be 180 - 185^ .
• Let the poultry stand after cooking covered with foil for 10 minutes.

The Poultry Cooking Table below provides detailed directions, Power Level, and Cooking Time settings for most cuts and types of poultry.

CHICKEN COOKING TABLE

CHICKEN	POWER LEVEL	COOKING TIME	DIRECTIONS
Chicken pieces (21½-3 lbs.)	HI	41½-51½ minutes per pound	Before cooking, wash pieces and shake the water off. Place pieces in a single layer in a microwavable baking dish with thicker pieces to the outside. Brush with butter or browning agent and seasonings if desired. Cover with waxed paper. Cook until no longer pink and juices run clear. Let stand covered 5 minutes.
Chicken whole (3-31½ lbs.)	HI	12-13 minutes per pound	Before cooking, wash and shake off water. Place breast side down on a microwavable roasting rack. Brush with butter, or browning agent and seasoning if desired. Cover with waxed paper. Cook 1/3 of estimated time. Turn breast side up, brush with butter, or browning agent. Replace waxed paper. Cook 1/3 of estimated time again. Shield if necessary. Cook remaining 1/3 of estimated time or until no longer pink and juices run clear. Let stand covered with foil 10 minutes. (The temperature may rise about 10°F.) The temperature in the thigh should be 180°F-185°F when the poultry is done.
Cornish Hens whole (1-11½ lbs. each)	HI	6-7 minutes per pound	Before cooking, wash and shake the water off. Tie wings to body of hen and the legs to tail. Place hens breast side down on microwavable rack. Cover with waxed paper. Turn breast side up halfway through cooking. Shield bone ends of drumsticks with foil. Remove and discard drippings. Brush with butter or browning agent and seasonings if desired. Cook until no longer pink and juices run clear. Remove hens from microwave when they reach desired temperature. Let stand covered with foil 5 minutes. (Temperature may rise about 10°F). Temperature in breast should be 170°F before serving.

COOKING

PASTA AND RICE

Microwave cooking and conventional cooking of pasta, rice, and cereal require about the same amount of time, but the microwave is a more convenient method because you can cook and serve in the same dish. There is no stirring needed and leftover pasta tastes just like fresh cooked when reheated in the microwave oven.

Cooking Pasta and Rice: Tips and Techniques

If you are planning to use rice or pasta in a casserole, undercook it so it is still firm.
- Allow for standing time with rice, but not for pasta.
- The Pasta and Rice Cooking Tables below provide specific directions, with Power Level and cooking time settings for most common types of pasta and rice.

PASTA COOKING TABLE

PASTA	POWER LEVEL	COOKING TIME	DIRECTIONS
Spaghetti 4 cups water Add 8 oz. spaghetti	HI 5	9-10 minutes 7½-8½ minutes	Combine hot tap water and salt, if desired. Use a 2-quart microwavable baking dish and cover with vented plastic wrap for spaghetti and lasagna noodles. Use microwavable lid or vented plastic wrap for macaroni and egg noodles. Cook as directed in chart or until water boils. Stir in pasta; cook covered as directed in chart or until tender. Drain in a colander.
Macaroni 3 cups water Add 2 cups macaroni	HI 5	6-7 minutes 5½-6½ minutes
Lasagna noodles 4 cups water Add 8 oz. lasagna noodles	HI 5	7-8 minutes 11-12½ minutes
Egg noodles 6 cups water Add 4 cups noodles	HI 5	8-10 minutes 5½-6½ minutes

RICE COOKING TABLE

RICE	POWER LEVEL	COOKING TIME	DIRECTIONS
Long grain2 1/4 cups waterAdd 1 cup rice	HI5	4 1/2-5 1/2 minutes14 minutes	Combine hot tap water and salt, if desired, in 2 quartmicrowavable casserole.Cover with microwavable lid or vented plastic wrap.Cook as directed in chart or until water boils.Stir in rice and any seasonings.Cook covered as directed in chart or until water is absorbedand rice is tender.Let stand covered 5 to 10 minutes.Fluff with fork.
Brown2 1/2 cups waterAdd 1 cup rice	HI5	4 1/2-5 1/2 minutes28 minutes
Long grain andwild rice mix2 1/3 cups waterAdd 6 oz. package	HI5	4-5 minutes24 minutes
Quick cooking1 cup waterAdd 1 cup rice	HI	2-3 minutes	Cook water until it boils.Stir rice into boiling water and let stand, covered 5 to 10minutes or until water is absorbed and rice is tender.Fluff with fork.

CARING FOR YOUR MICROWAVE OVEN

CARE AND CLEANING

For best performance and safety, keep the oven clean inside and outside. Take special care to keep the inner door panel and the oven front frame free of food or grease build-up. Never use rough powder or pads. Wipe the microwave oven inside and out, including the hood bottom cover, with a soft cloth and a warm (not hot) mild detergent solution. Then rinse and wipe dry. Use a chrome cleaner and polish on chrome, metal and aluminum surfaces. Wipe spatters immediately with a wet paper towel, especially after cooking chicken or bacon. Clean your oven weekly or more often, if needed.

METAL RACK

Wash the metal rack with a mild soap and a soft or nylon scrub brush. Dry completely. Do not use abrasive scrubbers or cleaners to clean rack.

CLEANING THE GREASE FILTERS

The grease filters should be removed and cleaned often, at least once a month.

1. Front filter

1) Extend slide out.
2) Remove two filter frame screw.
3) Tip the frame forward.
4) Remove filter from frame.

1. Back filter Slide each filter to the side, then pull the filters downward. The filters will drop out.

1. Soak grease filters in hot water and a mild detergent. Rinse well and shake to dry. Do not use ammonia or place them in a dishwasher. The aluminum will darken.

1. To reinstall the filters, reverse order of removing filter.

NOTE: Do not operate the hood without the filters in place.

CHARCOAL FILTER REPLACEMENT

If your oven is vented inside, the charcoal filter should be replaced every 6 to 12 months, and more often if necessary. The charcoal filter cannot be cleaned. To order a new charcoal filter, call 1-800-243-0000 or go to www/lg.com/us/support/ parts-accessories.

1. Turn the power off at the main power supply and wear gloves
2. Remove the one vent grille mounting screw. (1 outside screw)
3. After open door. Slide vent grille to left and tip it forward.

CARING FOR YOUR MICROWAVE OVEN

1. Remove the old filter.

1. Slide a new charcoal filter into place.

1. Slide in vent grille and replace the mounting screw. Turn the power back on at the main power supply and set the clock.

COOKTOP/NIGHT LIGHT REPLACEMENT

1. Unplug the oven or turn off power at the main power supply.
2. Remove the LED lamp cover mounting screws.

1. Replace the LED Lamp board.
2. Replace the LED Lamp cover and mounting screws.
3. Turn the power back on at the main power supply.

*It is recommended that the cooktop lamp be replaced by a qualified service technician.

OVEN LIGHT REPLACEMENT

1. Unplug the oven or turn off power at the main power supply and wear gloves.

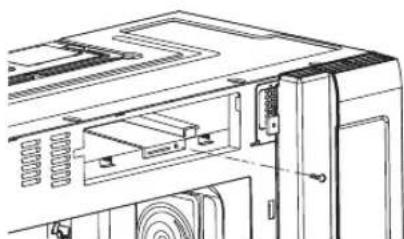

2. Remove the vent cover mounting screw. (1 outside screws)

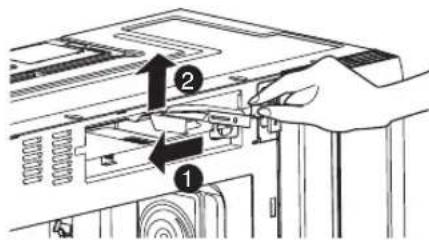

3. Slide vent grille left, then lift out to remove.

1. Remove the cover screw slide the cover to left and then lift up the bulb holder.

1. Replace the bulb with a 30 watt appliance bulb.
2. Replace the bulb holder and screw.
3. Slide in vent grille and replace the mounting screw. Replace the mounting screws. Turn the power back on at the main power supply.

COOKING UTENSILS

MICROWAVE UTENSIL GUIDE

USE	DO NOT USE
OVENPROOF GLASS(treated for high intensity heat):Utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles, and bowls without metallic trim.	METAL UTENSILs:Metal shields the food from microwave energy and produces uneven cooking. Also avoid metal skewers, thermometers, or foil trays. Metal utensils can cause arcing, which can damage your microwave oven.
CHINA:Bowls, cups, serving plates, and platters without metallic trim.	METAL DECORATION:Metal-trimmed or metal-banded dinnerware, casserole dishes, etc.The metal trim interferes with normal cooking and may damage the oven.
PLASTIC:Plastic wrap (as a cover)-- lay the plastic wrap loosely over the dish and press it to the sides.Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. As the food heats it may melt the plastic wrap wherever the wrap touches the food.Use plastic dishes, cups, semirigid freezer containers, and plastic bags only for short cooking times. Use these with care because the plastic may soften from the heat of the food.PAPER:Paper towels, waxed paper,paper napkins, and paper plates with no metallic trim or design.Look for the manufacturer's label for use in the microwave oven.	ALUMINUM FOIL:Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing. Use small pieces of foil to shield poultry legs and wings. Keep ALL aluminum foil at least 1 inch from the side walls and door of the oven.WOOD:Wooden bowls and boards will dry out and may split or crack when you use them in the microwave oven. Baskets react in the same way.TIGHTLY COVERED UTENSILs:Be sure to leave openings for steam to escape from covered utensils.Pierce plastic pouches of vegetables or other food items before cooking.Tightly closed pouches could explode.BROWN PAPER:Avoid using brown paper bags.They absorb too much heat and could burn.FLAWED OR CHIPPED UTENSILs:Any utensil that is cracked, flawed, or chipped may break in the oven.METAL TWIST TIES:Remove metal twist ties from plastic or paper bags.They become hot and could cause a fire.

Do not use recycled paper products in the microwave oven.

They sometimes contain impurities that cause sparks to occur.

TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Check the following list to be sure a service call is necessary. Reviewing additional information on items to check may prevent an unneeded service call.

PROBLEM	POSSIBLE CAUSES
If nothing on the oven operates	· check for a blown circuit fuse or a tripped main circuit breaker. · check if oven is properly connected to the electric circuit in house. · check that controls are set properly.
If the oven interior light does not work	· the light bulb is loose or defective.
If oven will not cook	· check that control panel was programmed correctly. · check that door is firmly closed. · check that Start/Enter Pad was touched. · check that timer wasn't started instead of a cook function.
If oven takes longer than normal to cook or cooks too rapidly	· be sure the Power Level is programmed properly.
If the time of day clock does not always keep correct time	· check that the power cord is fully inserted into the outlet receptacle. · be sure the oven is the only appliance on the electrical circuit.
If food cooks unevenly	· be sure food is evenly shaped. · be sure food is completely defrosted before cooking. · check placement of aluminum foil strips used to prevent overcooking.
If food is undercooked	· check recipe to be sure all directions (amount, time, and power levels) were correctly followed. · be sure microwave oven is on a separate circuit. · be sure food is completely defrosted before cooking.
If food is overcooked	· check recipe to be sure all directions (amount, power level, time, size of dish) were followed.
If arcing (sparks) occur	· be sure microwavable dishes were used. · be sure wire twist ties were not used. · be sure oven was not operated when empty. · make sure metal rack (if used) is properly installed on 4 supports.
If the display shows a time counting down but the oven is not cooking	· check that door is firmly closed. · check that timer was not started instead of a cooking function.
Vent fan starts automatically	· If the temperature gets too hot around the microwave oven, the fan in the vent hood will automatically turn on at the LEVEL 4 setting to cool the oven. It may stay on up to an hour to cool the oven.

TROUBLESHOOTING

WARNING

To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time, only an authorized service technician should remove outer case.

QUESTIONS AND ANSWERS

QUESTION	ANSWER
Can I use a rack in my microwave oven so that I may reheat or cook in two rack positions at a time?	Only use the rack that is supplied with your microwave oven. Use of any other rack can result in poor cooking performance and/or arcing and may damage your oven.
Can I use either metal or aluminum pans in my microwave oven?	Usable metal includes aluminum foil for shielding (use small, flat pieces). Never allow metal to touch walls or door.
Sometimes the door of my microwave oven appears wavy. Is this normal?	This appearance is normal and does not affect the operation of your oven.
What are the humming noises I hear when my microwave oven is operating?	This is the sound of the transformer when the magnetron tube cycles on and off.
Why does the dish become hot when I microwave food in it?	As the food becomes hot it will conduct the heat to the dish. Use hot pads to remove food after cooking. Dish may not be microwave safe.
What does standing time mean?	Standing time means that food should be taken out of the oven and covered for additional time after cooking. This process allows the cooking to finish, saves energy, and frees the oven for other purposes.
Can I pop popcorn in my microwave oven? How do I get the best results?	Yes. Pop packaged microwave popcorn following manufacturer's guidelines or use the preprogrammed Popcorn pad. Do not use regular paper bags. Use the listening test by stopping the oven as soon as the popping slows to a pop every one or two seconds. Do not try to repop unpopped kernels. You can also use special microwave poppers. When using a popper, be sure to follow manufacturer's directions. Do not pop popcorn in glass utensils.
Why does steam come out of the air exhaust vent?	Steam is normally produced during cooking. The microwave oven has been designed to vent this steam out the top vent.

LIMITED WARRANTY (CANADA)

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION Titled "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Microwave ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD: (Note: If the original date of purchase cannot be verified, the warranty will begin sixty (60) days from the date of manufacture).

Over-the-Range / All Convection / Microwaves in Built-in application / All other Microwave Oven	Extended Component Warranty (Parts Only)
One (1) year from the date of original retail purchase	Five (5) years from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Parts and Labor (In-Home ; OTR & Convection) (internal/functional parts only)	Magnetron Only Inverter	Magnetron Only

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
  Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTYIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
- Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
- Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
- Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;
- Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;.

• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
• Replacement of any part that was not originally included with the Product;
  Costs associated with removal and/or reinstallation of the Product for repairs; and
  Shelves, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.
• Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

\* NOT COVERED BY WARRANTY

ProblemCauseSolution
Microwave oven Installation issue - Vibration noise - Unit is not level - Installation damage	1. Mounting bracket screw not fixed completely 2. Mounting plate not aligned	Check with installer first
	3/16 "Hole on Studs 5/8 "Hole on Drywall Only For Wall - Venting Only Draw Lines on Studs Center Line Support Tab C Support Tab
Microwave oven Installation issue - Vibration noise - Unit is not level - Installation damage	3. Product carried/installed improperly	Check with installer first
Spark / Arcing Aluminum foil	or metal utensil used in microwave mode	DO NOT use aluminum foil or metal utensils in microwave mode - Check user instructions
	1. House power turned off (power supply) 1. Check house power supplyUnit has no power 2. Tripped breaker 2. C check proper power cord 3. The power cord is not installed properly 3. Check extension cord
- Weak or no ventilation - Abnormal noise during operation - Product overheating	1. Improper blower unit direction or installation 2. Improper ductwork or damper connection Exhaust Adapter Slide exhaust adapter into guides on rear panel. Duct	1. C check blower unit direction andVent is r reinstall if necessary. 2. Properly align the exhaust ports and blower plate opening. 3. Blower unit exhaust ports should be completely exposed to the outside 4. After installation, check the air ventilation path

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE: Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or visit our website at http://www/lg.com

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department-Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attain to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for 25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds 25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and

(d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www/lg.com/ca_en/support/repair-service/schedule-repair and clicking on "Find My Model & Serial Number").

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attain to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUEL DE L'UTILISATEUR

FOUR À MICRO-ONDES

LISEZ ATTENTIVEMENT CE MANUEL

AVANT DE METTRE L'APPAREIL EN MARCHE.

LMV2257**

TABLE DES MATIÈRES

SECURITE 3-4

Crustaces/Mollusques 21

L'indication "Fan Off"

REEMPLACEMENT DE LA LAMPE DU FOUR
