Product Type	Microwave Oven Hood Combo
Brand	LG
Model	LMV1680DB
External Dimensions	29-15/16 in x 16-7/16 in x 16-15/16 in
Cavity Volume	1.6 cu.ft
Net Weight	52 lb (23.6 kg)
Power Supply	120 V AC, 60 Hz, 13 A / 1500 W
Microwave Power	1000 W (IEC 60705 standard)
Main Functions	Clock, Timer, Fan high/low/off, Light high/low/off, Turntable on/off, Child Lock, Variable Power Cook, More/Less, Time Cook, Keep Warm, Quick/Auto Defrost, Melt, Soften, Kids Meals, Popcorn, Hot Water, Auto Cook, Auto Reheat
Power Levels	10 levels (0 to 100%)
Ventilation Type	Exhaust hood with 2 speeds
Hood Lighting	2 levels (high/low) + off, 30 W bulb
Cavity Lighting	30-40 W bulb
Grease Filters	Aluminum mesh filters, washable monthly
Charcoal Filter (recirculation)	Replace every 6 to 12 months
Safety	Child safety lock, auto shutoff if door open, grounded, overheating protection (auto ventilation)
Compatible Dishes	Glass, porcelain, microwave-safe plastic, paper (except metal, aluminum, wood)
Warranty	1 year parts and labor (in-home service), 5 years magnetron (parts only)
General Information	For ranges up to 36 in wide. Under-cabinet installation.

Frequently Asked Questions - LMV1680DB LG

How to clean the hood grease filters?

Remove the filters by sliding them sideways and pulling down. Soak them in hot water with mild detergent, rinse and dry. Do not use ammonia or wash in the dishwasher. Reinstall by sliding and pushing up.

How to replace the hood bulb?

Unplug the appliance. Remove the screws from the hood lamp cover. Replace with a 30 watt bulb (appropriate type). Reattach the cover and plug in.

Can I use metal dishes in this microwave?

No, metal may cause arcing and damage the unit. Use only microwave-safe dishes: glass, porcelain, suitable plastic. Small pieces of aluminum foil can be used to shield certain parts, but at least 1 inch from walls.

What if the oven doesn't start?

Check that the door is fully closed, the cord is plugged in, and the circuit breaker hasn't tripped. Ensure you pressed START/ENTER. If the problem persists, consult the troubleshooting section or contact a technician.

How to use the auto cooking function?

Press COOK, then select the category (fresh vegetables, frozen, rice, stew) by pressing repeatedly. Enter the amount and press START/ENTER. The oven automatically adjusts the cooking time using the moisture sensor.

How to quickly defrost 1 lb of food?

Press QUICK DEFROST. The oven starts automatically with an appropriate program. For automatic defrost, use AUTO DEFROST, select the type (meat, poultry, fish) and enter the weight in pounds and tenths. Turn or separate the food when the beep sounds.

What is standing time and why is it important?

Standing time is the period after cooking during which the food continues to cook by internal heat. This ensures more even cooking and saves energy. Let rest covered as recommended (usually 5 to 15 minutes).

How to activate the child safety lock?

Press and hold the START/ENTER key for at least 4 seconds. The 'L' indicator appears and a beep sounds. To deactivate, repeat the same operation.

Why does steam come out of the vents during cooking?

This is normal. The oven is designed to vent steam through the top ventilation duct. This reduces humidity and prevents condensation. Do not block the openings.

How to set the clock on the oven?

Press STOP/CLEAR, then CLOCK. Enter the time using the number keys (e.g., 8 0 0 for 8:00). Press CLOCK or START/ENTER again. Press CLOCK twice for precise setting.

USER MANUAL LMV1680DB LG

Important Safety Instructions 3

Precautions To Avoid Possible Exposure To

Excessive Microwave Energy 4

INFORMATION. 5

Location of Model Number. 5

Oven Specifications 5

Electrical Rating 5

Electrical Requirements 5

Grounding Instructions. 5

Microwave Oven Features 6

Oven Control Panel. 7

OPERATION 9

LEARN ABOUT YOUR MICROWAVE OVEN....9

Clock 9

Kitchen Timer. 9

VENT Hi/Low/Off 9

LIGHT Hi/Low/Off 9

TurnTable On/Off 9

Child Lock 9

Ez-On 10

Cooking at High Cook Power. 10

Cooking at Lower Power Levels. 10

MORE/LESS 10

Cook Time 11

Cooking Guide for Lower Power Levels 11

HoldWarm 12

Quick Defrost 12

Melt 12

Soften 12

Melt Table 13

Soften Table 13

Kids Meals 13

Kids Meals Table 13

Popcorn 13

Popcorn Table 13

Hot Warter 13

Hot Warter Table 13

Auto Cook 14

Auto Cook Table 14

Cooking Guide for Auto Cook 14

Auto Reheat 15

Auto Reheat Table 15

Cooking Guide for Auto Reheat 15

Auto Defrost 16

Weight conversion chart. 16

Defrosting Tips. 16

Defrost Chart. 17

COOKING 19

Getting the Best Cooking Results 19

Fish & Shellfish 19

Appetizers / Saues / Soups 20

Potato. 20

Meat 20

Poultry 22

Pasta and Rice 23

MAINTENANCE 24

CARE AND CLEANING 24

Metal Rack 24

Cleaning the Grease Filter 24

Charcoal Filter Replacement 24

Cooktop/Night Light Replacement 25

Oven Light Replacement 25

QUESTIONS AND ANSWERS. 25

MICROWAVE UTENSIL GUIDE. 26

BEFORE CALLING FOR SERVICE 27

WARRANTY 29

SAFETY

IMPORTANT SAFETY INSTRUCTIONS

The safety instructions below will tell you how to use your oven and avoid harm to yourself or damage to your oven.

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy.

• Read all the instructions before using your oven.
• Do not allow children to use this oven without close supervision.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 4.
• Use the microwave oven only for its intended use as described in its manual. Do not use corrosive chemicals or vapors, in the microwave oven. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
• Do not use or store this appliance outdoors.
  Do not use this product near water-for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.
• Do not use the cavity for storage purposes.
  Do not leave paper products, cooking utensils, or food in the cavity when not in use.
• Clean the ventilating hood frequently. Do not allow grease to accumulate on the hood or the filters.
• When flaming foods under the hood, turn the fan on.
• Suitable for use above both gas and electric cooking equipment 36 inches wide or less.
• Use care when cleaning the vent hood filters. Corrosive cleaning agents such as lye-based oven cleaners, may damage the filters.

• When cleaning the door and the surfaces that touch the door, use only mild, non-abrasive soaps or detergents and a sponge or soft cloth.

• Do not tamper with the built-in safety switches on the oven door. The oven has several built-in safety switches to make sure the power is off when the door is open.

If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it again.

- To avoid a fire hazard:

• Do not severely overcook food. Severely overcooked foods can start a fire in the oven. Watch the oven carefully, especially if you have paper, plastic, or other combustibles in the oven.
• Do not store combustible items (bread, cookies, etc.) in the oven, because if lightning strikes the power lines, it may cause the oven to turn on.
• Do not use wire twist-ties in the oven. Be sure to remove them before placing the item in the oven.

If a fire should start:

• Keep the oven door closed.
• Turn the oven off.
• Disconnect the power cord or shut off the power at the fuse or circuit breaker panel.

- To avoid electric shock:

• This appliance must be grounded. Connect it only to a properly grounded outlet. See the electrical grounding instructions on page 5.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
• Do not immerse the electrical cord or plug in water.
• Keep the cord away from heated surfaces.

• This appliance should be serviced only by qualified service personnel.

• Install or locate the microwave oven only in accordance with the provided installation instructions.

• Do not mount oven a sink.
• Do not let cord hang over edge of table or counter.

SAFETY

• To avoid improperly cooking some foods.

• Do not heat any types of baby bottles or baby food. Uneven heating may occur and possibly cause personal injury.

• Do not heat small-necked containers, such as syrup bottles.
• Do not deep-fat fry in your microwave oven.
• Do not attempt home canning in your microwave oven.

• Do not heat the following items in the microwave oven: whole eggs in the shell; water with oil or fat; sealed containers or closed glass jars. These items may explode.

• Do not use this oven for commercial purposes. It is made for household use only.

• Do not cover or block any openings in the oven.
• Do not run the oven empty, without food in it.

• Do not allow the gray film on special microwave-cooking packages to touch the oven floor. Put the package on a microwavable dish.

• Do not cook anything directly on the oven floor. Use a microwavable dish.

• Keep a browning dish at least 3/16 inch above floor. Carefully read and follow the instructions for the browning dish. If you use a browning dish incorrectly, you could damage the oven floor.

• Preserve the metal rack:

• Remove the metal rack from the oven when you are not using it.

• Do not use the oven empty with the metal rack in it.
• The metal rack may get hot while cooking. Use pot holders to remove it after cooking.

• Do not use foil or metal containers on the metal rack.

• This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...

• Do not attempt to operate this oven with the door open, since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlock.
• Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

-door (bent)
- hinges and latches (broken or loosened)
- door seals and sealing surfaces.

• Do not place any object between the oven front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

INFORMATION

Please read this owner's manual. It will tell you how to use all the fine features of this microwave oven.

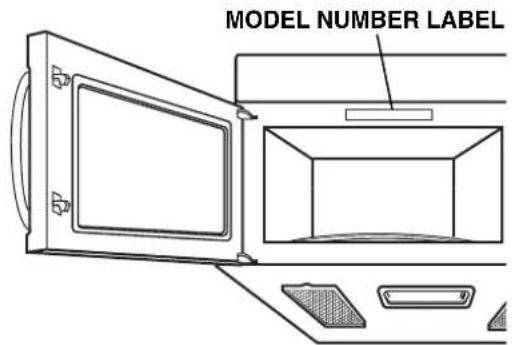

LOCATION OF MODEL NUMBER

To request service information or replacement parts, LG Electronics CANADA will require the complete model number of your microwave oven. The number is on the left side of control panel as shown in the illustration below.

OVEN SPECIFICATIONS

Output Power 1000W (IEC 60705 Standard)
Outer Dimensions 29-15/16" x 16-7/16" x 16-15/16"
Cavity Volume 1.6 Cu.ft
Net Weight 52 lbs.

ELECTRICAL RATING

• Electrical Rating of the Oven:120V AC 60Hz
• 13 Amps / 1500 Watts (MWO + Cooktop Lamp + Ventilation Fan)

ELECTRICAL REQUIREMENTS

The oven is designed to operate on a Standard 120V/60Hz household outlet. Be sure the circuit is at least 15A or 20A and the microwave oven is the only appliance on the circuit. It is not designed for 50Hz or any circuit other than a 120V/60Hz circuit.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If an electrical short circuit occurs, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The cord for this appliance has a grounding wire with a grounding plug. Put the plug into an outlet that is properly installed and grounded.

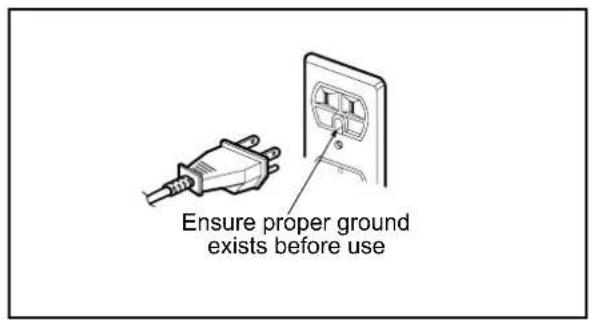

WARNING - If you use the grounding plug improperly, you risk electric shock.

Ask a qualified electrician if you do not understand the grounding instructions or if you wonder whether the appliance is properly grounded. Because this appliance fits under the cabinet, it has a short power-supply cord. See the separate Installation Instructions for directions on properly placing the cord. Keep the electrical power cord dry and do not pinch or crush it in any way.

If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

For a permanently connected appliance: This appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance.

INFORMATION

1. DISPLAY: The Display includes a clock and indicators to tell you time of day, cooking time settings and cooking functions selected.
2. COOK: Touch this pad to cook fresh vegetable, frozen vegetable, rice, or casseroles.
3. REHEAT: Touch this pad to reheat dinner plate, soup/sauce, casserole, roll/muffin.
4. AUTO DEFROST: Meat, poultry, fish. Touch this pad to select food type and defrost food by weight.
5. QUICK DEFROST: This pad provides you with the RAPID defrosting method for 1.0 pound frozen foods.
6. COOK TIME: Touch this pad to set a cooking time.
7. CLOCK: Touch this pad to enter the time of day.
8. NUMBER: Touch number pads to enter cooking time, power level, quantities or weights.
9. MORE: Touch this pad to add ten seconds of cooking time each time you press it.
10. POWER LEVEL: Touch this pad to select a cooking power level.
11. VENT HI/LOW/OFF: Touch this pad to turn the Vent on or off.
12. HOT WATER: Touch this pad when heating water in your microwave oven.

13. POPCORN: Touch this pad when popping popcorn in your microwave oven.

14. MELT: Touch this pad to melt butter or margarine, chocolate, cheese, marshmallow.

15. SOFTEN: Touch this pad to soften butter, ice cream, cream cheese, frozen juice.
16. HOLD WARM: Touch this pad to keep hot, cooked foods warm in your microwave oven for up to 99 minutes 99 seconds.
17. KITCHEN TIMER: Touch this pad to set the kitchen timer.
18. START/ENTER: Touch this pad to start a function. If you open the door after oven begins to cook, retouch START/ENTER.
19. STOP/CLEAR: Touch this pad to stop the oven or clear all entries.
20. LESS: Touch this pad to subtract ten seconds of cooking time each time you press it.
    21.EZ-ON: Touch this pad to set and start quickly at 100% power level.
21. TURNTABLE ON/OFF: Touch this pad to control the turntable on or off.
    23 LIGHT HI/LOW/OFF: Touch this pad to turn the cooktop/ countertop light on or off.
22. KIDS MEALS: Selects type of dish to reheat hot dog, baby food, oat meal or soup.

OPERATION

This section discusses the concepts behind microwave cooking and introduces you to the basics you need to know to operate your microwave oven. Please read this information before use.

CLOCK

Example: To set 8:00 AM.

1. Touch STOP/CLEAR.

CLOCK

1. Touch CLOCK

8

0

0

1. Enter the time by using the number key pad.

CLOCK

1. Touch CLOCK. (or START/ENTER)

NOTE: Touch CLOCK twice to set PM time.

KITCHEN TIMER

You can use your microwave oven as a timer. Use the Timer for timing up to 99 minutes, 99 seconds.

Example: To count 3 minutes.

1. Touch STOP/CLEAR.

KITCHEN TIMER

1. Touch KITCHEN TIMER.

3

0

1. Enter the time by using the number key pad.

1. Touch START/ENTER. When the time is over, you will hear seven beeps and End will display.

VENT HI/LOW/OFF

VENT HI/LOW/OFF

The VENT moves steam and other vapors from the surface cooking.

Touch VENT once for High fan speed, twice for Low fan speed, or a three times to turn the fan off.

NOTE: If the temperature gets too hot around the microwave oven, the fan in the vent hood will automatically turn on at the LOW setting to cool the oven. It may stay on up to an hour to cool the oven. When this occurs, the fan cannot be turned off manually. It is a safety feature to prevent overheating.

LIGHT HI/LOW/OFF

LIGHT HI/LOW/OFF

Touch LIGHT once for bright light, twice for the night light or three times to turn the light off.

TURNTABLE ON/OFF

TURNTABLE ON/OFF

Touch Turntable On/Off once to turn
Turntable on, twice to turn off.

CHILD LOCK

You may lock the control panel to prevent the microwave from being accidentally started or used by children.

Example: To set the child lock.

STOP CLEAR

1. Touch STOP/CLEAR.

2. Touch and hold START/ENTER more than 4 seconds. L will appear in the display window with two beeps.

Example: To cancel the child lock.

START ENTER

1. Touch and hold START/ENTER more than 4 seconds. L will disappear and you hear two beeps. At this time the oven is ready.

OPERATION

EZ-ON

A time-saving pad, this simplified control lets you quickly set and start microwave cooking without the need to touch START/ENTER.

Example: To cook for 2 minutes.

EZ-ON

Touch EZ - ON 4 times.

The oven begins cooking and display shows time counting down.

NOTE:

If you touch EZ - ON, it will add 30 seconds up to 3 minutes. After 3 minutes, every touch will add 1 minute up to 99 min 59 seconds.

COOKING AT HIGH COOK POWER

Example: To cook food for 8 minutes 30 seconds at 100% power.

830

1. Touch STOP/CLEAR.

2. Enter the cook time.

3. Touch START/ENTER.

When the cook time is over, you will hear four beeps and End will display.

HIGH power cooking does not always give you the best results with foods that need slower cooking, such as roasts, baked goods, or custards. Your oven has 9 power settings in addition to "HIGH".

Example: To cook food for 7 minutes 30 seconds at 70% power.

STOP

CLEAR

730

POWER LEVEL

7

START ENTER

1. Touch STOP/CLEAR.

2. Enter the cook time.

3. Touch POWER LEVEL.

4. Enter the power level.

5. Touch START/ENTER. When the cook time is over, you will hear four beeps and End will display.

MORE/LESS

By using the MORE or LESS keys, TIMED COOK program can be adjusted to cook food for a longer or shorter time. Pressing MORE will add 10 seconds to the cooking time each time you press it. Pressing LESS will subtract 10 seconds of cooking time each time you press it.

To adjust the cooking time for a longer time, or for a shorter time.

STOP CLEAR

100

1. Touch STOP/CLEAR.

2. Touch 1,0,0. 1:00

start

shows on the display

1. Touch START / ENTER The Oven will start.

LESS MORE

1. Touch MORE or LESS. Remaining time will increase or decrease by 10 seconds.

OPERATION

COOK TIME

For best results, some recipes call for different cook powers during different stages of a cook cycle. You can program your oven to switch from one power level to another for up to 2 stages.

The nine power levels in addition to "HIGH" allow you to choose the best power level for the food you are cooking.

Example: To cook for 2 minutes with 70% power in the first stage and cook for 5 minutes with 80% power in the second stage.

1. Touch STOP/CLEAR.

COOK TIME

1. Touch COOK TIME.

200

1. Enter the cook time.

POWER LEVEL

1. Touch POWER LEVEL.

7

1. Select 70% power level.

COOK TIME

1. Touch COOK TIME

500

1. Enter the cook time.

POWER LEVEL

1. Touch POWER LEVEL.

8

1. Select 80% power level.

START

ENTER

1. Touch START/ENTER.

POWER LEVEL	MICROWAVE OUTPUT	USE
10 "HIGH"	100%	·Boil water. ·Cook ground beef. ·Make candy. ·Cook fresh fruits and vegetables. ·Cook fish, and poultry. ·Preheat browning dish.
9	90%	·Reheat meat slices quickly. ·Saute onions, celery, and green pepper.
8	80%	·All reheating. ·Cook scrambled eggs. ·Cook breads and cereal products. ·Cook cheese dishes, veal.
7	70%	·Cook cakes, muffins, brownies cup cakes. ·Cook pasta.
6	60%	·Cook meats, whole poultry. ·Cook custard. ·Cook whole chicken, turkey, spare ribs, rib roast, sirloin roast.
5	50%	·Cook less tender cuts of meat. ·Reheat frozen convenience foods.
4	40%	·Thawing meat, poultry, and seafood.
3	30%	·Cooking small quantities of food. ·Finish cooking casserole, stew, and some sauces.
2	20%	·Soften butter and cream cheese. ·Heating small amounts of food.
1	10%	·Soften ice cream. ·Raise yeast dough.
0		·Standing time.

OPERATION

HOLD WARM

You can keep cooked food warm in your microwave oven for up to 99 minutes 99 seconds. You can use HOLD WARM by itself or to follow a cooking cycle automatically.

Example: To use the hold warm.

1. Touch STOP/CLEAR.

HOLD WARM

1. Touch HOLD WARM.

1. Touch START/ENTER.

NOTE:

HOLD WARM operates for up to 99 minutes 99 seconds.
- Food cooked covered should be covered during HOLD WARM
- Pastry items (pies, turnovers, etc.) should be uncovered during HOLD WARM.
- Complete meals kept warm on adinner plate can be covered during HOLD WARM.

Food Recommended Type Quantity

Liquid 1-2 cups

Dry 5-10 oz

To make HOLD WARM automatically follow another cycle:

• While you are programming the cooking instructions, touch HOLD WARM before touching START/ENTER.
• When the last cooking cycle is over, you will hear two tones and HOLD WARM will appear in the oven display.
• You can set HOLD WARM to follow AUTO DEFROST, or multi-cycle cooking.

QUICK DEFROST

Example: To defrost 1lb ground beef.

QUICK 1. Touch QUICK DEFROST. DEFROST

NOTE: The oven will start automatically.

MELT

Melt provides four preset categories for melt. Butter, Chocolate, Cheese, Marshmallows.

Example: To Melt 16 oz Cheese.

1. Touch STOP/CLEAR.
2. Touch MELT pad three times.
3. Choose 16 oz.
4. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

SOFTEN

Soften provides four preset categories for melt. Butter, Ice Cream, Cream Cheese, Frozen Juice.

Example: To Soften 3 oz Cream Cheese.

1. Touch STOP/CLEAR.

SOFTEN 2. Touch SOFTEN pad three times.

1 3.Choose 3 oz.

1. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

OPERATION

MELT TABLE

Category	Touch pad times	Touch pad number
		1 2 3
Butter	1 1 stick	2 sticks		3 sticks
Chocolate	2	4 oz 8 oz		-
Cheese	3	8 oz 16 oz		-
Marshmallows	4	5 oz 10 oz		-

SOFTEN TABLE

Category	Touch pad times	Touch pad number
		1 2 3
Butter 1 1 stick 2 sticks	sticks
Ice Cream	2	pint quart		half gallon
Cream Cheese	3	3 oz 8 oz		-
Frozen Juice	4	6 oz 12 oz	16 oz

KIDS MEALS

Using KIDS MEALS lets you heat common microwave-prepared foods without needing to program times and cook power.

Hot Dog, Baby Food, Oat Meal, Soup.

Example: To heat 4 ea Hot Dogs.

HOTDOG

1. Touch STOP/CLEAR.

2. Touch HOT DOG twice.

1. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

NOTE: These are suggested settings only. When in doubt, follow manufacturer's instructions.

KIDS MEALS TABLE

Category	Touch pad times
	1 2 3
Hot Dog	2 ea	4 ea	-
Baby Food	4 oz 8 oz	16 oz
Oat Meal	4 oz 8 oz	16 oz
Soup	4 oz 8 oz	16 oz

POPCORN

POPCORN lets you pop 3.0, and 3.5 ounce bags of commercially packaged microwave popcorn.

Pop only one package at a time. If you are using a microwave popcorn popper, follow manufacturer's instructions.

POPCORN TABLE

Bag size-ounces	3.5	3.0
Touch pad times	1	2

Example: To pop a 3.5 oz. bag.

POPCORN

1. Touch STOP/CLEAR.

2. Touch POPCORN.

1. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

CAUTION: Do not leave microwave oven unattended while popping popcorn or at any other time while the microwave is in use.

HOT WATER

Use this pad to heat water. You can choose 1 or 2 cups

Example: To use the hold warm for 1 cup.

1. Touch STOP/CLEAR.

HOT WATER

1. Touch HOT WATER.

1. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

HOT WATER TABLE

Quantity	1 cup	2 cups
Touch pad times	1	2

OPERATION

AUTO TOUCH

This function lets you cook foods without needing to program times and cook power.

AUTO COOK

AUTO COOK provides four categories for cooking.

Example: To cook 2 cups of Rice.

1. Touch STOP/CLEAR.

COOK

1. Touch COOK pad three times.

2

1. Enter quantity/servings.

1. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

AUTO COOK TABLE

Category	Touch pad times	Touch pad number
		1	2	3	4
Fresh Vegetable	1	1 cup	2 cups	3 cups	4 cups
Frozen Vegetable	2	1 cup	2 cups	3 cups	4 cups
Rice	3	1 cup	2 cups	-	-
Casserole	4	1 cup	2 cups	3 cups	4 cups

COOKING GUIDE FOR AUTO COOK

CODE	CATEGORY	QUANTITY	DIRECTIONS
1	FRESHVEGETABLE	1 cupVegetables and2 tbsp water	Place in a microwavable bowl or casserole.Add amount of water according to thequantity. Cover with vented plastic wrap.Let stand 5 minutes.
		2 cupsVegetables and1/4 cup of water
		3 cupsVegetables and1/3 cup of water
		4 cupsVegetables and1/2 cup of water
2	FROZENVEGETABLE	1 cup	Place in a microwavable bowl or casserole.Cover with vented plastic wrap.Let stand 5 minutes.
		2 cups
		3 cups
		4 cups
3	RICE	1 cupof Long grain rice and2 1/4 cup of water	In large microwavable casserole, combinewater, rice, margarine and salt. Cover withmicrowavable lid or vented plastic wrap.After cooking, let stand covered for 5 minutes.
		2 cupsof Long grain rice and4 1/4 cup of water
4	CASSEROLE	1 cup	Place in a microwavable bowl or casserole.Cover with vented plastic wrap.
		2 cups
		3 cups
		4 cups

OPERATION

AUTO REHEAT

AUTO REHEAT provides four preset categories.

Example: To reheat 3 cups of Casserole.

1. Touch STOP/CLEAR.

REHEAT

1. Touch REHEAT pad three times.

3

1. Enter quantity/servings.

1. Touch START/ENTER.

NOTE: After 4 seconds, the oven will start automatically. When the cook time is over, you will hear four beeps and End will display.

AUTO REHEAT TABLE

Category	Touch pad times	Touch pad number
		1 2 3	4
Dinner Plate	1	1 serving	2 servings	-	-
Soup Sauce	2	1 cup	2 cups	3 cups	4 cups
Casserole	3	1 cup	2 cups	3 cups	4 cups
Roll Muffin	4	1 piece	2 pieces	3 pieces	4 pieces

COOKING GUIDE FOR AUTO REHEAT

	CATEGORYCODE	SERVING AMOUNT	DIRECTION
1	DINNER PLATE	1 serving	Place on a low plate. Cover with vented plastic wrap.
		2 servings
2	SOUP/SAUCE	1 cup	Place in shallow microwavable casserole. Cover with vented plastic wrap.
		2 cups
		3 cups
		4 cups
3	CASSEROLE	1 cup	Place in a microwavable bowl or casserole. Cover with plastic wrap.
		2 cups
		3 cups
		4 cups
4	ROLL/MUFFIN	1 piece	Place on paper towel. Do not cover.
		2 pieces
		3 pieces
		4 pieces

OPERATION

AUTO DEFROST

Three defrost choices are preset in the oven. The defrost feature provides you with the best defrosting method for frozen foods, because the oven automatically sets the defrosting times for each food item according to the weight you enter. For added convenience, the AUTO DEFROST includes a built-in tone mechanism that reminds you to check, turn over, separate, or rearrange the food during the defrost cycle. Three different defrosting options are provided.

1. MEAT
2. POULTRY
3. FISH

After touching AUTO DEFROST once, select the food category. Available weight ranges for Meat, Poultry and Fish are 0.1 to 6.0 lbs.

Example: To defrost 1.2 lbs of meat.

AUTO DEFROST

1. Touch AUTO DEFROST.

12

1. Enter the weight.

START ENTER 6

1. Touch START/ENTER.

NOTE:

• After you touch START/ENTER, the display counts down the defrost time. The oven will beep once during the defrost cycle. At this time, open the door and turn, separate, or rearrange the food as needed. Remove any portions that have thawed then return frozen portions to the oven and touch START/ENTER to resume the defrost cycle.
• The oven will not stop during the beep unless the door is opened.

WEIGHTCONVERSIONCHART

To enter food weight in AUTO DEFROST, you must specify pounds and tenths of a pound. If the weight on the food package is in fractions of a pound, you you can use the following chart to convert the weight to decimals.

EQUIVALENT OUNCE WEIGHT	NUMBER AFTER DECIMAL
1.6	.10
3.2	.20
4.0	.25 One-Quarter Pound
4.8	.30
6.4	.40
8.0	.50 One-Half Pound
9.6	.60
11.2	.70
12.0	.75 Three-Quarters Pound
12.8	.80
14.4	.90
16.0	1.00 One Pound

DEFROSTING TIPS

• When using AUTO DEFROST, the weight to be entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).
• Use AUTO DEFROST only for raw food. AUTO DEFROST gives best results when food to be thawed is a minimum of 0 F (taken directly from a true freezer). If food has been stored in a refrigerator-freezer that does not maintain a temperature of 5 F or below, always program a lower food weight (for a shorter defrosting time) to prevent cooking the food.
• If the food is stored outside the freezer for up to 20 minutes, enter a lower food weight.
• The shape of the package alters the defrosting time. Shallow rectangular packets defrost more quickly than a deep block.
• Separate pieces as they begin to defrost. Separated pieces defrost more easily.
• You can use small pieces of aluminum foil to shield shieldfoods like chicken wings, leg tips, and fish tails but the foil must not touch the side of the oven. Foil causes arcing, which can damage the oven lining.
• Shield areas of food with small pieces of foil if they start to become warm.
• For even, complete defrosting, use the defrosting rack.
• For best results, elevate food to be defrosted on a microwave safe roasting rack. This prevents the possibility of warm meat juices cooking food during defrost.

OPERATION

DEFROST CHART

Meat setting

FOOD AT BEEPSETTING		SPECIAL INSTRUCTIONS
BEEF
Ground beef (bulk)	MEAT	Remove thawed portions with fork. Turn over. Return remainder to oven.
Ground beef (patties)	MEAT	Separate and rearrange.
Round steak	MEAT	Turn over. Cover warm areas with aluminum foil.
Tenderloin steak	MEAT	Turn over. Cover warm areas with aluminum foil.
Stew beef	MEAT	Remove thawed portions with fork. Separate remainder. Return remainder to oven.
Pot roast, chuck roast	MEAT	Turn over. Cover warm areas with aluminum foil.
Rib roast	MEAT	Turn over. Cover warm areas with aluminum foil.
Rolled rump roast	MEAT	Turn over. Cover warm areas with aluminum foil.
LAMB
Cubes for stew	MEAT	Remove thawed portions with fork. Return remainder to oven.
Chops (1 inch thick)	MEAT	Separate and rearrange.
PORK
Chops (1 inch thick)	MEAT	Separate and rearrange.
Hot dogs	MEAT	Separate and rearrange.
Spareribs Country style ribs	MEAT	Turn over. Cover warm areas with aluminum foil.
Sausage, links	MEAT	Separate and rearrange.
Sausage, bulk	MEAT	Remove thawed portions with fork. Turn over. Return remainder to oven.
Loin roast, boneless	MEAT	Turn over. Cover warm areas with aluminum foil.

OPERATION

DEFROST CHART (continued)

Poultry setting

FOOD	SETTING	SPECIAL INSTRUCTIONS
CHICKENWholeCut-up	POULTRY	Turn over (finish defrosting breast-side down). Cover warm areas with aluminum foil.	Place chicken breast-side-up on a microwavable roast rack. Finish defrosting by immersing in cold water. Remove giblets when chicken is partially defrosted.
		Turn over. Cover warm areas with aluminum foil. Separate pieces and rearrange.	Place on a microwavable roasting rack. Finish defrosting by immersing in cold water.
CORNISHHENSWhole	POULTRY	Turn over. Cover warm areas with aluminum foil.	Place on a microwavable roasting rack. Finish defrosting by immersing in cold water.
TURKEYBreast	POULTRY	Turn over. Cover warm areas with aluminum foil.	Place on a microwavable roasting rack. Finish defrosting by immersing in cold water.

Fish setting

FOOD AT	BEEFTING		SPECIAL INSTRUCTIONS
FISH Fillets	FISH	Turn over. Separate fillets when partially thawed if possible.	Place in a microwavable baking dish. Carefully separate fillets under cold water.
Steaks	FISH	Separate and rearrange.	Place in a microwavable baking dish. Run cold water over to finish defrosting.
Whole	FISH		Place in a microwavable baking dish. Cover head and tail with foil; do not let foil touch sides of microwave . Finish defrosting by immersing in cold water.
SHELLFISH
Crabmeat	FISH	Break apart.	Place in a microwavable baking dish.
Lobster tails	FISH	Rearrange.	Place in a microwavable baking dish.
Shrimp	FISH	Separate and rearrange.	Place in a microwavable baking dish.
Scallops	FISH	Separate and rearrange.	Place in a microwavable baking dish.

NOTE : Food to be defrosted must be not more than 6.0 lbs. (4.0kg)
* Available weight is 0.1~6.0 lbs. (0.1~4.0kg)

COOKING

GETTING THE BEST COOKING RESULTS

To get the best results from your microwave oven, read and follow the guidelines below.

• Storage Temperature: Foods taken from the freezer or refrigerator take longer to cook than the same foods at room temperature. The time for recipes in this book is based on the normal storage temperature of the food.
• Size: Small pieces of food cook faster than large ones, pieces similar in size and shape cook more evenly. For even cooking, reduce the power when cooking large pieces of food.
• Natural Moisture: Very moist foods cook more evenly because microwave energy is attracted to water molecules.

• Stir foods such as casseroles and vegetables from the outside to the center to distribute the heat evenly and speed cooking. Constant stirring is not necessary.

• Turn over foods like pork chops, baking potatoes, roasts, or whole cauliflower halfway through the cooking time to expose all sides equally to microwave energy.

• Place delicate areas of foods, such as asparagus tips, toward the center of the dish.
• Arrange unevenly shaped foods, such as chicken pieces or salmon steaks, with the thicker, meatier parts toward the outside of the dish.
• Shield, with Small pieces of aluminum foil, parts of food that may cook quickly, such as wing tips and leg ends of poultry.
• Let It Stand: After you remove the food from the microwave, cover food with foil or casserole lid and let it stand to finish cooking in the center and avoid overcooking the outer edges. The length of standing time depends on the density and surface area of the food.
• Wrapping in waxed paper or paper towel: Sandwiches and many other foods containing prebaked bread should be wrapped prior to microwaving to prevent drying out.

Fish & Shellfish

Cooking Fish and Shellfish: General Directions

• Prepare the fish for cooking.

• Completely defrost the fish or shellfish.

• Arrange unevenly shaped pieces with thicker parts toward the outside of the dish. Arrange shellfish in a single layer for even cooking.
• The type of cover you use depends on how you cook. Poached fish needs a microwavable lid or vented plastic wrap.

• Baked fish, coated fish, or fish in sauce needs to be covered lightly with waxed paper to keep the coating crisp and sauce from getting watery.

• Always set the shortest cooking time. Fish is done when it turns opaque and the thickest part begins to flake. Shellfish is done when the shell turns from pink to red and the flesh is opaque and firm.

• The Fish and Shellfish Cooking Table below provides specific directions with Power Level and Cooking Time settings for most types of fish and shellfish.

Fish And Shellfish Cooking Table

	POWER LEVEL	COOKING TIME	DIRECTIONSFISH
Fish fillets	HI	31/2-41/2 minutes	Arrange fish in a single layer with thickest portion toward outside edge of 11/2 quart microwavable baking dish. Brush with melted butter and season, if desired. Cook covered with vented plastic wrap. Let stand covered 2 minutes. If you are cooking more than 1 lb. of fish, turn the fish halfway through cooking.
Fish steaks	HI	41/2-51/2 minutes
Whole fish	7	41/2-6 minutes
Scallops	HI	31/2-5 minutes	Arrange in a single layer. Prepare as directed above, except stir instead of turning the shellfish.
Shrimp, shelled	HI	31/2-5 minutes

COOKING

Appetizers / Sauces / Soups

Cooking Appetizers: Tips and Techniques

Recommended

• crackers, such as melba toast, shredded wheat, and crisp rye crackers are best for microwave use. Wait until party time to add the spreads. Place a paper towel under the crackers while they cook in the microwave oven to absorb extra moisture.
• Arrange individual appetizers in a circle for even cooking.
• Stir dips to distribute heat and shorten cooking time.

Cooking Sauces: Tips and Techniques

• Use a microwavable casserole or glass measuring cup that is at least 2 or 3 times the volume of the sauce.
• Sauces made with cornstarch thicken more rapidly than those made with flour.

Cooking Soups: Tips and Techniques

• Cook soups in a microwavable dish which holds double the volume of the recipe ingredients to prevent boil-over, especially if you use cream or milk in the soup.
• Generally, cover microwaved soups with VENTED plastic wrap or a microwavable lid.
• Cover foods to retain moisture. Uncover foods to retain crispness.
• Avoid overcooking by using the minimum suggested time. Add more time, if necessary, only after checking the food.

Not Recommended

• Appetizers with a crisp coating or puff pastry are best done in a conventional oven with dry heat.

• Breaded products can be warmed in the microwave oven but will not come out crisp.

• Cook sauces made with cornstarch or flour uncovered so you may stir them 2 or 3 times during cooking for a smooth consistency.

• To adapt a conventional sauce or gravy recipe, reduce the amount of liquid slightly.
• Stirring occasionally will help blend flavors, distribute heat evenly, and may even shorten the cooking time.
• When converting a conventional soup recipe to cook in the microwave, reduce the liquid, salt, and strong seasonings.

Potato

This set may help you to cook potatoes with the recommendatory time as below. You can choose from 1 to 4 potatoes.

NOTE:

• Cooking time based on an average 9 ounces potato.
• Before baking, pierce potato with fork several times.
  After baking, let it stand for 5 minutes.

Example: To cook 2 Potatoes.

COOK TIME

1. Touch STOP/CLEAR.

2. Touch COOK TIME.

6 3 0

1. Enter the cook time.

1. Touch START/ENTER.

Potato Cooking Time Table

Quantity of Potato (EA)	1	2	3	4
Cook Time	4'30"	6'30"	9'30"	12'30"

Meat

Cooking Meat: General Directions

• Prepare the meat for cooking.

• Defrost completely.

• Trim off excess fat to avoid splattering.
• Place the meat, fat side down, on a microwavable rack in a microwavable dish.
• Use oven cooking bag for less tender cuts of meat.
• Arrange the meat so that thicker portions are toward the outside of the dish.
• Cover the meat with waxed paper to prevent splattering.

Tend the meat as it cooks.

• Drain juices as they accumulate to reduce splattering and keep from overcooking the bottom of the meat.
• Shield thin or bony portions with strips of foil to prevent overcooking.

NOTE: Keep the foil at least 1 inch from the oven walls, and do not cover more than one-third of the meat with foil at any one time.

• Let the meat stand covered with foil 10-15 minutes after you remove it from the oven. The internal temperature of the meat may rise from 5 - 10^ during standing time.

The Meat Cooking Table on the next page provides detailed directions, Power Level, and Cooking Time settings for most cuts of meat.

COOKING

Meat Cooking Table

	POWER LEVEL	COOKING TIME	DIRECTIONSMEAT
BeefHamburgers, Fresh or defrosted (4 oz. each)1 patty2 patties4 patties	HI	1-11/2 minutes11/2-2 minutes21/2-31/2 minutes	Form patties with depression in center of each. Place on microwavable roast rack. Brush with browning agent, if desired. Cover with waxed paper. Turn over halfway through cooking. Let stand covered 1 minute.
Sirloin tip roast (3-4 lbs.)	5	8-10 minutes per pound RARE(135°F)11-13 minutes per pound MEDIUM(155°F)	Place roast fat side down on microwavable roast rack. Add desired seasonings and cover with waxed paper. Turn meat over halfway through cooking and shield if necessary. Remove roast from microwave oven when desired temperature is reached. Let stand covered with foil 15 minutes.(Temperature may rise about 10°F).
LambLamb roast, rolled boneless (3-4 lbs.)	5	11-12 minutes per pound RARE(135°F)12-13 minutes per pound MEDIUM(145°F)13-14 minutes per pound WELL(155°F)	Place roast fat side down on microwavable roast rack. Brush lamb with marinade or desired seasonings such as rosemary, thyme or marjoram. Cover with waxed paper. Turn roast over after 15 minutes, and again after 30 minutes. Shield if necessary. Remove roast from microwave when desired temperature is reached. Let stand covered with foil 15 minutes (Temperature may rise about 10°F).
PorkBacon slices2 slices4 slices6 slices	HI	11/2-2 minutes21/2-3 minutes31/2-41/2 minutes	Place bacon slices on microwavable roast rack. Cover with paper towels. After cooking, let stand 1 minute.
Chops (5-7 oz. each)2 chops4 chops	3	18-20 minutes per pound15-17 minutes per pound	Place chops in microwavable baking dish. Add desired seasonings and cover with vented plastic wrap. Cook until no longer pink or until internal temperature reaches 170°F. Turn chops over halfway through cooking. Let stand covered 5 minutes.(Temperature may rise about 10°F).
Loin Roast, rolled, boneless (3 1/2- 4 1/2 lbs.)	3	25-27 minutes per pound (165°F)	Place roast in cooking bag in microwavable dish. Add seasonings and browning agent if desired. Close bag loosely with microwavable closure or string. After cooking, let stand in bag 15 minutes. (Temperature may rise about 10°F.) Internal temperature of pork should reach 170°F before serving.
Sausage links, Fresh or Frozen, defrosted (1-2 oz. each)2 links4 links6 links10 links (8 oz. pkg.)	HI	45-60 seconds1-11/2 minutes11/2-2 minutes13/4-2 minutes	Pierce links and place on microwavable roast rack. Cover with waxed paper or paper towel. Turn over halfway through cooking. After cooking, let stand covered 1 minute.

COOKING

Poultry

Cooking Poultry: General Directions

• Prepare the poultry for cooking.

• Defrost completely.

• Arrange poultry pieces with thicker pieces at the outside edge of the baking dish. When cooking legs, arrange them like the spokes of a wheel.
• Cover the baking dish with waxed paper to reduce splattering.

• Use a browning agent or cook with a sauce to give a browned appearance.

• Tend the poultry as it cooks.

• Drain and discard juices as they accumulate.

• Shield thin or bony pieces with small strips of aluminum foil to prevent overcooking. Keep foil at least 1 inch from the oven walls and other pieces of foil.

• The poultry is done when it is no longer pink and the juices run clear. When done, the temperature in the thigh meat should be 180 - 185^ .

• Let the poultry stand after cooking covered with foil for 10 minutes.

The Poultry Cooking Table below provides detailed directions, Power Level, and Cooking Time settings for most cuts and types of poultry.

Poultry Cooking Table

	POWER LEVEL	COOKING TIME	DIRECTIONSPOULTRY
Chicken pieces (21/2-3 lbs).	HI	41/2-51/2 minutes per pound	Wash, shake the water off, and go on with cooking. Place pieces in a single layer in a microwavable baking dish with thicker pieces to the outside. Brush with butter or browning agent and seasonings if desired. Cover with waxed paper. Cook until no longer pink and juices run clear. Let stand covered 5 minutes.
Chicken whole (3-31/2 lbs)	HI	12-13 minutes per pound	Wash, shake the water off, and go on with cooking. Place breast side down on a microwavable roast rack. Brush with butter, or browning agent and seasoning if desired. Cover with waxed paper. Cook 1/3 of estimated time. Turn breast side up, brush with butter, or browning agent. Replace waxed paper. Cook 1/3 of estimated time again. Shield if necessary. Cook remaining 1/3 of estimated time or until no longer pink and juices run clear. Let stand covered with foil 10 minutes. (The temperature may rise about 10°F.) The temperature in the high should be 180°F-185°F when the poultry is done.
Cornish Hens Whole (1-11/2 lbs. each)	HI	6-7 minutes per pound	Wash, shake the water off, and go on with cooking. Tie wings to body of hen and the legs to tail. Place hens breast side down on microwavable rack. Cover with waxed paper. Turn breast side up halfway through cooking. Shield bone ends of drumsticks with foil. Remove and discard drippings. Brush with butter or browning agent and seasonings if desired. Cook until no longer pink and juices run clear. Remove hens from microwave when they reach desired temperature. Let stand covered with foil 5 minutes. (Temperature may rise about 10°F). Temperature in breast should be 170°F before serving.

COOKING

Pasta And Rice

Microwave cooking and conventional cooking of pasta, rice, and cereal require about the same amount of time, but the microwave is a more convenient method because you can cook and serve in the same dish.

There is no stirring needed and leftover pasta tastes just like fresh cooked when reheated in the microwave oven.

Cooking Pasta and Rice: Tips and Techniques

• If you are planning to use rice or pasta in a casserole, undercook it so it is still firm.

• Allow for standing time with rice, but not for pasta.

• The Pasta and Rice Cooking Tables below provide specific directions, with Power Level and Cooking Time settings for most common types of pasta and rice.

Pasta Cooking Table

	POWER LEVEL	COOKING TIME	DIRECTIONSTYPE OF PASTA
Spaghetti4 cups water.Add 8 oz. spaghetti.	HI5	9 to 10 minutes7 1/2 to 8 1/2 minutes	Combine hot tap water and salt, if desired. Use a 2-quart microwavable baking dish and cover with vented plastic wrap for spaghetti and lasagna noodles.Use microwavable lid or vented plastic wrap for macaroni and egg noodles.Cook at Power Level HI as directed in chart or until water boils.Stir in pasta; cook covered at Power Level 5 as directed in chart or until tender.Drain in a colander.
Macaroni3 cups water.Add 2 cups macaroni.	HI5	6 to 7 minutes5 1/2 to 6 1/2 minutes
Lasagna noodles4 cups water.Add 8 oz. lasagna noodles.	HI5	7 to 8 minutes11 to 12 1/2 minutes
Egg noodles6 cups water.Add 4 cups noodles.	HI5	8 to 10 minutes5 1/2 to 6 1/2 minutes

Rice Cooking Table

	POWER LEVEL	COOKING TIME	DIRECTIONSTYPE OF RICE
Long grain2 1/4 cups water.Add 1 cup rice.	HI5	4 1/2 to 5 1/2 minutes14 minutes	Combine hot tap water and salt, if desired, in 2 quart microwavable casserole. Cover with microwavable lid or vented plastic wrap. Cook as directed in chart at Power Level HI or until water boils. Stir in rice and any seasonings.Cook covered as directed in chart at Power Level 5 or until water is absorbed and rice is tender.Let stand covered 5 to 10 minutes. Fluff with fork.
Brown2 1/2 cups water.Add 1 cup rice.	HI5	4 1/2 to 5 1/2 minutes28 minutes
Long grain and wild rice mix2 1/3 cups water.Add 6 oz. pkg.	Hi5	4 to 5 minutes24 minutes
Quick cooking1 cup water.Add 1 cup rice.	HI	2 to 3 minutes	Cook water until it boils. Stir rice into boiling water and let stand, covered 5 to 10 minutes or until water is absorbed and rice is tender. Fluff with fork.

MAINTENANCE

CARE AND CLEANING

For best performance and safety, keep the oven clean inside and outside. Take special care to keep the inner door panel and the oven front frame free of food or grease build-up.

Never use rough powder or pads. Wipe the microwave oven inside and out, including the hood bottom cover, with a soft cloth and a warm(not hot) mild detergent solution. Then rinse and wipe dry. Use a chrome cleaner and polish on chrome, metal and aluminum surfaces. Wipe spatters immediately with a wet paper towel, especially after cooking chicken or bacon. Clean your oven weekly or more often, if needed.

METAL RACK

Wash the metal rack with a mild soap and a soft or nylon scrub brush.Dry completely. Do not use abrasive scrubbers or cleaners to clean rack.

CLEANING THE GREASE FILTER

The grease filter should be removed and cleaned often, at least once a month.

1. To remove grease filters, slide each filter to the side, then pull filters downward. The filter will drop out.

1. Soak grease filter in hot water and a mild detergent. Rinse well and shake to dry. Do not use ammonia or place in a dishwasher. The aluminum will darken.

1. To reinstall the filters, slide it into the side slot, then push up and forward to lock.

NOTE: Do not operate the hood without the filter in place.

CHARCOAL FILTER REPLACEMENT

If your oven is vented inside, the charcoal filter should be replaced every 6 to 12 months, and more often if necessary. The charcoal filter cannot be cleaned. To order a new charcoal filter, contact the Service Center.

1. Remove the two vent grille mounting screws. (2 middle screws)
2. Tip the grille forward, then lift it out

1. Remove old filter.

1. Slide a new charcoal filter into place. The filter should rest at the angle shown and set the clock.

1. Slide the bottom of the vent cover into place. Push the top until it snaps into place. Replace the mounting screws. Turn the power back on at the main power supply and set the clock.

MAINTENANCE

COOKTOP/NIGHT LIGHT REPLACEMENT

1. Unplug oven or turn off power at the main power supply.
2. Remove the bulb cover mounting screws.

1. Replace bulb(s) with 30 watt appliance bulb(s).
2. Replace bulb cover, and mount screw.
3. Turn the power back on at the main power supply.

OVEN LIGHT REPLACEMENT

1. Unplug oven or turn off power at the main power supply.
2. Remove the vent cover mounting screws. (2 middle screws)
3. Tip the cover forward, then lift out to remove.

1. Lift up the bulb holder.

1. Replace bulb with a 30 or 40 watt appliance bulb.
2. Replace the bulb holder.
3. Slide the top of the vent cover into place. Push the bottom until it snaps into place. Replace the mounting screws. Turn the power back on at the main power supply.

QUESTIONS AND ANSWERS

Q. Can I use a rack in my microwave oven so that I may reheat or cook in two levels at a time?

A. Only use the rack that is supplied with your microwave oven. Use of any other rack can result in poor cooking performance and/or arcing and may damage your oven.
Q. Can I use either metal or aluminum pans in my microwave oven?

A. Usable metal includes aluminum foil for shielding (use small, flat pieces), and shallow foil trays (if tray is 3/4 inch deep and filled with food to absorb microwave energy). Never allow metal to touch walls or door.
Q. Sometimes the door of my microwave oven appears wavy. Is this normal?
A. This appearance is normal and does not affect the operation of your oven.
Q. What are the humming noises that I hear when my microwave oven is operating?
A. You hear the sound of the transformer when the magnetron tube cycles on and off.
Q. Why does the dish become hot when I microwave food in it? I thought that this should not happen.
A. As the food becomes hot it will conduct the heat to the dish. Use hot pads to remove food after cooking.
Q. What does "standing time" mean?
A. "Standing time" means that food should be taken out of the oven and covered for additional time after cooking. This process allows the cooking to finish, saves energy and frees the oven for other purpose.
Q. Can I pop popcorn in my microwave oven? How do I get the best results?
A. Yes. Pop packaged microwave popcorn following manufacturer's guidelines or use the preprogrammed Popcorn pad.
Do not use regular paper bags. Use the "listening test" by stopping the oven as soon as the popping slows to a "pop" every one or two seconds. Do not try to repop unpopped kernels. You can also use special microwave poppers. When using a popper, be sure to follow manufacturer's directions. Do not pop popcorn in glass utensils.
Q. Why does steam come out of the air exhaust vent?
A. Steam is normally produced during cooking. The microwave oven has been designed to vent this steam out the top vent.

MAINTENANCE

You may microwave in many more utensils than you can use on the stove or in a conventional oven, because microwaves penetrate them safely still cooking the food.

Below are listed the utensils you can safely cook with and those you must avoid. To test whether you can safely with a utensil not on the lists below, do the following:

1. Place the utensil empty in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place in the oven beside the utensil.
3. Microwave on HI Power for 1 minute.
4. If the utensil is warm to the touch at the end of this time, you should not use it for microwave cooking.

MICROWAVE UTENSIL GUIDE

USE	DO NOT USE
OVENPROOF GLASS (treated for high intensity heat): utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metallic trim.	METAL UTENSILS: Metal shields the food from microwave energy and produces uneven cooking. Also avoid metal skewers, thermometers or foil trays.Metal utensils can cause arcing, which can damage your microwave oven.
CHINA: bowls, cups, serving plates and platters without metallic trim.	METAL DECORATION: Metal-trimmed or metal-banded dinnerware, casserole dishes, etc. The metal trim interferes with normal cooking and may damage the oven.
PLASTIC: Plastic wrap (as a cover)-- lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. As the food heats it may melt the plastic wrap wherever the wrap touches the food. Use plastic dishes, cups, semirigid freezer containers and plastic bags only for short cooking time. Use these with care because the plastic may soften from the heat of the food.	ALUMINUM FOIL: Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing. Use small pieces of foil to shield poultry legs and wings. Keep ALL aluminum foil at least 1 inch from the side walls and door of the oven.
	WOOD: Wooden bowls and boards will dry out and may split or crack when you use them in the microwave oven. Baskets react in the same way.
	TIGHTLY COVERED UTENSILS: Be sure to leave openings for steam to escape from covered utensils. Pierce plastic pouches of vegetables or other food items before cooking. Tightly closed pouches could explode.
PAPER: Paper towels, waxed paper, paper napkins and paper plates with no metallic trim or design. Look for the manufacturer's label for use in the microwave oven.	BROWN PAPER: Avoid using brown paper bags. They absorb too much heat and could burn.
	FLAWED OR CHIPPED UTENSILS: Any utensil that is cracked, flawed or chipped may break in the oven.
	METAL TWIST TIES: Remove metal twist ties from plastic or paper bags. They become hot and could cause a fire.

BEFORE CALLING FOR SERVICE

Check the following list to be sure a service call is really necessary. A quick reference of this manual as well as reviewing additional information on items to check, may prevent an unneeded service call.

If nothing on the oven operates:

• check for a blown circuit fuse or a tripped main circuit breaker.
• check if oven is properly connected to electric circuit in house.
• check that controls are set properly.

If the oven interior light does not work:

• the light bulb is loose or defective.

If oven will not cook:

• check that control panel was programmed correctly.
• check that door is firmly closed.
• check that Start Pad was touched.
• check that probe was inserted correctly into receptacle.
• check that timer wasn't started instead of a cook function.

If oven takes longer than normal to cook or cooks too rapidly:

• be sure the Power Level is programmed properly.

If the time of day clock does not always keep correct time:

• check that the power cord is fully inserted into the outlet receptacle.
• be sure the oven is the only appliance on the electrical circuit.

If food cooks unevenly:

• be sure food is evenly shaped.
• be sure food is completely defrosted before cooking.
• check placement of aluminum strips used to prevent overcooking.

If food is undercooked:

• check recipe to be sure all directions (amount, time, & power levels) were correctly followed.
• be sure microwave oven is on a separate circuit.
• be sure food is completely defrosted before cooking.

If food is overcooked:

• check recipe to be sure all directions (amount, power level, time, size of dish) were followed.

If arcing (sparks) occur:

• be sure microwavable dishes were used.
• be sure wire twist ties weren't used.
• be sure oven wasn't operated when empty.
• make sure metal rack (if used) is properly, installed on 4 supports.

If the Display shows a time counting down but the oven is not cooking:

• check that door is firmly closed.
• check that Timer wasn't started instead of a cooking function.

BEFORE CALLING FOR SERVICE

You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the chart below and try the solutions marked for each problem. If the microwave oven still does not work properly, contact the nearest Service center. Service Centers are fully equipped to handle your service requirements.

PROBLEM SOLUTION
Oven will not start Is power cord plugged in? Is door closed? Cooking time not set. Temperature not set or probe not plugged in.
Arcing or Sparking Use approved cookware only. Properly position temperature probe. Do not operate with oven empty.
Time of day incorrect Reset time of day.
Probe Light Flashes Is temperature probe properly plugged in?
Unevenly Cooked Foods	Use approved cookware only. Turn or stir food. Completely defrost food.
Overcooked Foods Properly position temperature probe. Use correct time. / Power level setting. Use correct temp setting.
Undercooked Foods	Use approved cookware only. Properly position temperature probe. Completely defrost food. Use correct time. / Power level setting. Use correct temp setting. Check see that oven ventilation ports are not restricted.
Improper Defrosting Use approved cookware only. Turn or stir food. Use correct time. / Power level setting.
Oven Lamp does net Light Is power cord plugged in? Is door closed? Cooking time not set. Is light bulb burned out?

LG ELECTRONICS CANADA, INC. LIMITED WARRANTY - Canada

WARRANTY: Should your LG Microwave ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty (60) days from the date of manufacture).
Over-the-Range / All Convection / Microwaves in Built-in application / All other Microwave Oven	Extended Component Warranty (Parts Only)
One (1) year from the date of origina retail purchaseretail purchase	Five (5) years from the date of original retail purchase
Parts and Labor (In-Home ; OTR & Convection) (internal/functional parts only)	Magnetron Only

Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater. Replacement products and parts may be new or remanufactured.
念 LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTYES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE.

LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.

This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined in the Product owner's manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner's and installation manuals.
    17.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www/lg.ca

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

MANUEL DE L'UTILISATEUR

FOUR À MICRO-ONDES

LISEZ ATTENTIVEMENT CE MANUEL

AVANT DE METTRE L'APPAREIL EN MARCHE.

LMV1680DB

LMV1680DW

LMV1680DS

TABLE DES MATIÈRES

TABLE DES MATIÈRES 2

MESURES DE PREVENTION 3

1. Appuyez surSTOP/CLEAR

The nine power levels in addition to "HIGH" allow you to choose the best power level for the food you are cooking.

REEMPLACEMENT DU FILTRE AU CHARBON
