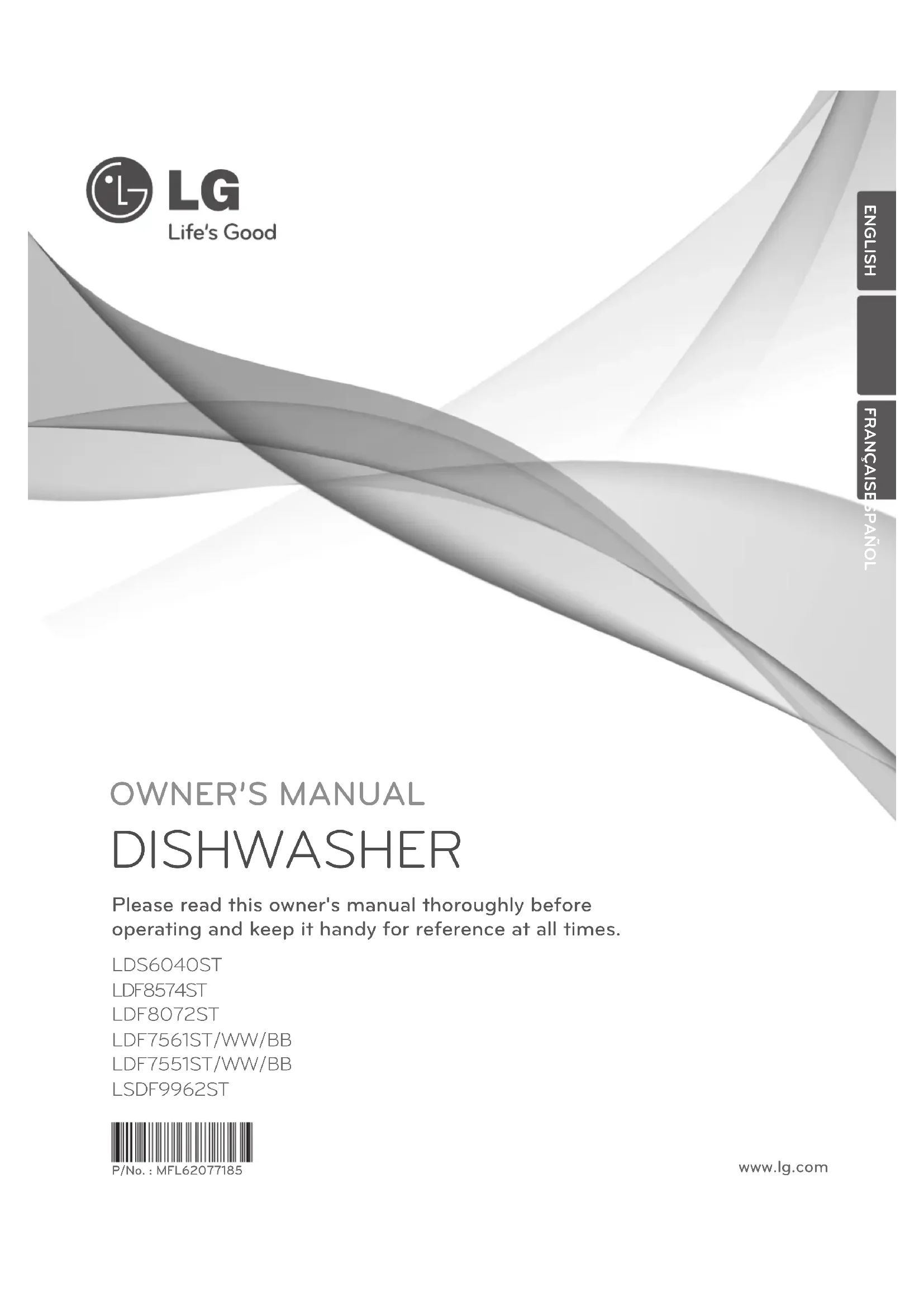

USER MANUAL LDF8072ST LG

DISHWASHER Please read this owner's manual thoroughly before operating and keep it handy for reference at all times. LDS6040ST LDF8574ST LDF8072ST

3 Basic Safety Precautions 4 Electrical Safety 5 Before Using the Dishwasher 5 Specifications

6 PARTS AND FEATURES

6 Features 7 Parts 8 Control Panel (steam models) 10 Control Panel (non-steam models) 12 Cycle Option Chart 12 Icons 13 Cycle Selection Chart 14 OPERATING INSTRUCTIONS 14 Quick Start 15 Loading the Lower Rack 16 Folding Down the Lower Tines 17 Loading the Silverware Basket 18 Loading the Upper Rack 18 Folding Down the Upper Tines 19 Height Adjustable Upper Rack 20 Loading the Cutlery Rack (on some models) 20 Height Adjustable Tray (on some models) 21 Adding Detergent to the Dispenser 22 Adding Rinse Aid to the Dispenser

23 CARE AND CLEANING

23 Cleaning the Filters 24 Cleaning Metallic Parts 24 Cleaning the Lower Spray Arm 24 Cleaning the Upper Spray Arm 25 Cleaning the Top Spray Arm 25 Seasonal Maintenance and Storage 26 FAQS THANK YOU Congratulations on your purchase and welcome to the LG family. Your new LG Dishwasher combines quiet, ecient operation with advanced cleaning technology. By following the operating and care instructions in this manual, your dishwasher will provide you with many years of reliable service. 28 TROUBLESHOOTING 28 Before Calling for Service

30 SMART DIAGNOSIS™ SYSTEM

READ ALL INSTRUCTIONS BEFORE USEYour safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage or serious bodily harm, even death. The safety alert symbol will be followed by either the word “WARNING” or “CAUTION” then an important safety message. These words mean: WARNING Indicates the possibility of serious bodily harm or death. CAUTION Indicates the possibility of injury or damage to property.

BASIC SAFETY PRECAUTIONS

WARNING To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:• Read all instructions carefully before using the dishwasher.• Use the dishwasher only for its intended function.• Only use detergents or rinse agents recommended for use in a dishwasher. Keep all dishwasher detergents and additives out of the reach of children.• This appliance is not intended for use by young children.• When loading items to be washed:1) Load sharp items so that they are not likely to damage the door seal.2) Load sharp knives with the handles up to reduce the risk of injury when reaching into the dishwasher. y Do not wash plastic items in the dishwasher unless they are labeled “dishwasher safe” or the equivalent. For plastic items that are not so labeled, check the manufacturer’s recommen-dations.• Do not operate the dishwasher unless all enclosure panels are properly in place.• Do not tamper with the controls.• Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.• To reduce the risk of injury, do not allow children to play in or around the dishwasher.• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period of time, turn on all hot water faucets and let the water ow for several minutes. This will release any accumulated hydrogen gas. Since hydrogen gas is ammable, do not smoke or use an open ame during this time.• Remove the door to the wash compartment when disposing of an old dishwasher.• The installer must ensure that the dishwasher is completely enclosed at the time of installation.

• WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. This manual contains very important information regarding the installation, use, and maintenance of your dishwasher. The manufacturer cannot be responsible for injuries or damage caused by failure to follow these safety and caution instructions.4

WARNING To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: For a permanently connected dishwasher: This appliance must be connected to a grounded metal, perma- nent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equip- ment grounding terminal or lead on the appliance. Consult with a qualied electrician. Tip Hazard Do not put excessive downward force on the open dishwasher door prior to installation, as this could cause damage to the unit or cause it to tip over. Do not use the dishwasher before installa- tion has been completed in accordance with the Installation In- structions. ELECTRICAL SAFETY WARNING Electrical Shock Hazard Failure to follow these instructions can result in death, re, or electrical shock.

• The dishwasher MUST be grounded. Connect the ground wire to the green ground connector in the terminal box.

• Do not use an extension cord with this appliance.

• The dishwasher is designed to be used with standard household current (120 Volts AC, 60Hz.). Before connecting the dishwasher, ensure that the outlet or cable is properly grounded and polarized by circuit breakers or fuses. Failure to provide adequate grounding of this appliance may cause electrical shock or malfunction of the appliance. Consult with a qualied electrician.

• Do not install or store the dishwasher where it will be exposed to weather conditions. Failure to observe this precaution may result in electrical shock, re, malfunction, and/or deformation of the dishwasher.

• Do not damage or place heavy items on the power cord of the appliance. Do not use the dishwasher if it has a damaged power cord. Power cord damage may cause re and electrical shock. Consult with a qualied electrician.

• Do not grasp the power cord or touch the dishwasher controls with wet hands. Do not use the dishwasher if it has a damaged power cord or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.

• Disassembly or repair must be performed by experienced service persons. Improper disassembly or repair could lead to product failure or electrical shock.ENGLISH

BEFORE USING THE DISHWASHER

Before using the dishwasher, please read the Important Safety Instructions. Water supply temperature should be a minimum of 120°F (49°C) for better washing and reasonable cycle time. For this reason, use the hot water supply only. It is also important that the dishwasher is loaded according to instructions for eec-tive cleaning. When loading the dishwasher, make sure that in-soluble items such as bones, toothpicks, and pieces of paper have been removed.

SAVE THESE INSTRUCTIONS

When loading the dishwasher, observe the following general guidelines: 1. Place items with deep dish bottoms at an angle to help water run o and speed the drying process. 2. Remove solid, burned-on scraps from dishes prior to loading in the dishwasher. 3. Only load items that are dishwasher-safe. Do not load utensils that are not heat-resistant, have decorative metal trim, etc. NOTE SPECIFICATIONS

• Power Supply: 120V, 60 Hz AC only, minimum 15A circuit breaker• Water Pressure: 20–120 psi (140–830 kPa)• Size (WxDxH): 23 /4" x 24 /8"x 33 /2" (603 mm x 625 mm x 851 mm)• Inlet Water Temperature: 120°F (49°C) minimum• Product Weight : - LDF8574, LSDF9962 : 102.5 lbs.(46.5kg) - LDF8072 : 100.5 lbs.(45.6kg) - LDF7561 : 96.6 lbs.(43.8kg) - LDF7551 : 88.2 lbs.(40kg) - LDS6040 : 94.9lbs.(43.1kg )The appearance and specications are subject to change without notice.6

LARGE CAPACITY LG dishwashers allow you to load very large items in both the up- per and lower racks. The tall tub provides extra overall capacity and the clearance to accommo- date large dishes. Extra large items (max. 14 in.) may be loaded in the lower rack by raising the upper rack. FEATURES

The new Slim Direct Mo- tor™ is inverter-controlled. Wash power is controlled based on cycle selection. It also oers high energy eciency to minimize en- ergy use.

HYBRID DRYING SYSTEM

This system eectively dries dishes without the use of a heating element that would increase en- ergy consumption. STEAM WASHING (not available on all models) Steam technology pro- vides better cleaning performance than regu- lar wash systems. Steam is the most energy ef- cient gentle care for your nest china and stemware.

VARIABLE SPRAY SYSTEM

Because the water spray alternates between the upper and lower racks, all of the power from the motor is directed to one rack at a time. This concentrates all the cleaning power of the motor on each rack in turn. BLUE LCD (not on all models) AND LIGHT TOUCH BUTTONS The light touch buttons on the control panel make selections easy and convenient. The blue LCD display clearly displays the selected cycle and options.ENGLISH

SignaLight (front display) When a cycle is running, the SignaLight will illuminate for the active stage.• Modelwith4LEDs:WASH–RINSE–DRY–CLEAN• Modelswith2LEDs:OPERATING-CLEAN• Modelswith1LED:OPERATING(Flickering)/CLEAN(Lighting)Once the cycle is complete, the CLEAN light will illuminate for four minutes.To keep the CLEAN light on until the door is open, turn the power on, and then press and hold the EXTRA DRY and HALF LOAD buttons on the control panel simultaneously until O or On appears in the display. The dishwasher will remember this setting until manually changed. MeshlterOuterlterUpperSTSlter8

CONTROL PANEL (steam models) Cycles Select your desired cycle. STEAM POWER This cycle is for heavily and hard soiled dishes. Steam Power defaults to the highest spray intensity and uses the power of steam to wash heavily soiled dishes. STEAM DUAL This cycle washes the upper and lower racks at dierent spray intensities. The default setting for this cycle washes the low- er rack with strong spray intensity and the upper rack with soft spray intensity. This provides optimum cleaning perfor- mance for mixed loads, including ne china and stemware. If other combinations are desired, use the steps listed below to change the intensities or to use the HALF LOAD feature. HowToUseSteamDual:

1. Select Steam Dual.

2. Press the Spray button to toggle between Soft, Medium

and Strong for the upper spray arm.

3. After making your selection for the upper spray arm, press

the Half Load button.

4. Press the Spray button to toggle between Soft, Medium

and Strong for the lower spray arm.

5. Close the door to start the cycle.

STEAM DELICATE This cycle adds the gentle power of steam to boost the clean- ing power of the delicate cycle. The cycle is intended for ef- fectively cleaning delicate items such as ne china and stem- ware. NORMAL This cycle is for normally soiled, everyday loads. QUICK & DRY This is a shortened cycle that is intended for washing and dry- ing recently used dishes or lightly soiled loads. During this cycle, both spray arms will run at the same time. QUICK This is a shortened cycle that is intended to wash recently used or lightly soiled loads, without drying.

To enable or disable the chime, rst, turn on the dishwasher. Press and hold the Quick and Steam Delicate buttons simul- taneously for approximately three seconds.

To cancel a cycle, open the door and then press and hold the Steam Delicate and Normal buttons together for approxi- mately three seconds. The drain pump will activate and the cycle will cancel. The display will show “dr” and the dishwash- er will drain the water. After the dishwasher is drained, the power will turn o. If power is turned on and no cycle has been selected, the dishwasher will power o within four minutes. Cycle Options (Refer to the control panel on the next page) Press the desired cycle and then select the options for that cycle. EXTRA DRY Select the EXTRA DRY option for better drying performance. This option adds 60 minutes of extra drying time to the cycle. The EXTRA DRY button will illuminate when the option has been selected. RINSE Repeated pressing of the Rinse button will select the desired Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra Rinse lights will show in the bottom left portion of the dis- play. SANITARY ( ) This high-temperature rinse sanitizes dishes and glassware in accordance with NSF/ANSI Standard 184 for residential dish- washers. Certied dishwashers are not intended for licensed food establishments.

The Extra Rinse symbol indicates that an extra rinse has been added to the cycle. An extra rinse can help reduce hard water spotting on dishes. To add an extra rinse, press the Rinse but- ton repeatedly until the Extra Rinse symbol appears in the display. RINSE ONLY (LDF****) This cycle is a quick rinse for dishes that will not be washed immediately. This cycle will rinse dishes that have excess soil to soften dried on residue. Rinsing the dishes will help pre- vent odors in the dishwasher. No detergent should be used. To select the Rinse Only cycle, turn the dishwasher on, and press the Rinse button once without pressing any other cycle buttons. The Rinse Only cycle is not available with any other cycles. Steam Models (LDF8574, LDF8072, LSDF9962)ENGLISH

CONTROL PANEL SPRAY (INTENSITY) First, select the desired cycle. Press the Spray button repeat-edly until the desired spray intensity is selected. Soft ( ), Medium ( ), Strong ( ) HALF LOAD For small loads, you may use just the upper or lower rack to save energy. Each press of the Half Load button cycles be-tween upper rack only and lower rack only. DELAY START The Delay Start feature allows you to delay the start of a se-lected cycle. Each time the Delay Start button is pressed, the delay time will increase an hour. The delay start time can be set from 1 to 19 hours, in one-hour increments. CHILD LOCK The Child Lock feature helps prevent your settings from be-ing changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door.ToactivatetheChildLock:1. Open the dishwasher door.2. Press the Power button.3. Select the cycle (and desired options).4. Press and hold the Rinse and Spray buttons for three sec-onds. The Child Lock indicator will illuminate in the display once the Child Lock is activated. 5. Close the door to begin the cycle. DIGITAL DISPLAY The Digital Display on the control panel shows the ESTIMAT-ED cycle time. When the dishwasher is powered up, the dis-play will be blank. When the cycle and options are selected, the display will show the total estimated time to complete those selections. During operation, the display shows the re-maining estimated operating time. • The estimated time shown in the display does not in-clude delay times for heating water, etc. • If Delay Wash is selected, the display shows the delay time in hours. • Time may vary depending on the soil level of your load. NOTE ECO The ECO option saves energy by using less water. This option should only be used with light to medium soiled dishes. The RINSE AID symbol indicates that the rinse aid needs to be relled. NOTE POWER

• Press the Power button to turn on the control panel. If no cycle is selected within four minutes, the dishwasher will power o.• After the cycle is complete, the power automatically turns o for safety and economy purposes. • If there is a power surge, power outage, or disruption of any kind, the PF indicator will display and power will be au-tomatically turned o for safety. The cycle will need to be restarted. SMART DIAGNOSIS Should you experience any problems with your dishwasher, it has the capability of transmitting data to your Smart Phone using the LG Smart Laundry & DW Application or via you tele-phone to the LG call center. WARNING Steam can cause burns. Use caution in the area of the steam noz-zle, on the left side of the dishwasher, if the door is opened during the steam portion of a cycle. Contact with the steam or the steam nozzle can cause burns.Display varies by model (LDF8574, LDF8072, LSDF9962)Display varies by model (LDF7561, LDF7551)10

CONTROL PANEL (non-steam models) Cycles Select your desired cycle. POWER SCRUB This cycle is for heavily and hard soiled dishes. DUAL WASH This cycle washes the upper and lower racks at dierent spray intensities. The default setting for this cycle washes the low- er rack with strong spray intensity and the upper rack with soft spray intensity. This provides optimum cleaning perfor- mance for mixed loads, including ne china and stemware. If other combinations are desired, use the steps listed below to change the intensities or to use the HALF LOAD feature. HowToUseDualWash:

1. Select Dual Wash.

2. Press the Spray button to toggle between Soft, Medium

and Strong for the upper spray arm.

3. After making your selection for the upper spray arm, press

the Half Load button.

4. Press the Spray button to toggle between Soft, Medium

and Strong for the lower spray arm.

5. Close the door to start the cycle.

DELICATE The cycle is intended for eectively cleaning delicate items such as ne china and stemware. NORMAL This cycle is for normally soiled, everyday loads. QUICK & DRY This is a shortened cycle that is intended for washing and dry- ing recently used dishes or lightly soiled loads. During this cycle, both spray arms will run at the same time. QUICK This is a shortened cycle that is intended to wash recently used or lightly soiled loads, without drying. RINSE ONLY (LDS6040) This cycle is a quick rinse for dishes that will not be washed immediately. This cycle will rinse dishes that have excess soil to soften dried on residue. Rinsing the dishes will help pre- vent odors in the dishwasher. No detergent should be used.

To enable or disable the chime, rst, turn on the dishwasher. Press and hold the Quick and Delicate buttons (LDS6040 : Spray and Delay Start) simultaneously for approximately three seconds.

To cancel a cycle, open the door and then press and hold the Delicate and Normal buttons (LDS6040 : Spray and Half Load) together for approximately three seconds. The drain pump will activate and the cycle will cancel. The display will show “dr” and the dishwasher will drain the water. After the dish- washer is drained, the power will turn o. If power is turned on and no cycle has been selected, the dishwasher will power o within four minutes. Display varies by model (LDF7561, LDF7551) Display varies by model (LDS6040)ENGLISH

CONTROL PANEL Display varies by model (LDS6040) Cycle Options (Refer to the control panel on the next page) Press the desired cycle and then select the options for that cycle. EXTRA DRY ( ) Select the EXTRA DRY option for better drying performance. This option adds 60 minutes of extra drying time to the cycle. The EXTRA DRY button will illuminate when the option has been selected. Press and hold the Rinse and Spray buttons for three seconds. RINSE Repeated pressing of the Rinse button will select the desired Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra Rinse lights will show in the bottom left portion of the dis- play. SANITARY ( ) This high-temperature rinse sanitizes dishes and glassware in accordance with NSF/ANSI Standard 184 for residential dish- washers. Certied dishwashers are not intended for licensed food establishments.

The Extra Rinse symbol indicates that an extra rinse has been added to the cycle. An extra rinse can help reduce hard water spotting on dishes. To add an extra rinse, press the Rinse but- ton repeatedly until the Extra Rinse symbol appears in the display. SPRAY (INTENSITY) First, select the desired cycle. Press the Spray button repeat- edly until the desired spray intensity is selected. Soft ( ), Medium ( ), Strong ( ) HALF LOAD ( ) For small loads, you may use just the upper or lower rack to save energy. Each press of the Half Load button cycles be- tween upper rack only and lower rack only. DELAY START The Delay Start feature allows you to delay the start of a se- lected cycle. Each time the Delay Start button is pressed, the delay time will increase an hour. The delay start time can be set from 1 to 19 hours, in one-hour increments. CHILD LOCK The Child Lock feature helps prevent your settings from be- ing changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door. ToactivatetheChildLock:

1. Press the Power button.

2. Select the cycle (and desired options).

3. Press and hold the Half Load and Delay Start buttons for

three seconds. The Child Lock indicator will illuminate in the display once the Child Lock is activated.

4. Close the door to begin the cycle.

DIGITAL DISPLAY The Digital Display on the control panel shows the ESTIMAT- ED cycle time. When the dishwasher is powered up, the dis- play will be blank. When the cycle and options are selected, the display will show the total estimated time to complete those selections. During operation, the display shows the re- maining estimated operating time.12

Dual Wash Soft (upper arm) Medium Strong (lower arm) Steam Delicate

The cycle guide below shows the available options for each cycle.

• Apply to LDF**** Steam Cycle (steam models) Extra Rinse Sanitary Rinse Low, Medium, High Spray, Intensity UPPER Upper Spray Arm ICONS LOWER Lower Spray Arm Child Lock Low Rinse Aid Indicator *Extra Dry Eco Cycle Cycle Time Indicator *Apply to LDS****ENGLISH

• Actual water consumption will vary depending on soil level and water hardness. ** Actual cycle times may vary depending on soil level, water temperature and hardness

Scrape the dishes free of excess food, bones, and any other hard, non-soluble residue. Pull each rack out and load the dishes as described in this manual.

2. MEASURE THE DETERGENT

Using the guidelines in this manual, ll the detergent cup with the recommended amount of detergent and close the lid. If a prewash is desired, the recess on top of the lid should also be lled with detergent.

The Rinse Aid indicator light will illuminate if the level of rinse aid in the dishwasher is low. Add rinse aid if the level is low to maintain the eectiveness of the dry cycle.

5. SELECT THE CYCLE AND OPTIONS

Select the cycle and options that best t the load by referring to the Cycle Selection Chart. The display will show the esti- mated time for the cycle and options selected.

The dishwasher will start automatically, after a slight delay, when the door is closed and latched. During the cycle, the display will indicate the estimated time remaining for the cycle and options selected. If the door is opened during the cycle, the dishwasher will stop. When the door is closed, the cycle will resume from the point where it was stopped.

When the cycle is complete, a chime will sound and the dis- play will show “END.” After a short time, the display and con- trols will shut o for safety and energy conservation. CAUTION Empty the lower rack rst and then the upper rack. This will avoid water from dripping from the upper rack onto dishes in the lower rack. WARNING In general, it is not advisable to open the door while the dish- washer is in operation. If the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door im- mediately following the cycle, as steam may escape. AUTO-OFF The dishwasher will automatically turn o if a cycle is not selected or if the door is not closed within four minutes. OPERATING INSTRUCTIONSENGLISH OPERATING INSTRUCTIONS

The combination of high water temperature and dishwasher detergents may damage certain items. LG does not recommend washing the following items in the dishwasher:• Hand painted silver or gold leaf dishes• Wood or bone handled utensils• Iron or other rust prone utensils• Plastic items that are not dishwasher safeWhen in doubt, check the manufacturers’ recommendations.

LOADING THE LOWER RACK

The lower rack should not be used for small items such as cups, wine glasses, or small plates. These items should be loaded in the upper rack. For models with steam, load heavily soiled or stained dishes in the front left side of the lower rack with the dirty side facing down. This is the area that the stream enters the dishwasher. The use of hot steam maximizes the dishwasher’s cleaning performance.The extra tall tub allows loading of dishes, pans, or other utensils up to 14 inches high. The lower rack is recommended for dinner plates, soup bowls, dishes, pots, pans, lids, and grill trays. Plates should be positioned vertically and facing the center of the rack. Pots, pans, and large bowls must be turned so that the inside faces downward. The sil-verware basket may be used in either the lower or upper rack.

y Load plates, soup bowls etc. between the tines. y Load cookie sheets, cake pans and other large items on the sides or back of the rack. Loading these items in the front of the dishwasher can prevent the water spray from reaching the detergent dispenser. y Make sure that pot handles and other large items do not stop the rotation of the spray arms.Make sure that large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening. NOTE

DISHES (steam models) Load items with dicult to remove or baked-on food near the steam spray arms, towards the left side of the lower rack, facing down. The dishes will benet from the direct steam spray and the lower spray arm wash action.

LOADING DISHES & POTS

LOADING POTS & BOWLS

The tines are adjustable to t dishes of various sizes. Rear FrontENGLISH OPERATING INSTRUCTIONS

The silverware basket has separators to avoid scratching and tar-nishing of delicate silverware. The basket can be separated into three separate baskets that can be used individually in both the upper and lower racks. Unlock the tabs above the left and right side to separate. WARNING Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury. SILVERWARE LOADING TIPS: y For best cleaning results, use the top separators in the basket when loading silverware. The separators will prevent nesting of silverware. y Load sharp items, such as knives, pointing down. y When unloading the dishwasher, it is best to start with the sil- verware basket. Doing so will prevent water droplets from fall-ing on your silverware from the upper rack.1 1 1 1 1 11 1 1 1 1 12 2 2 2 2 2 2 2 2 2 2 2 2 25 5 5 5

Use the upper rack for small or delicate items such as small plates, cups, saucers, glasses, and dishwasher-safe plastic items. Cups, glasses, and bowls must be positioned upside down. Extra cups or cooking utensils can be laid on the fold down cup racks, which may also provide support for long stemmed glasses. Make sure items do not interfere with the rotation of the spray arms above and below the upper rack. When loading larger items in the upper rack, such as wine glasses or taller cups, it may be necessary to remove the cutlery rack. NOTE

LOADING 12 PLACE SETTINGS

Pull up the tine Rotate the tine The tines can be adjusted up or down. The right side tines have handles for wider or small dishes. UPPER RACK LOADING TIPS: y Place cups and glasses in the rows between the rack tines. Plac- ing them over the rack tines can lead to breakage and water spots. y To avoid chipping, do not let stem ware touch other items. y Place items so that the open end faces down for cleaning and drying. y Do not stack items on top of each other.ENGLISH OPERATING INSTRUCTIONS

The upper rack adjusts up and down. Adjust the upper rack up to allow tall and oversized items of up to 14 inches high in the low-er rack. Adjust the upper rack down to allow placement of large dishes of up to 12 inches high in the upper rack. The upper rack comes in the upper position.To raise the rack: Simply lift the rack at the center of each side (see illustra-tion) until the rack locks into place in the upper position. It is not necessary to lift the lock levers to raise the rackTo lower the rack: Hold the rack at the center of each side to support its weight. Then, lift the lever on each side to release the rack and lower it to the lower position.

After adjusting, make sure that dishes in the upper and lower racks do not interfere with the rotation of the spray arm. Do not adjust the rack while it is loaded with dishes. NOTE20 OPERATING INSTRUCTIONS

(on some models) Each side tray can be adjusted independently to a high or low position to accommodate dierent sizes of utensils or cutlery. Re-move dishes before adjusting the tray.The cutlery rack is best suited for atware and most cooking or serving utensils. Heavily soiled utensils or items with baked on foods should be placed in the middle rack or spoon basket for best performance. The separators on the cutlery racks help keep atware separated to avoid damage and improve cleaning.Sample 10-place setting. Right Wrong Alternate If the handles of your atware are too thick, then reverse the pieces so that the handles face the other direction, as shown in the bottom gure.Each tray is adjusted by lifting it out and rotating it front to back. Removing the Cutlery Rack The entire cutlery rack can be removed if more space is needed on the upper rack for larger items. Always remove the cutlery from the rack before removing the rack. NOTE Pull the rack out to the end of the rails. Then, lift the front of the rack so that the rollers clear the stop on the end of the rail. The rack can now be slid forward and removed from the rails. WARNING Be careful when loading and unloading sharp edged items. Load sharp knives with the blade down to reduce the risk of injury.

ADDING DETERGENT TO THE DISPENSER

• Only use detergent intended for automatic dishwashers.• Detergent must be put into the detergent compartment be-fore starting any cycle, except the Rinse Only cycle.
• Use less detergent if the dishes are only lightly soiled. Using ex- cess detergent can leave a lm on dishes and in the dishwasher resulting in poor wash performance.• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.Remove the label on the dispenser prior to running the dishwasher. NOTE Push button to openIf the lid is closed, press the lever on the bottom side of the lid to open the dispenser. Add dish washing detergent to the main wash compart-ment until the level is between the lines marked 20 and 30. Fill to the 30 line for hard water or heavily soiled loads. Fill to the 20 line for soft water or lightly soiled loads.Close the lid rmly until it clicks. Place proper detergentinto this compartmentMain washCompartment Pre washCompartmentPlace proper detergentinto this compartmentIf a prewash is desired, ll the recessed prewash com-partment area in the lid with detergent. CAUTION DETERGENT INFORMATION Use only detergent intended for automatic dishwashers. Incorrect detergent may cause the dishwasher to ll with suds during op-eration. Excess sudsing may reduce wash performance and may cause the dishwasher to leak. DO NOT use hand dish washing de-tergent in this dishwasher. DO NOT add detergent when the Rinse Only cycle is selected. NOTE Too much detergent can leave a lm on dishes and in the dishwasher, resulting in poor wash performance. Do not use detergent tablets for shorter wash cycles. The tablet may not dissolve completely, causing detergent residue on dishes and inecient cleaning. NOTE22 OPERATING INSTRUCTIONS

ADDING RINSE AID TO THE DISPENSER

The Low Rinse Aid indicator will appear in the display when more rinse aid is needed. Only use liquid rinse aid in this dishwasher. The use of rinse aid is recommended to prevent water droplet spots on dishes and to enhance the drying performance. Push button to open lid. Add a liquid rinse aid to the maximum ll level. When lling the rinse aid dispenser, aim the rinse aid at the arrow. Make sure that the rinse aid is settled in the dispenser while lling. Close the lid to lock the dispenser. Rinse aid will be dispensed automatically during the nal rinse cycle.RINSE AID DISPENSER ADJUSTMENTThe rinse aid dispenser is set to level 3, which should provide the best performance under most conditions. Adjust the setting higher if you have hard water and notice calcium buildup on your dishes. If you notice lm on your dishes, use a lower setting. Setting the rinse aid control too low will contribute to spotting and streaking of dishes and poor drying performance. Setting the control too high can cause foaming, which will cause poor wash performance. To adjust the rinse aid dispenser setting, remove the cap and ad-just the rinse aid lever to the desired setting. Point the arrow to the left for a lower setting, right for a higher setting.REFILLING THE RINSE AIDThe regularity of the dispenser needing to be relled depends on how often dishes are washed and the rinse aid setting used. If the rinse aid level is low, the Rinse Aid light on the control panel will illuminate. RINSE AID FILLING TIPS: y The Low Rinse Aid indicator will appear in the display when more rinse aid is needed. y Do not overll the rinse aid dispenser. y Clean up any spilled rinse aid to prevent sudsing. Rinse-AidIndicatorAdjust Lever(Rinse)ENGLISH CARE & CLEANING For best results, it is important to periodically check and care for the spray arms. WARNING To prevent injury during care and maintenance/cleaning, wear gloves and/or protective clothing.

CLEANING THE FILTERS

1. Remove the lower rack rst.2. Turn the mesh lter counterclockwise.3. Take out the mesh lter, upper STS lter and outer lter.4. Clean them if necessary.5. Replace them in the reverse order.•For best wash performance, clean the lter after each load.•Before starting a cycle, make sure that the lter is as-sembled correctly. If the lter is not assembled correctly you may experience poor cleaning results.•If you have hard water, it is recommended to clean this lter at least once a month to prevent poor wash per-formance. NOTE Mesh filterOuter filterUpper STSfilter CARE & CLEANING NumberofLoadsPerWeekIfyouwashdishesbeforeloadingIfyouscrapeandrinsedishesbeforeloadingIfyouonlyscrapedishesbeforeloadingIfyoudonotscrapeorrinsedishesbeforeloading1-3 Every 6 months Once a year Four times a year Once a month4-7 Every 6 months Once a year Four times a yearTwice a month (every 15 days) 8-12 Every 6 months Every 6 months Every 1.5 months Every week 13-14 Every 6 months Every 6 months Every 1.5 months Twice a weekRecommendedltercleaningchart:All three lters should be cleaned according to the chart recom-mendations below. Clean the lters using non-abrasive materials and warm running water. A soft brush may be required to get hard to remove soil.24 CARE & CLEANING

• Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.

• When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counterclockwise and pulling down.

• After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clock- wise to make sure that the nut locks back into place.

CLEANING METALLIC PARTS

Some exterior and interior parts can be cleaned with a damp cloth or sponge. A cloudy lm may form on the surface of the stainless steel tub, especially with hard water. y Make sure that the water jet holes are not blocked by food par- ticles. y When cleaning is necessary, remove the lower spray arm by pulling up. y After cleaning the lower spray arm, replace it by pushing down until it clips into place. Be sure that the spray arm is able to turn freely.

Make sure that the water jet holes are not blocked by food particles. When cleaning is necessary, use a screwdriver to release the retainer clip from the bracket that holds the top spray arm assembly to the tub.

Pull the spray arm out. After cleaning the top spray arm, replace it. Slide it back into place and make sure the retainer clip engages.

SEASONAL MAINTENANCE AND STORAGE

• If you will be absent for an extended period of time during warmer months, it is recommended that you close the water valve and unplug the power cord, or turn o the circuit breaker.
• If you will be absent for an extended period of time during colder months, and there is a possibility of freezing temperatures, it is recom- mended that you winterize the water supply lines and the dishwasher itself. Winterization must be performed by experienced service personnel.26 FAQS FAQs

COMMON PRODUCT QUESTIONS

Is a rinse aid required to be used? Rinse aid is strongly recommended to enhance the drying perfor-mance of the dishwasher. In order to be more energy ecient, the hybrid drying system does not utilize a heating element in order to assist in drying, so a rinse aid plays an integral role in the dry process. If a rinse aid is not used, water may remain on the dishes and the tub. Rinse aid will help to ensure that the majority of the water has been sheeted o of the dishes at the end of the rinse and that the load is ready for the dry cycle. What can be done if my dishes have a cloudy, white lm on them after a wash? The cloudy lm is usually caused by minerals in the water react-ing with the dishwasher detergent. First, be certain not to use too much detergent. Refer to the owner’s manual for recommended detergent amounts by cycle. Add an Extra Rinse to the cycle. Add an Extra Rinse, or run a Steam Power or Power Scrub cycle. LG Dishwashers use less water than traditional dishwashers, so add-ing an Extra Rinse will aid in rinsing the lm away. If the water sup-ply is hard, it may be necessary to add a performance booster that addresses the hard water condition. What is the Sanitary Rinse and how is it activated? Sanitary Rinse will increase the heated rinse to approximately 161°F (72°C). The normal heated rinse temperature will vary from cycle to cycle. What steps can I take to improve drying results? Dry performance is directly aected by the amount of heat that remains in the tub after the heated rinse is performed. If your dish-washer is far away from your home’s hot water heater, it may be necessary to run the hot water tap in the sink before starting a wash cycle, to ensure that cool water is purged from the hot water lines. This will ensure your dishwasher has a consistent supply of hot water from start to nish. Using the Sanitary Rinse setting will also aid in keeping the inner drum temperature and dishes hotter before drying begins.LG dishwashers are designed to be used in conjunction with a rinse aid. Using a rinse aid will maximize the amount of water that has already been sheeted away from the dishes before the dry cycle begins. If a rinse aid is used and the performance still needs a boost, adjust the amount of rinse aid used by the indicator on the rinse aid cap. 3 is the default setting, but if necessary, set the level to 4 so more rinse aid will be used.Allow the dishwasher to completely nish the dry cycle before opening the door. If the door is opened mid dry cycle, the heat that is necessary for the hybrid dry system to work will escape out. This will cause all of the dishes inside to remain wet once the cycle nishes. What is the hybrid drying system? The dishwasher does not rely on a heating element for the drying process; instead, it relies on the heat that is retained by the dishes and the tub during the wash and rinse cycles to turn the moisture in the tub into humidity. Warm, moist air in the dishwasher is then pulled into a condensing duct in the door by a fan. The air then cools, which causes the humidity to condense. Room tempera-ture air is also drawn into the duct to help the air cool down faster. When this moisture condenses into a liquid, it is drained out.Rinse aid is required to enhance the drying perfor-mance. If no rinse aid is used, water may remain on the dishes and the tub. NOTE Why is there a whistling sound? It is important to determine how long the noise occurs and when it happens (what part of the cycle). When water is drawn into the dishwasher, a whistling noise can be heard. This is normal. If the water pressure is too high, it will be louder so it may be necessary to adjust the water valve to lower the pressure if the noise is too loud. What is Steam Dual? Steam Dual is an option that can be utilized during wash cycles. This option enables you to fully customize the wash cycle inten-sity for the upper and lower racks, independently, in the same load. For example, by selecting a soft spray for the upper rack and strong spray for the lower rack, you can wash delicate stemware in the upper rack while washing pots and pans in the lower rack. What kind of dishes can be placed in the dishwasher? Ensure that the dishes you place in the dishwasher are dishwasher safe. Plastic dishware will not dry as eectively as glass and met-al dishware. Plastic items do not retain heat as well as glass and metal dishware. Plastic cups and dishes may require some hand drying before being put away at the end of the cycle. Can I perform a drain only cycle? The dishwasher does not have a drain only function; however, the dishwasher will drain on its own for the rst 45 seconds of a new cycle. To drain standing water, select a wash cycle and let it run for only 45 seconds. Then, turn the unit o and let it reset. Repeat as necessary.ENGLISH FAQS

How long does the clean indicator stay lit after the cycle is complete? The clean light indicator on the dishwasher will stay lit for 4 min- utes before turning o. You can, however, program the dishwash- er so that the clean light stays on until the dishwasher door opens. Why does my dishwasher continuously beep if I open the door during a cycle or right after the cycle has nished? This is normal. The dishwasher is letting you know that the interior temperatures of the unit are hot and to use caution when placing your hands inside. Once the unit has cooled down, the beeping will stop.

PRODUCT FEATURES AND

OPERATION What is the benet of steam? Steam allows for thorough cleaning of baked on foods while us- ing less water than other power scrub methods. Steam also allows for enhanced cleaning performance when cleaning ne china and stemware items on a delicate cycle. Stream particles are smaller and more active so their penetrating power is more eective. Steam also increases the interior temperature of the dishwasher, which helps in melting oily or waxy substances, like lipstick along the rim of a glass. What is Child Lock and how is it activated? Child Lock is a feature that will prevent the controls from being changed during the cycle. It does not prevent the door from be- ing opened or the unit from being powered o. To activate or de- activate, press the Spray and Rinse buttons (LDS6040 : Half Load and Delay Start) simultaneously for 3 seconds. Why is “PF” showing up on the display? PF is not an error code indicating a malfunction. PF indicates that there was a power failure. This function protects the dishwasher in the event that the power goes out or the power to the unit is disrupted. When power is returned and a button is pushed, this will display for 10 seconds and then go away. INSTALLATION What size is the 90° elbow? The 90° elbow should have a 3/8” NPT on the end that connects to the dishwasher. Can I add an extension to the drain hose? No, an extension cannot be added.28 TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Problem Possible Causes Solutions Dishwasher will not operate Door is not completely closed. Make sure that the door is completely closed and latched. Power supply or power cord is not connected. Connect the power supply or cord properly. Fuse is blown or circuit breaker tripped. Replace the fuse or reset the circuit breaker. Dishwasher operates too long Dishwasher is connected to cold water. Check the water supply connection or water heater set- ting. (Heating cold water takes longer.) Odor Previous cycle was stopped before completion. Operate the Quick cycle with detergent without loading any dishes. Water remains in tub after completion of cycle Drain hose is kinked or clogged. Adjust hose or clear blockage. Spots and lming on dishes Low water temperature. Water supply should be at least 120°F for best wash per- formance. Wrong amount of detergent used. Use the recommended amount of detergent. Overloading. Do not overload the dishwasher. Improper loading. See the Using Your Dishwasher section. Insucient water pressure. Water pressure should be between 20 and 120 psi. Insucient detergent. Add the recommended amount of detergent. See the Us- ing Your Dishwasher section. Rinse aid dispenser is empty. Rell rinse aid dispenser. Extremely hard water The best way to eliminate spots on your dishes is to install a whole house water softener in your home. If a water softener is already installed or you do not plan on installing one, try adding the “Extra Rinse” option as part of the wash cycle to help minimize this condition. To add an extra rinse to the cycle, select the wash cycle and then press the RINSE button. NOTE: Selecting “Extra Rinse” will increase cycle times and water usage. To remove hard water build up in the tub Remove all dishes, silverware and the silverware holder from the dishwasher. Only the racks should remain in the tub. Fill a measuring cup with white vinegar, approximately 14~17 ounces (400~500mL), and place the measur- ing cup in the lower rack. Run a Normal cycle and select ExtraRinse and Sanitary then close the door.

DO NOT USE DETERGENT

NOTE: Make sure to let the dishwasher complete the entire cycle. This cleaning method should only be done as needed. If you have followed this troubleshooting guide and the problem persists, or if the problem you are experiencing is not listed here, please call LGE Customer Service at 1-800-243-0000(US), 1-888-542-2623(Canada).ENGLISH TROUBLESHOOTING

Problem Possible Causes Solutions Food soil remains on dishes. Improper cycle selection. Select correct cycle based on soil level and type of dishware being washed. Water temperature too low. Check water supply connection or water heater setting. Dish washing detergent was not used. Use recommended detergent. Low inlet water pressure. Water pressure should be between 20 and 120 psi. Water jet holes on spray arms blocked. Clean the spray arms. Improper loading of dishes Make sure dishes do not block spray arm rotation or interfere with detergent dispenser. Filters are clogged. Clean lters. Noise Some level of noise is normal during operation. Detergent cover opening. Drain pump at the beginning of drain cycle. The dishwasher is not level. Adjust leveling feet. Nozzle arm knocking against dishes. Reposition the dishes. Cloudiness on glassware. Combination of excessive detergent and soft water. Use less detergent and use a rinse aid to minimize the problem. Black or gray marks on dishes. Aluminum items rubbing dishes during cycle. Reposition the dishes. Yellow or brown lm on inside of surfaces of dishwasher. Coee or tea stains. Eliminate the stain by using a stain removal product. Dishes don’t dry. Rinse agent dispenser empty. Check and rell the rinse agent dispenser if empty. Lamps do not illuminate. Power is not connected. Connect power supply. Sprays arms do not rotate smoothly. Holes of spray arms are blocked by food particles. Clean the holes of spray arms. Upper rack is crooked. Rack is poorly adjusted. See the Height Adjustable Upper Rack section. Dishwasher continuously beeps when the door is opened, during or right after a cycle has completed. The contents of the dishwasher are hot and care should be used when placing your hands inside the dishwasher. Close the door until the dishwasher and dishes have cooled down. The beeping will go away if the door is closed or the interior temperature has been cooled. IE Error Water inlet problem. Check for a clogged, kinked or frozen water inlet hose. Check water supply. OE Error Drainage Problem. Check for a clogged, kinked or frozen drain hose. Filters are clogged. Clean Filters FE Error Excessive Water supplied. Please call an Authorized Service Center or LGE Customer Service at 1-800-243-0000 (US) 1-888-542-2623 (Canada) E1 or AE Error Water leakage problem. HE Error Heater circuit failure. TE Error Thermistor failure or very high inlet water temperature (over 194F) LE Error Motor Trouble If you have followed this troubleshooting guide and the problem persists, or if the problem you are experiencing is not listed here, please call LGE Customer Service at 1-800-243-0000(US), 1-888-542-2623(Canada).30

Should you experience any problems with your dishwasher, it has the capability of transmitting data to your Smart Phone using the LG Smart Laundry & DW Application or via your telephone to the LG call center. Smart Diagnosis cannot be activated unless your dishwasher is turned on by touching the POWER button. If your dishwasher is unable to turn on, then troubleshooting must be done without using Smart Diagnosis. Smart Diagnosis Through the Call Center

2. When instructed to do so by the call center agent, hold the

mouthpiece of your phonenear the hole located on the side panel. Hold the phone no more than one inch (but not touch- ing) the machine. Do not touch any other buttons or icons on the display screen. NOTE

4. Keep the phone in place until the tone transmission has n-

ished. This takes about 6 seconds and the display will count down the time.

5. Once the countdown is over and the tones have stopped, re-

sume your conversation with the call center agent, who will then be able to assist you in using the information transmit- ted for analysis. Smart Diagnosis Using Your Smart Phone

1. Download the LG Smart Laundry & DW application on your

2. Open the LG Smart Laundry & DW application on your smart

3. Press the Smart Diagnosis button on your smart phone.

4. Press the Diagnose button on your smart phone.

5. Press the Dishwasher button on your smart phone.

6. Press the RECORD button on the smart phone and then hold

the mouth piece of the smart phone near the speaker located on the side panel. Hold the phone no more than one inch (but not touching) the machine.

8. With the phone held in place, press the Smart Diagnosis

button on the phone.

9. Keep the phone in place until the tone transmission has n-

ished. This takes about 17 seconds and the display will count down the time.

10. When the recording is complete, view the diagnosis by press-

ing the Next button on the phone. After three seconds, the display will change from 0:22 to 17 and then start counting down the remaining time. NOTE Do not touch any other buttons or icons on the display screen. NOTE Smart Diagnosis is a troubleshooting feature designed to as- sist, not replace, the traditional method of troubleshooting

pends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmis- sion, and the acoustics of the room where the machine is lo-

nosis would accurately troubleshoot any given issue. NOTE (LDF**** ) (LDS**** )31 ENGLISH

WARRANTY DISHWASHER LIMITED WARRANTY (USA) Should your LG Dishwasher prove to be defective in material or workmanship under normal use during the warranty period listed below, eective from the date of original consumer purchase of the product, LG Electronics will replace the defective part(s). Replacement parts will meet intended t and function of the original part. Replacement parts are warranted for the unexpired portion of the original warranty period. This limited warranty is good only to the original purchaser of the product and eective only when used in the United States of America. WARRANTY PERIOD For the Period of: LG Will Replace: One year from date of original purchase Any part of the Dishwasher which fails due to a defect in materials or workmanship. During this full one-year of original purchase warranty, LGE will also provide, free of charge, all labor and on-site service to replace the defective part. Two year from date of original purchase Any part of the dishwasher (except as listed below) which fails due to a defect in materials or workmanship. During this two-year parts warranty, you will be responsible for any labor or on-site service costs. Five year from date of original purchase Electronic control board and dishwasher rack which fails due to a defect in materials or workmanship. During this ve-year parts warranty, you will be responsible for any labor or on-site service costs. Ten year from date of original purchase Direct Drive motor which fails due to a defect in materials or workmanship. During this ten-year warranty, you will be responsible for any labor or on-site service costs. Limited Lifetime Stainless steel door liner and tub (as long as owned by the original purchaser) which fails due to a defect in materials or workmanship. During this limited lifetime parts warranty, you will be respon- sible for any labor or on-site service costs Replacement units and repair parts may be new or factory remanufactured. Replacement units and repair parts are warranted for the remaining portion of the original unit’s warranty period No other warranty is applicable to this product. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITH- OUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBU- TOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states and/or territories do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you, the original purchaser, specific legal rights and you may also have other rights that vary from state to state or territory to territory. THIS LIMITED WARRANTY DOES NOT COVER: 1. Service calls to your home for delivery or pick-up, installation, instruction, replacement of house fuses, connection of house wiring or plumbing, or to correct unauthorized repairs.

2. Failure of product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by transportation or handling.

4. Damage caused to the product by accident, vermin, lightning, winds, re, oods, or acts of God.

5. Damages caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, or inadequate or interrupted water supply.

6. Damages caused by inadequate supply of air.

7. Damages caused by operating the product in a corrosive atmosphere.

8. Repairs when your LG product is used in other than normal, singlefamily household use or contrary to the instructions described in the product User’s Guide. 9. Damage resulting from accident, alteration, misuse, abuse, or improper installation, repair, or maintenance. Improper repair includes the use of parts not approved or specied by LG.

10. Normal maintenance as described in the User’s Guide, such as cleaning or replacing lters, cleaning coils, etc.

11. Use of accessories or components that are not compatible with this product.

12. Products with altered or removed serial numbers.

13. Changes in the appearance of the product that do not aect product performance.

14. Increases in utility costs and additional utility expenses. The cost of repair or replacement under these excluded circumstances shall be borne by the consumer. The cost of repair or replacement under these excluded circumstances shall be borne by the consumer. For complete warranty details and customer assistance, please call or visit our website: Product Registration Information: Model: ____________________________________________ Serial Number: ______________________________________ Date of Purchase: ____________________________________ Dealer Name: _______________________________________ Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate op- tion from the menu, or visit our website at http://us.lgservice.com Or by mail: LG Customer Information Center: P. O. Box 240007 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC32 WARRANTY

DISHWASHER LIMITED WARRANTY (CANADA) WARRANTY: Should your LG Dishwasher (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada. WARRANTY PERIOD: (Note: If the original date of purchase can not be veried, the warranty will begin sixty (60) days from the date of manufacture) Dishwasher Extended Component Warranty (Parts Only) (Consumer will be charged for Labor after One (1) year from the date of purchase) Two (2) year from the date of original retail purchase One (1) year from the date of original retail purchase Five (5) year from the date of original retail purchase Ten (10) years from the date of original retail purchase Parts Labor PCB, Rack, Stainless Steel Door Liner, Tub DD Motor (internal/functional parts only) f Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater. f Replacement products and parts may be new or remanufactured. f LG Authorized Service Center warranties their repair work for thirty (30) days. LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REP- RESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTH- ERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specic legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conicts with provincial law without aecting the remainder of this warranty’s terms. THIS LIMITED WARRANTY DOES NOT COVER: 1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/installation.

2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air. 4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner’s manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, re, oods, or acts of God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specied by LG Canada. 7. Damage or product failure caused by unauthorized modication or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation. 8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada. 9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the nish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.

10. Damage or missing items to any display, open box, discounted, or refurbished Product.

11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, lters, or any consumable parts.

14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in of- ces or recreational facilities) or contrary to the instructions outlined in the Product owner’s manual.

15. Costs associated with removal of the Product from your home for repairs.

16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner’s and installation manuals. 17. Accessories to the Product such as door bins, drawers, handles, shelves, etc.. Also excluded are parts besides those that were originally included with the Product. All costs associated with the above excluded circumstances shall be borne by the consumer. For complete warranty details and customer as- sistance, please call or visit our website: Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.ca Write your warranty information below: Product Registration Information:

OBJECTS N'ALLANT PAS AU LAVE-

INFORMATIONS RELATIVES AU DÉTERGENT

Register your product Online! www.lg.com
