USER MANUAL LDF8072ST LG

Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.

LDS6040ST

LDF8574ST

LDF8072ST

LDF7561ST/WW/BB

LDF7551ST/WW/BB

LSDF9962ST

TABLE OF CONTENTS

3 IMPORTANT SAFETY INFORMATION

3 Basic Safety Precautions

4 Electrical Safety

5 Before Using the Dishwasher

5 Specifications

6 PARTS AND FEATURES

6 Features
7 Parts
8 Control Panel (steam models)

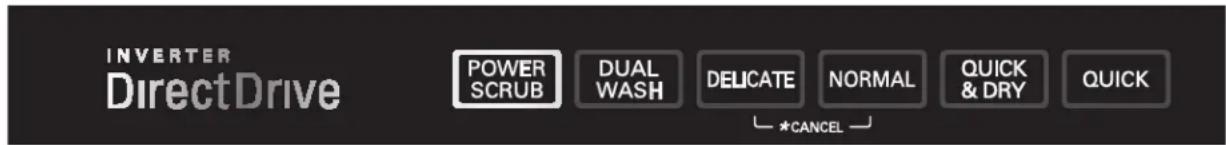

10 Control Panel (non-steam models)
12 Cycle Option Chart
12 Icons
13 Cycle Selection Chart

14 OPERATING INSTRUCTIONS

14 Quick Start
15 Loading the Lower Rack
16 Folding Down the Lower Tines
17 Loading the Silverware Basket
18 Loading the Upper Rack
18 Folding Down the Upper Tines

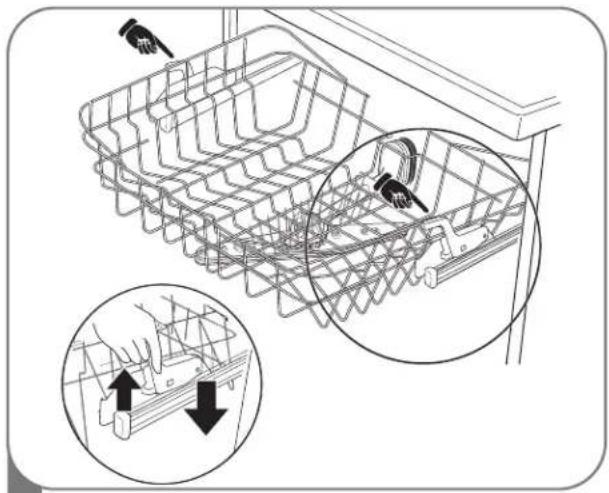

19 Height Adjustable Upper Rack

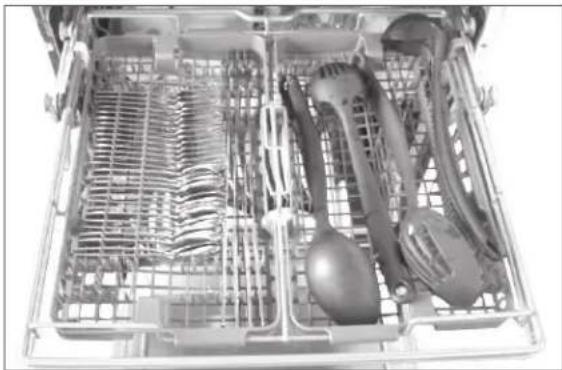

20 Loading the Cutlery Rack (on some models)

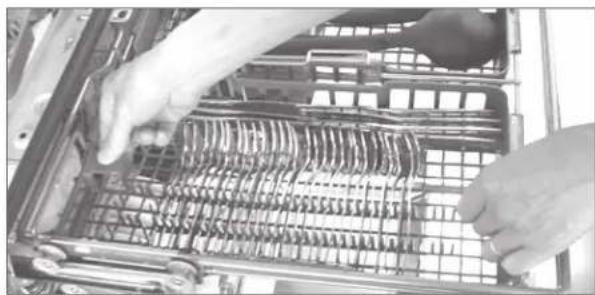

20 Height Adjustable Tray (on some models)

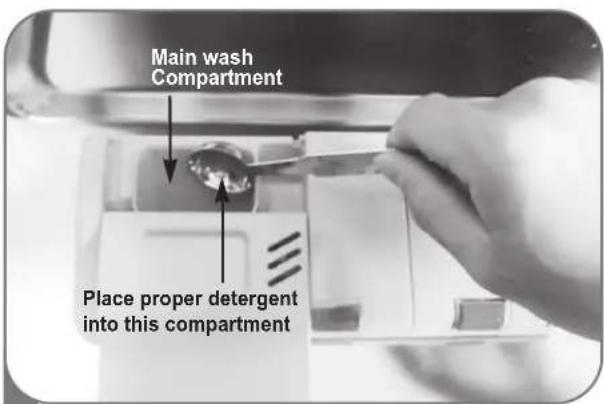

21 Adding Detergent to the Dispenser

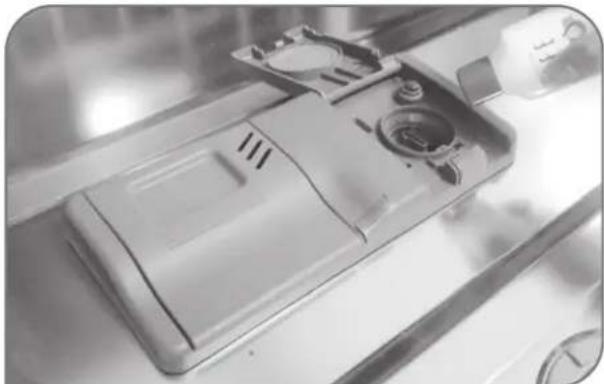

22 Adding Rinse Aid to the Dispenser

23 CARE AND CLEANING

23 Cleaning the Filters
24 Cleaning Metallic Parts

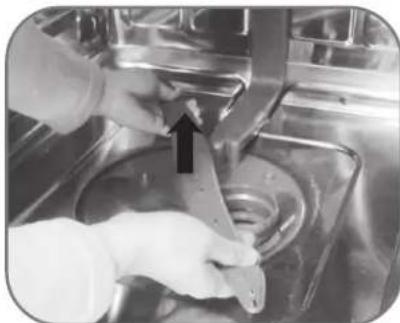

24 Cleaning the Lower Spray Arm
24 Cleaning the Upper Spray Arm

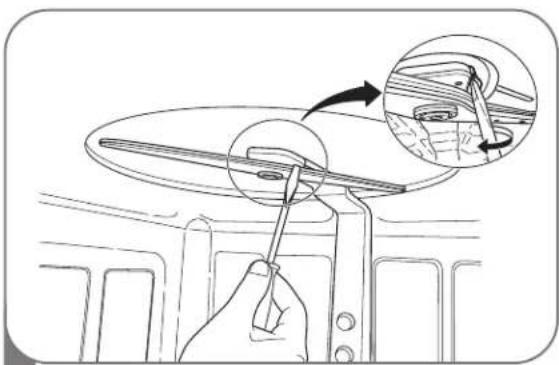

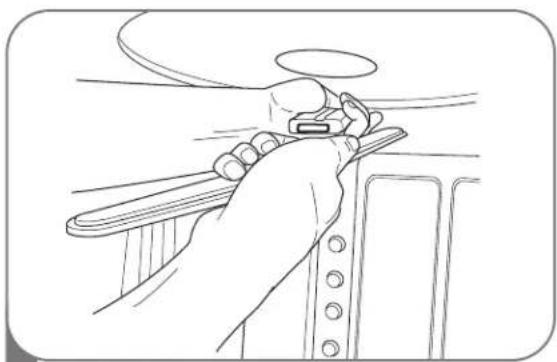

25 Cleaning the Top Spray Arm
25 Seasonal Maintenance and Storage

26 FAQs

28 TROUBLESHOOTING

28 Before Calling for Service

30 SMART DIAGNOSISTM SYSTEM

30 SMART DIAGNOSISTM SYSTEM

31 WARRANTY

31 Product Registration Information

THANK YOU

Congratulations on your purchase and welcome to the LG family. Your new LG Dishwasher combines quiet, efficient operation with advanced cleaning technology. By following the operating and care instructions in this manual, your dishwasher will provide you with many years of reliable service.

IMPORTANT SAFETY IMFORMATION

READ ALL INSTRUCTIONS BEFORE USE

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage or serious bodily harm, even death.

The safety alert symbol will be followed by either the word "WARNING" or "CAUTION" then an important safety message. These words mean:

WARNING

Indicates the possibility of serious bodily harm or death.

CAUTION

Indicates the possibility of injury or damage to property.

BASIC SAFETY PRECAUTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

This manual contains very important information regarding the installation, use, and maintenance of your dishwasher. The manufacturer cannot be responsible for injuries or damage caused by failure to follow these safety and caution instructions.

• Read all instructions carefully before using the dishwasher.
  • Use the dishwasher only for its intended function.
• Only use detergents or rinse agents recommended for use in a dishwasher. Keep all dishwasher detergents and additives out of the reach of children.
  • This appliance is not intended for use by young children.
• When loading items to be washed:
  1) Load sharp items so that they are not likely to damage the door seal.
  2) Load sharp knives with the handles up to reduce the risk of injury when reaching into the dishwasher.
• Do not wash plastic items in the dishwasher unless they are labeled "dishwasher safe" or the equivalent. For plastic items that are not so labeled, check the manufacturer's recommendations.
• Do not operate the dishwasher unless all enclosure panels are properly in place.
  • Do not tamper with the controls.
• Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.

• To reduce the risk of injury, do not allow children to play in or around the dishwasher.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period of time, turn on all hot water faucets and let the water flow for several minutes. This will release any accumulated hydrogen gas. Since hydrogen gas is flammable, do not smoke or use an open flame during this time.

• Remove the door to the wash compartment when disposing of an old dishwasher.
• The installer must ensure that the dishwasher is completely enclosed at the time of installation.
• WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

BASIC SAFETY PRECAUTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

For a permanently connected dishwasher:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance. Consult with a qualified electrician.

Tip Hazard

Do not put excessive downward force on the open dishwasher door prior to installation, as this could cause damage to the unit or cause it to tip over. Do not use the dishwasher before installation has been completed in accordance with the Installation Instructions.

ELECTRICAL SAFETY

WARNING

Electrical Shock Hazard

Failure to follow these instructions can result in death, fire, or electrical shock.

• The dishwasher MUST be grounded. Connect the ground wire to the green ground connector in the terminal box.
• Do not use an extension cord with this appliance.
• The dishwasher is designed to be used with standard household current (120 Volts AC, 60Hz.). Before connecting the dishwasher, ensure that the outlet or cable is properly grounded and polarized by circuit breakers or fuses. Failure to provide adequate grounding of this appliance may cause electrical shock or malfunction of the appliance. Consult with a qualified electrician.
• Do not install or store the dishwasher where it will be exposed to weather conditions. Failure to observe this precaution may result in electrical shock, fire, malfunction, and/or deformation of the dishwasher.
• Do not damage or place heavy items on the power cord of the appliance. Do not use the dishwasher if it has a damaged power cord. Power cord damage may cause fire and electrical shock. Consult with a qualified electrician.
• Do not grasp the power cord or touch the dishwasher controls with wet hands. Do not use the dishwasher if it has a damaged power cord or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.
• Disassembly or repair must be performed by experienced service persons. Improper disassembly or repair could lead to product failure or electrical shock.

BEFORE USING THE DISHWASHER

Before using the dishwasher, please read the Important Safety Instructions.

Water supply temperature should be a minimum of 120^ F ( 49^ C) for better washing and reasonable cycle time.

For this reason, use the hot water supply only. It is also important that the dishwasher is loaded according to instructions for effective cleaning. When loading the dishwasher, make sure that insoluble items such as bones, toothpicks, and pieces of paper have been removed.

When loading the dishwasher, observe the following general guidelines:

1. Place items with deep dish bottoms at an angle to help water run off and speed the drying process.
2. Remove solid, burned-on scraps from dishes prior to loading in the dishwasher.
3. Only load items that are dishwasher-safe.

NOTE

Do not load utensils that are not heat-resistant, have decorative metal trim, etc.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

• Power Supply: 120V, 60 Hz AC only, minimum 15A circuit breaker
• Water Pressure: 20–120 psi (140–830 kPa)
• Size (WxDxH): 23^3/4 " x 24^5/8 " x 33^1/_2 " (603 mm x 625 mm x 851 mm)
• Inlet Water Temperature: 120°F (49°C) minimum
• Product Weight: - LDF8574, LSDF9962: 102.5 lbs.(46.5kg)
- LDF8072 : 100.5 lbs.(45.6kg)
- LDF7561 : 96.6 lbs.(43.8kg)
- LDF7551 : 88.2 lbs.(40kg)
- LDS6040 : 94.9lbs.(43.1kg )

The appearance and specifications are subject to change without notice.

PARTS AND FEATURES

FEATURES

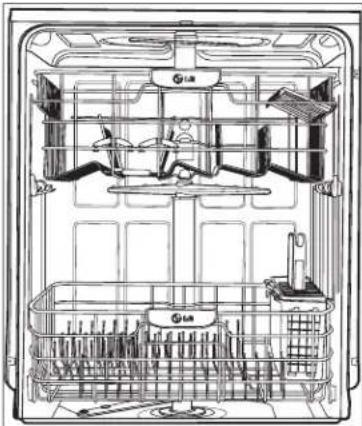

LARGE CAPACITY

Technical line drawing of a multi-level appliance or kitchen unit with internal compartments and fixtures (no text or symbols)

LG dishwashers allow you to load very large items in both the upper and lower racks. The tall tub provides extra overall capacity and the clearance to accommodate large dishes. Extra large items (max. 14 in.) may be loaded in the lower rack by raising the upper rack.

SLIM DIRECT MOTOR™

Technical line drawing of a mechanical component with a central shaft and mounting base (no text or symbols)

The new Slim Direct Motor™ is inverter-controlled. Wash power is controlled based on cycle selection. It also offers high energy efficiency to minimize energy use.

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

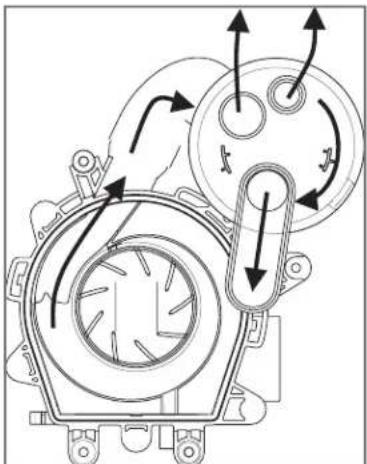

This system effectively dries dishes without the use of a heating element that would increase energy consumption.

STEAM WASHING (not available on all models)

Technical line drawing of a door or cabinet interior with a hand operating a button (no text or symbols)

Steam technology provides better cleaning performance than regular wash systems. Steam is the most energy efficient gentle care for your finest china and stemware.

VARIABLE SPRAY SYSTEM

Mechanical assembly diagram showing gear and pulley mechanism (no text or labels)

Because the water spray alternates between the upper and lower racks, all of the power from the motor is directed to one rack at a time. This concentrates all the cleaning power of the motor on each rack in turn.

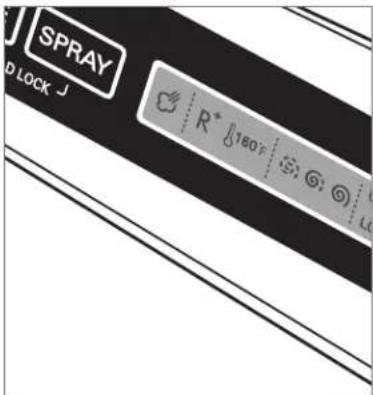

BLUE LCD (not on all models) AND LIGHT TOUCH BUTTONS

SPRAY D LOCK J R* 160F ; ; ; L

The light touch buttons on the control panel make selections easy and convenient. The blue LCD display clearly displays the selected cycle and options.

PARTS

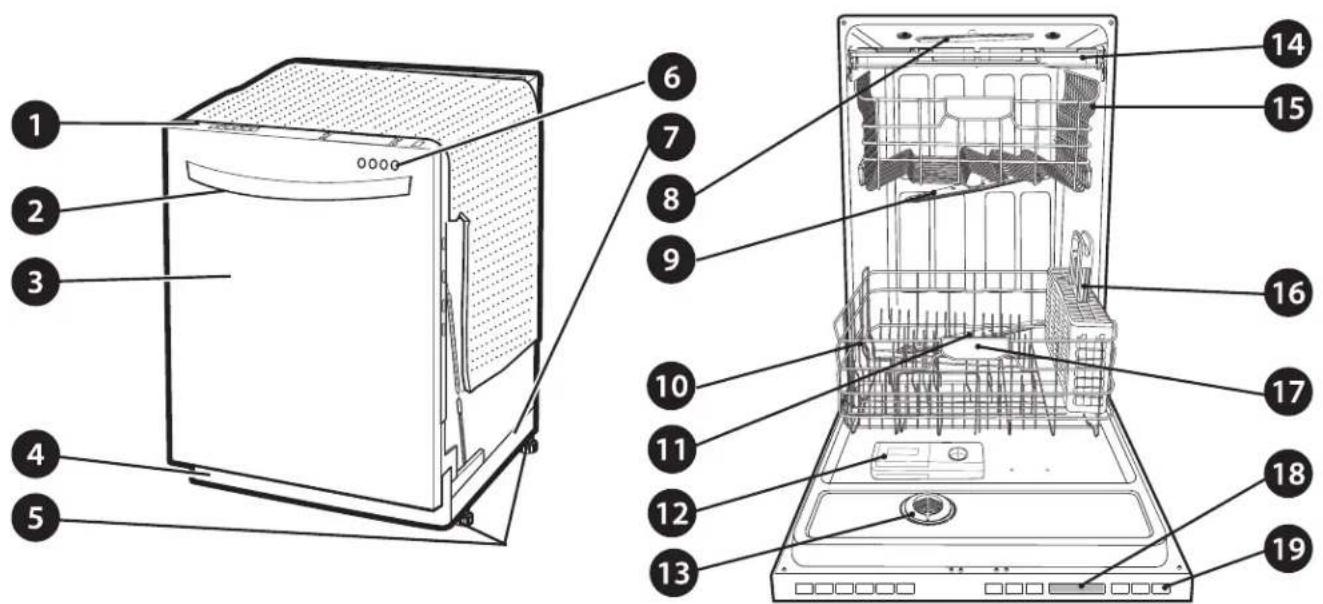

Diagram of a multi-chamber refrigerator with numbered parts for identification

1. CONTROL PANEL
2. DOOR HANDLE
3. FRONT COVER
4. LOWER COVER
5. LEVELING FEET
6. FRONT DISPLAY (SIGNALIGHT™)
7. BASE

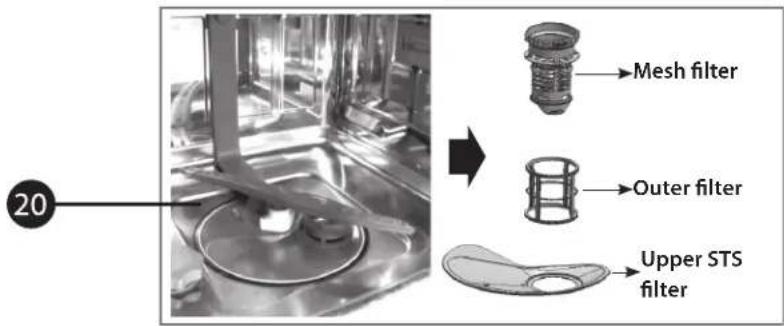

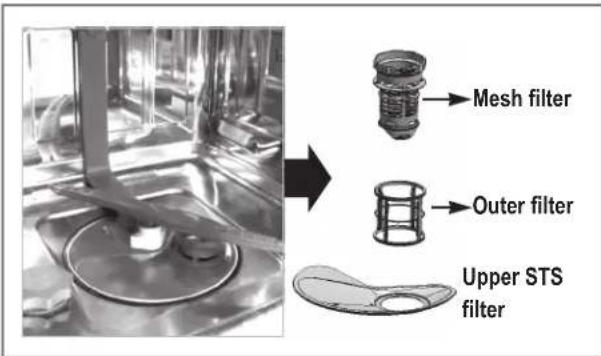

20 Mesh filter Outer filter Upper STS filter

SignaLight (front display)

When a cycle is running, the SignaLight will illuminate for the active stage.

• Model with 4 LEDs: WASH – RINSE – DRY – CLEAN
• Models with 2 LEDs: OPERATING - CLEAN
• Models with 1 LED : OPERATING (Flickering) / CLEAN (Lighting)

Once the cycle is complete, the CLEAN light will illuminate for four minutes.

To keep the CLEAN light on until the door is open, turn the power on, and then press and hold the EXTRA DRY and HALF LOAD buttons on the control panel simultaneously until Off or On appears in the display. The dishwasher will remember this setting until manually changed.

1. TOP SPRAY ARM
2. UPPER SPRAY ARM
3. STEAM NOZZLE (on steam models)
4. LOWER SPRAY ARM
5. DETERGENT AND RINSE AID DISPENSER
6. DRYING VENT COVER
7. CUTLERY RACK (some models)
8. UPPER RACK
9. SILVERWARE BASKET
10. LOWER RACK
11. TOP DISPLAY
12. POWER BUTTON
13. FILTRATION SYSTEM

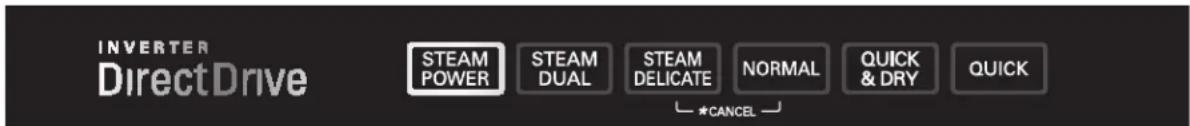

CONTROL PANEL (steam models)

INVERTER DirectDrive STEAM POWER STEAM DUAL STEAM DELICATE NORMAL QUICK & DRY QUICK ★CANCEL

Steam Models (LDF8574, LDF8072, LSDF9962)

Cycles

Select your desired cycle.

STEAM POWER

This cycle is for heavily and hard soiled dishes. Steam Power defaults to the highest spray intensity and uses the power of steam to wash heavily soiled dishes.

STEAM DUAL

This cycle washes the upper and lower racks at different spray intensities. The default setting for this cycle washes the lower rack with strong spray intensity and the upper rack with soft spray intensity. This provides optimum cleaning performance for mixed loads, including fine china and stemware. If other combinations are desired, use the steps listed below to change the intensities or to use the HALF LOAD feature.

How To Use Steam Dual:

1. Select Steam Dual.
2. Press the Spray button to toggle between Soft, Medium and Strong for the upper spray arm.
3. After making your selection for the upper spray arm, press the Half Load button.
4. Press the Spray button to toggle between Soft, Medium and Strong for the lower spray arm.
5. Close the door to start the cycle.

STEAM DELICATE

This cycle adds the gentle power of steam to boost the cleaning power of the delicate cycle. The cycle is intended for effectively cleaning delicate items such as fine china and stemware.

NORMAL

This cycle is for normally soiled, everyday loads.

QUICK & DRY

This is a shortened cycle that is intended for washing and drying recently used dishes or lightly soiled loads. During this cycle, both spray arms will run at the same time.

QUICK

This is a shortened cycle that is intended to wash recently used or lightly soiled loads, without drying.

CHIME ON/OFF

To enable or disable the chime, first, turn on the dishwasher. Press and hold the Quick and Steam Delicate buttons simultaneously for approximately three seconds.

TO CANCEL A CYCLE

To cancel a cycle, open the door and then press and hold the Steam Delicate and Normal buttons together for approximately three seconds. The drain pump will activate and the cycle will cancel. The display will show "dr" and the dishwasher will drain the water. After the dishwasher is drained, the power will turn off.

If power is turned on and no cycle has been selected, the dishwasher will power off within four minutes.

Cycle Options

(Refer to the control panel on the next page)

Press the desired cycle and then select the options for that cycle.

EXTRA DRY

Select the EXTRA DRY option for better drying performance. This option adds 60 minutes of extra drying time to the cycle. The EXTRA DRY button will illuminate when the option has been selected.

RINSE

Repeated pressing of the Rinse button will select the desired Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra Rinse lights will show in the bottom left portion of the display.

SANITARY (160°F)

This high-temperature rinse sanitizes dishes and glassware in accordance with NSF/ANSI Standard 184 for residential dishwashers. Certified dishwashers are not intended for licensed food establishments.

EXTRA RINSE ( R^+ )

The Extra Rinse symbol indicates that an extra rinse has been added to the cycle. An extra rinse can help reduce hard water spotting on dishes. To add an extra rinse, press the Rinse button repeatedly until the Extra Rinse symbol appears in the display.

RINSE ONLY (LDF\*\*\*\*)

This cycle is a quick rinse for dishes that will not be washed immediately. This cycle will rinse dishes that have excess soil to soften dried on residue. Rinsing the dishes will help prevent odors in the dishwasher. No detergent should be used. To select the Rinse Only cycle, turn the dishwasher on, and press the Rinse button once without pressing any other cycle buttons. The Rinse Only cycle is not available with any other cycles.

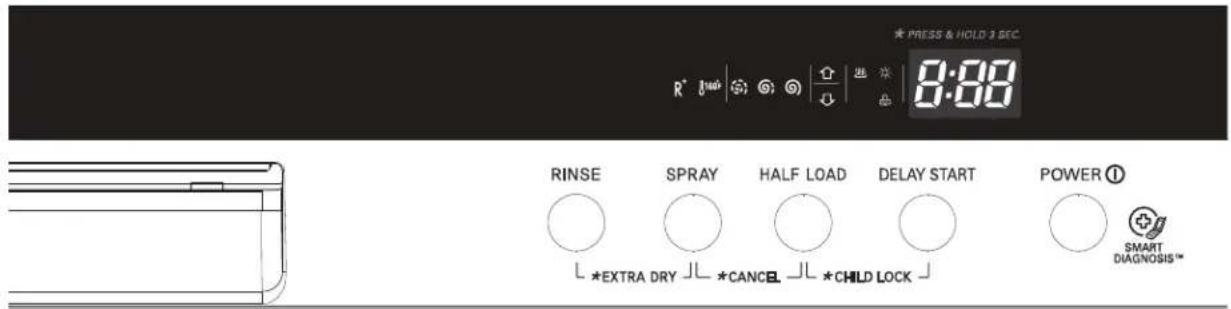

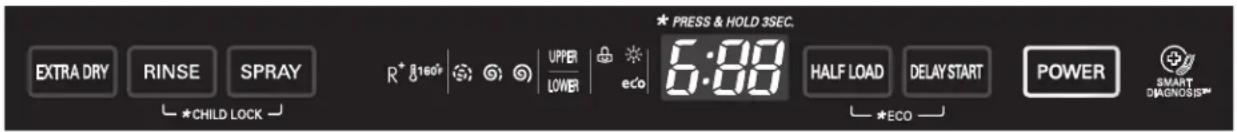

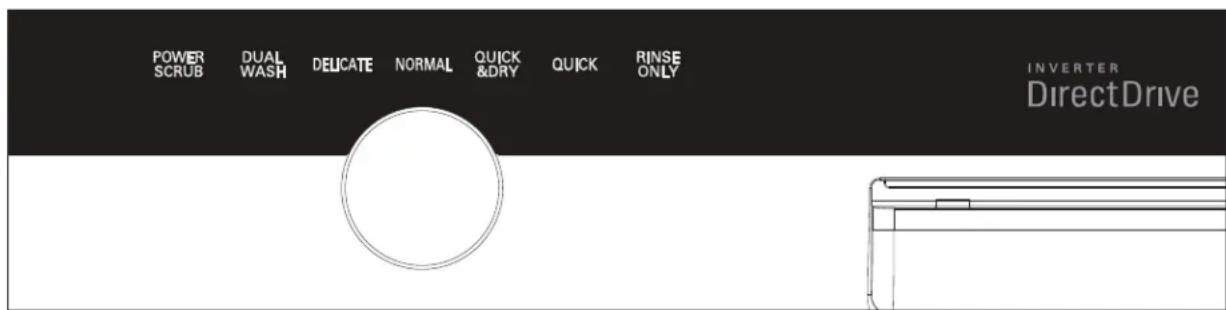

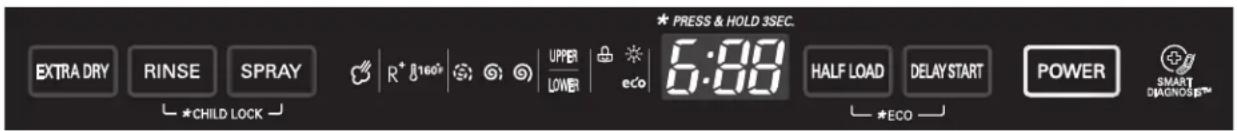

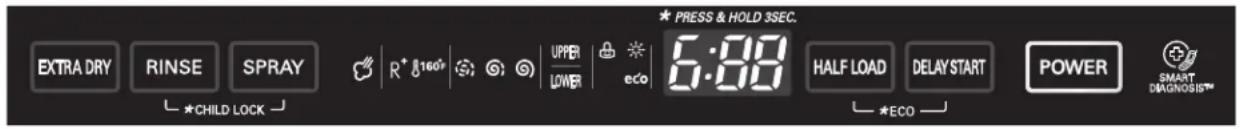

CONTROL PANEL

EXTRA DRY RINSE SPRAY ★CHILD LOCK R* 81sec UPPER LOWER eco 5:00 HALF LOAD DELAY START POWER SMART DIAGNOSER™ ★ECO ★PRESS & HOLD 3SEC.

Display varies by model (LDF8574, LDF8072, LSDF9962)

EXTRA DRY RINSE SPRAY ★CHILD LOCK R* 81sec UPPER LOWER eco 5:00 HALF LOAD DELAY START POWER SMART DIAGNOSIS™ ★ECO ★PRESS & HOLD 3SEC.

Display varies by model (LDF7561, LDF7551)

SPRAY (INTENSITY)

First, select the desired cycle. Press the Spray button repeatedly until the desired spray intensity is selected.

Soft ( ), Medium ( ), Strong ( )

HALF LOAD

For small loads, you may use just the upper or lower rack to save energy. Each press of the Half Load button cycles between upper rack only and lower rack only.

DELAY START

The Delay Start feature allows you to delay the start of a selected cycle. Each time the Delay Start button is pressed, the delay time will increase an hour. The delay start time can be set from 1 to 19 hours, in one-hour increments.

CHILD LOCK

The Child Lock feature helps prevent your settings from being changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door.

To activate the Child Lock:

1. Open the dishwasher door.
2. Press the Power button.
3. Select the cycle (and desired options).
4. Press and hold the Rinse and Spray buttons for three seconds. The Child Lock indicator will illuminate in the display once the Child Lock is activated.
5. Close the door to begin the cycle.

DIGITAL DISPLAY 10:23

The Digital Display on the control panel shows the ESTIMATED cycle time. When the dishwasher is powered up, the display will be blank. When the cycle and options are selected, the display will show the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.

NOTE

• The estimated time shown in the display does not include delay times for heating water, etc.
• If Delay Wash is selected, the display shows the delay time in hours.
  • Time may vary depending on the soil level of your load.

ECO eco

The ECO option saves energy by using less water. This option should only be used with light to medium soiled dishes.

NOTE

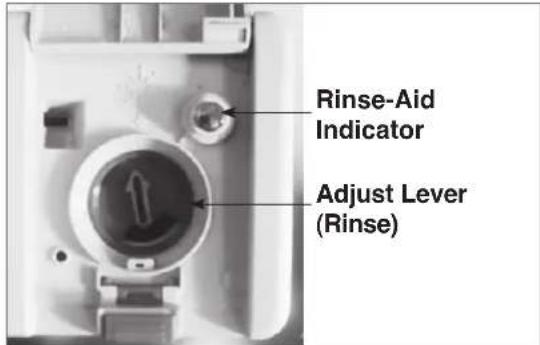

The RINSE AID symbol indicates that the rinse aid needs to be refilled.

POWER

• Press the Power button to turn on the control panel. If no cycle is selected within four minutes, the dishwasher will power off.
  • After the cycle is complete, the power automatically turns off for safety and economy purposes.
• If there is a power surge, power outage, or disruption of any kind, the PF indicator will display and power will be automatically turned off for safety. The cycle will need to be restarted.

SMART DIAGNOSIS

SMAR DAGNOS S

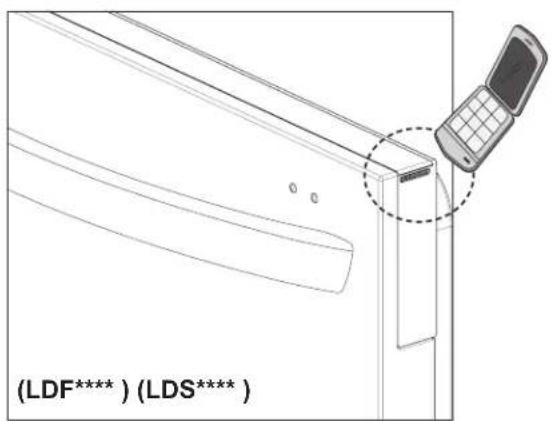

Should you experience any problems with your dishwasher, it has the capability of transmitting data to your Smart Phone using the LG Smart Laundry & DW Application or via you telephone to the LG call center.

WARNING

Steam can cause burns. Use caution in the area of the steam nozzle, on the left side of the dishwasher, if the door is opened during the steam portion of a cycle. Contact with the steam or the steam nozzle can cause burns.

CONTROL PANEL (non-steam models)

INVERTER DirectDrive POWER SCRUB DUAL WASH DELICATE NORMAL QUICK & DRY QUICK ★CANCEL

Display varies by model (LDF7561, LDF7551)

POWER SCRUB DUAL WASH DELICATE NORMAL QUICK &DRY QUICK RINSE ONLY INVERTER DirectDrive

Display varies by model (LDS6040)

Cycles

Select your desired cycle.

POWER SCRUB

This cycle is for heavily and hard soiled dishes.

DUAL WASH

This cycle washes the upper and lower racks at different spray intensities. The default setting for this cycle washes the lower rack with strong spray intensity and the upper rack with soft spray intensity. This provides optimum cleaning performance for mixed loads, including fine china and stemware. If other combinations are desired, use the steps listed below to change the intensities or to use the HALF LOAD feature.

How To Use Dual Wash:

1. Select Dual Wash.
2. Press the Spray button to toggle between Soft, Medium and Strong for the upper spray arm.
3. After making your selection for the upper spray arm, press the Half Load button.
4. Press the Spray button to toggle between Soft, Medium and Strong for the lower spray arm.
5. Close the door to start the cycle.

DELICATE

The cycle is intended for effectively cleaning delicate items such as fine china and stemware.

NORMAL

This cycle is for normally soiled, everyday loads.

QUICK & DRY

This is a shortened cycle that is intended for washing and drying recently used dishes or lightly soiled loads. During this cycle, both spray arms will run at the same time.

QUICK

This is a shortened cycle that is intended to wash recently used or lightly soiled loads, without drying.

RINSE ONLY (LDS6040)

This cycle is a quick rinse for dishes that will not be washed immediately. This cycle will rinse dishes that have excess soil to soften dried on residue. Rinsing the dishes will help prevent odors in the dishwasher. No detergent should be used.

CHIME ON/OFF

To enable or disable the chime, first, turn on the dishwasher. Press and hold the Quick and Delicate buttons (LDS6040: Spray and Delay Start) simultaneously for approximately three seconds.

TO CANCEL A CYCLE

To cancel a cycle, open the door and then press and hold the Delicate and Normal buttons (LDS6040: Spray and Half Load) together for approximately three seconds. The drain pump will activate and the cycle will cancel. The display will show "dr" and the dishwasher will drain the water. After the dishwasher is drained, the power will turn off.

If power is turned on and no cycle has been selected, the dishwasher will power off within four minutes.

CONTROL PANEL

PRESS & HOLD 2 SEC R* 8:00 8:00 RINSE SPRAY HALF LOAD DELAY START POWER *EXTRA DRY *CANCEL *CHILD LOCK SMART DIAGNOSIS™

Display varies by model (LDS6040)

Cycle Options

(Refer to the control panel on the next page)

Press the desired cycle and then select the options for that cycle.

EXTRA DRY ( )

Select the EXTRA DRY option for better drying performance. This option adds 60 minutes of extra drying time to the cycle. The EXTRA DRY button will illuminate when the option has been selected.

Press and hold the Rinse and Spray buttons for three seconds.

RINSE

Repeated pressing of the Rinse button will select the desired Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra Rinse lights will show in the bottom left portion of the display.

SANITARY (160°F)

This high-temperature rinse sanitizes dishes and glassware in accordance with NSF/ANSI Standard 184 for residential dishwashers. Certified dishwashers are not intended for licensed food establishments.

EXTRA RINSE ( R^+ )

The Extra Rinse symbol indicates that an extra rinse has been added to the cycle. An extra rinse can help reduce hard water spotting on dishes. To add an extra rinse, press the Rinse button repeatedly until the Extra Rinse symbol appears in the display.

SPRAY (INTENSITY)

First, select the desired cycle. Press the Spray button repeatedly until the desired spray intensity is selected.

Soft ( ), Medium ( ), Strong ( )

HALF LOAD ( )

For small loads, you may use just the upper or lower rack to save energy. Each press of the Half Load button cycles between upper rack only and lower rack only.

DELAY START

The Delay Start feature allows you to delay the start of a selected cycle. Each time the Delay Start button is pressed, the delay time will increase an hour. The delay start time can be set from 1 to 19 hours, in one-hour increments.

CHILD LOCK

The Child Lock feature helps prevent your settings from being changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door.

To activate the Child Lock:

1. Press the Power button.
2. Select the cycle (and desired options).
3. Press and hold the Half Load and Delay Start buttons for three seconds. The Child Lock indicator will illuminate in the display once the Child Lock is activated.
4. Close the door to begin the cycle.

DIGITAL DISPLAY 10:23

The Digital Display on the control panel shows the ESTIMATED cycle time. When the dishwasher is powered up, the display will be blank. When the cycle and options are selected, the display will show the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.

CYCLE OPTION CHART

The cycle guide below shows the available options for each cycle.

Cycle	Available Spray Level (default bold)	Extra Dry	Sanitary Rinse	Extra Rinse	Sanitary/ Extra Rinse	Half Load	Delay Start *Eco
Steam Power or Power Scrub	Strong Ⓡ	●	●	●	●	●	●
Steam Dual or Dual Wash	Soft ⚫(upper arm)Medium Ⓡ;Strong Ⓡ(lower arm)	●	●	●	●		●	●
Steam Delicate or Delicate	Soft ⚫;Medium Ⓡ;	●	●	●	●	●	●	●
Normal	Soft ⚫;Medium Ⓡ;Strong Ⓡ	●	●	●	●	●	●	●
Quick & Dry Strong	◎	●					●
Quick Strong	◎						●
Rinse Only	Medium Ⓡ;Strong Ⓡ	●					●

* Apply to LDF****

ICONS

	Steam Cycle (steam models)
R^+	Extra Rinse
	Sanitary Rinse
	Low, Medium, High Spray, Intensity
UPPER ↑	Upper Spray Arm

LOWER ↙	Lower Spray Arm
	Child Lock
	Low Rinse Aid Indicator
	*Extra Dry
eco	Eco Cycle
10:23	Cycle Time Indicator

*Apply to LDS****

CYCLE SELECTION CHART

The cycle guide below shows the default settings and available options for each cycle.

Cycle	Wash Rinse							Dry	*Water Usage	**Cycle Time	Spray Intensity
	Pre 1	Pre 2	Pre 3	Main Wash	Rinse 1	Rinse2	Heated Rinse
STEAM POWER				140°F60°C			158°F70°C		6.1 gal.23.0 L	165 Min. Strong
STEAM DUAL				154°F68°C			158°F70°C		4.6 gal.17.5 L	147 Min.	U: StrongL: Soft
STEAM DELICATE				122°F50°C			154°F68°C		4.6 gal.17.5 L	141 Min. Soft
NORMAL				86–122°F30–50°C			149–158°F65–70°C		1.7–6.4 gal.6.5–20.5 L	110~131Min.	Medium
QUICK & DRY				122°F50°C			162°F72°C		7.6 gal.29 L	79 Min. Strong
QUICK				122°F50°C			122°F50°C		5.0 gal.19 L	34 Min. Strong
RINSE ONLY									1.0 gal.4 L	22 Min. Medium
POWER SCRUB				140°F60°C			158°F70°C		6.1 gal.23 L	165 Min. Strong
DUAL WASH				154°F68°C			158°F70°C		4.6 gal.17.5 L	147 Min	U: StrongL: Soft
DELICATE				122°F50°C			154°F68°C		4.6 gal.17.5 L	141 Min. Soft

* Actual water consumption will vary depending on soil level and water hardness.
** Actual cycle times may vary depending on soil level, water temperature and hardness

OPERATING INSTRUCTIONS

QUICK START

1. LOAD THE DISHES

Scrape the dishes free of excess food, bones, and any other hard, non-soluble residue. Pull each rack out and load the dishes as described in this manual.

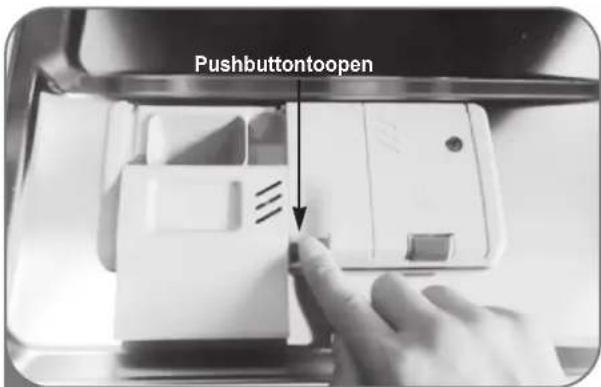

2. MEASURE THE DETERGENT

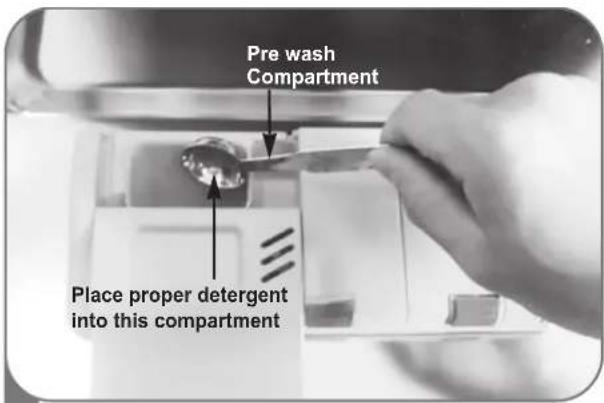

Using the guidelines in this manual, fill the detergent cup with the recommended amount of detergent and close the lid. If a prewash is desired, the recess on top of the lid should also be filled with detergent.

3. TURN ON THE DISHWASHER

To turn on the display panel, press the Power button.

4. CHECK THE RINSE AID

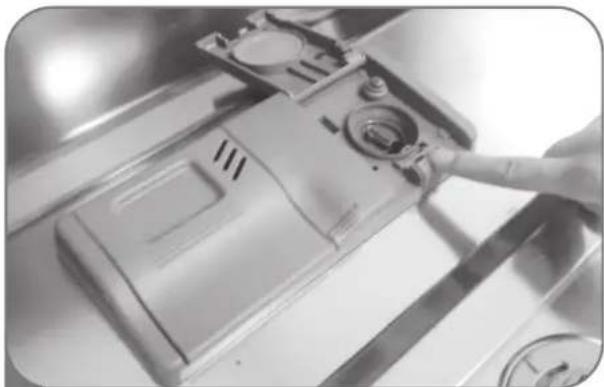

The Rinse Aid indicator light will illuminate if the level of rinse aid in the dishwasher is low. Add rinse aid if the level is low to maintain the effectiveness of the dry cycle.

5. SELECT THE CYCLE AND OPTIONS

Select the cycle and options that best fit the load by referring to the Cycle Selection Chart. The display will show the estimated time for the cycle and options selected.

6. CLOSE THE DOOR

The dishwasher will start automatically, after a slight delay, when the door is closed and latched. During the cycle, the display will indicate the estimated time remaining for the cycle and options selected. If the door is opened during the cycle, the dishwasher will stop. When the door is closed, the cycle will resume from the point where it was stopped.

7. END OF CYCLE

When the cycle is complete, a chime will sound and the display will show "END." After a short time, the display and controls will shut off for safety and energy conservation.

CAUTION

Empty the lower rack first and then the upper rack. This will avoid water from dripping from the upper rack onto dishes in the lower rack.

WARNING

In general, it is not advisable to open the door while the dishwasher is in operation. If the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door immediately following the cycle, as steam may escape.

AUTO-OFF

The dishwasher will automatically turn off if a cycle is not selected or if the door is not closed within four minutes.

LOADING THE LOWER RACK

CAUTION

NON-DISHWASHER SAFE ITEMS

The combination of high water temperature and dishwasher detergents may damage certain items. LG does not recommend washing the following items in the dishwasher:

• Hand painted silver or gold leaf dishes
• Wood or bone handled utensils
• Iron or other rust prone utensils
• Plastic items that are not dishwasher safe

When in doubt, check the manufacturers' recommendations.

The extra tall tub allows loading of dishes, pans, or other utensils up to 14 inches high.

The lower rack is recommended for dinner plates, soup bowls, dishes, pots, pans, lids, and grill trays. Plates should be positioned vertically and facing the center of the rack. Pots, pans, and large bowls must be turned so that the inside faces downward. The silverware basket may be used in either the lower or upper rack.

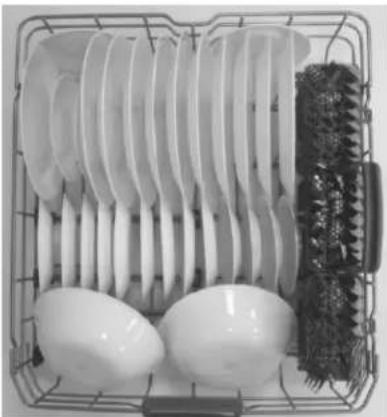

LOADING 10 PLACE SETTINGS

Basket filled with kitchen utensils including plates, spoons, and a textured brush (no text or symbols visible)

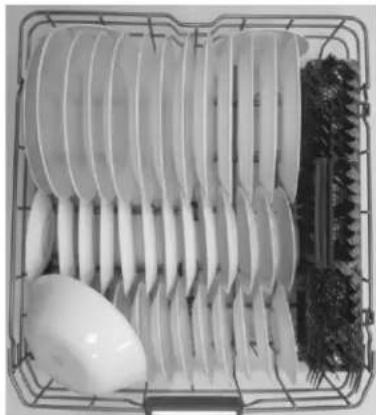

RACK LOADING TIPS

• Load plates, soup bowls etc. between the tines.
• Load cookie sheets, cake pans and other large items on the sides or back of the rack. Loading these items in the front of the dishwasher can prevent the water spray from reaching the detergent dispenser.
  • Make sure that pot handles and other large items do not stop the rotation of the spray arms.

The lower rack should not be used for small items such as cups, wine glasses, or small plates. These items should be loaded in the upper rack.

For models with steam, load heavily soiled or stained dishes in the front left side of the lower rack with the dirty side facing down. This is the area that the stream enters the dishwasher. The use of hot steam maximizes the dishwasher's cleaning performance.

LOADING 12 PLACE SETTINGS

Grid of kitchen utensils including a plate, spoon, and bulb (no text or symbols visible)

NOTE

Make sure that large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening.

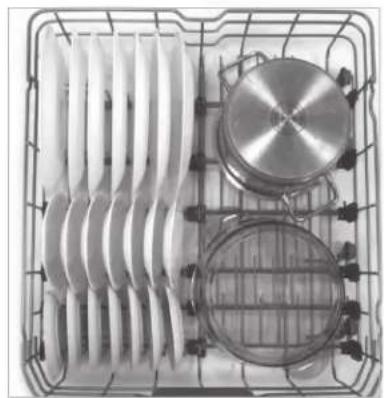

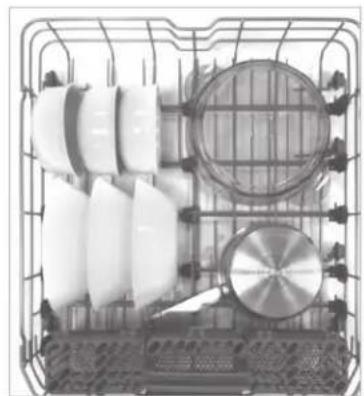

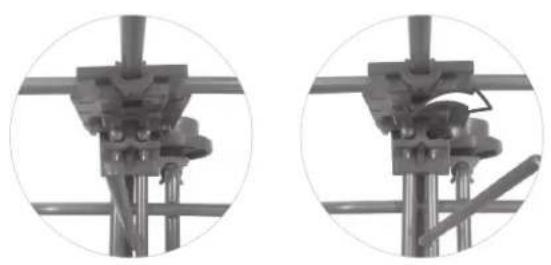

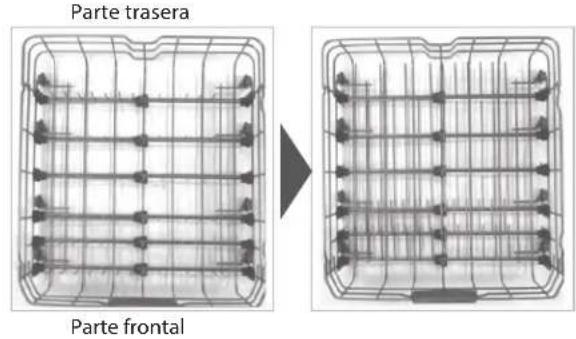

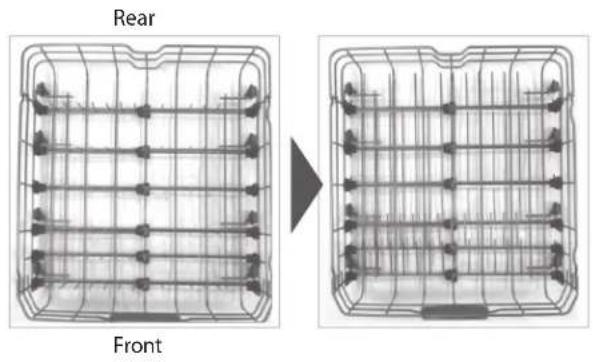

FOLDING DOWN THE LOWER TINES

The tines are adjustable to fit dishes of various sizes.

Close-up of mechanical assembly components with no visible text or symbols

Rear Front

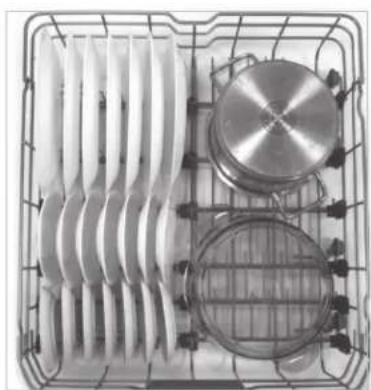

LOADING DISHES & POTS

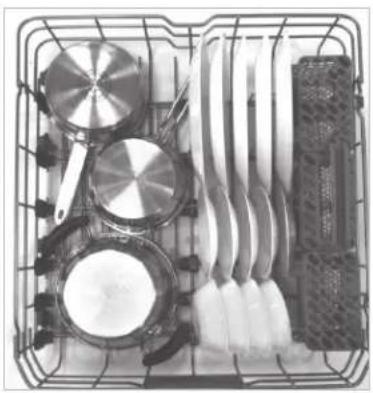

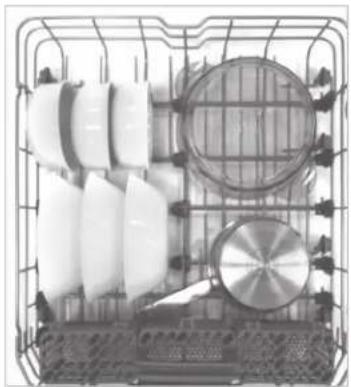

Basket containing kitchen utensils including a plate, kitchen panes, and showerhead (no text or symbols visible)

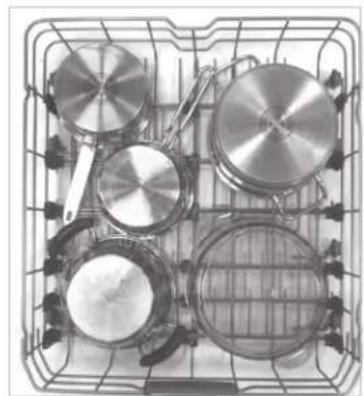

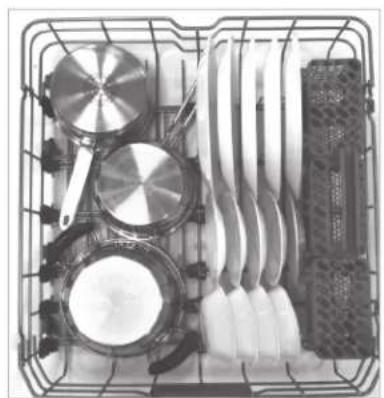

LOADING POTS & BOWLS

Interior view of a multi-wheeled kitchen appliance with circular and radial components (no visible text or symbols)

Basket filled with kitchen utensils and circular kitchenware (no text or symbols visible)

Top-down view of a metal baking tray with six circular covers and a grater (no text or symbols visible)

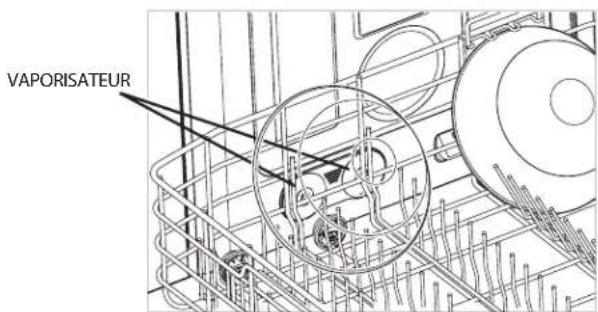

DIFFICULT TO REMOVE FOOD ON DISHES (steam models)

Load items with difficult to remove or baked-on food near the steam spray arms, towards the left side of the lower rack, facing down. The dishes will benefit from the direct steam spray and the lower spray arm wash action.

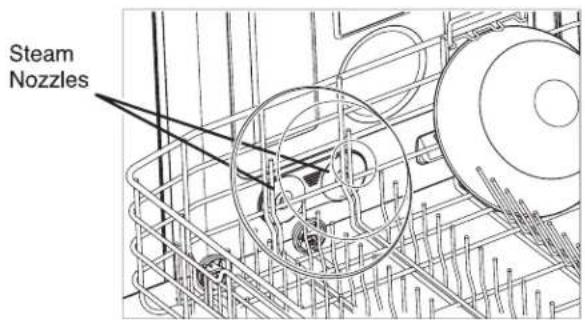

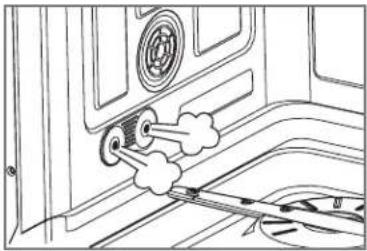

Steam Nozzles

LOADING THE SILVERWARE BASKET

The silverware basket has separators to avoid scratching and tarnishing of delicate silverware. The basket can be separated into three separate baskets that can be used individually in both the upper and lower racks. Unlock the tabs above the left and right side to separate.

WARNING

Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury.

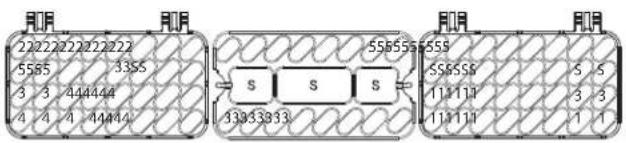

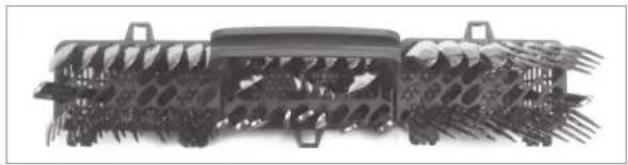

SILVERWARE LOADING TIPS:

• For best cleaning results, use the top separators in the basket when loading silverware. The separators will prevent nesting of silverware.
• Load sharp items, such as knives, pointing down.
• When unloading the dishwasher, it is best to start with the silverware basket. Doing so will prevent water droplets from falling on your silverware from the upper rack.

Black-and-white photo of a hair comb with multiple blades and a central handle (no text or symbols visible)

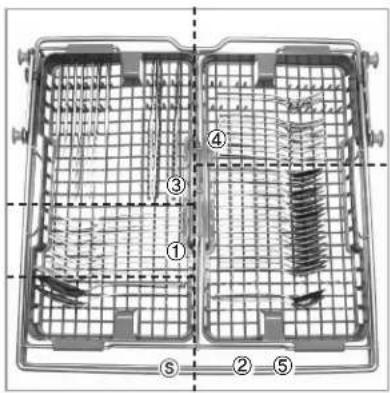

22222222222 5555 3355 3 3 444444 4 4 4 44444 55555 555556 S S 111111 3 3 111111 1 1

④
⑤

②①
③

LOADING THE UPPER RACK

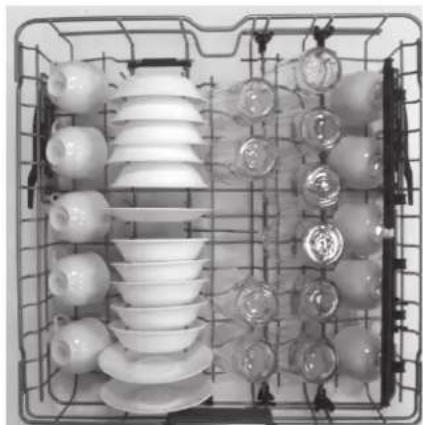

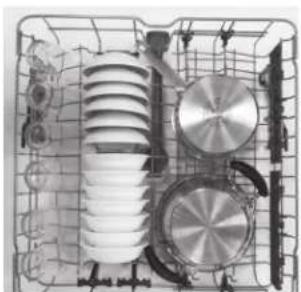

Use the upper rack for small or delicate items such as small plates, cups, saucers, glasses, and dishwasher-safe plastic items. Cups, glasses, and bowls must be positioned upside down. Extra cups or cooking utensils can be laid on the fold down cup racks, which may also provide support for long stemmed glasses. Make sure items do not interfere with the rotation of the spray arms above and below the upper rack.

LOADING 10 PLACE SETTINGS

Interior view of a kitchen appliance with multiple plates and hanging glassware (no visible text or labels)

NOTE

When loading larger items in the upper rack, such as wine glasses or taller cups, it may be necessary to remove the cutlery rack.

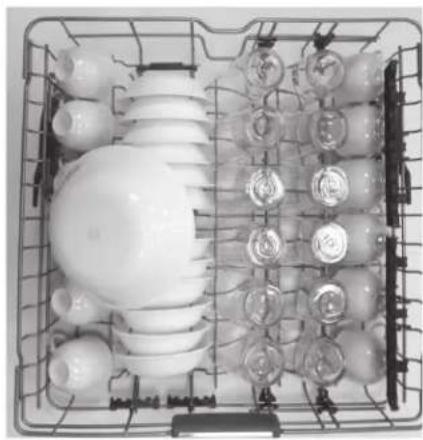

LOADING 12 PLACE SETTINGS

Top-down view of a kitchen appliance with multiple glassware arranged in rows (no visible text or labels)

UPPER RACK LOADING TIPS:

• Place cups and glasses in the rows between the rack tines. Placing them over the rack tines can lead to breakage and water spots.
  • To avoid chipping, do not let stem ware touch other items.
• Place items so that the open end faces down for cleaning and drying.
  • Do not stack items on top of each other.

FOLDING DOWN THE UPPER TINES

Pull up the tine

Close-up of hands holding a wooden structure with a magnified inset showing a small mechanical component (no text or symbols visible)

Rotate the tine

Close-up of a hand holding a metal wire with a magnified inset showing a small mechanical component (no text or symbols visible)

The tines can be adjusted up or down. The right side tines have handles for wider or small dishes.

Close-up of a bicycle's front wheel cage with visible structural lines and a magnified inset showing internal components (no text or symbols)

Electrical insulator assembly with cooling fan and motor components (no visible text or labels)

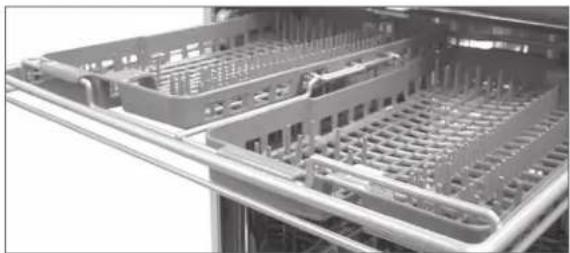

HEIGHT ADJUSTABLE UPPER RACK

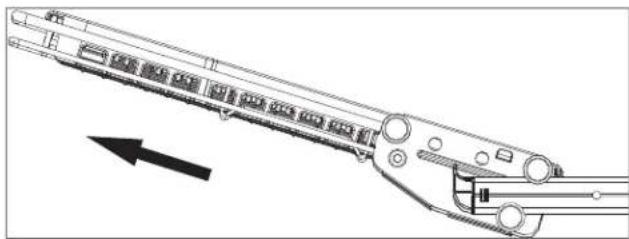

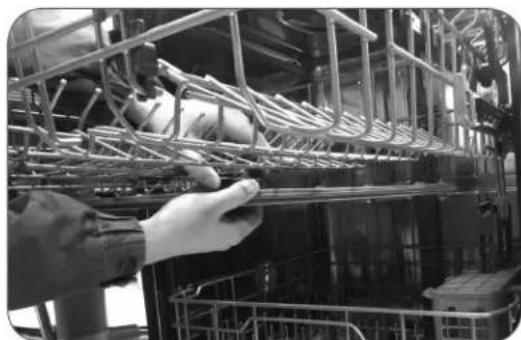

The upper rack adjusts up and down. Adjust the upper rack up to allow tall and oversized items of up to 14 inches high in the lower rack. Adjust the upper rack down to allow placement of large dishes of up to 12 inches high in the upper rack. The upper rack comes in the upper position.

Technical illustration of a mechanical assembly with internal components and directional arrows (no text or symbols)

1 To lower the rack:

Hold the rack at the center of each side to support its weight. Then, lift the lever on each side to release the rack and lower it to the lower position.

NOTE

After adjusting, make sure that dishes in the upper and lower racks do not interfere with the rotation of the spray arm. Do not adjust the rack while it is loaded with dishes.

Line drawing of a hand using a tool to clean or adjust a grid-patterned appliance (no text or symbols)

2 To raise the rack:

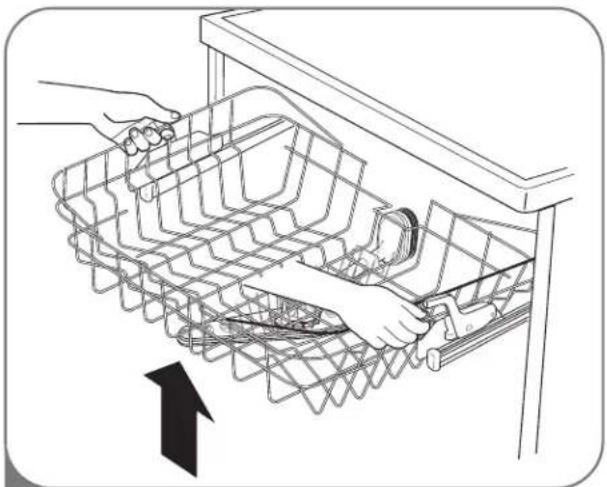

Simply lift the rack at the center of each side (see illustration) until the rack locks into place in the upper position. It is not necessary to lift the lock levers to raise the rack

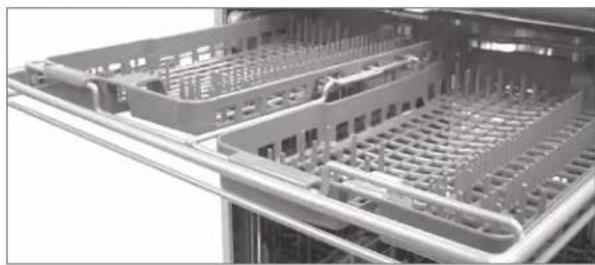

LOADING THE CUTLERY RACK (on some models)

Interior view of a kitchen appliance showing stainless steel grilles, kitchen utensils, and a spoon (no text or symbols visible)

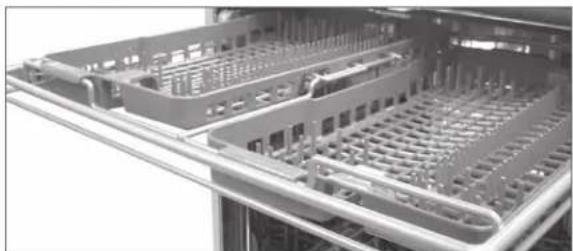

The cutlery rack is best suited for flatware and most cooking or serving utensils. Heavily soiled utensils or items with baked on foods should be placed in the middle rack or spoon basket for best performance. The separators on the cutlery racks help keep flatware separated to avoid damage and improve cleaning.

Technical diagram of a mechanical device with numbered components and grid lines indicating assembly or assembly steps.

Sample 10-place setting.

Close-up of a metal grid with scattered fibers, circled in black (no text or symbols visible)

RightWrong

Black-and-white photo of a grid-patterned object with a circular overlay containing a crossed-out symbol (no text or symbols present)

Close-up of a metal mesh structure with curved ribbeds (no text or symbols visible)

Alternate

If the handles of your flatware are too thick, then reverse the pieces so that the handles face the other direction, as shown in the bottom figure.

HEIGHT ADJUSTABLE TRAY (on some models)

Each side tray can be adjusted independently to a high or low position to accommodate different sizes of utensils or cutlery. Remove dishes before adjusting the tray.

Close-up of hands installing or adjusting a grid-like mechanical component (no visible text or symbols)

Close-up of a server rack with multiple microcontrollers and ventilation grilles (no visible text or labels)

Each tray is adjusted by lifting it out and rotating it front to back.

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

NOTE

Always remove the cutlery from the rack before removing the rack.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Pull the rack out to the end of the rails. Then, lift the front of the rack so that the rollers clear the stop on the end of the rail. The rack can now be slid forward and removed from the rails.

WARNING

Be careful when loading and unloading sharp edged items. Load sharp knives with the blade down to reduce the risk of injury.

ADDING DETERGENT TO THE DISPENSER

• Only use detergent intended for automatic dishwashers.
- Detergent must be put into the detergent compartment before starting any cycle, except the Rinse Only cycle.
- Use less detergent if the dishes are only lightly soiled. Using excess detergent can leave a film on dishes and in the dishwasher resulting in poor wash performance.
- The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

NOTE

Remove the label on the dispenser prior to running the dishwasher.

Pushbuttontoopen

1 If the lid is closed, press the lever on the bottom side of the lid to open the dispenser.

Main wash Compartment Place proper detergent into this compartment

2 Add dish washing detergent to the main wash compartment until the level is between the lines marked 20 and 30. Fill to the 30 line for hard water or heavily soiled loads. Fill to the 20 line for soft water or lightly soiled loads.

Close the lid firmly until it clicks.

NOTE

DO NOT add detergent when the Rinse Only cycle is selected.

Pre wash Compartment Place proper detergent into this compartment

3 If a prewash is desired, fill the recessed prewash compartment area in the lid with detergent.

NOTE

Too much detergent can leave a film on dishes and in the dishwasher, resulting in poor wash performance. Do not use detergent tablets for shorter wash cycles. The tablet may not dissolve completely, causing detergent residue on dishes and inefficient cleaning.

CAUTION

DETERGENT INFORMATION

Use only detergent intended for automatic dishwashers. Incorrect detergent may cause the dishwasher to fill with suds during operation. Excess sudsing may reduce wash performance and may cause the dishwasher to leak. DO NOT use hand dish washing detergent in this dishwasher.

ADDING RINSE AID TO THE DISPENSER

The Low Rinse Aid indicator will appear in the display when rinse aid is needed.

Only use liquid rinse aid in this dishwasher. The use of rinse aid is recommended to prevent water droplet spots on dishes and to enhance the drying performance.

Close-up of a kitchen appliance with a hand adjusting the lid (no visible text or symbols)

1

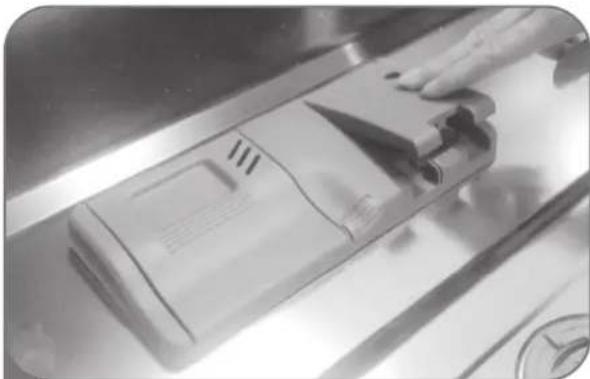

Push button to open lid.

Close-up of a white plastic kitchen appliance on a glass shelf, showing internal components and mounting holes (no text or symbols visible)

2

Add a liquid rinse aid to the maximum fill level. When filling the rinse aid dispenser, aim the rinse aid at the arrow. Make sure that the rinse aid is settled in the dispenser while filling.

Close-up of a white electronic device with a handle and display panel, no visible text or symbols

3

Close the lid to lock the dispenser. Rinse aid will be dispensed automatically during the final rinse cycle.

RINSE AID DISPENSER ADJUSTMENT

Rinse-Aid Indicator Adjust Lever (Rinse)

The rinse aid dispenser is set to level 3, which should provide the best performance under most conditions. Adjust the setting higher if you have hard water and notice calcium buildup on your dishes.

If you notice film on your dishes, use a lower setting. Setting the rinse aid control too low will contribute to spotting and streaking of dishes and poor drying performance. Setting the control too high can cause foaming, which will cause poor wash performance.

To adjust the rinse aid dispenser setting, remove the cap and adjust the rinse aid lever to the desired setting. Point the arrow to the left for a lower setting, right for a higher setting.

REFILLING THE RINSE AID

The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. If the rinse aid level is low, the Rinse Aid light on the control panel will illuminate.

RINSE AID FILLING TIPS:

• The Low Rinse Aid indicator will appear in the display when more rinse aid is needed.
• Do not overfill the rinse aid dispenser.
• Clean up any spilled rinse aid to prevent sudsing.

CARE & CLEANING

For best results, it is important to periodically check and care for the spray arms.

WARNING

To prevent injury during care and maintenance/cleaning, wear gloves and/or protective clothing.

CLEANING THE FILTERS

1. Remove the lower rack first.
2. Turn the mesh filter counterclockwise.
3. Take out the mesh filter, upper STS filter and outer filter.
4. Clean them if necessary.
5. Replace them in the reverse order.

NOTE

• For best wash performance, clean the filter after each load.
• Before starting a cycle, make sure that the filter is assembled correctly. If the filter is not assembled correctly, you may experience poor cleaning results.
• If you have hard water, it is recommended to clean this filter at least once a month to prevent poor wash performance.

Mesh filter Outer filter Upper STS filter

All three filters should be cleaned according to the chart recommendations below. Clean the filters using non-abrasive materials and warm running water. A soft brush may be required to get hard to remove soil.

Recommended filter cleaning chart:

Number of Loads Per Week	If you wash dishes before loading	If you scrape and rinse dishes before loading	If you only scrape dishes before loading	If you do not scrape or rinse dishes before loading
1-3 Every 6 months Once a year Four times a year Once a month
4-7 Every 6 months Once a year Four times a year				Twice a month (every 15 days)
8-12	Every 6 months	Every 6 months	Every 1.5 months	Every week
13-14 Every 6 months Every 6 months Every 1.5 months Twice a week

CLEANING METALLIC PARTS

Some exterior and interior parts can be cleaned with a damp cloth or sponge. A cloudy film may form on the surface of the stainless steel tub, especially with hard water.

CLEANING THE LOWER SPRAY ARM

Close-up of hands in protective clothing handling a stainless steel kitchen sink with a knife (no visible text or symbols)

• Make sure that the water jet holes are not blocked by food particles.
- When cleaning is necessary, remove the lower spray arm by pulling up.
- After cleaning the lower spray arm, replace it by pushing down until it clips into place. Be sure that the spray arm is able to turn freely.

CLEANING THE UPPER SPRAY ARM

Person handling steel rebar cage in a warehouse (no visible text or symbols)

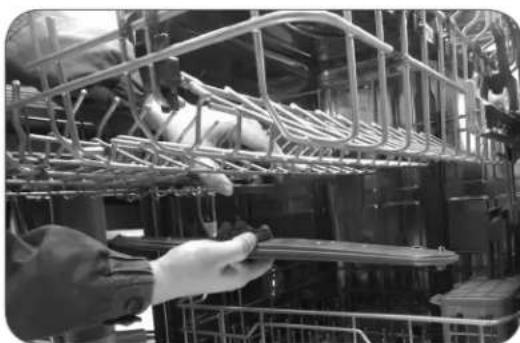

• Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.
• When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counterclockwise and pulling down.

Black-and-white photo of a poultry farm interior with a worker handling a chicken on metal racks (no visible text or symbols)

- After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place.

CLEANING THE TOP SPRAY ARM

Line drawing of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

1 Make sure that the water jet holes are not blocked by food particles. When cleaning is necessary, use a screwdriver to release the retainer clip from the bracket that holds the top spray arm assembly to the tub.

Line drawing of a hand holding a tool on a mechanical component (no text or symbols)

3 After cleaning the top spray arm, replace it. Slide it back into place and make sure the retainer clip engages.

Line drawing of a hand holding a propeller with a black arrow indicating downward motion (no text or symbols)

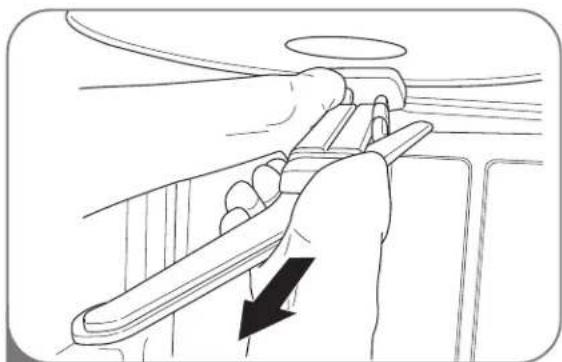

2 Pull the spray arm out.

• If you will be absent for an extended period of time during warmer months, it is recommended that you close the water valve and unplug the power cord, or turn off the circuit breaker.
• If you will be absent for an extended period of time during colder months, and there is a possibility of freezing temperatures, it is recommended that you winterize the water supply lines and the dishwasher itself. Winterization must be performed by experienced service personnel.

FAQs

COMMON PRODUCT QUESTIONS

Is a rinse aid required to be used?

Rinse aid is strongly recommended to enhance the drying performance of the dishwasher. In order to be more energy efficient, the hybrid drying system does not utilize a heating element in order to assist in drying, so a rinse aid plays an integral role in the dry process. If a rinse aid is not used, water may remain on the dishes and the tub. Rinse aid will help to ensure that the majority of the water has been sheeted off of the dishes at the end of the rinse and that the load is ready for the dry cycle.

What can be done if my dishes have a cloudy, white film on them after a wash?

The cloudy film is usually caused by minerals in the water reacting with the dishwasher detergent. First, be certain not to use too much detergent. Refer to the owner's manual for recommended detergent amounts by cycle. Add an Extra Rinse to the cycle. Add an Extra Rinse, or run a Steam Power or Power Scrub cycle. LG Dishwashers use less water than traditional dishwashers, so adding an Extra Rinse will aid in rinsing the film away. If the water supply is hard, it may be necessary to add a performance booster that addresses the hard water condition.

What is the Sanitary Rinse and how is it activated?

Sanitary Rinse will increase the heated rinse to approximately 161^ F ( 72^ C). The normal heated rinse temperature will vary from cycle to cycle.

What steps can I take to improve drying results?

Dry performance is directly affected by the amount of heat that remains in the tub after the heated rinse is performed. If your dishwasher is far away from your home's hot water heater, it may be necessary to run the hot water tap in the sink before starting a wash cycle, to ensure that cool water is purged from the hot water lines. This will ensure your dishwasher has a consistent supply of hot water from start to finish. Using the Sanitary Rinse setting will also aid in keeping the inner drum temperature and dishes hotter before drying begins.

LG dishwashers are designed to be used in conjunction with a rinse aid. Using a rinse aid will maximize the amount of water that has already been sheeted away from the dishes before the dry cycle begins. If a rinse aid is used and the performance still needs a boost, adjust the amount of rinse aid used by the indicator on the rinse aid cap. 3 is the default setting, but if necessary, set the level to 4 so more rinse aid will be used.

Allow the dishwasher to completely finish the dry cycle before opening the door. If the door is opened mid dry cycle, the heat that is necessary for the hybrid dry system to work will escape out. This will cause all of the dishes inside to remain wet once the cycle finishes.

What is the hybrid drying system?

The dishwasher does not rely on a heating element for the drying process; instead, it relies on the heat that is retained by the dishes and the tub during the wash and rinse cycles to turn the moisture in the tub into humidity. Warm, moist air in the dishwasher is then pulled into a condensing duct in the door by a fan. The air then cools, which causes the humidity to condense. Room temperature air is also drawn into the duct to help the air cool down faster. When this moisture condenses into a liquid, it is drained out.

NOTE

Rinse aid is required to enhance the drying performance. If no rinse aid is used, water may remain on the dishes and the tub.

Why is there a whistling sound?

It is important to determine how long the noise occurs and when it happens (what part of the cycle). When water is drawn into the dishwasher, a whistling noise can be heard. This is normal. If the water pressure is too high, it will be louder so it may be necessary to adjust the water valve to lower the pressure if the noise is too loud.

What is Steam Dual?

Steam Dual is an option that can be utilized during wash cycles. This option enables you to fully customize the wash cycle intensity for the upper and lower racks, independently, in the same load. For example, by selecting a soft spray for the upper rack and strong spray for the lower rack, you can wash delicate stemware in the upper rack while washing pots and pans in the lower rack.

What kind of dishes can be placed in the dishwasher?

Ensure that the dishes you place in the dishwasher are dishwasher safe. Plastic dishware will not dry as effectively as glass and metal dishware. Plastic items do not retain heat as well as glass and metal dishware. Plastic cups and dishes may require some hand drying before being put away at the end of the cycle.

Can I perform a drain only cycle?

The dishwasher does not have a drain only function; however, the dishwasher will drain on its own for the first 45 seconds of a new cycle. To drain standing water, select a wash cycle and let it run for only 45 seconds. Then, turn the unit off and let it reset. Repeat as necessary.

How long does the clean indicator stay lit after the cycle is complete?

The clean light indicator on the dishwasher will stay lit for 4 minutes before turning off. You can, however, program the dishwasher so that the clean light stays on until the dishwasher door opens.

Why does my dishwasher continuously beep if I open the door during a cycle or right after the cycle has finished?

This is normal. The dishwasher is letting you know that the interior temperatures of the unit are hot and to use caution when placing your hands inside. Once the unit has cooled down, the beeping will stop.

PRODUCT FEATURES AND OPERATION

What is the benefit of steam?

Steam allows for thorough cleaning of baked on foods while using less water than other power scrub methods. Steam also allows for enhanced cleaning performance when cleaning fine china and stemware items on a delicate cycle. Stream particles are smaller and more active so their penetrating power is more effective. Steam also increases the interior temperature of the dishwasher, which helps in melting oily or waxy substances, like lipstick along the rim of a glass.

What is Child Lock and how is it activated?

Child Lock is a feature that will prevent the controls from being changed during the cycle. It does not prevent the door from being opened or the unit from being powered off. To activate or deactivate, press the Spray and Rinse buttons (LDS6040: Half Load and Delay Start) simultaneously for 3 seconds.

Why is "PF" showing up on the display?

PF is not an error code indicating a malfunction. PF indicates that there was a power failure. This function protects the dishwasher in the event that the power goes out or the power to the unit is disrupted. When power is returned and a button is pushed, this will display for 10 seconds and then go away.

INSTALLATION

What size is the 90° elbow?

The 90° elbow should have a 3/8" NPT on the end that connects to the dishwasher.

Can I add an extension to the drain hose?

No, an extension cannot be added.

BEFORE CALLING FOR SERVICE

Problem Possible	Causes Solutions
Dishwasher will not operate	Door is not completely closed. Make sure that the door is completely closed and latched.Power supply or power cord is not connected. Connect the power supply or cord properly.Fuse is blown or circuit breaker tripped. Replace the fuse or reset the circuit breaker.
Dishwasher operates too long	Dishwasher is connected to cold water.	Check the water supply connection or water heater setting. (Heating cold water takes longer.)
Odor	Previous cycle was stopped before completion.	Operate the Quick cycle with detergent without loading any dishes.
Water remains in tub after completion of cycle	Drain hose is kinked or clogged. Adjust hose or clear blockage.
Spots and filming on dishes	Low water temperature.Wrong amount of detergent used. Use the recommended amount of detergent.	Water supply should be at least 120°F for best wash performance.
	Overloading. Do not overload the dishwasher.
	Improper loading. See the Using Your Dishwasher section.Insufficient water pressure. Water pressure should be between 20 and 120 psi.Insufficient detergent.	Add the recommended amount of detergent. See the Using Your Dishwasher section.
	Rinse aid dispenser is empty. Refill rinse aid dispenser.
	Extremely hard waterThe best way to eliminate spots on your dishes is to install a whole house water softener in your home. If a water softener is already installed or you do not plan on installing one, try adding the “Extra Rinse” option as part of the wash cycle to help minimize this condition. To add an extra rinse to the cycle, select the wash cycle and then press the RINSE button.NOTE: Selecting “Extra Rinse” will increase cycle times and water usage.To remove hard water build up in the tubRemove all dishes, silverware and the silverware holder from the dishwasher. Only the racks should remain in the tub.Fill a measuring cup with white vinegar, approximately 14~17 ounces (400~500mL), and place the measuring cup in the lower rack.Run a Normal cycle and select Extra Rinse R^+ and Sanitary 160^ then close the door.DO NOT USE DETERGENTNOTE: Make sure to let the dishwasher complete the entire cycle. This cleaning method should only be done as needed.

If you have followed this troubleshooting guide and the problem persists, or if the problem you are experiencing is not listed here, please call LGE Customer Service at 1-800-243-0000(US), 1-888-542-2623(Canada).

BEFORE CALLING FOR SERVICE

Problem Possible Causes $olutions
Food soil remains on dishes.	Improper cycle selection.Water temperature too low.Dish washing detergent was not used. Use reLow inlet water pressure.Water jet holes on spray arms blocked. CleanImproper loading of dishesFilters are clogged. Clean filters.	Select correct cycle based on soil level and type of dishware being washed.Check water supply connection or water heater setting.commended detergent.Water pressure should be between 20 and 120 psi.the spray arms.Make sure dishes do not block spray arm rotation or interfere with detergent dispenser.
Noise	Some level of noise is normal during operation.The dishwasher is not level. Adjust leveling feet.Nozzle arm knocking against dishes. Reposition the dishes.	Detergent cover opening.Drain pump at the beginning of drain cycle.
Cloudiness on glassware.	Combination of excessive detergent and soft water.	Use less detergent and use a rinse aid to minimize the problem.
Black or gray marks on dishes.	Aluminum items rubbing dishes during cycle.	Reposition the dishes.
Yellow or brown film on inside of surfaces of dishwasher.	Coffee or tea stains.	Eliminate the stain by using a stain removal product.
Dishes don't dry. Rinse agent dispenser empty.		Check and refill the rinse agent dispenser if empty.
Lamps do not illuminate. Power is not connected. Connect power supply.
Sprays arms do not rotate smoothly.	Holes of spray arms are blocked by food particles.	Clean the holes of spray arms.
Upper rack is crooked. Rack is poorly adjusted.		See the Height Adjustable Upper Rack section.
Dishwasher continuously beeps when the door is opened, during or right after a cycle has completed.	The contents of the dishwasher are hot and care should be used when placing your hands inside the dishwasher.	Close the door until the dishwasher and dishes have cooled down. The beeping will go away if the door is closed or the interior temperature has been cooled.
IE Error	Water inlet problem.	Check for a clogged, kinked or frozen water inlet hose.Check water supply.
OE Error	Drainage Problem.Filters are clogged. Clean Filters	Check for a clogged, kinked or frozen drain hose.
FE Error	Excessive Water supplied.	Please call an Authorized Service Center or LGE Customer Service at 1-800-243-0000 (US) 1-888-542-2623 (Canada)
E1 or AE Error	Water leakage problem.
HE Error	Heater circuit failure.
TE Error	Thermistor failure or very high inlet water temperature (over 194°F)
LE Error	Motor Trouble

If you have followed this troubleshooting guide and the problem persists, or if the problem you are experiencing is not listed here, please call LGE Customer Service at 1-800-243-0000(US), 1-888-542-2623(Canada).

SMART DIAGNOSIS™ SYSTEM

Should you experience any problems with your dishwasher, it has the capability of transmitting data to your Smart Phone using the LG Smart Laundry & DW Application or via your telephone to the LG call center.

(LDF**** ) (LDS****)

Smart Diagnosis Using Your Smart Phone

1. Download the LG Smart Laundry & DW application on your smart phone.

2. Open the LG Smart Laundry & DW application on your smart phone.

3. Press the Smart Diagnosis button on your smart phone.

4. Press the Diagnose button on your smart phone.

5. Press the Dishwasher button on your smart phone.

6. Press the RECORD button on the smart phone and then hold the mouth piece of the smart phone near the speaker located on the side panel. Hold the phone no more than one inch (but not touching) the machine.

7. Press and hold the Rinse button on the dishwasher display for three seconds.

NOTE

After three seconds, the display will change from 0:22 to 17 and then start counting down the remaining time.

1. With the phone held in place, press the Smart Diagnosis button on the phone.

NOTE

Do not touch any other buttons or icons on the display screen.

1. Keep the phone in place until the tone transmission has finished. This takes about 17 seconds and the display will count down the time.

2. When the recording is complete, view the diagnosis by pressing the Next button on the phone.

Smart Diagnosis cannot be activated unless your dishwasher is turned on by touching the POWER button. If your dishwasher is unable to turn on, then troubleshooting must be done without using Smart Diagnosis.

★ PRESS & HOLD 3SEC. 0.00 0.00 DELAY START POWER ① CK SMART DIAGNOSIS™

Smart Diagnosis Through the Call Center

1. Call the LG call center at: (LG U.S.) 1-800-243-0000 (LG Canada) 1-888-542-2623.

2. When instructed to do so by the call center agent, hold the mouthpiece of your phonenear the hole located on the side panel. Hold the phone no more than one inch (but not touching) the machine.

NOTE

Do not touch any other buttons or icons on the display screen.

1. Press and hold the Rinse button on the display screen for three seconds.

2. Keep the phone in place until the tone transmission has finished. This takes about 6 seconds and the display will count down the time.

3. Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you in using the information transmitted for analysis.

NOTE

Smart Diagnosis is a troubleshooting feature designed to assist, not replace, the traditional method of troubleshooting through service calls. The effectiveness of this feature depends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmission, and the acoustics of the room where the machine is located. Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue.

DISHWASHER LIMITED WARRANTY (USA)

Should your LG Dishwasher prove to be defective in material or workmanship under normal use during the warranty period listed below, effective from the date of original consumer purchase of the product, LG Electronics will replace the defective part(s). Replacement parts will meet intended fit and function of the original part. Replacement parts are warranted for the unexpired portion of the original warranty period. This limited warranty is good only to the original purchaser of the product and effective only when used in the United States of America.

WARRANTY PERIOD
For the Period of: LG Will Replace:
One year from date of original purchase	Any part of the Dishwasher which fails due to a defect in materials or workmanship. During this full one-year of original purchase warranty, LGE will also provide, free of charge, all labor and on-site service to replace the defective part.
Two year from date of original purchase	Any part of the dishwasher (except as listed below) which fails due to a defect in materials or workmanship.During this two-year parts warranty, you will be responsible for any labor or on-site service costs.
Five year from date of original purchase	Electronic control board and dishwasher rack which fails due to a defect in materials or workmanship.During this five-year parts warranty, you will be responsible for any labor or on-site service costs.
Ten year from date of original purchase	Direct Drive motor which fails due to a defect in materials or workmanship.During this ten-year warranty, you will be responsible for any labor or on-site service costs.
Limited Lifetime	Stainless steel door liner and tub (as long as owned by the original purchaser) which fails due to a defect in materials or workmanship. During this limited lifetime parts warranty, you will be responsible for any labor or on-site service costs
Replacement units and repair parts may be new or factory remanufactured. Replacement units and repair parts are warranted for the remaining portion of the original unit's warranty period

No other warranty is applicable to this product. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states and/or territories do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you, the original purchaser, specific legal rights and you may also have other rights that vary from state to state or territory to territory.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service calls to your home for delivery or pick-up, installation, instruction, replacement of house fuses, connection of house wiring or plumbing, or to correct unauthorized repairs.
2. Failure of product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by transportation or handling.
4. Damage caused to the product by accident, vermin, lightning, winds, fire, floods, or acts of God.
5. Damages caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, or inadequate or interrupted water supply.
6. Damages caused by inadequate supply of air.
7. Damages caused by operating the product in a corrosive atmosphere.
8. Repairs when your LG product is used in other than normal, singlefamily household use or contrary to the instructions described in the product User's Guide.
9. Damage resulting from accident, alteration, misuse, abuse, or improper installation, repair, or maintenance. Improper repair includes the use of parts not approved or specified by LG.
10. Normal maintenance as described in the User's Guide, such as cleaning or replacing filters, cleaning coils, etc.
11. Use of accessories or components that are not compatible with this product.
12. Products with altered or removed serial numbers.
13. Changes in the appearance of the product that do not affect product performance.
14. Increases in utility costs and additional utility expenses. The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://us.lgservice.com

Or by mail: LG Customer Information Center:

P. O. Box 240007

201 James Record Road

Huntsville, Alabama 35813

ATTN: CIC

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

Dealer Name:

DISHWASHER LIMITED WARRANTY (CANADA)

WARRANTY: Should your LG Dishwasher ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty(60) days from the date of manufacture)
Dishwasher		Extended Component Warranty (Parts Only)(Consumer will be charged for Labor after One (1) year from the date of purchase)
Two (2) year from the date of original retail purchase	One (1) year from the date of original retail purchase	Five (5) year from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Parts Labor		PCB, Rack, Stainless Steel Door Liner, Tub DD Motor
(internal/functional parts only)

▶ Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

▶ Replacement products and parts may be new or remanufactured.

▶ LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined in the Product owner's manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner's and installation manuals.
17. Accessories to the Product such as door bins, drawers, handles, shelves, etc.. Also excluded are parts besides those that were originally included with the Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.ca

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

MANUAL DEL PROPIETARIO

LAVAVAJILLAS

ADVERTENCIA Indicates the possibility of serious bodily harm or death.

▲ PRECAUCIÓN Indicates the possibility of injury or damage to property.

Technical line drawing of a multi-chamber appliance with internal compartments and labeled parts (no text or symbols present)

Technical line drawing of a mechanical component with a central shaft and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with gear and housing components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and tubing (no text or symbols)

Mechanical assembly diagram showing gear and pulley mechanism with directional arrows (no text or labels)

Diagram of a desktop computer with numbered parts for identification and assembly reference.

Soft ( ), Medium ( ), Strong ( )

PANEL DE CONTROL

EXTRA DRY RINSE SPRAY ★CHILD LOCK R+8160° UPPER LOWER eco * PRESS & HOLD 3SEC. 6:00 HALF LOAD DELAY START POWER SMART DIAGNOSIS™ ★ECO

HALF LOAD (MEDIA CARGA)

Soft ( ), Medium ( ), Strong ( )

HALF LOAD (MEDIA CARGA) (

Grid of kitchen utensils including plates, spoons, and a textured brush (no text or symbols visible)

SUGERENCIAS PARA LA CARGA DE LA BANDEJA INFERIOR:

Top-down view of a kitchen appliance basket containing multiple plates and a spoon (no text or symbols visible)

NOTA

Two circular images showing mechanical assembly components, no visible text or symbols

Parte trasera Parte frontal

CARGA DE PLATOS Y OLLAS

Basket filled with kitchen utensils including a plate, cloth, and showerhead (no text or symbols visible)

CARGA DE OLLAS Y BOWLS

Interior view of a multi-wheeled kitchen appliance rack with circular components and metal grilles (no visible text or labels)

Top-down view of a metal rack with cutlery and circular components (no text or symbols visible)

Top-down view of a metal baking tray with six circular covers and a flat lid (no text or symbols visible)

Close-up of a black plastic comb with multiple blades and meshed surfaces (no text or symbols visible)

222222222222 5555 3355 3 3 444444 4 4 4 44444 S S S 33833333 5555555555 55555 S S 1)1111 3 3 11111 1 1

① ③ ④ ⑤ ②

CARGA DE LA BANDEJA SUPERIOR

Top-down view of a kitchen appliance grid with multiple food items including oocytes, bowls, and spoons (no text or symbols visible)

SUGERENCIAS PARA LA CARGA DE LA BANDEJA SUPERIOR:

Top-down view of a multi-wheeled kitchen appliance with glassware arranged in rows (no visible text or symbols)

Close-up of a hand holding a wooden structure with a magnified inset showing a small mechanical component (no text or symbols visible)

Rote la punta.

Close-up of hands using a tool to adjust or install a mechanical component, with a magnified inset showing a detail (no text or symbols visible)

Close-up of a bicycle's front wheel cage with visible frame and rear window (no text or symbols)

Technical illustration of a mechanical assembly with gears and components (no visible text or symbols)

BANDEJA SUPERIOR CON ALTURA AJUSTABLE

Technical line drawing of a mechanical assembly with zoomed-in detail (no text or symbols)

Line drawing of a hand using a tool to adjust or install a grid-like device (no text or symbols present)

2 Para subir la bandeja:

Interior view of a kitchen drawer with cutlery and utensils (no text or symbols visible)

Labeled diagram of a food preparation tray with numbered compartments and corresponding utensils for kitchen utensils.

Close-up of a woven basket with a magnified inset showing internal texture (no text or symbols)

CopyrightWrong

Black-and-white photo of a person standing on a grid-patterned surface with a circular overlay (no text or symbols)

Incorrecto

Close-up of a wire mesh structure with curved internal elements (no text or symbols visible)

Alternar

Close-up of hands installing or adjusting a metal grid structure (no visible text or symbols)

Close-up of a server rack with multiple drive bays and ventilation slots (no visible text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Close-up of a hand adjusting a kitchen appliance panel with a handle (no visible text or symbols)

1

Close-up of a kitchen appliance casing with ventilation slots and a lid (no visible text or symbols)

2

Close-up of a white electronic device with a handle and display screen, no visible text or symbols

3

Close-up of hands cleaning a stainless steel kitchen sink with a tool (no visible text or symbols)

Black-and-white photo of a worker handling a large metal cage with woven materials, no visible text or symbols

Line drawing of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Line drawing of a hand holding a switch inside a vehicle (no text or symbols)

Illustration of a hand holding a propeller with a black arrow indicating downward motion (no text or symbols)

(LDF****)

Technical line drawing of a multi-level kitchen appliance with visible internal components and no text or symbols

Technical line drawing of a mechanical component with a central shaft and mounting base (no text or symbols)

DIRECT MOTOR™ ULTRA-PLAT

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

les gaspillages.

SYSTÈME DE SÉ- CHAGE HYBRIDE

Technical line drawing of a mechanical assembly with pulley and gears (no text or symbols)

Mechanical assembly diagram showing gear and pulley components with directional arrows (no text or labels)

Technical diagram of a front-end dishwasher with numbered parts for identification

1. PANNEAU DE CONTRÔLE
2. POIGNÉE DE PORTE
3. COUVERCLE AVANT
4. COUVERCLE INFÉRIEUR
5. PIEDS
6. AFFICHAGE FRONTAL (SIGNALIGHT™)
7. SOCLE

SignaLight < voyant lumineux >

Soft ( ), Medium ( ), Strong ( )

(Faible) (Moyen) (Fort)

HALF LOAD [DEMI-CHARGE]

The RINSE AID symbol indicates that the rinse aid needs to be refilled.

MISE EN MARCHE

HALF LOAD [DEMI-CHARGE] (

Basket filled with various kitchen utensils including a plate, spoon, and dish (no visible text or labels)

CONSEILS DE CHARGEMENT DU PANIER INFÉRIEUR :

Basket filled with various kitchen utensils including a plate, spoon, and fork (no text or symbols visible)

NOTE

Two circular images showing mechanical assembly components mounted on a metal frame, no visible text or symbols.

CHARGEMENT DES PLATS ET CASSEROLES

Grid of kitchen utensils including a plate, washers, and a brush (no text or symbols visible)

Grid of kitchen utensils and circular appliances, no visible text or symbols

Interior view of a multi-wheeled kitchen appliance with circular and rectangular components (no visible text or symbols)

Top-down view of a metal rack with six circular plates and a central fan (no text or symbols visible)

VAPORISATEUR

CHARGEMENT DU PANIER À COUVERTS

Black-and-white photo of a mechanical brush holder with multiple blades and a central handle (no text or symbols visible)

222222222222 5565 3365 3 3 44444 4 4 4 44444 S S S 33833333 556558 5565 55658 S S 11111 3 3 11111 1 1

① ③ ④ ⑤ ②

CHARGEMENT DU PANIER SUPÉRIEUR

Interior view of a kitchen appliance rack with multiple plates and hanging spoons (no text or symbols visible)

CONSEILS DE CHARGEMENT SUR LE PANIER SU- PÉRIEUR :

Close-up of a hand holding a small mechanical component with a magnified inset showing a detail (no text or symbols visible)

Tournez la grille

Close-up of a hand using a tool to adjust or install a mechanical component, with a magnified circular detail highlighting the component (no text or symbols visible)

NOTE

Top-down view of a white appliance rack with multiple circular cavities and a large bulb (no text or symbols visible)

Black-and-white photo of a person sitting in a shopping cart with a metal frame (no visible text or symbols)

Diagram of a refrigerator with air conditioner unit and fan (no text or labels)

PANIER SUPÉRIEUR À HAUTEUR RÉGLABLE

Technical illustration of a mechanical assembly with internal components and directional arrows (no text or symbols)

Line drawing of hands using a tool to clean or install a grid-patterned appliance (no text or symbols)

Interior view of a kitchen appliance drawer with cutlery and utensils (no text or symbols visible)

Labeled diagram of a food preparation tray with numbered compartments and corresponding utensils for kitchen utensils.

Close-up of metallic fish fillets on a mesh grid, with a black circle highlighting the area (no text or symbols)

CaiigattVrong

Grid pattern with a black circle containing a crossed-out polygon (no text or symbols)

Incorrect

Close-up of a metal grid structure with curved structural elements (no text or symbols visible)

Alternative

Close-up of hands installing or adjusting a mechanical grid structure (no visible text or symbols)

Interior view of an industrial rack with metal grating and ventilation slots (no visible text or symbols)

plateau.

Technical line drawing of a mechanical component with no visible text or symbols

INFORMATIONS RELATIVES AU DÉTERGENT

Close-up of a hand inserting a plastic into a kitchen appliance casing (no visible text or symbols)

Close-up of a kitchen appliance with visible lid and door (no text or symbols)

Close-up of a mechanical component with a handle and internal structure, possibly a tool or device (no visible text or symbols)

Close-up of hands cleaning a stainless steel kitchen sink with a tool (no visible text or symbols)

Person handling a large metal cage with coiled wires, no visible text or symbols

Person handling a metal cage with a white chicken inside, no visible text or symbols

Diagram showing a hand using a tool to adjust or install a component on a vehicle intake frame, with an inset close-up highlighting the detail (no text or symbols present)

Line drawing of a hand holding a tool on a vehicle's steering wheel (no text or symbols)

Line drawing of a hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

2 Retirez le bras de lavage.

ENTRETIEN SAISONNIER ET STOCKAGE

QUESTIONS COURANTES SUR LE PRODUIT

(LDF****)

Register your product Online!

www.lg.com
