USER MANUAL GT28WPP LG

www.lg.com Please read carefully the manual instruction and safety caution before operating your refrigerator and retain it for future reference

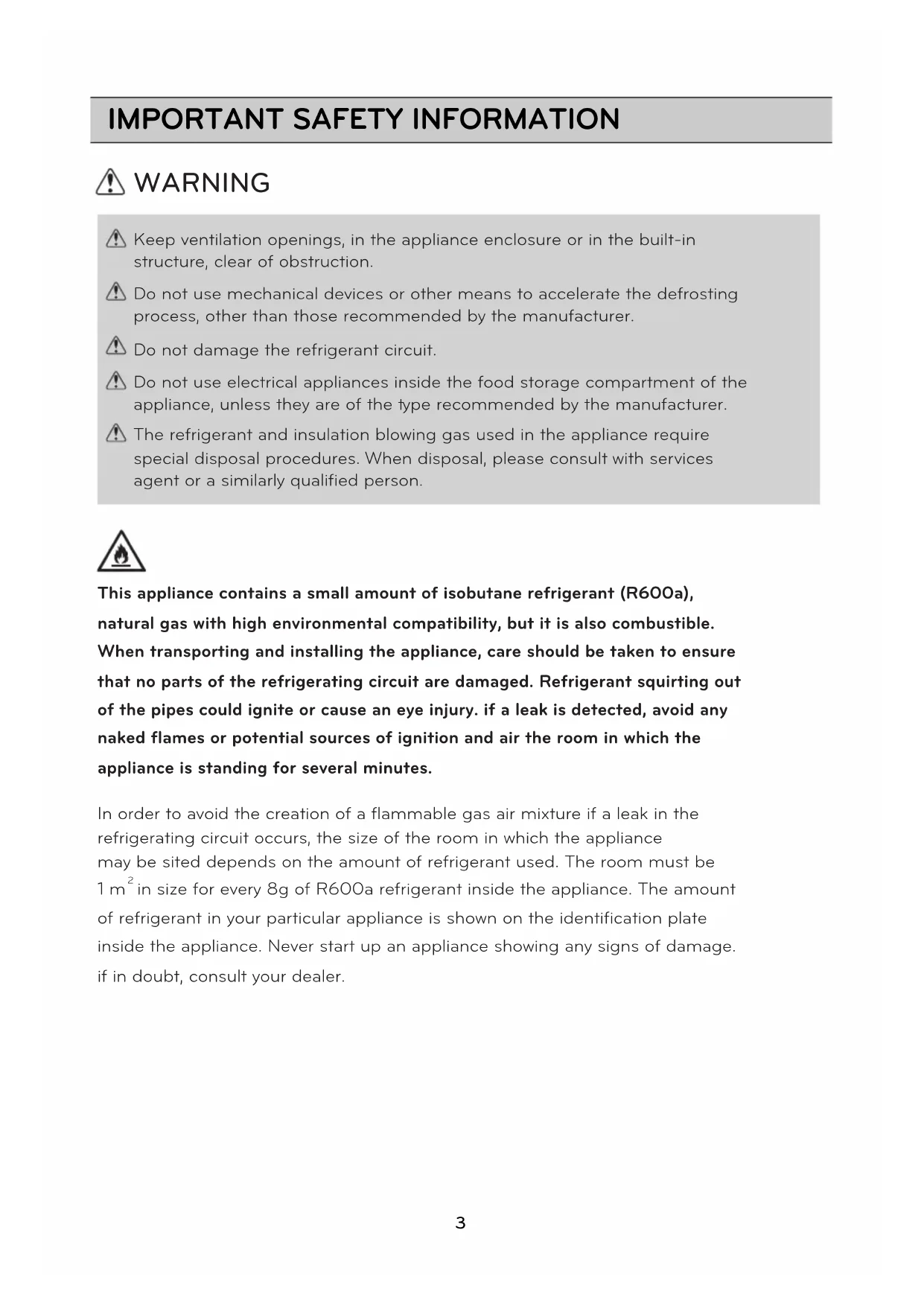

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. if a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartment of the appliance, unless they are of the t ype recommended by the manufacturer. The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with services agent or a similarly qualified person. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be

1 m in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. if in doubt, consult your dealer.IMPORTANT SAFETY INFORMATION

• Using several devices atone outlet may cause fire.• The electric leakage breaker may damage foodand the dispenser may beleaked. Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator. Water may be flown intoor the plug may bedamaged, which causesfire or electric shock.

1. When connecting the power

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety WARNING Do not allow the power cord bent or pressed by the heavy object to be damaged. It may damage the powercord to cause fire orelectric shock. Do not extend or modify the length of the power plug. It causes electric shock orfire by the electric damage ofthe power cord or others.precautions should be followed, including the following.Read all instructions before using this appliance. This guide contains many important safety messages. Always read and obey all safety This is the safety alert symbol. It alerts you to safety messages that inform you of hazardthat can hurt you or others or cause damage to the product. All safety messages will bepreceded by the safety alert symbol and the hazard signal word WARNING, or CAUTION. These words mean: WARNING You will be hurt or seriously injured if you don't follow instructions. CAUTION indicates an imminently hazardous situation which, if not avoided, mayresult in minor or moderate injury, or product damage only.All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what canhappen if the instructions are not followed.

BASIC SAFETY PRECAUTIONS

messages. Do not use many power outlets.IMPORTANT SAFETY INFORMATION

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.

o not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

1. When connecting the power

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator. It may be dropped to cause injury, fire or electric shock when opening or closing the door.

2. When using the refrigerator

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above. Remove water or dust from the power plug and insert it with the ends of the pins securely connected. Dust, water or unsta ble connection may fire or electric shock. Make sure of grounding. The incorrect grounding may cause breakdown and electric shock. When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them. It may cause electric shock or short circuit to make fire. Ground Wire Copper Flat More than 30 inches Do not cling to the door or the shelves of the door or the cool chamber.IMPORTANT SAFETY INFORMATION Do not install the refrigerator in the wet place or the place which water or rain splashes. Deterioration of insulation of electric parts may cause electric leakage. Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator. It may cause explosion or fire. BenzeneEtherThinner Do not place the lit candle within the refrigerator to deodorize. It may cause explosion or fire. Do not store the medicine or the academic materials at the refrigerator. When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk. The Academic MedicineThe Medicine Do not use the combustible spray near the refrigerator. It may cause fire. Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator. It may cause fire, electric shock or injury by dropping down. Avoid the heating devices. It may cause fire.

2. When using the refrigerator

It may cause electric shock or fire. Do not use the submerged refrigerator directly, kindly checked by the technician.

6IMPORTANT SAFETY INFORMA

TION Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner. Deterioration of insulation ofelectric parts may causeelectric shock or fire. When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center. It may cause fire.ThinnerThinnerService center Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator. It may cause injury,electric shock or fire. Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.). It may cause an unexpectedrisk such as fire, electric shock, deterioration of stored material or chemical reaction.

2. When using the refrigerator

When disposing the refrigerator, remove the packing materials from the door. It may cause to lock out the child. Install the refrigerator on the solid and level floor. Installing it on the unstableplace may cause death byfalling down the refrigeratorwhen opening or closing thedoor.

When gas is leaked, do not touch the Do not put hands or refrigerator or the outlet and ventilate the other things in the air room immediately. holes, under the cover, - The explosion by spark may cause fire or burn. into the holes - Because this refrigerator uses natural gas as the at the back of environtment-friendly refrigerant, even as small the refrigerator. amount is combustible. When the gas is leaked It may cause by the severe damage during delivering, electric shock installing or using the refrigerator, any spark may or injury. cause fire or burn.IMPOR

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside. It may cause electricshock or injury. When you want to dispose the refrigerator, contact to the down-block office. When you want to disposethe large living waste suchas electric home applianceand furniture, you'd bettercontact the local down-block office.Down-block office CAUTION Violating this direction may cause injury or damage house or furniture. Always be careful, please. ul, please. Do not touch food or containers at the Wait for 5 minutes or longer when freezer with wet reconnecting the plug. hands. It may cause the operationIt may cause frostbiteof the freezer to fail.After 5minutes Do not put bottle in the freezer. Pull out the power plug not by grasping the It may freeze the contents to cord but the plug of its break the bottle to cause end. injury.It may cause electric shock orshort circuit to fire. Prevent children from entering the product. It may endanger the life of achild if the child enters therefrigerator.IMPORTANT SAFETY INFORMATION

Do not insert the hands into the bottom of the refrigerator. The iron plate of the bottommay cause injury. Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear. Otherwise, your handsmay be slipped to causeinjury. Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please. Opening or closing thedoor may cause feet orhands to be caught inthe chink in door or the child to be get hurt by the corner. Do not put any living animal in the refrigerator. Do not install the refrigerator in the wet place or the place which water or rain splashes. Deterioration of insulation ofelectric parts may causeelectric leakage. CAUTION Violating this direction may cause injury or damage house or furniture. Always be careful, please. It may cause the animaldied. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance Do not use the carbonated water. The gas pressure may cause leakage. Water TankCarbonated WaterWater TankClean the water tank according to the instruction before using the Water Dispenser Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using any liquid other than water, the Only water manufacturer will not be responsible. Water Tank Fill with potable water only. WARNING10 INST ALLATION

Place your refrigerator where it is easy to

1. Clean your refrigerator thoroughly and wipe

use. off all dust accumulated during shipping. 2.Avoid placing the unit near heat sources,

2. Install accessories such as ice cube box, etc.,

direct sunlight or moisture. in their proper places. They are packed together to prevent possible damage during

3. Air must circulate properly around your

shipment. refrigerator to ensure efficient operation.If your refrigerator is placed in a recessed area

3. Connect the power supply cord (or plug) to

in the wall, allow at least 10 inches (25 cm) or the outlet. Don't double up with other greater clearance above the refrigerator and 2 appliances on the same outlet. inches (5 cm) or more from the wall.

4. Prior to storing food, leave your refrigerator

The refrigerator should be elevated 1 inch on for 2 or 3 hours. (2.5 cm) from the floor, especially if the floor iscarpeted. Check the flow of cold air in the freezer compartment to ensure proper cooling.

4. To avoid vibrations, the unit must be level.

Your refrigerator is now ready for use. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise raise the unit, counterclockwise to lower it.

5. Don't install this appliance below 5°C. It may

Freezer Door Rack (Optional) Water Dispenser This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above. To keep a position of inner parts like as baskets, drawers and shelves supplied by manufactureris the most efficient usage for energy saving. NOTE

SUGGESTION FOR ENERGY SAVING

- Please do not keep the door open for a long time, close door in the shortest time. - Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely. - Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperaturesensor.- Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, andlead to higher electric bills.- Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.- Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and causetemperature to rise.

• OPERATIONS STARTING When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperaturesprior to filling it with fresh or frozen foods.If operation is interrupted, allow 5 minutes delay before restarting.

BEFORE SETTING THE TEMPERATURE

This refrigerator has one temperature control knob for the refrigerator compartment and one temperaturecontrol dial for the freezer compartment.The default setting of the temperature control knob for the refrigerator compartment is '4'.The default setting of the temperature control dial for the freezer compartment is '3' .

For colder temperatures, adjust the control knob to MAX, and forwarmer temperatures, adjust the control knob to MIN positionhas a tendency to warm up. For colder refrigerator, turn the TEMP. CONTROL to "2" to direct more cold air into the refrigerator compartment.Setting at "4" of the TEMP. CONTROL, the refrigerator compartment will not be cold enough. In hot weather or to put much foods in the refrigerator compartment, the refrigerator compartment Setting at " ", the freezer compartment becomes colder. But the refrigerator compartment becomes warmer because less cold air flows into the refrigerator compartment. In cold weather the unit operates less and the freezer compartment has a tendency to warm up. For colder freezer, turn the TEMP . CONTROL to "4"

If you take a lot of foods in the freezer or open its door frequently , its temperature is apt to be some what higher

In this case , set the TEMP. CONTROL dial 4 to cool it. Return the TEMP. CONTROL dial to the original position to cut down the consumption of energy. TEMPERATURE CONTROL TEMP. CONTROL

RECOMMENDED POSITION COLDEST COLDER COLD TEMP. CONTROL - 1, 2, 3, 4, 5, 6, 7 Knob is for quick freezing in the freezer compartment. The refrigerator can be operated continuously or the refrigerator compartment can be warmer. When the quick freezing is finished, please return to set the Knob at Normal.

To make ice cubes, fill the ice tray with water andinsert in its position. To remove ice cubes, hold the knob of the tray andturn gently. Then, ice cubes drop in the ice cube box.

You can remove the Twisting Ice Serve to make thefreezer compartment larger. You should remove the ice Trays and Ice Cube Boxfirst, then pull the frame out toword the right side. OPERATION Ice TraysIce Cube Box HYGIENE FRESH (OPTIONAL) CAUTION Before installing or using the product, make sure to read the owner's manual carefully to use the productaccurately as intended. This HYGIENE FRESH filter has the antibacterial function of removing the virusor bacteria inside the refrigerator and the deodorizer function to remove the scent.

(OPTIONAL) 13The pull out tray offers easy access to the rearof the food drawer by sliding the tray out. Please do not hold the bottom of the tray when slide the tray in, as it could catch your hand.OPERATION

DEFROSTING Defrosting takes place automatically. The defrosted water flows down to the evaporating tray which is located in the lower back side of therefrigerator and is evaporated automatically. DEODORIZER (OPTIONAL) By using a catalyst, deodorizing performance is guaranteed. Unpleasant odor of food in the fresh food compartment is deodorized with no harm to you and the food. How to use As the catalyst is located in cooling air outlet for circulating air in fresh food compartment, there is no need to touch it. Do not prick the deodorizer with a sharp tip because the deodorizing catalyst may be damaged. When storing food with a strong odor, wrap it or store it in a container with a lid because the odor may be passed on to other foods.

To remove the deodorizer, take down while pulling it forward after inserting type driver into the inside hole as shown in the figure at right.

Fully extend the Pull-Out-Tray and lift the front then pull it out slowly. How to remove the Pull Out TrayOPERATIONS WATER DISPENSER (OPTIONAL)

Putting water in the water tank

1. Open the cover cap and pour water into the

2. Close the cover cap.

1. Press the dispenser pad with cup.

2. The water is released when the dispenser pad is

pressed. The pad returns to its original position when the cup is removed and the water stops its flow.

Put water after the water tank being in position. Necessarilly separate the water tank to clean it or not use it. When the water tank is not position after filling it with water, water can leak out by the valve pushed. Caution Do not use anything other than water including.Hot water needs to be cooled before being putin the water tank.Cover Cap NOTE

Cover CapSUGGESTIONS ON FOOD STORAGE STORING FOOD

Store fresh food in the refrigerator compartment. How food is frozen and thawed is an importantfactorin maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, andmelons. Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food andlead to higher electric bills! When storing, cover food with vinyl wrap or store in a container with a lid. This prevents moisture fromevaporating and helps food to keep its taste and nutrients. Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatureseven. Do not open the door frequently. Opening the door lets warm air enter the refrigerator, causingtemperatures to rise. REFRIGERATOR COMPARTMENT

Avoid placing moist food deep inside refrigerator shelves, it could freeze upon direct contact with chilled air. Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean to prevent adjacent food from spoiling. When storing eggs in their storage rack, ensure that they are fresh. Always store them in a uprightposition, which keeps them fresh longer.

Do not store bottles in the freezer compartment - they may break when frozen. Do not refreeze food that has been thawed. This deteriorates taste and nutrition. When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack. Avoid storing any food close to the bottom area of the freezer shelf to keep efficient air circulation.

It is recomended to load food at least 15mm against back of freezer wall, it will keep good air circulation in the freezer compartment.

Freezer Door Basket, marked ( ) is -12°C compartment, that is suitable for short term storage of frozen food (optional).CLEANING WATER DISPENSER Grille - Wipe with a wet cloth, and dry with a dry cloth. Water Tank - 1. Remove the tank cover.2. Clean the inside and outside of the water tankwith diswashing detergent and rinsethroughly under running water. Dry the waterwith a cloth.3. Clean the inside and outside of the capwith diswashing detergent and rinsethroughly under running water. Dry the waterwith a cloth. Water Tank -

1. Putting the WaterIs not necessary to remove the water tank in order to supply

it (it could be filled like shows fig. 1 pulling the tank gate). - Before closing door, close the cap and clamp tightly.- Do not use liquids containing sugar or carbonated drinks like soda NOTE

2. Disassembly Lift the water tank, gripping a side and bottom of water tank.

NOTE When disassemble Water Tank, use all waterinside dispenser first.3. Assembly If by some cause removes the water tank, place again the water tank on its original position. Verify that the valve assembly correctly in the hole of the door (fig. 3,4). Once assembled push down and check the tank position with line. Caution 1. Use lukewarm water when cleaning.2. Do not use anything other than water. If it isused with soft drinks,put water in the watertank and discharge three or four cups ofwater shortly.fig. 1 fig. 3fig. 4 fig. 2 17CLEANING GENERAL INFORMATION VACATION TIME During average length vacations, you will probablyfind it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.When you plan to be away for an extended period,remove all food, disconnect the power cord, clean theinterior thoroughly, and leave each door OPEN to prevent odor formation. POWER FAILURE Most power failures are corrected in an hour or twoand will not affect your refrigerator temperatures.However, you should minimize the number of dooropenings while the power is off. During power failuresof longer duration, place a block of dry ice on top of your frozen packages.

When using dry ice, provide adequate ventilation.Dry ice is frozen carbon dioxide (CO

When it vaporizes, it can displace oxygen, causingdizziness, light-headedness, unconsciousness, anddeath by suffocation. Open a window and do not breathe the vapors.

If you move, empty the refrigerator (freezer)completely and wash a mild solution of bakingsoda and water. (2 TBS soda to 1 quart water) Be sure the soda is completely dissolved to avoidscratching the inside of the refrigerator (freezer).Secure any loose items, such as racks, bins, icetrays, etc. Do not try to move a loaded refrigerator. ANTI-CONDENSATION PIPE The outside wall of the refrigerator cabinet maysometimes get warm,especially just afterinstallation.Don't be alarmed. This is due to the anti-condensation pipe,which pumps hot refrigerantto prevent sweating on theouter cabinet wall. This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments. - Farm houses and by clients in hotels, motels and other residential type environments. - Bed and breakfast type environments. - Catering and similar non-retail applications. It is important that your refrigerator be kept clean toprevent undesirable odors. Spilled food should bewiped up immediately, since it may acidify andstain plastic surfaces if allowed to settle.Never use metallic scouring pads, brushes, coarseabrasive cleaners, or strong alkaline solutions onany surface.Before you clean, remember that damp objects willstick or adhere to extremely cold surfaces. Do nottouch frozen surfaces with wet or damp hands.EXTERIOR - Use a lukewarm solution of mild soapor detergent to clean the durable finish of yourrefrigerator. Wipe with a clean, damp cloth andthen dry. INTERIOR - Regular cleaning of the interior andinterior parts is recommended. If you have the NoFor products with a stainless steel exterior, use a clean sponge or soft cloth and a mild Detergent in warm waterDo not use abrasive or harsh cleaners. Dry thoroughly with a Soft cloth. Do not use appliance wax, bleach, or other products containing chlorine on stainless steel. Frost model which defrosts automatically, leaveboth doors open during the entire cleaning process. Disconnect the power supply, and remove food andall compartment shelves, storage trays etc. Wash all compartments with a baking sodasolution. Rinse and dry. INTERIOR PARTS - Wash compartment shelves,door racks, storage trays, and magnetic door sealsetc. with the baking soda solution or a milddetergent and warm water. Rinse and dry. WARNING Always remove power cord from the wall outletprior to cleaning in the vicinity of electricalparts (lamps, switches, controls, etc.).Wipe up excess moisture with a sponge orcloth to prevent water or liquid from getting intoany electrical part and causing a electricshock. Do not use flammable or toxic cleaningliquids. 18LAMP REPLACEMENT IMPORTANT WARNINGS

VERY DANGEROUS ATTRACTION

An empty refrigerator can be a dangerousattraction to children. Remove either gaskets,latches, lids or the entire door from your unusedappliance,or take some other action to make itharmless.This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW! Disposal of the old appliance This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

DO NOT USE AN EXTENSION CORD

Use this appliance on a dedicated circuit; that is,an outlet that is the only outlet on the circuit.Overloading a circuit causes low voltage,malfunction, possible damage to the equipment,and poor cooling capacity. Check your local electric code or consult aqualified electrician if you have questions.

ACCESSIBILITY SUPPLY PLUG

The refrigerator-freezer should be so positionedthat the supply plug is accessible for quickdisconnection if an accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replacedby the manufacturer or replacement or a similarlyqualified person in order to avoid a hazard. ABOUT GROUNDING (EARTHING) In the event of an electric short circuit, grounding(earthing) reduces the risk of electric shock byproviding an escape wire for the electric current.In order to prevent possible electric shock, thisappliance must be grounded.Improper use of the grounding plug can result inan electric shock. Consult a qualified electrician orservice person if the grounding instructions are notcompletely understood, or if you have doubts onwhether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE

This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.

Do not store inflammable materials, explosives, or chemicals in the refrigerator. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be super vised to ensure that they do not play with the appliance.

SERVICE CALLS CAN OFTEN BE AVOIDED! IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM POSSIBLE CAUSES

Has a house fuse blown or circuit breaker tripped? NOT OPERATE

Has the power cord plug been removed or loosened from the electrical wall outlet?

Temperature control not set on proper position. COMPARTMENT TEMPERATURE

Appliance is placed close to wall or heat source. TOO WARM

Warm weather-frequent door openings.

Door left open for a long time.

Large amount of foods are kept in the refrigerator. ABNORMAL NOISE(S)

Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.

Unnecessary objects placed behind the refrigerator. REFRIGERATOR

Foods with strong odors should be tightly covered HAS ODOR or wrapped.

Interior needs cleaning.

Not unusual during periods of high humidity. CABINET SURFACE

Door may have been left ajar. 20How to connect the earth wire:

• Connect the earth wire's metal ring end to the earth screw on the back of the refrigerator. Do not connect the earth wire to the following locations.

• Gas pipe It could produce sparks which lead to fire and explosion.

• Telephone earth wire and lightning rod It is dangerous during lightning.

• Water pipe and water tap The earth wire connection will not work when the middle of the water pipe is made of plastic. When installing the product in a humid or wet location, you must install the earth wire. Ex) • Unfloored or dirt floored room (Room with dirt and no floor), concrete floor

• Location where it can get wet such as near the sink

• Location where water can leak or is humid such as basement

• Other wet or humid location Especially, for locations where it always get wet such as near the restaurant sink, you are obligated by the law to install a circuit breaker in addition to the earth wire. After consulting with your retailer or electric construction company, you must do the earth wire construction (Type 3 earth construction). Please note that earth construction could incur extra fees.

• Peel off the cable sheath/insulation at the other end of the earth wire. Attach the peeled wire to a metal screw/nail and then drive it through the wall or ground. If it is connected to a metal water pipe, it could cause someone to be electrocuted.

Pull out trayHygiene Fresh
