Product type	High pressure cleaner
Brand	Kärcher
Model	HD 615 M Cage
Operating pressure	15 MPa (150 bar)
Water flow rate	9.3 l/min
Connected power	3.1 kW
Mains voltage	230 V / 50 Hz
Protection type	IPX5
Operating weight	33 kg
Dimensions (L × W × H)	460 × 420 × 970 mm
Max. supply temperature	60 °C
Max. supply pressure	1 MPa
Oil quantity	0.25 L (type 15W40)
Connection system	EASY!Lock
High pressure gun	EASY!Force with safety catch
Automatic shut-off function	Pressure switch (motor stops when gun is closed)
Sound pressure level	74 dB(A)
Hand-arm vibration	2.4 m/s² (uncertainty K = 0.7 m/s²)
Intended use	Cleaning of machines, vehicles, masonry, tools
Included accessories	High pressure lance, 15 m hose, nozzle

Frequently Asked Questions - HD 615 M Cage Kärcher

What type of oil to use for the Kärcher HD 615 M Cage high pressure cleaner?

Use motor oil 15W40 for the HD 615 M Cage model. The required amount is 0.25 L.

How to bleed the air from the water circuit before first use?

Unscrew the nozzle from the lance, open the water supply and let the device run until there are no more air bubbles. You can also repeat the operation by opening and closing the gun several times.

What to do if the high pressure cleaner does not start?

Check the power cable, mains voltage and fuse. If the device overheats, let it cool for 15 minutes before restarting. If the problem persists, contact customer service.

How to use detergent with this model?

Use an optional foam lance. Attach it to the gun, fill the reservoir with an authorized Kärcher detergent, then adjust the dosage via the shutter set. Apply the detergent to the dry surface, let it sit, then rinse with high pressure jet.

What is the maximum permissible pressure for the water connection?

The maximum supply pressure is 1 MPa (10 bar). Higher pressure could damage the device.

How to maintain the water supply connection filter?

Unscrew the coupling nut, remove the hose with the filter, clean it with clean water, then reassemble. Perform this operation at least once a week.

Can I use rainwater or recycled water?

Yes, provided that the water meets the following limits: pH 6.5-9.5, max conductivity 2000 µS/cm, no abrasive substances. Recycled water must be filtered.

How to protect the device against frost?

Store the device in a frost-free place. If not possible, drain the water completely and pump a glycol-based antifreeze into the circuit by running the device for 1 minute.

What is the recoil force of the high pressure gun?

The recoil force is approximately 28.6 N for the HD 615 M Cage model. Hold the gun firmly during use.

Where to find spare parts and accessories?

Use only original Kärcher parts. You can order them from your dealer or on the website www.kaercher.com.

USER MANUAL HD 615 M Cage Kärcher

Line drawing of a portable water heater with wheels and control panel (no text or symbols)

Deutsch 5

English 11

Français 17

Italiano 23

Nederlands 30

Español 36

Português 43

Dansk 49

Norsk 55

Svenska 61

Suomi 67

Ελληνικά 74

Türkçe 80

Русский 86

Magyar 93

Čeština 100

Slovenščina 106

Polski 112

Românește 118

Slovenčina 125

Hrvatski 131

Srpski 137

Български 143

Eesti 151

Latviešu 157

Lietuviškai 163

Українська 169

中文 176

العربيه 181

Technical line drawing of a mechanical device with multiple views and mounting brackets (no text or symbols)

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Contents

General notes.... 11

Intended use.... 11

Environmental protection.... 11

Safety instructions 11

Control elements 12

Colour coding 12

Unpacking 12

Installing accessories 12

Initial startup 12

Operation.... 13

Interrupting operation 13

Finishing operation 13

Storing the device.... 13

Frost protection 13

Transport 14

Storage.... 14

Care and service 14

Troubleshooting guide.... 14

Accessories and spare parts 15

Warranty 15

Technical data 15

EU Declaration of Conformity.... 16

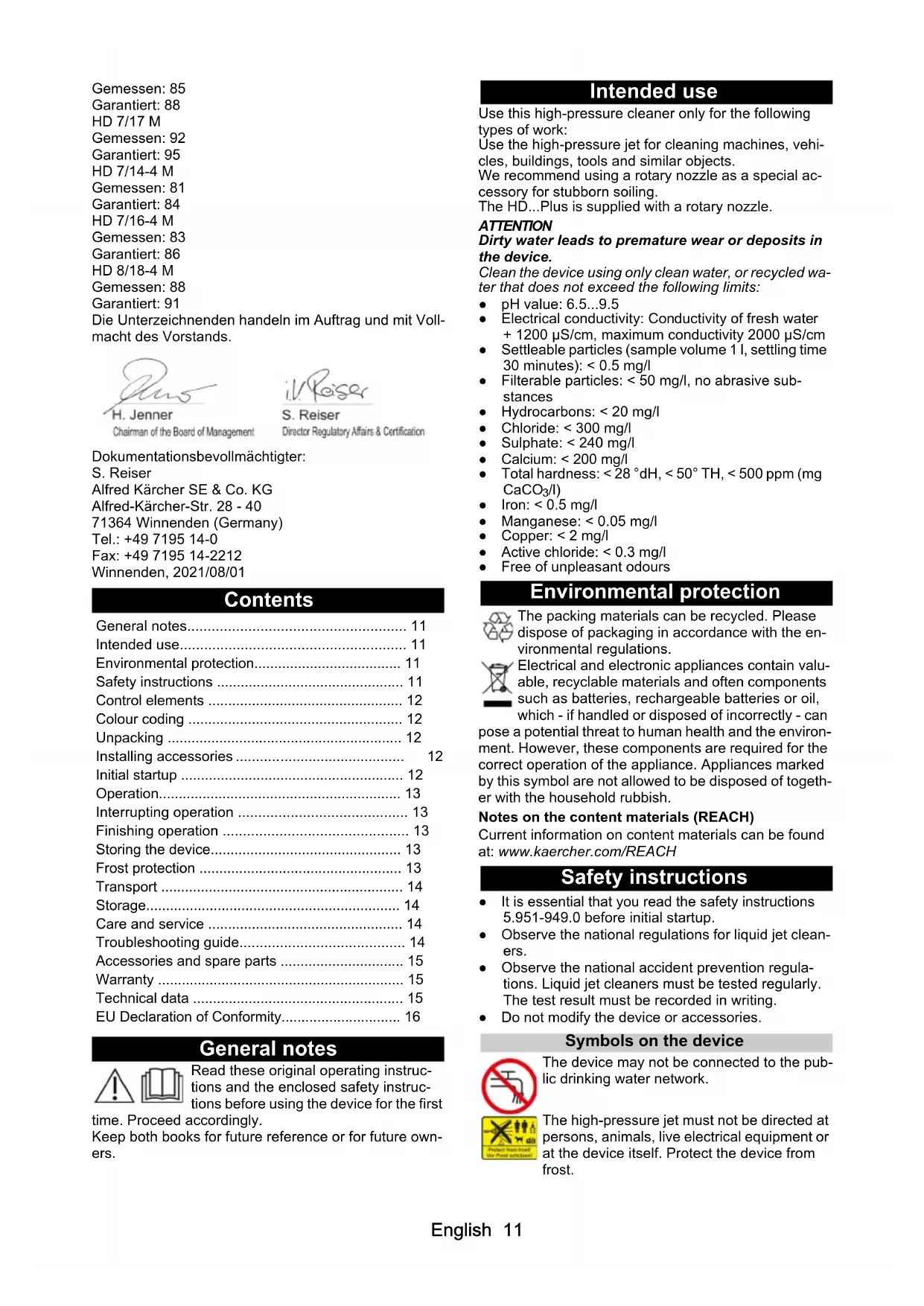

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Use this high-pressure cleaner only for the following types of work:

Use the high-pressure jet for cleaning machines, vehicles, buildings, tools and similar objects.

We recommend using a rotary nozzle as a special accessory for stubborn soiling.

The HD...Plus is supplied with a rotary nozzle.

ATTENTION

Dirty water leads to premature wear or deposits in the device.

Clean the device using only clean water, or recycled water that does not exceed the following limits:

• pH value: 6.5...9.5

- Electrical conductivity: Conductivity of fresh water + 1200 μS/cm, maximum conductivity 2000 μS/cm

- Settleable particles (sample volume 1 l, settling time 30 minutes): < 0.5 mg/l

- Filterable particles: < 50 mg/l, no abrasive substances

• Hydrocarbons: < 20 mg/l

• Chloride: < 300 mg/l

• Sulphate: < 240 mg/l

• Calcium: < 200 mg/l

- Total hardness: <28 °dH, <50° TH, <500 ppm (mg CaCO₃/I)

- Iron: < 0.5 mg/l

• Manganese: < 0.05 mg/l

• Copper: < 2 mg/l

• Active chloride: < 0.3 mg/l

• Free of unpleasant odours

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Safety instructions

• It is essential that you read the safety instructions 5.951-949.0 before initial startup.
• Observe the national regulations for liquid jet cleaners.
• Observe the national accident prevention regulations. Liquid jet cleaners must be tested regularly. The test result must be recorded in writing.
• Do not modify the device or accessories.

Symbols on the device

The device may not be connected to the public drinking water network.

The high-pressure jet must not be directed at persons, animals, live electrical equipment or at the device itself. Protect the device from frost.

Safety devices

Safety devices protect the user and may not be disabled or functionally circumvented.

The overflow valve, pressure switch an safety valve are set and sealed by the manufacturer. Adjustments are performed only by customer service.

Overflow valve with pressure switch

When the water quantity is reduced via the pressure/quantity control on the trigger gun, the overflow valve opens and part of the water flows back to the suction side of the pump.

When the trigger on the high-pressure gun is release, the pressure switch switches off the high-pressure pump and the high-pressure jet stops.

The pump switches on again when the trigger is pulled.

Safety valve

The safety valve opens when the permissible operating pressure is exceeded and the water flows back to the suction side of the pump.

Control elements

See graphics page

①Protector

② Nozzle

③ Pressure and quantity regulation*

④ EASY!Lock spray lance

⑤EASY!Force high-pressure gun

⑥ Safety latch

⑦Trigger

⑧ Unlocking lever

⑨ EASY!Lock high-pressure hose

⑩ Push handle

⑪ Spray lance holder

⑫ Transport retainer for surface cleaner*, rotary nozzle*

⑬ Push handle star grip

⑭EASY!Lock high-pressure connection

⑮ Union nut

⑯Hose spout

⑰ Sieve

⑱ Water connection

⑲Power switch

⑳Cable clip, hose switch

* not in the scope of delivery for all unit models

Colour coding

• Control elements for the cleaning process are yellow.
• Control elements for maintenance and servicing are light grey.

Unpacking

1. Check the contents of the package when unpacking.
2. Notify the dealer immediately in the case of shipping damage.

Installing accessories

Note

The EASY!Lock system connects components quickly and safely via a single turn of the quick-release thread.

1. Plug the high-pressure nozzle onto the spray lance.
2. Fit the union nut and hand-tighten (EASY!Lock).
3. Connect the spray lance to the high-pressure gun and hand-tighten (EASY!Lock).

Figure A

1. Fit the push handle.

Figure B

Connect the high-pressure hose

1. Connect the high-pressure hose to the high-pressure gun and high-pressure connection of the device and tighten hand-tight (EASY!Lock).

Initial startup

Electrical connection

△DANGER

Risk of injury from electric shock

Use a plug to connect the device to the mains grid. Permanent connection to the mains grid is prohibited. The plug is used for disconnection from the mains.

See the type plate or technical data for the connection values.

1. Unwind the mains cable and place on the ground.
2. Plug the mains plug into the socket.

Water connection

Connection to a water line

⚠ WARNING

Health risk from return flow of contaminated water into the drinking water network.

Observe the regulations of your water supply company. According to applicable regulations, the device must never be used with the drinking water network without a system separator. Use a system separator from KÄRCHER or a system separator as per EN 12729 Type BA. Water that has flowed through a system separator is classified as undrinkable. Always connect the system separator to the water supply and never directly to the water connection on the device.

1. Check the feed pressure, input temperature and input amount of the water supply. See the "Technical data" section for the requirements.
2. Connect the system separator and water connection of the device with a hose (minimum length 7.5 m, minimum diameter 1"). The supply hose is not included in the scope of delivery.
3. Open the water inlet.

Suck water from the container

1. Screw the suction hose (order number 4.440-207.0) and filter (order number 4.730-012.0) onto the water connection.
2. Vent the device.

Vent the device

1. Unscrew the nozzle from the spray lance.
2. Allow the device to run until the escaping water is free of air bubbles.
3. In the case of venting problems, allow the device to run for 10 seconds and then switch it off. Repeat the procedure several times.
4. Switch off the device.
5. Screw the nozzle back in place.

Operation

△DANGER

Risk of injury from the high-pressure water jet

Never fasten the trigger and safety lever in the actuated position.

Do not use the high-pressure gun when the safety lever is damaged.

Push the safety latch of the high-pressure gun forwards every time before starting work with the device.

Opening/closing the high-pressure gun

1. Opening the high-pressure gun: Actuate the safety lever and trigger.

2. Closing the high-pressure gun: Release the safety lever and trigger.

High-pressure operation

The device can be operated in a standing or lying position.

Note

The device is equipped with a pressure switch. The motor starts up only when the high-pressure gun is open.

1. Set the power switch to "l".

2. Unlock the high-pressure gun by pushing the safety latch of the high-pressure gun to the rear.

3. Open the high-pressure gun.

4. For devices with pressure and volume regulator: Set the working pressure by turning the pressure and volume regulator.

Operation with detergent

Note

A cup foam lance (optional) is needed for operating with detergent.

⚠ WARNING

Health risk through incorrect handling of detergents

Observe the safety instructions on the detergent.

ATTENTION

Unsuitable detergents can damage the device and the object to be cleaned.

Use only detergents approved by KÄRCHER.

Observe the dosing recommendations and notes provided with the detergent.

Use detergents sparingly to help conserve the environment.

KÄRCHER detergents ensure fault-free operation. Ask us for a consultation, request our catalogue or our detergent information sheets.

Figure C

① Foam nozzle

② Container

③ Gate

Detergent mixing: 3=high, 2=medium, 1=low

④ Suction hose

⑤ EASY!Force high-pressure gun

1. Unscrew the container.

2. Plug the desired gate into the suction hose.

3. Fill the detergent into the container.

4. Screw the container onto the foam nozzle.

5. Remove the spray lance from the high-pressure gun.

6. Connect the foam nozzle to the high-pressure gun and hand-tighten.

7. Start up the high-pressure cleaner.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).

2. Rinse off the loosened dirt with the high-pressure jet.

Rinsing out the foam lance

The foam lance must be flushed after use to prevent the formation of detergent deposits.

1. Unscrew the container.

2. Pour the remaining detergent back into the original packaging.

3. Fill the container with clear water.

4. Screw the container onto the foam nozzle.

5. Operate the foam nozzle for approx. 1 minute to flush the detergent residue.

6. Empty the container.

Interrupting operation

1. Close the high-pressure gun, the device will switch off.

2. Lock the high-pressure gun by pushing the safety latch of the high-pressure gun to the front.

Note

The water pressure in the high-pressure hose is reduced by approx. 70% when the device is switched off. This reduces the actuating force of the high-pressure gun and extends the service life of the device.

Continuing operation

1. Unlock the high-pressure gun by pushing the safety latch to the rear.

2. Open the high-pressure gun, the device will switch on again.

Finishing operation

1. Close off the water inlet.

2. Open the high-pressure gun.

3. Set the power switch to "I" and allow the device to run for 5 to 10 seconds.

4. Close the high-pressure gun.

5. Turn the power switch to "0/OFF".

6. Pull the mains plug out of the socket only when your hands are dry.

7. Disconnect the water inlet.

8. Open the high-pressure gun until the device is completely depressurised.

9. Lock the high-pressure gun by pushing the safety latch of the high-pressure gun to the front.

Storing the device

1. Place the spray lance with the high-pressure gun on the spray lance holders.

2. Wind the mains cable around the cable clip/hose switch.

3. Coil up the high-pressure hose and hang it over the cable clip/hose switch.

Frost protection

ATTENTION

Frost destroys the device if it is not completely drained of water.

Store the device in a frost-free location.

If frost-free storage is not possible:

1. Drain the water.

2. Pump commonly available anti-freeze through the device.

3. Allow the device for run for a maximum of 1 minute until the pump and lines are empty.

Note

Use commonly available, Glycol-based vehicle anti-freeze. Observe the handling instructions of the anti-freeze manufacturer.

Transport

△CAUTION

Risk of injury, risk of damage

Be aware of the weight of the device during transport.

ATTENTION

Risk of damage

Protect the trigger of the high-pressure gun from damage.

1. Pull the device behind you via the push handle for transporting over longer distances.

2. Pull the device step by step when ascending stairs.

3. When transporting in vehicles, secure the device against slipping and tipping over according to the applicable guidelines.

Transport retainer for surface cleaner or rotary nozzle

1. Plug the connection nozzle of the surface cleaner or rotary nozzle onto the transport retainer on the pipe frame.

2. Screw on the union nut by approximately 1 turn.

Storage

△CAUTION

Risk of injury, risk of damage.

Be aware of the weight of the device during storage.

1. Store the device indoors only.

Care and service

⚠️DANGER

Risk of injury due to inadvertently starting up device and also due to electric shock.

Switch off the device immediately and unplug the mains plug before performing work.

Safety inspection/maintenance contract

You can agree on regular safety inspections or close a maintenance contract with your dealer. Please seek advice on this.

Each time before use

1. Check the power cable for damage and have a damaged cable replaced immediately by the authorised Customer Service or a qualified electrician.
2. Check the high-pressure hose for damage and replace a damaged high-pressure hose immediately.
3. Check the device for leaks. 3 drops of water per minute are permissible. Contact Customer Service in the case of more serious leaks.

Weekly

1. Clean the sieve in the water connection.

Clean the sieve in the water connection

1. Unscrew the union nut.
2. Pull out the hose union with sieve.
3. Externally clean and rinse the sieve.
   Note: Align the hex-head of the hose union for connection to the device.
4. Fit the hose union with sieve.
5. Tighten the union nut.

Every 500 operating hours, at least annually

1. Have the device maintained by Customer Service.
2. Changing oil.

Changing oil

Note

See the "Technical data" section for the oil volume and type

1. Unscrew the 4 screws.

2. Remove the cover. Figure D

3. Pivot the oil drain hose downwards over an oil catch pan.

4. Pull the plug out of the oil drain hose.

5. Remove the cap.

6. Remove the foam from the oil tank.

7. Wait until the oil has drained completely. Figure E

8. Insert the plug into the oil drain hose.

9. Pivot the oil drain hose upwards and latch in place.

10. Fill with the measured correct quantity of oil.

11. Insert the foam into the oil tank.

12. Fit the cap and press firmly in place.

Figure F

Troubleshooting guide

△DANGER

Risk of injury due to inadvertently starting up device and also due to electric shock.

Switch off the device immediately and unplug the mains plug before performing work.

Have electrical components checked and repaired by the authorised Customer Service.

In case of any malfunctions not mentioned in this chapter, contact the authorised Customer Service when in doubt or when you have been explicitly advised to do so.

Device does not start

• Check the power cable for damage.
• Check the mains voltage.
• If the device overheats: a Set the power switch to "0". b Allow the device to cool for at least 15 minutes. c Set the power switch to "1".

- Contact Customer Service in the case of electrical faults.

Device does not reach required pressure

• Check the size of the nozzle and compare with the required size specified in the "Technical data" section.
  ● Vent the device, see section "Venting the device".
  ● Clean the sieve in the water connection.
• Check the water supply volume and compare with the required volume specified in the "Technical data" section.
• Clean the nozzle.
• Contact Customer Service if necessary.

Pump leaking

Up to 3 drops of water per minute are permissible.

- In case of more serious leaks, have the device checked by Customer Service.

Pump knocking

• Check the water supply line for leaks.
• Vent the device, see section "Venting the device".
• Contact Customer Service if necessary.

Detergent dosing volume too low

● Refill the foam nozzle cup.

● Plug a larger blender onto the suction hose.
- Check the suction hose and foam nozzle for detergent deposits. Remove deposits using lukewarm water.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Subject to technical modifications.
Technical data

				HD 6/15 M Cage	HD 6/15 M Cage	HD 6/16-4 M Cage	HD 7/12-4 M Cage
Country variant
Country EU CH EU GB
Electrical connection
Mains voltage V 230 230 230 230-240
P	h	a	s	e		~	1
Frequency Hz 50		50	50	50
Power rating			kW	3,1 2,3 3,3 3,1
Degree of protection				IPX5	IPX5	IPX5	IPX5
Power protection (slow-blowing)			A	16	10	16	13
Extension cable, 30 m			mm2	2,5 2,5 2,5 2,5
Water connection
Feed pressure (max.)			MPa	1	1	1	1
Input temperature (max.)			°C	60	60	60	60
Input amount (min.)			l/min	13	13	13	13
Suction height (max.)			m	0,5 0,5 0,5 0,5
Device performance data
Nozzle size of standard nozzle				033	038	034	045
Operating pressure			MPa	15	12	16	12
Operating pressure (max.)			MPa	22,5	18	24	18
Water flow rate			l/min	9,3 9,6 9,9 11,7
High-pressure gun recoil force			N	28,6	28,6	30,0	29,5
Dimensions and weights
Typical operating weight			kg	33	33	42	43
Length			mm	460	460	460	460
Width			mm	420	420	420	420
Height			mm	970	970	970	970
Oil volume l 0,25	0,25	0,35	0,35
Oil type			Type	15W40	0W40	0W40	0W40
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value			m/s2	2,4 2,4 2,8 2,8
Uncertainty K			m/s2	0,7 0,7 0,9 0,9
Sound pressure level			dB(A)	74	74	74	72
Uncertainty KpA			dB	(	A	)	3
Sound power level LWA + K uncertaintyWA			dB(A)	90	90	89	88
				HD 7/14-4 M Cage	HD 7/16-4 M Cage	HD 7/17 M Cage	HD 8/18-4 M Cage
Country variant
Country EU EU EU EU
Electrical connection
Mains voltage V 230 400 400 400
P	h	a	s	e		~	1
Frequency Hz 50 50 50 50
Power rating kW	3,4	4,2	4,2	4,6
Degree of protection				IPX5	IPX5	IPX5	IPX5
Power protection (slow-blowing)			A 16	16	16
Extension cable, 30 m			mm2	2,5	2,5	2,5
Water connection
Feed pressure (max.)			MPa	1	1	1	1
Input temperature (max.)			°C	60	60	60
Input amount (min.)			l/min	15	15	16
Suction height (max.)			m	0,5	0,5	0,5	0,5
Device performance data
Nozzle size of standard nozzle				043	042	040	042
Operating pressure			MPa	14	16	17	18
Operating pressure (max.)			MPa	21	24	25,5	27
Water flow rate			l/min	11,5	11,6	11,6	12,5
High-pressure gun recoil force			N	32,3	34,5	35,5	41,8
Dimensions and weights
Typical operating weight			kg	42	43	36	45
Length			mm	460	460	460	460
Width			mm	420	420	420	420
Height			mm	970	970	970	970
Oil volume l 0,35	0,35	0,20	0,35
Oil type			Type	0W40	SAE 90	SAE 90	SAE 90
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value			m/s2	2,7	2,4	3,0	2,3
Uncertainty K			m/s2	0,8	0,7	0,8	0,7
Sound pressure level			dB(A)	68	70	79	75
Uncertainty KpA			dB	(	A	)	3
Sound power level LWA + K uncertaintyWA			dB(A)	84	86	95	92

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.150-xxx

Type: 1.151-xxx

Type: 1.524-xxx

Currently applicable EU Directives

2000/14/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

2009/125/EC

Commission Regulation(s)

(EU) 2009/1781

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

HD 6/15, HD 6/16, HD 7/16, HD 7/17, HD 8/18

EN 61000-3-3: 2013

HD 7/14

EN 61000-3-11: 2000

3

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

HD 6/15 M

Measured: 87

Guaranteed: 90

HD 6/16-4 M

Measured: 87

Guaranteed: 89

HD 7/12 M Cage

Measured: 85

Guaranteed: 88

HD 7/17 M

Measured: 92

Guaranteed: 95

HD 7/14-4 M

Measured: 81

Guaranteed: 84

HD 7/16-4 M

Measured: 83

Guaranteed: 86

HD 8/18-4 M

Measured: 88

Guaranteed: 91

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Contenu

2006/42/CE (+2009/127/CE)

2011/65/EU

2014/30/UE

2009/125/CE

Ordonnance(s) appliquée(s)

(UE) 2009/1781

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Winnenden, 2021/08/01

Indice

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Inhoud

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2009/125/CE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Índice

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

2009/125/CE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

Indhold

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

2009/125/EF

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Indhold

Generelle merknader 55

Forskriftsmessig bruk 56

Miljøvern.... 56

Sikkerhetsinstrukser 56

Betjeningselementer 56

Fargemerking 56

Utpakking 56

Montere tilbehør 57

Igangsetting.... 57

Betjening 57

Avbryte driften 58

Avslutte driften 58

Oppbevare apparatet 58

Frostbeskyttelse 58

Transport.... 58

Lagring 58

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

2009/125/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

HD 6/15 M

Målt: 87

Garantert: 90

HD 6/16-4 M

Målt: 87

Garantert: 89

HD 7/12 M Cage

Målt: 85

Garantert: 88

HD 7/17 M

Målt: 92

Garantert: 95

HD 7/14-4 M

Målt: 81

Garantert: 84

HD 7/16-4 M

Målt: 83

Garantert: 86

HD 8/18-4 M

Målt: 88

Garantert: 91

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2021/08/01

Innehåll

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Sisältö

Yleisiä ohjeita 67

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2021/08/01

Περιεχόμενα

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2021/08/01

İçindekiler

2006/42/AT (+2009/127/AT)

2011/65/AT

2014/30/AB

2009/125/EG

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

Содержание

Общие указания 86

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2021/08/01

Tartalom

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

Obsah

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

2009/125/ES

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

Kazalo

Splošna navodila.... 106

Namenska uporaba 106

Varovanje okolja 106

Varnostna navodila.... 106

Upravljalni elementi 107

Barvna oznaka 107

Razpakiranje 107

Montaža pribora 107

Zagon 107

Upravljanje 107

Prekinitev obratovanja.... 108

Zaključek obratovanja 108

Shranjevanje naprave 108

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

2009/125/ES

Uporabljena(-e) uredba(-e)

(EU) 2009/1781

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

Spis treści

2006/42/WE (+2009/127/WE)

2011/65/UE

2014/30/UE

2009/125/WE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2021/08/01

Cuprins

Directive UE relevante

2000/14/UE

2006/42/UE (+2009/127/UE)

2011/65/UE

2014/30/UE

2009/125/UE

Regulament(e) utilizat(e)

(UE) 2009/1781

Norme armonizate aplicate

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

HD 6/15, HD 6/16, HD 7/16, HD 7/17, HD 8/18

EN 61000-3-3: 2013

HD 7/14

EN 61000-3-11: 2000

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Obsah

Všeobecné upozornenia.... 125

2006/42/ES (+2009/127/ES)

2011/65/EÚ

2014/30/EÚ

2009/125/ES

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/08/01

Sadržaj

Opće napomene.... 131

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

2009/125/EZ

Primijenjene uredbe

(EU) 2009/1781

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 2021/08/01

Sadržaj

Opšte napomene.... 137

Namenska upotreba 137

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

2009/125/EZ

Primenjena(e) odredba(e)

(EU) 2009/1781

Primenjene harmonizovane norme

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

HD 6/15, HD 6/16, HD 7/16, HD 7/17, HD 8/18

EN 61000-3-3: 2013

HD 7/14

EN 61000-3-11: 2000

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2021/08/01

Съдържание

Общи указания 143

Употреба по предназначение 144

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2021/08/01

Sisukord

Üldised juhised.... 151

Tarvikute monteerimine

Märkus

Vee sisseimemine mahutist

Toode: Körgsurvepesur

Tüüp: 1.150-xxx

Tüüp: 1.151-xxx

Tüüp: 1.524-xxx

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

2014/30/EL

2009/125/EÜ

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2021/08/01

Saturs

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

Turinys

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2021/08/01

3MICT

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2021/08/01

目录

一般性注意事项.... 176

按规定使用.... 176

环境保护.... 176

安全提示.... 176

操作元件.... 176

颜色标记.... 177

拆除包装.... 177

装配附件.... 177

投入运行.... 177

操作.... 177

中断运行.... 178

结束运行.... 178

保管设备.... 178

防冻保护.... 178

运输.... 178

存放.... 178

维护和保养.... 178

故障排除.... 179

附件和备件.... 179

质量保证.... 179

技术数据.... 179

一般性注意事项

www.kaercher.com/REACH

安全提示

www.kaercher.com/REACH

إرشادات السلامة

Black silhouette of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
