USER MANUAL HOC3T3378B WIFI HOOVER

- When you open the door after you have finished shatter.

cooking, a few drops of water may come out of the • The oven must be switched off before removing door. It depends on the type of food you have the removable parts. After cleaning, reassemble cooked. them according the instructions.

- During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

- Cook the vegetables in a container with a lid instead of an open tray.

- Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

- WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

- WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe distance.

- WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

- WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.

- Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.

- Children should not play with the appliance.

- The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

- Cleaning and maintenance should not be carried out by unsupervised children.

- Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass t

• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.

- Only use the meat probe recommended for this oven.

- Do not use a steam cleaner for cleaning operations.

- Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type.

The plug and the socket must be conformed to the current norms of the installation country.

Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

- The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

- If the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.

• Failure to comply with the above can

compromise the safety of the appliance and invalidate the guarantee.

• Any excess of spilled material should be removed before cleaning.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• No additional operation/setting is required in order to operate the appliance at the rated frequencies.

General Instructions

5

1.1 Safety indications
1.2 Electrical safety
1.3 Recommendations
1.4 Installation
1.5 Waste management

Product Description

6

2.1 Overview
2.2 Accessories
2.3 First use

Use of the Oven

7

3.1 Display description
3.2 Cooking modes

Oven Cleaning and Maintenance

10

4.1 General notes on cleaning
4.2 Hydro Easy Clean Function
4.3 Maintenance

• Instruction for removal and cleaning of the side racks
• Removal of the oven window
• Removal and cleaning of the glass door

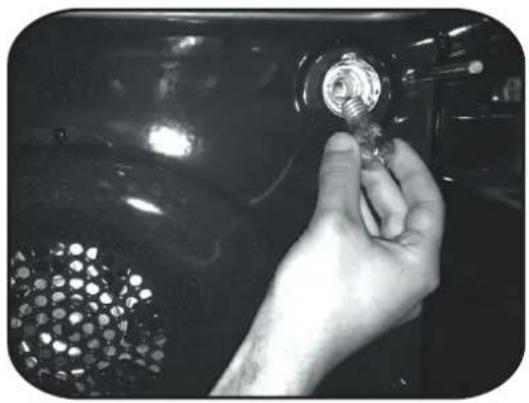

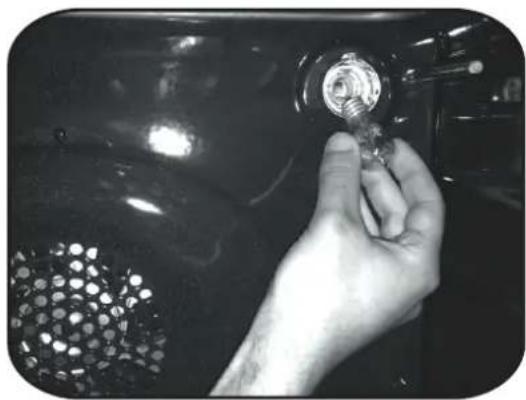

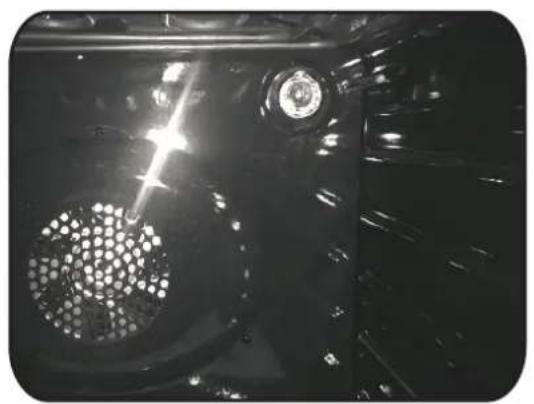

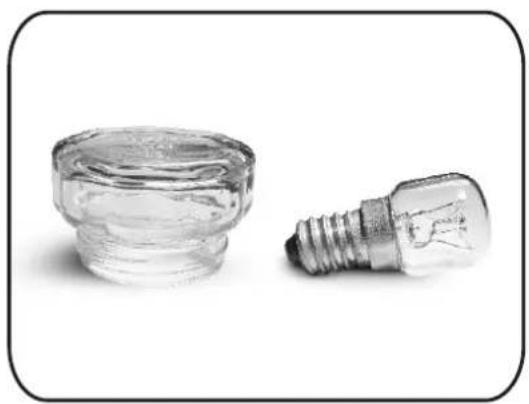

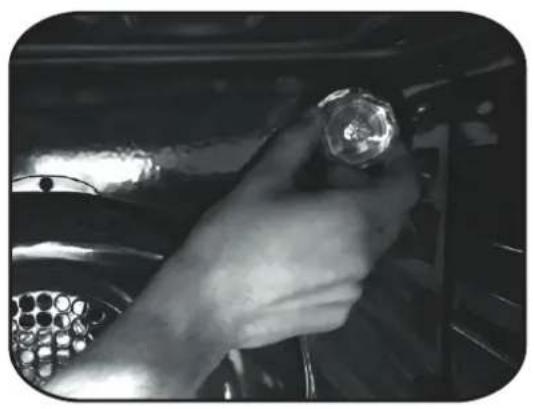

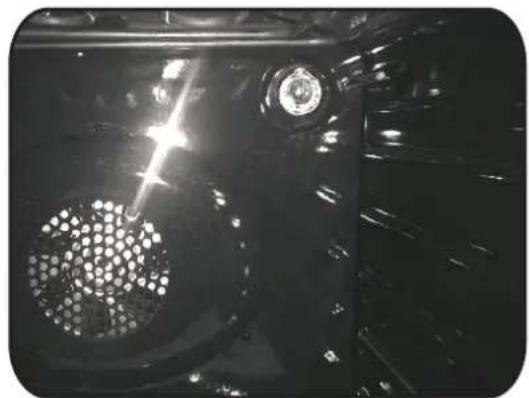

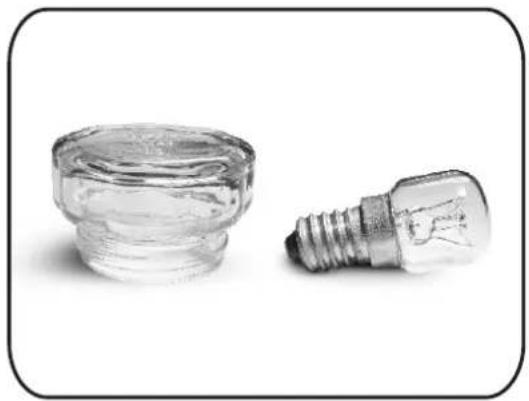

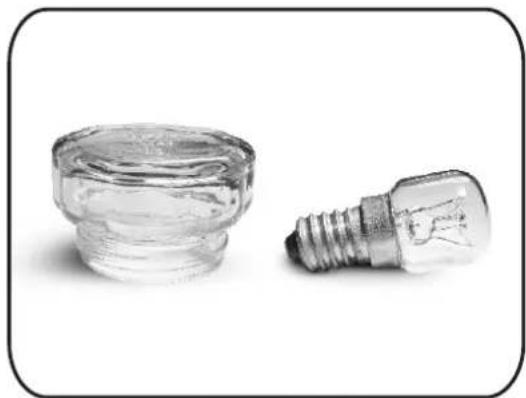

• Changing the bulb

Troubleshooting

12

5.1 F.A.Q.

1. General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed.

NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

Interior view of a modern kitchen appliance with open door and side panel (no visible text or symbols)

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage. The use of any electrical appliance implies the observance of some fundamental rules:

• do not pull on the power cable to disconnect the plug from the socket;
• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension cables is not recommended;
• in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

CONNECTION

The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check:

- power voltage indicated on the gauge;

- the setting of the disconnector.

The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply.

WARNING

Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.3 Recommendations

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct con with the hot enamel, risks melting and deteriorating the enamel of the insi

In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

1.4 Installation

The manufacturers have no obligation to carry this out. If the assistance of the oven can be located high in a column or under a worktop. Before fixing, manufacturer is required to rectify faults arising from incorrect installation, you must ensure good ventilation in the oven space to allow proper this assistance is not covered by the guarantee. The installation instructions circulation of the fresh air required for cooling and protecting the internal for professionally qualified personnel must be followed. Incorrect installation parts. Make the openings specified on last page according to the type of may cause harm or injury to people, animals or belongings. The manufacture fitting. cannot be held responsible for such harm or injury.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect or

the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste;

- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs.

When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot.

2. Product Description

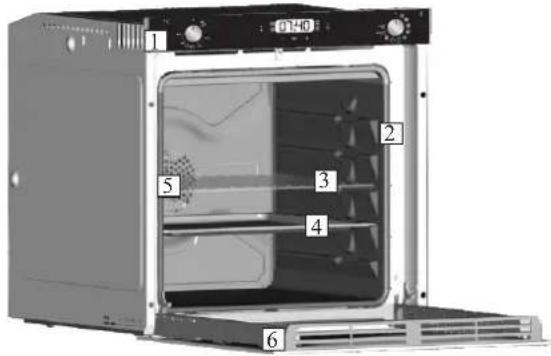

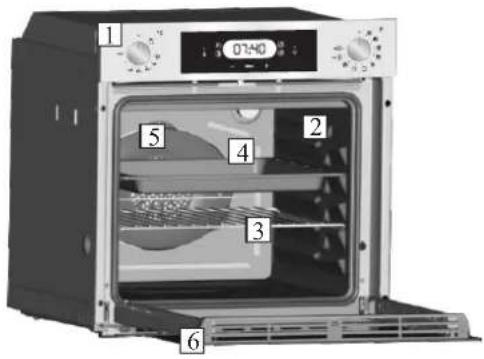

2.1 Overview

07:40 1 2 3 4 5 6

1. Control panel
2. Shelf positions
   (lateral wire grid if included)
3. Metal grill
4. Drip pan
5. Fan (behind the steel plate)
6. Oven door

1 2 3 4 5 6 D140

2.2 Accessories (According to model)

1 Drip pan

3D rendering of a gray rectangular tray or baking tray with cutouts (no text or symbols)

Collects the residues that drip during the cooking of foods on the grills.

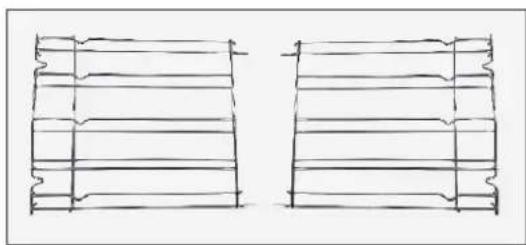

3 Lateral wire grids

Two hand-drawn sketch-style panels showing vertical grid lines, no text or symbols present

It located at both sides of the oven cavity. It holds metal grills and drip pans.

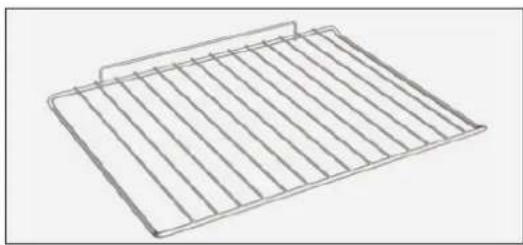

2 Metal grill

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Holds baking trays and plates.

2.3 First Use

PRELIMINARY CLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

3. Use of the Oven (According to model)

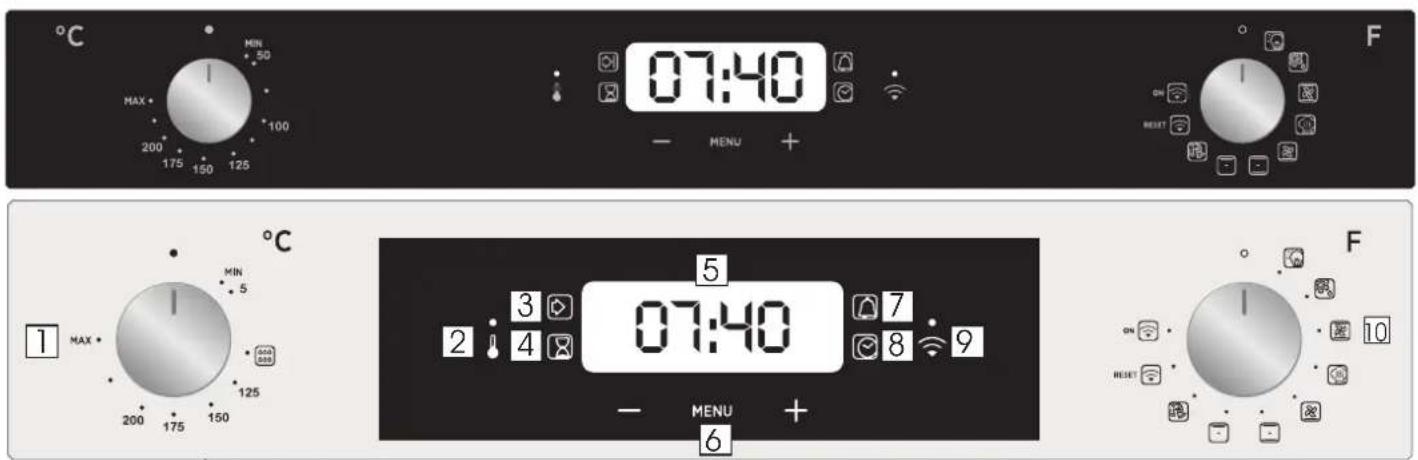

3.1 Display description

07:40 MENU + F 1 MAX * MIN 5 125 200 175 150 °C 5 07:40 2 : 3 7 2 : 4 8 : 9 - MENU + 6 F ON RESET 10

1. Thermostat selector knob
2. Thermostat signal lamp
3. End of cooking
4. Cooking time
5. Temperature or clock display
6. LCD display adjustment controls
7. Minute minder
8. Clock setting
9. Wifi signal lamp
10. Function selector knob

WARNING: the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing 12:00) is setting the correct time. The bottom right LED flashes at the same time( ). This is achieved as follows.

• Set time with buttons."-" "+"
• Push the Menu button or wait 5 seconds than the clock is set.

ATTENTION: The oven will only operate setting the clock

FUNCTION	HOW TO DEAKOWATEUSEIAT IT DOES			NOTE
KEY LOCK	•Child Lock function is activated by touching Set (+) for a minimum of 5 seconds. From this moment on all other function are locked and the display will flash 3 sec intervals STOP and preset time intermittently.	•Child Lock function is deactivated by touching touchpad Set (+) again for a minimum of 5 seconds. From this moment on all functions are selectable again.
MINUTE MINDER	•Push the central button 3 times•Press the buttons "-" "+" to set the required time•Release all the buttons	•When the set time has elapsed, an audible alarm is full stop after activated this alarm will stop on its own, however it can be stopped immediately by pressing any button.	•Sounds an alarm at the end of the set time.•During the process, the display shows the remaining time.	•Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operating the oven)
COOKING TIME	•Select the cooking function with the oven function knob, the temperature you want to cook with the thermostat knob.•Push the central button 1 times•Press the buttons "-" or "+" to set the lenght of cooking required•Release all buttonsNOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.	•Push any button to stop the signal. Push the central button to return to the clock function.	•It allows to preset the cooking time required for the recipe chosen.•To check how long is left to run press the MENU button 1 time.•To alter/change the preset time press MENU and "-" "+" buttons.	•At the end of the program the program gives 3 warning signals and "End" appears on the display.Set the function selector switch to "0" to return to the clock function.
END OF COOKING	•Select the cooking function with the oven function knob, the temperature you want to cook with the thermostat knob.•Push the central button 2 times•Press the buttons "-" "+" to set the time at which you wish the oven to switch off•Release the buttonsNOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.	•At the time set, the oven will switch off. To switch off manually, turn the oven function selector to position O.	•Enables you to set the end of cooking time•To check the preset time push the central button 2 times•To modify the preset time press buttons MENU + "-" "+"	•This function is typically used with "cooking time" function.For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to 12:30.•At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.•Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of-cooking-time, when the oven will switch itself off automatically.

WIRELESS PARAMETERS

Technology	Wi-Fi	Bluetooth
Standard	IEEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401-2483	2402-2480
Maximum Power [mW]	100	10

PRODUCT INFORMATION FOR NETWORKED EQUIPMENT

• Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 W

How to activate wireless network port:

• If the WiFi led blinks it means that the WiFi module is On.
• If already enrolled: turn the knob to WiFi On.
• If not enrolled: follow procedure for enrolling.

How to deactivate wireless network port:

• If the WiFi led is Off it means that the WiFi module is Off.
• If the oven is enrolled: turn the knob to WiFi reset position and then to Off position within 30 sec.
• If the oven is not enrolled WiFi is Off.

Oven enrollment on app

ON THE SMARTPHONE

Step 1

- Download hOn app.

Step 2

- Log in or sign up.

hOn Email Password BEGIN E#RGATE YOUR PASSIFURE SCHN UPZ

Step 3

- Add new appliance

Select your appliance category Washer Dryer Fridge Oven

Step 4

- Scan the QR code or insert the serial number.

Write here your serial number for future reference.

Tell us your appliance serial number You will find your appliance attached to the access. Check your specific details for user when available.

Tell us your appliance serial number Q10 Q20 Q30 Q40 Q50 Q60 Q70 Q80 Q90 Q100 Q110 Q120 Q130 Q140 Q150 Q160 Q170 Q180 Q190 Q200 Q210 Q220 Q230 Q240 Q250 Q260 Q270 Q280 Q290 Q300 Q310 Q320 Q330 Q340 Q350 Q360 Q370 Q380 Q390 Q400 Q410 Q420 Q430 Q440 Q450 Q460 Q470 Q480 Q490 Q500 Q510 Q520 Q530 Q540 Q550 Q560 Q570 Q580 Q590 Q600 Q610 Q620 Q630 Q640 Q650 Q660 Q670 Q680 Q690 Q700 Q710 Q720 Q730 Q740 Q750 Q760 Q770 Q780 Q790 Q800 Q810 Q820 Q830 Q840 Q850 Q860 Q870 Q880 Q890 Q900 Q910 Q920 Q930 Q940 Q950 Q960 Q970 Q980 Q990 O R N E T M A N U A L I Y

ON THE APPLIANCE

Step 5

- Turn the cooking functions knob on a program (No "light" or "0").

ON RESET - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Step 6

- Turn the functions knob to the WI-FI RESET program and wait 30 seconds.

ON RESET

Step 7

- When the WiFi LED starts blinking, you can proceed with pairing within 5 minutes.

Remote control mode

Step 1

- Turn the knob to the WI-FI program.

ON RESET

Step 2

• The WiFi LED switches on.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market). The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

3.2 Cooking Modes

Function Dial	T °CSuggested	T °CRange	Function (Depends on the oven model)
			LAMP: Turns on the oven light.
			DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.
	180	50 ÷ MAX	FAN COOKING: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed. Allow about ten minutes extra when cooking foods at the same time.
*[YYW]	190	50 ÷ MAX	MASTER BAKE: This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result.
[SW72]	210	50 ÷ MAX	FAN + LOWER ELEMENT: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position.
*[HAAA]	220	50 ÷ MAX	CONVENTIONAL: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.
	230	50 ÷ MAX	GRILL: use the grill with the door closed.The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W
	220	50 ÷ MAX	PIZZA: With this function hot air circulated in the oven to ensure perfect result for dishes such as pizza or cake.
—[WBYX]			WIFI ON: Oven allows wifi connection.
[TXBW]			WIFI RESET: It allows wifi connection to be restarted.

* Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia).

GLASS PARTS

It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

OVEN WINDOW SEAL

If dirty, the seal can be cleaned with a slightly damp sponge.

ACCESSORIES

Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents.

DRIP PAN

After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid.

If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercial oven detergent. Never put a dirty pan back into the oven.

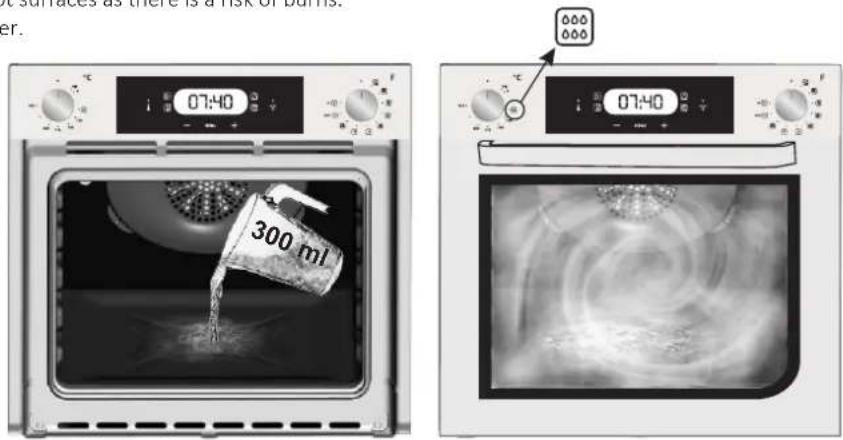

4.2 Hydro Easy Clean Function

The procedure uses steam to help remove remaining fat and food particles from the oven. HYDRO EASY CLEAN

1. Pour 300 ml of water into the container at the bottom of the oven. HYDRO EASY CLEAN

2. Set the oven function to Static (-) or Bottom (.) heater

3. Set the temperature to the icon HYDRO EASY CLEMN

4. Allow the program to operate for 30 minutes.

5. After 30 minutes switch off the program and allow the oven to cool down.

6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning: Make sure that the appliance is cool before you touch it.

Care must be taken with all hot surfaces as there is a risk of burns.

Use distilled or drinkable water.

07:40 300 ml 07:40

4.3 Maintenance

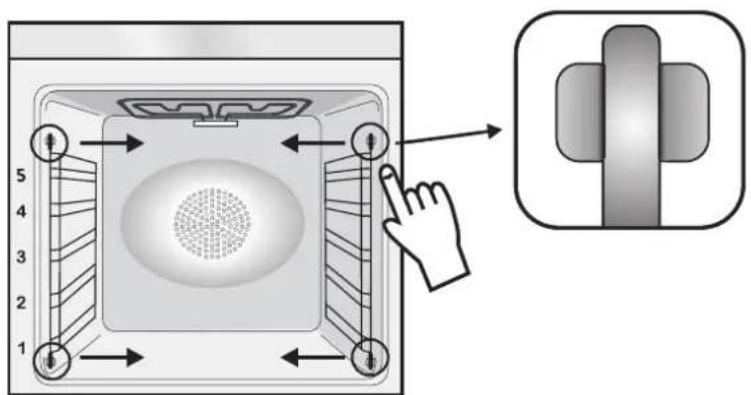

INSTRUCTION FOR REMOVAL AND CLEANING OF THE SIDE RACKS

1. Remove the wire racks by pulling them in the direction of the arrows (see below)
2. To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the wire racks in reverse order.

Diagram showing a device with numbered components and a hand interacting with a button, alongside a close-up of the button's view.

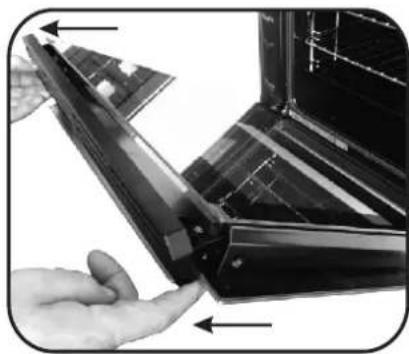

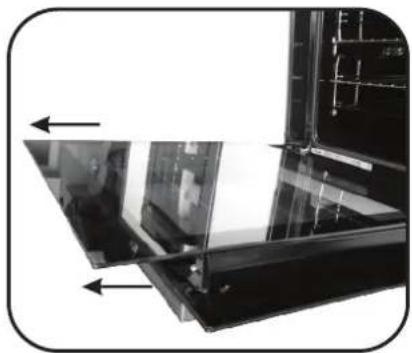

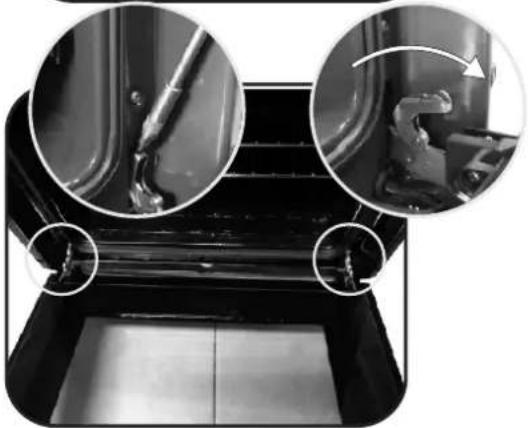

REMOVAL OF THE OVEN WINDOW

1. Open the front window.
2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them downwards.
3. Replace the window by carrying out the procedure in reverse.

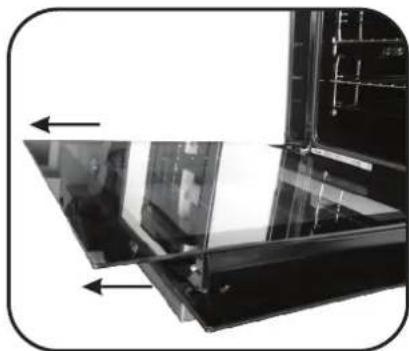

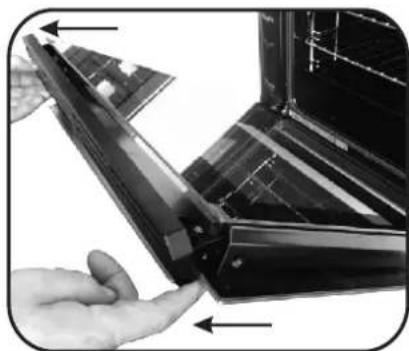

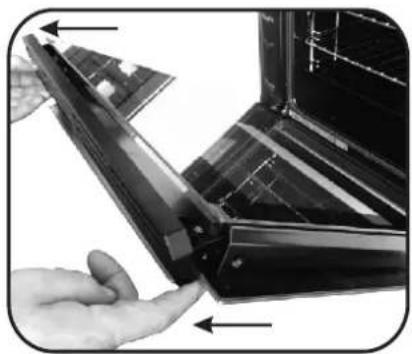

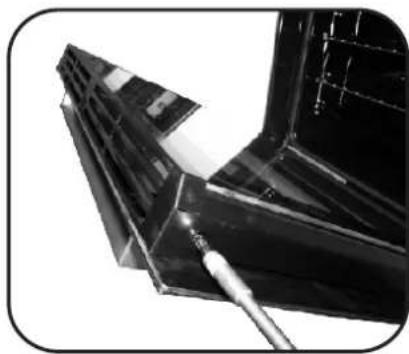

REMOVAL AND CLEANING OF THE GLASS DOOR

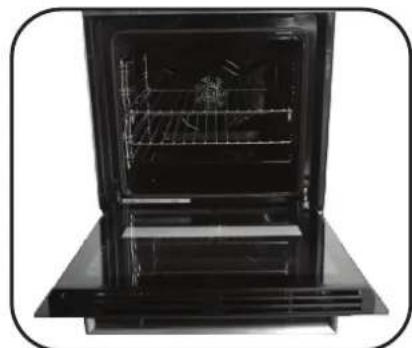

1. Open the oven door.

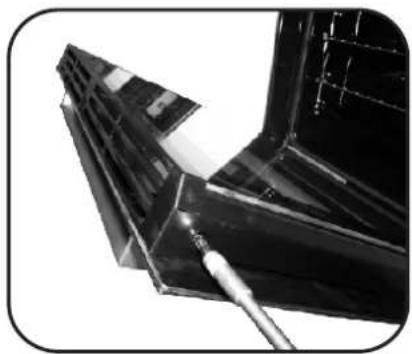

   2.3.4. Lock the hinges, remove the screws and remove the upper metal cover by pulling it upwards.

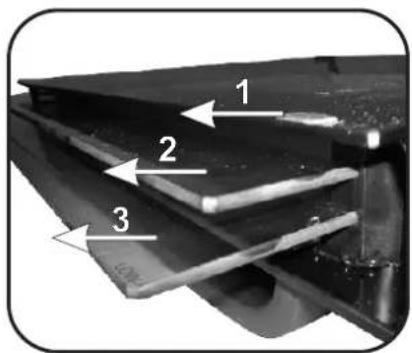

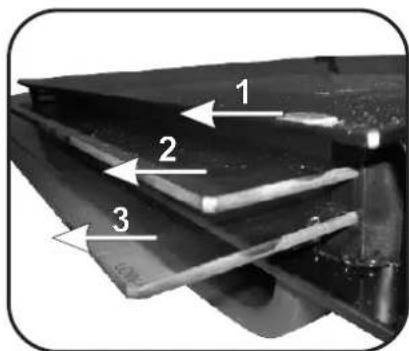

   5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the second and third glass (if present)).
2. At the end of cleaning or substitution, reassemble the parts in reverse order.

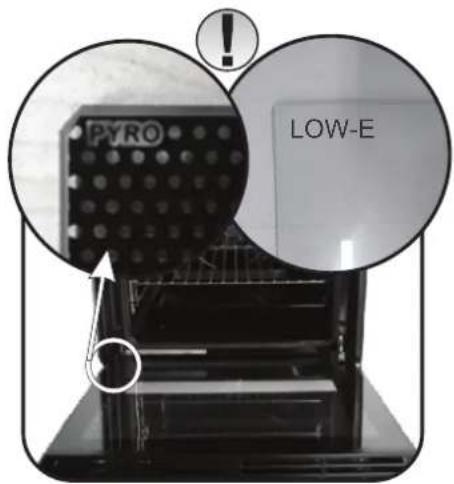

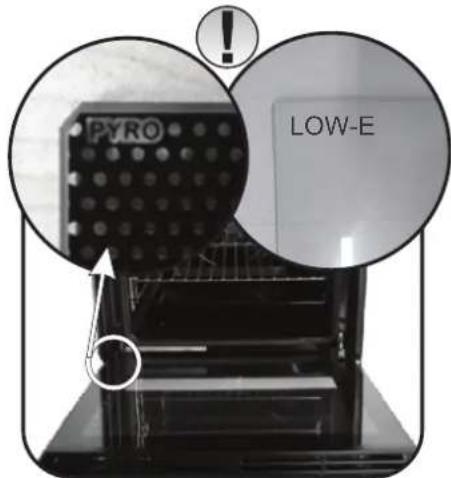

On all glass, the indication "Low-E" must be legible and positioned on the left side of the door, close to the left-hand lateral hinge. In this way, the printed label of the first glass will be inside the door.

1.

Interior view of a black oven with open door and side panel (no visible text or symbols)

1.

Close-up of a glass panel with arrows indicating direction, no visible text or symbols

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved tool (no text or symbols visible)

1.

1 2 3

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic component into a dark plastic housing (no text or symbols visible)

CHANGING THE BULB

1. Disconnect the oven from the mains supply.
2. Undo the glass cover, unscrew the bulb and replace it with a new bulb of the same type.
3. Once the defective bulb is replaced, replace the glass cover.

Close-up of a hand holding a flashlight inside a vehicle engine compartment (no visible text or symbols)

Close-up of a hand holding a small metallic tool with a grid-patterned surface, against a dark glossy background (no text or symbols visible)

Close-up of a car's front wheel and dashboard with visible light and structural details (no text or symbols)

Two small glass components: a cylindrical container and a standard incandescent light bulb, both on a plain background (no text or symbols visible)

5. Troubleshooting

5.1 FAQ

PROBLEM POSSIBLE CAUSE SOLUTION
The oven does not heat up	The clock is not set Set the clock
The oven does not heat up	A cooking function and temperature has not been set	Ensure that the necessary settings are correct
No reaction of the touch user interface	Steam and condensation on the user interface panel	Clean with a microfiber cloth the user interface panel to remove the condensation layer

Exterior view of a modern office building (no signage)

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Two hand-drawn sketch-style panels showing vertical grid lines, no text or symbols present

Line drawing of a rectangular metal grate or rack structure (no text or symbols)

Select your appliance category Washer Dryer Fridge Ovon

Étape 7

Tell us your appliance serial number We will find your serial number attached to the accession. Check your specific reader to home where I found it. OK FOUND

Tell us your appliance serial number OR INSERT MANUALLY

Diagram showing a 3D device with labeled dimensions and a hand interacting with a button, alongside a close-up of the button's view.

RETRAIT DE LA PORTE DU FOUR

Interior view of a black oven with visible internal structure and ventilation grilles (no text or symbols)

1.

Close-up of a glass panel with arrows indicating direction, no visible text or symbols

1.

Close-up of mechanical components with circular insets showing close-ups of parts (no visible text or symbols)

1.

1 2 3

1.

Close-up of a metallic tool interacting with a dark metal bracket (no visible text or symbols)

1.

PYRO LOW-E

1.

Close-up of a hand inserting a plastic clip into a black metal frame (no text or symbols visible)

REMPLACEMENT DE L'AMPOULE

Close-up of a hand holding a flashlight inside a vehicle engine compartment (no visible text or symbols)

Close-up of a hand holding a small metallic tool with a grid-patterned surface, against a dark glossy background (no text or symbols visible)

Close-up of a mechanical component with a circular perforated part and a central head (no visible text or symbols)

Two small glass components: a cylindrical container and a standard incandescent light bulb, both on a plain background (no text or symbols visible)

5. Dépannage

5.1 FAQ

Exterior view of a modern container with lid open, showing internal compartments and exterior structure (no visible text or symbols)

3D rendering of a gray rectangular tray or tray with side brackets (no text or symbols)

Two hand-drawn sketch-style panels showing vertical grid lines with wavy edges, no text or symbols present

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Select your appliance category Washer Dryer Fridge Oven

Fase 4

Tell us your appliance serial number You will first your serial number attached to the system. Check your specific needs to have where to break. OK FOUND

Tell us your appliance serial number SCAN How to the QRT code serial number The QRT code is automatically distributed at the planar within the guidelines. OR RIGER HANABILLY

SULL'ELETTRODOMESTICO

Fase 5

ON RESET OK OK OK OK

Fase 6

Diagram illustrating a door mechanism with numbered positions and directional arrows, including a hand icon pointing to the button.

RIMOZIONE DELLO SPORTELLO DEL FORNO

Interior view of a black oven with visible internal structure and ventilation grilles (no text or symbols)

1.

Close-up of a glass panel with arrows indicating direction, no visible text or symbols

1.

Close-up of mechanical components with circular insets showing close-ups of parts (no visible text or symbols)

1.

1 2 3

1.

Close-up of a metallic tool interacting with a dark metal bracket (no visible text or symbols)

1.

PYRO LOW-E

1.

Close-up of a hand inserting a plastic clip into a black metal panel (no text or symbols visible)

Close-up of a hand holding a flashlight inside a vehicle engine compartment (no visible text or symbols)

Close-up of a hand holding a small metallic tool with a grid-patterned surface, against a dark glossy background (no text or symbols visible)

Close-up of a mechanical component with a circular perforated part and a central head (no visible text or symbols)

Two small glass components: a cylindrical container and a standard incandescent light bulb, both on a plain background (no text or symbols visible)

Exterior view of a modern office building (no signage)

3D rendering of a gray rectangular tray with side brackets (no text or symbols)

Two hand-drawn sketch-style grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

How to deactivate wireless network port:

Select your appliance category Washer Dryer Fridge Oven

Schritt 7

Tell us your appliance serial number You will find your serial number to check your application. Check your specific details to these where to find it. OK FOUND

Tell us your appliance serial number Q100 Q200 Q300 Q400 Q500 Q600 Q700 Q800 Q900 Q1000 Q1100 Q1200 Q1300 Q1400 Q1500 Q1600 Q1700 Q1800 Q1900 Q2000 Q2100 Q2200 Q2300 Q2400 Q2500 Q2600 Q2700 Q2800 Q2900 Q3000 Q3100 Q3200 Q3300 Q3400 Q3500 Q3600 Q3700 Q3800 Q3900 Q4000 Q4100 Q4200 Q4300 Q4400 Q4500 Q4600 Q4700 Q4800 Q4900 Q5000 Q5100 Q5200 Q5300 Q5400 Q5500 Q5600 Q5700 Q5800 Q5900 Q6000 Q6100 Q6200 Q6300 Q6400 Q6500 Q6600 Q6700 Q6800 Q6900 Q7000 Q7100 Q7200 Q7300 Q7400 Q7500 Q7600 Q7700 Q7800 Q7900 Q8000 Q8100 Q8200 Q8300 Q8400 Q8500 Q8600 Q8700 Q8800 Q8900 Q9000 Q9100 Q9200 Q9300 Q9400 Q9500 Q9600 Q9700 Q9800 Q9900 Q100

Fernsteuerungsmodus

Schritt 1

Diagram showing a 3D panel with numbered positions and a hand interacting with a button, alongside a close-up of the button's view.

ENTFERNEN DES BACKOFENFENSTERS

Interior view of a black oven with open door and side panel (no visible text or symbols)

1.

Close-up of a glass panel with arrows indicating direction, no visible text or symbols

1.

Close-up of a mechanical component with three circular insets showing internal details (no visible text or symbols)

1.

1 2 3

1.

Close-up of a mechanical component with a tool inserted, showing no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a black plastic clip into a dark metal frame (no text or symbols visible)

WECHSELN DER GLÜHBIRNE

Close-up of a hand holding a flashlight inside a vehicle engine compartment (no visible text or symbols)

Close-up of a hand holding a small metallic tool with a grid-patterned surface, against a dark glossy background (no text or symbols visible)

Close-up of a car's front wheel and dashboard with visible light and mechanical components (no text or symbols)

Two small glass components: a cylindrical container and a standard incandescent light bulb, both on a plain background (no text or symbols visible)

5. Fehlerbehebung

Exterior view of a modern kitchen appliance with open door and ventilation slots (no visible text or symbols)

3D rendering of a gray rectangular tray or baking tray with no text or symbols visible

Two hand-drawn sketch-style panels showing vertical and horizontal lines, no text or symbols present

Line drawing of a rectangular grid structure with vertical lines, no text or symbols present

hOn Email Password MUSTP SOMewhat Your Password? SIGN UP?

Stap 3

Select your appliance category Washer Dryer Fridge Oven

Stap 4

Tell us your appliance serial number You will find your serial number attachment the instance. Check your specific needs to be where you call it. OK FOUND

Tell us your appliance serial number © NO. 2016 © NO. 2017 © NO. 2018 © NO. 2019 © NO. 2020 © NO. 2021 © NO. 2022 © NO. 2023 © NO. 2024 © NO. 2025 © NO. 2026 © NO. 2027 © NO. 2028 © NO. 2029 © NO. 2030 © NO. 2031 © NO. 2032 © NO. 2033 © NO. 2034 © NO. 2035 © NO. 2036 © NO. 2037 © NO. 2038 © NO. 2039 © NO. 2040 © NO. 2041 © NO. 2042 © NO. 2043 © NO. 2044 © NO. 2045 © NO. 2046 © NO. 2047 © NO. 2048 © NO. 2049 © NO. 2050 © NO. 2051 © NO. 2052 © NO. 2053 © NO. 2054 © NO. 2055 © NO. 2056 © NO. 2057 © NO. 2058 © NO. 2059 © NO. 2060 © NO. 2061 © NO. 2062 © NO. 2063 © NO. 2064 © NO. 2065 © NO. 2066 © NO. 2067 © NO. 2068 © NO. 2069 © NO. 2070 © NO. 2071 © NO. 2072 © NO. 2073 © NO. 2074 © NO. 2075 © NO. 2076 © NO. 2077 © NO. 2078 © NO. 2079 © NO. 2080 © NO. 2081 © NO. 2082 © NO. 2083 © NO. 2084 © NO. 2085 © NO. 2086 © NO. 2087 © NO. 2088 © NO. 2089 © NO. 2090 © NO. 2091 © NO. 2092 © NO. 2093 © NO. 2094 © NO. 2095 © NO. 2096 © NO. 2097 © NO. 2098 © NO. 2099 © NO. 2100

OP HET APPARAAT

Stap 5

Diagram showing a door mechanism with numbered positions and a hand interacting with the door, alongside a close-up of the door handle.

VERWIJDEREN EN REINIGEN VAN DE ZIJLINGSE ROOSTERS

Interior view of a black oven with open door and side panel (no visible text or symbols)

1.

Close-up of a glass panel with arrows indicating direction, no visible text or symbols

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved tool (no text or symbols visible)

1.

1 2 3

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic component into a dark electronic device (no visible text or symbols)

HET LAMPJE VERVANGEN

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic tool with a circular component, against a dark background (no visible text or symbols)

Close-up of a mechanical component with a perforated circular feature and a central hub, under bright light (no visible text or symbols)

Two small glass components: a cylindrical container and a standard incandescent light bulb, both on a plain background (no text or symbols visible)

5. Problemen oplossen

5.1 FAQ

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

FR
